The document provides details on the construction materials and assemblies for various walls and building sections of a multi-use building project. It includes specifications for the decking, roofing, exterior walls, and interior partition walls. Materials listed include composite decking, plywood sheathing, fiber cement panels, batt insulation, gypsum board and more. Standard wall types are defined along with their layering of materials and dimensions.

1. ABCDE 19' - 0"16' - 0"16' - 0"18' - 11"
RAILING
COMPOSITE DECK ON 2X2 SLEEPER ON
WATERPROOF MEMBRANE
ON 3/4" PLYWOOD SHEETHING ON TJI PER
ENGINEER W/ R-38 MIN. BATT. INSUL.
ON VAPOR BARRIER ON 1/2" GYP. BOARD
WOOD FLOORING ON 3/4' PLW. SHEATH.
ON TJI PER ENGINEER ON VAPOR BARRIER
ON 5/8 GYP. BOARD
CEDAR LOOVERS
CEDAR LOOVERS
TYP. CURTAIN WALL
4" CONC. SLAB ON GRADE ON SAND & GRAVEL BASE
FIBER CEMENT PANEL ON 1" AIR SPACE/ FURRING
ON WATERPROOF MEMBRANE ON 3/4' PLYW.
SHEATH. ON (2) 2X4 STUD WALL @ 24' O.C. FILLED
W/ INSUL. ON VAPOR BARRIER ON 5/8" GYP. BOARD
TYP. INT. WALL
BUSINESS SIGNAGE
HEAT
PUMP
5
7
7
EXT. PT CEDAR 1X8 VERT. SIDING OVER WATERPROOF MEMBRANE
OVER 5/8 SHEATH. OVER STAGGERED (2) 2X4 STUDS @ 24" O.C. ON 2X8
SILL PLATE W/ BATT INSUL. OVER 1/2" GYP.
EXT. - (SEE PATTERN @ ELEVATIONS) EQUITONE FIBER CEMENT PANELS
OVER WOOD FURRING OVER OVER WATERPROOF MEMBRANE OVER 5/8
PDX SHEATH. OVER STAGGERED (2) 2X4 STUDS @ 24" O.C. ON 2X8 SILL
PLATE W/ BATT INSUL. OVER 1/2" GYP.
EXT. - (SEE PATTERN @ ELEVATIONS) EQUITONE FIBER CEMENT
PANELS OVER WOOD FURRING OVER OVER WATERPROOF MEMBRANE
OVER 5/8 PDX SHEATH. OVER STAGGERED (2) 2X4 STUDS @ 24" O.C. ON
2X8 SILL PLATE W/ BATT INSUL. OVER 1/2" GYP.
EXT. - (SEE PATTERN @ ELEVATIONS) EQUITONE FIBER CEMENT
PANELS OVER WOOD FURRING OVER OVER WATERPROOF MEMBRANE
OVER 5/8 PDX SHEATH. OVER STAGGERED (2) 2X4 STUDS @ 24" O.C. ON
2X8 SILL PLATE W/ BATT INSUL. OVER 1/2" GYP.
INT. - 6" ACOUSTIC PARTITION: GYP OVER 3/4 METAL DECK OVER 2X4
STUD @ 16" WITH BATT. INSUL. OVER 3/4 METAL DECK OVER GYP
INT. - 6" PLUMBING PARTITION: 1/2" GYP OVER 2X5 STUD @ 16" OVER
1/2" GYP
INT. - 4 1/2" PARTITION: 1/2" GYP OVER 2X4 STUD @ 16" OVER 1/2" GYP
1
2
3
4
5
6
7
www.autodesk.com/revit
Scale
Project number
Date
Drawn by
Checked by
Consultant
Address
Address
Phone
Fax
e-mail
Consultant
Address
Address
Phone
Fax
e-mail
Consultant
Address
Address
Phone
Fax
e-mail
Consultant
Address
Address
Phone
Fax
e-mail
Consultant
Address
Address
Phone
Fax
e-mail
As indicated
3/14/20162:27:41PM
A4

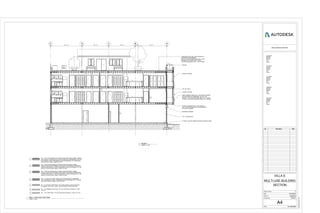

SECTION
7
MULTI-USE BUILDING
VILLA E
3/14/2016
M.BERG
D.ROY
No. Description Date
3/16" = 1'-0"
1
Section 1
1/4" = 1'-0"
WALL TYPES SECTION VIEW
