The document discusses algorithms for combating web spam, including TrustRank and Hilltop. TrustRank computes a static trust score for pages based on the trustworthiness of inbound links. Hilltop identifies expert pages on a topic and ranks target pages based on links from relevant experts. It detects expert pages by those that link to many distinct, non-affiliated pages on a topic. Target scores reflect links from relevant experts and key phrases in those links. The algorithms are evaluated based on precision, recall, and pairwise ordering of results.

1. Anti-spam Algorithm TrustRank 、 Hilltop 954203041 林裕得 954203057 蔡繼正

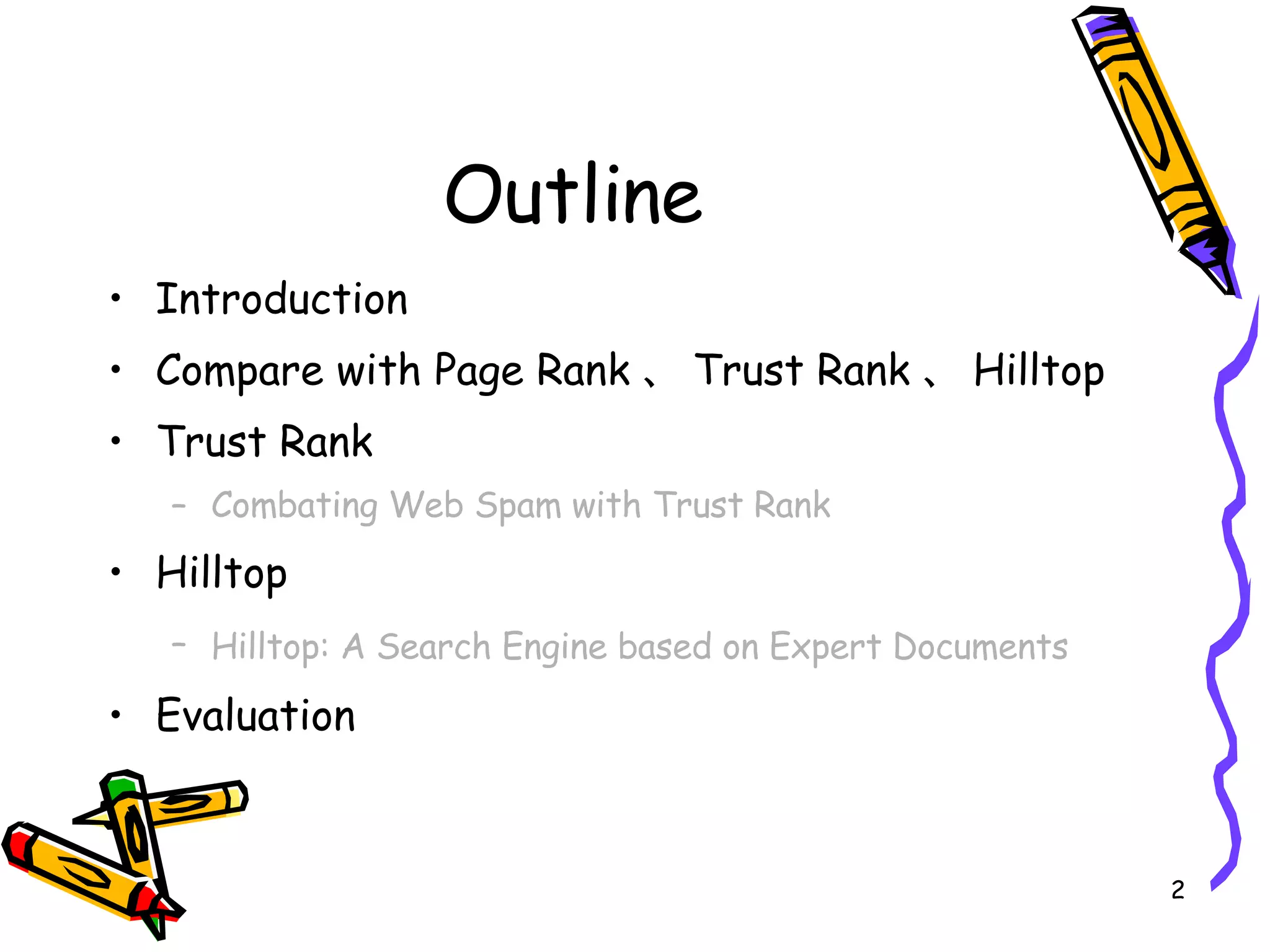

2. Outline Introduction Compare with Page Rank 、 Trust Rank 、 Hilltop Trust Rank Combating Web Spam with Trust Rank Hilltop Hilltop: A Search Engine based on Expert Documents Evaluation

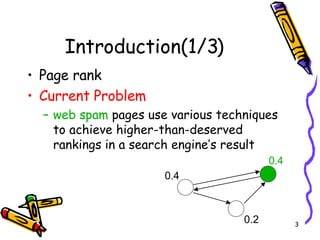

3. Introduction(1/3) Page rank Current Problem web spam pages use various techniques to achieve higher-than-deserved rankings in a search engine’s result 0.4 0.4 0.2

4. Introduction(2/3) Type of web spam Content spam Hidden or invisible text Keyword stuffing Meta tag stuffing Link spam Link farms Hidden links Other types Mirror websites URL redirection

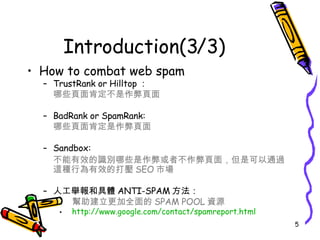

5. Introduction(3/3) How to combat web spam TrustRank or Hilltop ： 哪些頁面肯定不是作弊頁面 BadRank or SpamRank: 哪些頁面肯定是作弊頁面 Sandbox: 不能有效的識別哪些是作弊或者不作弊頁面，但是可以通過這種行為有效的打壓 SEO 市場 人工舉報和具體 ANTI-SPAM 方法： 幫助建立更加全面的 SPAM POOL 資源 http:// www.google.com/contact/spamreport.html

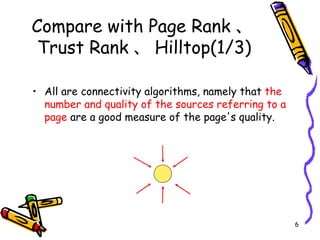

6. Compare with Page Rank 、 Trust Rank 、 Hilltop(1/3) All are connectivity algorithms, namely that the number and quality of the sources referring to a page are a good measure of the page's quality.

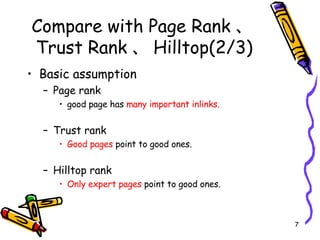

7. Compare with Page Rank 、 Trust Rank 、 Hilltop(2/3) Basic assumption Page rank good page has many important inlinks. Trust rank Good pages point to good ones. Hilltop rank Only expert pages point to good ones.

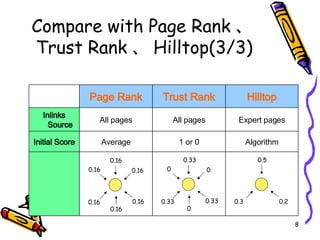

8. Compare with Page Rank 、 Trust Rank 、 Hilltop(3/3) 0.16 0.16 0.16 0.16 0.16 0.16 0.33 0 0.33 0 0.33 0 0.5 0.2 0.3 Algorithm 1 or 0 Average Initial Score Expert pages All pages All pages Inlinks Source Hilltop Trust Rank Page Rank

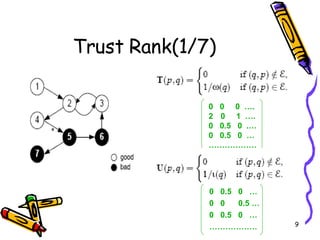

9. Trust Rank(1/7) 0 0 0 …. 0 1 …. 0 0.5 0 .… 0 0.5 0 … ……………… 0 0.5 0 … 0 0 0.5 … 0 0.5 0 … ………………

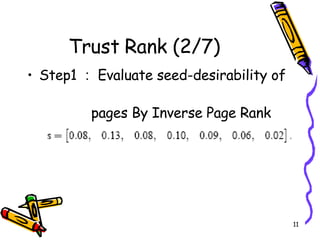

11. Trust Rank (2/7) Step1 ： Evaluate seed-desirability of pages By Inverse Page Rank

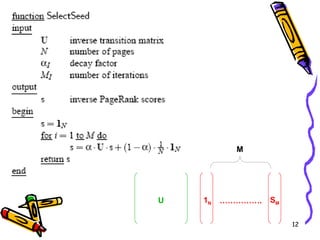

12. U S M 1 N …………… . M

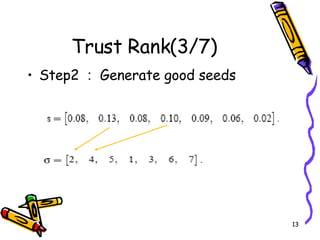

13. Trust Rank(3/7) Step2 ： Generate good seeds

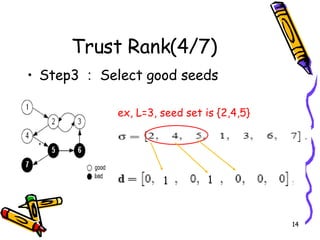

14. Trust Rank(4/7) Step3 ： Select good seeds ex, L=3, seed set is {2,4,5}

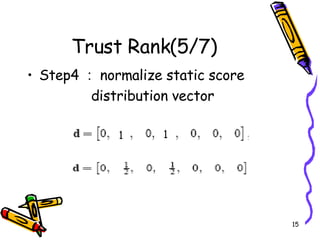

15. Trust Rank(5/7) Step4 ： normalize static score distribution vector

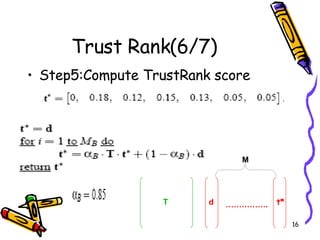

16. Trust Rank(6/7) Step5:Compute TrustRank score T d t* …………… . M

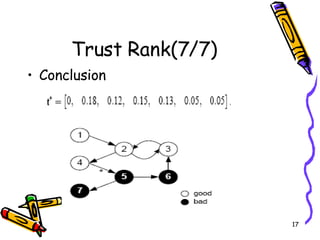

17. Trust Rank(7/7) Conclusion

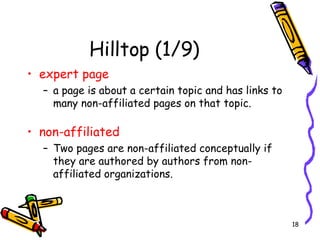

18. Hilltop (1/9) expert page a page is about a certain topic and has links to many non-affiliated pages on that topic. non-affiliated Two pages are non-affiliated conceptually if they are authored by authors from non-affiliated organizations.

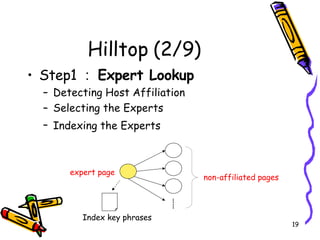

19. Hilltop (2/9) Step1 ： Expert Lookup Detecting Host Affiliation Selecting the Experts Indexing the Experts non-affiliated pages expert page …… Index key phrases

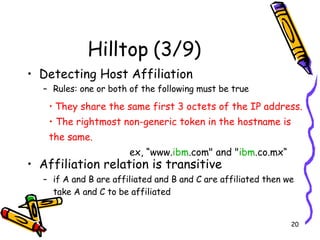

20. Hilltop (3/9) Detecting Host Affiliation Rules: one or both of the following must be true Affiliation relation is transitive if A and B are affiliated and B and C are affiliated then we take A and C to be affiliated They share the same first 3 octets of the IP address. The rightmost non-generic token in the hostname is the same. ex, “www. ibm .com" and " ibm .co.mx“

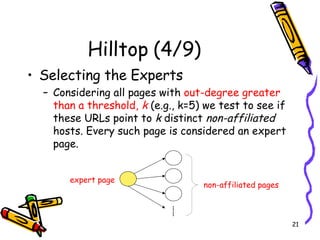

21. Hilltop (4/9) Selecting the Experts Considering all pages with out-degree greater than a threshold, k (e.g., k=5) we test to see if these URLs point to k distinct non-affiliated hosts. Every such page is considered an expert page. non-affiliated pages expert page ……

22. Hilltop (5/9) Indexing the Experts index text contained within &quot; key phrases &quot; of the expert. The following are considered key phrases. title headings (e.g., <H1> </H1> tags) anchor text A key phrase is a piece of text that qualifies one or more URLs in the page. And every key phrase has a scope with the document text.

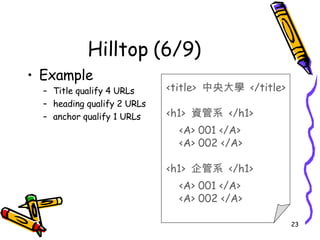

23. Hilltop (6/9) Example Title qualify 4 URLs heading qualify 2 URLs anchor qualify 1 URLs <title> 中央大學 </title> <h1> 資管系 </h1> <A> 001 </A> <A> 002 </A> <h1> 企管系 </h1> <A> 001 </A> <A> 002 </A>

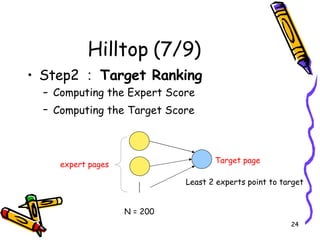

24. Hilltop (7/9) Step2 ： Target Ranking Computing the Expert Score Computing the Target Score Target page expert pages N = 200 …… Least 2 experts point to target

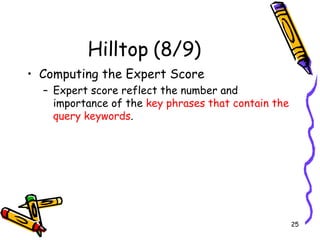

25. Hilltop (8/9) Computing the Expert Score Expert score reflect the number and importance of the key phrases that contain the query keywords .

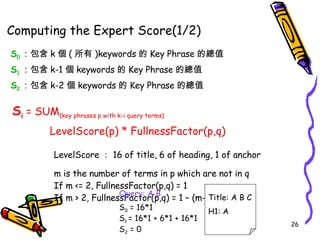

26. Computing the Expert Score(1/2) S 0 ：包含 k 個 ( 所有 )keywords 的 Key Phrase 的總值 S 1 ：包含 k-1 個 keywords 的 Key Phrase 的總值 S 2 ：包含 k-2 個 keywords 的 Key Phrase 的總值 S i = SUM (key phrases p with k-i query terms) LevelScore(p) * FullnessFactor(p,q) LevelScore ： 16 of title, 6 of heading, 1 of anchor m is the number of terms in p which are not in q If m <= 2, FullnessFactor(p,q) = 1 If m > 2, FullnessFactor(p,q) = 1 – (m-2) / plen Query: A B S 0 = 16*1 S 1 = 16*1 + 6*1 + 16*1 S 2 = 0 Title: A B C H1: A

27. Computing the Expert Score(2/2) S 0 ：包含 k 個 ( 所有 )keywords 的 Key Phrase 的總值 S 1 ：包含 k-1 個 keywords 的 Key Phrase 的總值 S 2 ：包含 k-2 個 keywords 的 Key Phrase 的總值 Expert_Score = ( 2 32 * S 0 ) + ( 2 16 * S 1 ) + S 2

28. Hilltop(9/9) Computing the Target Score Target score reflect both the number and relevance of the experts pointing to it And the relevance of the phrases qualifying the links .

29. Computing the Target Score(1/2) occ(w,T) is the number of distinct key phrases in E that contain w and qualify the edge(E,T) If occ(w,T) is 0 for any query keyword then the Edge_Score(E,T) = 0 Otherwise, Edge_Score(E,T) = Expert_Score(E) * SUM (query keywords w) occ(w,T) T E edge

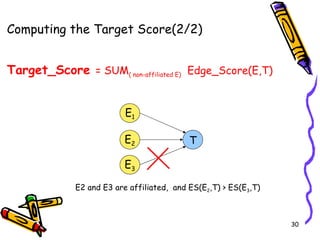

30. Computing the Target Score(2/2) Target_Score = SUM ( non-affiliated E) Edge_Score(E,T) T E 1 E 2 E 3 E2 and E3 are affiliated, and ES(E 2 ,T) > ES(E 3 ,T)

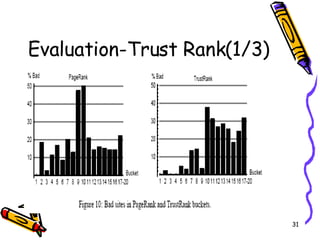

31. Evaluation-Trust Rank(1/3)

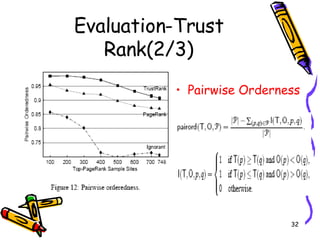

32. Evaluation-Trust Rank(2/3) Pairwise Orderness

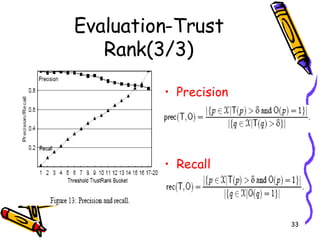

33. Evaluation-Trust Rank(3/3) Precision Recall

34. Evaluation-Hilltop(1/2) Precision

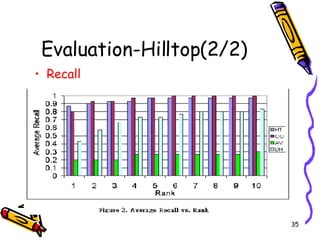

35. Evaluation-Hilltop(2/2) Recall

36. Reference Combating Web Spam with Trust Rank http://www.vldb.org/conf/2004/RS15P3.PDF Hilltop: A Search Engine based on Expert Documents http://www.cs.toronto.edu/~georgem/hilltop/ Type of web spam http:// en.wikipedia.org/wiki/Spamdexing
