SlideShare a Scribd company logo

Answer key final exam statics

•Download as PPTX, PDF•
•
C
CharltonInao1

final exams in statics

Engineering
1 of 14
Final Exam

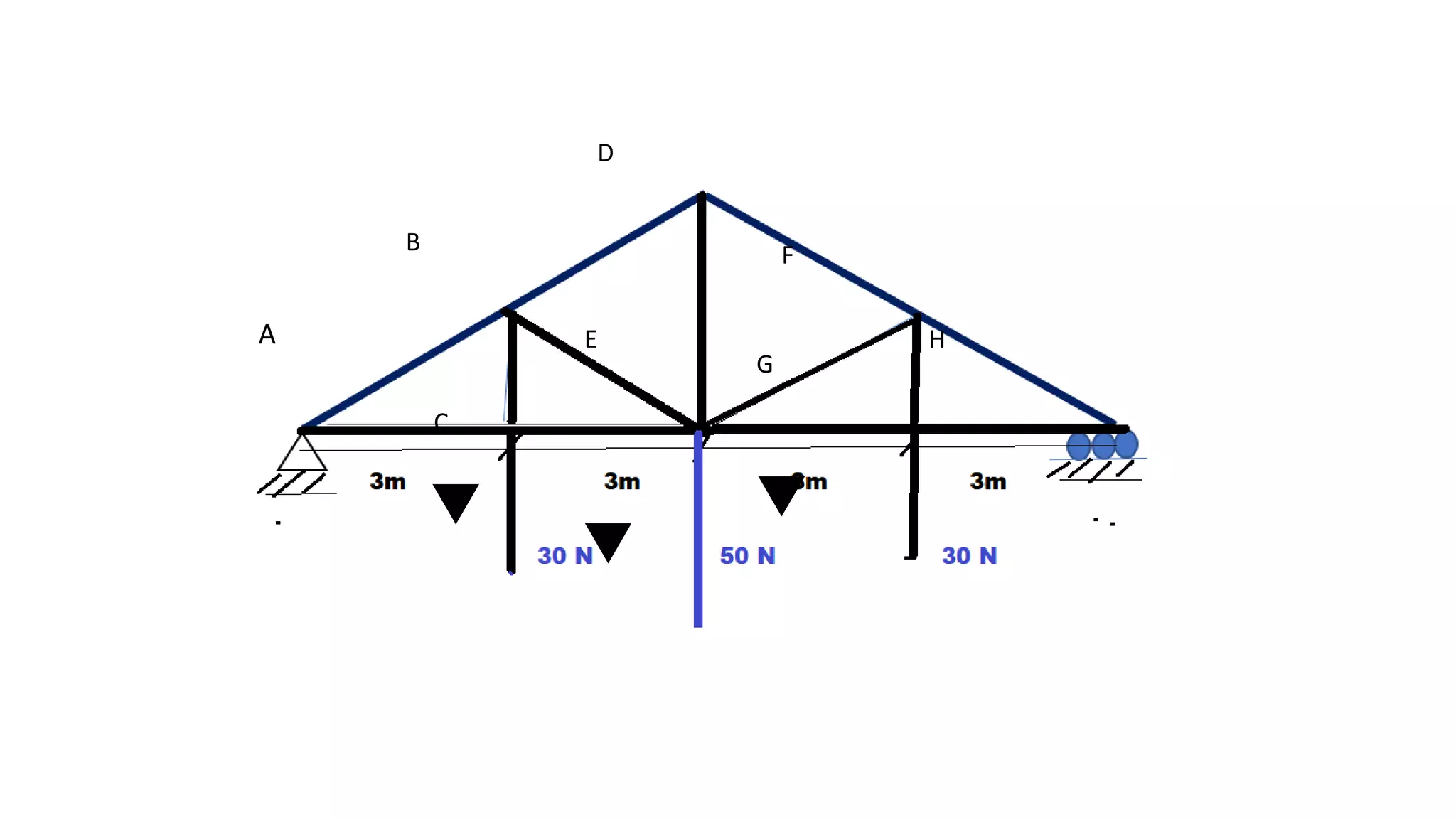

A B C D E F G H

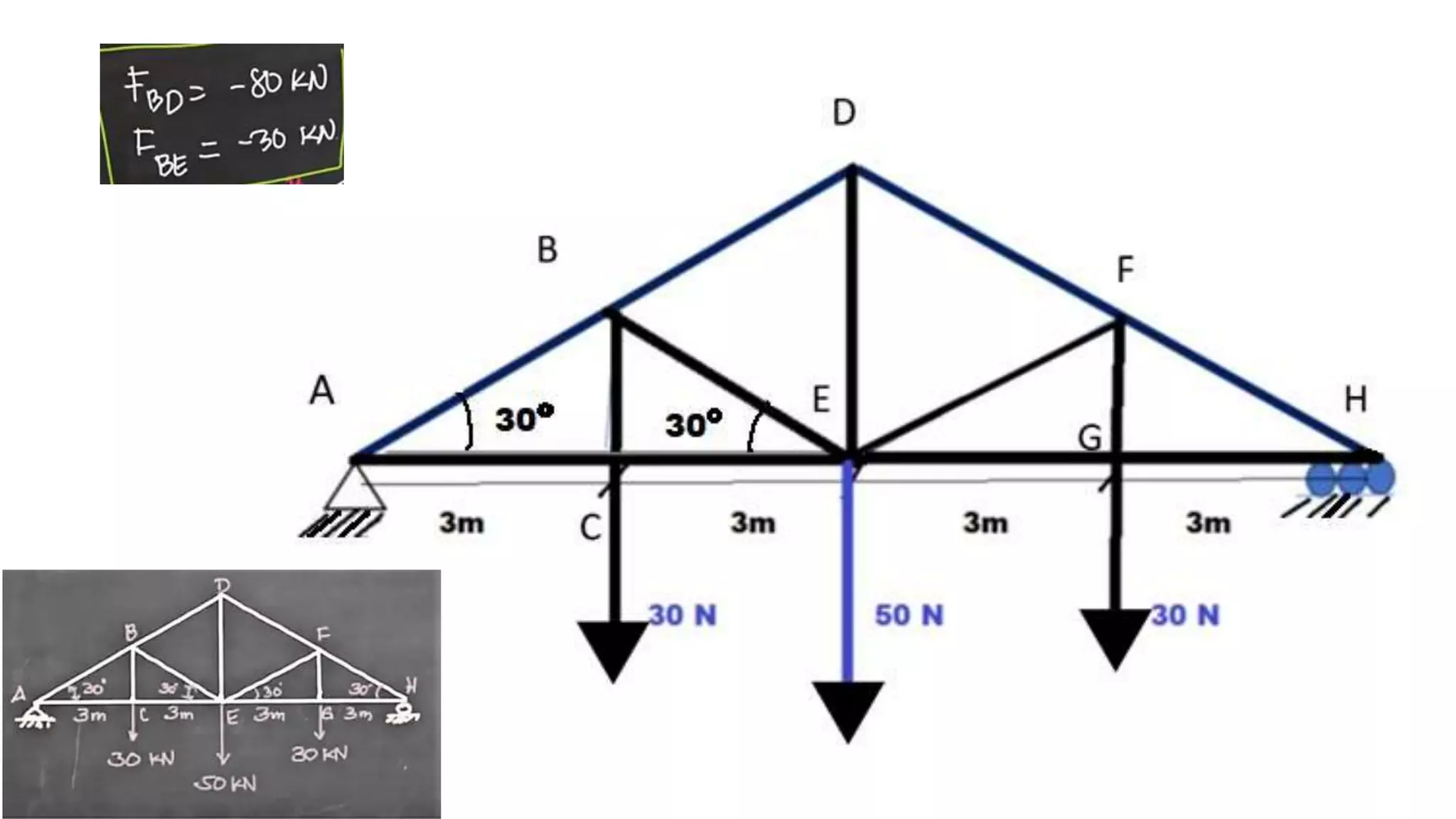

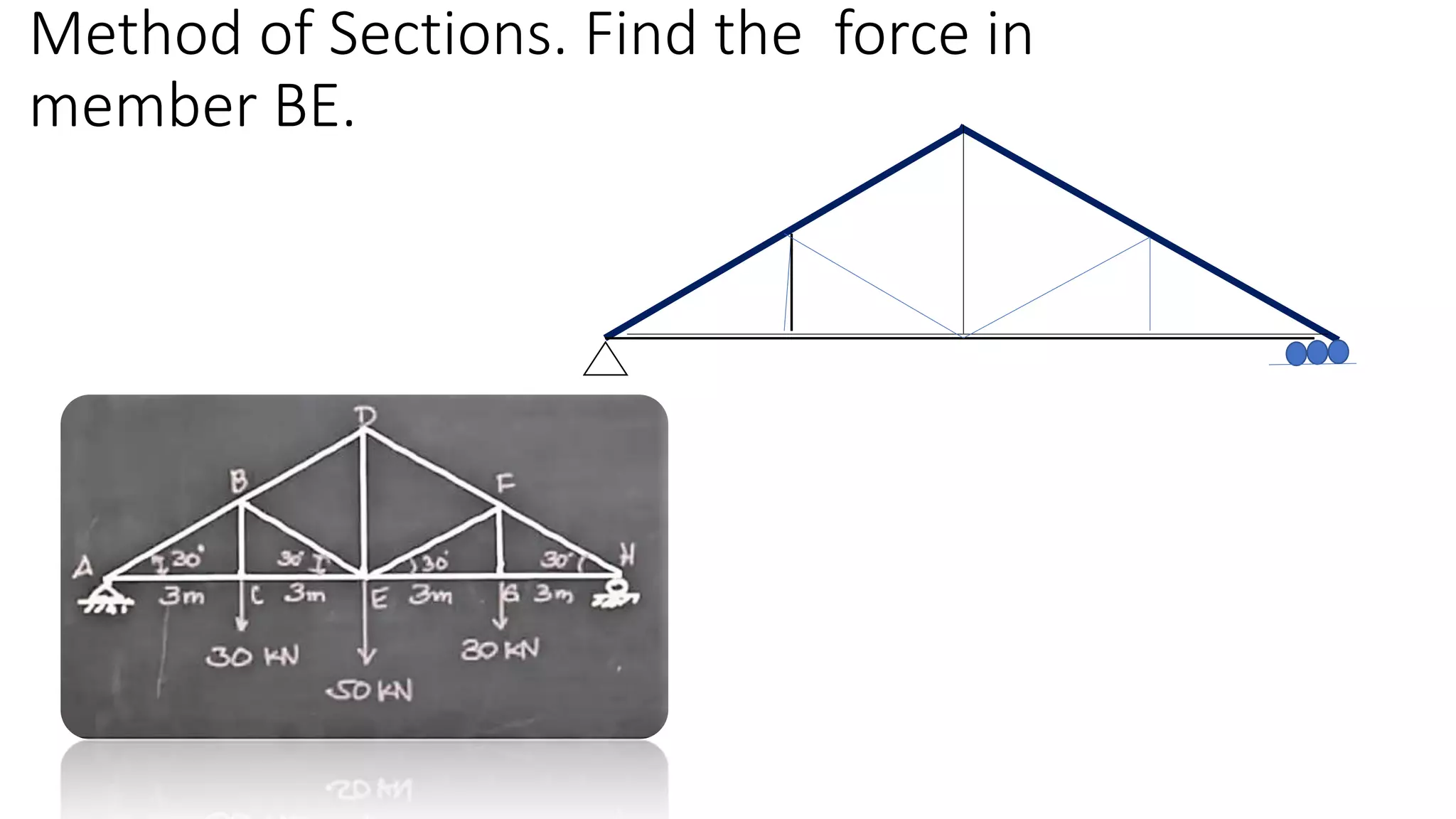

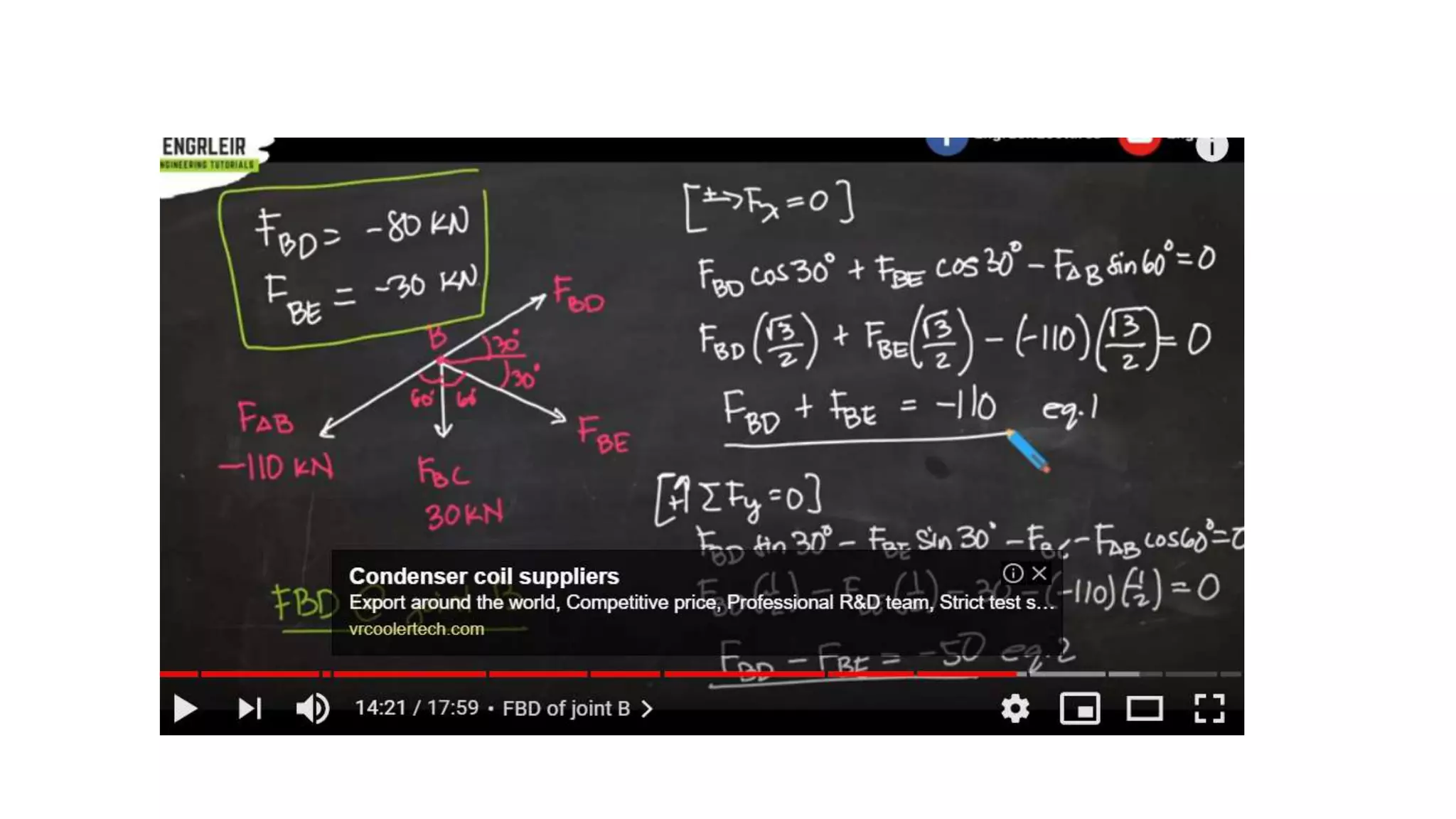

Method of Sections. Find the force in member BE.

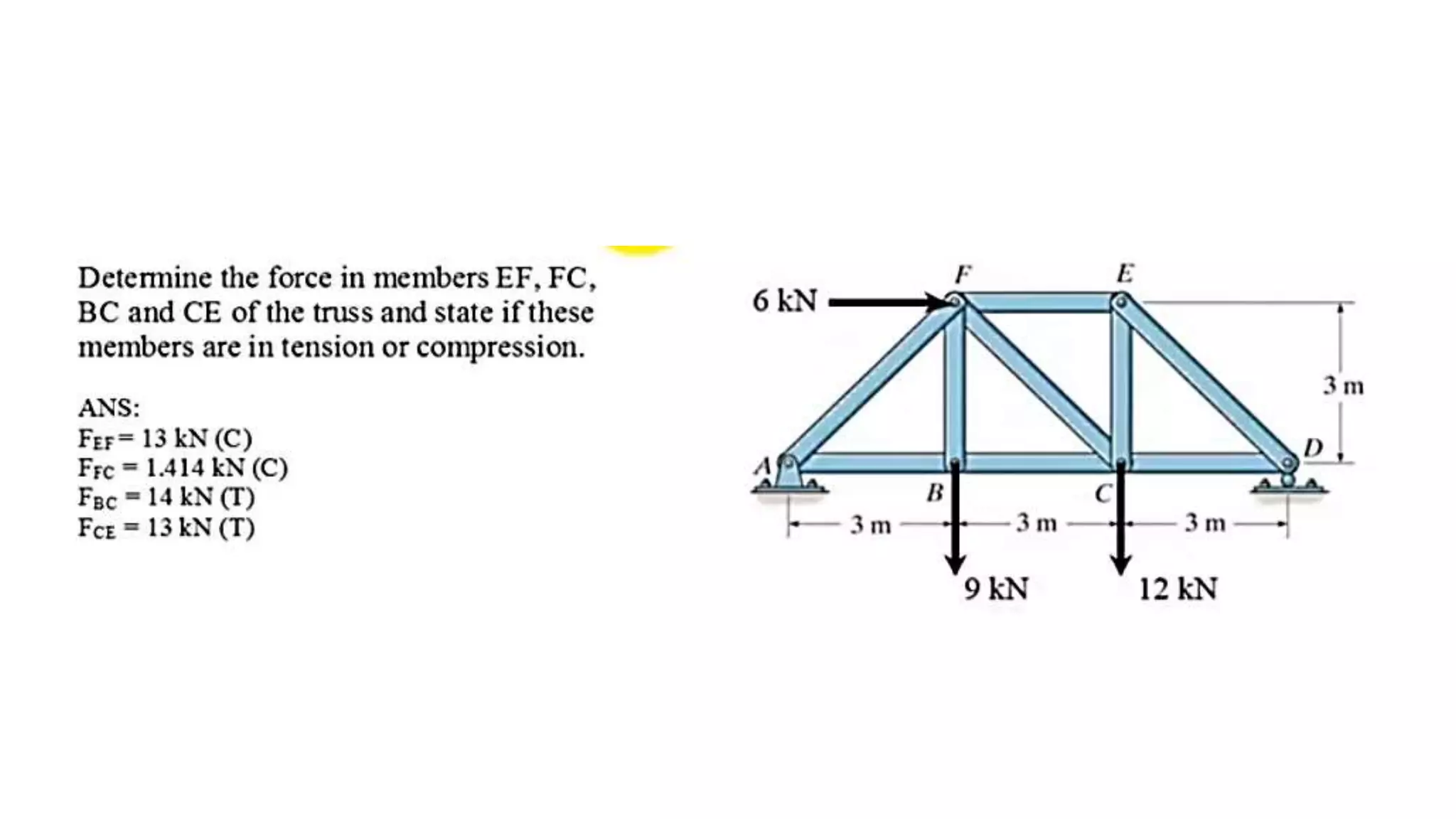

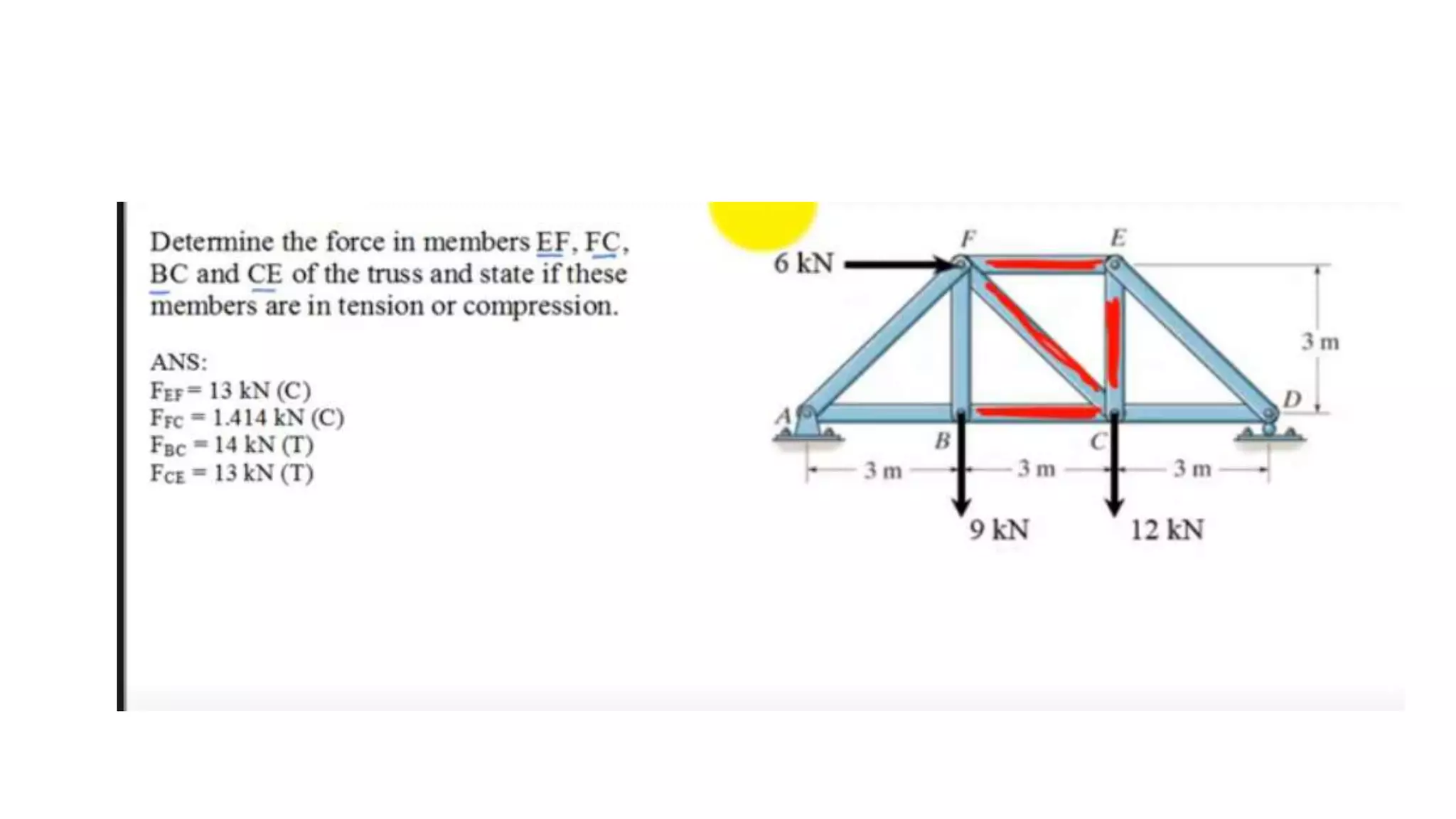

Fef= 13 kN compression Fce=13kN Tension

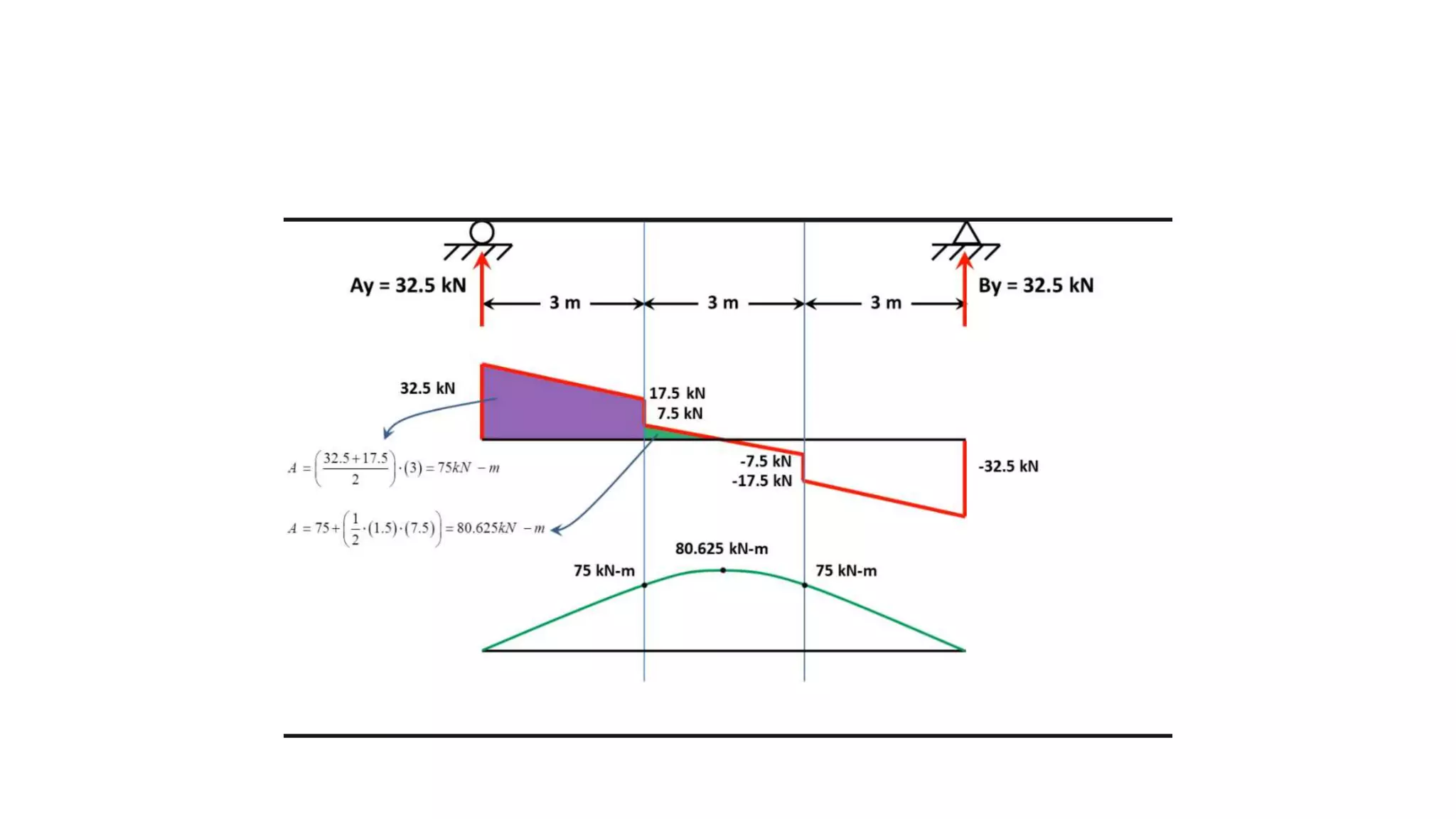

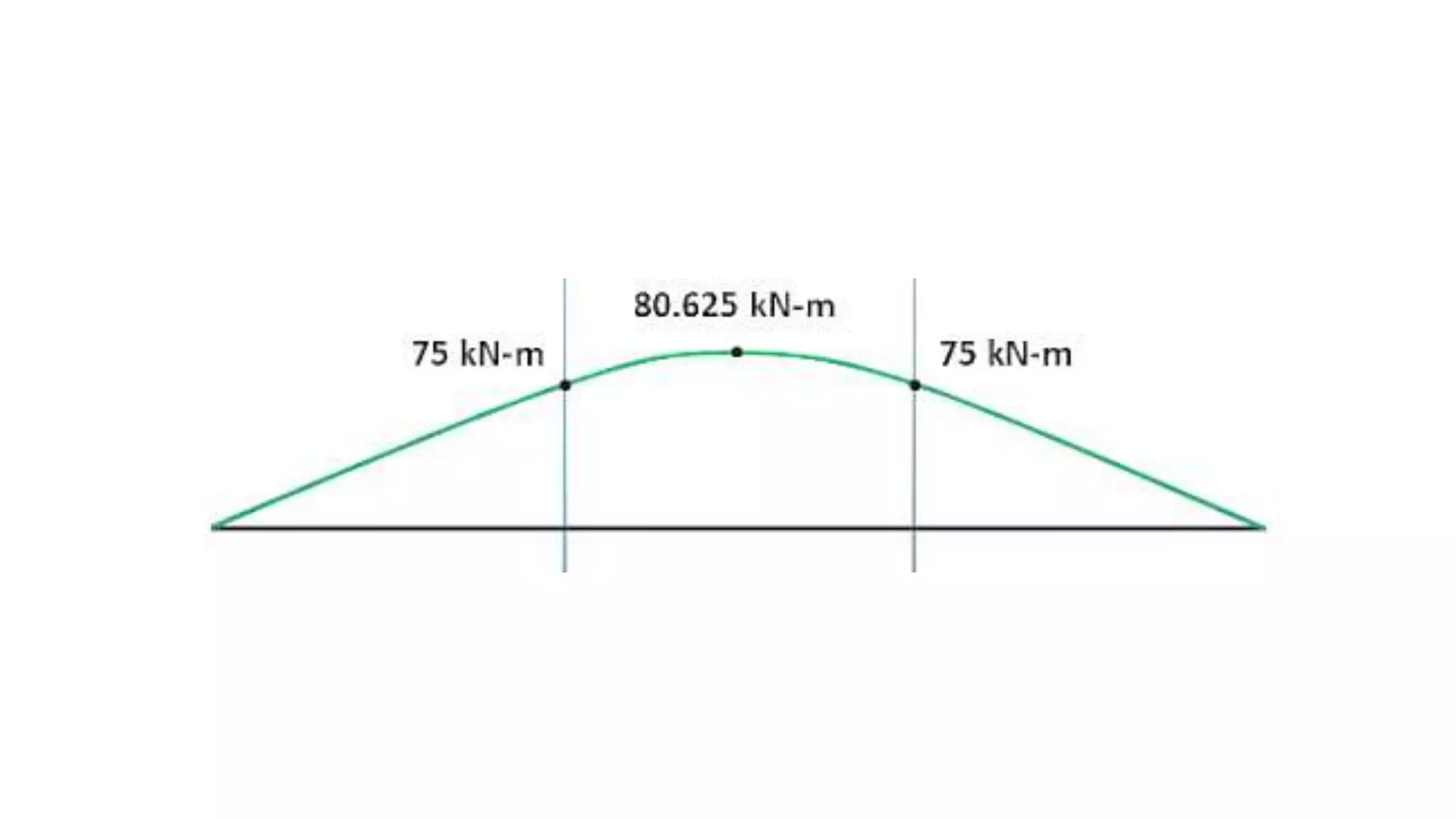

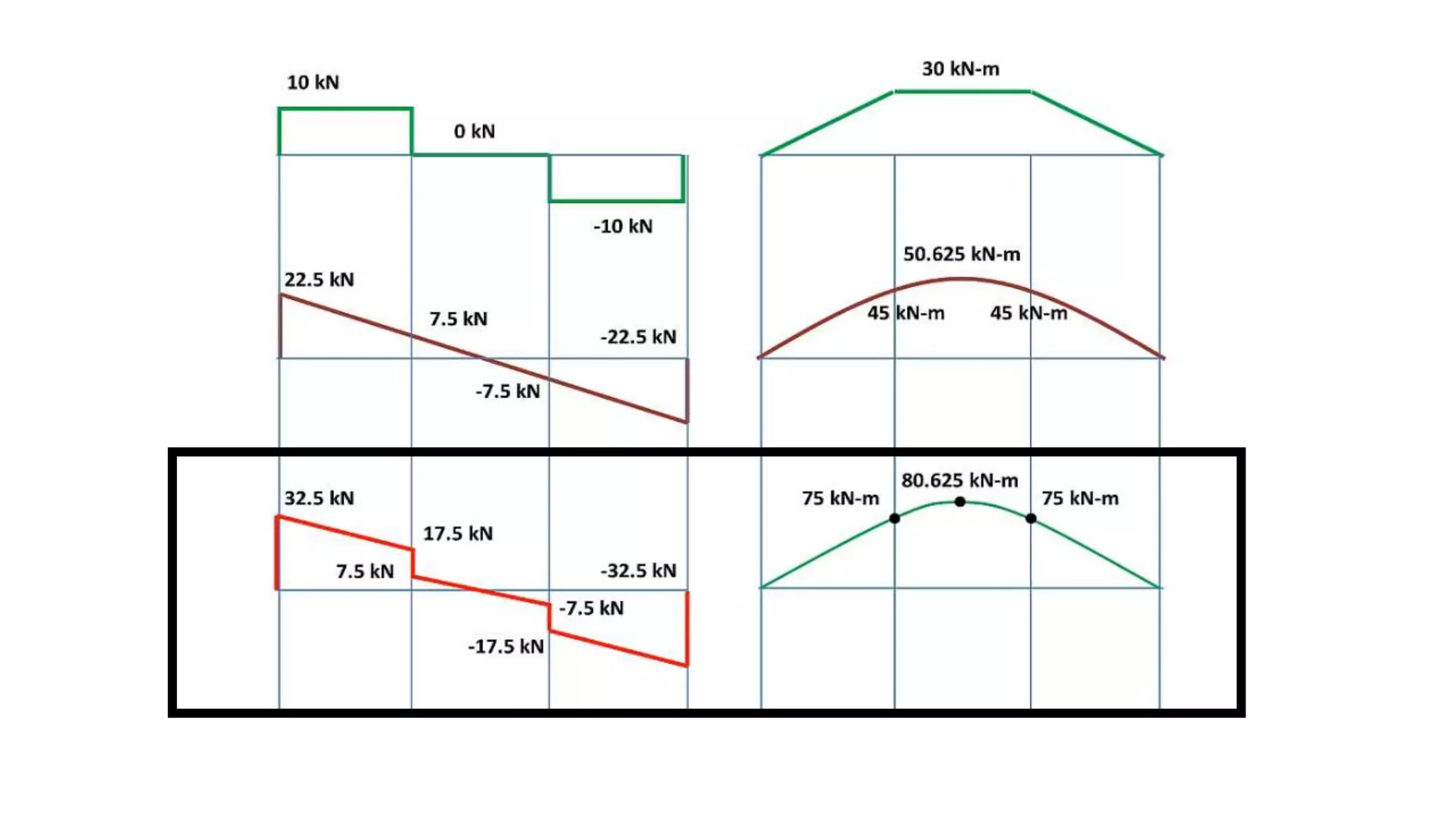

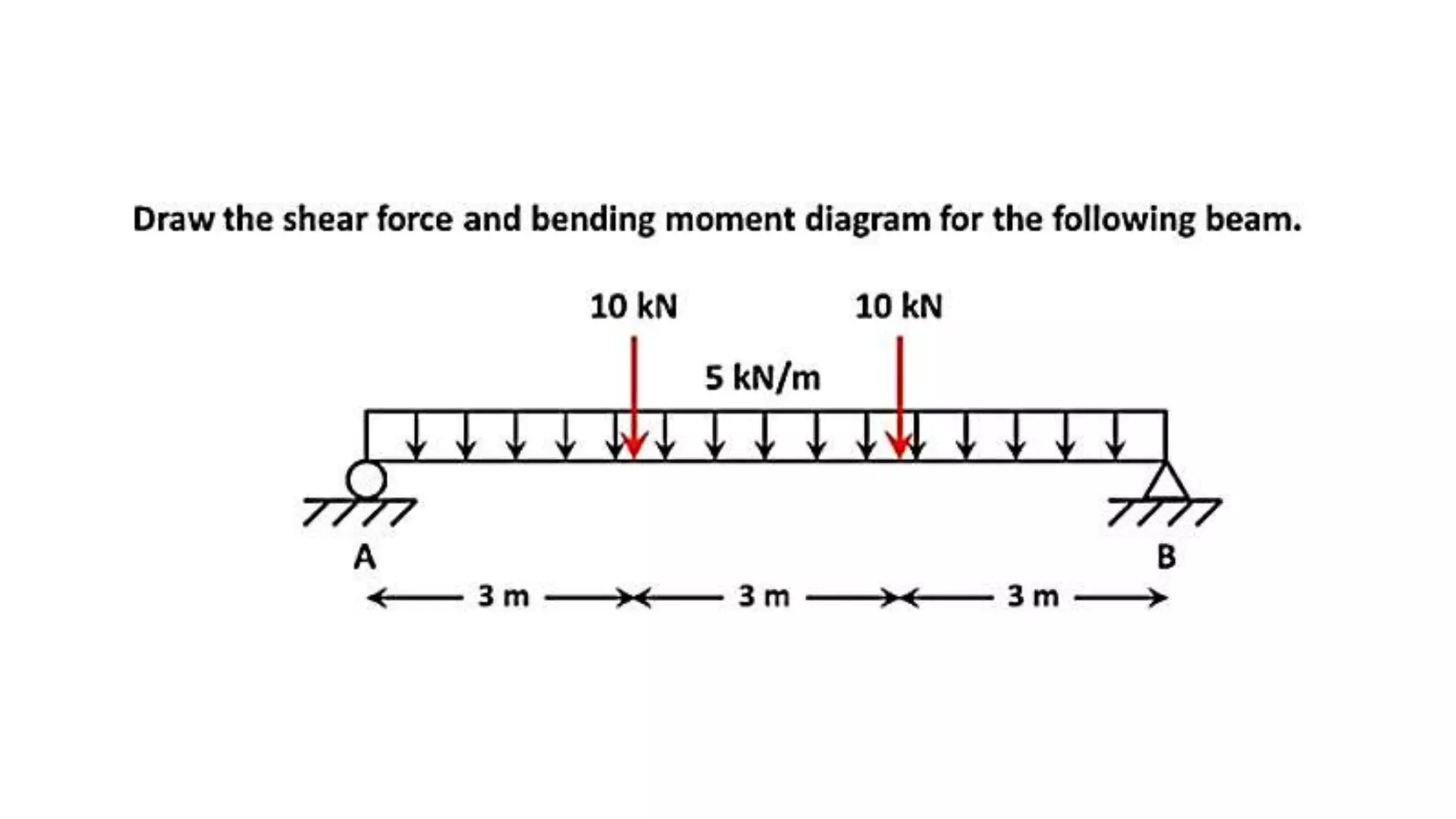

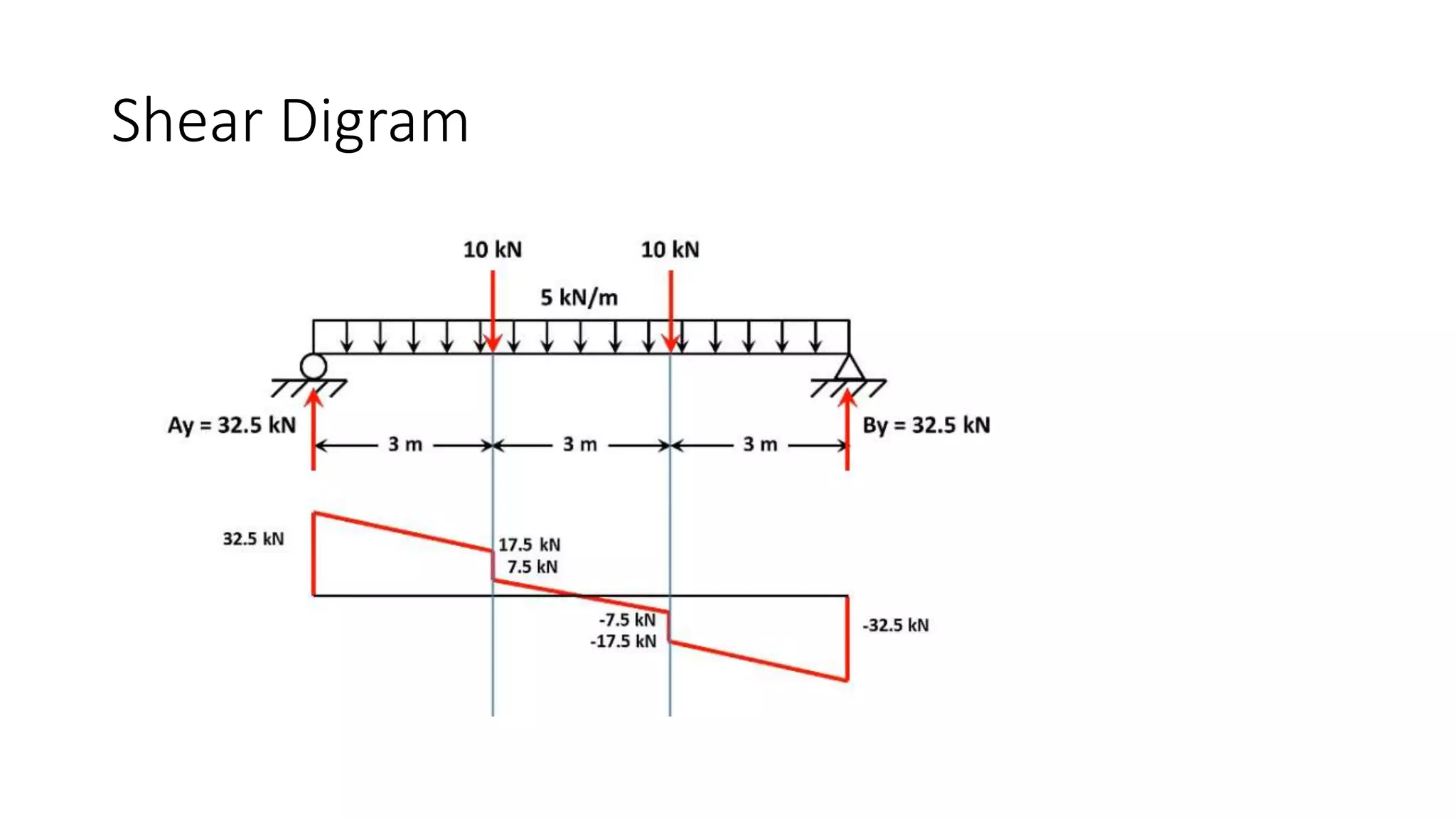

Shear Digram

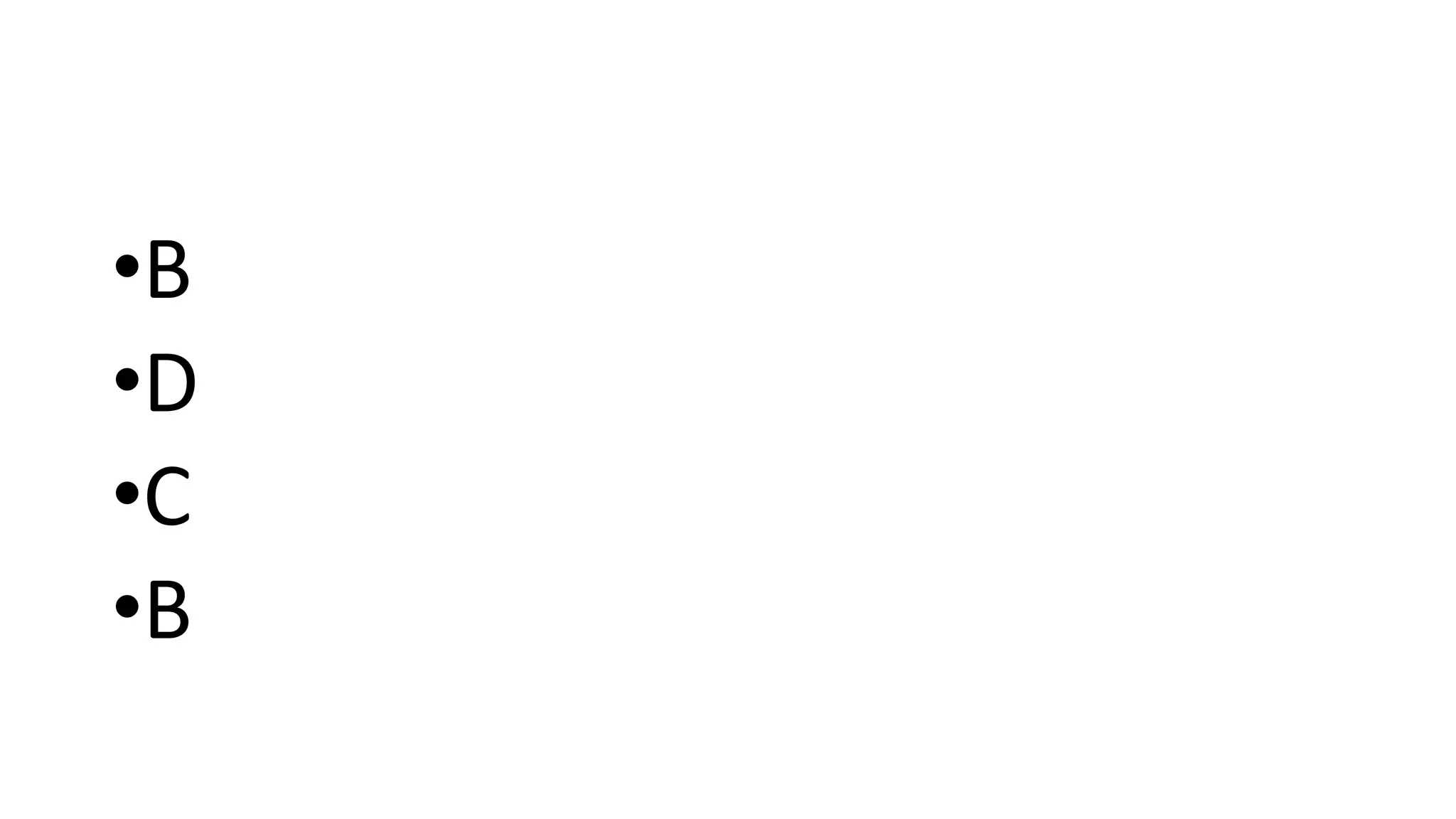

•B •D •C •B
