The document provides an overview of in-app billing for Android apps. It discusses the Google Play Billing Service, including the different request types developers can make like check billing supported, request purchase, get purchase information, and restore transactions. It also covers the Android Billing Library, which is an open-source library that implements the billing service and includes features like automatic confirmation handling and an obfuscated purchase database. The document concludes with a discussion of security best practices for in-app billing like using random nonces, obfuscating purchase data, embedding the public key securely, applying code obfuscation, and performing signature validation on a server.

1. @hpique

2. Android In-app Billing
Demystified
Hermés Piqué
@hpique

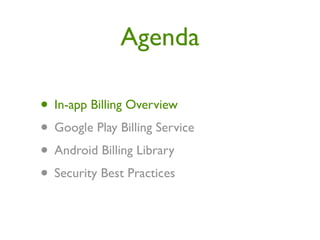

3. Agenda
• In-app Billing Overview
• Google Play Billing Service
• Android Billing Library
• Security Best Practices

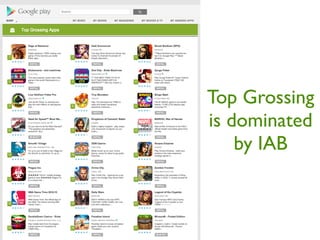

4. Top Grossing
is dominated
by IAB

5. Freemium
Digital goods
Virtual currency
Subscriptions

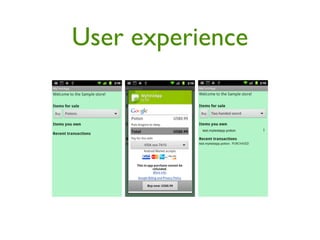

6. User experience

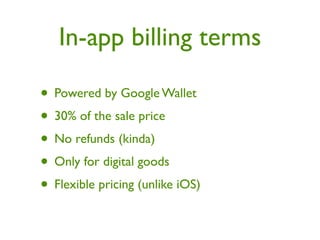

7. In-app billing terms
• Powered by Google Wallet
• 30% of the sale price
• No refunds (kinda)
• Only for digital goods
• Flexible pricing (unlike iOS)

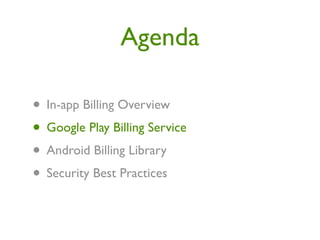

8. Agenda
• In-app Billing Overview
• Google Play Billing Service
• Android Billing Library
• Security Best Practices

9. Google Play Billing
Service
• Google Play only
• Android 1.6 upwards (API level 4)
• Now at version 2 with subscription
support

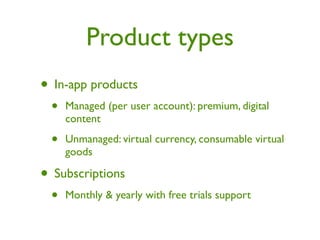

10. Product types
• In-app products
• Managed (per user account): premium, digital
content
• Unmanaged: virtual currency, consumable virtual
goods
• Subscriptions
• Monthly & yearly with free trials support

11. Pre-requisites
• Services
• AIDL
• BroadcastReceiver
• PendingIntent

12. Wait, there’s more
• SQLite
• Obfuscation
• Signature validation
• 57 pages of doc!

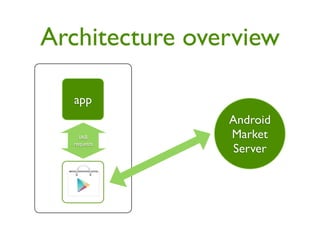

13. Architecture overview
app
Android
IAB Market
requests
Server

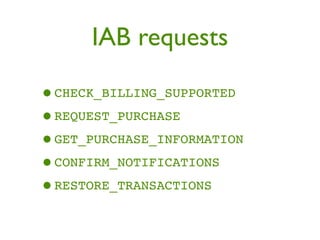

14. IAB requests
•CHECK_BILLING_SUPPORTED
•REQUEST_PURCHASE
•GET_PURCHASE_INFORMATION
•CONFIRM_NOTIFICATIONS
•RESTORE_TRANSACTIONS

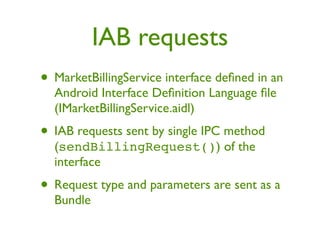

15. IAB requests
• MarketBillingService interface defined in an
Android Interface Definition Language file
(IMarketBillingService.aidl)
• IAB requests sent by single IPC method
(sendBillingRequest()) of the
interface
• Request type and parameters are sent as a
Bundle

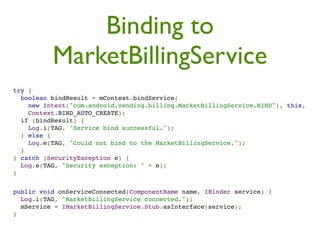

16. Binding to
MarketBillingService
try {
boolean bindResult = mContext.bindService(
new Intent("com.android.vending.billing.MarketBillingService.BIND"), this,
Context.BIND_AUTO_CREATE);
if (bindResult) {
Log.i(TAG, "Service bind successful.");
} else {
Log.e(TAG, "Could not bind to the MarketBillingService.");
}
} catch (SecurityException e) {
Log.e(TAG, "Security exception: " + e);
}
public void onServiceConnected(ComponentName name, IBinder service) {
Log.i(TAG, "MarketBillingService connected.");
mService = IMarketBillingService.Stub.asInterface(service);
}

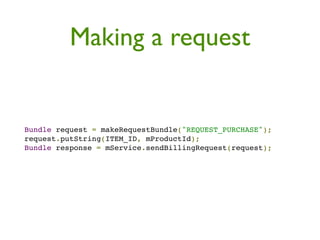

17. Making a request
Bundle request = makeRequestBundle("REQUEST_PURCHASE");
request.putString(ITEM_ID, mProductId);
Bundle response = mService.sendBillingRequest(request);

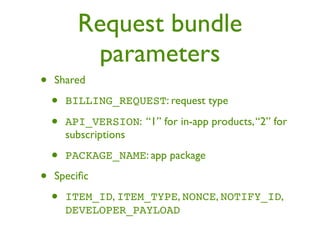

18. Request bundle
parameters
• Shared
• BILLING_REQUEST: request type
• API_VERSION: “1” for in-app products, “2” for
subscriptions
• PACKAGE_NAME: app package
• Specific
• ITEM_ID, ITEM_TYPE, NONCE, NOTIFY_ID,
DEVELOPER_PAYLOAD

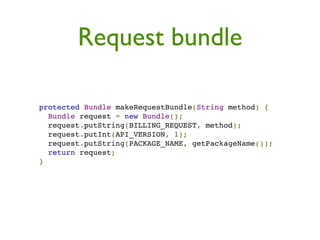

19. Request bundle
protected Bundle makeRequestBundle(String method) {
Bundle request = new Bundle();
request.putString(BILLING_REQUEST, method);
request.putInt(API_VERSION, 1);
request.putString(PACKAGE_NAME, getPackageName());
return request;
}

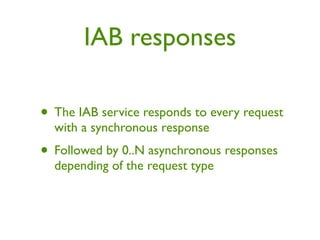

20. IAB responses
• The IAB service responds to every request
with a synchronous response
• Followed by 0..N asynchronous responses
depending of the request type

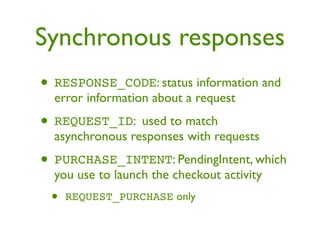

21. Synchronous responses
• RESPONSE_CODE: status information and
error information about a request
• REQUEST_ID: used to match
asynchronous responses with requests
• PURCHASE_INTENT: PendingIntent, which
you use to launch the checkout activity
• REQUEST_PURCHASE only

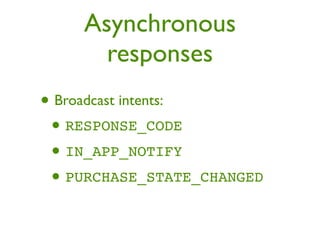

22. Asynchronous
responses
• Broadcast intents:
• RESPONSE_CODE
• IN_APP_NOTIFY
• PURCHASE_STATE_CHANGED

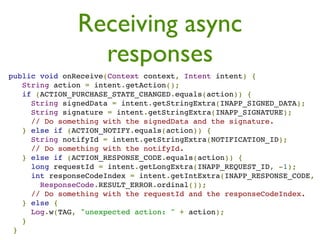

23. Receiving async
responses
public void onReceive(Context context, Intent intent) {
String action = intent.getAction();
if (ACTION_PURCHASE_STATE_CHANGED.equals(action)) {
String signedData = intent.getStringExtra(INAPP_SIGNED_DATA);
String signature = intent.getStringExtra(INAPP_SIGNATURE);
// Do something with the signedData and the signature.
} else if (ACTION_NOTIFY.equals(action)) {
String notifyId = intent.getStringExtra(NOTIFICATION_ID);
// Do something with the notifyId.
} else if (ACTION_RESPONSE_CODE.equals(action)) {
long requestId = intent.getLongExtra(INAPP_REQUEST_ID, -1);
int responseCodeIndex = intent.getIntExtra(INAPP_RESPONSE_CODE,
ResponseCode.RESULT_ERROR.ordinal());
// Do something with the requestId and the responseCodeIndex.
} else {
Log.w(TAG, "unexpected action: " + action);
}
}

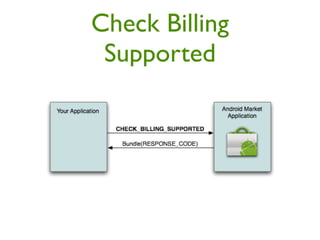

24. Check Billing
Supported

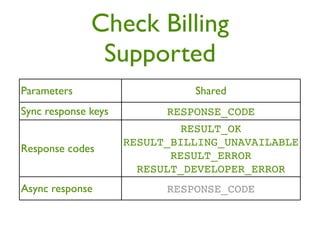

25. Check Billing
Supported
Parameters Shared
Sync response keys RESPONSE_CODE
RESULT_OK
RESULT_BILLING_UNAVAILABLE
Response codes
RESULT_ERROR
RESULT_DEVELOPER_ERROR
Async response RESPONSE_CODE

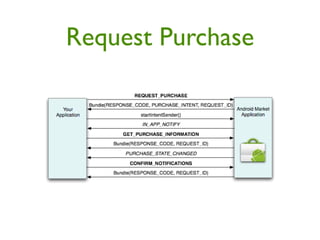

26. Request Purchase

27. Request Purchase
Shared
ITEM_ID
Parameters
ITEM_TYPE
DEVELOPER_PAYLOAD
RESPONSE_CODE
Sync response keys PURCHASE_INTENT
REQUEST_ID
RESULT_OK
Response codes RESULT_ERROR
RESULT_DEVELOPER_ERROR
RESPONSE_CODE
Async response
IN_APP_NOTIFY

28. Get Purchase
Information
Shared
Parameters NONCE
NOTIFY_IDS
RESPONSE_CODE
Sync response keys
REQUEST_ID
RESULT_OK
Response codes RESULT_ERROR
RESULT_DEVELOPER_ERROR
RESPONSE_CODE
Async response
PURCHASE_STATE_CHANGED

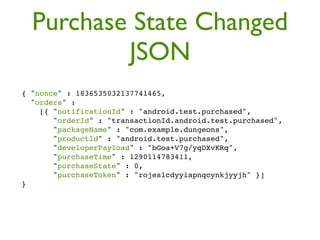

29. Purchase State Changed
JSON
{ "nonce" : 1836535032137741465,
"orders" :
[{ "notificationId" : "android.test.purchased",
"orderId" : "transactionId.android.test.purchased",
"packageName" : "com.example.dungeons",
"productId" : "android.test.purchased",
"developerPayload" : "bGoa+V7g/yqDXvKRq",
"purchaseTime" : 1290114783411,
"purchaseState" : 0,
"purchaseToken" : "rojeslcdyyiapnqcynkjyyjh" }]
}

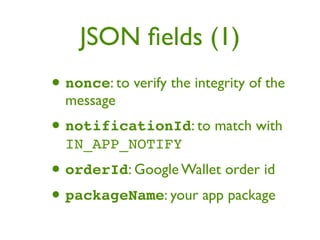

30. JSON fields (1)
• nonce: to verify the integrity of the
message
• notificationId: to match with
IN_APP_NOTIFY
• orderId: Google Wallet order id
• packageName: your app package

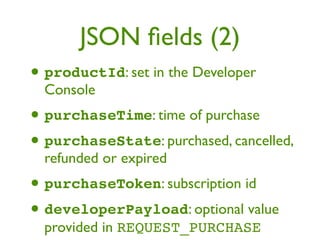

31. JSON fields (2)
• productId: set in the Developer
Console
• purchaseTime: time of purchase
• purchaseState: purchased, cancelled,
refunded or expired
• purchaseToken: subscription id
• developerPayload: optional value
provided in REQUEST_PURCHASE

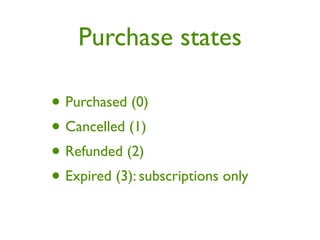

32. Purchase states
• Purchased (0)
• Cancelled (1)
• Refunded (2)
• Expired (3): subscriptions only

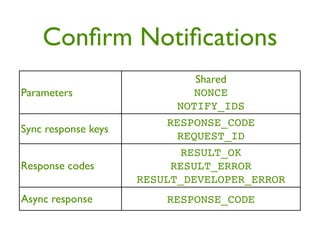

33. Confirm Notifications
Shared
Parameters NONCE
NOTIFY_IDS
RESPONSE_CODE
Sync response keys
REQUEST_ID
RESULT_OK
Response codes RESULT_ERROR
RESULT_DEVELOPER_ERROR
Async response RESPONSE_CODE

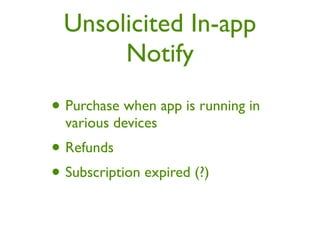

34. Unsolicited In-app
Notify
• Purchase when app is running in
various devices
• Refunds
• Subscription expired (?)

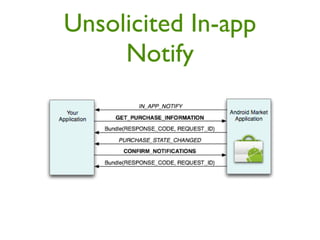

35. Unsolicited In-app
Notify

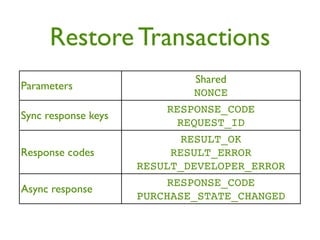

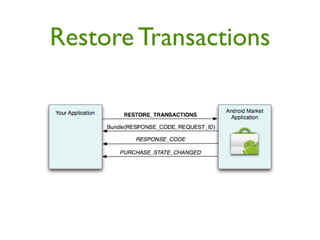

36. Restore Transactions

37. Restore Transactions
Shared
Parameters
NONCE
RESPONSE_CODE
Sync response keys
REQUEST_ID
RESULT_OK
Response codes RESULT_ERROR
RESULT_DEVELOPER_ERROR
RESPONSE_CODE
Async response
PURCHASE_STATE_CHANGED

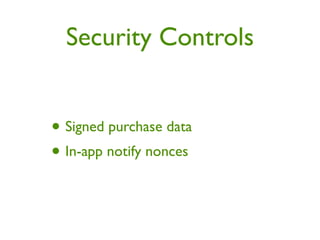

38. Security Controls
• Signed purchase data
• In-app notify nonces

39. Purchase State
Changed extras
• inapp_signed_data: Signed
JSON string (unencrypted)
• inapp_signature: Use the
Google Play public key to validate

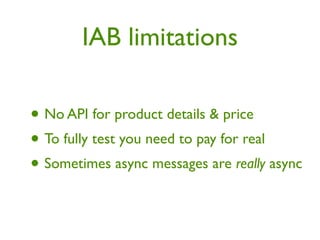

41. IAB limitations
• No API for product details & price
• To fully test you need to pay for real
• Sometimes async messages are really async

42. Obligatory image of Justin Bieber to wake you up

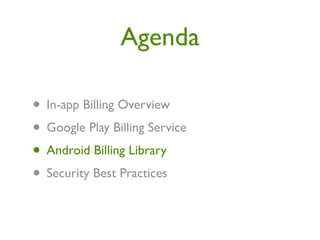

43. Agenda
• In-app Billing Overview
• Google Play Billing Service
• Android Billing Library
• Security Best Practices

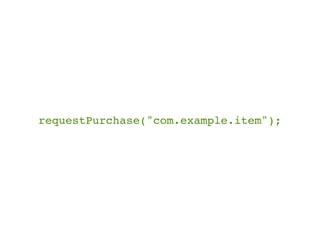

44. requestPurchase("com.example.item");

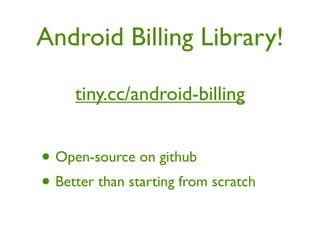

45. Android Billing Library!
tiny.cc/android-billing
• Open-source on github
• Better than starting from scratch

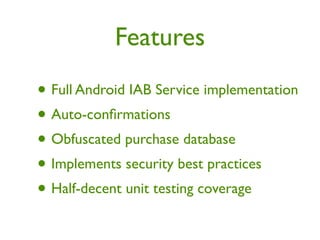

46. Features
• Full Android IAB Service implementation
• Auto-confirmations
• Obfuscated purchase database
• Implements security best practices
• Half-decent unit testing coverage

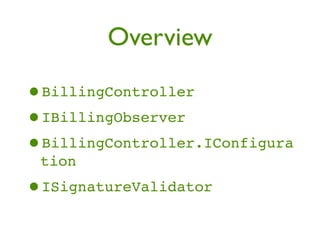

47. Overview
•BillingController
•IBillingObserver
•BillingController.IConfigura
tion
•ISignatureValidator

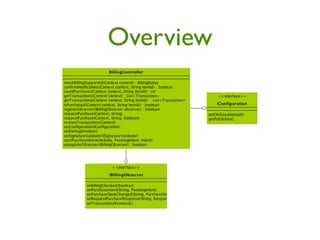

48. Overview

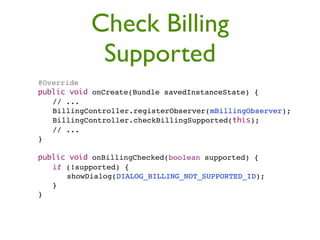

49. Check Billing
Supported
" @Override
" public void onCreate(Bundle savedInstanceState) {
" " // ...
" " BillingController.registerObserver(mBillingObserver);
" " BillingController.checkBillingSupported(this);
" " // ...
" }
" public void onBillingChecked(boolean supported) {
" " if (!supported) {
" " " showDialog(DIALOG_BILLING_NOT_SUPPORTED_ID);
" " }
" }

50. Request Purchase
BillingController.requestPurchase(this, productId);
@Override
public void onPurchaseIntent(String itemId, PendingIntent purchaseIntent) {
BillingController.startPurchaseIntent(activity, purchaseIntent, null);
}
@Override
public void onRequestPurchaseResponse(String itemId, ResponseCode response) {
}
@Override
public void onPurchaseStateChanged(String itemId, Order order) {
}

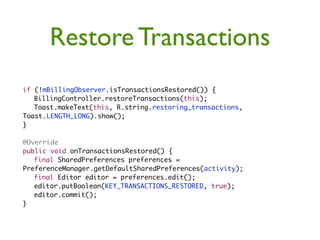

51. Restore Transactions
if (!mBillingObserver.isTransactionsRestored()) {
BillingController.restoreTransactions(this);
Toast.makeText(this, R.string.restoring_transactions,
Toast.LENGTH_LONG).show();
}
@Override
public void onTransactionsRestored() {
final SharedPreferences preferences =
PreferenceManager.getDefaultSharedPreferences(activity);
final Editor editor = preferences.edit();
editor.putBoolean(KEY_TRANSACTIONS_RESTORED, true);
editor.commit();
}

52. Suggested
implementation

53. AndroidManifest.xml
<!-- Add this permission to your manifest -->
<uses-permission android:name="com.android.vending.BILLING" />
<application>
<!-- Add this service and receiver to your application -->
<service android:name="net.robotmedia.billing.BillingService" />
<receiver android:name="net.robotmedia.billing.BillingReceiver">
<intent-filter>
<action android:name="com.android.vending.billing.IN_APP_NOTIFY" />
<action android:name="com.android.vending.billing.RESPONSE_CODE" />
<action
android:name="com.android.vending.billing.PURCHASE_STATE_CHANGED" />
</intent-filter>
</receiver>
</application>

54. Set configuration
public void onCreate() {
super.onCreate();
BillingController.setDebug(true);
BillingController.setConfiguration(new BillingController.IConfiguration() {
@Override
public byte[] getObfuscationSalt() {
return new byte[] {41, -90, -116, -41, 66, -53, 122, -110, -127, -96, -88, 77, 127
}
@Override
public String getPublicKey() {
return "your public key here";
}
});
}

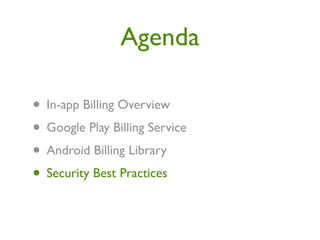

55. Agenda
• In-app Billing Overview
• Google Play Billing Service
• Android Billing Library
• Security Best Practices

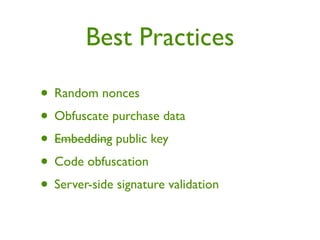

56. Best Practices
• Random nonces
• Obfuscate purchase data
• Embedding public key
• Code obfuscation
• Server-side signature validation

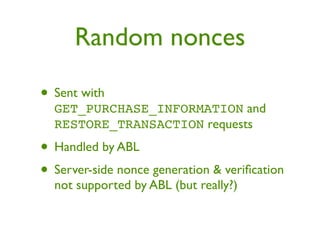

57. Random nonces
• Sent with
GET_PURCHASE_INFORMATION and
RESTORE_TRANSACTION requests
• Handled by ABL
• Server-side nonce generation & verification
not supported by ABL (but really?)

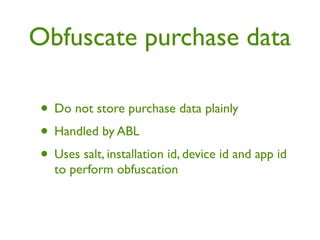

58. Obfuscate purchase data
• Do not store purchase data plainly
• Handled by ABL
• Uses salt, installation id, device id and app id
to perform obfuscation

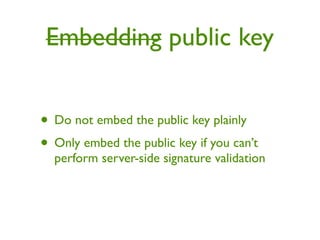

59. Embedding public key
• Do not embed the public key plainly
• Only embed the public key if you can’t
perform server-side signature validation

60. Code obfuscation
• Obfuscate your app code to make it harder
to hack
• Problem: ABL is open-source!
• Use ProGuard and consider making
changes to the ABL code

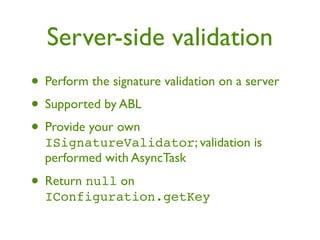

61. Server-side validation
• Perform the signature validation on a server
• Supported by ABL
• Provide your own
ISignatureValidator; validation is
performed with AsyncTask
• Return null on
IConfiguration.getKey

62. Thanks!
