This document provides information about an Andrew L5TNM-PS Type N Male Positive Stop connector. It includes details on how to purchase the product, specifications, warranty, and related services from Launch 3 Telecom. Key details are the L5TNM-PS is a Type N male connector for 7/8 inch LDF5-50A foam heliax cable, it can be purchased from Launch 3 Telecom for telecom hardware needs, and they provide services like repair, installation, and logistics.

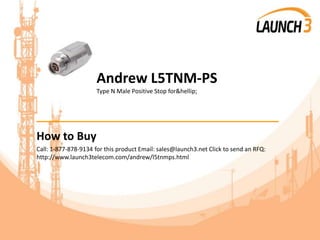

2. Andrew L5TNM-PS
Type N Male Positive Stop for…
_______________________________________
How to Buy
Call: 1-877-878-9134 for this product Email: sales@launch3.net Click to send an RFQ:
http://www.launch3telecom.com/andrew/l5tnmps.html

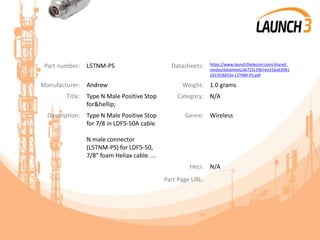

3. Part number: L5TNM-PS Datasheets: https://www.launch3telecom.com/shared_
media/datasheet/ab725c33b7ee31ba63081
2d15fc8d53e-L5TNM-PS.pdf
Manufacturer: Andrew Weight: 1.0 grams
Title: Type N Male Positive Stop
for…
Category: N/A
Description: Type N Male Positive Stop
for 7/8 in LDF5-50A cable
N male connector
(L5TNM-PS) for LDF5-50,
7/8" foam Heliax cable. ...
Genre: Wireless
Heci: N/A
Part Page URL:

4. About Us
Launch 3 Telecom is your one stop shop for all your Telecom and Data/Networking
Hardware needs and genuine Andrew replacement parts. We have loyally served our
customers since 2003. Our product expertise, quality customer service, competitive pricing
-on items like this Andrew L5TNM-PS -- are a few of the reasons why more telecom
professionals buy from Launch 3 Telecom every day.
_______________________________________
Payment and Processing
We accept Visa, Mastercard, American Express and Paypal payments for this Andrew
L5TNM-PS. We can also accept Purchase Orders for Net Terms upon approval. Launch 3
Telecom does have a Government Cage Code so if this is for a Government purchase please
tells us! You may also call us at 877-878-9134 or email us at sales@launch3.net for our
credit card form. Please call us today to purchase this Andrew L5TNM-PS item while
inventory and sale last.

5. Same Day Shipping, Order Confirmation and Order
Tracking
Once your order is placed for the Andrew L5TNM-PS, you may select from several shipping
methods, including UPS, Federal Express, DHL, USPS, 3 day, 2 day, overnight and
international methods. Orders received and approved before 3PM EST will generally ship
the same business day. You will receive an order confirmation email for your Andrew
L5TNM-PS along with the tracking number as soon as it is available. The tracking number
will allow you to track your shipment in real time. We pack the Andrew L5TNM-PS in anti-
static bubble wrap to ensure safe delivery. We will combine multiple items in one shipment
whenever possible to save on shipping time and costs. Because we have several
distribution points and vendor locations, sometimes orders will be divided into multiple
shipments, but never at extra cost to you.
_______________________________________
Warranty
Every item you purchase from us includes a warranty and our hassle-free return policy. We
stand by our product and your satisfaction is our goal. If you ever have questions or
concerns about your Andrew L5TNM-PS order, simply contact our Customer Service
Department at 877-878-9134, Monday - Friday, 9 AM - 5 PM EST. Friendly customer service
reps are available to assist you with your order.

6. Services from Launch 3 Telecom
Launch 3 Telecom can also repair the Andrew
L5TNM-PS, provides maintenance contracts,
De-installation, Telecom Consignment and
Recycling. Please contact Launch 3 Telecom to
learn more about these services! Launch 3
Telecom specializes in installation of all
telecom related systems. Our team is equipped
to handle all telecom equipment including
cellular, Fixed Wireless, WiMAX, Central Office,
and more. No project is too small or too big,
and each is handled by a dedicated telecom
professional.
De-Installation - Our Network Installation
Experts will properly de-install your equipment,
package it, and ship it to our warehouse for
storage.
Testing - Our team of technicians will inspect
each piece of equipment thoroughly. If a piece
of equipment needs repair, we’ll provide the
resources and technology to guarantee each
piece is ready to be sold.
Asset Recovery - We can store your equipment
in one of our expansive warehouses located
around the country until your equipment is
sold so you can save on storage costs and avoid
cluttering your equipment floor.
Repair Services - Launch 3 Telecom is your one-
stop solution to your entire Telecom
Equipment & System repair. Our team of
dedicated professionals will get your system
back up and running quickly and efficiently. We
repair cell sites, central office switching,
combiners, data networking, transmission,
power supplies, microwave, radios, IP Cameras,
Sonet /SHD, power, power amps, CDMA, GSM,
TDMA, and PBX Keyphone.
Third Party Logistics - If you are currently
operating a direct route or if you are interested
in setting one up, Launch 3 Telecom would like
to discuss the opportunity of sending you
traffic. Contact us today to speak to a Call
Termination Specialist for more details at
voip@launch3telecom.com

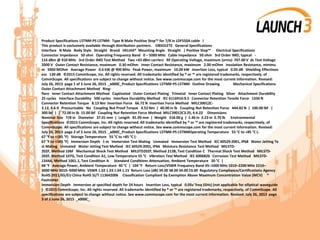

7. Product Specifications L5TNM-PS L5TNM- Type N Male Positive Stop™ for 7/8 in LDF550A cable l
This product is exclusively available through distribution partners. OBSOLETE General Specifications
Interface N Male Body Style Straight Brand HELIAX® Mounting Angle Straight | Positive Stop™ Electrical Specifications
Connector Impedance 50 ohm Operating Frequency Band 0 – 5000 MHz Cable Impedance 50 ohm 3rd Order IMD, typical -
116 dBm @ 910 MHz 3rd Order IMD Test Method Two +43 dBm carriers RF Operating Voltage, maximum (vrms) 707.00 V dc Test Voltage
2000 V Outer Contact Resistance, maximum 0.30 mOhm Inner Contact Resistance, maximum 2.00 mOhm Insulation Resistance, minimu
m 5000 MOhm Average Power 0.6 kW @ 900 MHz Peak Power, maximum 10.00 kW Insertion Loss, typical 0.05 dB Shielding Effectiven
ess 130 dB ©2015 CommScope, Inc. All rights reserved. All trademarks identified by ® or ™ are registered trademarks, respectively, of
CommScope. All specifications are subject to change without notice. See www.commscope.com for the most current information. Revised:
July 26, 2013 page 1 of 3 June 26, 2015 _x000C_Product Specifications L5TNM-PS L5TNM- Outline Drawing Mechanical Specifications
Outer Contact Attachment Method Ring-
flare Inner Contact Attachment Method Captivated Outer Contact Plating Trimetal Inner Contact Plating Silver Attachment Durability
25 cycles Interface Durability 500 cycles Interface Durability Method IEC 6116916:9.5 Connector Retention Tensile Force 1334 N
Connector Retention Torque 8.13 Nm Insertion Force 66.72 N Insertion Force Method MILC39012C-
3.12, 4.6.9 Pressurizable No Coupling Nut Proof Torque 4.52 Nm | 40.00 in lb Coupling Nut Retention Force 444.82 N | 100.00 lbf |
300 lbf | | 72.00 in lb 15.00 lbf Coupling Nut Retention Force Method MILC39012C3.25, 4.6.22 Dimensions
Nominal Size 7/8 in Diameter 37.01 mm | Length 81.99 mm | Weight 318.00 g | 1.46 in 3.23 in 0.70 lb Environmental
Specifications ©2015 CommScope, Inc. All rights reserved. All trademarks identified by ® or ™ are registered trademarks, respectively, of
CommScope. All specifications are subject to change without notice. See www.commscope.com for the most current information. Revised:
July 26, 2013 page 2 of 3 June 26, 2015 _x000C_Product Specifications L5TNM-PS L5TNMOperating Temperature 55 °C to +85 °C (-
67 °F to +185 °F) Storage Temperature 55 °C to +85 °C (-
67 °F to +185 °F) Immersion Depth 1 m Immersion Test Mating Unmated Immersion Test Method IEC 60529:2001, IP68 Water Jetting Te
st Mating Unmated Water Jetting Test Method IEC 60529:2001, IP66 Moisture Resistance Test Method MILSTD-
202F, Method 106F Mechanical Shock Test Method MILSTD202F, Method 213B, Test Condition C Thermal Shock Test Method MILSTD-
202F, Method 107G, Test Condition A1, Low Temperature 55 °C Vibration Test Method IEC 6006826 Corrosion Test Method MILSTD-
1344A, Method 1001.1, Test Condition A Standard Conditions Attenuation, Ambient Temperature 20 °C |
68 °F Average Power, Ambient Temperature 40 °C | 104 °F Return Loss/VSWR Frequency Band 45–1000 MHz 1010–2200 MHz 2210–
3000 MHz 3010–5000 MHz VSWR 1.02 1.03 1.04 1.15 Return Loss (dB) 39.00 38.00 34.00 23.00 Regulatory Compliance/Certifications Agency
RoHS 2011/65/EU China RoHS SJ/T 113642006 Classification Compliant by Exemption Above Maximum Concentration Value (MCV) *
Footnotes
Immersion Depth Immersion at specified depth for 24 hours Insertion Loss, typical 0.05v¯freq (GHz) (not applicable for elliptical waveguide
) ©2015 CommScope, Inc. All rights reserved. All trademarks identified by ® or ™ are registered trademarks, respectively, of CommScope. All
specifications are subject to change without notice. See www.commscope.com for the most current information. Revised: July 26, 2013 page
3 of 3 June 26, 2015 _x000C_
