This document provides product information and instructions for purchasing an Andrew H5PNF connector from Launch 3 Telecom. Some key details include: - The Andrew H5PNF is a 7/8 inch N female connector for foam dielectric cable with a gas barrier. - Customers can purchase the product by calling, emailing, or submitting a request form on the company's website. - Launch 3 Telecom offers payment options, same day shipping, product warranties, and repair services.

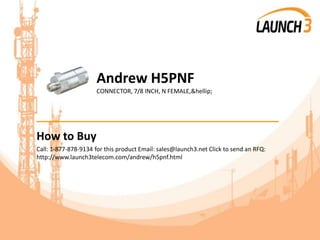

2. Andrew H5PNF
CONNECTOR, 7/8 INCH, N FEMALE,…
_______________________________________
How to Buy
Call: 1-877-878-9134 for this product Email: sales@launch3.net Click to send an RFQ:
http://www.launch3telecom.com/andrew/h5pnf.html

3. Part number: H5PNF Datasheets: https://www.launch3telecom.com/shared_
media/datasheet/012061f6e92909fcc2351f
0da68edd59-H5PNF.pdf
Manufacturer: Andrew Weight: N/A
Title: CONNECTOR, 7/8 INCH, N
FEMALE,…
Category: N/A
Description: CONNECTOR, 7/8 INCH, N
FEMALE, FOAM
H5PNFS N, (F), GAS
BARRIER-DRILL FOR GAS
PASS, HJ5-50, TAB-FLARE,
SELF-TAPPING
Genre: Wireless
Heci: N/A
Part Page URL:

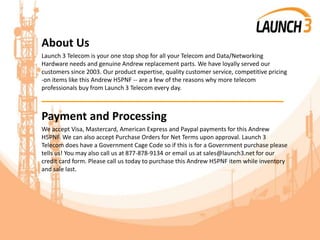

4. About Us
Launch 3 Telecom is your one stop shop for all your Telecom and Data/Networking
Hardware needs and genuine Andrew replacement parts. We have loyally served our
customers since 2003. Our product expertise, quality customer service, competitive pricing
-on items like this Andrew H5PNF -- are a few of the reasons why more telecom
professionals buy from Launch 3 Telecom every day.
_______________________________________
Payment and Processing
We accept Visa, Mastercard, American Express and Paypal payments for this Andrew
H5PNF. We can also accept Purchase Orders for Net Terms upon approval. Launch 3
Telecom does have a Government Cage Code so if this is for a Government purchase please
tells us! You may also call us at 877-878-9134 or email us at sales@launch3.net for our
credit card form. Please call us today to purchase this Andrew H5PNF item while inventory
and sale last.

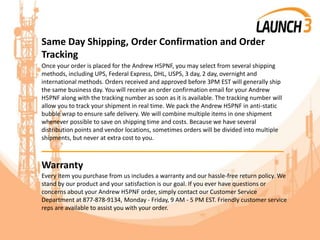

5. Same Day Shipping, Order Confirmation and Order
Tracking
Once your order is placed for the Andrew H5PNF, you may select from several shipping
methods, including UPS, Federal Express, DHL, USPS, 3 day, 2 day, overnight and
international methods. Orders received and approved before 3PM EST will generally ship
the same business day. You will receive an order confirmation email for your Andrew
H5PNF along with the tracking number as soon as it is available. The tracking number will
allow you to track your shipment in real time. We pack the Andrew H5PNF in anti-static
bubble wrap to ensure safe delivery. We will combine multiple items in one shipment
whenever possible to save on shipping time and costs. Because we have several
distribution points and vendor locations, sometimes orders will be divided into multiple
shipments, but never at extra cost to you.
_______________________________________
Warranty
Every item you purchase from us includes a warranty and our hassle-free return policy. We
stand by our product and your satisfaction is our goal. If you ever have questions or
concerns about your Andrew H5PNF order, simply contact our Customer Service
Department at 877-878-9134, Monday - Friday, 9 AM - 5 PM EST. Friendly customer service
reps are available to assist you with your order.

6. Services from Launch 3 Telecom
Launch 3 Telecom can also repair the Andrew
H5PNF, provides maintenance contracts, De-
installation, Telecom Consignment and
Recycling. Please contact Launch 3 Telecom to
learn more about these services! Launch 3
Telecom specializes in installation of all
telecom related systems. Our team is equipped
to handle all telecom equipment including
cellular, Fixed Wireless, WiMAX, Central Office,
and more. No project is too small or too big,
and each is handled by a dedicated telecom
professional.
De-Installation - Our Network Installation
Experts will properly de-install your equipment,
package it, and ship it to our warehouse for
storage.
Testing - Our team of technicians will inspect
each piece of equipment thoroughly. If a piece
of equipment needs repair, we’ll provide the
resources and technology to guarantee each
piece is ready to be sold.
Asset Recovery - We can store your equipment
in one of our expansive warehouses located
around the country until your equipment is
sold so you can save on storage costs and avoid
cluttering your equipment floor.
Repair Services - Launch 3 Telecom is your one-
stop solution to your entire Telecom
Equipment & System repair. Our team of
dedicated professionals will get your system
back up and running quickly and efficiently. We
repair cell sites, central office switching,
combiners, data networking, transmission,
power supplies, microwave, radios, IP Cameras,
Sonet /SHD, power, power amps, CDMA, GSM,
TDMA, and PBX Keyphone.
Third Party Logistics - If you are currently
operating a direct route or if you are interested
in setting one up, Launch 3 Telecom would like
to discuss the opportunity of sending you
traffic. Contact us today to speak to a Call
Termination Specialist for more details at
voip@launch3telecom.com

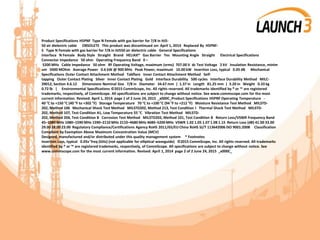

7. Product Specifications H5PNF Type N Female with gas barrier for 7/8 in HJ5-
50 air dielectric cable OBSOLETE This product was discontinued on: April 1, 2014 Replaced By H5PNF-
S Type N Female with gas barrier for 7/8 in HJ550 air dielectric cable General Specifications
Interface N Female Body Style Straight Brand HELIAX® Gas Barrier Yes Mounting Angle Straight Electrical Specifications
Connector Impedance 50 ohm Operating Frequency Band 0 –
5200 MHz Cable Impedance 50 ohm RF Operating Voltage, maximum (vrms) 707.00 V dc Test Voltage 2 kV Insulation Resistance, minim
um 5000 MOhm Average Power 0.6 kW @ 900 MHz Peak Power, maximum 10.00 kW Insertion Loss, typical 0.05 dB Mechanical
Specifications Outer Contact Attachment Method Tabflare Inner Contact Attachment Method Self-
tapping Outer Contact Plating Silver Inner Contact Plating Gold Interface Durability 500 cycles Interface Durability Method MILC-
39012, Section 4.6.12 Dimensions Nominal Size 7/8 in Diameter 34.67 mm | 1.37 in Length 81.25 mm | 3.20 in Weight 0.33 kg
0.72 lb | Environmental Specifications ©2015 CommScope, Inc. All rights reserved. All trademarks identified by ® or ™ are registered
trademarks, respectively, of CommScope. All specifications are subject to change without notice. See www.commscope.com for the most
current information. Revised: April 1, 2014 page 1 of 2 June 24, 2015 _x000C_Product Specifications H5PNF Operating Temperature -
40 °C to +150 °C (40 °F to +302 °F) Storage Temperature 70 °C to +100 °C (94 °F to +212 °F) Moisture Resistance Test Method MILSTD-
202, Method 106 Mechanical Shock Test Method MILSTD202, Method 213, Test Condition I Thermal Shock Test Method MILSTD-
202, Method 107, Test Condition A1, Low Temperature 55 °C Vibration Test Method MILSTD-
202, Method 204, Test Condition B Corrosion Test Method MILSTD202, Method 101, Test Condition B Return Loss/VSWR Frequency Band
45–1080 MHz 1080–1590 MHz 1590–2110 MHz 2110–4680 MHz 4680–5200 MHz VSWR 1.02 1.05 1.07 1.08 1.15 Return Loss (dB) 41.00 33.00
29.00 28.00 23.00 Regulatory Compliance/Certifications Agency RoHS 2011/65/EU China RoHS SJ/T 113642006 ISO 9001:2008 Classification
Compliant by Exemption Above Maximum Concentration Value (MCV)
Designed, manufactured and/or distributed under this quality management system * Footnotes
Insertion Loss, typical 0.05v¯freq (GHz) (not applicable for elliptical waveguide) ©2015 CommScope, Inc. All rights reserved. All trademarks
identified by ® or ™ are registered trademarks, respectively, of CommScope. All specifications are subject to change without notice. See
www.commscope.com for the most current information. Revised: April 1, 2014 page 2 of 2 June 24, 2015 _x000C_
