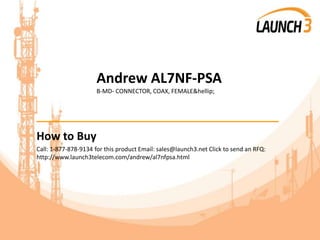

2. Andrew AL7NF-PSA
B-MD- CONNECTOR, COAX, FEMALE…
_______________________________________
How to Buy
Call: 1-877-878-9134 for this product Email: sales@launch3.net Click to send an RFQ:
http://www.launch3telecom.com/andrew/al7nfpsa.html

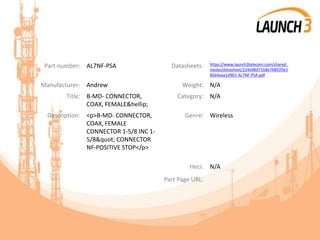

3. Part number: AL7NF-PSA Datasheets: https://www.launch3telecom.com/shared_
media/datasheet/224e98d7168e768929e3
85b4aaa1d901-AL7NF-PSA.pdf
Manufacturer: Andrew Weight: N/A
Title: B-MD- CONNECTOR,
COAX, FEMALE…
Category: N/A
Description: <p>B-MD- CONNECTOR,
COAX, FEMALE
CONNECTOR 1-5/8 INC 1-
5/8&quot; CONNECTOR
NF-POSITIVE STOP</p>
Genre: Wireless
Heci: N/A
Part Page URL:

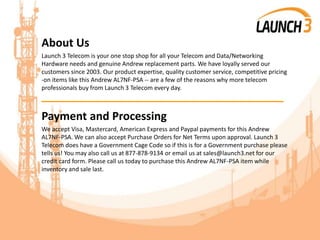

4. About Us
Launch 3 Telecom is your one stop shop for all your Telecom and Data/Networking
Hardware needs and genuine Andrew replacement parts. We have loyally served our
customers since 2003. Our product expertise, quality customer service, competitive pricing
-on items like this Andrew AL7NF-PSA -- are a few of the reasons why more telecom
professionals buy from Launch 3 Telecom every day.
_______________________________________
Payment and Processing
We accept Visa, Mastercard, American Express and Paypal payments for this Andrew
AL7NF-PSA. We can also accept Purchase Orders for Net Terms upon approval. Launch 3
Telecom does have a Government Cage Code so if this is for a Government purchase please
tells us! You may also call us at 877-878-9134 or email us at sales@launch3.net for our
credit card form. Please call us today to purchase this Andrew AL7NF-PSA item while
inventory and sale last.

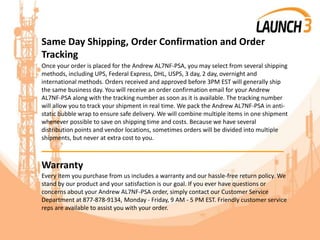

5. Same Day Shipping, Order Confirmation and Order
Tracking
Once your order is placed for the Andrew AL7NF-PSA, you may select from several shipping
methods, including UPS, Federal Express, DHL, USPS, 3 day, 2 day, overnight and
international methods. Orders received and approved before 3PM EST will generally ship
the same business day. You will receive an order confirmation email for your Andrew
AL7NF-PSA along with the tracking number as soon as it is available. The tracking number
will allow you to track your shipment in real time. We pack the Andrew AL7NF-PSA in anti-
static bubble wrap to ensure safe delivery. We will combine multiple items in one shipment
whenever possible to save on shipping time and costs. Because we have several
distribution points and vendor locations, sometimes orders will be divided into multiple
shipments, but never at extra cost to you.
_______________________________________
Warranty
Every item you purchase from us includes a warranty and our hassle-free return policy. We
stand by our product and your satisfaction is our goal. If you ever have questions or
concerns about your Andrew AL7NF-PSA order, simply contact our Customer Service
Department at 877-878-9134, Monday - Friday, 9 AM - 5 PM EST. Friendly customer service
reps are available to assist you with your order.

6. Services from Launch 3 Telecom
Launch 3 Telecom can also repair the Andrew
AL7NF-PSA, provides maintenance contracts,
De-installation, Telecom Consignment and
Recycling. Please contact Launch 3 Telecom to
learn more about these services! Launch 3
Telecom specializes in installation of all
telecom related systems. Our team is equipped
to handle all telecom equipment including
cellular, Fixed Wireless, WiMAX, Central Office,
and more. No project is too small or too big,
and each is handled by a dedicated telecom
professional.
De-Installation - Our Network Installation
Experts will properly de-install your equipment,
package it, and ship it to our warehouse for
storage.
Testing - Our team of technicians will inspect
each piece of equipment thoroughly. If a piece
of equipment needs repair, we’ll provide the
resources and technology to guarantee each
piece is ready to be sold.
Asset Recovery - We can store your equipment
in one of our expansive warehouses located
around the country until your equipment is
sold so you can save on storage costs and avoid
cluttering your equipment floor.
Repair Services - Launch 3 Telecom is your one-
stop solution to your entire Telecom
Equipment & System repair. Our team of
dedicated professionals will get your system
back up and running quickly and efficiently. We
repair cell sites, central office switching,
combiners, data networking, transmission,
power supplies, microwave, radios, IP Cameras,
Sonet /SHD, power, power amps, CDMA, GSM,
TDMA, and PBX Keyphone.
Third Party Logistics - If you are currently
operating a direct route or if you are interested
in setting one up, Launch 3 Telecom would like
to discuss the opportunity of sending you
traffic. Contact us today to speak to a Call
Termination Specialist for more details at
voip@launch3telecom.com

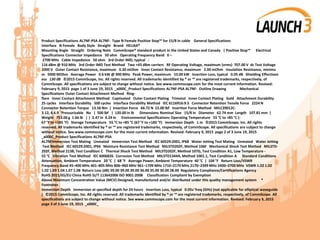

7. Product Specifications AL7NF-PSA AL7NF- Type N Female Positive Stop™ for 15/8 in cable General Specifications
Interface N Female Body Style Straight Brand HELIAX®
Mounting Angle Straight Ordering Note CommScope® standard product in the United States and Canada | Positive Stop™ Electrical
Specifications Connector Impedance 50 ohm Operating Frequency Band 0 –
2700 MHz Cable Impedance 50 ohm 3rd Order IMD, typical -
116 dBm @ 910 MHz 3rd Order IMD Test Method Two +43 dBm carriers RF Operating Voltage, maximum (vrms) 707.00 V dc Test Voltage
2000 V Outer Contact Resistance, maximum 0.30 mOhm Inner Contact Resistance, maximum 2.00 mOhm Insulation Resistance, minimu
m 5000 MOhm Average Power 0.6 kW @ 900 MHz Peak Power, maximum 10.00 kW Insertion Loss, typical 0.05 dB Shielding Effectiven
ess 130 dB ©2015 CommScope, Inc. All rights reserved. All trademarks identified by ® or ™ are registered trademarks, respectively, of
CommScope. All specifications are subject to change without notice. See www.commscope.com for the most current information. Revised:
February 9, 2015 page 1 of 3 June 19, 2015 _x000C_Product Specifications AL7NF-PSA AL7NF- Outline Drawing Mechanical
Specifications Outer Contact Attachment Method Ring-
flare Inner Contact Attachment Method Captivated Outer Contact Plating Trimetal Inner Contact Plating Gold Attachment Durability
25 cycles Interface Durability 500 cycles Interface Durability Method IEC 6116916:9.5 Connector Retention Tensile Force 2224 N
Connector Retention Torque 13.56 Nm | Insertion Force 66.72 N 15.00 lbf Insertion Force Method MILC39012C-
3.12, 4.6.9 Pressurizable No | 500 lbf | 120.00 in lb Dimensions Nominal Size 15/8 in Diameter 62.74 mm Length 107.81 mm |
Weight 753.00 g 1.66 lb | | 2.47 in 4.24 in Environmental Specifications Operating Temperature 55 °C to +85 °C (-
67 °F to +185 °F) Storage Temperature 55 °C to +85 °C (67 °F to +185 °F) Immersion Depth 1 m ©2015 CommScope, Inc. All rights
reserved. All trademarks identified by ® or ™ are registered trademarks, respectively, of CommScope. All specifications are subject to change
without notice. See www.commscope.com for the most current information. Revised: February 9, 2015 page 2 of 3 June 19, 2015
_x000C_Product Specifications AL7NF-PSA
AL7NFImmersion Test Mating Unmated Immersion Test Method IEC 60529:2001, IP68 Water Jetting Test Mating Unmated Water Jetting
Test Method IEC 60529:2001, IP66 Moisture Resistance Test Method MILSTD202F, Method 106F Mechanical Shock Test Method MILSTD-
202F, Method 213B, Test Condition C Thermal Shock Test Method MILSTD202F, Method 107G, Test Condition A1, Low Temperature -
55 °C Vibration Test Method IEC 6006826 Corrosion Test Method MILSTD1344A, Method 1001.1, Test Condition A Standard Conditions
Attenuation, Ambient Temperature 20 °C | 68 °F Average Power, Ambient Temperature 40 °C | 104 °F Return Loss/VSWR
Frequency Band 45–400 MHz 401–805 MHz 806–960 MHz 961–1709 MHz 1710–2170 MHz 2170–2399 MHz 2400–2700 MHz VSWR 1.02 1.02
1.02 1.03 1.04 1.07 1.08 Return Loss (dB) 39.00 39.00 39.00 36.00 35.00 30.00 28.00 Regulatory Compliance/Certifications Agency
RoHS 2011/65/EU China RoHS SJ/T 113642006 ISO 9001:2008 Classification Compliant by Exemption
Above Maximum Concentration Value (MCV) Designed, manufactured and/or distributed under this quality management system *
Footnotes
Immersion Depth Immersion at specified depth for 24 hours Insertion Loss, typical 0.05v¯freq (GHz) (not applicable for elliptical waveguide
) ©2015 CommScope, Inc. All rights reserved. All trademarks identified by ® or ™ are registered trademarks, respectively, of CommScope. All
specifications are subject to change without notice. See www.commscope.com for the most current information. Revised: February 9, 2015
