The document summarizes an energy analysis of Northdale Middle School that collected over 50 million data points in less than a year. It describes a new website created for Northdale that provides quick access to the school's HVAC equipment information, a list of unresolved issues by equipment, technical discussions of issues and resolutions, real-time operating data, and analysis screens to support recommendations. The website aims to consolidate equipment summaries and analysis details in one location for technical support.

1. Anoka-Hennepin
Energy Analysis
Northdale Middle School
Michael R. Lavelle P.E.
IRIS Energy LLC

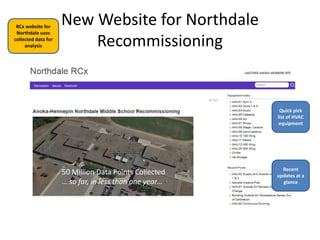

2. New Website for Northdale
Recommissioning
RCx website for
Northdale uses
collected data for
analysis
Quick pick
list of HVAC
equipment
Recent
updates at a
glance
50 Million Data Points Collected
… so far, in less than one year…

3. Issues List
Unresolved
Issues listed by
equipment
Click on link for
details
Jump to Issue

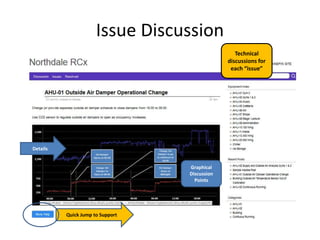

4. Issue Discussion
Details
Graphical
Discussion
Points
Quick Jump to Support
Technical
discussions for
each “issue”

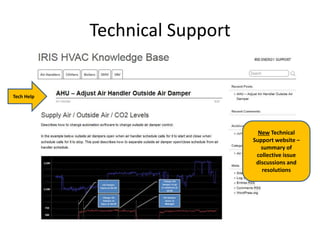

5. Technical Support
Tech Help
New Technical
Support website –
summary of
collective issue
discussions and
resolutions

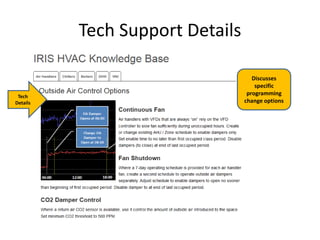

6. Tech Support Details
Discusses
specific
programming
change options
Tech
Details

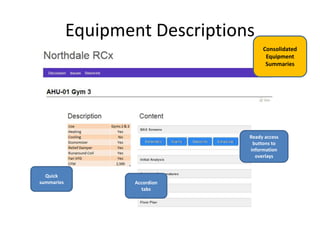

7. Equipment Descriptions
Quick
summaries Accordion
tabs
Ready access
buttons to
information
overlays
Consolidated
Equipment
Summaries

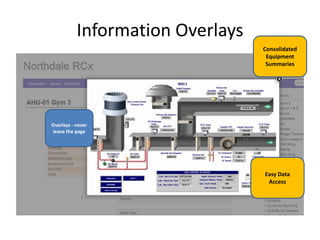

8. Information Overlays
Overlays - never
leave the page
Easy Data
Access
Consolidated
Equipment
Summaries

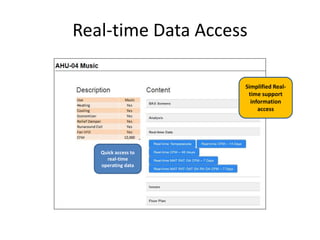

9. Real-time Data Access
Quick access to
real-time
operating data
Simplified Real-
time support
information
access

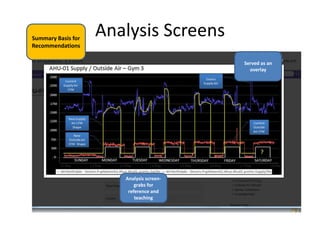

10. Analysis Screens
Analysis screen-
grabs for
reference and
teaching
Served as an
overlay
Summary Basis for
Recommendations

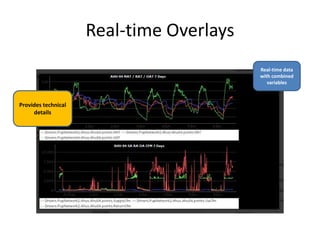

11. Real-time Overlays
Real-time data
with combined
variables
Provides technical
details

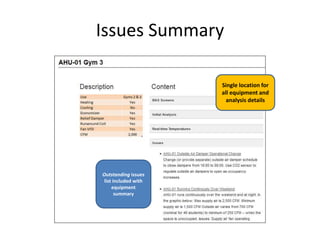

12. Issues Summary
Outstanding issues
list included with
equipment
summary
Single location for
all equipment and
analysis details

13. More to Come
Stay Tuned…
IRISenergy.com
