An Unexpected Solution to Microservices UI Composition
- 1. www.autoscout24.com www.autoscout24.com An Unexpected Solution To Microservices UI Composition Munich | 01/12/2016 | Johannes Müller and Arif Wider

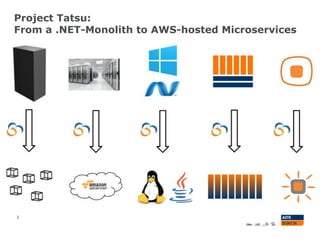

- 3. Project Tatsu: From a .NET-Monolith to AWS-hosted Microservices 3
- 4. Project Tatsu: Goals 4 • Attract talent • Reduce time to market • Release new features quickly (for test or production) • Enable teams to innovate independently

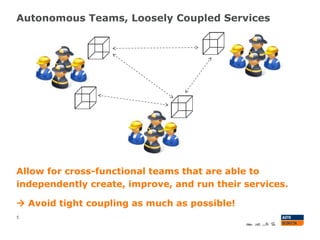

- 5. Autonomous Teams, Loosely Coupled Services 5 Allow for cross-functional teams that are able to independently create, improve, and run their services. Avoid tight coupling as much as possible!

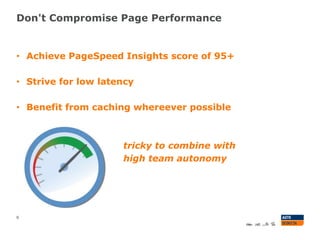

- 6. Don't Compromise Page Performance 6 • Achieve PageSpeed Insights score of 95+ • Strive for low latency • Benefit from caching whereever possible tricky to combine with high team autonomy
- 7. Breaking the Monolith The API Gateway Pattern 7
- 8. API Gateway Pattern 8 Home Header/ Footer Ads API Gateway Mobile apps

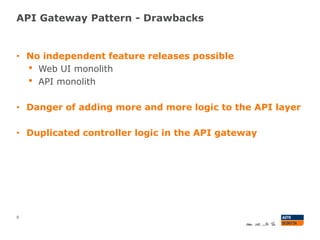

- 9. API Gateway Pattern - Drawbacks 9 • No independent feature releases possible • Web UI monolith • API monolith • Danger of adding more and more logic to the API layer • Duplicated controller logic in the API gateway
- 10. Breaking the Monolith The UI Composition Pattern 10

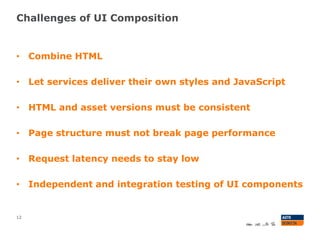

- 12. Challenges of UI Composition 12 • Combine HTML • Let services deliver their own styles and JavaScript • HTML and asset versions must be consistent • Page structure must not break page performance • Request latency needs to stay low • Independent and integration testing of UI components
- 13. First Attempt Varnish & ESI

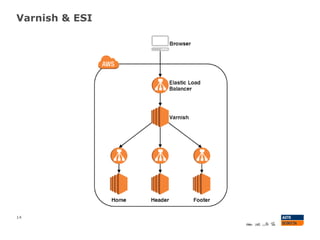

- 14. Varnish & ESI 14
- 15. ESI Include 15 <html> <head> <title>AutoScout24</title> <!-- CSS of page --> <link rel="stylesheet" href="/assets/home/ebacb8194-main.min.css" /> </head> <body> <!-- ESI include of header --> <esi:include src="http://content.as24.com/fragment/header_de_DE" /> Lorem ipsum.... <!-- JavaScript of page --> <script src="/assets/home/66ee72f9-main.min.js"></script> </body> </html>

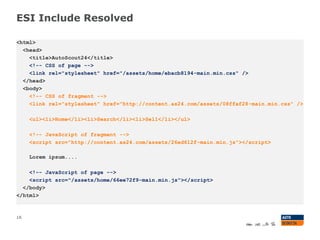

- 16. ESI Include Resolved 16 <html> <head> <title>AutoScout24</title> <!-- CSS of page --> <link rel="stylesheet" href="/assets/home/ebacb8194-main.min.css" /> </head> <body> <!-- CSS of fragment --> <link rel="stylesheet" href="http://content.as24.com/assets/08ffaf28-main.min.css" /> <ul><li>Home</li><li>Search</li><li>Sell</li></ul> <!-- JavaScript of fragment --> <script src="http://content.as24.com/assets/26ed612f-main.min.js"></script> Lorem ipsum.... <!-- JavaScript of page --> <script src="/assets/home/66ee72f9-main.min.js"></script> </body> </html>

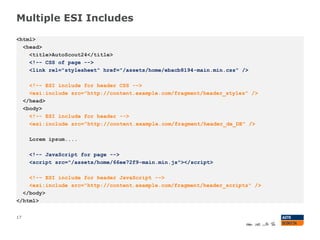

- 17. Multiple ESI Includes 17 <html> <head> <title>AutoScout24</title> <!-- CSS of page --> <link rel="stylesheet" href="/assets/home/ebacb8194-main.min.css" /> <!-- ESI include for header CSS --> <esi:include src="http://content.example.com/fragment/header_styles" /> </head> <body> <!-- ESI include for header --> <esi:include src="http://content.example.com/fragment/header_de_DE" /> Lorem ipsum.... <!-- JavaScript for page --> <script src="/assets/home/66ee72f9-main.min.js"></script> <!-- ESI include for header JavaScript --> <esi:include src="http://content.example.com/fragment/header_scripts" /> </body> </html>

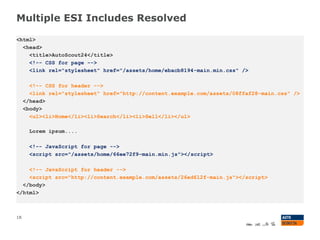

- 18. Multiple ESI Includes Resolved 18 <html> <head> <title>AutoScout24</title> <!-- CSS for page --> <link rel="stylesheet" href="/assets/home/ebacb8194-main.min.css" /> <!-- CSS for header --> <link rel="stylesheet" href="http://content.example.com/assets/08ffaf28-main.css" /> </head> <body> <ul><li>Home</li><li>Search</li><li>Sell</li></ul> Lorem ipsum.... <!-- JavaScript for page --> <script src="/assets/home/66ee72f9-main.min.js"></script> <!-- JavaScript for header --> <script src="http://content.example.com/assets/26ed612f-main.js"></script> </body> </html>

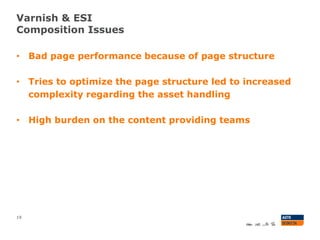

- 19. Varnish & ESI Composition Issues 19 • Bad page performance because of page structure • Tries to optimize the page structure led to increased complexity regarding the asset handling • High burden on the content providing teams

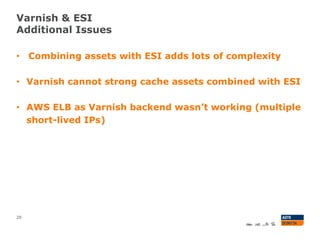

- 20. Varnish & ESI Additional Issues 20 • Combining assets with ESI adds lots of complexity • Varnish cannot strong cache assets combined with ESI • AWS ELB as Varnish backend wasn’t working (multiple short-lived IPs)
- 21. Requirements for a better solution 21 • References to asset URIs need to be included in HTML snippet • Therefore post-processing of references is required • Support for combined assets • Support for inlining CSS/JS • Support for shared cache between instances
- 22. Jigsaw How to solve it

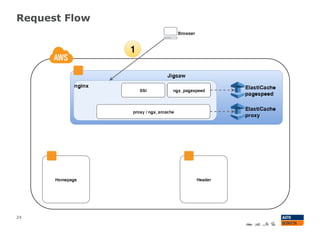

- 24. Request Flow 24
- 25. Request Flow 25

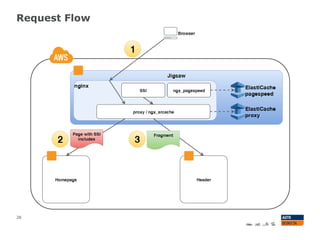

- 26. Request Flow 26

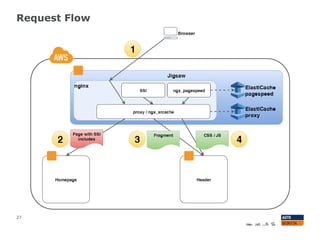

- 27. Request Flow 27
- 28. Request Flow 28

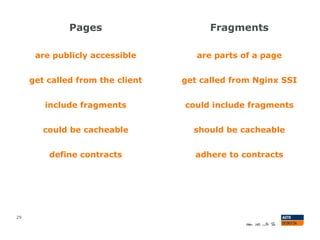

- 29. Pages 29 are publicly accessible get called from the client include fragments could be cacheable define contracts are parts of a page get called from Nginx SSI could include fragments should be cacheable adhere to contracts Fragments

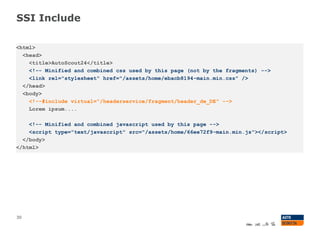

- 30. SSI Include 30 <html> <head> <title>AutoScout24</title> <!-- Minified and combined css used by this page (not by the fragments) --> <link rel="stylesheet" href="/assets/home/ebacb8194-main.min.css" /> </head> <body> <!--#include virtual="/headerservice/fragment/header_de_DE" --> Lorem ipsum.... <!-- Minified and combined javascript used by this page --> <script type="text/javascript" src="/assets/home/66ee72f9-main.min.js"></script> </body> </html>
- 31. SSI Include Resolved 31 <html> <head> <title>AutoScout24</title> <!-- Minified and combined css used by this page (not by the fragments) --> <link rel="stylesheet" href="/assets/home/ebacb8194-main.min.css" /> </head> <body> <head> <!-- Minified and combined css used by this fragment --> <link rel="stylesheet" href="/assets/headerservice/08ffaf28-main.min.css" /> </head> <ul><li>Home</li><li>Search</li><li>Sell</li></ul> <script type="text/javascript" src="/assets/headerservice/26ed612f-main.js"></script> Lorem ipsum.... <!-- Minified and combined javascript used by this page --> <script type="text/javascript" src="/assets/home/66ee72f9-main.min.js"></script> </body> </html>

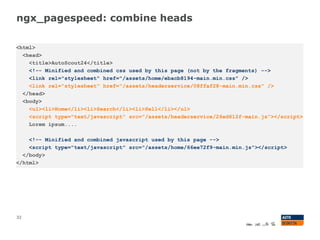

- 32. ngx_pagespeed: combine heads 32 <html> <head> <title>AutoScout24</title> <!-- Minified and combined css used by this page (not by the fragments) --> <link rel="stylesheet" href="/assets/home/ebacb8194-main.min.css" /> <link rel="stylesheet" href="/assets/headerservice/08ffaf28-main.min.css" /> </head> <body> <ul><li>Home</li><li>Search</li><li>Sell</li></ul> <script type="text/javascript" src="/assets/headerservice/26ed612f-main.js"></script> Lorem ipsum.... <!-- Minified and combined javascript used by this page --> <script type="text/javascript" src="/assets/home/66ee72f9-main.min.js"></script> </body> </html>
- 33. ngx_pagespeed: Combine CSS & JS 33 <html> <head> <title>AutoScout24</title> <!-- Minified and combined css by pagespeed --> <link rel="stylesheet" href="/assets/home,,_ebacb8194-main.min.css +headerservice,,_08ffaf28-main.min.css" /> </head> <body> <ul><li>Home</li><li>Search</li><li>Sell</li></ul> Lorem ipsum.... <!-- Minified and combined js by pagespeed --> <script type="text/javascript" href="/assets/home,,_ebacb8194-main.min.js +headerservice,,_08ffaf28-main.min.js" defer async /> </body> </html>

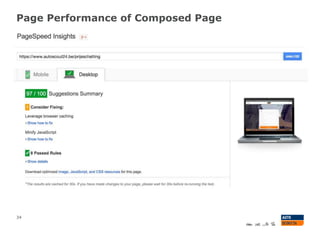

- 34. Page Performance of Composed Page 34

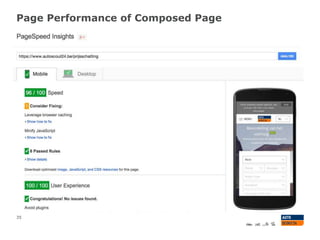

- 35. Page Performance of Composed Page 35

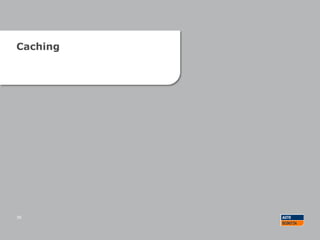

- 36. Caching 36

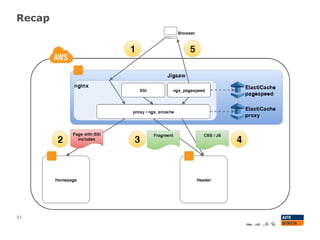

- 37. Recap 37

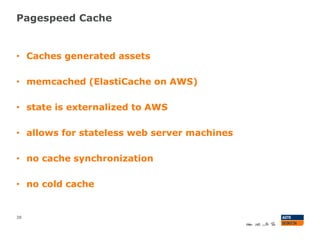

- 38. Pagespeed Cache 38 • Caches generated assets • memcached (ElastiCache on AWS) • state is externalized to AWS • allows for stateless web server machines • no cache synchronization • no cold cache
- 39. nginx Proxy Cache 39 • Caches responses from upstream services • Respects cache headers from upstream services • Supports cache key control via Vary Header • AWS ElastiCache (via ngx_srcache module)

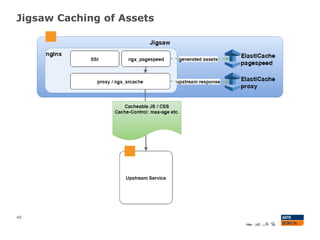

- 40. Jigsaw Caching of Assets 40

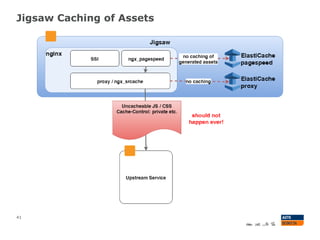

- 41. Jigsaw Caching of Assets 41

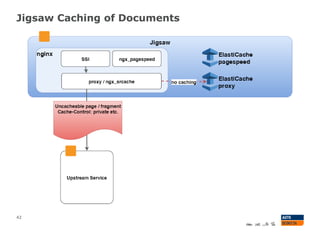

- 42. Jigsaw Caching of Documents 42

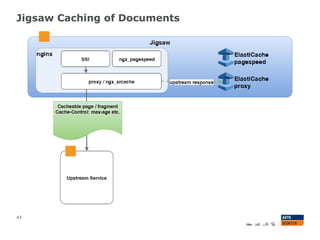

- 43. Jigsaw Caching of Documents 43
- 44. Jigsaw Caching of Documents with Vary Header 44
- 45. Testing

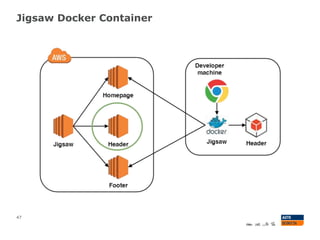

- 46. Local Testing 46

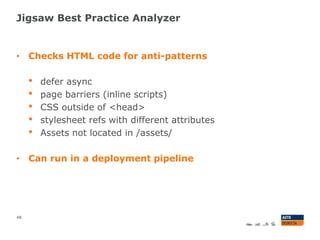

- 48. Jigsaw Best Practice Analyzer 48 • Checks HTML code for anti-patterns • defer async • page barriers (inline scripts) • CSS outside of <head> • stylesheet refs with different attributes • Assets not located in /assets/ • Can run in a deployment pipeline

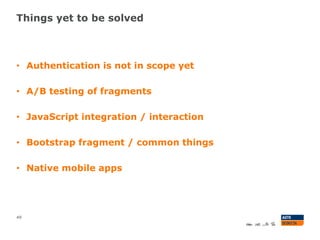

- 49. Things yet to be solved 49 • Authentication is not in scope yet • A/B testing of fragments • JavaScript integration / interaction • Bootstrap fragment / common things • Native mobile apps
- 50. Conclusion

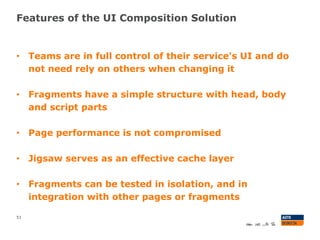

- 51. Features of the UI Composition Solution 51 • Teams are in full control of their service's UI and do not need rely on others when changing it • Fragments have a simple structure with head, body and script parts • Page performance is not compromised • Jigsaw serves as an effective cache layer • Fragments can be tested in isolation, and in integration with other pages or fragments

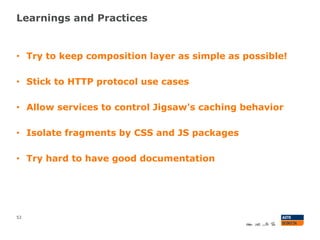

- 52. Learnings and Practices 52 • Try to keep composition layer as simple as possible! • Stick to HTTP protocol use cases • Allow services to control Jigsaw's caching behavior • Isolate fragments by CSS and JS packages • Try hard to have good documentation
Editor's Notes
- > Arif Before we go into the topic of UI composition, I’d like to give you some background about our motivation and the context in which we developed our solution to UI composition. And that context is a project that we call Tatsu. Tatsu means dragon (logo), because the project is nothing less than a complete rewrite of the AS24 platform, which is live in 18 countries across Europe, and therefore we compare the project with a dangerous but powerful dragon.
- In this project, which started a bit more than a year ago, we are doing 5 things at the same time. We are breaking the old rather monolithic system into a set of independent microservices. We are moving from a self hosted system to a completely cloud hosted system, using Amazon Web Services. We are moving from a Microsoft .NET stack to a Linux- and JVM-based tech stack. Because that is not enough, we are also changing the organisational structure, so that it reflects the Microservice approach. That means, we move from multiple product engineering teams that rely on a few operations and platform teams to cross-functional, autonomous teams that have enough ops knowledge to run their own services. This is depicted by those gradients here. Finally, as we are rebuilding everything, we want to make sure that we come out of the whole process with a new shiny AS24 page that contains only those features that are actually useful.
- Now, this whole project is obviously a huge effort, so why are we doing it? One of the reasons is to attract talented developers, which was harder with the old .NET tech stack However, the main reason is to reduce time to market, so that we can respond to user needs more quickly For this it is important, that new features can be released very quickly, also for being able to do lots of A/B testing to get early user feedback The idea here is to be able to think in minutes for feature to be released instead of thinking in days Now for this to be possible, teams must be enabled to innovate independently
- We believe that a key to achieve this are autonomous teams, that are able to independently ... Therefore, we believe that it is crucial to avoid any form of tight coupling as much as possible If a team wants to improve their own service but must wait for another team to release something in order to be able to do so then there is no real autonomy. In fact, we value this team autonomy so much, that we also accept certain trade-offs E.g., we often rather copy some code around than to create tight coupling by introducing a shared library or shared infrastructure
- At the same time, we do not want to compromise page performance. In case you do not know it, Pagespeed Insights is a tool by Google that analyzes the structure of a page in terms of how fast it can be rendered, in particular on a mobile browser. ...and the score goes up to 100, and is considered good from 85 upwards. This means, that we heavily rely on different cache layers and that our pages must not contain blocking content. In the context of Microservices, it is a bit tricky to achieve both high page speed and high team autonomy. To explain this, I am now going to present you two different ways how to generally approach this problem. And then afterwards Johannes will go more into detail on how we actually tried to solve it.
- The first one is the API Gateway pattern
- In this example you see that there are already several backend services such as... So the monolith is already broken down into several independent services at the back end However, in the frontend, there is still one single web application that takes care of the whole web UI, and talks to the different backend APIs. E.g., this red UI component here displays some content that is provided by the homepage service, whereas this In order to avoid that the web app needs to start several separate requests to several backend services just to perform a single action, it is generally a good idea to introduce a gateway layer that aggregates those requests to backend services. This way, the number of requests is reduced which is particularly important when using a mobile device to view the page. The API Gateway pattern is also particularly useful to deal with native mobile apps, however, those won't be in the focus of this talk today. Now, of course, in this scenario it is is also fairly easy to optimize the performance of the page because all the UI components belong to one application.
- However, there are some drawbacks of applying this pattern from which, for us, the most severe is that independent feature releases are no longer possible (as long as they contain UI changes) Instead, in the worst case three teams are involved and need to be coordinated when changing a feature: the backend service team, the API gateway layer team, and the web app team One could say that the API Gateway pattern one goes only half way to split the monolith, i.e., only in the backend There are other drawbacks such as... but because team autonomy is one of the main reasons we went for Microservices in the first place, this issue made the API Gateway pattern no option for us
- Instead we went for another pattern and that is the UI composition pattern
- This looks as follows: Each service delivers its own UI component, e.g., red home page Those UI components are later composed to a single web page This way, each team can change their backend and their UI independently We also often speak of vertical slices here, because there is no layered architecture anymore and each service can contain a backend, a UI, and everything in between
- However, there are quite few challenges that come with this approach ... each part of the page could compromise page performance by introducing render blocking content ... the loading time of the page depends on its slowest component
- Jo why are we telling you this -> to narrow down the topic to the core questions to solve
- Varnish test setup infrastructure Varnish in front of services no service registration, just loading content from referenced URLs
- Page, therefore HTML tag ESI include syntax styles and scripts already minified by service
- ESI resolved = include replaced with fragment (by Varnish) fragment has its own minified styles and scripts in there also its own script section at its bottom need to have full qualified references to assets very bad page speed
- One ESI include for header styles One ESI include for header fragment One ESI include for header scripts
- Multiple ESI resolved = include replaced with fragment (by Varnish) One ESI include for header styles One ESI include for header fragment One ESI include for header scripts better page speed, but still not perfect (no combination etc) big problem: TTL of cached includes are not synchronized. Version mismatches!
- > Arif So before showing an example how this actually looks in code I have to explain that we conceptually distinguish between what we call a page and what we call a fragment ...and does not know the original request ...and this team is responsible for the performance and the stability of the page So when this page includes fragments, this team has to define a contract with the providers of this fragment The fragment on the other hand needs to obey this contract and behave well
- Now let's look at a simple example page Page, therefore HTML tag+ head and body styles already minified by service SSI include syntax
- SSI resolved = include replaced with fragment (by Nginx) fragment has its own head, with its own minified styles in there also its own script section at its bottom very bad page speed as of now
- now comes mod pagespeed combine heads
- combine css combine js, defer its loading
- > Jo
- Example: personalized pages (different content based on visitor, makes no sense to cache it)
- > Jo
- 3 parts on home page let's assume you want to change header and test
- defer async stops pagespeed from combining page barrier = inline script, order important, cannot combine assets above and below barrier stylesheet --> for example media attribute
- authentication and a/b testing -> need to get cookies and headers to the fragments javascript integration / interaction -> window.event or something else?? Bootstrap: for example Fonts or javascript error logger etc.
- > Arif
- ...as long as they stay within the boundaries of their contracts
