1. MAVI DENIZ A.S
Bagdat Cd. Yeni Turku Sok. No:12, Guzelyalı,
Pendik - Istanbul - Turkey
Tel:+90 216 392 41 43 / Fax:+90 216 392 47 00
info@mavideniz.com.tr / wwww.mavideniz.com.tr
BASE MACHINE
Dimensions and weight
Length : 4.75 M
Width: 2.10 M
Height : 2.10 M
Weight: 1.370 kg
Engine
Engines water cooled, Environment class EPA TIER 4
Lombardini 3 cylinder 27 HP (Standart)
Lombardini 4 cylinder 35.2 HP (Optional)
Kubota 3 cylinder 28 HP (Standart)
Hydraulics
Driving pumps : Approx. 2 x 21 cc
Driving engines : Approx. 2 x 160 cc
Pump for accessories : Approx. 8 cc or11 cc
Hydraulic tank : 60 ltr
Propulsion
Tracked pontoon with paddles
2 hydraulicallydriven, independentlyoperated, reversible
Driving Speed : 0 – 5mph
Floatation
Draft while floating 40 CM
Pontoons made of Salt resisting Aluminum
4 Compartments, watertight
Tool kit connection
Liftarm with easy connecting device
Lifting Capacity max. 250 kg
Easyconnect liftarm
Operator’s Console
1 hydraulic joystick (operate pontoons)
1 hydraulic joystick and/or 3 handles (operate tools)
ACCESSORIES
Mowing
Cutter for weeds width : 2.10 - 4.0 M
Cutter for weeds depth : 0 - 1.50 M
Rakes
Collecting Rake : 3.50 M
The rake can be completed with a wide range of strain
plates for collecting trash, rubbish, algae and absorbs pads
and booms (oil cleaning)
Excavator with various buckets
Digging radius : 6.00M
Digging depth : 2.20M
Weight arm : 250 kg
The excavator is delivered with a 30 liter bucket .
Excavators
Bucket @ 50 l width : 60 CM
Root knife length : 60 CM
Digging rake width : 100 CM
Dredging
Upon request a feeding screw can be added to the front
of the pump. This device loosens the bottom to give the
pump an even flow of sediment. This is only used when
exactly know what kind of material is to be dredged.
When the sediments are light and soft it may be wise to
discuss the type of pump.
Electrical system
12 V or 24 V, 40 A generator, 45 Ah battery
Trailer
The Machine can easily be driven onto a trailer.
The trailer can be pulled with a regular car.
Information about the trailer UPON REQUEST.
► Multifunctional
► Easy operation
► Great maneuverability
► Transportable
Cutting, Spraying, Digging, Breaking, Harvesting, Dredging, Excavator
Easy smart tool connection and single person operation
Sail in water and go in and out of water itself
Drives up and down to the trailer that can be towed by a normal pick up car

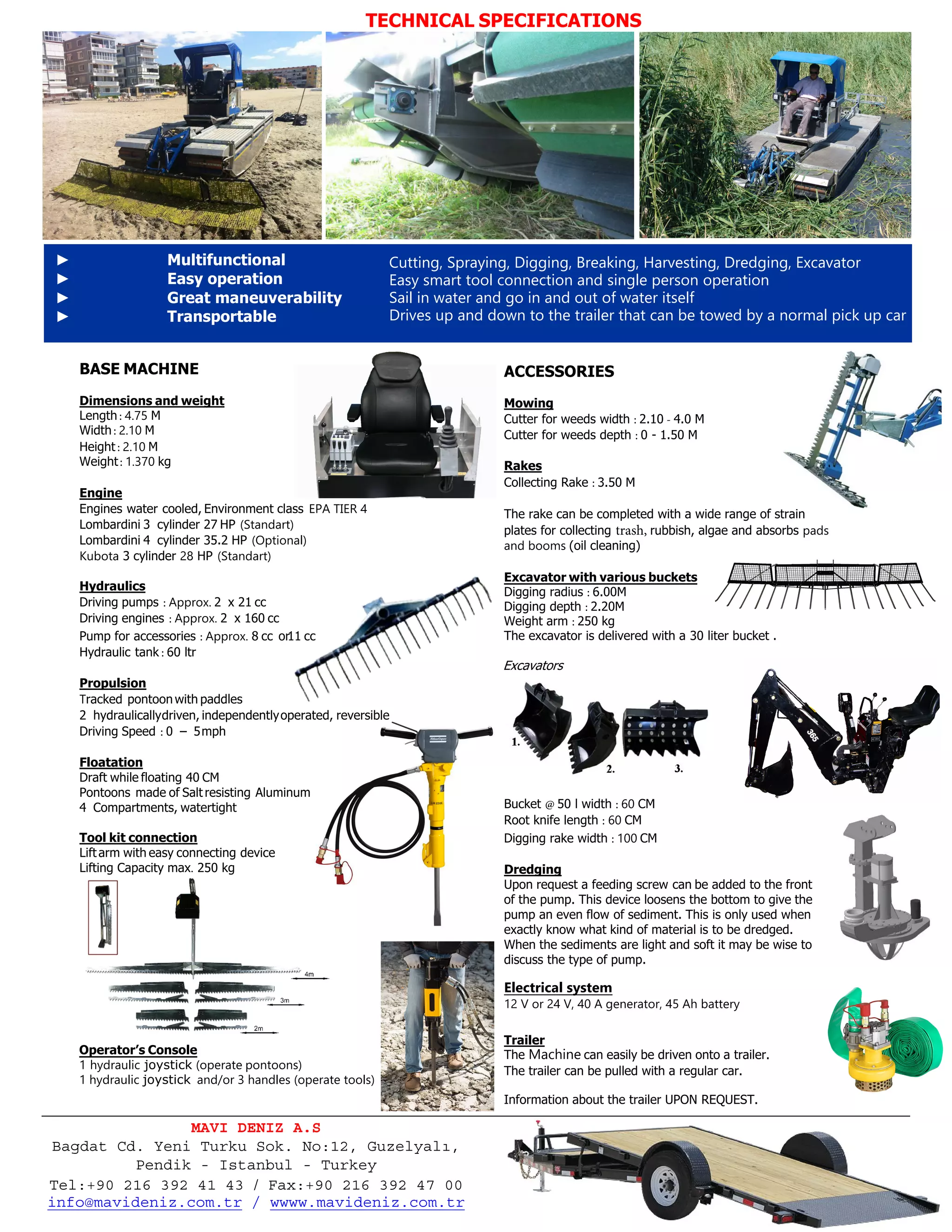

TECHNICAL SPECIFICATIONS
