Alliance 9-price

alliance
contact@allianceboats.co.uk w w w . a l l i a n c e b o a t s . c o . u k Tel:+44 (0)207 537 9498

alliance

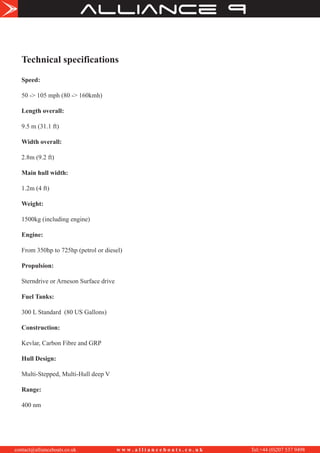

Technical specifications
Speed:
50 -> 105 mph (80 -> 160kmh)
Length overall:
9.5 m (31.1 ft)
Width overall:
2.8m (9.2 ft)
Main hull width:
1.2m (4 ft)
Weight:
1500kg (including engine)
Engine:
From 350hp to 725hp (petrol or diesel)
Propulsion:
Sterndrive or Arneson Surface drive
Fuel Tanks:
300 L Standard (80 US Gallons)
Construction:
Kevlar, Carbon Fibre and GRP
Hull Design:
Multi-Stepped, Multi-Hull deep V
Range:
400 nm

Safety
The Alliance 9 has safety built into all design aspects, including:
- Anti Dive bow
- Superior stability
- Passengers feel inside a boat rather on a boat
- Less slamming due to use of narrow hulls
- Constant and smooth speed due to wave piercing outriggers and low drag coefficient
- Self draining main hull
Stability
Lateral Stability is achieved by the buoyancy the outriggers provide. This buoyancy is further
from the center line of the boat than any other small powerboat, including RIBs.
Longitudinal Stability is achieved by the Anti Dive bow that provides instant lift should you
hit a wave head on. The outriggers extend beyond the stern of the center hull preventing 'bow up'
situations. The Adam Younger designed multi step hull creates lift and stability throughout the speed envelope.
alliance

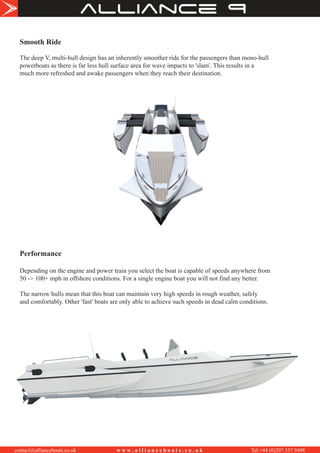

Smooth Ride
The deep V, multi-hull design has an inherently smoother ride for the passengers than mono-hull
powerboats as there is far less hull surface area for wave impacts to 'slam'. This results in a
much more refreshed and awake passengers when they reach their destination.
Performance
Depending on the engine and power train you select the boat is capable of speeds anywhere from
50 -> 100+ mph in offshore conditions. For a single engine boat you will not find any better.
The narrow hulls mean that this boat can maintain very high speeds in rough weather, safely
and comfortably. Other 'fast' boats are only able to achieve such speeds in dead calm conditions.
alliance

alliance

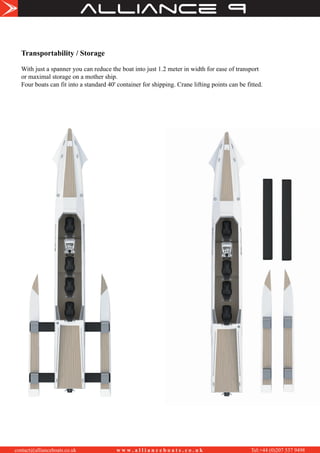

Transportability / Storage
With just a spanner you can reduce the boat into just 1.2 meter in width for ease of transport
or maximal storage on a mother ship.
Four boats can fit into a standard 40' container for shipping. Crane lifting points can be fitted.

alliance
Fuel Efficiency / Range
Due to the Adam Younger designed boat using narrow hulls and multiple steps the boat is incredibly
fuel efficient. For any given engine the boat is more fuel efficient at speed than any other similar
sized boat using the same engine. This allows you to be more relaxed about fuel costs.
Great fuel efficiency equals great range, in excess of 400 miles.
Repair and Maintenance
The boat has been designed to be disassembled using just a spanner. If you damage an outrigger,
replacing a new one is both quick and cheap. The engine bay has easy access from all sides.
As the center hull is just 1.2m in width it is easy for people to work on different parts of the
boat in a confined area.
Clean sheet design
For many decades now small boat designs have stagnated. Both designs and materials used have changed
very little, to us this is unacceptable. We have introduced a new approach to small boat design
For single engine craft the Alliance 9 is second to none in terms of:
- Performance
- Safety
- Fuel Efficiency
- Capabilities
Management Team
Alliance Boats are perhaps the only marine company that is headed up by a woman, different indeed!
An experienced designer Justyna, visited many boat shows and reviewed several decades of boat
magazines. The results were that small boat designs and materials have changed little in over 30 years.
Justyna decided to bring together an alliance of talented people headed by herself to create a genuinely
new boat design using the latest in marine technology and knowledge.
The head designer is Adam Younger. Adam is world renowned as one of the top marine designers
working today.
Our production facility is located in Lymington, England. All of the boat builders have several
decades of industry experience, headed up by Rod Ross-Smith

alliance

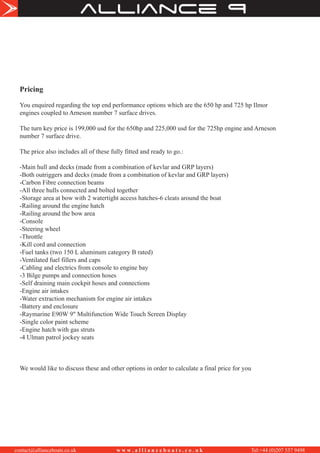

Pricing
You enquired regarding the top end performance options which are the 650 hp and 725 hp Ilmor
engines coupled to Arneson number 7 surface drives.
The turn key price is 199,000 usd for the 650hp and 225,000 usd for the 725hp engine and Arneson
number 7 surface drive.
The price also includes all of these fully fitted and ready to go.:
-Main hull and decks (made from a combination of kevlar and GRP layers)
-Both outriggers and decks (made from a combination of kevlar and GRP layers)
-Carbon Fibre connection beams
-All three hulls connected and bolted together
-Storage area at bow with 2 watertight access hatches-6 cleats around the boat
-Railing around the engine hatch
-Railing around the bow area
-Console
-Steering wheel
-Throttle
-Kill cord and connection
-Fuel tanks (two 150 L aluminum category B rated)
-Ventilated fuel fillers and caps
-Cabling and electrics from console to engine bay
-3 Bilge pumps and connection hoses
-Self draining main cockpit hoses and connections
-Engine air intakes
-Water extraction mechanism for engine air intakes
-Battery and enclosure
-Raymarine E90W 9" Multifunction Wide Touch Screen Display
-Single color paint scheme
-Engine hatch with gas struts
-4 Ulman patrol jockey seats
We would like to discuss these and other options in order to calculate a final price for you

alliance

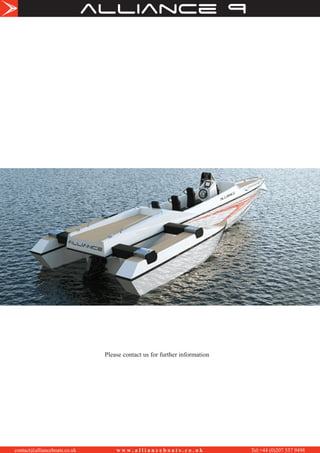

Please contact us for further information
