Ai chatbot

1. AI CHATBOT
BY
 M.DHARANI
 MEHROON
 MERAJ BEGAM
 M.NANDINI
 N.PRIYANKA
 P.SONY PRIYANKA
 R.MADHAVI

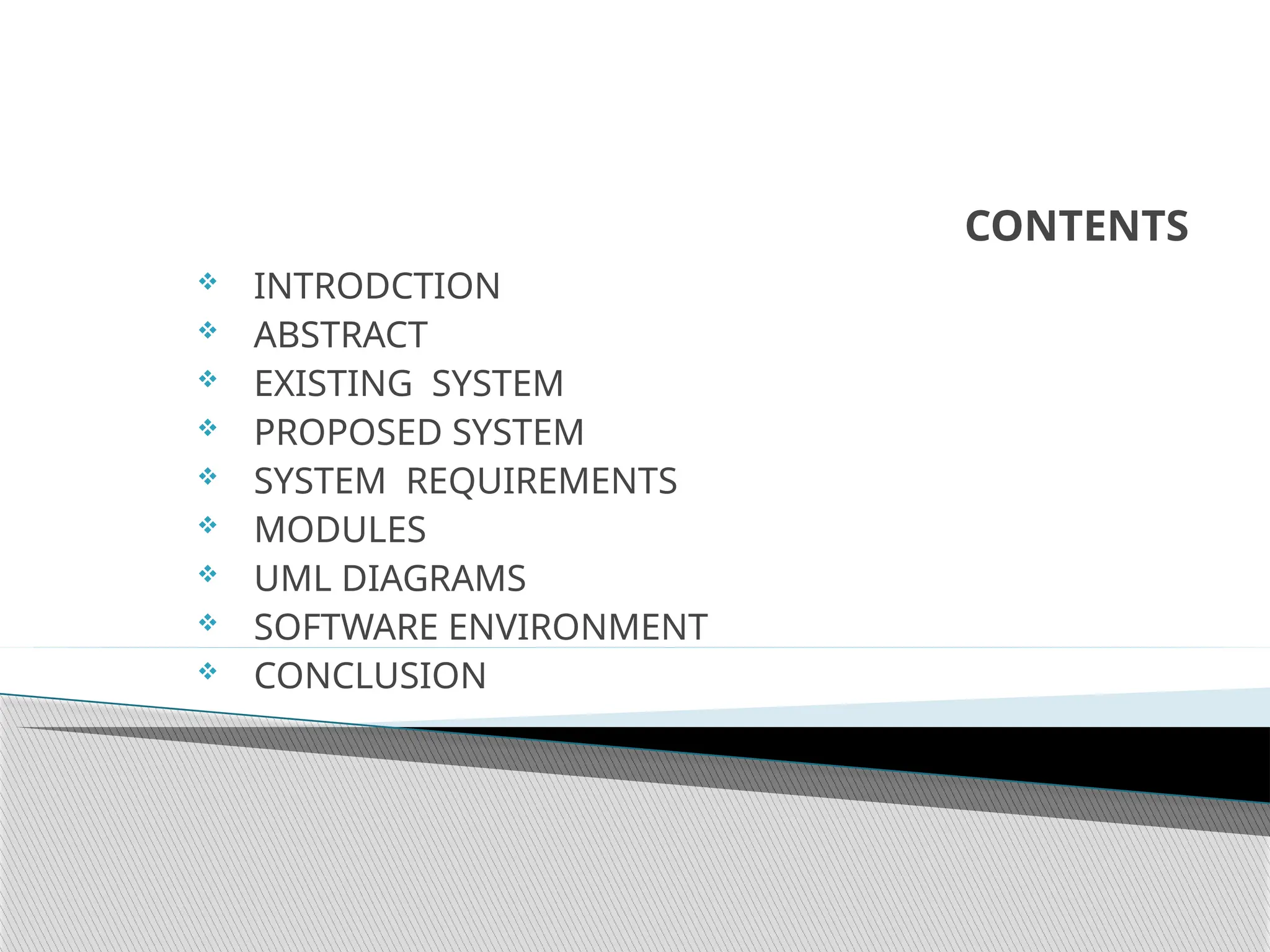

2. CONTENTS
 INTRODCTION
 ABSTRACT
 EXISTING SYSTEM
 PROPOSED SYSTEM
 SYSTEM REQUIREMENTS
 MODULES
 UML DIAGRAMS
 SOFTWARE ENVIRONMENT
 CONCLUSION

3.  Artificial intelligence (AI) chatbots are apps or
interfaces that can carry on human-like
conversation using
natural language understanding (NLU) or natural
language processing (NLP) and machine learning
(ML).
 AI chatbots differ from standard chatbots in that
they leverage large language models (LLMs) versus
traditional conversation flows and pre-
programmed responses to generate responses to
text and voice inputs.
INTRODUCTION

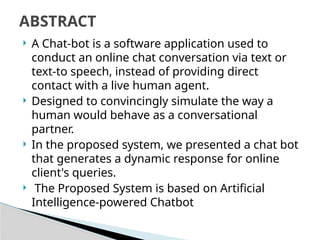

4.  A Chat-bot is a software application used to
conduct an online chat conversation via text or
text-to speech, instead of providing direct
contact with a live human agent.
 Designed to convincingly simulate the way a
human would behave as a conversational
partner.
 In the proposed system, we presented a chat bot
that generates a dynamic response for online
client's queries.
 The Proposed System is based on Artificial
Intelligence-powered Chatbot
ABSTRACT

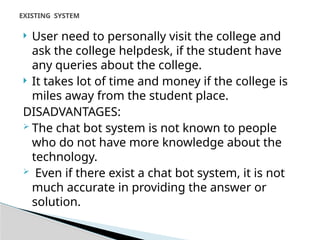

5.  User need to personally visit the college and
ask the college helpdesk, if the student have
any queries about the college.
 It takes lot of time and money if the college is
miles away from the student place.
DISADVANTAGES:
 The chat bot system is not known to people
who do not have more knowledge about the
technology.
 Even if there exist a chat bot system, it is not
much accurate in providing the answer or
solution.
EXISTING SYSTEM

6. PROPOSED SYSTEM
 This application provides answer to
the query of the student.
 Student have to query the bot which
is used for chatting.
 The answers are appropriate what
the user queries.

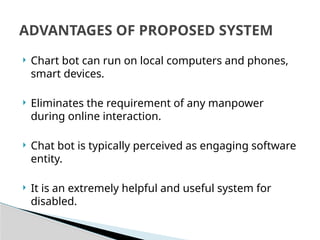

7.  Chart bot can run on local computers and phones,
smart devices.
 Eliminates the requirement of any manpower
during online interaction.
 Chat bot is typically perceived as engaging software
entity.
 It is an extremely helpful and useful system for
disabled.
ADVANTAGES OF PROPOSED SYSTEM

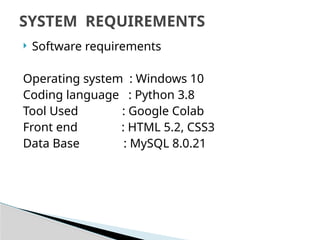

8.  Software requirements
Operating system : Windows 10
Coding language : Python 3.8
Tool Used : Google Colab
Front end : HTML 5.2, CSS3
Data Base : MySQL 8.0.21
SYSTEM REQUIREMENTS

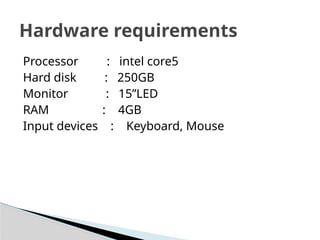

9. Processor : intel core5
Hard disk : 250GB
Monitor : 15’’LED
RAM : 4GB
Input devices : Keyboard, Mouse
Hardware requirements

10.  User Module
 Chat Bot
 Information
MODULES

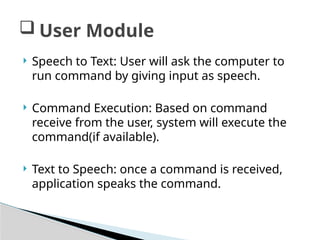

11.  Speech to Text: User will ask the computer to
run command by giving input as speech.
 Command Execution: Based on command
receive from the user, system will execute the
command(if available).
 Text to Speech: once a command is received,
application speaks the command.
 User Module

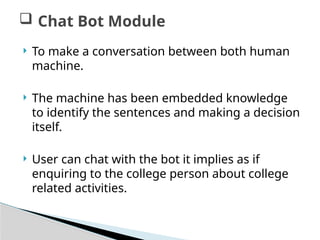

12.  To make a conversation between both human
machine.
 The machine has been embedded knowledge
to identify the sentences and making a decision
itself.
 User can chat with the bot it implies as if
enquiring to the college person about college
related activities.
 Chat Bot Module

13.  This system can answer the questions asked by
the user.
 The question relevant to college the system
search and gives the particular college
information.
 Information Module

14.  UML DIAGRAMS
Use Case Diagram

15.  CLASS DIAGRAM

16.  SEQUENCE DIAGRAM

17.  ACTIVITY DIAGRAM

18.  Chatbots are available immediately @24/7.
 It increases sales as well as frame.
 Provided wide range of applications in different
industry and services.
 Helps to search the information faster and
better then humans.
 It provides immediate feedback.
 HOW CHATBOT AID THE CONTEMPORARY
SOCIETY :

19.  This chatbot can answer to the queries in the
textual user input.
 Chatbot can answer to the queries asked by the
user.
 In this project, chatbot contains the details
about the college.
CONCLUSION
