This document appears to be a product catalog from Agrimir Industry & Commerce Co. Ltd. listing trenching machines for excavating channels. It includes specifications for two trencher models - the ARTR and ARTR 1000. The ARTR can excavate trenches up to 100 cm deep and 35 cm wide, weighing 1500 kg and requiring 80-150 HP to operate. The ARTR 1000 is designed to be operated by a 40 HP tractor, can excavate trenches from 0-100 cm deep at rates from 300-150 m/h, and makes trenches 15-25 cm wide. Contact information is provided for inquiries.

1. 2011
AGRIMIR
INDUSTRY & COMMERCE
CO,. LTD.
2011
PRODUCT CATALOG
CONTACT
Address : Selcuk San. Sit. Ehad Cad. No:26-9 Konya - TURKEY
Phone : 0090 5066586448 – 0090 3322482685
Web : www.agrimir.com - export@agrimir.com

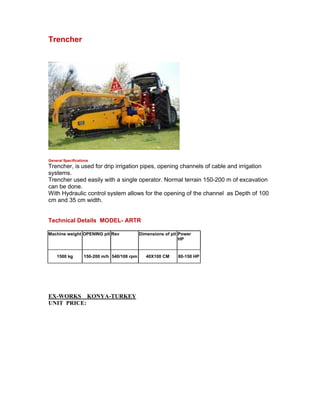

2. Trencher
General Specifications
Trencher, is used for drip irrigation pipes, opening channels of cable and irrigation
systems.
Trencher used easily with a single operator. Normal terrain 150-200 m of excavation
can be done.
With Hydraulic control system allows for the opening of the channel as Depth of 100
cm and 35 cm width.
Technical Details MODEL- ARTR
Machine weight OPENING pit Rev Dimensions of pit Power
HP
1500 kg 150-200 m/h 540/108 rpm 40X100 CM 80-150 HP
EX-WORKS KONYA-TURKEY
UNIT PRICE:

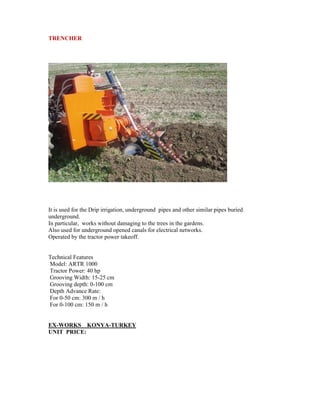

3. TRENCHER
It is used for the Drip irrigation, underground pipes and other similar pipes buried
underground.
In particular, works without damaging to the trees in the gardens.
Also used for underground opened canals for electrical networks.
Operated by the tractor power takeoff.
Technical Features
Model: ARTR 1000
Tractor Power: 40 hp
Grooving Width: 15-25 cm
Grooving depth: 0-100 cm
Depth Advance Rate:
For 0-50 cm: 300 m / h
For 0-100 cm: 150 m / h
EX-WORKS KONYA-TURKEY
UNIT PRICE:
