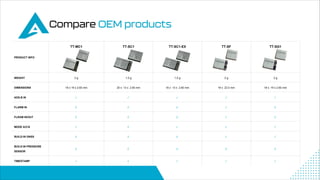

PRODUCT INFO
TT-MC1 TT-SC1 TT-SC1-EX TT-SF TT-SG1
WEIGHT 2 g 1.5 g 1.5 g 2 g 2 g
DIMENSIONS 18 x 19 x 2.65 mm 20 x 13 x 2.65 mm 16 x 13 x 2.65 mm 19 x 22.5 mm 18 x 19 x 2.65 mm
ADS-B IN ✓ ✓ ✓ ✓ ✓
FLARM IN ✗ ✗ ✗ ✓ ✗
FLRAM IN/OUT ✗ ✗ ✗ ✓ ✗
MODE A/C/S ✓ ✗ ✓ ✓ ✓
BUILD-IN GNSS ✗ ✗ ✗ ✓ ✓
BUILD-IN PRESSURE
SENSOR
✗ ✗ ✗ ✗ ✗
TIMESTAMP ✓ ✗ ✓ ✓ ✓

8. 8

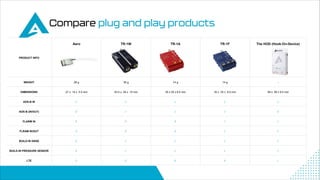

PRODUCT INFO

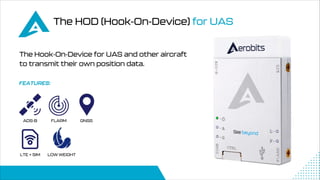

Aero TR-1W TR-1A TR-1F The HOD (Hook-On-Device)
WEIGHT 28 g 30 g 14 g 14 g -
DIMENSIONS 27 x 14 x 5.5 mm 45.5 x 28 x 10 mm 35 x 25 x 8.5 mm 35 x 25 x 8.5 mm 58 x 38 x 9.5 mm
ADS-B IN ✓ ✓ ✓ ✓ ✓
ADS-B (IN/OUT) ✗ ✓ ✓ ✓ ✗
FLARM IN ✗ ✗ ✗ ✓ ✓
FLRAM IN/OUT ✗ ✗ ✗ ✓ ✓
BUILD-IN GNSS ✗ ✓ ✓ ✓ ✓
BUILD-IN PRESSURE SENSOR ✗ ✓ ✓ ✓ ✓
LTE ✗ ✗ ✗ ✗ ✓

9. 9
PRODUCT INFO
Aero RPi Hat Mobile Ground Station Omni-directional Ground Station Sector Antenna
WEIGHT 45 g 500 g 500 g 13000 g
DIMENSIONS 85.6 x 56.5 x 17 mm 13000 x 17500 x 4500 mm 170 x 170 x 100 mm 1290 x 290 x 134 mm
ADS-B (IN/OUT) ✗ ✗ ✗ ✗
LTE ✗ ✓ ✓ ✓
VIEW Omni-directional Omni-directional Omni-directional Sector
SENSITIVITY ADS-B (DBM) RX sensitivity For operation at 50Ω -85 -90 -90 -100
SENSITIVITY FLARM (DBM) RX sensitivity For operation at 50Ω -85 -130 -115 -130
FIXING Mobile Mobile Fixed Fixed
