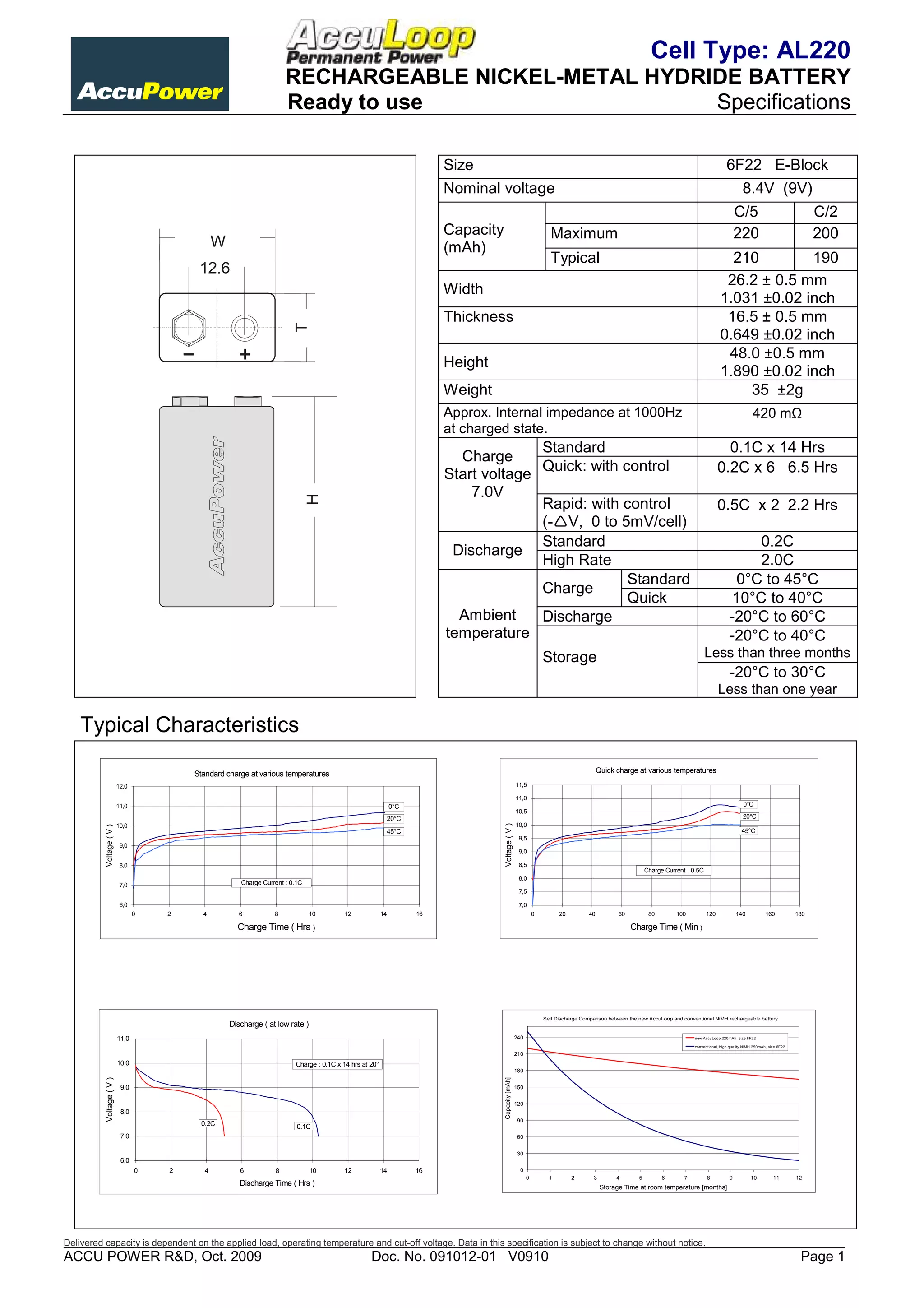

Cell Type: AL220
                                                                      RECHARGEABLE NICKEL-METAL HYDRIDE BATTERY
                                                                      Ready to use                   Specifications

                                                                                                                         Size                                                                                                                   6F22 E-Block
                                                                                                                         Nominal voltage                                                                                                                8.4V (9V)
                                                                                                                                                                                                                                                     C/5                                 C/2
                                                                                                                         Capacity                                    Maximum                                                                         220                                 200
                                                W                                                                        (mAh)
                                                                                                                                                                     Typical                                                                  210        190
                                          12.6
                                                                                                                                                                                                                                             26.2 ± 0.5 mm
                                                                                                                         Width
                                                                                                                                                                                                                                            1.031 ±0.02 inch
                                                                                                                         Thickness                                                                                                           16.5 ± 0.5 mm
                                                                         T

                                                                                                                                                                                                                                            0.649 ±0.02 inch
                                                                                                                                                                                                                                             48.0 ±0.5 mm
                                                                                                                         Height
                                                                                                                                                                                                                                            1.890 ±0.02 inch
                                                                                                                         Weight                                                                                                                 35 ±2g
                                                                                                                         Approx. Internal impedance at 1000Hz                                                                                                 420 mΩ
                                                                                                                         at charged state.
                                                                                                                                       Standard                                                                                              0.1C x 14 Hrs
                                                                                                                           Charge
                                                                                                                         Start voltage
                                                                                                                                       Quick: with control                                                                                 0.2C x 6 ∼6.5 Hrs
                                                                                                                             7.0V
                                                                               H




                                                                                                                                       Rapid: with control                                                                                 0.5C x 2∼2.2 Hrs
                                                                                                                                       (-êV, 0 to 5mV/cell)
                                                                                                                                       Standard                                                                                                       0.2C
                                                                                                                          Discharge
                                                                                                                                       High Rate                                                                                                      2.0C
                                                                                                                                                    Standard                                                                                      0°C to 45°C
                                                                                                                                       Charge
                                                                                                                                                    Quick                                                                                         10°C to 40°C
                                                                                                                           Ambient     Discharge                                                                                                 -20°C to 60°C
                                                                                                                         temperature                                                                                                             -20°C to 40°C
                                                                                                                                                                   Storage                                                           Less than three months
                                                                                                                                                                                                                                                 -20°C to 30°C
                                                                                                                                                                                                                                           Less than one year

    Typical Characteristics

                                         Standard charge at various temperatures                                                                                                          Quick charge at various temperatures

                          12,0                                                                                                                       11,5

                                                                                                                                                     11,0
                          11,0                                                                                0°C                                                                                                                                        0°C
                                                                                                                                                     10,5
                                                                                                          20°C                                                                                                                                           20°C
                                                                                                                                                     10,0
                                                                                                                                    Voltage ( V )




                          10,0
          Voltage ( V )




                                                                                                          45°C                                                                                                                                          45°C
                                                                                                                                                      9,5
                           9,0
                                                                                                                                                      9,0

                           8,0                                                                                                                        8,5
                                                                                                                                                                                                             Charge Current : 0.5C
                                                                                                                                                      8,0
                           7,0                         Charge Current : 0.1C
                                                                                                                                                      7,5

                           6,0                                                                                                                        7,0
                                 0   2     4           6          8            10        12              14         16                                         0         20          40          60           80        100          120             140             160           180

                                                      Charge Time ( Hrs )                                                                                                                             Charge Time ( Min )




                                                                                                                                                                   Self Discharge Comparison between the new AccuLoop and conventional NiMH rechargeable battery
                                                    Discharge ( at low rate )
                          11,0                                                                                                                       240                                                                       new AccuLoop 220mAh, size 6F22

                                                                                                                                                                                                                               conventional, high quality NiMH 250mAh, size 6F22

                                                                                                                                                     210
                          10,0                                           Charge : 0.1C x 14 hrs at 20°
                                                                                                                                                     180
          Voltage ( V )




                                                                                                                                    Capacity [mAh]




                           9,0                                                                                                                       150


                                                                                                                                                     120
                           8,0
                                                                                                                                                     90
                                          0.2C                            0.1C
                           7,0                                                                                                                       60


                                                                                                                                                     30
                           6,0
                                 0   2      4          6          8             10       12              14         16                                 0
                                                                                                                                                           0         1        2        3        4        5         6       7         8           9           10          11        12
                                                       Discharge Time ( Hrs )                                                                                                              Storage Time at room temperature [months]




Delivered capacity is dependent on the applied load, operating temperature and cut-off voltage. Data in this specification is subject to change without notice.
ACCU POWER R&D, Oct. 2009                                                                          Doc. No. 091012-01 V0910                                                                                                                                                         Page 1
