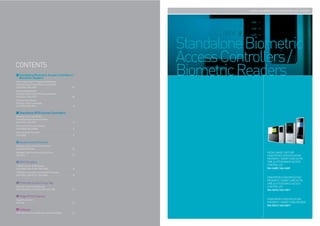

3. STANDALONE BIOMETRIC ACCESS CONTROLLERS / READERS
Standalone Biometric
CONTENTS
Access Controllers /
Standalone Biometric Access Controllers /
Biometric Readers
Facial Image Capture / Fingerprint Identification
Biometric Readers
Proximity / Smart Card & PIN Access Controller
SSA-S4000 / SSA-S4001 06
Fingerprint Identification
Proximity / Smart Card & PIN Access Controller
SSA-S3010 / SSA-S3011 08
Fingerprint Identification
Proximity / Smart Card Reader
SSA-R2010 / SSA-R2011 10
Standalone RFID Access Controllers
Proximity / Smart Card & PIN
Time & Attendance Access Controller
SSA-S2100 / SSA-S2101 14
Proximity & PIN Access Controller
SSA-S2000/ SSA-S2000W 16
Proximity Access Controller
SSA-S1000 17
Access Control Panels
Intelligent 4 Doors Access Control Panel
SSA-P400 / SSA-P401 20
Intelligent Single Door Access Control Panel FACIAL IMAGE CAPTURE
SSA-P102 22 FINGERPRINT IDENTIFICATION
PROXIMITY / SMART CARD & PIN
RFID Readers TIME & ATTENDANCE ACCESS
125KHz Proximity & PIN Readers CONTROLLER
SSA-R1000 / SSA-R1100 / SSA-R2000 26 SSA-S4000 / SSA-S4001
13.56MHz Contact-less Smart Card & PIN Readers
SSA-R1001 / SSA-R1101 / SSA-R2001 28
FINGERPRINT IDENTIFICATION
PROXIMITY / SMART CARD & PIN
Proximity Cards & Key Tag TIME & ATTENDANCE ACCESS
Proximity / Smart Card & Key Tag CONTROLLER
SSA-C100 / SSA-C110 / SSA-C120 / SSA-C200 32 SSA-S3010 / SSA-S3011
FingerPrint Scanner
FingerPrint Scanner FINGERPRINT IDENTIFICATION
SSA-X500 34 PROXIMITY / SMART CARD READER
SSA-R2010 / SSA-R2011
Software
SAMS (Samsung Access Management Software) Basic 36

4. Standalone
Biometric
Access
Controllers / TIME SCHEDULES Fingerprint Module Specifications
SSA-S4000/S4001
Biometric TIME CODE : 10
Resolution 500dpi
Readers Capture Image Size 412 x 302 pixels
TIME INTERVAL : 5 Extraction Image Size 260 x 300 pixels
HOLIDAY CODE : 10 Sensing Area 13mm x 15.2mm
Scanner High Quality Optical Sensor
HOLIDAY : 100
FAR (False Acceptance Ratio) 0.001%
FRR (False Reject Ratio) 0.1%
FACIAL IMAGE CAPTURE ESD (Electro Static Discharge) 15KV
Verification Time Less than 1sec.
FINGERPRINT IDENTIFICATION Identification Time Less than 2sec.
PROXIMITY / SMART CARD & PIN
TIME & ATTENDANCE ACCESS CONTROLLER
Specifications
Model SSA-S4000 SSA-S4001
CPU Dual Core 32bit ARM Processor(360MHz, 300MHz)
Memory System Memory 192MByte DDR RAM
Data Memory 64MByte Flash Memory
Media Storage Micro SD 2GByte
User Total Users 100,000 Users
Fingerprint Users Up to 25,000 Users (Up to 50,000 fingerprint templates storable)
Event Buffer 500,000 Event Buffers
Power / Current DC 12V(or PoE) / Max.700mA
Reader Port 1ea (26bit Wiegand, 4 / 8bit Burst for PIN for Anti-Pass-Back) 1ea (34bit Wiegand, 4 / 8bit Burst for PIN for Anti-Pass-Back)
Frequency 125KHz 13.56MHz
Communication RS232 / RS485, TCP/IP , Wireless(optional)
Baud Rate 9,600bps / 19,200bps / 38,400bps / 57,600bps / 115,200bps (selectable)
Input Port 4ea (Exit Button, Door Sensor, Aux#1, Aux#2)
Output Port 2ea (2 FORM-C Relay Output (COM, NO, NC) / DC12V~18V, Rating Max.2A)
KEY Features 2ea (TTL Output / DC5V, Rating Max.20mA)
1ea (26bit Wiegand Out data 0, 1) 1ea (34bit Wiegand Out data 0, 1) 06
1ea (NTSC/PAL Video Out for DVR) 07
125Khz Proximity / 13.56Mhz Contact-less Smart Card, PIN 4 wire connection for Intercom integration LED Indicator 3 LED Indicators (Red, Green and Yellow)
Access Controllers / Biometric Readers
Standalone Biometric
and Fingerprint Recognition and Facial Image Capture 4 Input, 6 Output(2 Relay Output) Beeper Piezo Buzzer
Triple function for Video Capturing, Access Control and Time & 3.5” Color TFT LCD / Touch Keypad Verification / Idnetification time Less than 1sec. / Less than 2sec.
Attendance CCD Color Camera (Total Pixel : 410K) USB Port 2ea (1.1Host / 2.0 Device)
1:1 Verification and 1:N Identification storable 2~5 Fingerprint Stores up to 6,000 Still image at 720x480 JPEG OS Microsoft Windows CE 5.0
Templates per user Video recording 3sec, 5sec or 10sec available Camera CCD Color Camera (Total Pixel : 410K)
Power Over Ethernet supports for easy plug and play (640 x 480, 30 frame per sec) Printer Port Serial Port for Connecting Printer (Epson Printer recommended)
LCD TFT Color LCD (320 x 240)
Video output port (720 x 480 NTSC, 720 x 576 PAL) Displays captured Fingerprint image and quality
Keypad 16 key, Touch Keypad (4 Function Key included)
100,000 Uses and 500,000 Event Buffers Event Search by date, ID and event type
LCD Display (Language) English(Default), Korean, User (Selectable)
Up to 50,000 finger Templates storable. 2 Men Operation Mode / Duress Alarm Function Voice Output (Language) English
Network Communication via RS232, RS485, Built-in TCP/ IP ARM / DISARM Function for Alarm Panel Operating Temperature 0°C ~ +50°C (-32°F~ +122°F)
Wiegand input / output Voice Guide for user registration menu Operating Humidity 10% ~ 90% relative humidity non-condensing
Individual Fingerprint Parameter Setting available. Color / Material Silver and Black / Polycarbonate
Dimension (W x H x D) 104.0 x 290.0 x 51.8 mm
Standalone Configuration Network Configuration

5. Standalone
Biometric
Access
Controllers / TIME SCHEDULES Fingerprint Module Specifications
SSA-S3010/S3011
Biometric TIME CODE : 10
Resolution 500dpi
Readers Capture Image Size 412 x 302 pixels
TIME INTERVAL : 5 Extraction Image Size 260 x 300 pixels
HOLIDAY CODE : 10 Sensing Area 13mm x 15.2mm
Scanner High Quality Optical Sensor
HOLIDAY : 100
FAR (False Acceptance Ratio) 0.001%
FRR (False Reject Ratio) 0.1%
FINGERPRINT IDENTIFICATION ESD (Electro Static Discharge) 15KV
Verification Time Less than 1sec.
PROXIMITY / SMART CARD & PIN Identification Time Less than 2sec.
TIME & ATTENDANCE ACCESS CONTROLLER
Specifications
Model SSA-S3010 SSA-S3020 SSA-S3040 SSA-S3011 SSA-S3021 SSA-S3041
CPU 32bit ARM9, Dual 8bit and 16bit Microprocessor
Memory Program Memory Controller : 256KByte ROM, 512KByte SRAM
Fingerprint Module : 128Kbyte ROM, 8MByte SDRAM
Data Memory Controller : 512KByte Flash Memory
Fingerprint Module : 2MByte / 2+4MByte Flash Memory
1,000 / 2,000 / 4,000 Fingerprint Users
User Total Users 10,000 / 20,000 Users (Selectable)
Fingerprint Users 1,000 2,000 4,000 1,000 2,000 4,000
800Bytes for 2 Fingerprint Templates
Event Buffer 20,000 / 10,000 Event Buffers (Selectable)
Power / Current DC 12V / Max.350mA
KEY Features Reader Port 1ea (26bit Wiegand, 4 / 8bit Burst for PIN for Anti-Pass-Back) 1ea (34bit Wiegand, 4 / 8bit Burst for PIN for Anti-Pass-Back)
Frequency 125KHz 13.56MHz 08
125KHz Proximity / 13.56MHz Contact-less Smart Card, Time Schedules Setting by Individual ID, Input Port,
Communication RS232 / RS485, TCP / IP 09
Baud Rate 9,600bps / 19,200bps / 38,400bps / 57,600bps (selectable)
Access Controllers / Biometric Readers
Standalone Biometric
PIN and Fingerprint Recognition Output Port and Reader Mode Input Port 4ea (Exit Button, Door Sensor, Aux#1, Aux#2)
Dual function for Access Control and Time & Attendance Network Communication via RS232, RS485 and built-in Output Port 2ea (2 FORM-C Relay Output (COM, NO, NC) / DC12V~18V, Rating Max.2A)
1:1 Verification and 1:N Identification storable 2 TCP / IP 2ea (TTL Output / DC5V, Rating MAX.20mA, 26bit(34bit) Wiegand Output Supported by TTL Output )
Fingerprint Templates 4 Input, 4 Output (2 Relay Output) Verification / Idnetification time Less than 1sec. / Less than 2sec.
Auto Touch Sensor for Fingerprint only Identification 26bit / 34bit Wiegand Output Printer Port Serial Port for Connecting Printer (Epson Printer recommended)
Fingerprint quality display Serial Printer Port for event ticket issuing LCD Graphic LCD (128 x 64 dots), 72.5mm x 39.5mm (2.85" x 1.56") View area
1,000 / 2,000 / 4,000 Fingerprint Users Input Cut-off Check Keypad 24 key Numeric Keypad with Back Lighting (12 Function Key included)
LCD Display (Language) English, Spanish, Portugal, Korean (Selectable)
10,000 / 20,000 ID Users / 20,000 / 10,000 Event Buffers User Name Display on LCD
Voice Output (Language) English
(Selectable) ARM/DISARM Function for Alarm Panel
LED Indicator / Beeper 3 LED Indicators (Red, Green and Yellow) / Piezo Buzzer
Up to 10 Fingerprint Master IDs Registration 2 Men Operation Mode / Duress Alarm Function Operating Temperature 0°C ~ +50°C (+32°F~ +122°F)
Operating Mode selectable by Individual ID Able to Active Time Schedule by User Card Operating Humidity 10% ~ 90% relative humidity non-condensing
4 Level Door Open Time Setting by Individual ID Graphic LCD of Multi Languages Display Color / Material Silver and Black / Polycarbonate
Dimension (W x H x D) 191.5 x 159.5 x 44.0 mm
Standalone Configuration Network Configuration

6. Standalone
Biometrics
Biometric
_Readers
Access
Controllers / Fingerprint Module Specifications

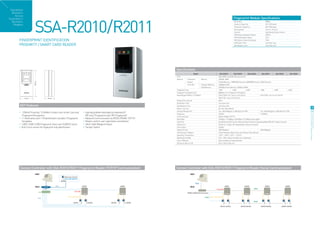

SSA-R2010/R2011
Biometric Resolution 500dpi
Readers Capture Image Size 412 x 302 pixels
Extraction Image Size 260 x 300 pixels
Sensing Area 13mm x 15.2mm
Scanner High Quality Optical Sensor
FAR (False Acceptance Ratio) 0.001%
FRR (False Reject Ratio) 0.1%
FINGERPRINT IDENTIFICATION ESD (Electro Static Discharge) 15KV
Verification Time Less than 1sec.
PROXIMITY / SMART CARD READER Identification Time Less than 2sec.
Specifications
Model SSA-R2010 SSA-R2020 SSA-R2040 SSA-R2011 SSA-R2021 SSA-R2041
CPU 32bit ARM9, Dual 8bit Microprocessor
Memory Fingerprint Memory SDRAM : 8MB
Module FLASH Memory : 2MB(1000 Persons), 6MB(2000 Persons, 4000 Persons)
Controller Program Memory 128KByte ROM
Data Memory 256KByte Flash Memory, 32KByte SRAM
Fingerprint User 1,000 2,000 4,000 1,000 2,000 4,000
Fingerprint Templates Size 800Bytes for 2 Fingerprint Templates
Read Range(125KHz / 13.56MHz) SSA-C100/C110 : Up to 4 inch (10cm) SSA-C200 : Up to 4 inch (10cm)
SSA-C120 : Up to 2 inch (5cm)
Reading Time (Card) 30ms
Verification Time Less than 1sec.
KEY Features Identification Time Less than 2sec.
Power / Current DC 12V / Max.350mA 10
125KHz Proximity / 13.56MHz Contact-less Smart Card and Operating Mode selectable by Individual ID
External Reader Port 1ea : 26bit Wiegand, 4 / 8bit Burst for PIN 1ea : 34bit Wiegand, 4 / 8bit Burst for PIN 11
Frequency 125KHz 13.56MHz
Access Controllers / Biometric Readers
Standalone Biometric
Fingerprint Recognition (RF only / Fingerprint only / RF+Fingerprint) Communication RS232, RS485, TCP/ IP
1:1 Verification and 1: N Identification storable 2 Fingerprint Network Communication via RS232, RS485, TCP/ IP Baud Rate 9,600bps / 19,200bps / 38,400bps / 57,600bps (selectable)
Templates Master card for user registration and deletion Input Port 3ea (External LED Control, External Buzzer Control, Operating Mode (RF/ RF+ Finger) Control)
1,000 / 2,000 / 4,000 Fingerprint Users and 10,000 ID Users 26bit / 34bit Wiegand Output Output Port 2ea (Error- Output, OK-Output(Open Collector Output))
Auto Touch sensor for fingerprint only identification Tamper Switch Voice Output English
Output Format 26bit Wiegand 34bit Wiegand
LED Indicator / Beeper 3 LED Indicators (Red, Green and Yellow) / Piezo Buzzer
Operating Temperature -20°C ~ +50°C (-32°F ~ +122°F)
Operating Humidity 10% ~ 90% relative humidity non-condensing
Color / Material Silver and Black / Polycarbonate
Dimension (W x H x D) 65.0 x 128.0 x 48.5 mm
Connect Controller with SSA-R2010/R2011 Fingerprint Reader (TCP/IP Communication) Connect Controller with SSA-R2010/R2011 Fingerprint Reader (Serial Communication)

7. Standalone STANDALONE RFID ACCESS CONTROLLERS
Biometric
Access
Controllers /
Biometric
Readers
Biometric Access Controller / Reader Selection Guide
Control Door
Model
1ea
SSA-S4000 / SSA-S4001
1ea
SSA-S3010 / SSA-S3011 Series SSA-R2010 / SSA-R2011 Series
N/A
Standalone RFID
Event Buffer
Fingerprint User
Fingerprint Template Size
Media Storage
500,000
25,000 (Total 50,000Templates)
500Bytes
Yes (2Gbytes Micro SD Memory)
10,000 / 20,000
1,000 / 2,000 / 4,000
800Bytes for 2 Fingerprint Templates
N/A
N/A
1,000 / 2,000 / 4,000
800Bytes for 2 Fingerprint Templates
N/A
Access Controllers
External Reader Port for Anti-Pass Back Yes Yes N/A
Frequency 125KHz / 13.56MHz 125KHz / 13.56MHz 125KHz / 13.56MHz
Communication RS232 / RS485 RS232 / RS485 RS232 / RS485
Built-in TCP / IP Built-in TCP / IP Built-in TCP / IP
Input Port 4ea 4ea 3ea
Output Port 6ea Including Video Output 4ea 2ea
Time Schedule Time Code 10 10 N/A
Holiday Code 10 10 N/A
Tamper Switch 2ea 2ea 1ea
LCD Yes (Color TFT LCD) Yes (Graphic LCD) N/A
Keypad Yes (Touch keypad) Yes (with back Lighting) N/A
LED Indicator Yes Yes Yes
Beeper Yes Yes Yes
Maximum Read Range 4”(10Cm) 4”(10Cm) 4”(10Cm)
Camera Yes (Built-in CCD Camera) N/A N/A
Image Record(720x480/JPEG) Yes (Max. 6,000) N/A N/A
Movie Record (640x480/30Frame by Sec.) (Max.200 for 10seconds, 500 N/A N/A
for 5seconds and 1,000 for 3seconds)
Authorization Fingerprint only Yes Yes Yes
Mode
RF Only Yes Yes Yes
RF+ Fingerprint Yes Yes Yes
RF + P/W (4Digits) Yes Yes N/A
RF + P/W (4Digits) Yes Yes N/A
+Fingerprint PROXIMITY / SMART CARD & PIN
PIN Only Yes Yes N/A
TIME & ATTENDANCE ACCESS
CONTROLLER
PIN + Fingerprint Yes Yes N/A
SSA-S2100 / SSA-S2101
PIN + P/W (4Digits) Yes Yes N/A
PIN + P/W (4Digits) Yes Yes N/A
+ Fingerprint
PROXIMITY & PIN
ACCESS CONTROLLER
SSA-S2000 / SSA-S2000W
PROXIMITY ACCESS CONTROLLER
SSA-S1000

8. Standalone
RFID
Access
Controllers TIME SCHEDULES
SSA-S2100/S2101
TIME CODE : 10
TIME INTERVAL : 5
HOLIDAY CODE : 10
HOLIDAY : 100
PROXIMITY / SMART CARD & PIN
TIME & ATTENDANCE ACCESS CONTROLLER
Specifications
Model SSA-S2100 SSA-S2101
CPU Dual 8bit and 16bit Microprocessor
Memory Program Memory 256KByte ROM, 512KByte SRAM
Data Memory 512KByte Flash Memory
User 10,000 / 20,000 Users (Selectable)
Event Buffer 20,000 / 10,000 Event Buffers (Selectable)
Power / Current DC 12V / Max.350mA
Reader Port 1ea (26bit Wiegand, 4 / 8bit Burst for PIN for Anti-Pass-Back) 1ea (34bit Wiegand, 4 / 8bit Burst for PIN for Anti-Pass-Back) 14
Frequency 125KHz 13.56MHz
KEY Features Communication RS232 / RS485, TCP/IP 15
RFID Access Controllers
Standalone
Baud Rate 9,600bps/ 19,200bps / 38,400bps / 57,600bps (selectable)
125KHz Proximity / 13.56MHz Contact-less Smart Card reader 4 Input, 4 Output (2 Relay Output) Input Port 4ea (Exit Button, Door Sensor, Aux#1, Aux#2)
Output Port 2ea (2 FORM-C Relay Output (COM, NO, NC) / DC12V~18V, Rating Max.2A)
and PIN 26bit / 34bit Wiegand Output
2ea (TTL Output / DC5V, Rating MAX.20mA, 26 / 34bit Wiegand Output Supported by TTL Output)
Dual function for Access Control and Time & Attendance Serial Printer Port for event ticket issuing
LCD Display (Language) English, Spanish, Portugal, Korean (Selectable)
10,000 / 20,000 Users / 20,000 / 10,000 Event Buffers Input Cut-off Check Voice Output (Language) English
(Selectable) User Name Display on LCD LED Indicator / Beeper 3 LED Indicators (Red, Green and Yellow) / Piezo Buzzer
Operating Mode selectable by Individual ID ARM/DISARM Function for Alarm Panel Operating Temperature 0°C ~ +50°C (-32°F ~ +122°F)
4 Level Door Open Time Setting by Individual ID 2 Men Operation Mode Operating Humidity 10% ~ 90% relative humidity non-condensing
Time Schedules Setting by Individual ID, Input Port, Output Duress Alarm Function Color / Material Silver and Black / Polycarbonate
Port and Reader Mode Multiple Master IDs Registration Dimension (W x H x D) 191.5 x 159.5 x 44.0 mm
Network Communication via RS232, RS485 and built-in Graphic LCD of Multi Languages Display
TCP / IP
Standalone Configuration Network Configuration

9. Standalone
RFID
Access
Controllers
SSA-S2000 SSA-S1000
/S2000W PROXIMITY ACCESS CONTROLLER
PROXIMITY & PIN
ACCESS CONTROLLER
KEY Features
Standalone 125KHz Proximity & PIN Single Door Duress Mode Function
Access Controller Toggle Mode for Door Opening / Closing
512 Users Safe (default) / Secure Mode available
1ea of External Reader Port for Exit : 26bit Wiegand Lock Control by Door Sensor
All I/Os and Operation Time Programmable by Keypad Dual Tamper Switches
Independent 5 Inputs and 4 Outputs including 2ea Chime Bell Output
of 2 Form-C Relay Outputs 26bit Wiegand Output for Reader Mode
Keypad Lock by Try-out Error Alarm Function Weatherproof (SSA-S2000W)
Standalone Configuration KEY Features Standalone Configuration 16
17
RFID Access Controllers
Standalone
Standalone 125KHz Proximity Access Controller
512 Users
Direct Control of Door Lock
Power Fail Safe or Power Fail Secure Locks selectable
Solid Epoxy Potted
Weatherproof
Specifications
Model SSA-S2000/S2000W
CPU Dual 8bit Microprocessor
Specifications
Memory Program Memory 20KByte ROM Model SSA-S1000
Data Memory 2KByte EEPROM CPU Dual 8bit Microprocessor
User 512 Users Memory Program Memory 64KByte Flash ROM
Read Range SSA-C100 / C110 : Up to 4 inch (10cm) Data Memory 4KByte EEPROM
SSA-C120 : Up to 2 inch (5cm) User 512 Users (including 1 master card)
Reading Time (Card) 30ms Event Buffer N/A
Frequency 125KHz Read Range SSA-C100 / C110 : Up to 4 inch (10cm)
Power / Current DC 12V / Max.200mA SSA-C120 : Up to 2 inch (5cm)
External Reader Port 1ea (26bit Wiegand) Reading Time (Card) 30ms.
Input Port 5ea (Exit Button, Door Sensor, Aux#1, Aux#2, Aux#3) Frequency 125KHz
Output Port 2ea (2 Form-C Relay Output (COM, NO, NC) / DC12~18V, Rating Max.2A) Door Open Time 5sec.
1ea (Chime Bell Output / DC5V, Rating Max.500mA) Power / Current DC 12V / Max.150mA
1ea (TTL Output / DC5V, Rating Max.20mA) Input Port 3ea (Exit Button Door Sensor Lock Type Select [Power fail Safe / Power Fail Secure])
Keypad 12 Key Numeric Keypad with Back Lighting Output Port 2ea (TR Output (Open Collector) / 18V, Rating Max.2A Lock Output)
LED Indicator 3 LED Indicators (Red, Green and Yellow) LED Indicator 9 LED Indicators (Red and Green)
Beeper Piezo Buzzer Beeper Piezo Buzzer
Operating Temperature -35°C ~ +60° C ( -31°F ~ +140°F ) Operating Temperature -35°C ~ +60°C (-31°F ~ +140°F)
Operating Humidity 10% ~ 90% relative humidity non-condensing Operating Humidity 10% ~ 90% relative humidity non-condensing
Color / Material Silver and Black / Polycarbonate Color / Material Silver and Black / Polycarbonate
Dimension (W x H x D) 87.0 x 109.0 x 31.0 mm Dimension (W x H x D) 45.0 x 122.0 x 25.0 mm
*SSA-2000W : Weatherproof

10. Standalone ACCESS CONTROL PANELS
RFID
Access
Controllers
RFID Access Controller Selection Guide
Control Door
Model
1ea
SSA-S2100/S2101
1ea
SSA-S2000
1ea
SSA-S1000
Access Control Panels
User 10,000/20,000 512 512
Event Buffer 10,000/20,000 N/A N/A
External Reader Port Yes Yes N/A
Frequency 125KHz / 13.56MHz 125KHz 125KHz
Communication RS232, RS485 / TCP/ IP N/A N/A
Input Port 4ea 5ea 3ea
Output Port 4ea 4ea 2ea
Time Schedule Time Code 10 N/A N/A
Holiday Code 10 N/A N/A
Tamper Switch 2ea 2ea N/A
LCD Yes (Graphic LCD) N/A N/A
Keypad Yes (with back Lighting) Yes (with back Lighting) N/A
LED Indicator Yes Yes Yes
Beeper Yes Yes Yes
Maximum Read Range 4”(10Cm) 4”(10Cm) 4”(10Cm)
Authorization RF Only Yes Yes Yes
Mode
RF + P/W (4Digits) Yes Yes N/A
PIN Only Yes Yes N/A
PIN + P/W (4Digits) Yes Yes N/A
Weatherproof N/A Yes (SSA-S2000W) Yes
INTELLIGENT 4 DOORS
ACCESS CONTROL PANEL
SSA-P400 / SSA-P401
INTELLIGENT SINGLE DOOR
ACCESS CONTROL PANEL
SSA-P102

11. Access
Control Panels
Access Control SSA-P400/P401 System Configuration
SSA-P400/P401
INTELLIGENT 4 DOORS ACCESS CONTROL PANEL
20
21
Access Control Panels
TIME SCHEDULES
TIME CODE : 15
TIME INTERVAL : 5
HOLIDAY CODE : 10
Specifications
Model SSA-P400 SSA-P400T SSA-P401 SSA-P401T
HOLIDAY : 100
CPU 8bit Microprocessor
Memory Program Memory 64Kbyte ROM
Data Memory 512Kbyte Flash Memory
User Users and Event Buffers Defined Available
1,000 ~ 20,000 / 30,000 / 40,000 / 50,000 Users (Default: 5,000)
KEY Features Event Buffer 20,000 ~ 29,000 / 3,000 / 8,000 / 14,000 Event Buffers
Power / Current DC 12V / Max.150mA
Reader Port 4ea (26bit Wiegand 4 / 8bit Burst for PIN) 4ea (34bit Wiegand 4 / 8bit Burst for PIN)
Intelligent 4 Doors Access Control Panel 2 Men Operation Frequency 125KHz 13.56MHz
Dynamic Control of Memory up to 50,000 Users / ARM / DISARM Function for Alarm Panel Communication RS232 / RS422 / RS485
up to 29,500 Event Buffers 2 Levels Individual Door Opening Time Setting available for N/A TCP / IP N/A TCP / IP
: 1,000 ~ 20,000 / 30,000 / 40,000 / 50,000 Users handicapped person Baud Rate 9,600bps (default), 4,800bps, 19,200bps, 38,400bps (selectable)
20,000 ~ 29,500 / 3,000 / 8,000 / 14,000 Event Buffers Remain ID & Event Data and Setting Value in case of Electric Input Port 15ea (Exit Button Door Sensor Aux#1 ~ Aux#13)
Standalone/Network Communication via RS232 / RS422 / Outage Output Port 12ea (2 FORM-C Relay Output (COM, NO, NC) / DC12V~18V, Rating Max.2A)
RS485, TCP / IP (SSA-P400T/P401T) Duress Mode Function 3ea (TTL Output / DC5V, Rating Max.20mA)
LED Indicator 36 LED Indicators (Red, Green and Yellow)
Independent 15 Inputs and 15 Outputs including 12ea of Check Supervisory signal from Reader (Cut off check)
Beeper Piezo Buzzer
2 Form-C Relay Outputs Alarm Event Monitoring using Tamper Switch
Operating Temperature 0°C ~ +65°C (+32°F ~ +149°F)
4ea of Reader Port for Anti-passback Function (by SAMS Basic) Operating Humidity 10% ~ 90% relative humidity non-condensing
:26bit / 34bit Wiegand and 4 / 8bit Burst for PIN Communication Status via LED Indicator Dimension (W x H x D) 145.0 x 185.0 x 18.0 mm

12. Access
Control Panels
TIME SCHEDULES
TIME CODE : 10
SSA-P102
TIME INTERVAL : 5
HOLIDAY CODE : 10
HOLIDAY : 32
INTELLIGENT SINGLE DOOR ACCESS CONTROL PANEL
Specifications
Model SSA-P102 SSA-P102T
CPU 8bit Microprocessor
Memory Program Memory 128KByte Flash Memory
Data Memory 1MByte Flash Memory
User Users and Event Buffers Defined Available
( *Caution: Maximum sum of memories for User and Event Buffer is 60,000)
10,000 ~ 50,000 Users (Default: 10,000)
Event Buffer 50,000 ~ 10,000 Event Buffers (Default: 50,000)
Power / Current DC 12V / Max.150mA
KEY Features Reader Port 2ea (26bit Wiegand, 4 / 8bit Burst for PIN, 26 / 34bit selectable)
Communication RS232 / RS422 22
Intelligent Single Door Access Control Panel Reader Port for Anti-Passback Function
N/A TCP/ IP 23
Baud Rate 9,600bps (recommended)/ 4,800bps, 19,200bps and 38,400bps, 57,600bps and 115,200bps (selectable)
Access Control Panels
Dynamic Control of Memory up to 50,000 Users / up to 50,000 : 2ea (26 / 34bit Wiegand(selectable), 4 / 8bit Burst for PIN) Input Port 5ea (Exit Button, Door Contact, AUX#1, AUX#2, AUX#3)
Event Buffers Remain ID & Event Data and Setting Value in case of Output Port 2ea (2 FORM-C Relay Output (COM, NO, NC) / DC12V~18V, Rating Max.2A)
Standalone / Network Communication via RS232 / RS422 / Electric Outage 2ea (TTL Output / DC5V, Rating Max.20mA)
RS485, TCP/ IP (SSA-P102T) Duress Mode Function LED Indicator 16 LED Indicators
Independent 5 Inputs and 4 Outputs including 2ea of Alarm Event Monitoring using Tamper Switch Beeper Piezo Buzzer
2 Form-C Relay Outputs Communication Status via LED Indicator Operating Temperature 0°C ~ +65°C (-32°F ~ +149°F)
Operating Humidity 10% ~ 90% relative humidity non-condensing
Dimension (W x H x D) 137.0 x 137.0 x 18.0mm
Standalone Configuration Network Configuration

13. Access RFID READERS
Control Panels
Access Control Panel Selection Guide
Control Door
Model
4ea
SSA-P400 SSA-P400T
1ea
SSA-P102
RFID Readers
Maximum Event Buffer 29,500 50,000
Maximum User 50,000 50,000
Reader Port Yes Yes
Anti-Pass-Back Function Yes Yes
Reader Input Format 26bit Wiegand 34bit Wiegand 26bit / 34bit Wiegand (Selectable)
4 / 8bit Burst 4 / 8bit Burst
Communication RS232 / RS422 / RS485 RS232 / RS422 / RS485
Internal TCP/ IP Module Yes (SSA-P400T/P401T) Yes (SSA-P102T)
Input Port 15ea 5ea
Output Port 15ea 4ea
Real Time Clock Yes Yes
Time Schedule Time Code 15 10
Holiday Code 10 10
LED Indicator Yes Yes
Beeper Yes Yes
Duress Mode Yes Yes
Alarm Event Monitoring Yes Yes
125KHz PROXIMITY & PIN READERS
SSA-R1000 / SSA-R1100 / SSA-R2000
13.56MHz CONTACT-LESS
SMART CARD & PIN READERS
SSA-R1001 / SSA-R1101 / SSA-R2001

14. RFID Readers
SSA-R1000/R1100
SSA-R2000
125KHz PROXIMITY & PIN READERS
SSA-R1000 SSA-R1100 SSA-R2000
KEY Features Specifications
Model SSA-R1000 SSA-R1100 SSA-R2000 26
SSA-R1000/SSA-R1100 SSA-R2000 CPU 8bit Microprocessor 27
125KHz Proximity Card Reader 125KHz Proximity / PIN Reader Read Range SSA-C100/C110 : Up to 4 inches (10cm)
RFID Readers
PSK Modulation PSK Modulation SSA-C120 : Up to 2 inches (5cm)
Frequency 125KHz
Read Range : Up to 4 inch (10cm) Read Range: Up to 4 inch (10cm)
Reading Time(Card) 30ms
26bit Wiegand Output Format 26bit Wiegand, 4/8bit Burst for PIN Output Format
Power / Current DC 12V / Max.150mA
External LED Control (selectable) Input Port 2ea (External LED Control, External Buzzer Control)
External Buzzer Control 12 Numeric Keypads with Back Lighting Output Port 26bit Wiegand 26bit Wiegand, 4 / 8bit Burst for PIN (selectable)
Indoor / Outdoor Operation External LED Control Keypad N/A 12 Key Numeric Keypad with Back Lighting
Solid Epoxy Potted External Buzzer Control LED Indicator 3 LED Indicators (Red and Green) 3 LED Indicators (Red, Green and Yellow)
Weatherproof (IP65 / IP66) Tamper Switch Beeper Piezo Buzzer
Warranty : Life Time Wall Mount (US, EU, Asian Gang Box Size) Operating Temperature -35°C ~ +65°C (-31°F ~ +149°F)
Reverse Polarity Protection Reverse Polarity Protection Operating Humidity 10% ~ 90% relative humidity non-condensing
Color / Material Silver and Black / Polycarbonate
Compatible Controller : SSA-P102, SSA-P400, Compatible Controller
Dimension (W x H x D) 47.0 x 122.0 x 26.0 mm 75.3 x 122.0 x 26.0 mm 87.0 x 109.0 x 31.0 mm
Standalone Controller, Third Party Controller : SSA-P102, SSA-P400, Standalone Controller,
Index of Protection Weatherproof (IP65 / IP66) N/A
Third Party Controller
SSA-R1000/SSA-R1100 Configuration SSA-R2000 Configuration

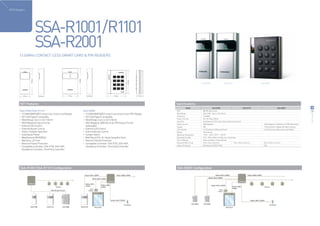

15. RFID Readers
SSA-R1001/R1101
SSA-R2001
13.56MHz CONTACT-LESS SMART CARD & PIN READERS
SSA-R1001 SSA-R1101 SSA-R2001
KEY Features Specifications
Model SSA-R1001 SSA-R1101 SSA-R2001 28
SSA-R1001/SSA-R1101 SSA-R2001 CPU 8bit Microprocessor 29
13.56MHz(MIFARE) Contact-less Smart Card Reader 13.56MHz(MIFARE) Contact-less Smart Card / PIN Reader Read Range SSA-C200 : Up to 4 inch (10cm)
RFID Readers
ISO 14443 type A compatible ISO 14443 type A compatible Frequency 13.56MHz
Power / Current DC 12V / Max.150mA
Read Range: Up to 4 inch (10cm) Read Range: Up to 4 inch (10cm)
Input Port 2ea (External LED Control, External Buzzer Control)
34bit Wiegand Output Format 34bit Wiegand, 4/8bit Burst for PIN Output Format
Output Format 34bit Wiegand 34bit Wiegand, 4 / 8bit Burst for PIN (selectable)
External LED Control (selectable) Keypad N/A 12 Key Numeric Keypad with Back Lighting
External Buzzer Control External LED Control LED Indicator 3 LED Indicators (Red and Green) 3 LED Indicators (Red, Green and Yellow)
Indoor / Outdoor Operation External Buzzer Control Beeper Piezo Buzzer
Solid Epoxy Potted Tamper Switch Operating Temperature -35°C ~ +65°C (-31°F ~ +149°F)
Weatherproof (IP65/IP66) Wall Mount (US, EU, Asian Gang Box Size) Operating Humidity 10% ~ 90% relative humidity non-condensing
Warranty: Lift Time Reverse Polarity Protection Color / Material Silver and Black / Polycarbonate
Reverse Polarity Protection Compatible Controller: SSA-P102, SSA-P401, Dimension (W x H x D) 47.0 x 122.0 x 26.0 mm 75.3 x 122.0 x 26.0 mm 87.0 x 109.0 x 31.0 mm
Index of Protection Weatherproof (IP65 / IP66) N/A
Compatible Controller: SSA-P102, SSA-P401, Standalone Controller, Third Party Controller
Standalone Controller, Third Party Controller
SSA-R1001/SSA-R1101 Configuration SSA-R2001 Configuration

16. RFID Readers PROXIMITY CARDS & KEY TAG
Proximity / Contact-less Smart Card Reader Selection Guide Proximity
Model SSA-R1000 SSA-R1100 SSA-R2000 SSA-R1001 SSA-R1101 SSA-R2001
Cards & Key Tag
Common Features
Frequency 125KHz 13.56MHz
Wiegand Output Format 26bit 34bit
External LED Control 1ea 1ea
External Buzzer Control 1ea 1ea
Reverse Polarity Protection Yes Yes
LED Indicator Yes Yes
Beeper Yes Yes
Different Features
Maximum Proximity SSA-C100 4"(10cm) N/A
Read Range
SSA-C110 4"(10cm) N/A
SSA-C120 2"(5cm) N/A
Smart Card SSA-C200 N/A 4"(10cm)
Solid Epoxy Potted Yes N/A Yes N/A
Weatherproof (IP65 / IP66) Yes N/A Yes N/A
Indoor / Outdoor Operation Yes N/A Yes N/A
Metal Door Frame Yes N/A Yes N/A
Mullion Yes N/A Yes N/A
Wall Mount N/A Yes N/A Yes
Tamper Switch N/A Yes N/A Yes
Keypad N/A Yes N/A Yes
PROXIMITY / SMART CARD & KEY TAG
SSA-C100 / SSA-C110 / SSA-C120
SSA-C200

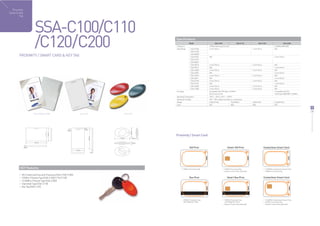

17. Proximity
Cards & Key
Tag
SSA-C100/C110
/C120/C200 Specifications
Frequency
Read Range
Model
SSA-R1000
SSA-R1100
SSA-R2000
SSA-C100
125KHz (Samsung Format)
4 inch (10cm)
SSA-C110 SSA-C120
2 inch (5cm)
SSA-C200
13.56MHz (MIFARE)
N/A
PROXIMITY / SMART CARD & KEY TAG SSA-R1001 N/A 4 inch (10cm)
SSA-R1101
SSA-R2001
SSA-R2010 4 inch (10cm) 2 inch (5cm) N/A
SSA-R2011 N/A 4 inch (10cm)
SSA-S4000 4 inch (10cm) 2 inch (5cm) N/A
SSA-S4001 N/A 4 inch (10cm)
SSA-S3010 4 inch (10cm) 2 inch (5cm) N/A
SSA-S3011 N/A 4 inch (10cm)
SSA-S2100 4 inch (10cm) 2 inch (5cm) N/A
SSA-S2101 N/A 4 inch (10cm)
SSA-S2000 4 inch (10cm) 2 inch (5cm) N/A
SSA-S1000 4 inch (10cm) 2 inch (5cm) N/A
Encoding Compatible with PSK type of 125KHz Compatible with ISO
[Samsung Format] 14443 type A[MIFARE] 13.56MHz
Operating Temperature -30°C ~ +65°C (-22°F ~ +149°F)
Operating Humidity 10% ~ 90% relative humidity non-condensing
Weight 5.5g (0.01lbs) 9g (0.02lbs) 4g (0.01lbs) 5.5g (0.01lbs)
Card PVC ABS ABS PVC
32
33
SSA-C100/SSA-C200 SSA-C110 SSA-C120
Proximity Cards & Key Tag
Proximity / Smart Card
ISO Prox Smart ISO Prox Contactless Smart Card
KEY Features 125KHz Proximity Chip 125KHz Proximity Chip 13.56MHz Contactless Smart Chip
Contact Smart Chip (optional) 125KHz Proximity Chip
ISO Credit Card Size and Thickness (SSA-C100 / C200)
125KHz / Passive Type (SSA-C100/ C110 / C120) Duo Prox Smart Duo Prox Contactless Smart Card
13.56MHz / Passive Type (SSA-C200)
Clamshell Type (SSA-C110)
Key Tag (SSA-C120)
125KHz Proximity Chip 125KHz Proximity Chip 13.56MHz Contactless Smart Chip
with Magnetic Strip with Magnetic Strip 125KHz Proximity Chip
Contact Smart Chip (optional) Contact Smart Chip (optional)

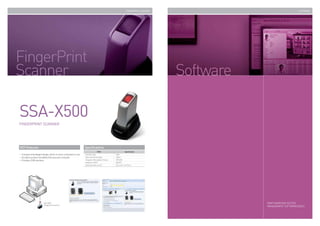

18. FINGERPRINT SCANNER SOFTWARE
FingerPrint
Scanner Software
SSA-X500
FINGERPRINT SCANNER
KEY Features Specifications
ITEM Specification
Compact and elegant design, which is more convenient to use Interface Type USB
Excellent product durability that assures a long life External Interface Spec. USB1.1
Provides USB interface Fingerprint Recognition Sensor OPU01M
Resolution (DPI) 500 DPI
Dimension (W x H x D) 25.3 x 40.7 x 67.7mm
SSA-X500 SAMS (SAMSUNG ACCESS
(Fingerprint Scanner)
MANAGEMENT SOFTWARE) BASIC

19. Software
SAMS Basic Time Schedule Management
SAMS (SAMSUNG ACCESS MANAGEMENT SOFTWARE) BASIC
Using Time Schedule Management, 24 hours may be divided into Zones may applied differently for days, weeks up to 10 ~ 15
5 different zones to manage access control of each doors, input, different Time Schedules depending on the access controller.
and output. Various colors and clock makes it easy and simple setting.
SAMS(Samsung Access Management Software) Basic
Program performs multiple functions by communicating
(Serial, TCP/ IP) with controller.
The program interact with the device to performs high
level of security system . SAMS also supports additional
function such Time & Attendance .
36
37
Software
KEY Features Various Type of Reports
Supports Multiple Site . Easy Setting Wizard SAMS basic supports various reports such as Card holder
Supports Multi Language. Well Balloon Tooltips to help user Information report, Card holder alarm status report, access
Dynamic Management Function for Card Holder and ID User defined integrated monitoring status report, Report of card holder’s authority for each of the
Graphic Map Dynamic management features for personal history door and Card holder.
Various Type of Access Control Reports Distributed Processing Conversion or transmission function is available for all the
Various Type of Export and Conversion Supports Mass Storage Database search/output function. User may export the data in excel or
Various Type of Options Applies Latest UI text form.
In such case, it can be useful to integrate with other software
such as Time & Attendance, Payment, and ERP.
Also report itself may be exported as Excel or TEXT, PDF, RTF,
XLS, HTML, and TIF files .
Management for Card Holder and Multiple ID
User can store various type of information about Card Holder.
Administrator may issue multiple ID card including vehicle card for single card holder.

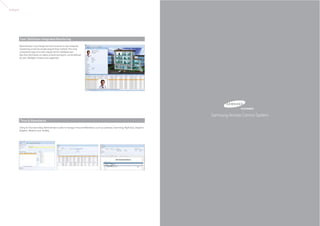

20. Software
User Definition Integrated Monitoring
Administrator may change the how he wants to view integrate
monitoring screen by simple drag & Drop method. The most
convenience type of screen may be set for individual uers.
Also the information on status of event and alarm can be defined
by user. Multiple monitors are supported.
Samsung Access Control System
Time & Attendance
Using In / Out event data, Administrator is able to manage Time and Attendance such as Lateness, Searching, Night duty, Dispatch,
dispatch, Absence and Holiday.
