1. A workhorse named Mule

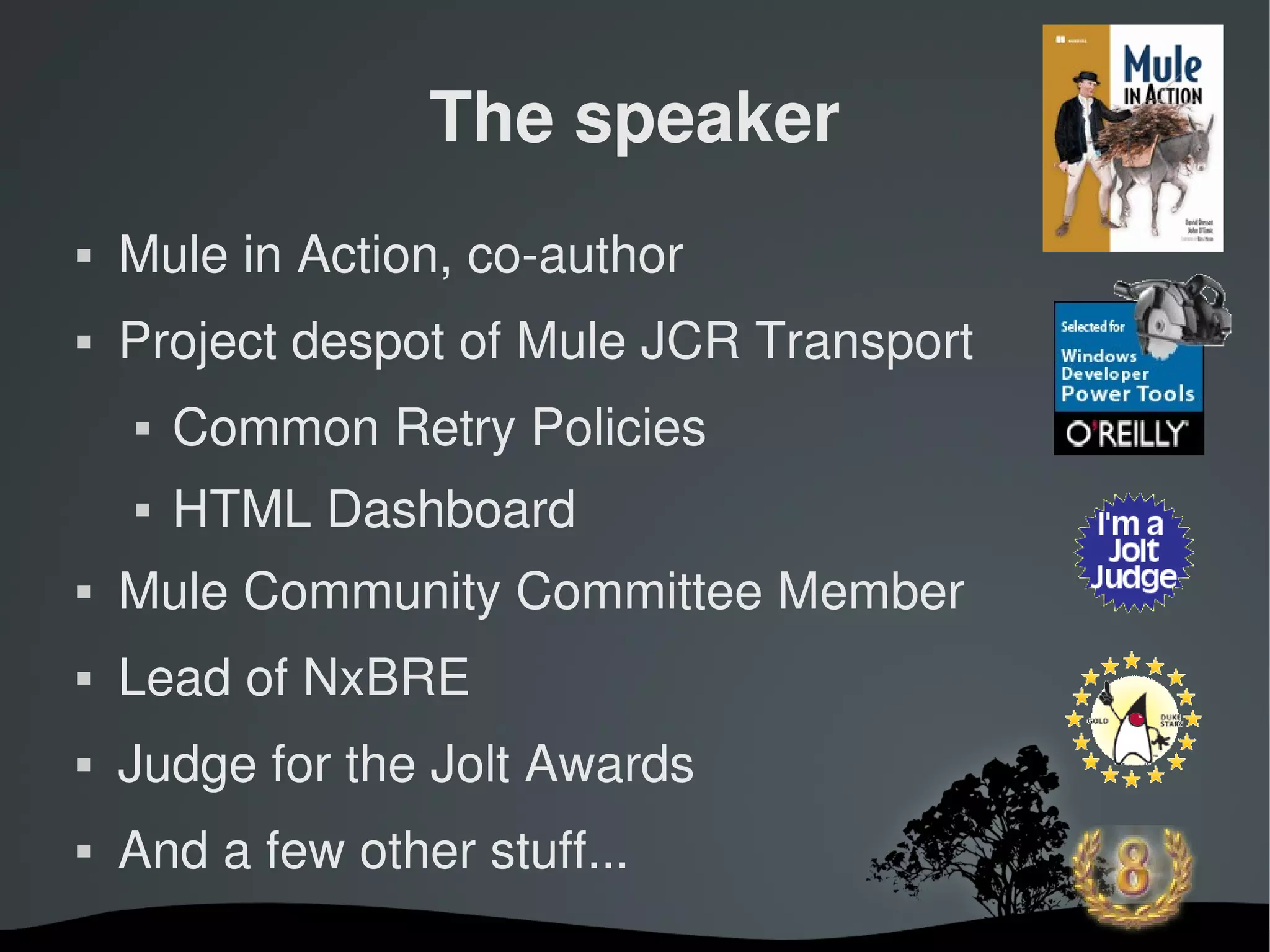

2. The speaker
 Mule in Action, co­author
 Project despot of Mule JCR Transport
 Common Retry Policies
 HTML Dashboard
 Mule Community Committee Member
 Lead of NxBRE
 Judge for the Jolt Awards
 And a few other stuff...

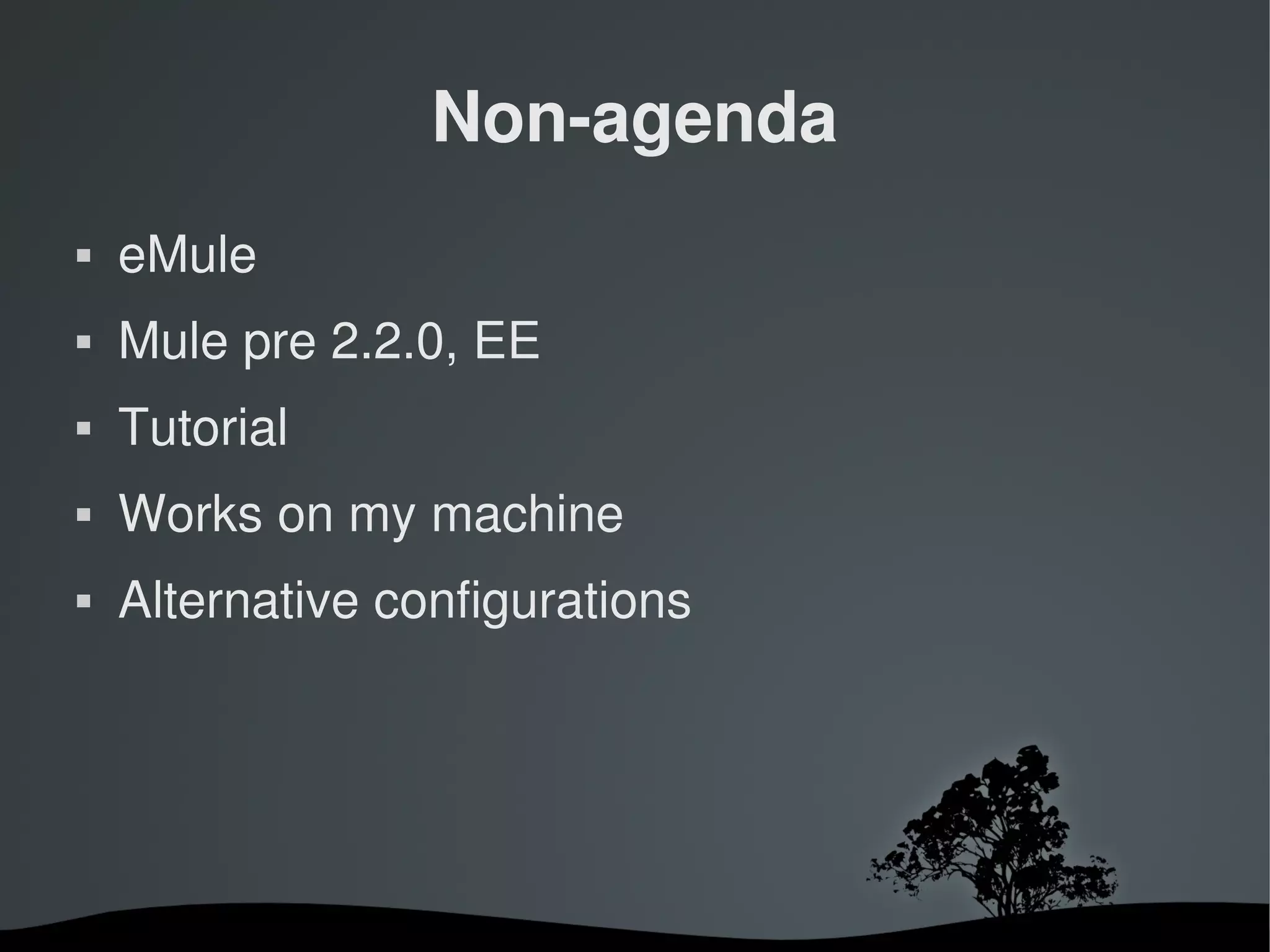

3. Non­agenda
 eMule
 Mule pre 2.2.0, EE
 Tutorial
 Works on my machine
 Alternative configurations

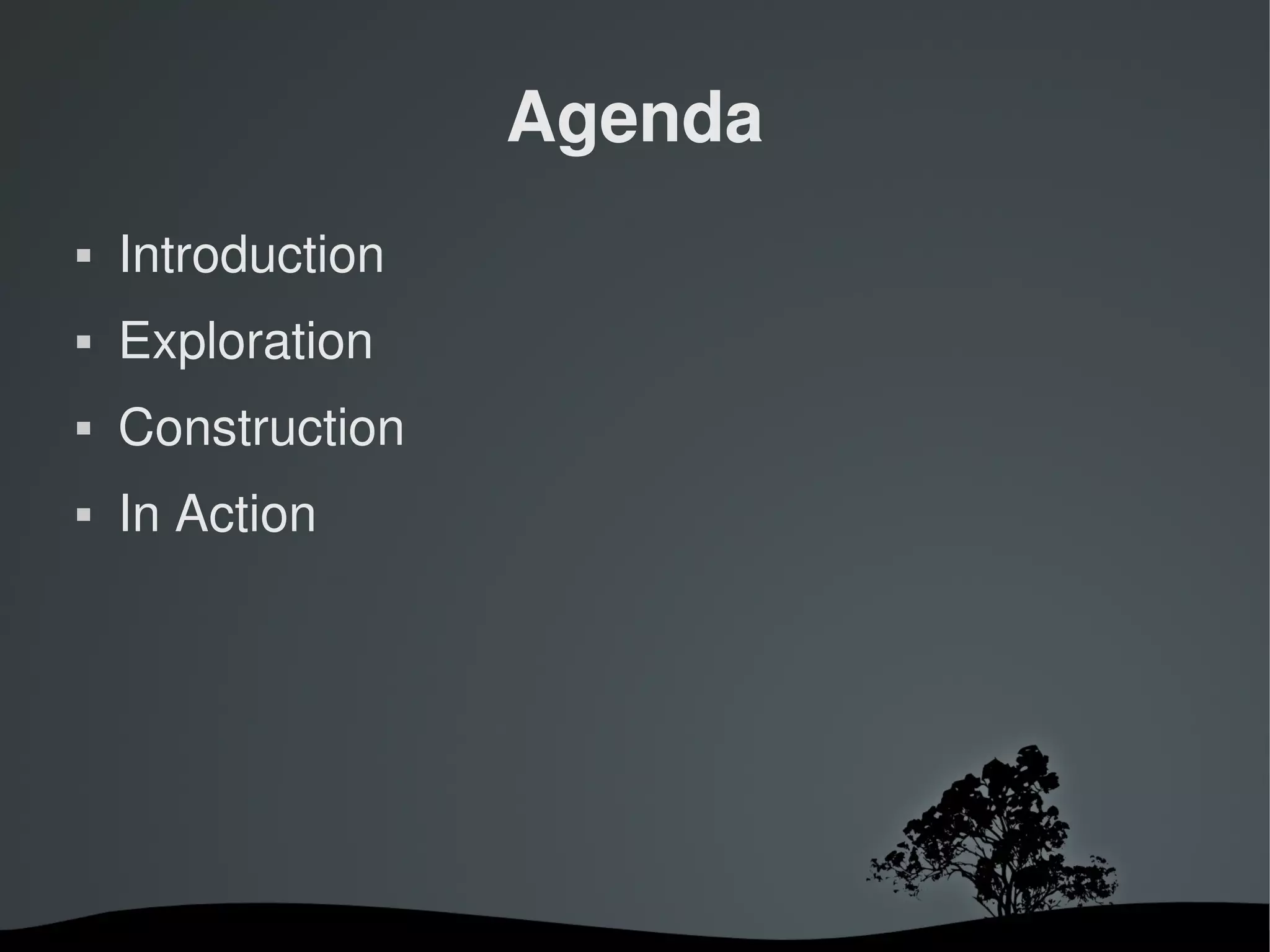

4. Agenda
 Introduction
 Exploration
 Construction
 In Action

5. Introduction

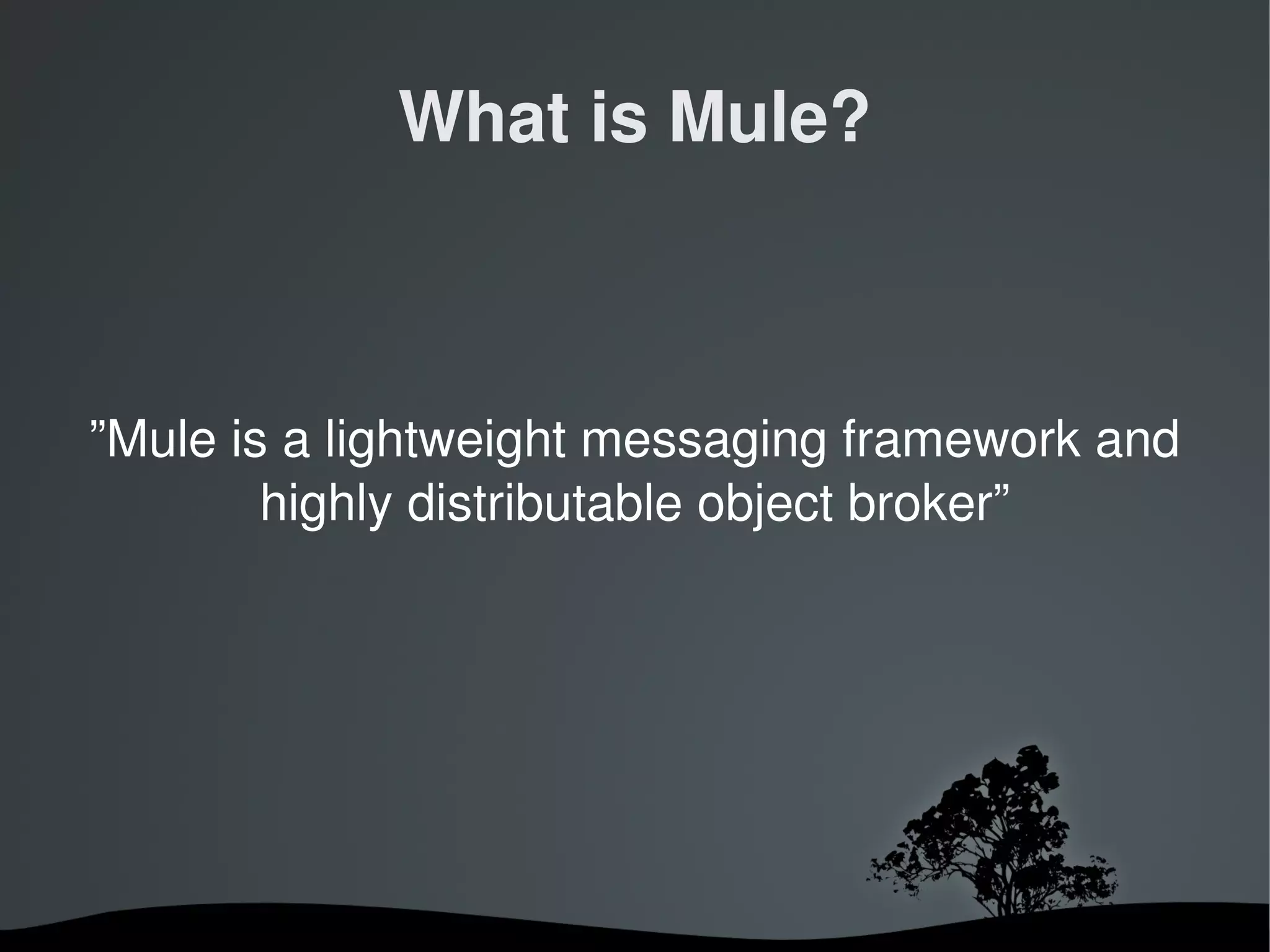

6. What is Mule?
”Mule is a lightweight messaging framework and
highly distributable object broker”

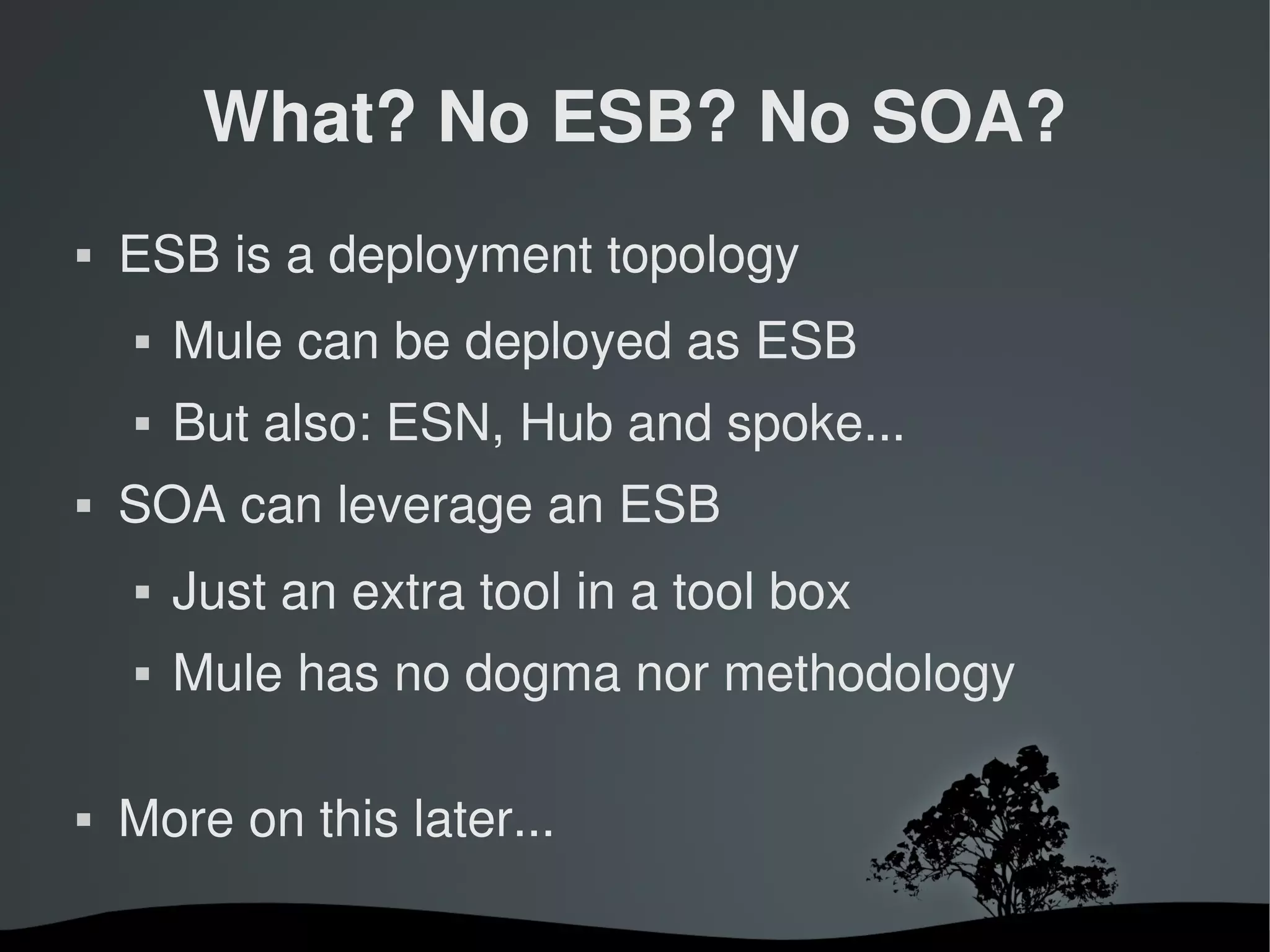

7. What? No ESB? No SOA?

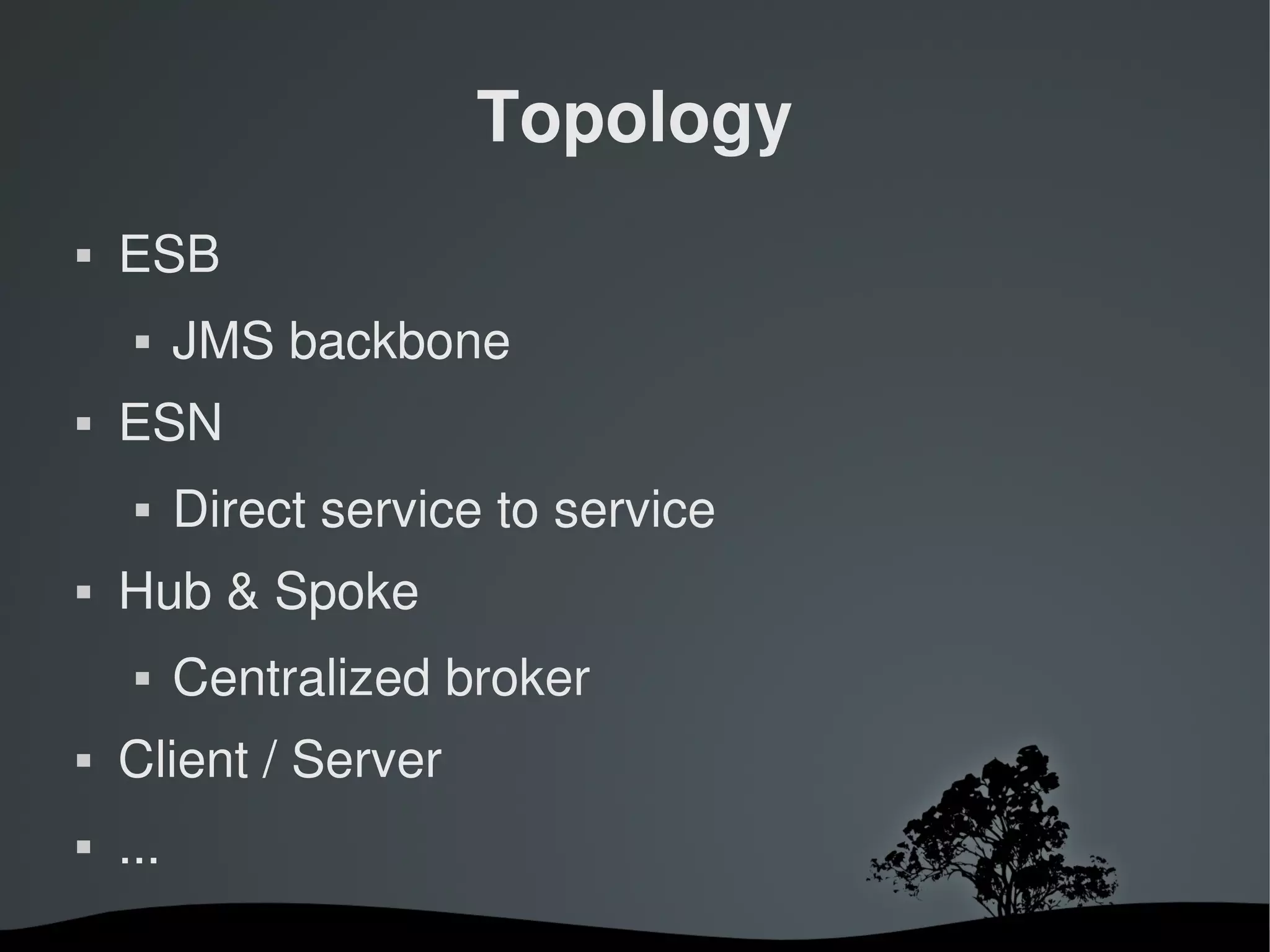

 ESB is a deployment topology
 Mule can be deployed as ESB
 But also: ESN, Hub and spoke...
 SOA can leverage an ESB
 Just an extra tool in a tool box
 Mule has no dogma nor methodology
 More on this later...

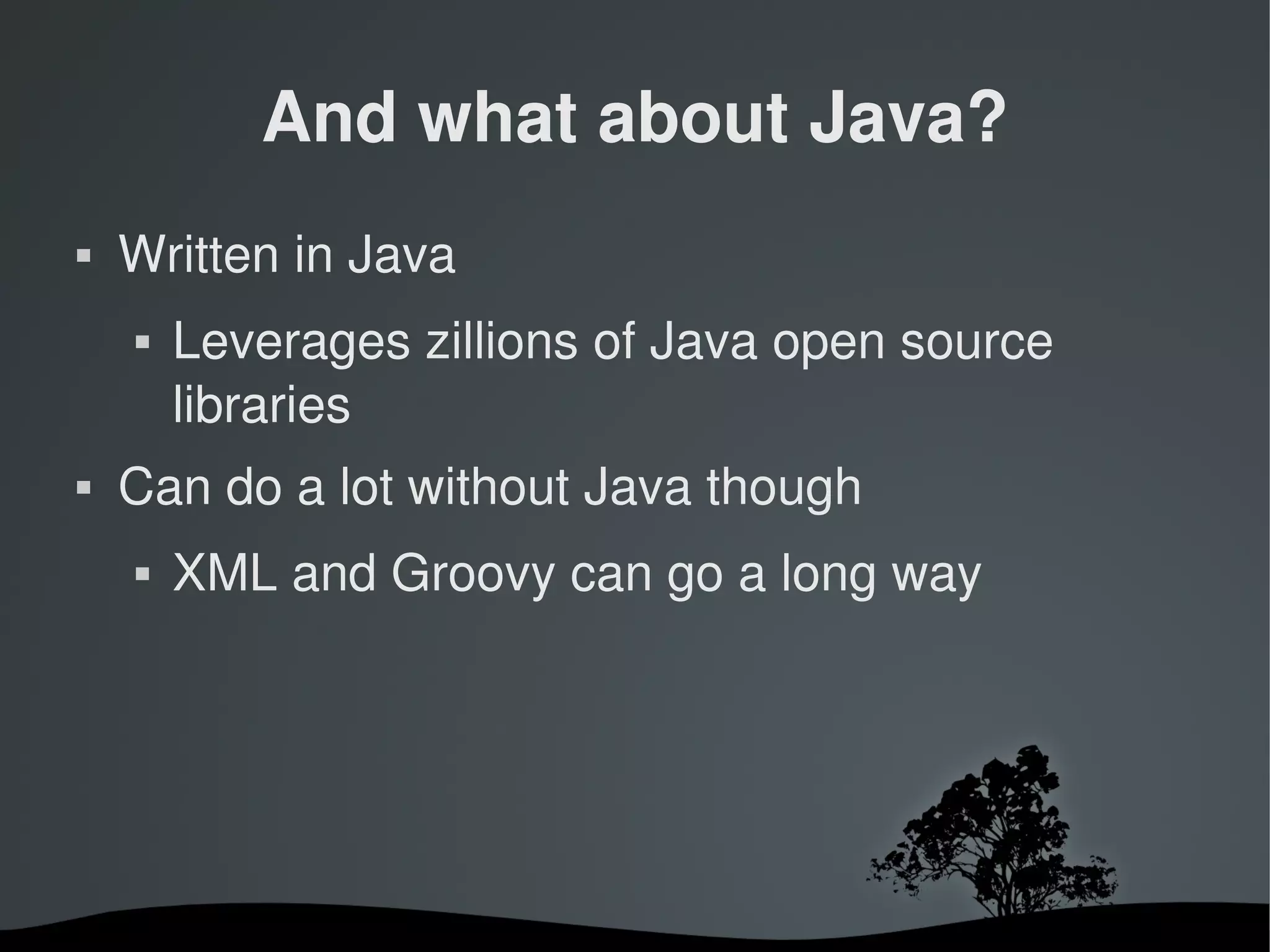

8. And what about Java?
 Written in Java
 Leverages zillions of Java open source
libraries
 Can do a lot without Java though
 XML and Groovy can go a long way

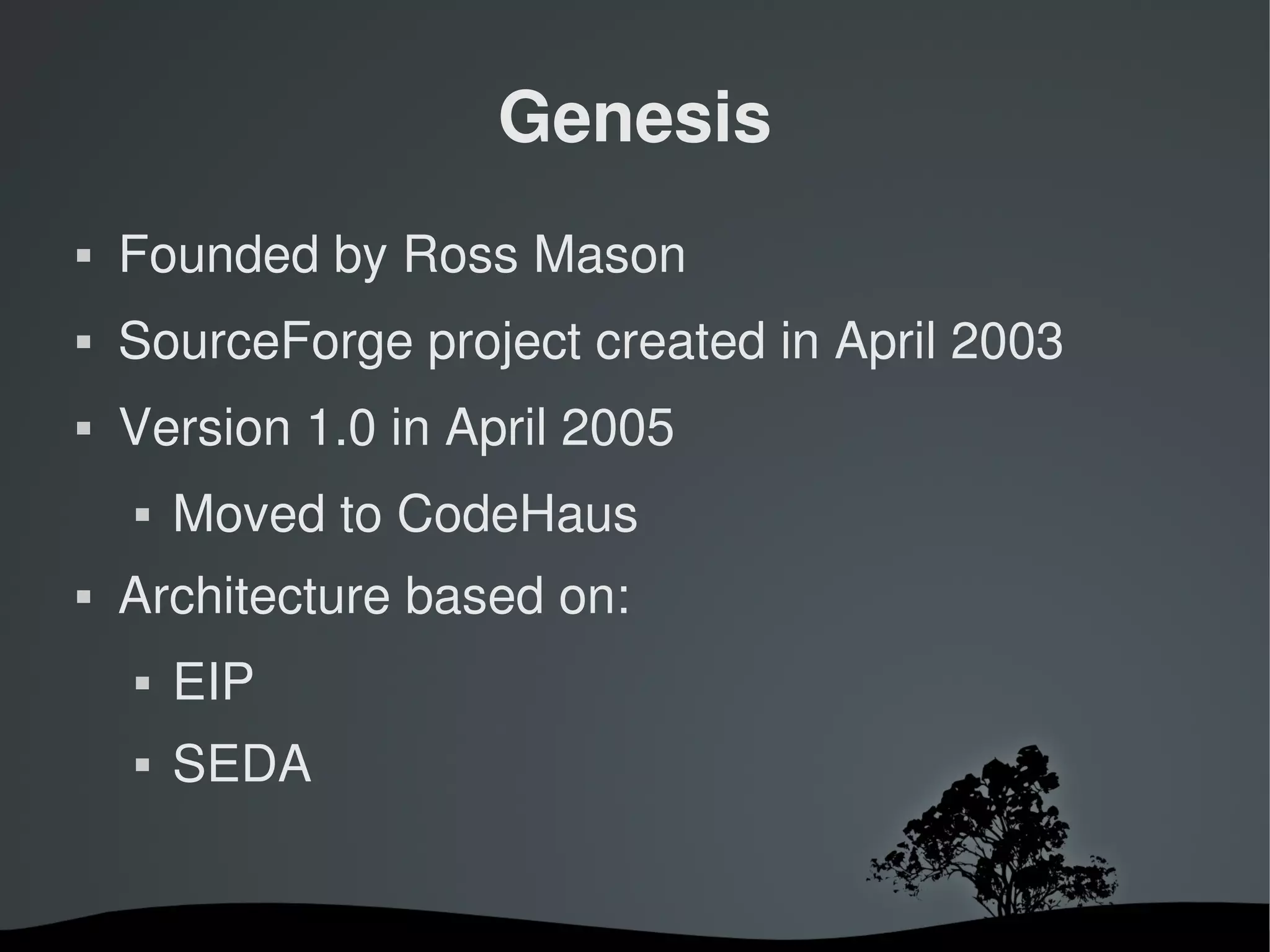

9. Genesis
 Founded by Ross Mason
 SourceForge project created in April 2003
 Version 1.0 in April 2005
 Moved to CodeHaus
 Architecture based on:
 EIP
 SEDA

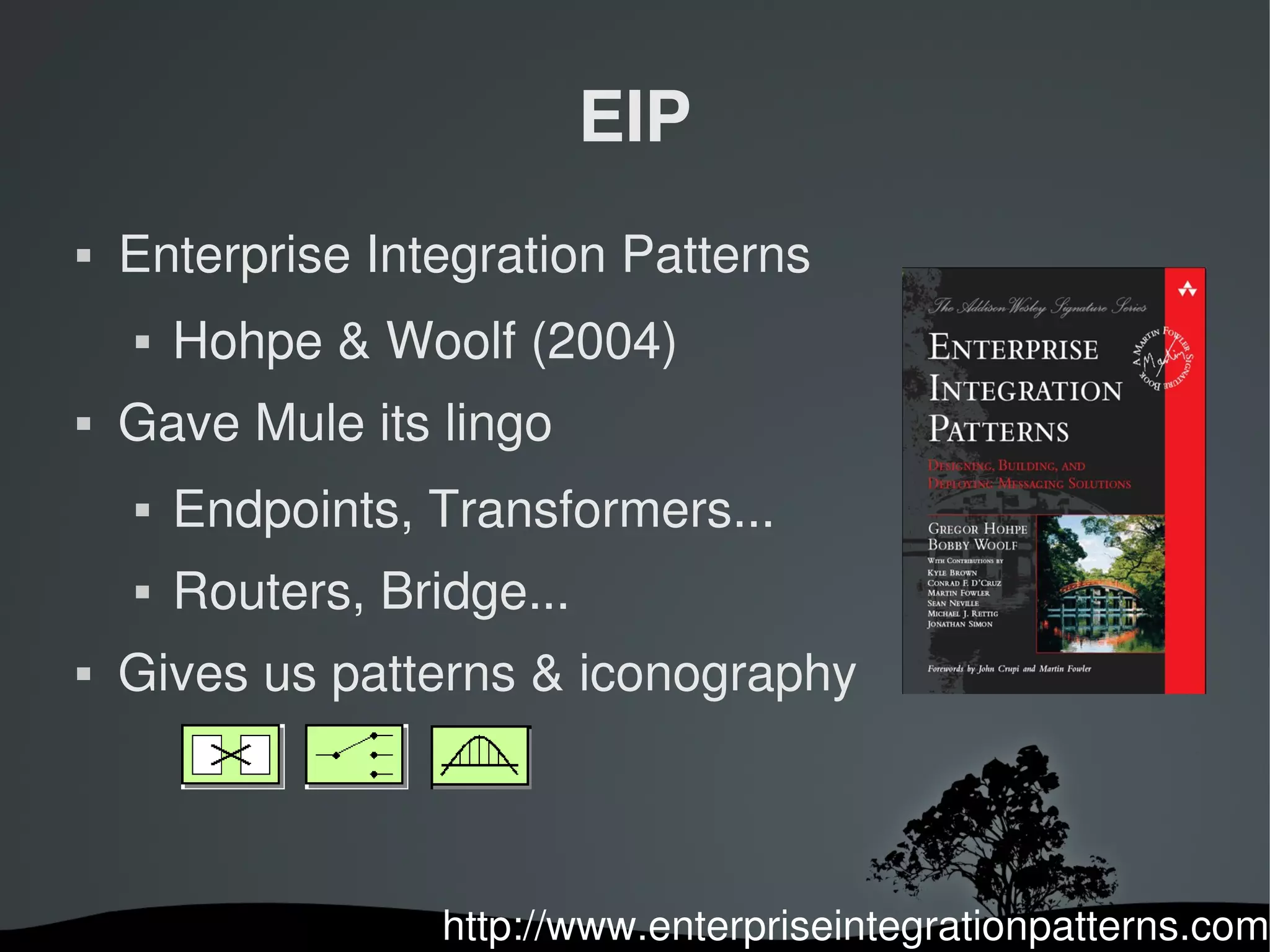

10. EIP
 Enterprise Integration Patterns
 Hohpe & Woolf (2004)
 Gave Mule its lingo
 Endpoints, Transformers...
 Routers, Bridge...
 Gives us patterns & iconography
http://www.enterpriseintegrationpatterns.com

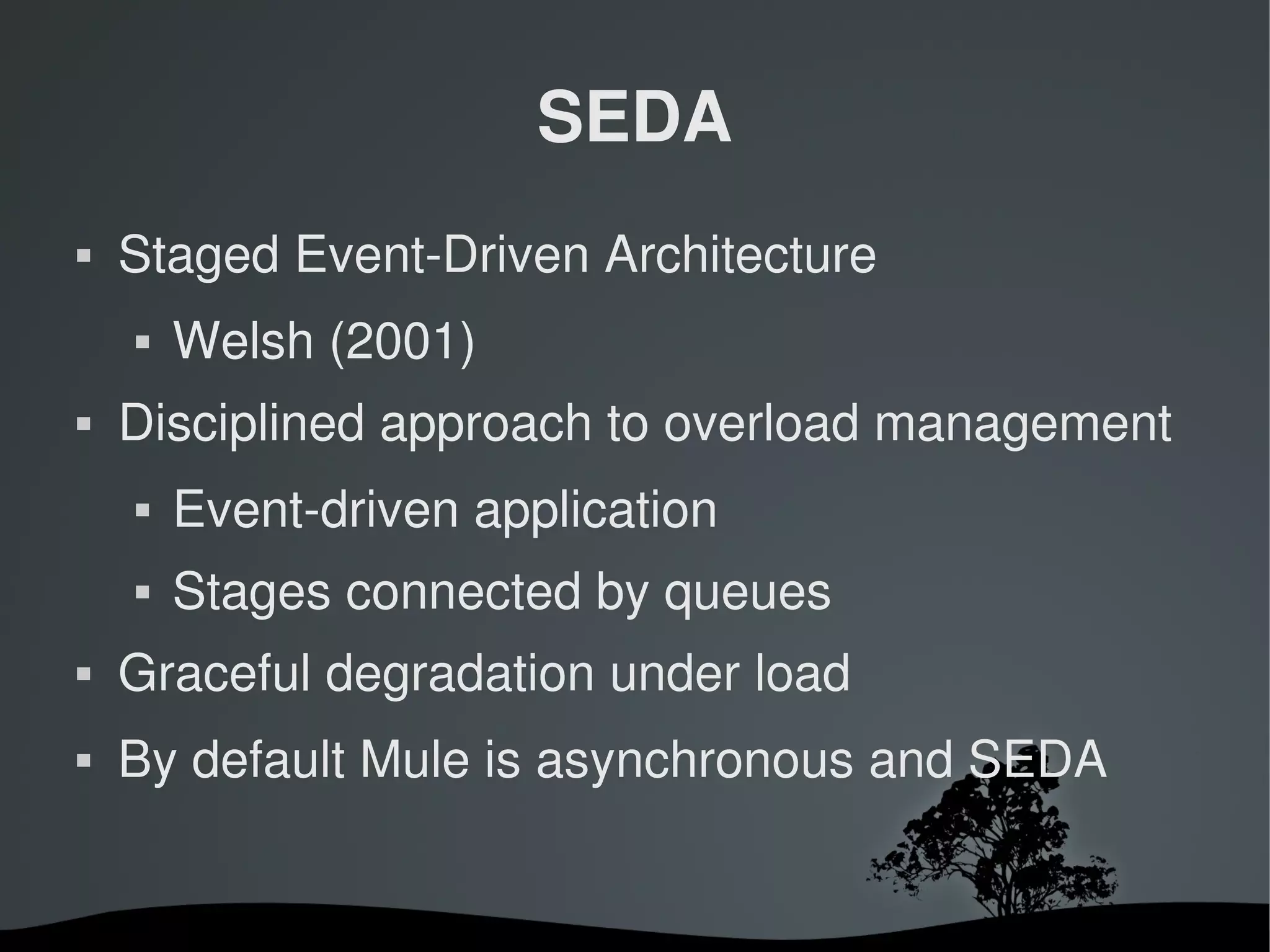

11. SEDA
 Staged Event­Driven Architecture
 Welsh (2001)
 Disciplined approach to overload management
 Event­driven application
 Stages connected by queues
 Graceful degradation under load
 By default Mule is asynchronous and SEDA

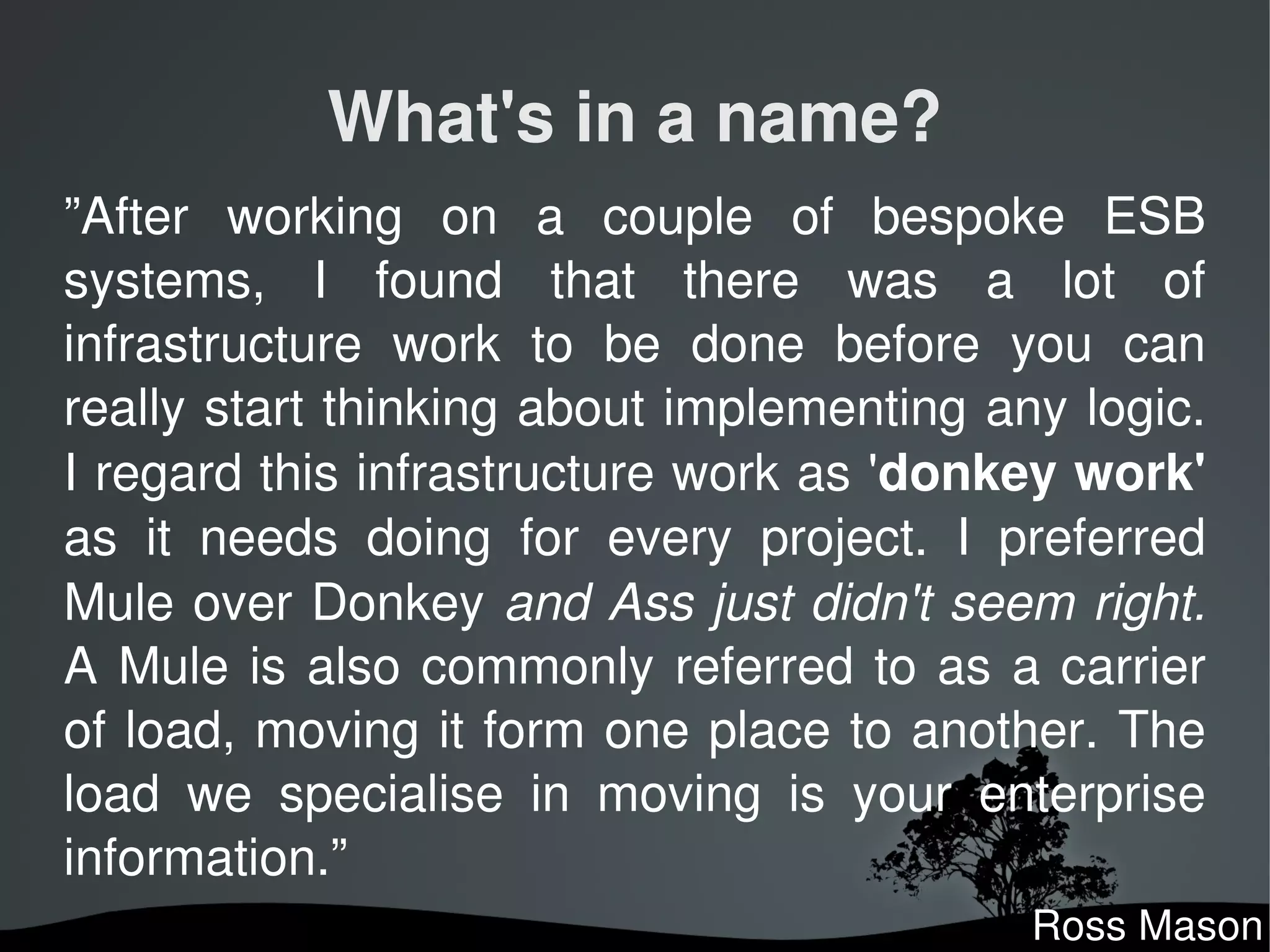

12. What's in a name?
”After working on a couple of bespoke ESB
systems, I found that there was a lot of
infrastructure work to be done before you can
really start thinking about implementing any logic.
I regard this infrastructure work as 'donkey work'
as it needs doing for every project. I preferred
Mule over Donkey and Ass just didn't seem right.
A Mule is also commonly referred to as a carrier
of load, moving it form one place to another. The
load we specialise in moving is your enterprise
information.”
Ross Mason

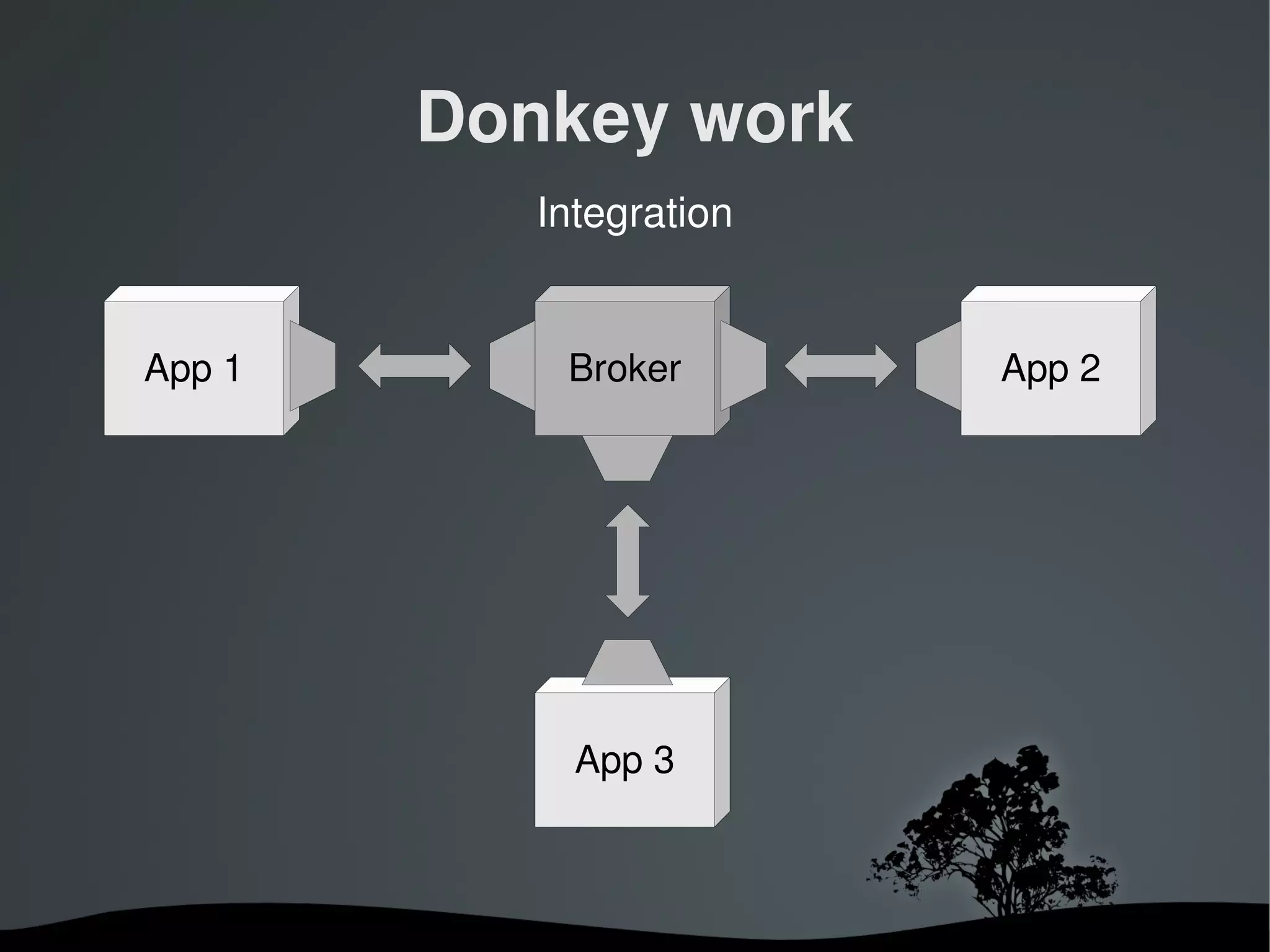

13. Donkey work
Integration
App 1 Broker App 2
App 3

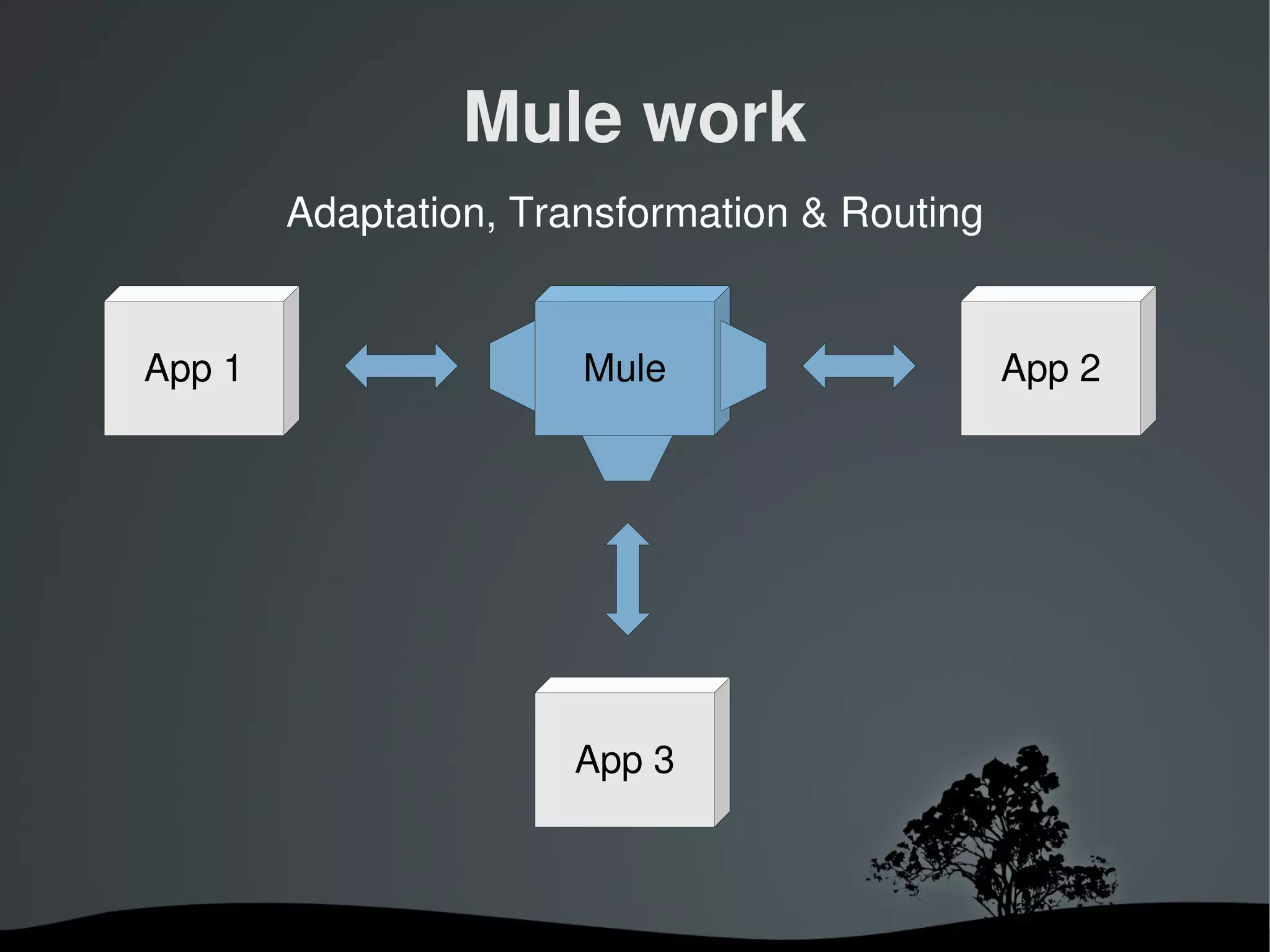

14. Mule work
Adaptation, Transformation & Routing
App 1 Mule App 2
App 3

15. Mule's dual nature

16. Mule's dual nature
”Mule is a lightweight messaging framework and
highly distributable object broker”

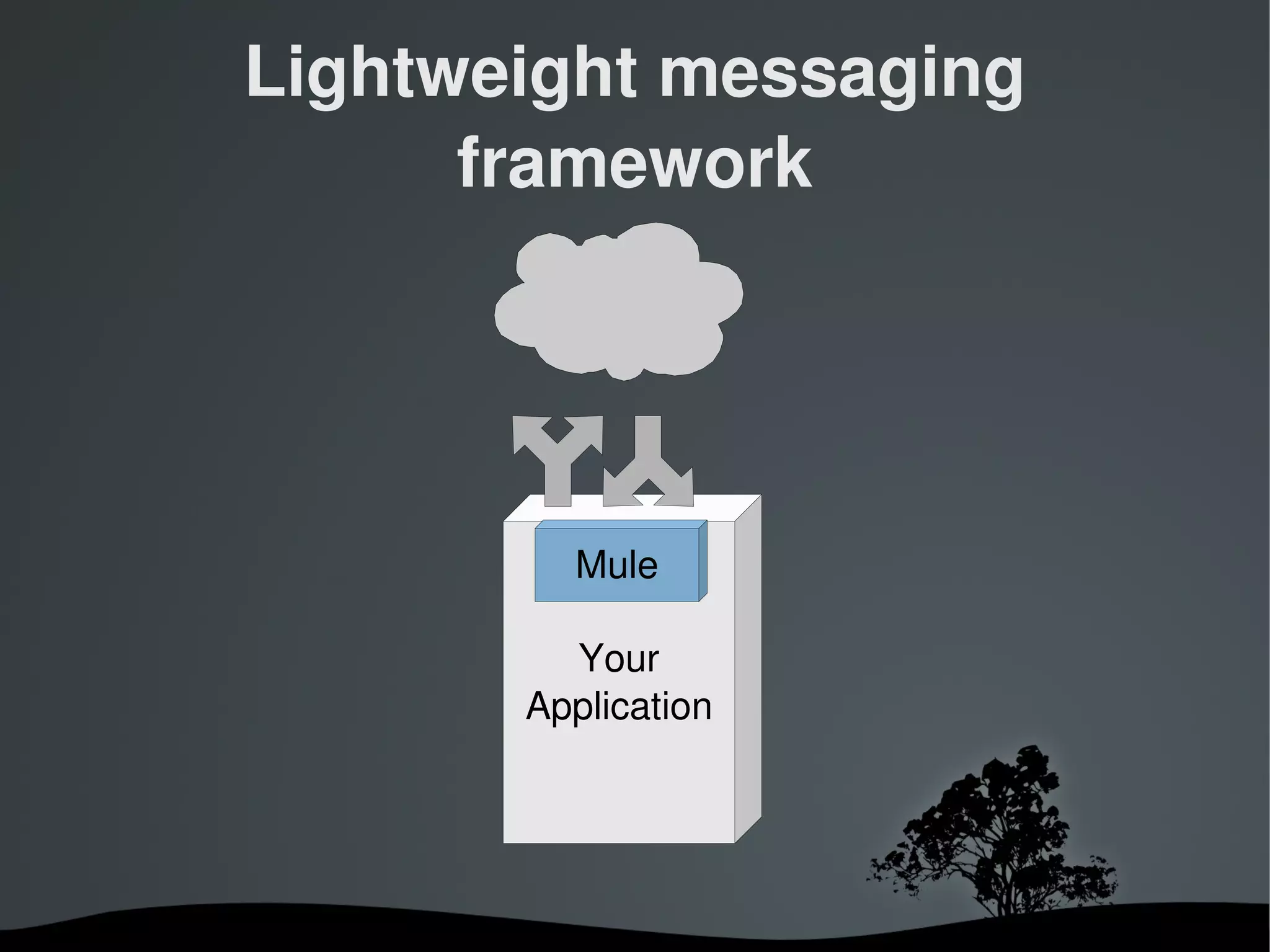

17. Lightweight messaging
framework
Mule
Your
Application

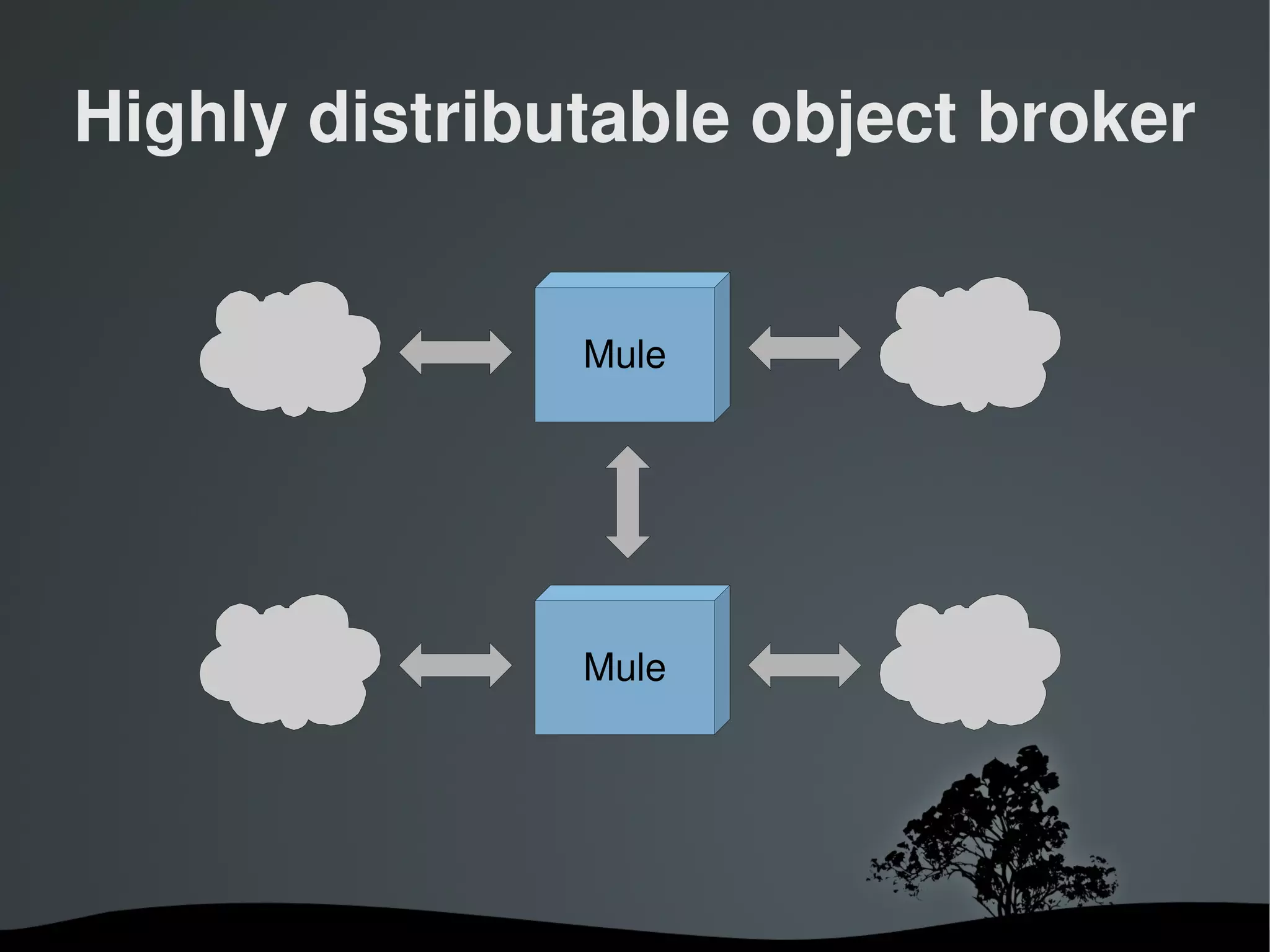

18. Highly distributable object broker
Mule
Mule

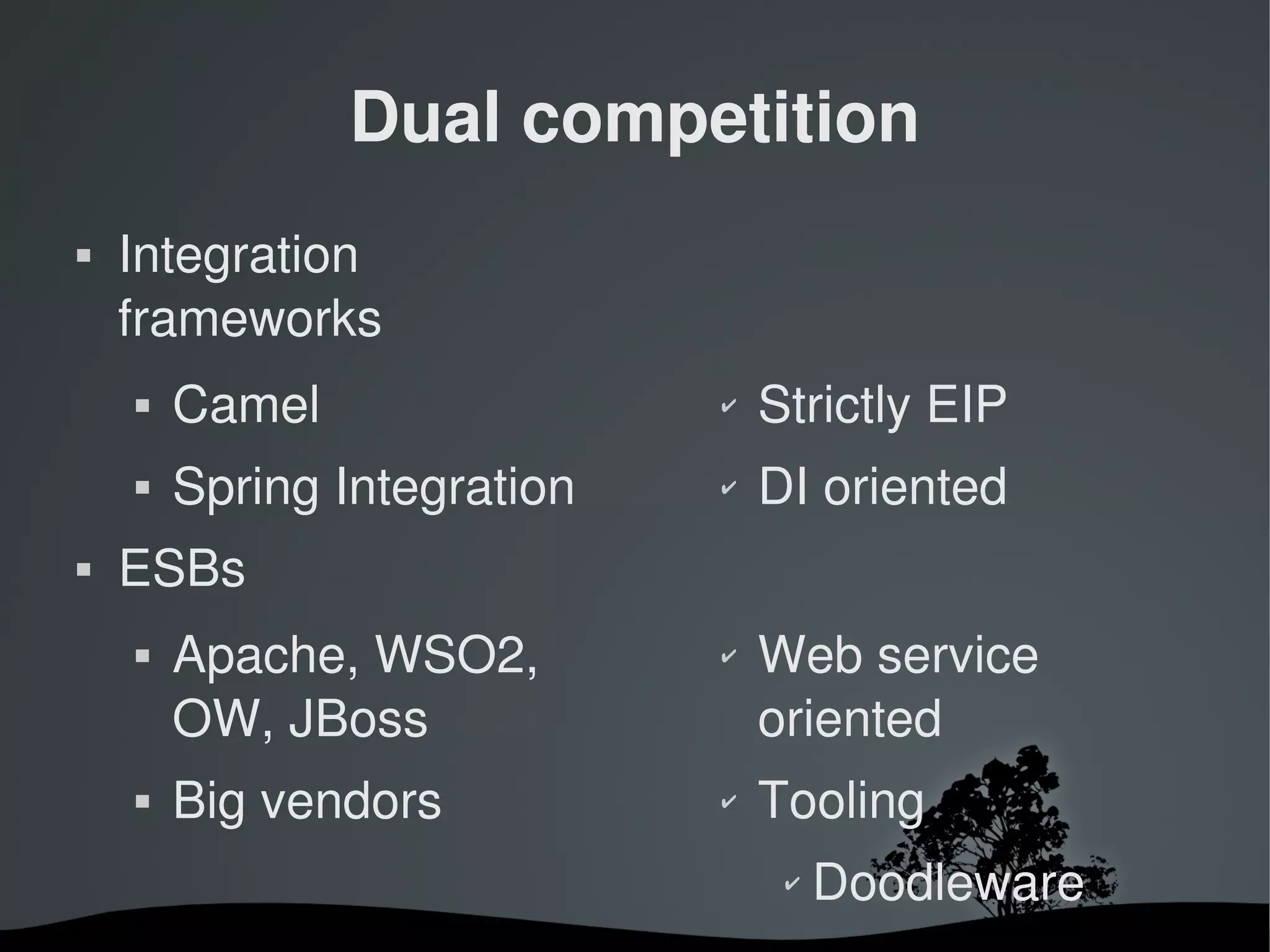

19. Dual competition
 Integration
frameworks
 Camel ✔ Strictly EIP
 Spring Integration ✔ DI oriented
 ESBs
 Apache, WSO2, ✔ Web service
OW, JBoss oriented
 Big vendors ✔ Tooling
✔ Doodleware

20. Dual offer
 Community Edition
 Stable “enough”
 Upgrades can be rocky
 Enterprise Edition
 Supported, stabler
 Enterprise features
 MQSeries connectors, retry policies
 Monitoring tool (MuleHQ)

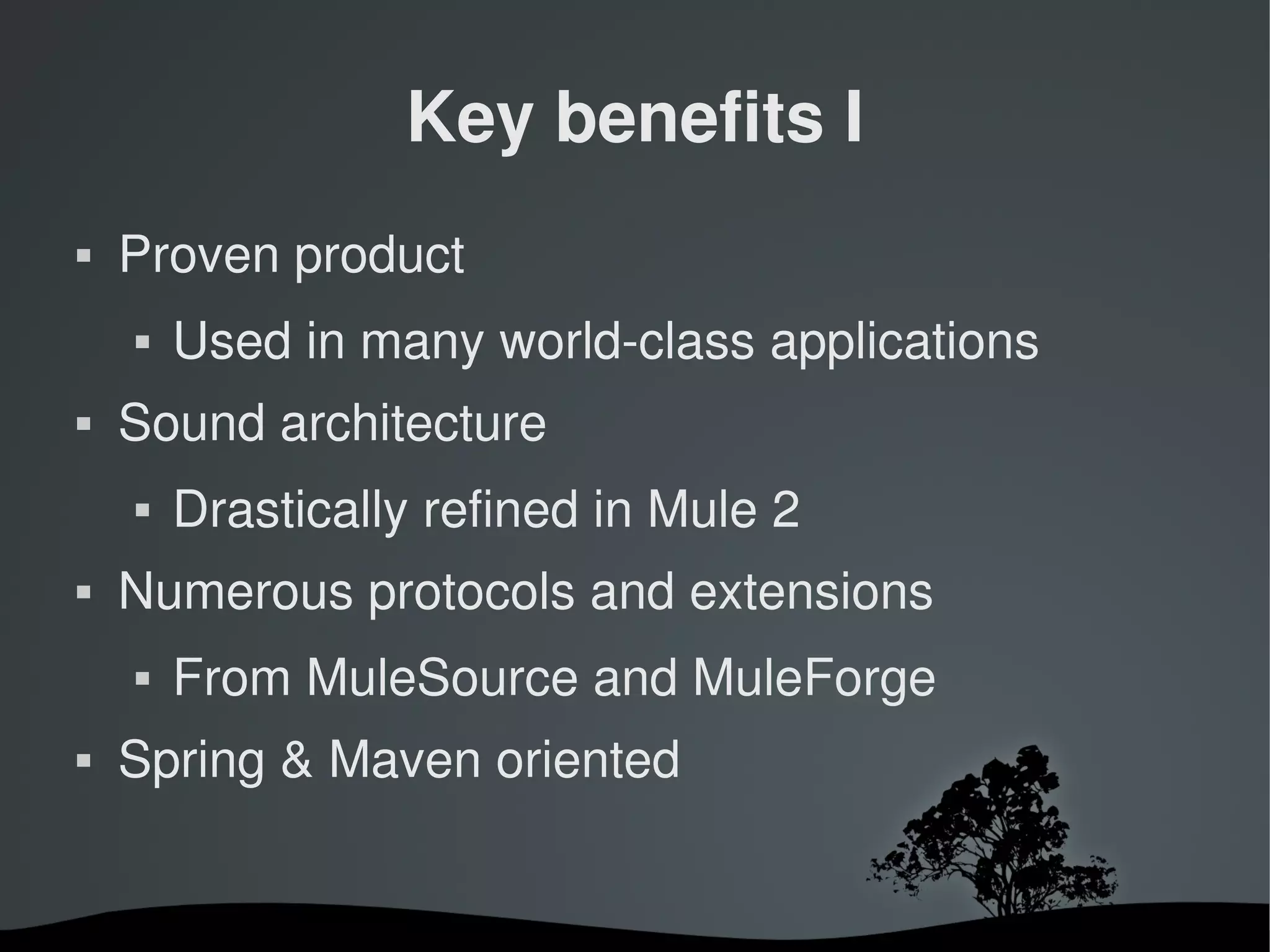

21. Key benefits I
 Proven product
 Used in many world­class applications
 Sound architecture
 Drastically refined in Mule 2
 Numerous protocols and extensions
 From MuleSource and MuleForge
 Spring & Maven oriented

22. Key benefits II
 Good tooling
 Mule IDE
 Galaxy
 Active community
 Support, MuleForge
 Shared code base CE / EE
 Professional support available

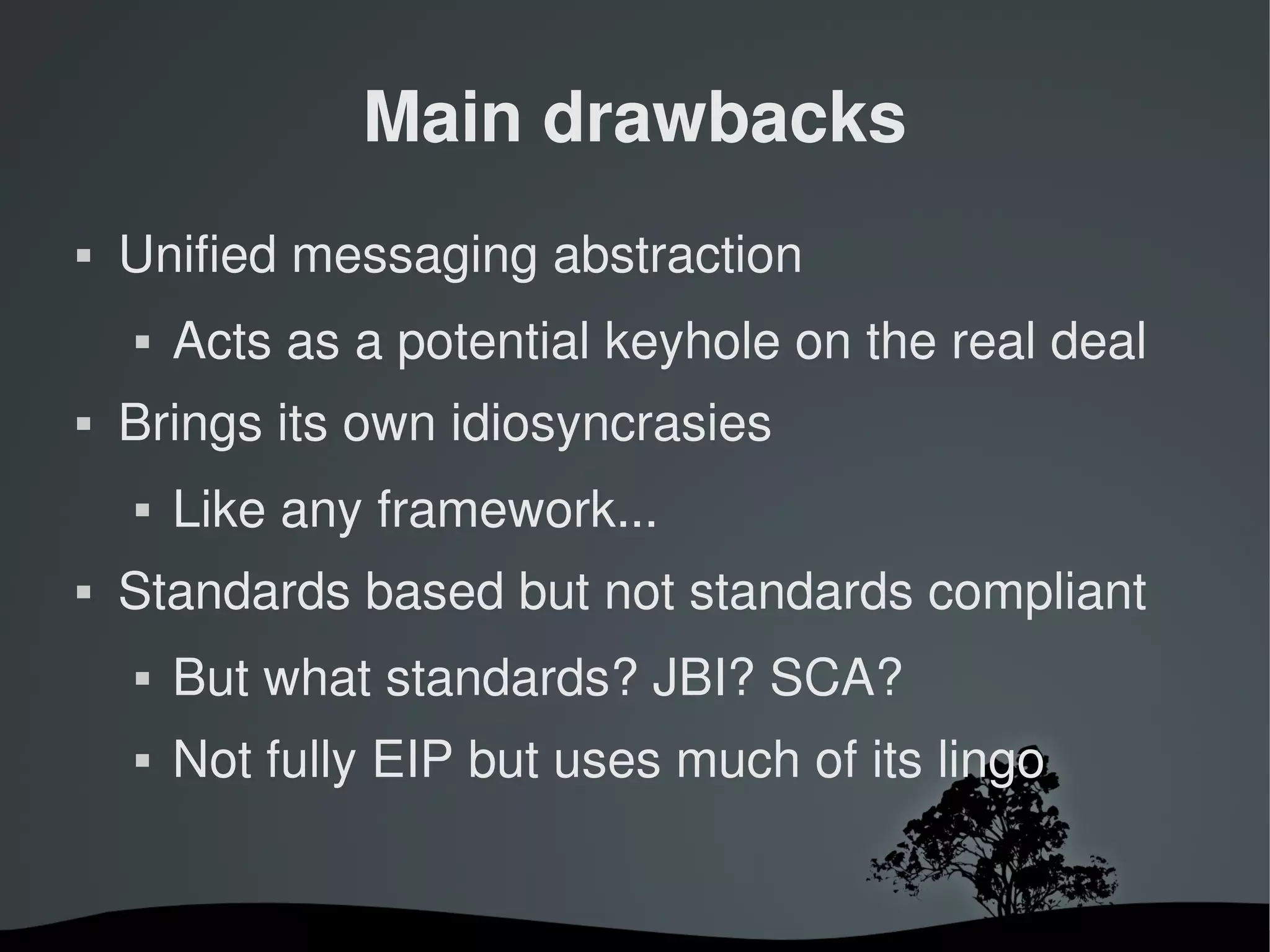

23. Main drawbacks
 Unified messaging abstraction
 Acts as a potential keyhole on the real deal
 Brings its own idiosyncrasies
 Like any framework...
 Standards based but not standards compliant
 But what standards? JBI? SCA?
 Not fully EIP but uses much of its lingo

24. Exploration

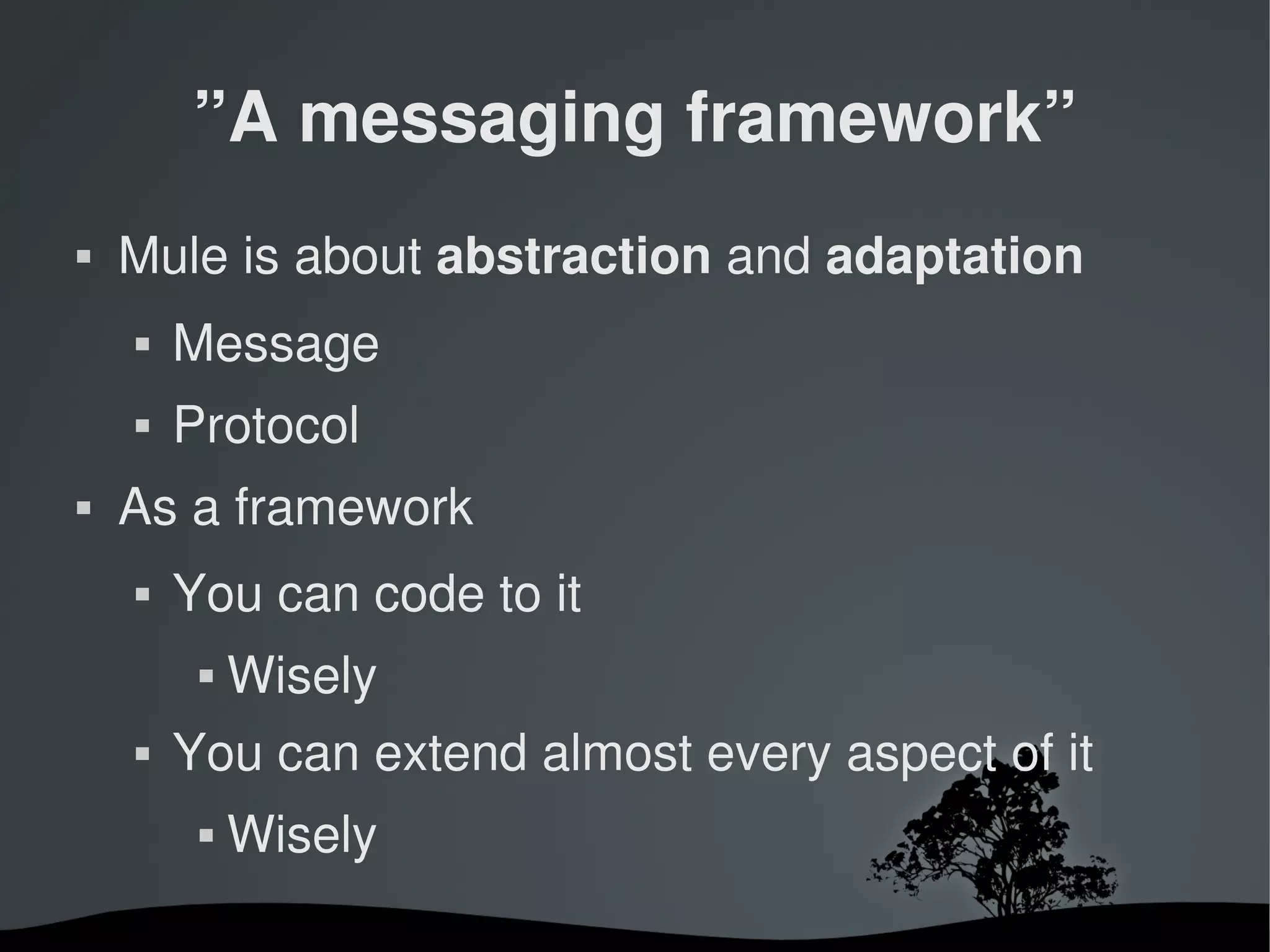

25. ”A messaging framework”
 Mule is about abstraction and adaptation
 Message
 Protocol
 As a framework
 You can code to it
 Wisely
 You can extend almost every aspect of it
 Wisely

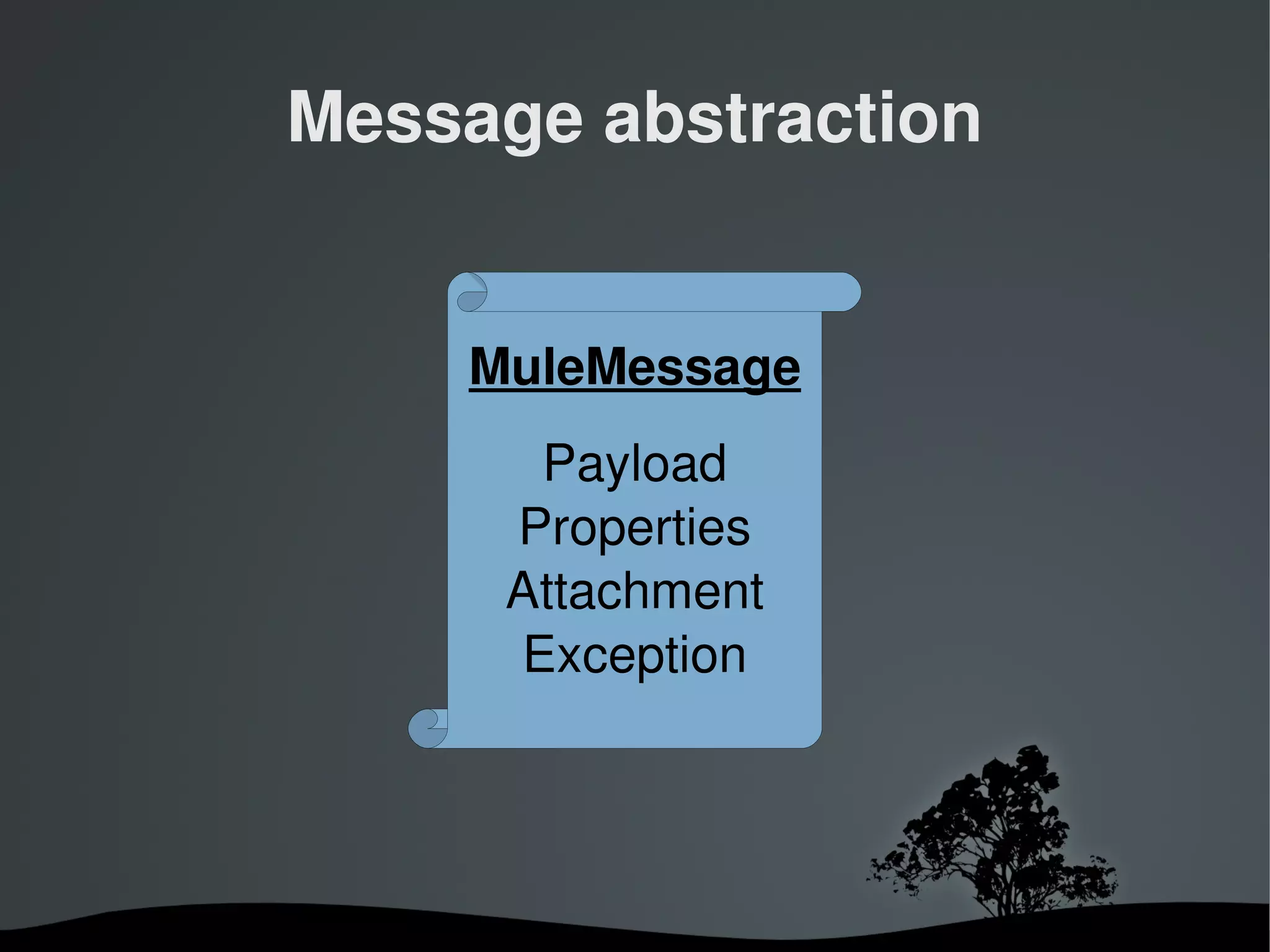

26. Message abstraction
MuleMessage
Payload
Properties
Attachment
Exception

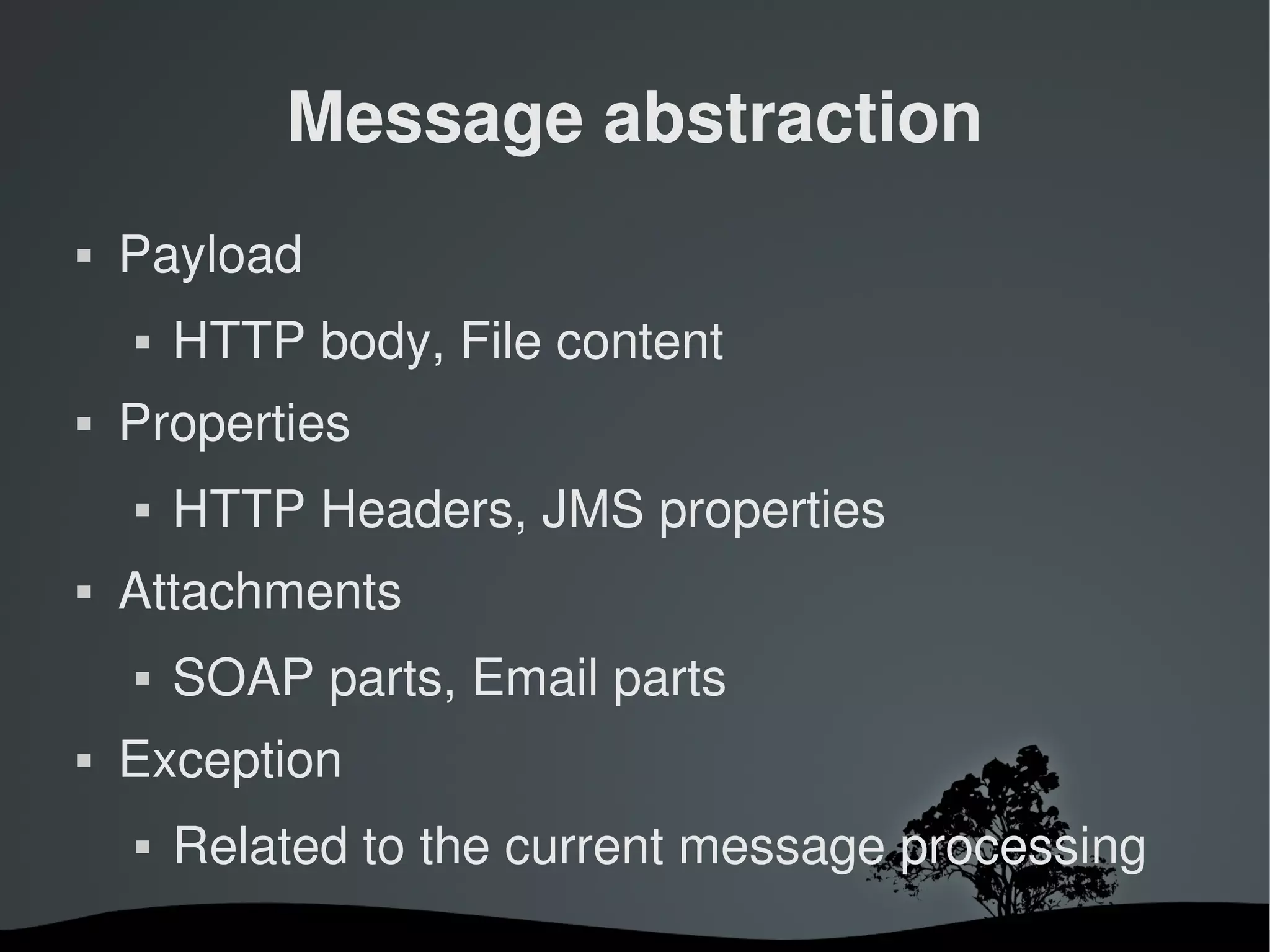

27. Message abstraction
 Payload
 HTTP body, File content
 Properties
 HTTP Headers, JMS properties
 Attachments
 SOAP parts, Email parts
 Exception
 Related to the current message processing

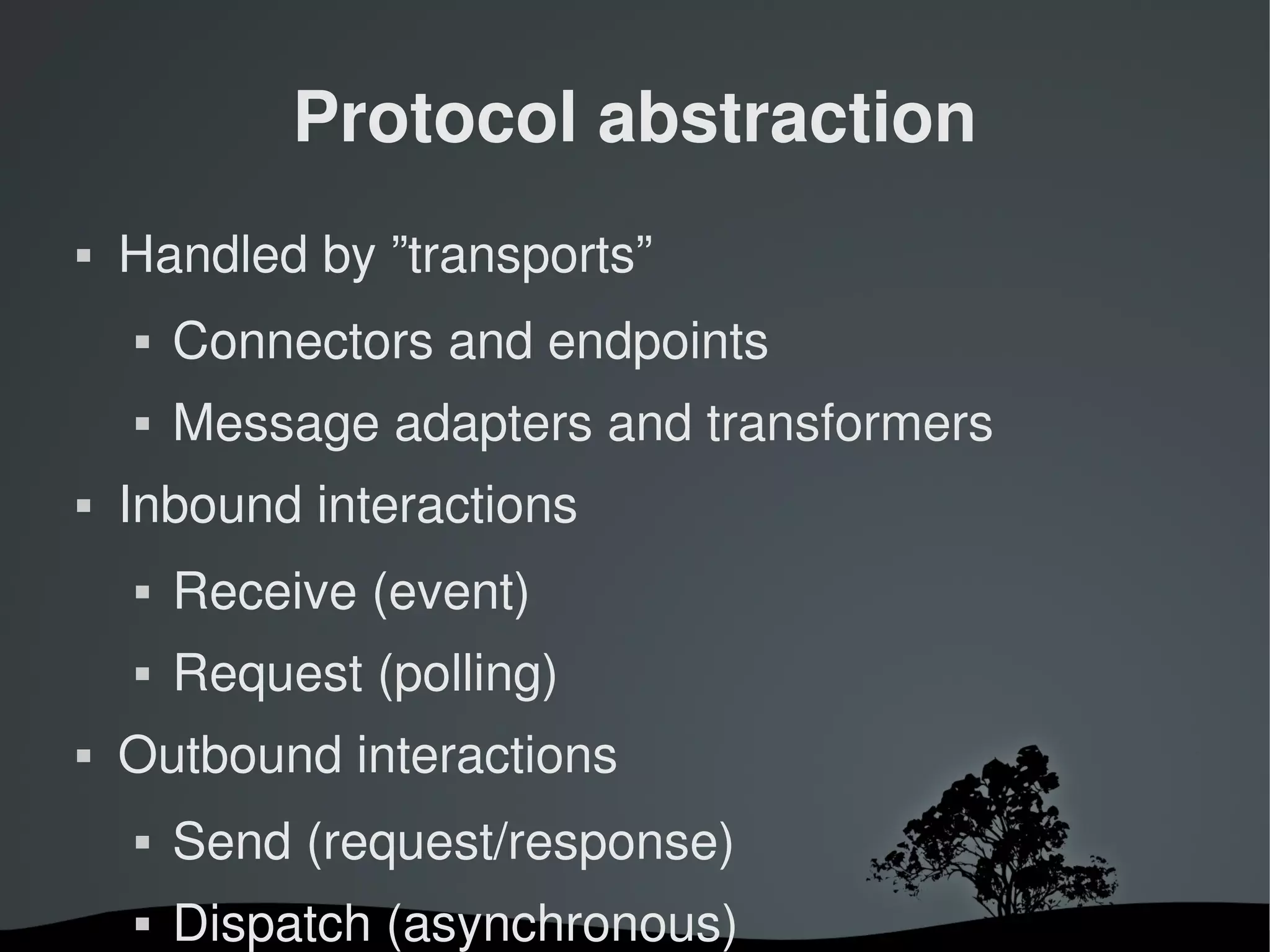

28. Protocol abstraction
 Handled by ”transports”
 Connectors and endpoints
 Message adapters and transformers
 Inbound interactions
 Receive (event)
 Request (polling)
 Outbound interactions
 Send (request/response)
 Dispatch (asynchronous)

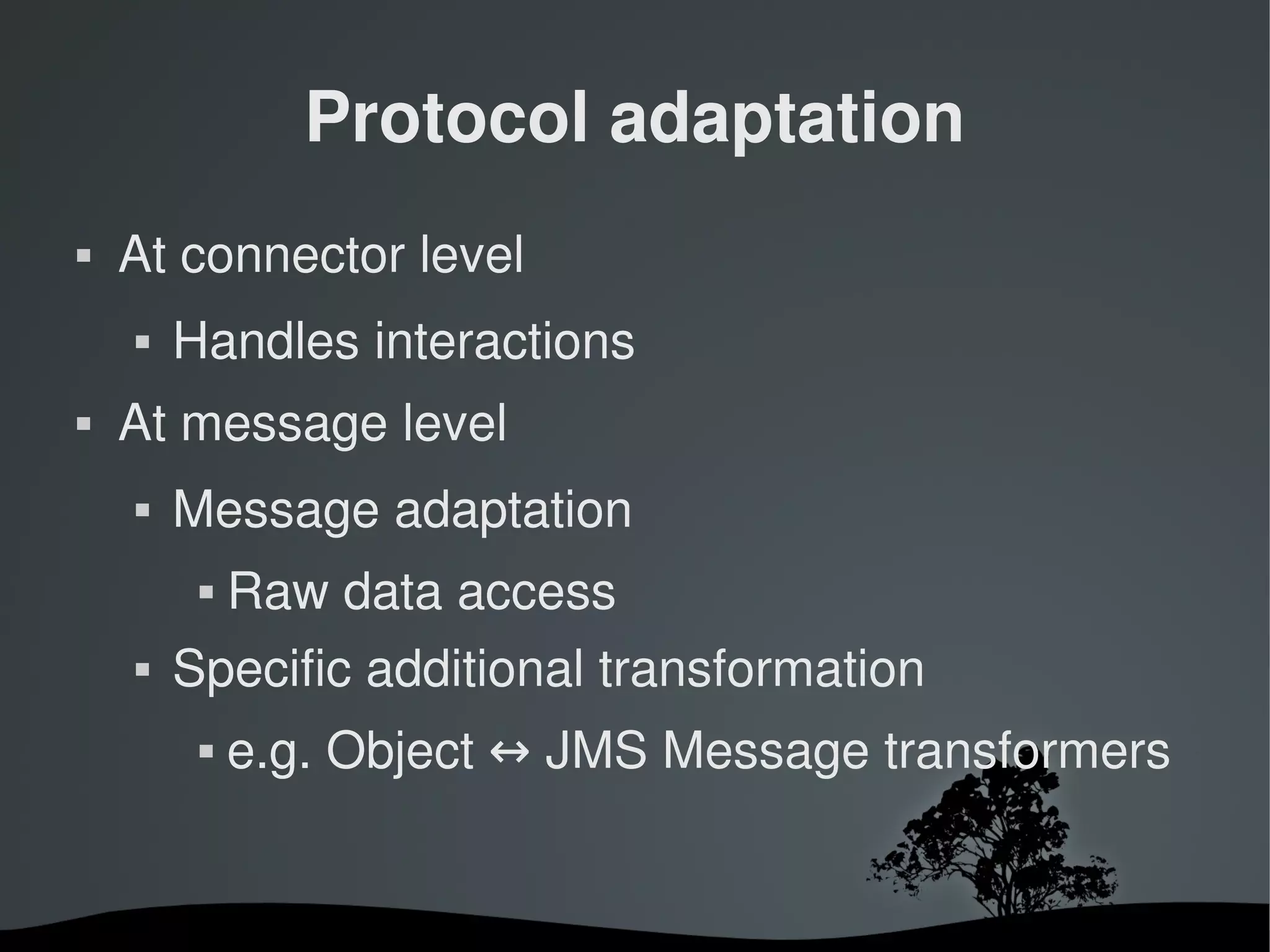

29. Protocol adaptation
 At connector level
 Handles interactions
 At message level
 Message adaptation
 Raw data access
 Specific additional transformation
 e.g. Object ↔ JMS Message transformers

30. Protocol adaptation
Inbound
Protocol Adaptation Mule Transformation Mule
Specific Message Message

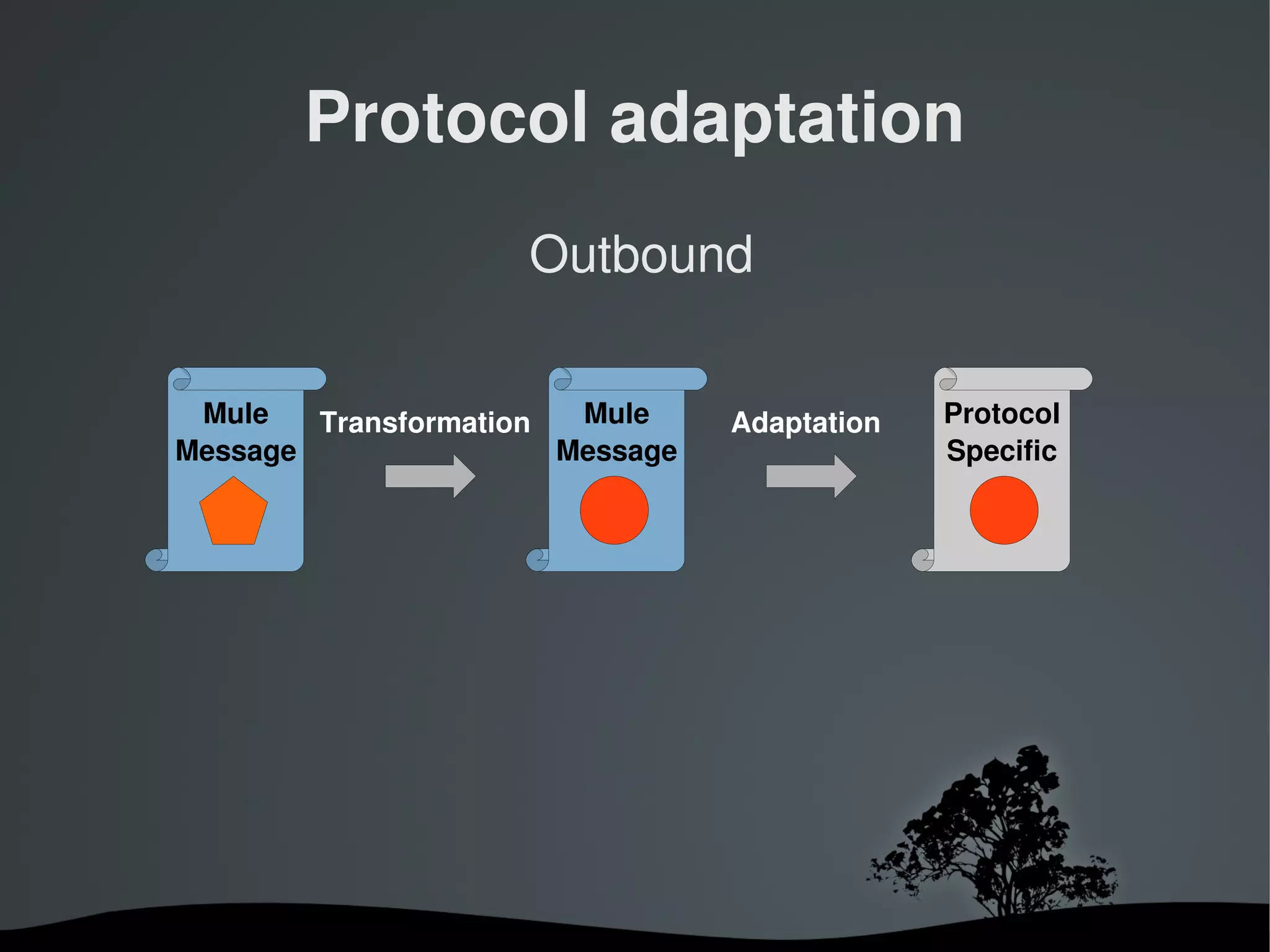

31. Protocol adaptation
Outbound
Mule Transformation Mule Adaptation Protocol
Message Message Specific

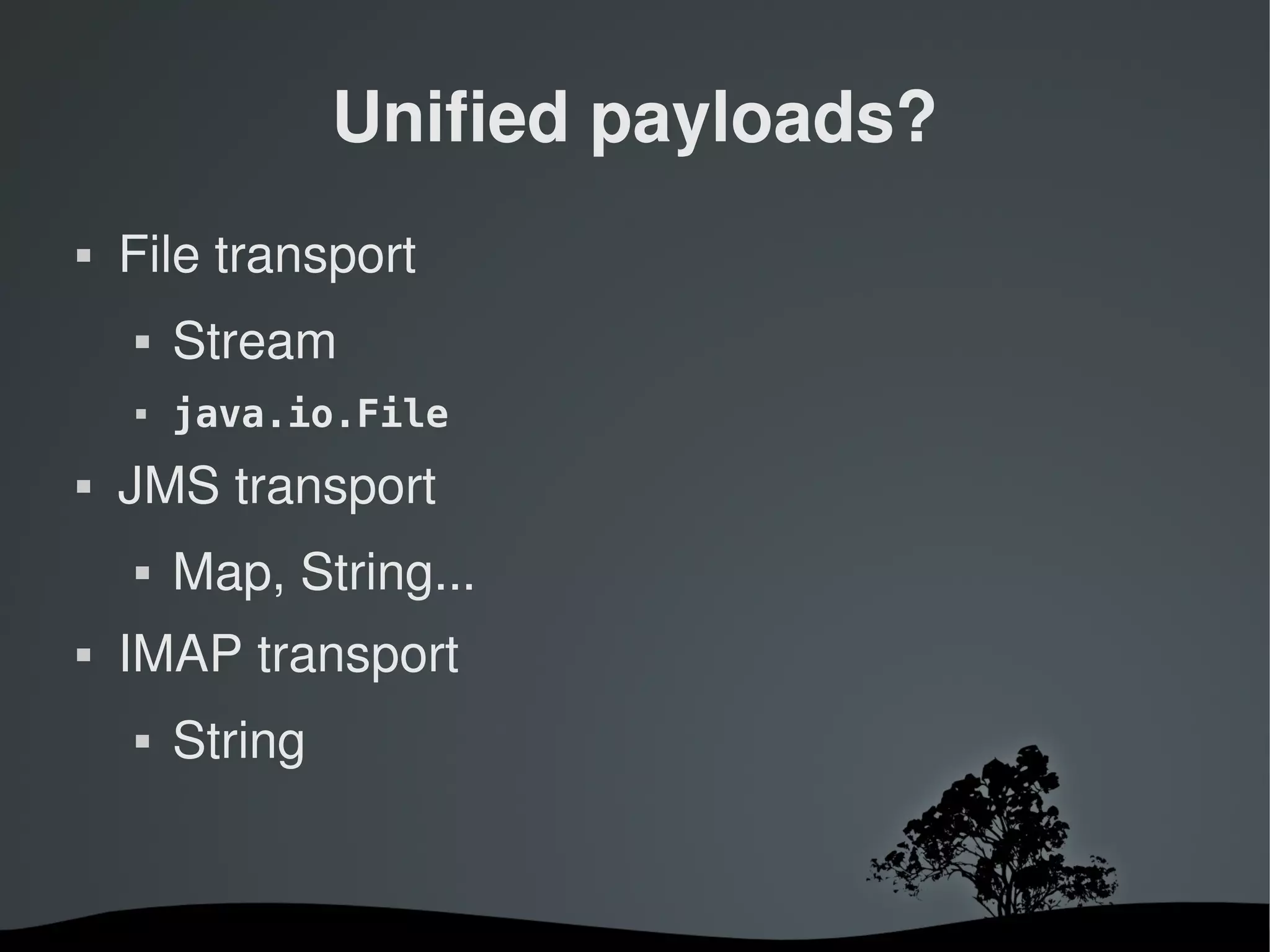

32. Unified payloads?
 File transport
 Stream
 java.io.File
 JMS transport
 Map, String...
 IMAP transport
 String

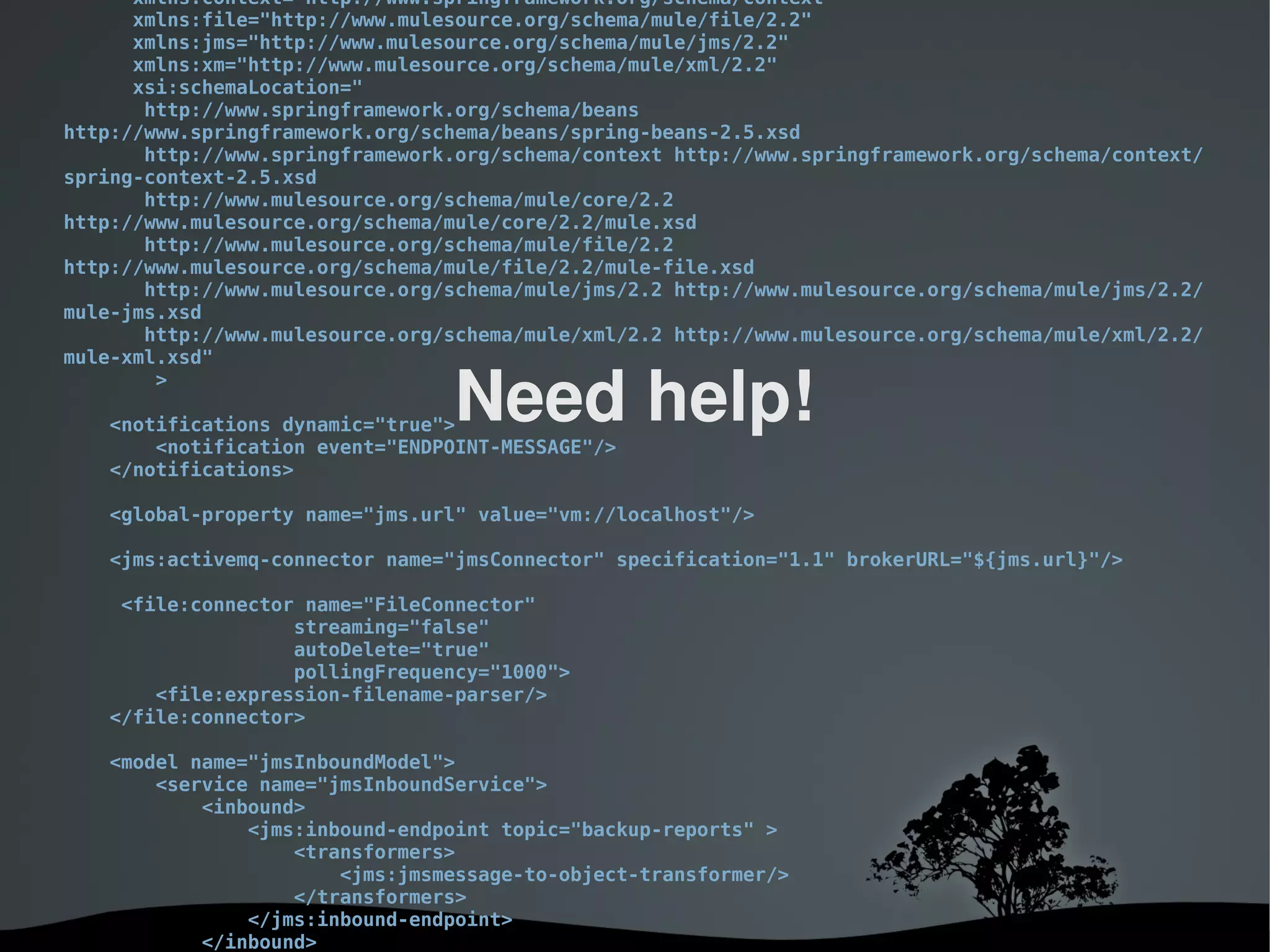

33. xmlns:context="http://www.springframework.org/schema/context"
xmlns:file="http://www.mulesource.org/schema/mule/file/2.2"
xmlns:jms="http://www.mulesource.org/schema/mule/jms/2.2"
xmlns:xm="http://www.mulesource.org/schema/mule/xml/2.2"
xsi:schemaLocation="
http://www.springframework.org/schema/beans
http://www.springframework.org/schema/beans/spring-beans-2.5.xsd
http://www.springframework.org/schema/context http://www.springframework.org/schema/context/
spring-context-2.5.xsd
http://www.mulesource.org/schema/mule/core/2.2
http://www.mulesource.org/schema/mule/core/2.2/mule.xsd
http://www.mulesource.org/schema/mule/file/2.2
http://www.mulesource.org/schema/mule/file/2.2/mule-file.xsd
http://www.mulesource.org/schema/mule/jms/2.2 http://www.mulesource.org/schema/mule/jms/2.2/
mule-jms.xsd
http://www.mulesource.org/schema/mule/xml/2.2 http://www.mulesource.org/schema/mule/xml/2.2/
mule-xml.xsd"
>
<notifications dynamic="true">
Need help!
<notification event="ENDPOINT-MESSAGE"/>
</notifications>
<global-property name="jms.url" value="vm://localhost"/>
<jms:activemq-connector name="jmsConnector" specification="1.1" brokerURL="${jms.url}"/>
<file:connector name="FileConnector"
streaming="false"
autoDelete="true"
pollingFrequency="1000">
<file:expression-filename-parser/>
</file:connector>
<model name="jmsInboundModel">
<service name="jmsInboundService">
<inbound>
<jms:inbound-endpoint topic="backup-reports" >
<transformers>
<jms:jmsmessage-to-object-transformer/>
</transformers>
</jms:inbound-endpoint>
</inbound>

34. Mule's anatomy

35. Mule's anatomy
Service Service
Mule
Service Service

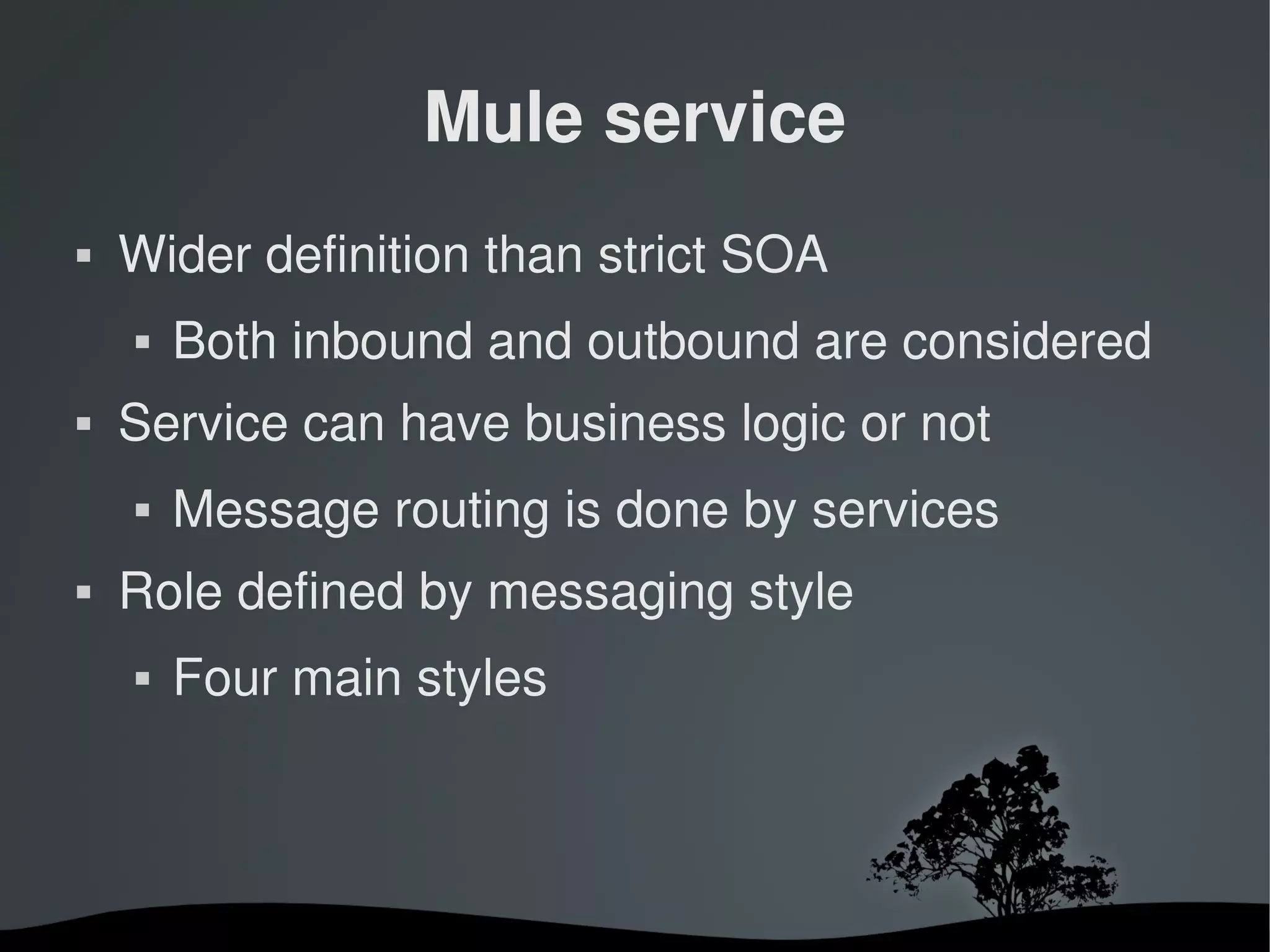

36. Mule service
 Wider definition than strict SOA
 Both inbound and outbound are considered
 Service can have business logic or not
 Message routing is done by services
 Role defined by messaging style
 Four main styles

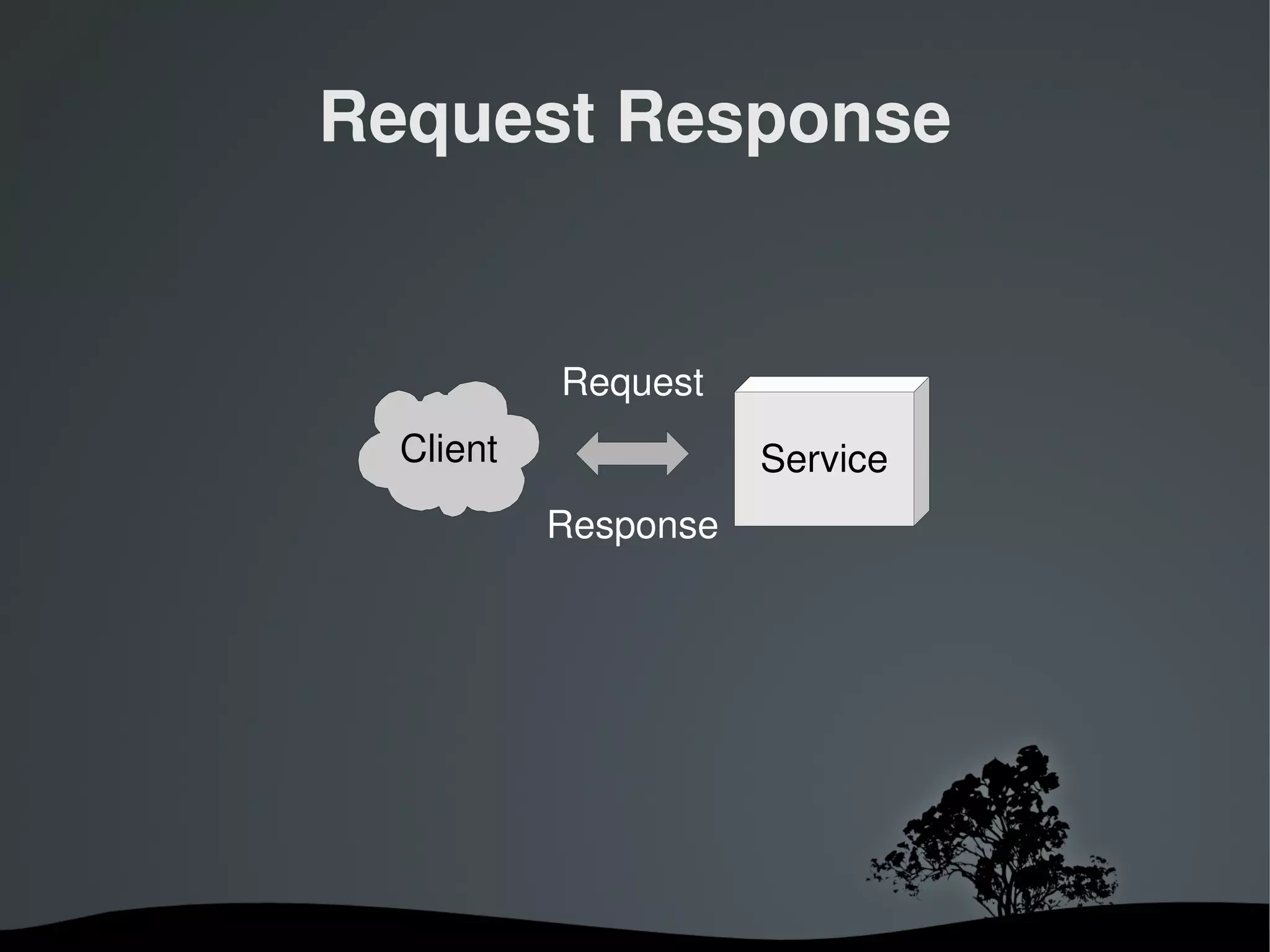

37. Request Response
Request
Client Service
Response

38. Asynchronous
Dispatch
Client Service

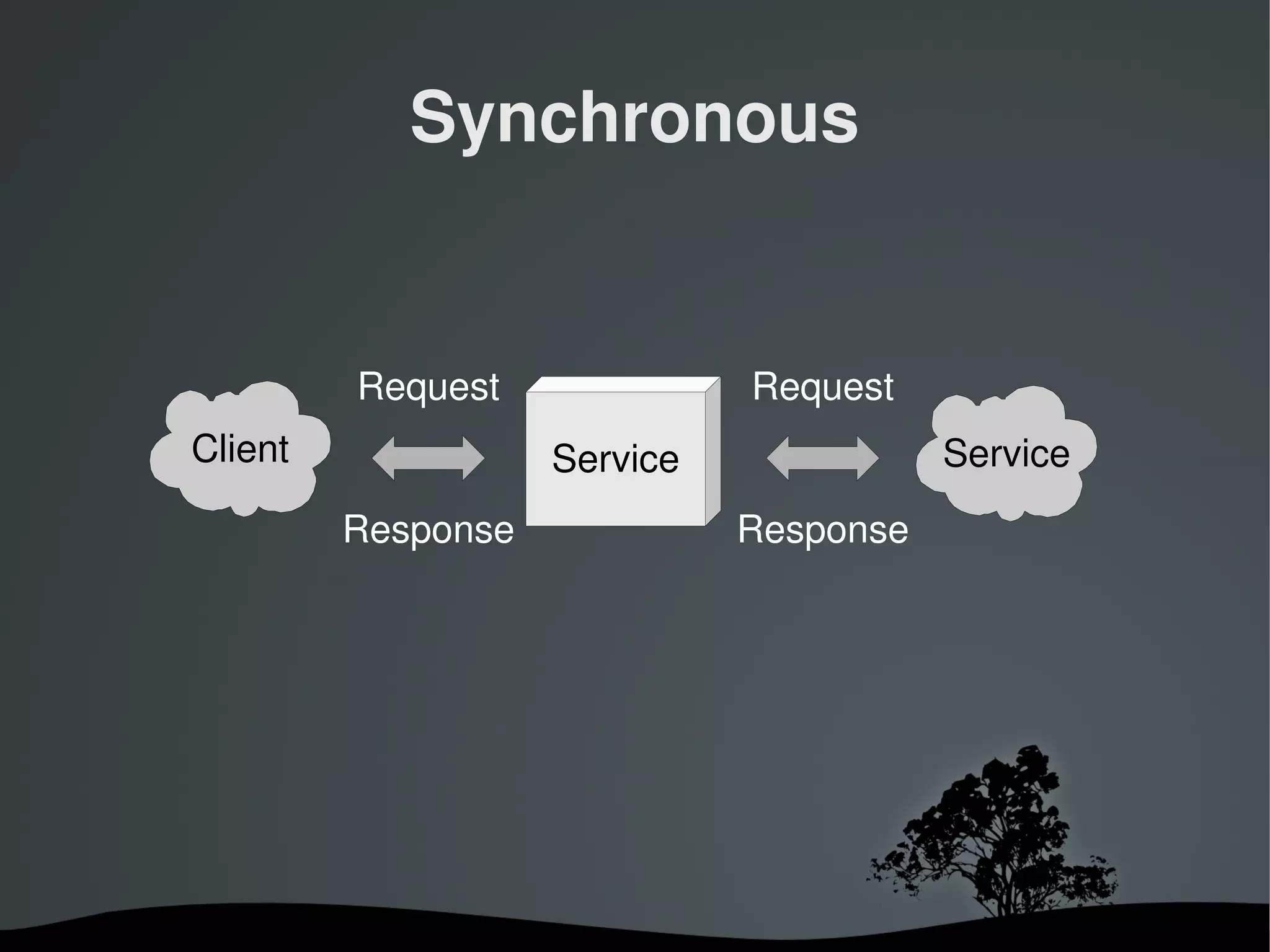

39. Synchronous
Request Request
Client Service Service
Response Response

40. Async Request Response
Request Dispatch
Client Service Service
Response Response

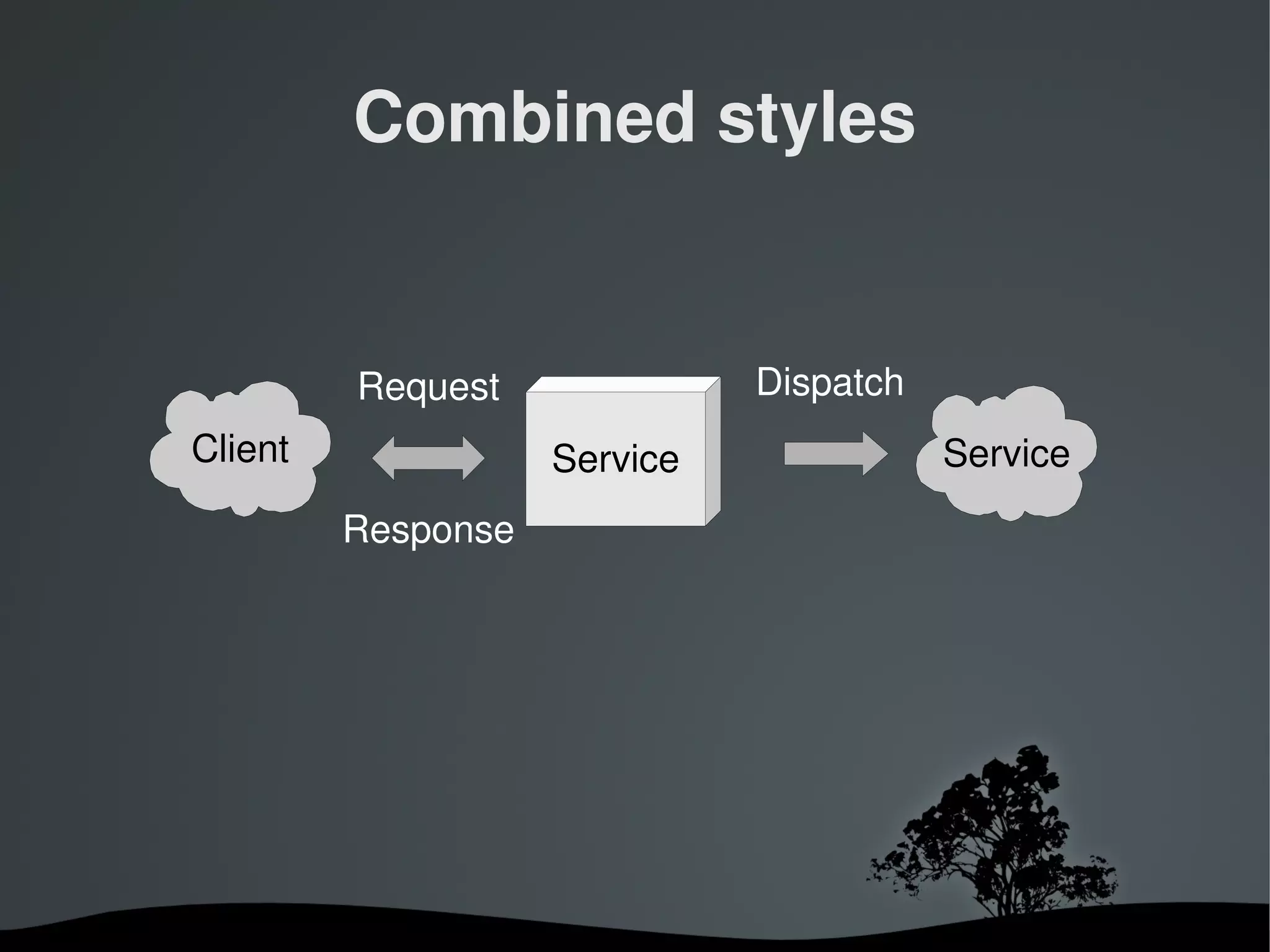

41. Combined styles
Request Dispatch
Client Service Service
Response

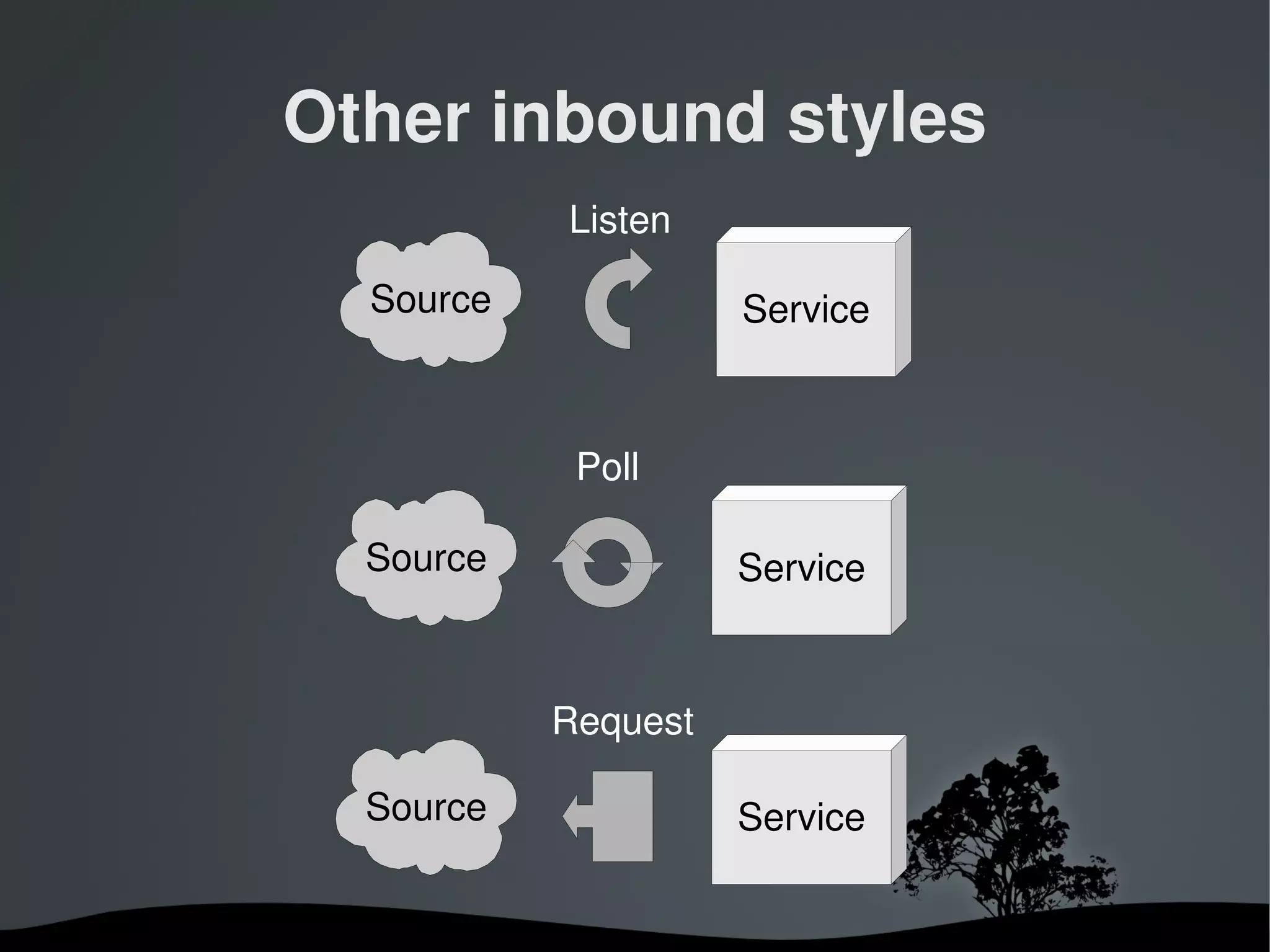

42. Other inbound styles
Listen
Source Service
Poll
Source Service
Request
Source Service

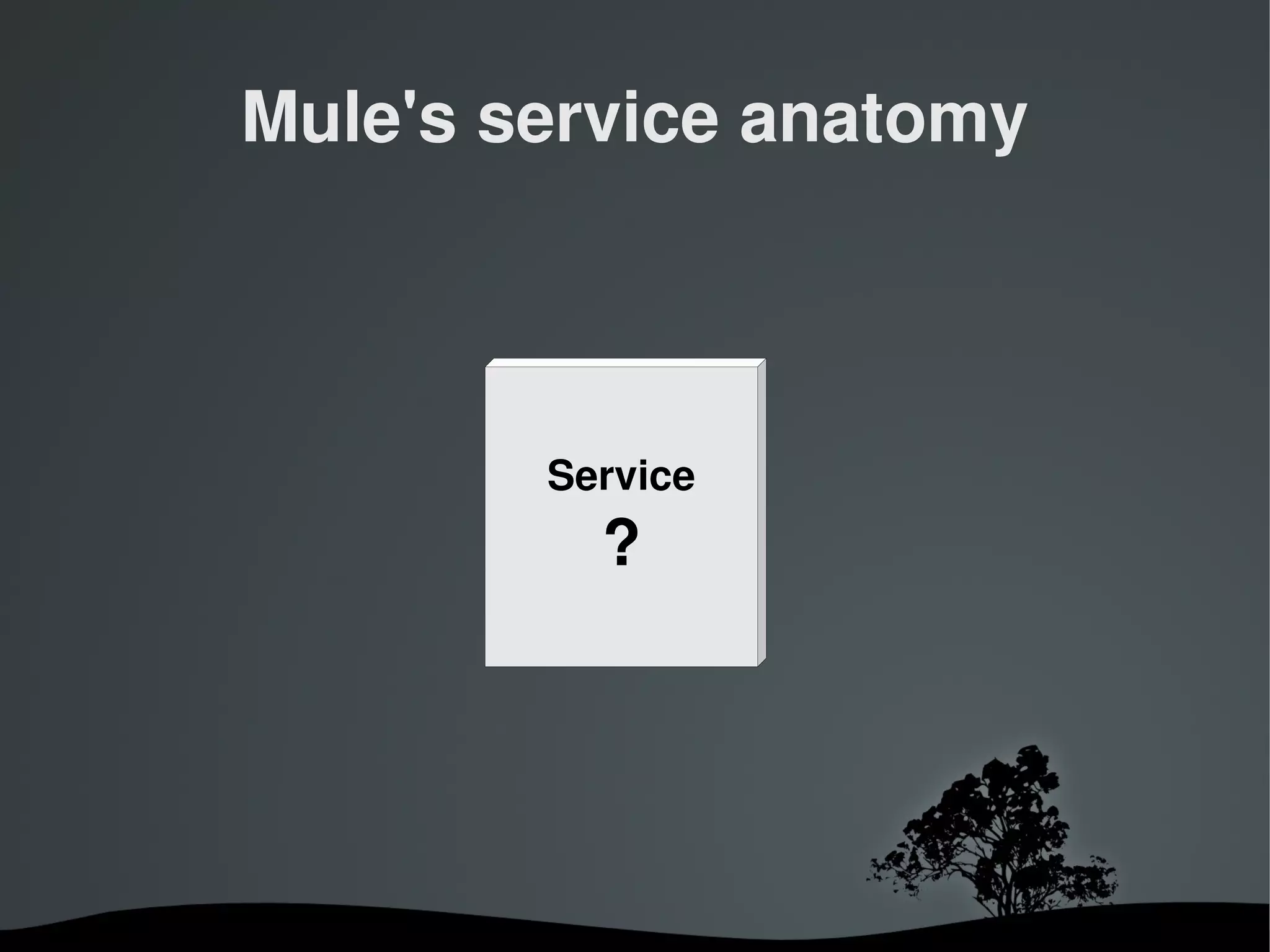

43. Mule's service anatomy
Service
?

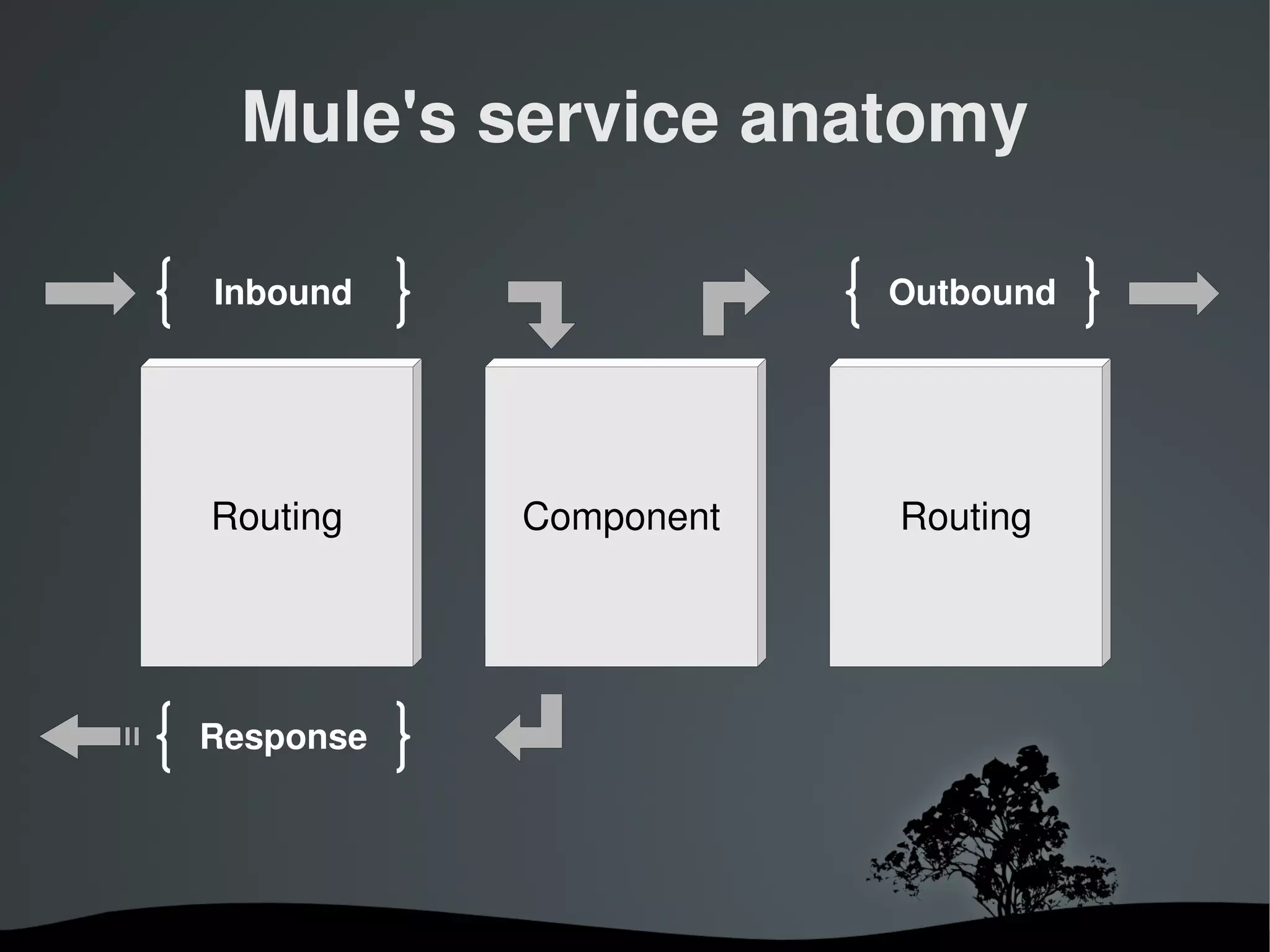

44. Mule's service anatomy
Inbound Outbound
Routing Component Routing
Response

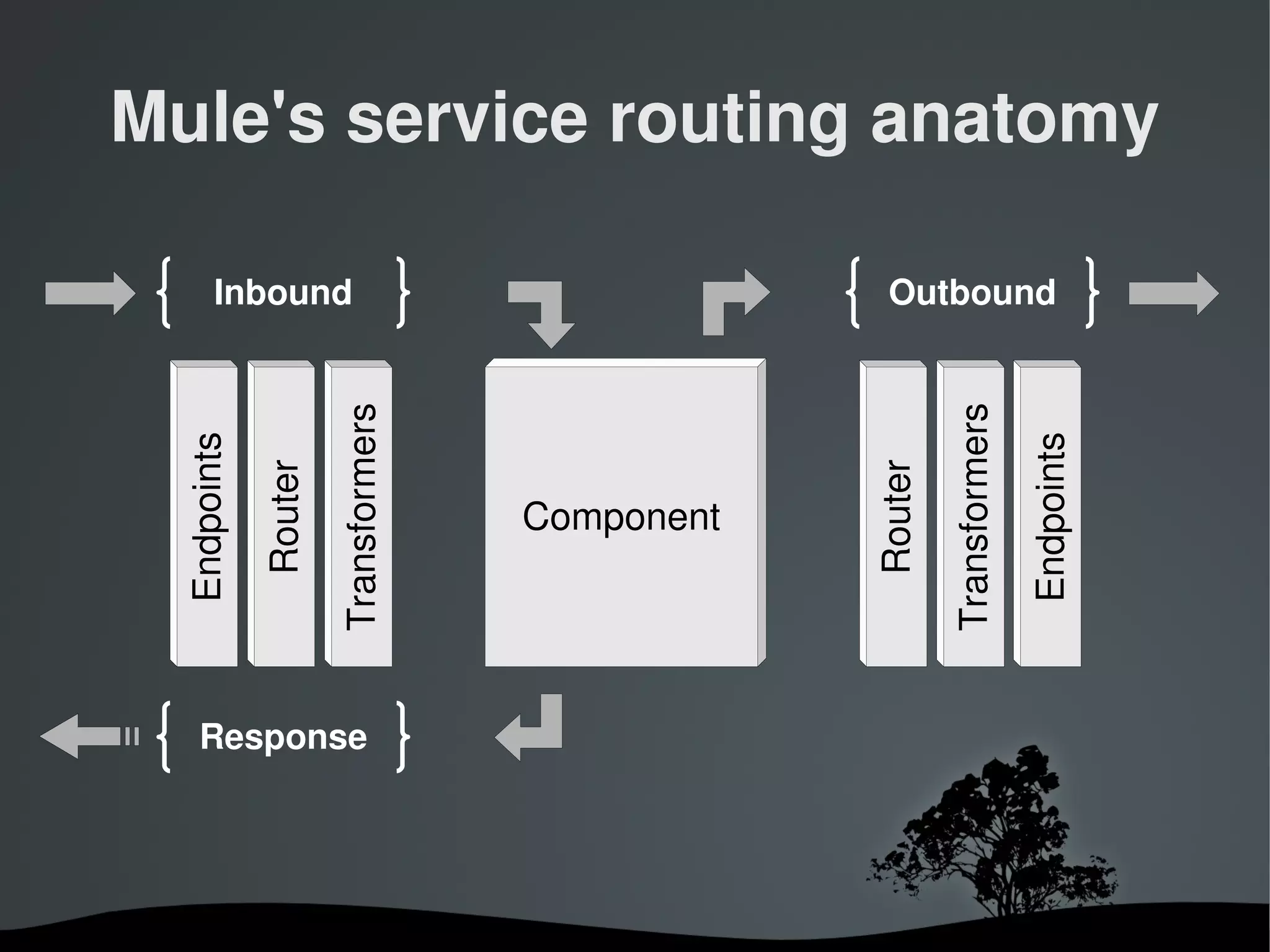

45. Mule's service routing anatomy
Inbound Outbound
Transformers
Transformers
Endpoints
Endpoints
Router
Router
Component
Response

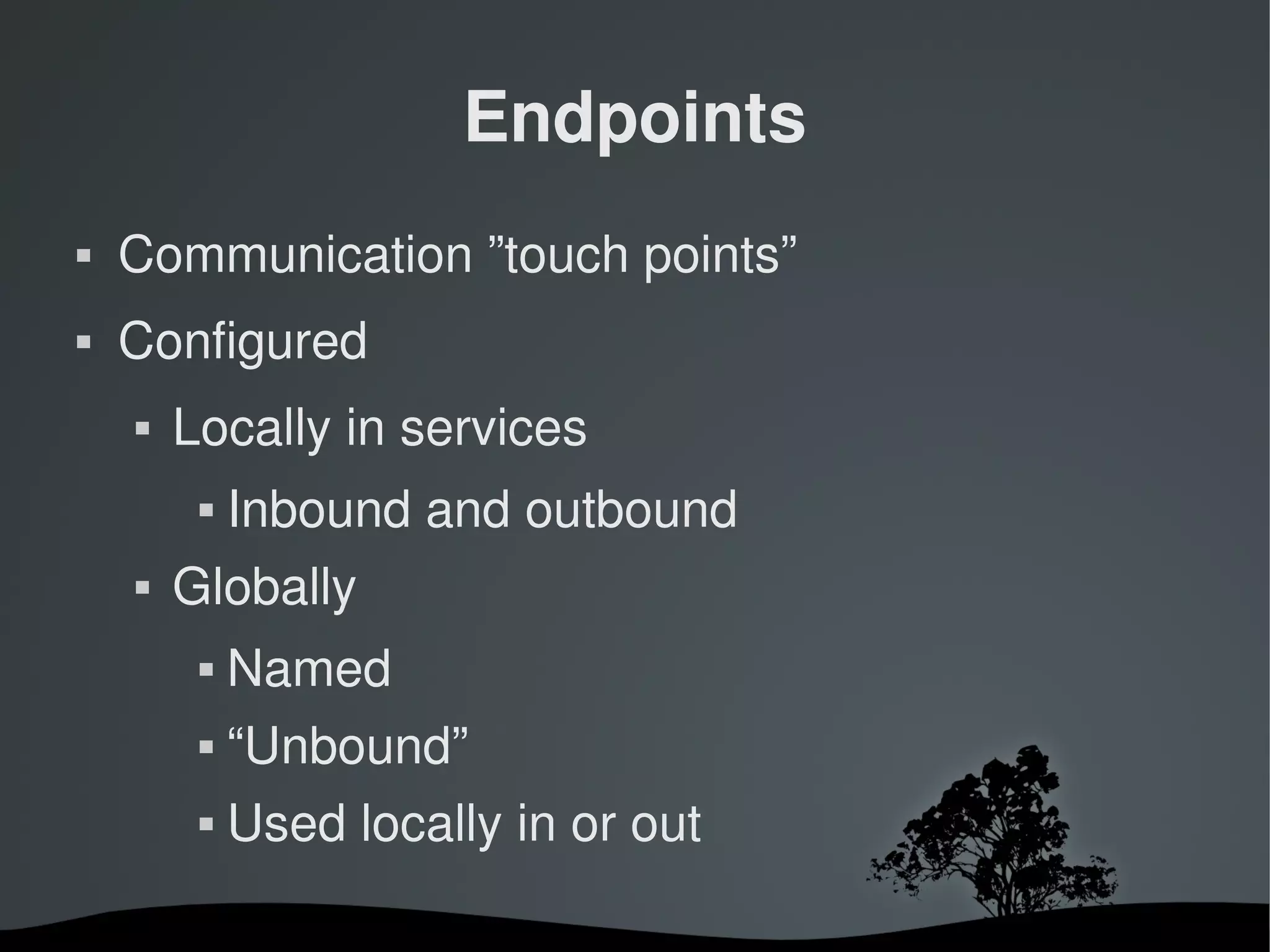

46. Endpoints
 Communication ”touch points”
 Configured
 Locally in services
 Inbound and outbound
 Globally
 Named
 “Unbound”
 Used locally in or out

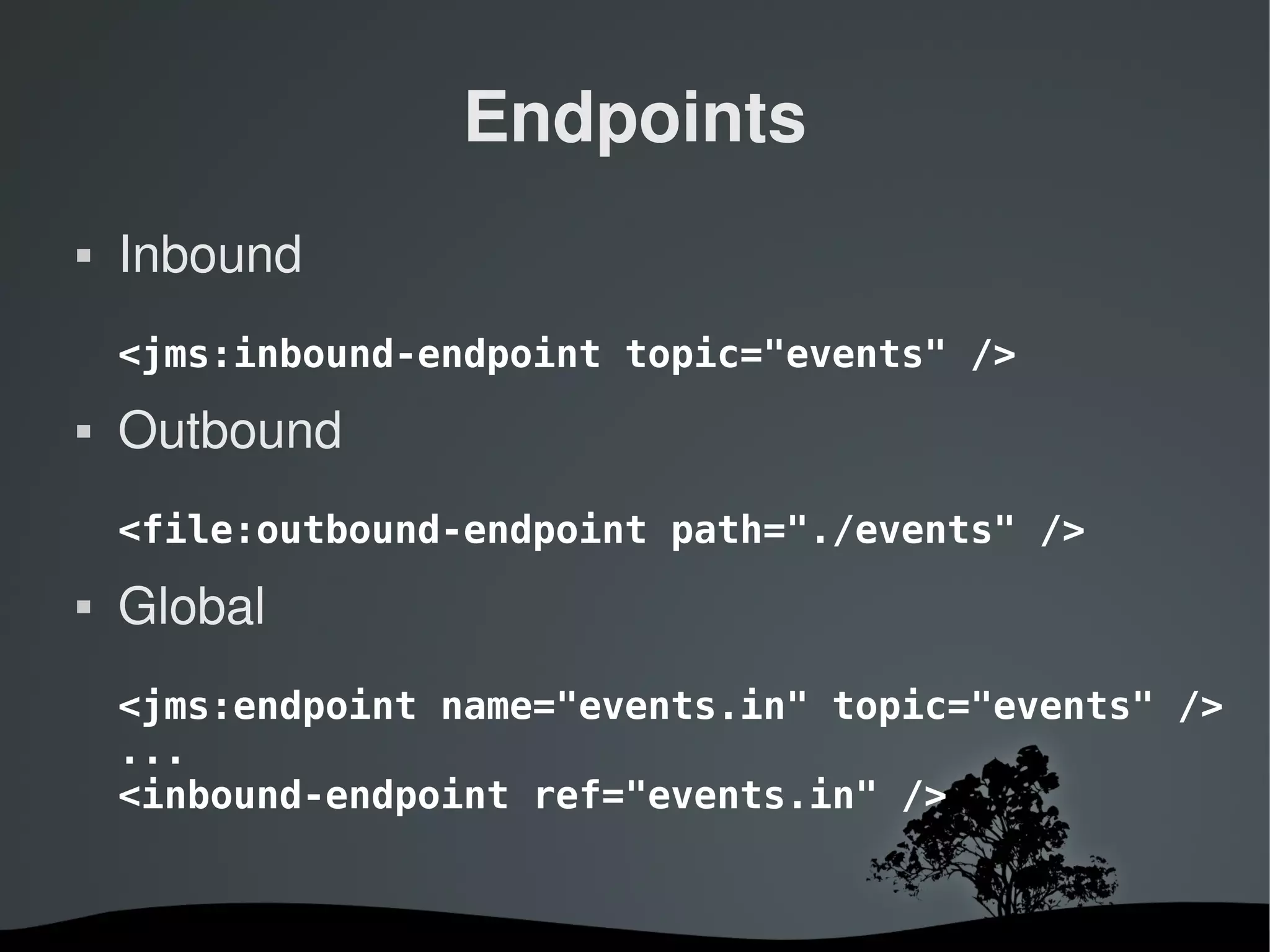

47. Endpoints
 Inbound

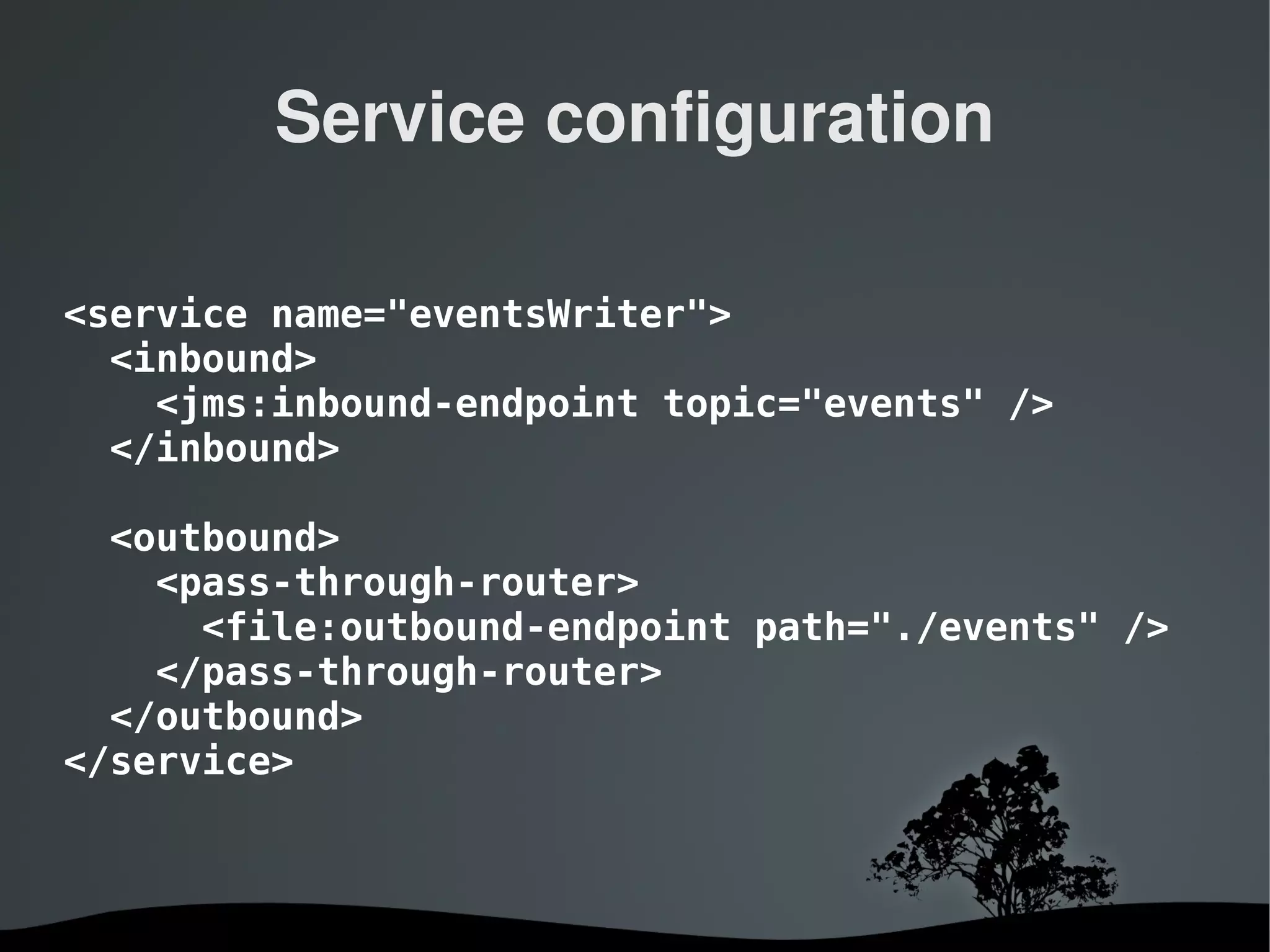

<jms:inbound-endpoint topic="events" />
 Outbound
<file:outbound-endpoint path="./events" />
 Global
<jms:endpoint name="events.in" topic="events" />
...
<inbound-endpoint ref="events.in" />

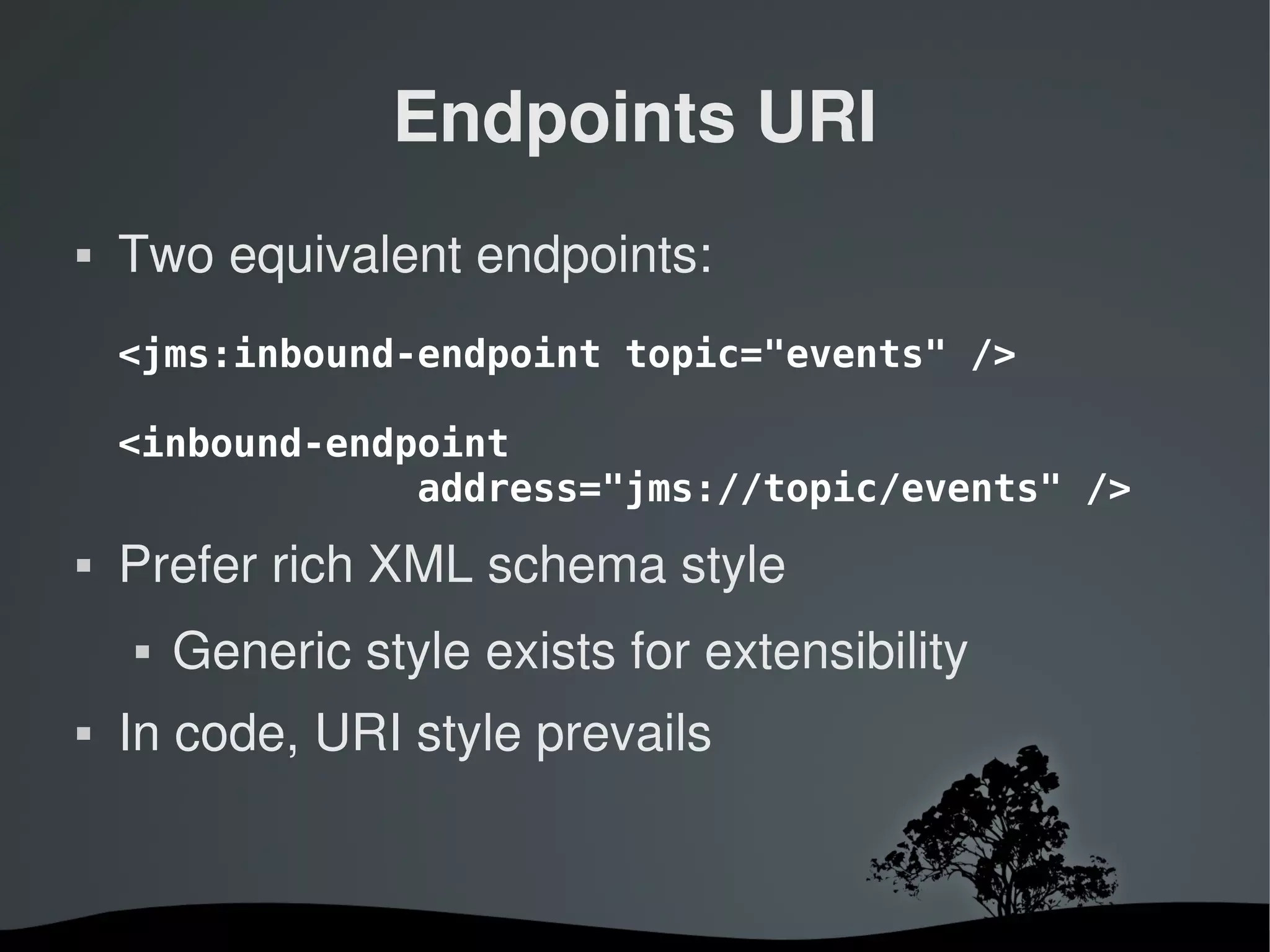

48. Endpoints URI
 Two equivalent endpoints:
<jms:inbound-endpoint topic="events" />
<inbound-endpoint
address="jms://topic/events" />
 Prefer rich XML schema style
 Generic style exists for extensibility
 In code, URI style prevails

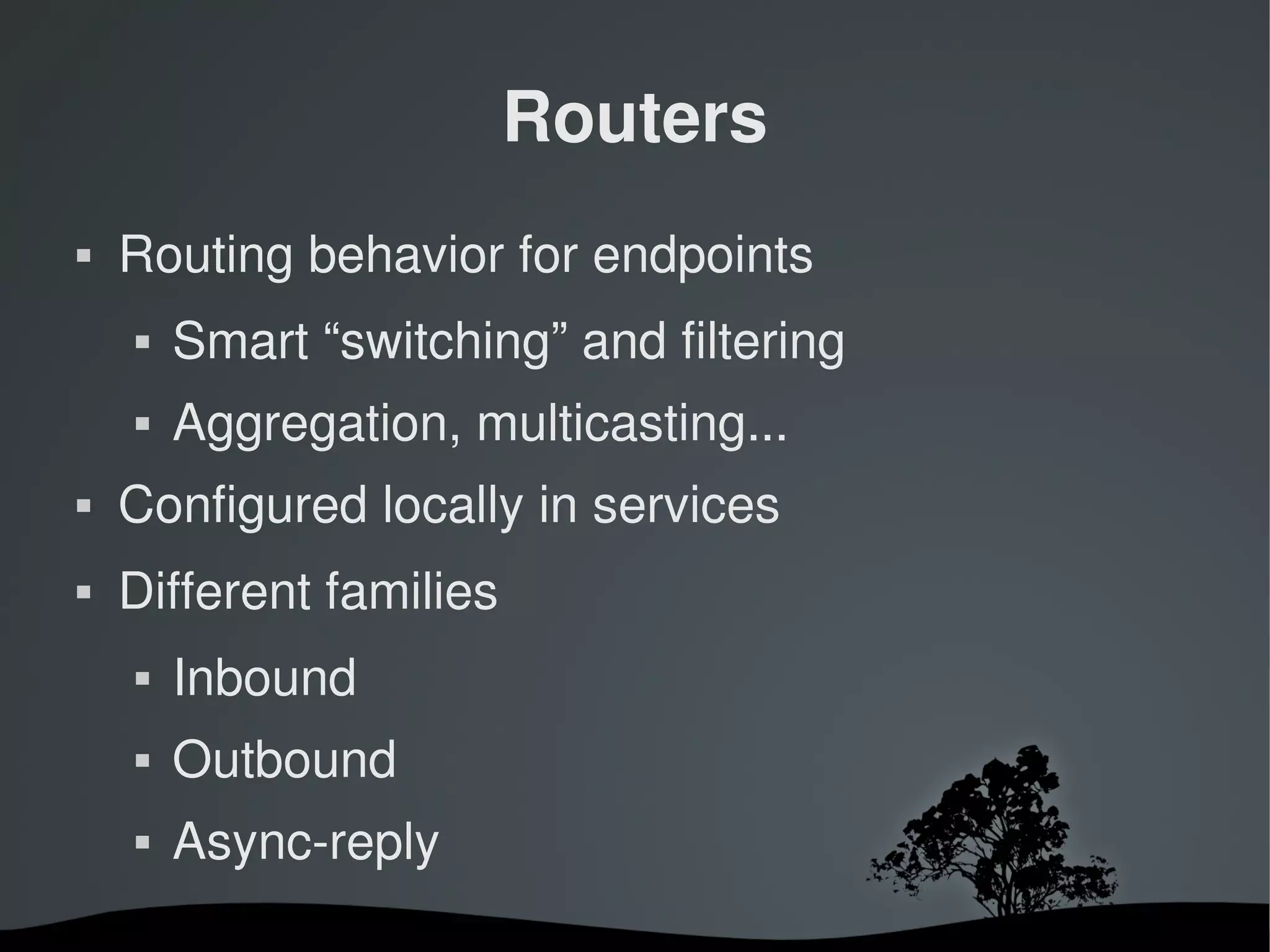

49. Routers
 Routing behavior for endpoints
 Smart “switching” and filtering
 Aggregation, multicasting...
 Configured locally in services
 Different families
 Inbound
 Outbound
 Async­reply

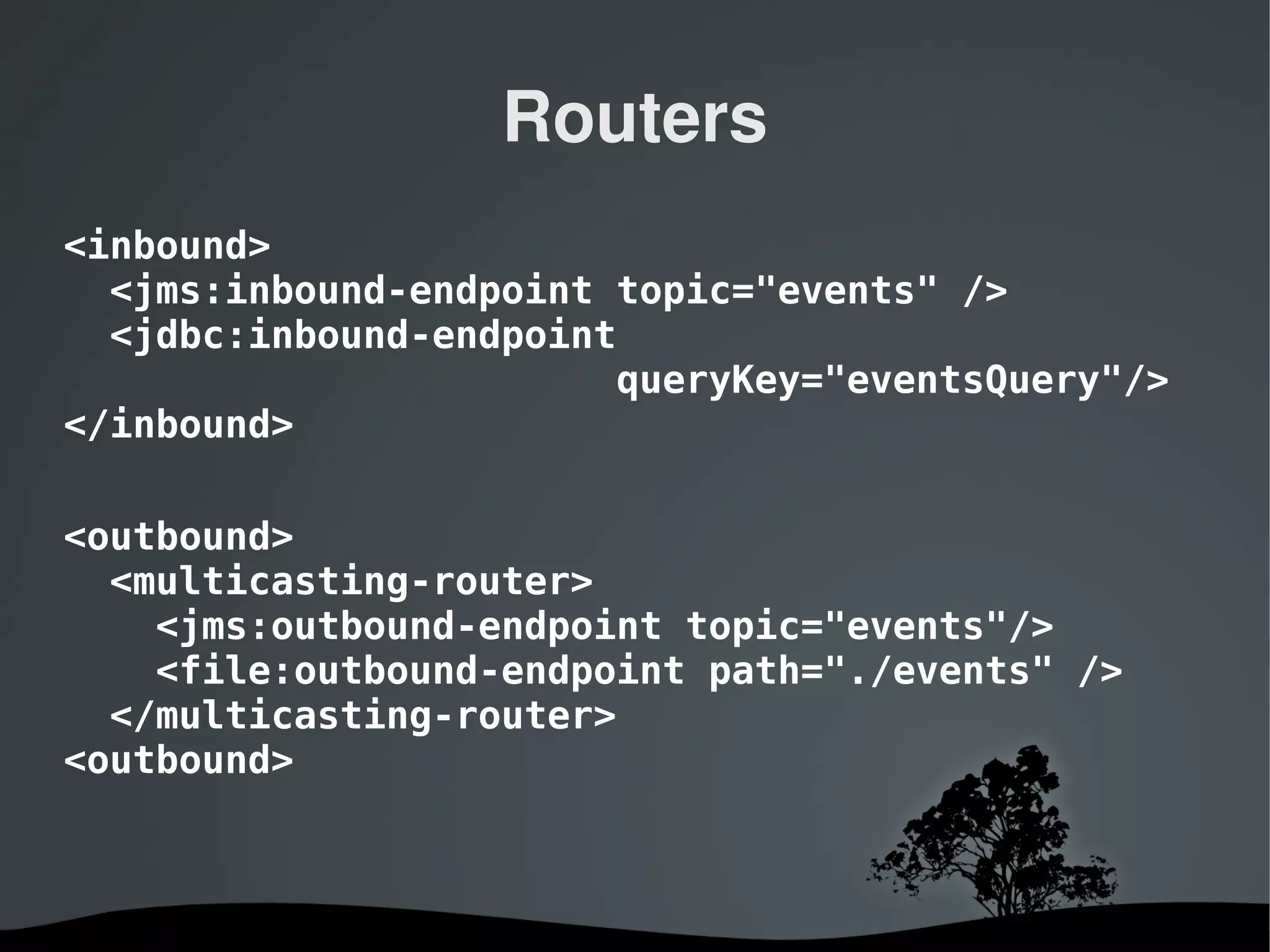

50. Routers
<inbound>
<jms:inbound-endpoint topic="events" />
<jdbc:inbound-endpoint
queryKey="eventsQuery"/>
</inbound>
<outbound>
<multicasting-router>
<jms:outbound-endpoint topic="events"/>
<file:outbound-endpoint path="./events" />
</multicasting-router>
<outbound>

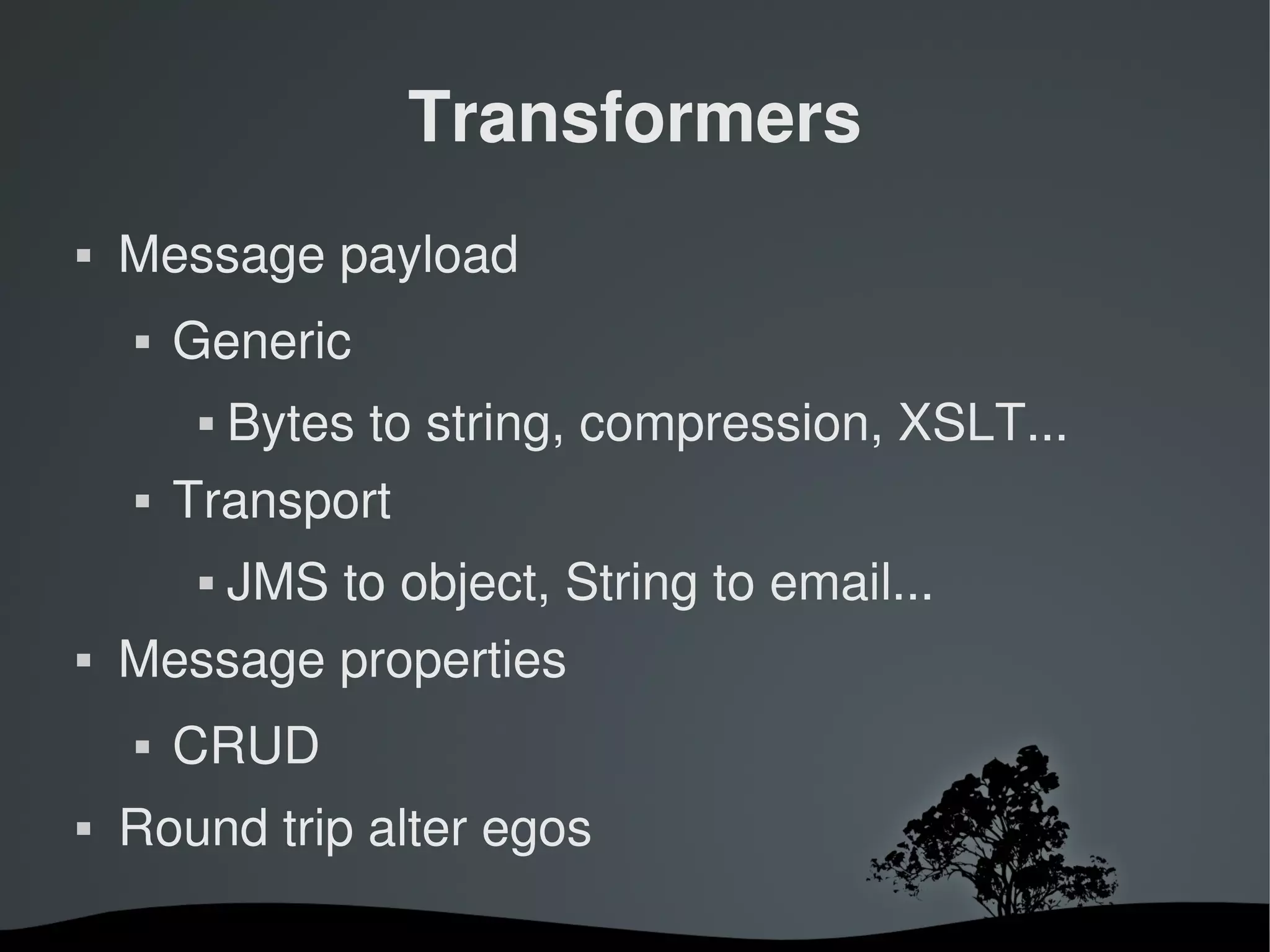

51. Transformers
 Message payload
 Generic
 Bytes to string, compression, XSLT...
 Transport
 JMS to object, String to email...
 Message properties
 CRUD
 Round trip alter egos

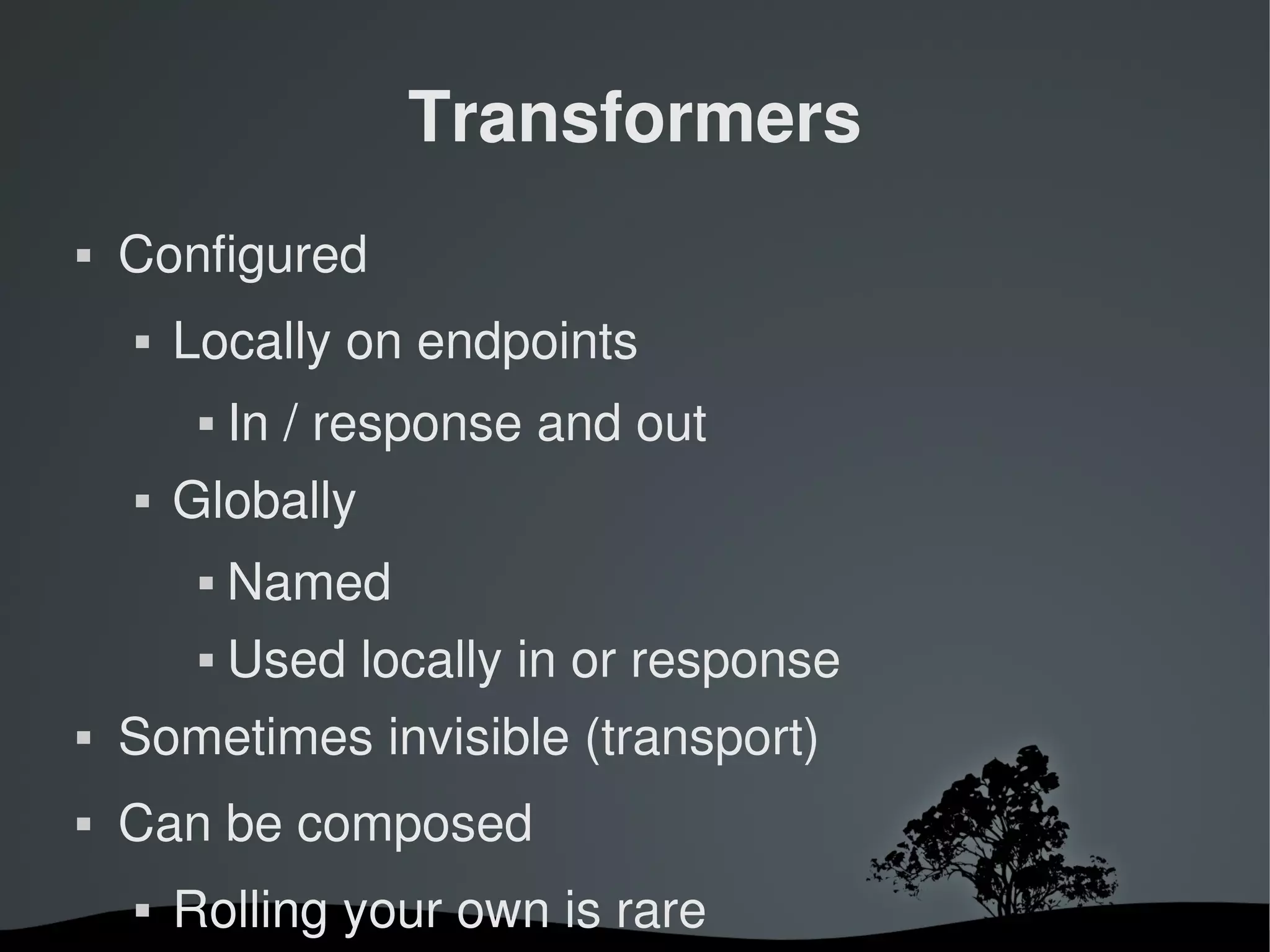

52. Transformers
 Configured
 Locally on endpoints
 In / response and out
 Globally
 Named
 Used locally in or response
 Sometimes invisible (transport)
 Can be composed
 Rolling your own is rare

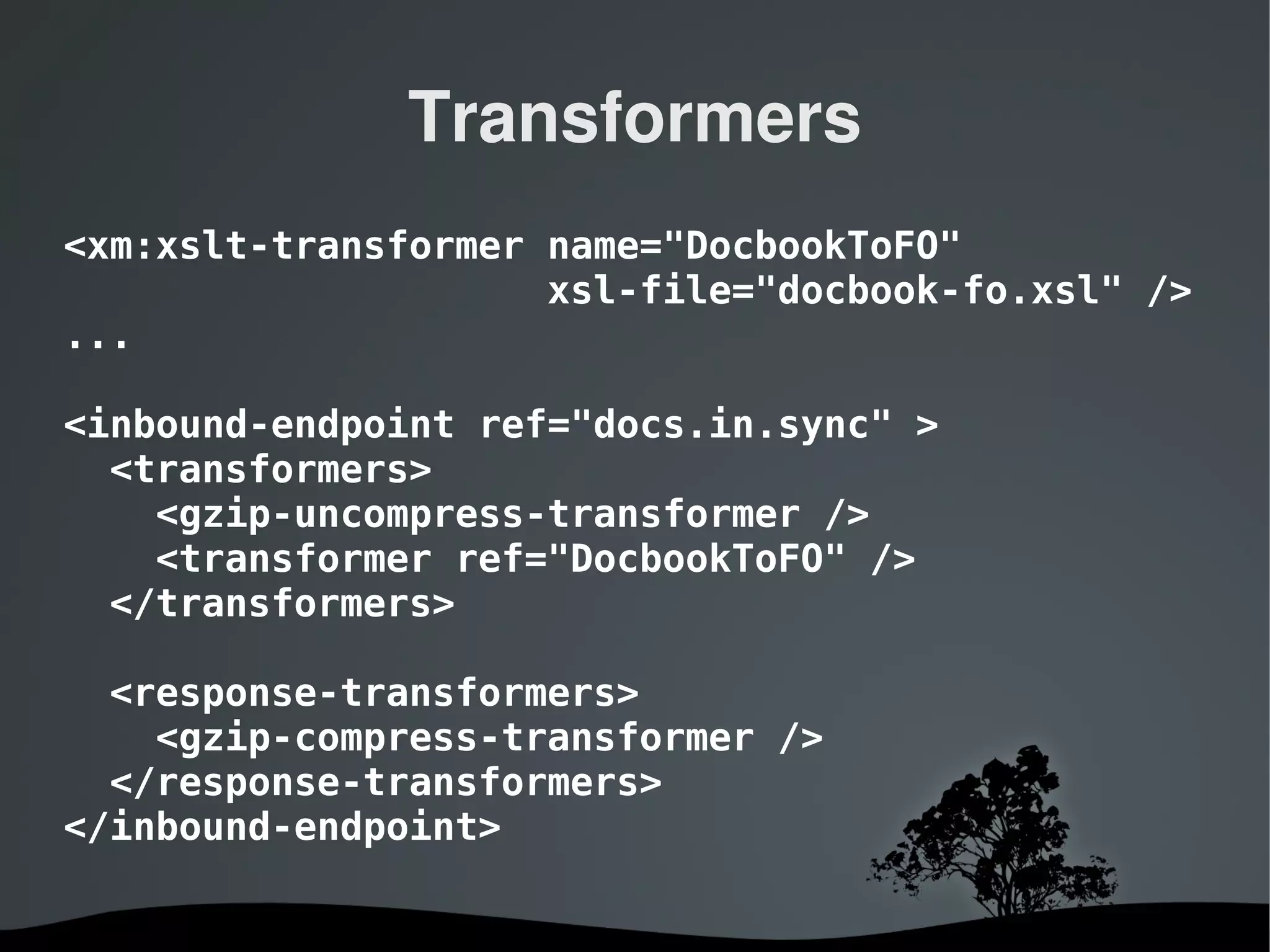

53. Transformers
<xm:xslt-transformer name="DocbookToFO"
xsl-file="docbook-fo.xsl" />
...
<inbound-endpoint ref="docs.in.sync" >
<transformers>
<gzip-uncompress-transformer />
<transformer ref="DocbookToFO" />
</transformers>
<response-transformers>
<gzip-compress-transformer />
</response-transformers>
</inbound-endpoint>

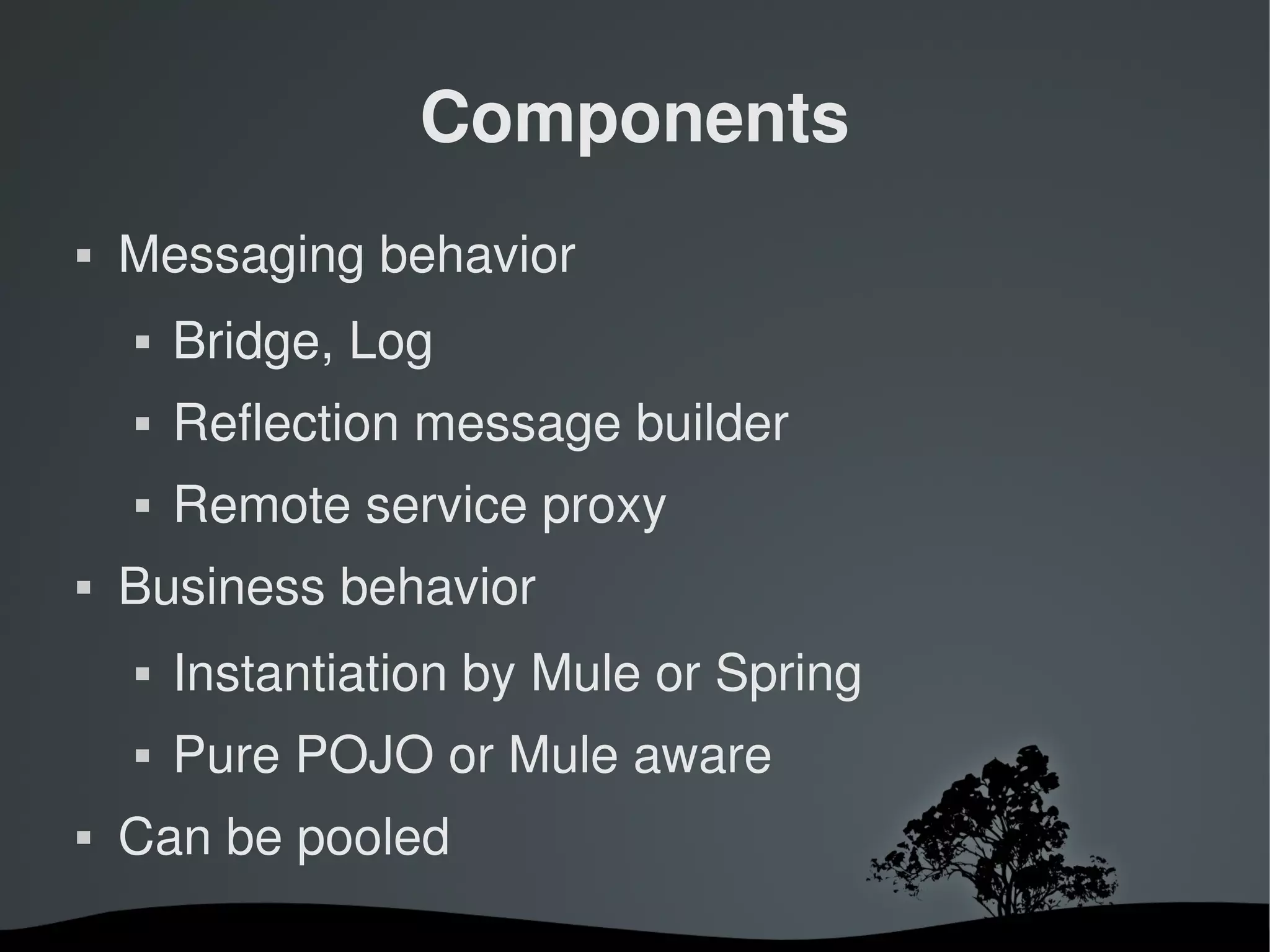

54. Components
 Messaging behavior
 Bridge, Log
 Reflection message builder
 Remote service proxy
 Business behavior
 Instantiation by Mule or Spring
 Pure POJO or Mule aware
 Can be pooled

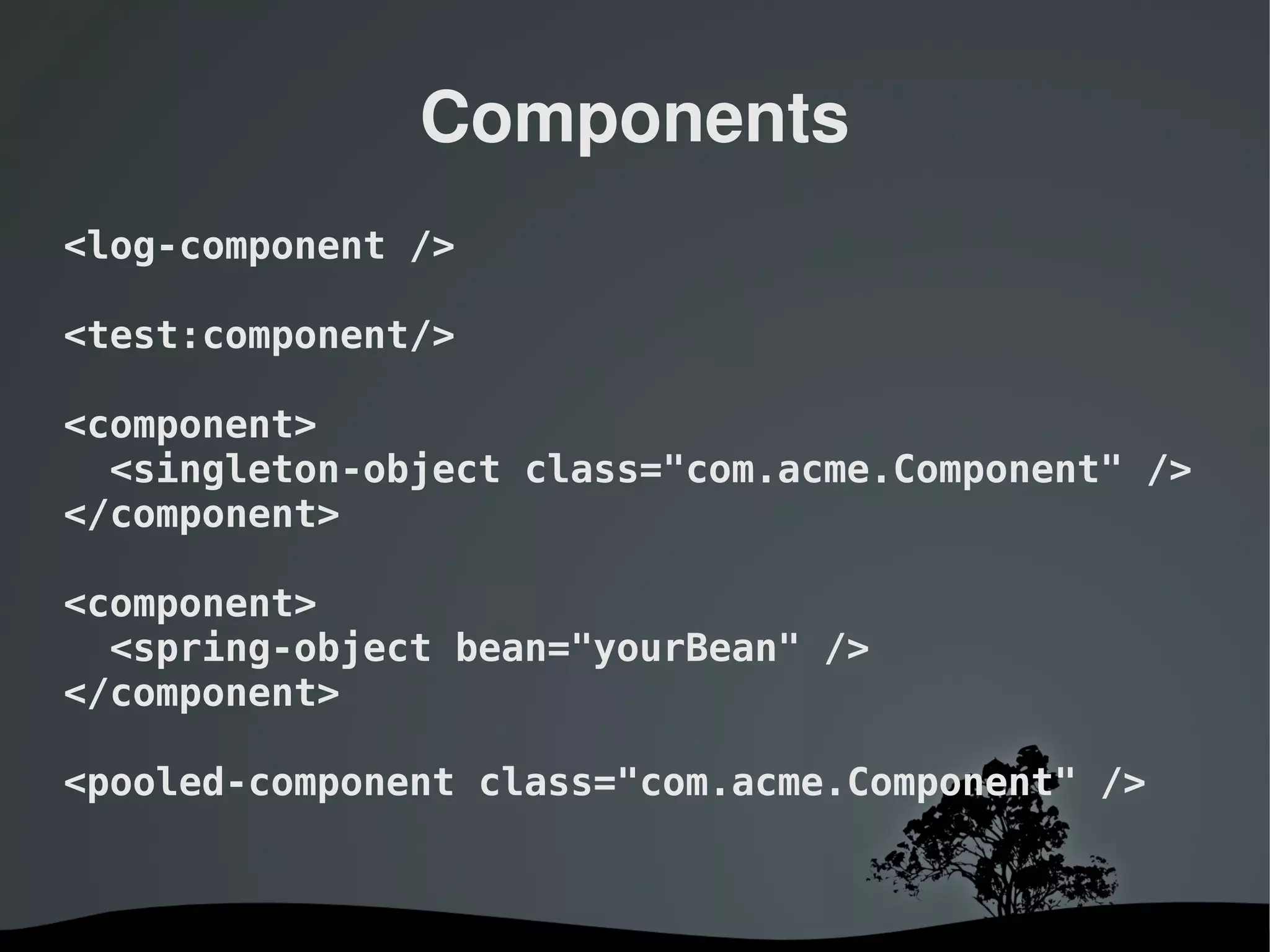

55. Components
<log-component />
<test:component/>
<component>
<singleton-object class="com.acme.Component" />
</component>
<component>
<spring-object bean="yourBean" />
</component>
<pooled-component class="com.acme.Component" />

56. http://www.springframework.org/schema/beans/spring-beans-2.5.xsd
http://www.springframework.org/schema/context http://www.springframework.org/schema/context/
spring-context-2.5.xsd
http://www.mulesource.org/schema/mule/core/2.2
http://www.mulesource.org/schema/mule/core/2.2/mule.xsd
http://www.mulesource.org/schema/mule/file/2.2
http://www.mulesource.org/schema/mule/file/2.2/mule-file.xsd
http://www.mulesource.org/schema/mule/jms/2.2 http://www.mulesource.org/schema/mule/jms/2.2/
mule-jms.xsd
http://www.mulesource.org/schema/mule/xml/2.2 http://www.mulesource.org/schema/mule/xml/2.2/
mule-xml.xsd"
>
<notifications dynamic="true">
<notification event="ENDPOINT-MESSAGE"/>
</notifications>
Pwned!
<global-property name="jms.url" value="vm://localhost"/>
<jms:activemq-connector name="jmsConnector" specification="1.1" brokerURL="${jms.url}"/>
<file:connector name="FileConnector"
streaming="false"
autoDelete="true"
pollingFrequency="1000">
<file:expression-filename-parser/>
</file:connector>
<model name="jmsInboundModel">
<service name="jmsInboundService">
<inbound>
<jms:inbound-endpoint topic="backup-reports" >
<transformers>
<jms:jmsmessage-to-object-transformer/>
</transformers>
</jms:inbound-endpoint>
</inbound>
<outbound>
<pass-through-router>
<file:outbound-endpoint path="./data/reports"
outputPattern="BACKUP-REPORT-#[function:dateStamp]"/>
</pass-through-router>

57. Service configuration
<service name="eventsWriter">
<inbound>
<jms:inbound-endpoint topic="events" />
</inbound>
<outbound>
<pass-through-router>
<file:outbound-endpoint path="./events" />
</pass-through-router>
</outbound>
</service>

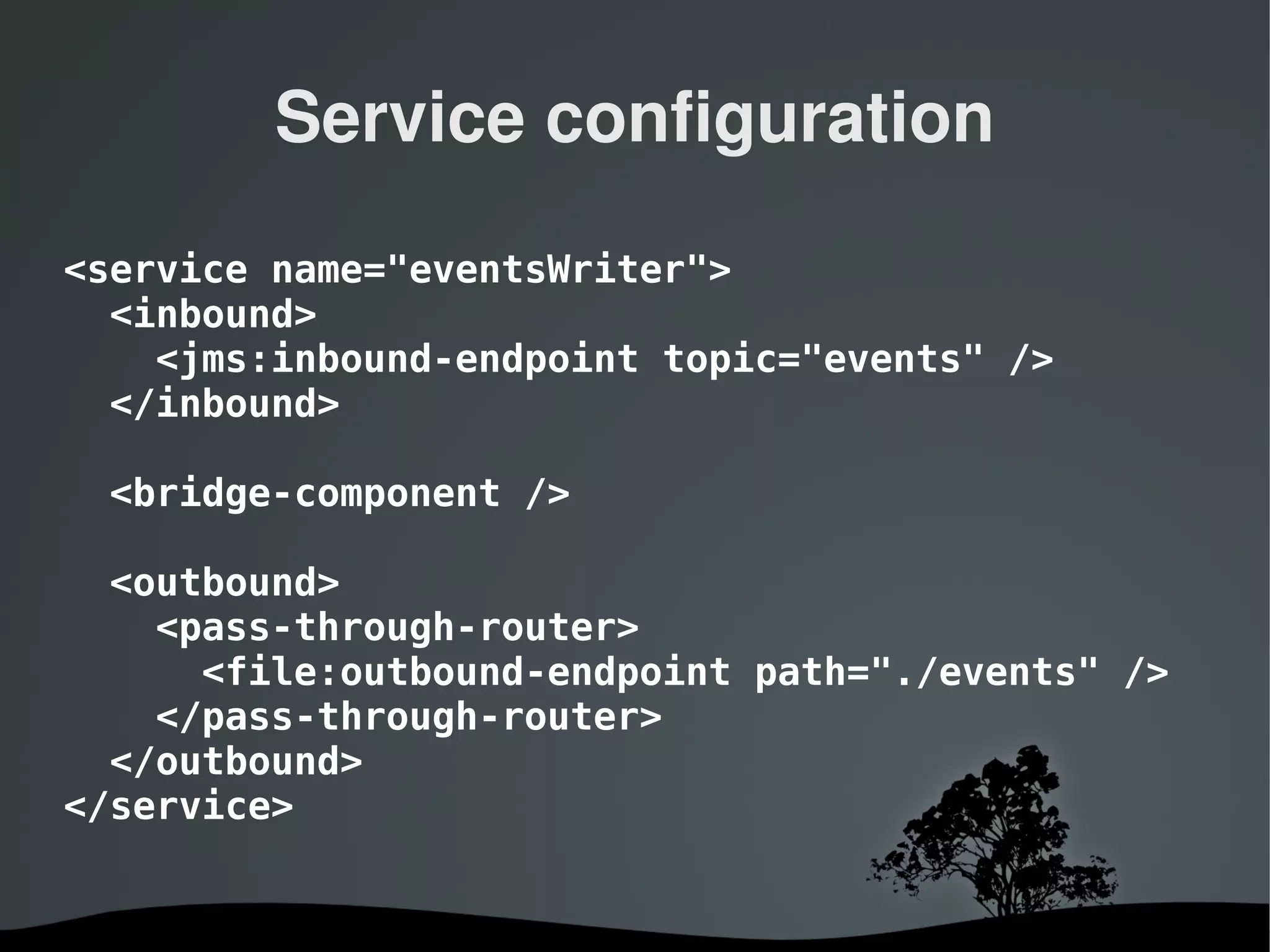

58. Service configuration
<service name="eventsWriter">
<inbound>
<jms:inbound-endpoint topic="events" />
</inbound>
<bridge-component />
<outbound>
<pass-through-router>
<file:outbound-endpoint path="./events" />
</pass-through-router>
</outbound>
</service>

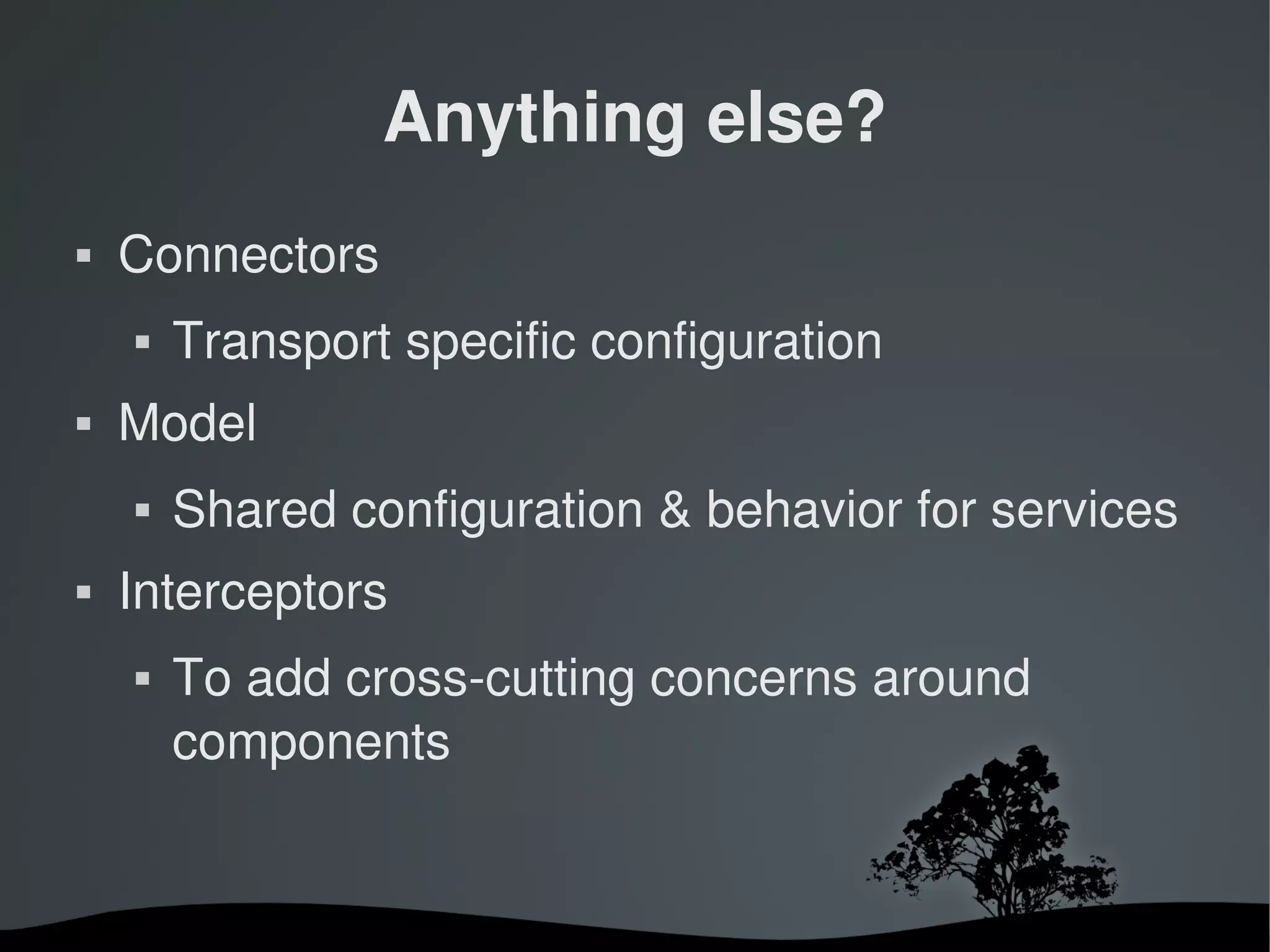

59. Anything else?
 Connectors
 Transport specific configuration
 Model
 Shared configuration & behavior for services
 Interceptors
 To add cross­cutting concerns around
components

60. The mysterious Mule client

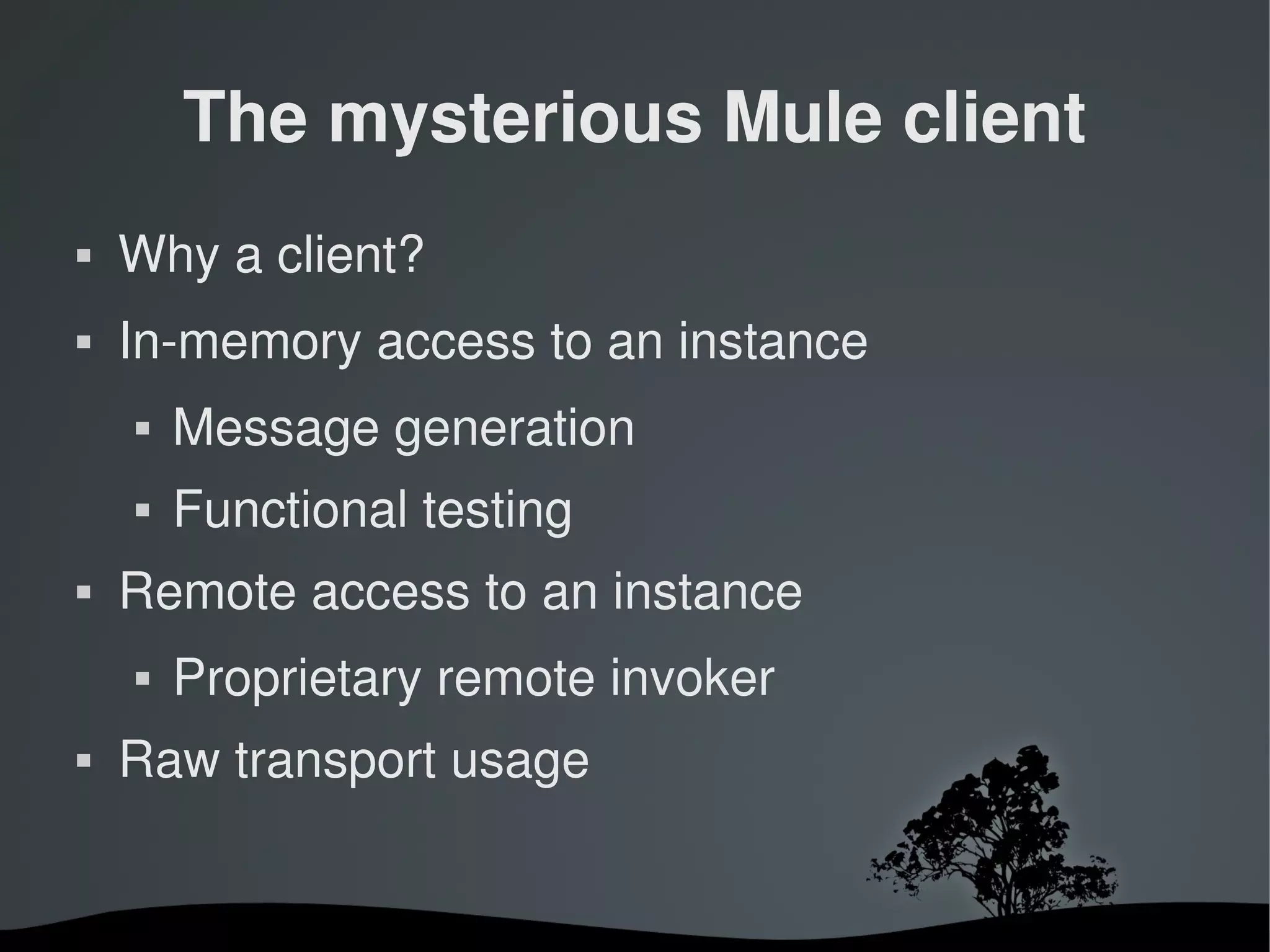

61. The mysterious Mule client
 Why a client?
 In­memory access to an instance
 Message generation
 Functional testing
 Remote access to an instance
 Proprietary remote invoker
 Raw transport usage

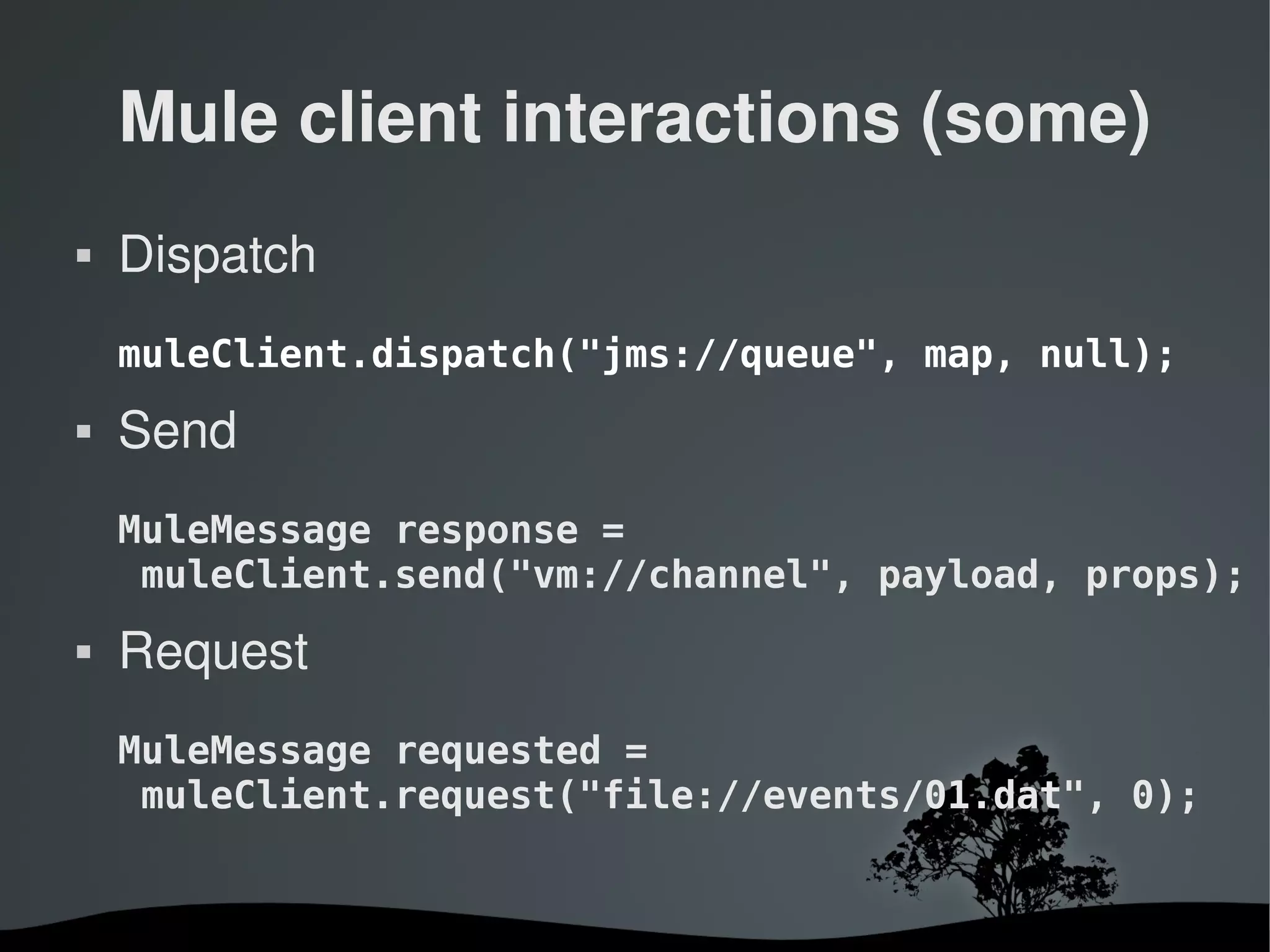

62. Mule client interactions (some)
 Dispatch
muleClient.dispatch("jms://queue", map, null);
 Send
MuleMessage response =
muleClient.send("vm://channel", payload, props);
 Request
MuleMessage requested =
muleClient.request("file://events/01.dat", 0);

63. Construction

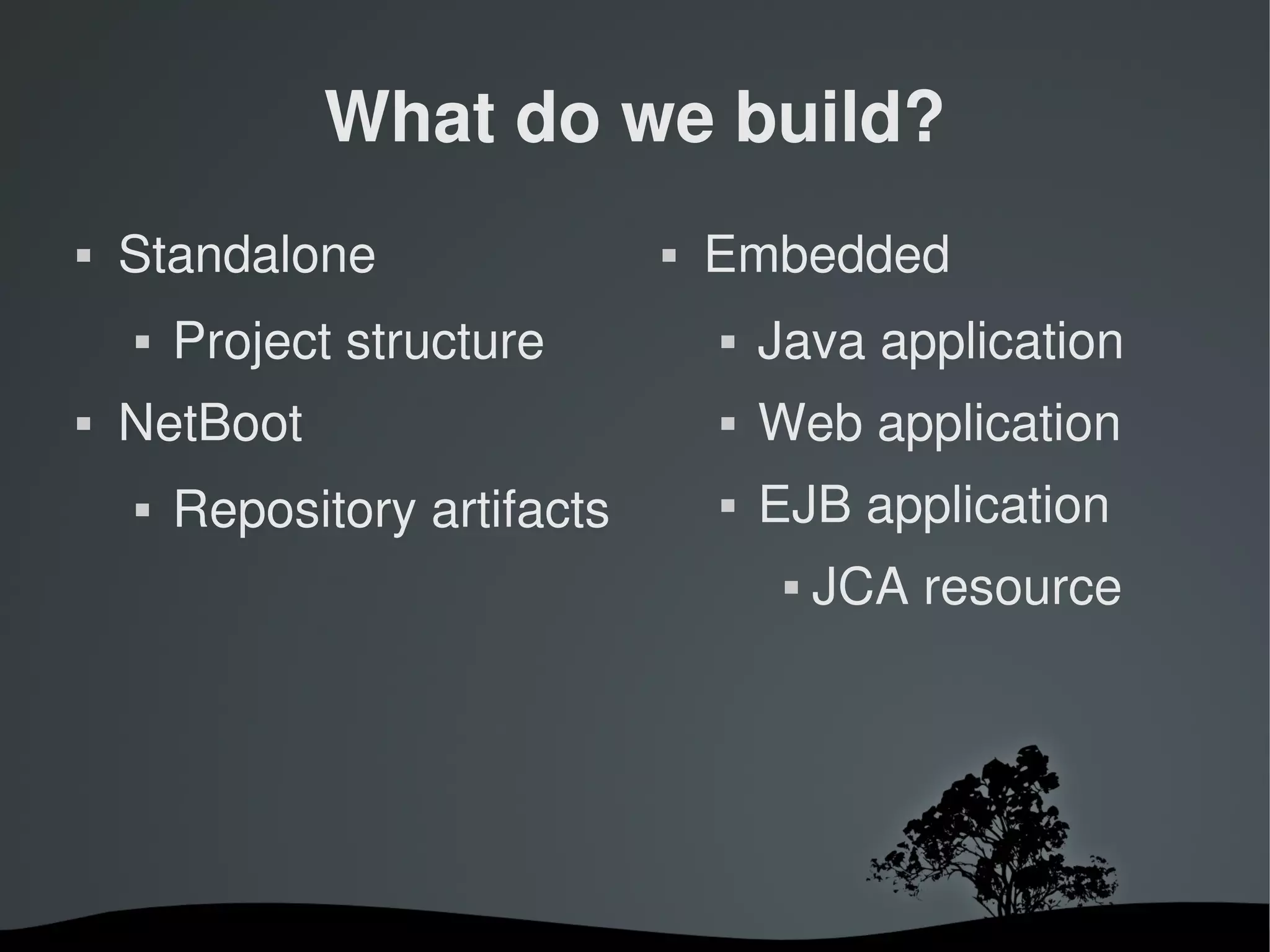

64. What do we build?
 Standalone  Embedded
 Project structure  Java application
 NetBoot  Web application
 Repository artifacts  EJB application
 JCA resource

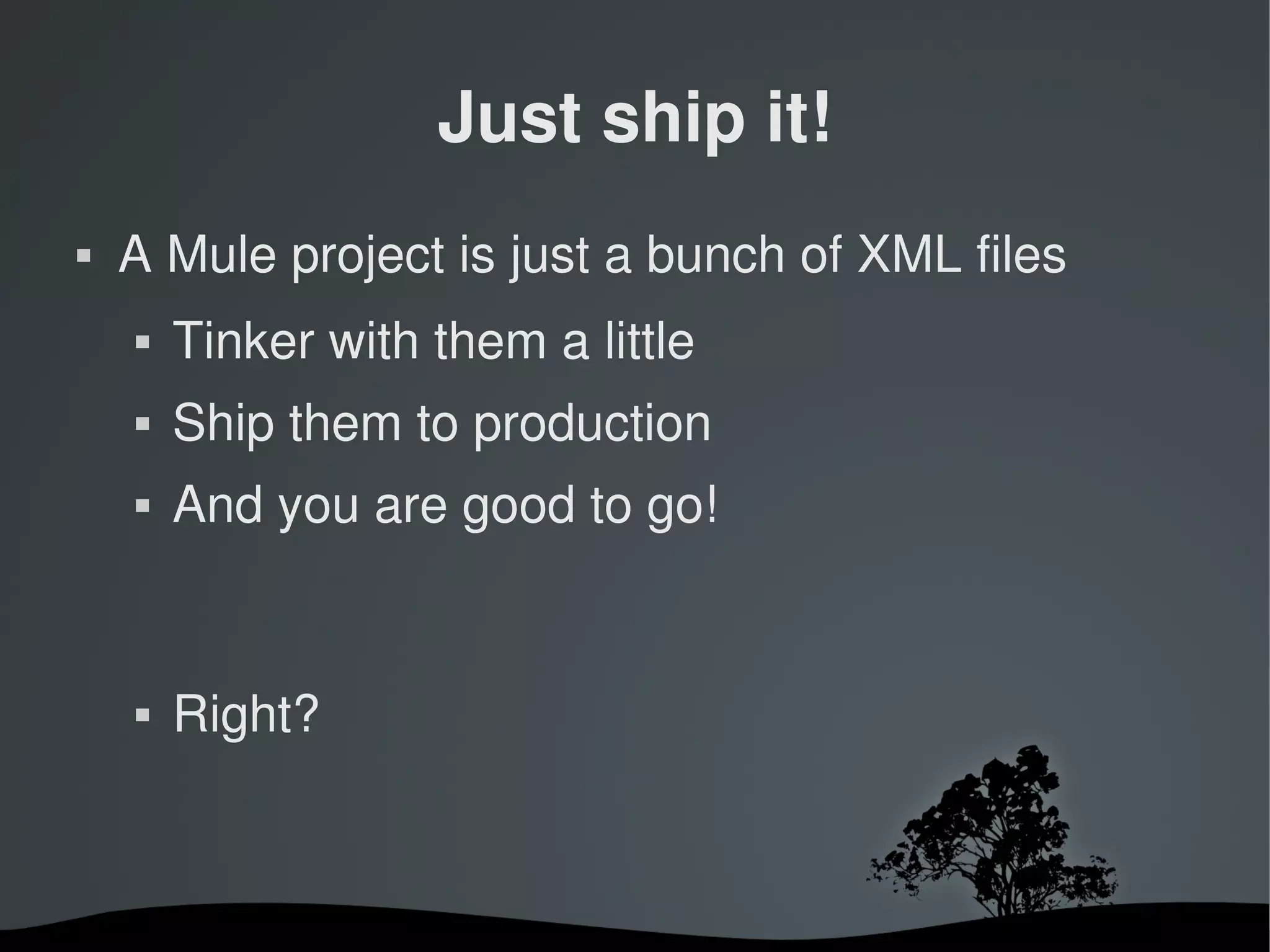

65. Just ship it!
 A Mule project is just a bunch of XML files
 Tinker with them a little
 Ship them to production
 And you are good to go!
 Right?

67. No escape from SD laws!
 Practices
 Middleware development
 TDD
 Repeatable builds
 Repeatable deployments
 Tools
 SCM
 Continuous integration

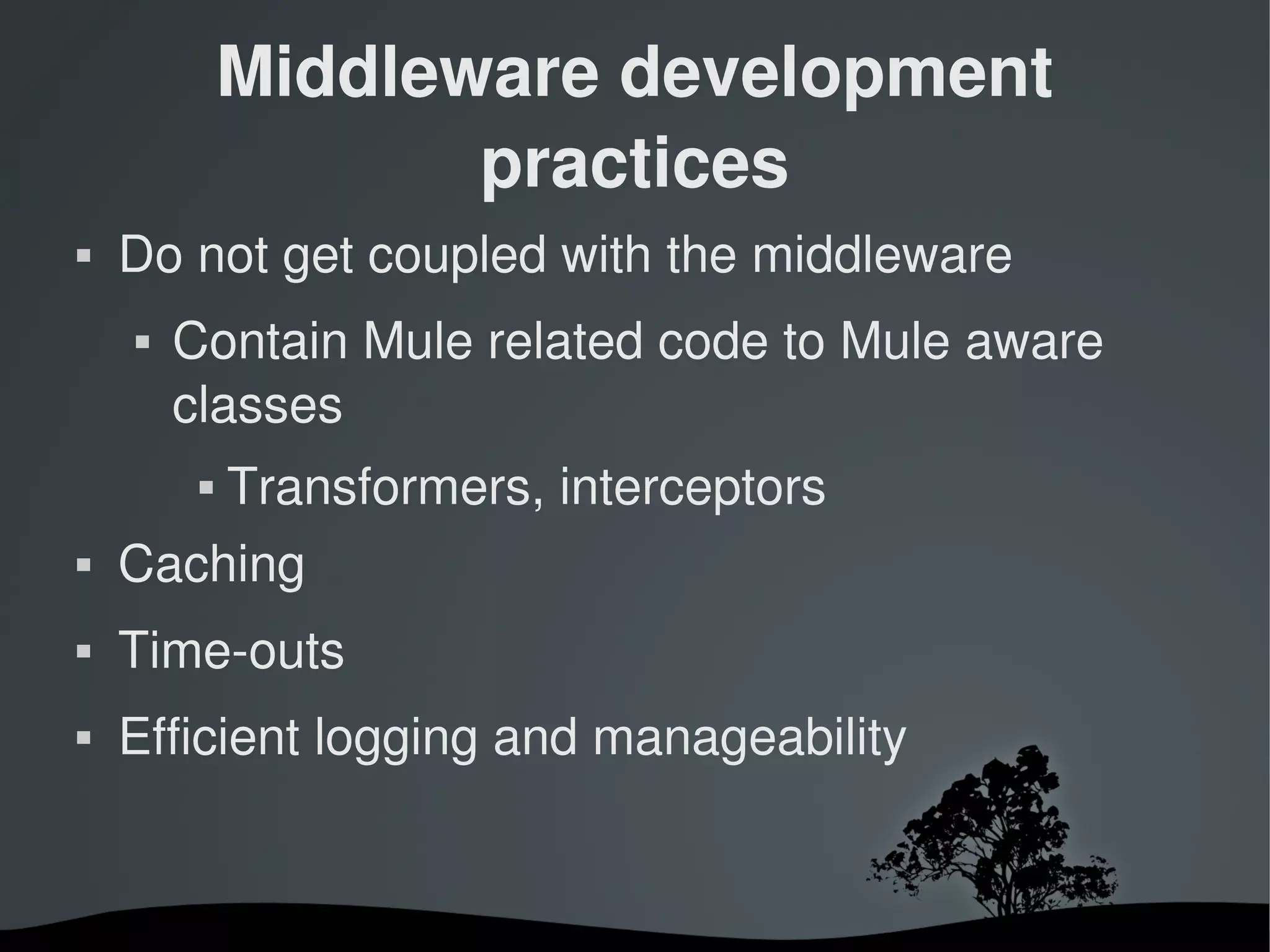

68. Middleware development
practices
 Do not get coupled with the middleware
 Contain Mule related code to Mule aware
classes
 Transformers, interceptors
 Caching
 Time­outs
 Efficient logging and manageability

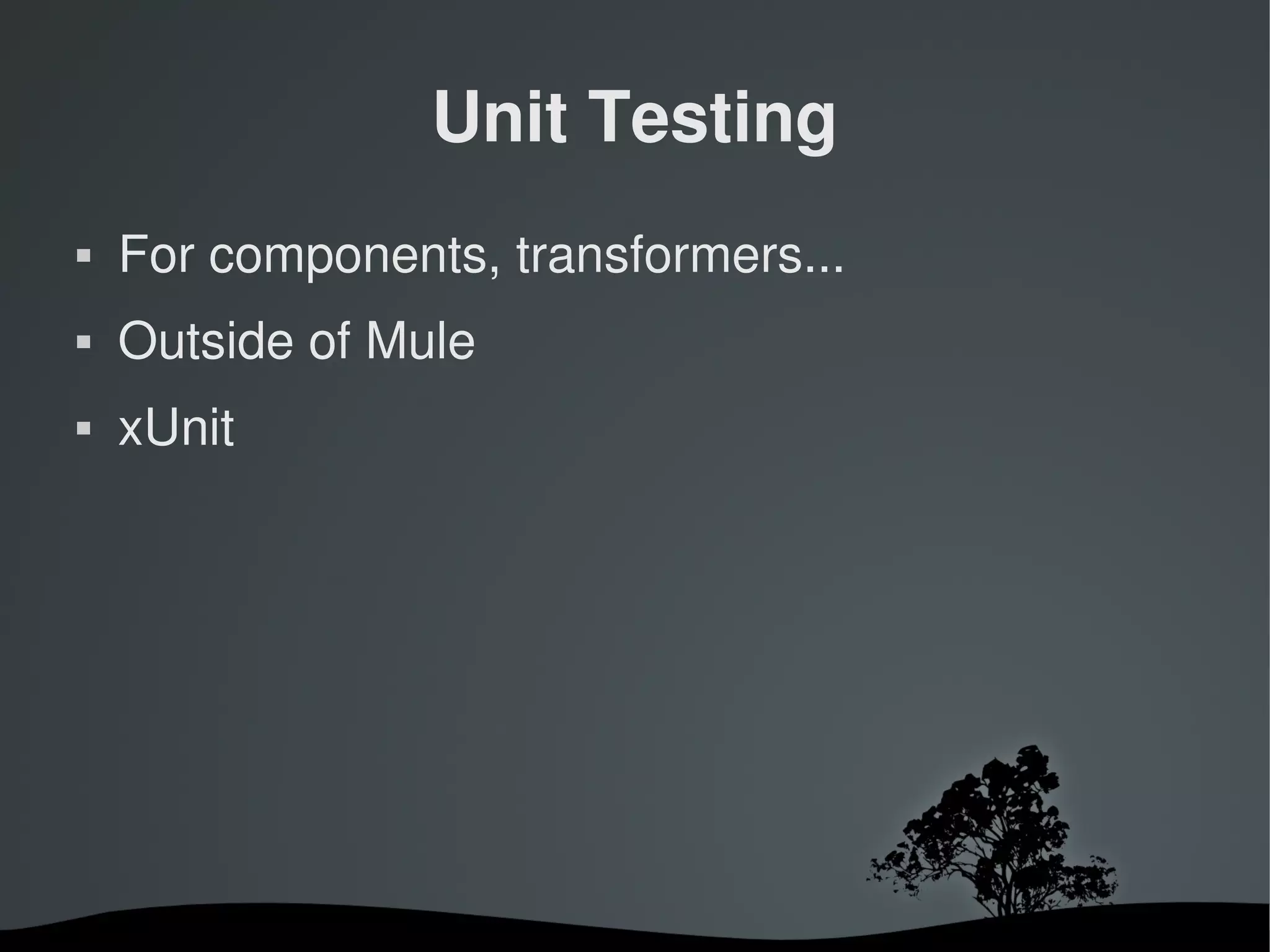

69. Unit Testing
 For components, transformers...
 Outside of Mule
 xUnit

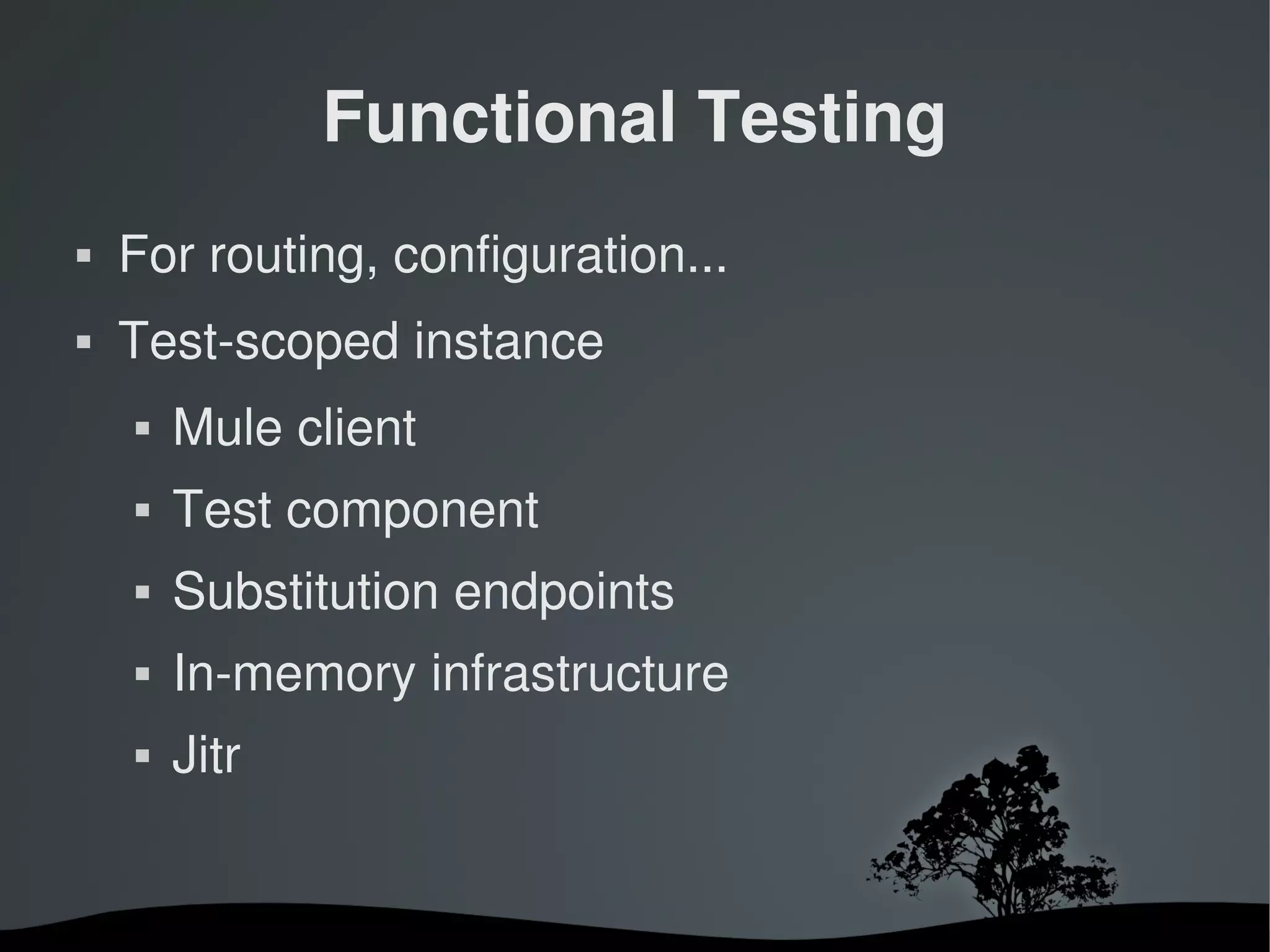

70. Functional Testing
 For routing, configuration...
 Test­scoped instance
 Mule client
 Test component
 Substitution endpoints
 In­memory infrastructure
 Jitr

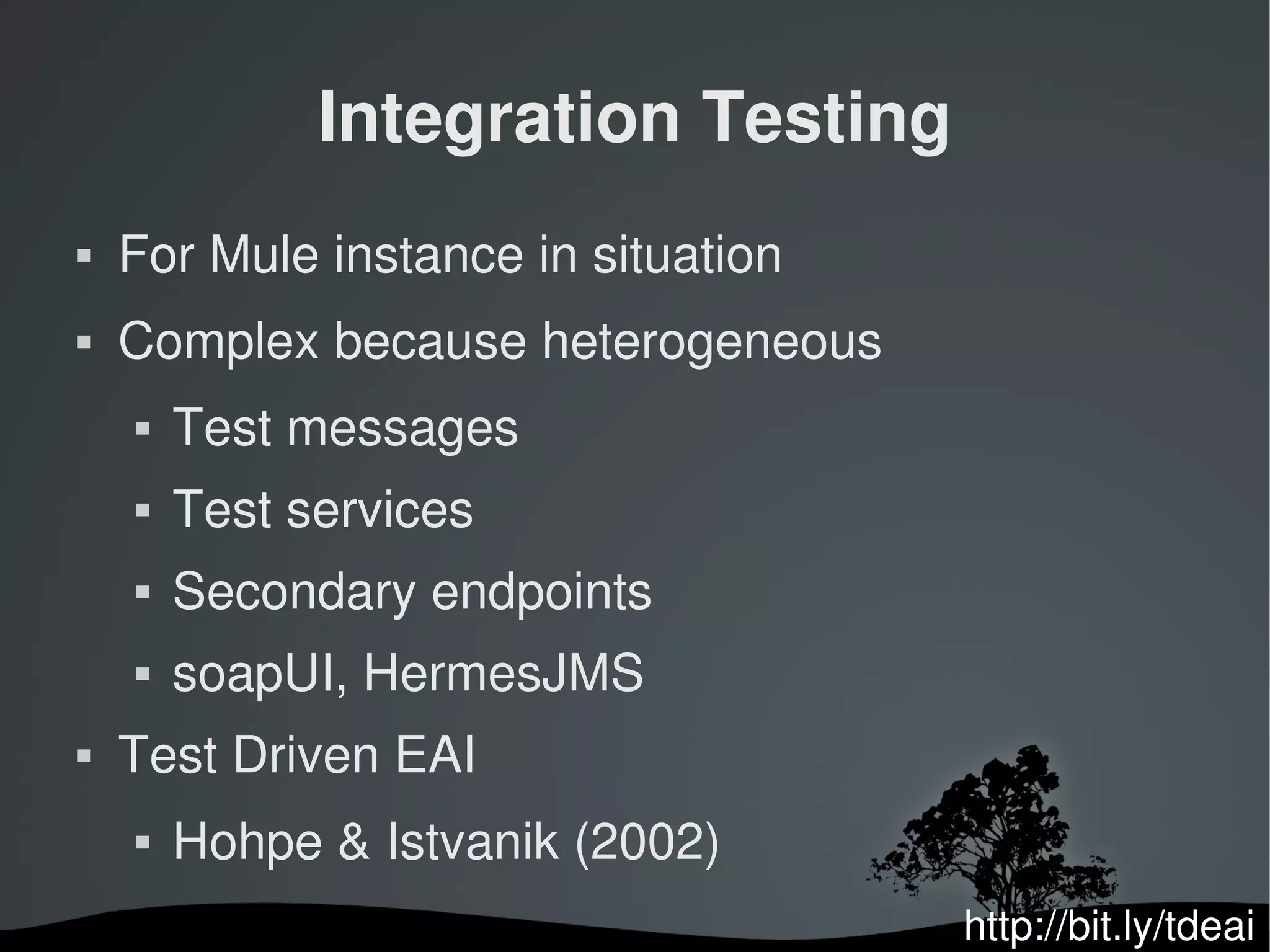

71. Integration Testing
 For Mule instance in situation
 Complex because heterogeneous
 Test messages
 Test services
 Secondary endpoints
 soapUI, HermesJMS
 Test Driven EAI
 Hohpe & Istvanik (2002)
http://bit.ly/tdeai

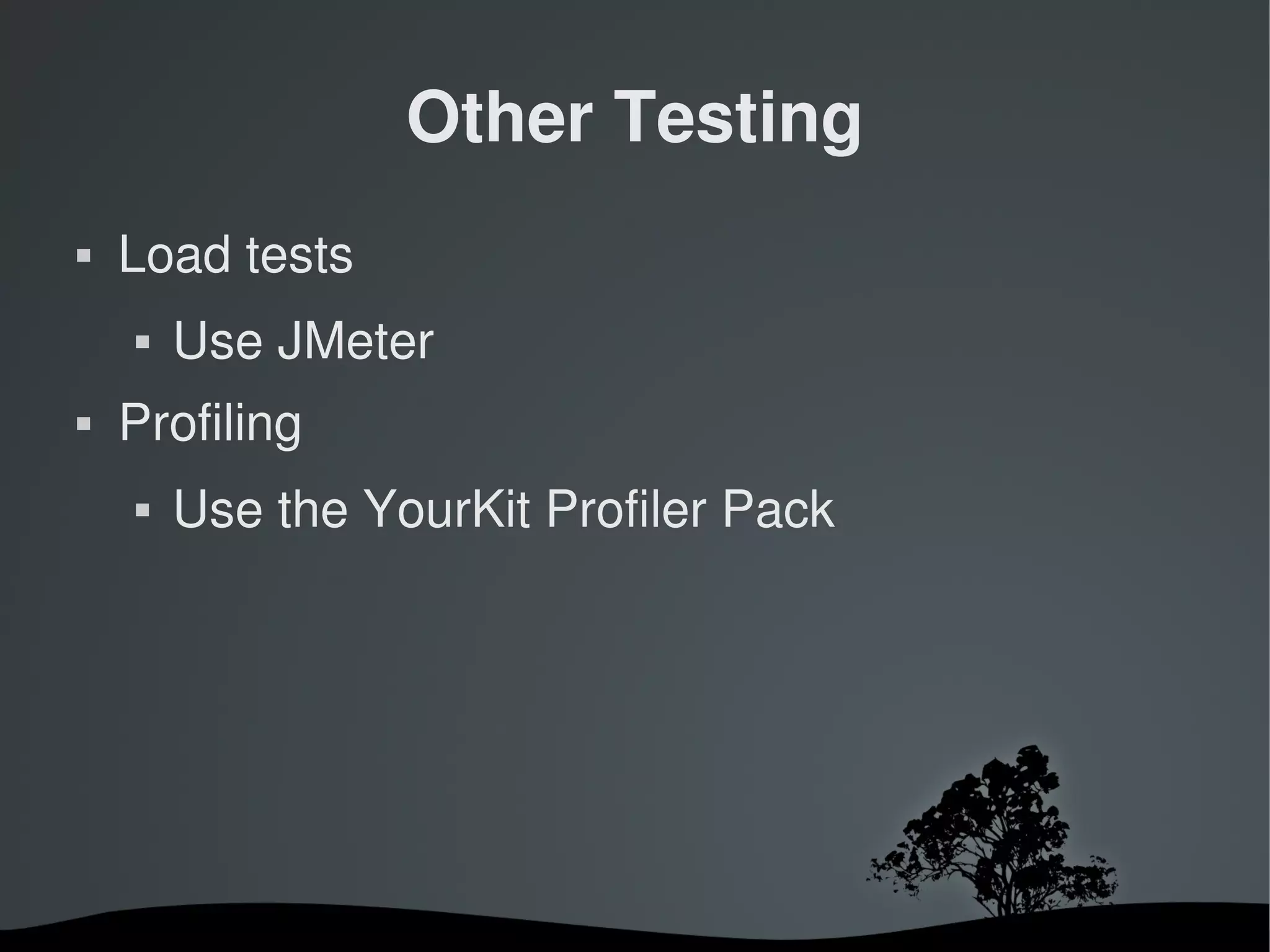

72. Other Testing
 Load tests
 Use JMeter
 Profiling
 Use the YourKit Profiler Pack

73. Asynchronous testing challenge

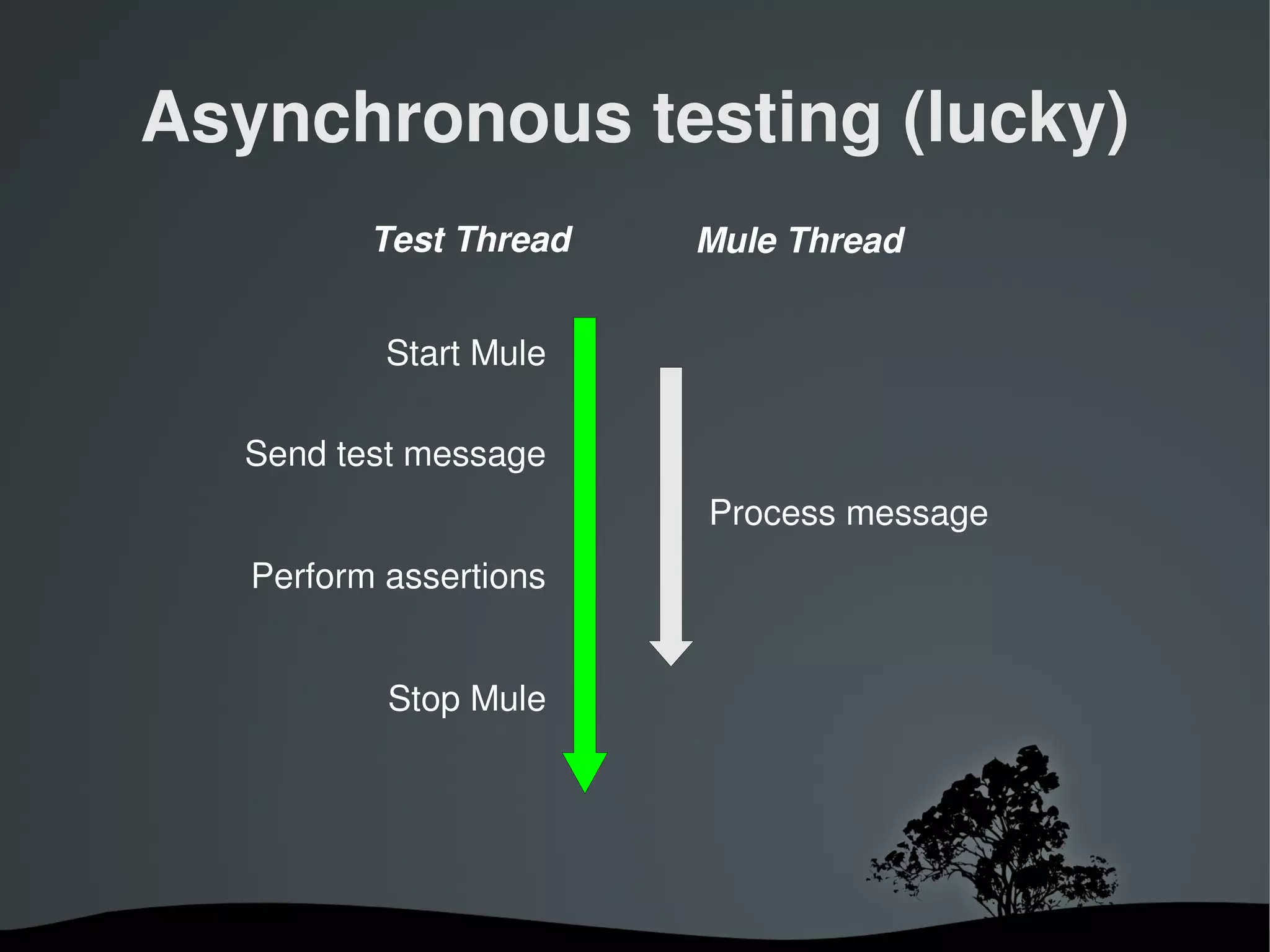

74. Asynchronous testing (lucky)
Test Thread Mule Thread
Start Mule
Send test message
Process message
Perform assertions
Stop Mule

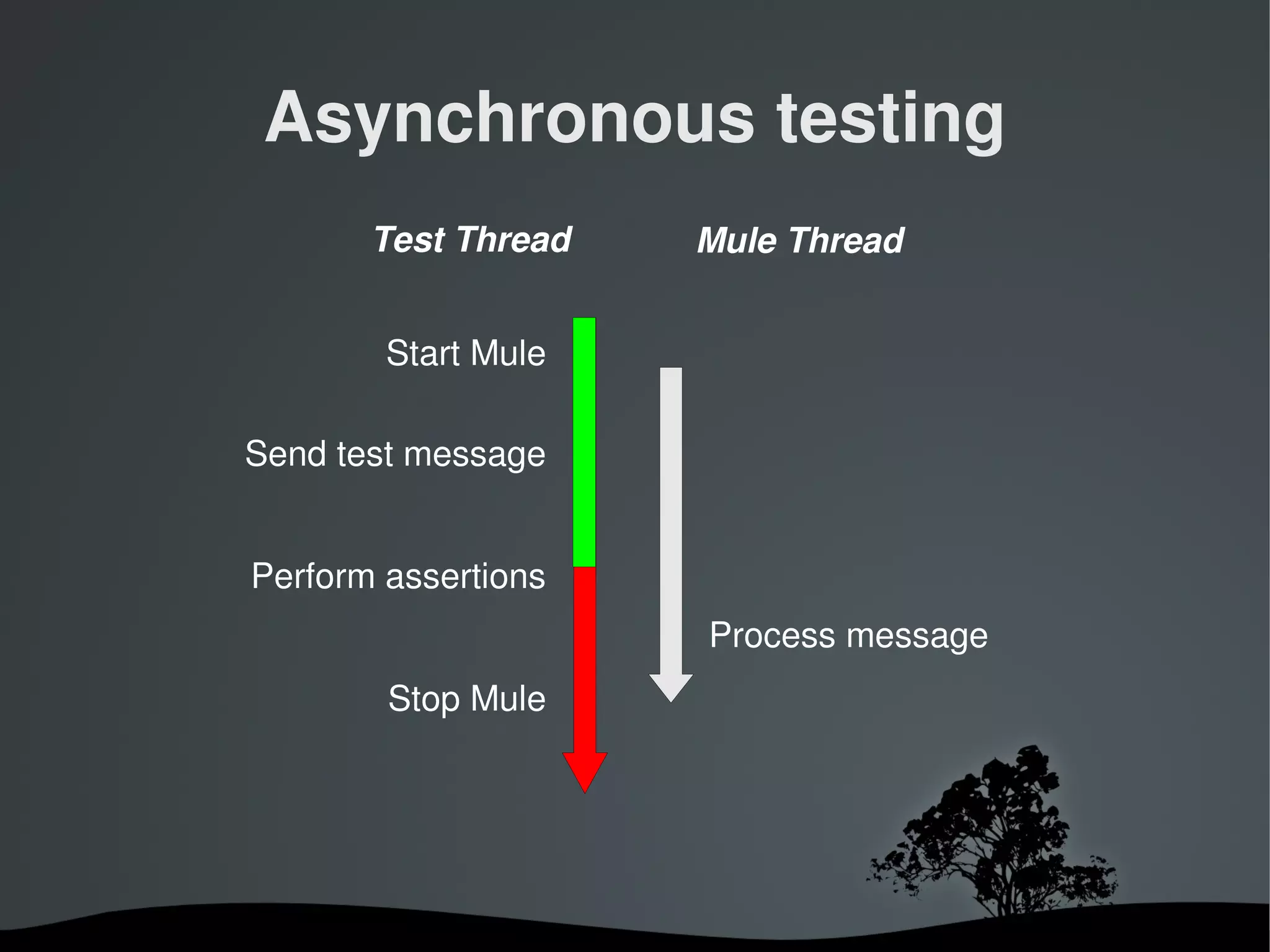

75. Asynchronous testing
Test Thread Mule Thread
Start Mule
Send test message
Perform assertions
Process message
Stop Mule

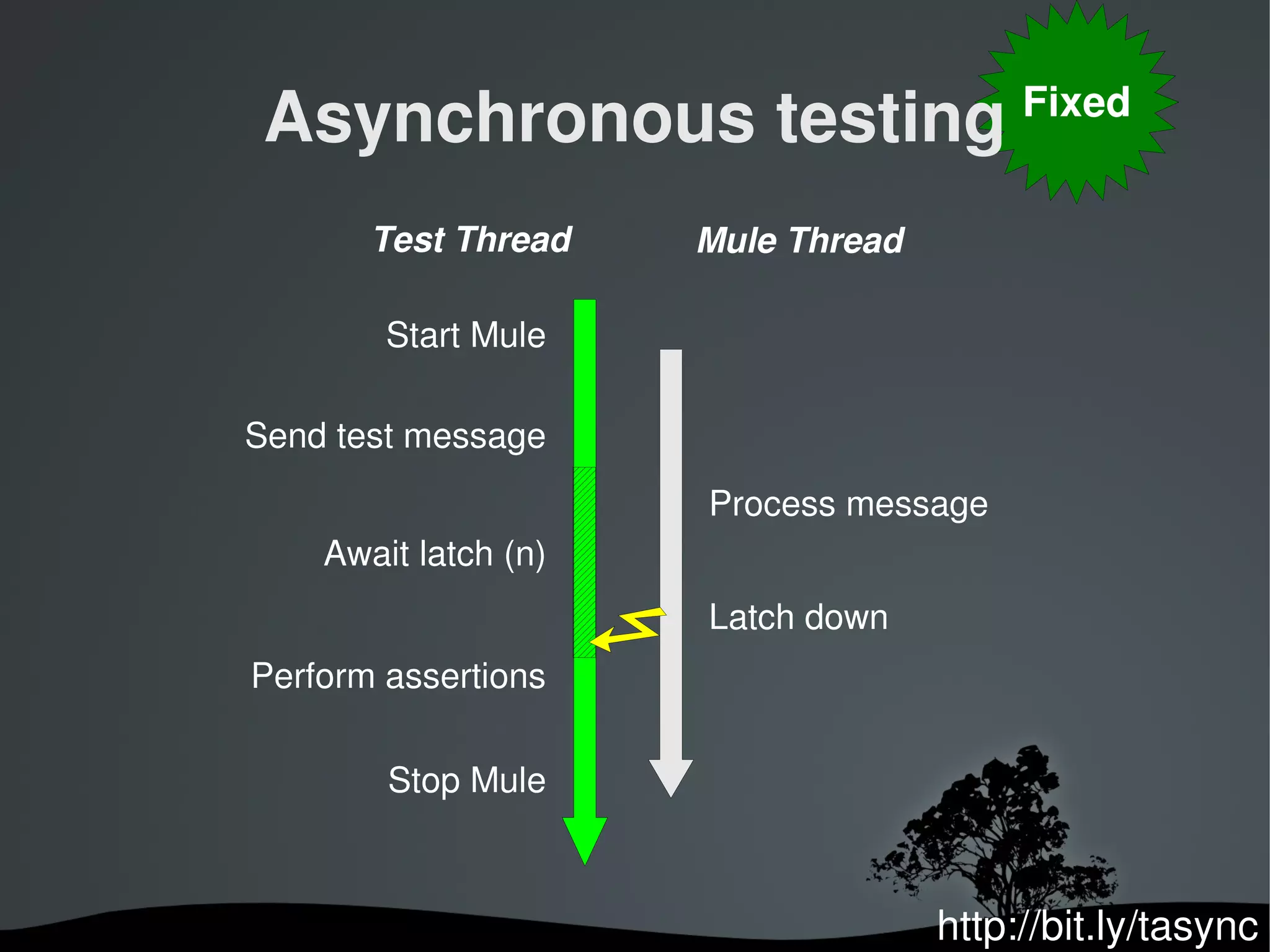

76. Asynchronous testing Fixed
Test Thread Mule Thread
Start Mule
Send test message
Process message
Await latch (n)
Latch down
Perform assertions
Stop Mule
http://bit.ly/tasync

77. Unleashing Mule

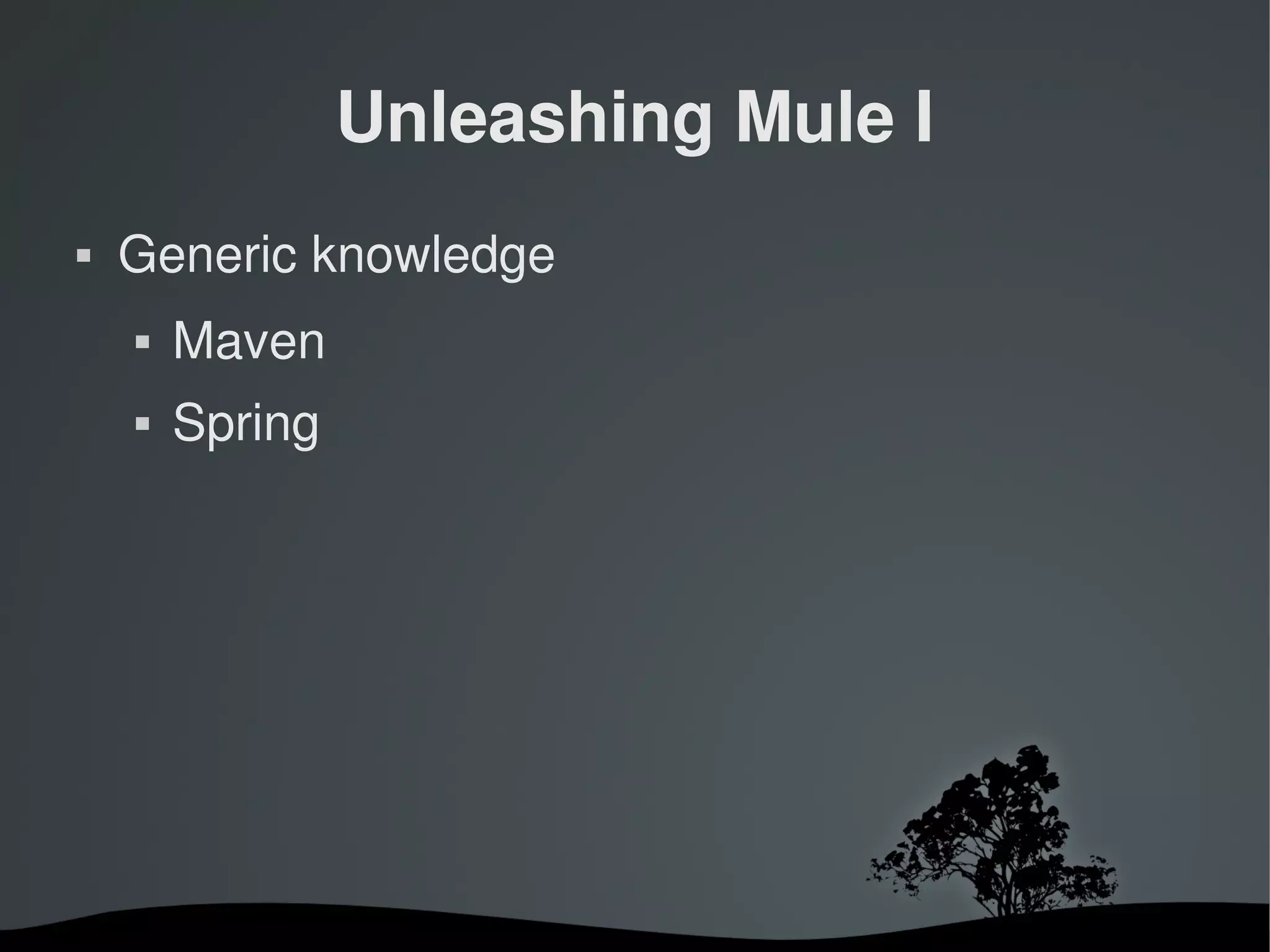

78. Unleashing Mule I
 Generic knowledge
 Maven
 Spring

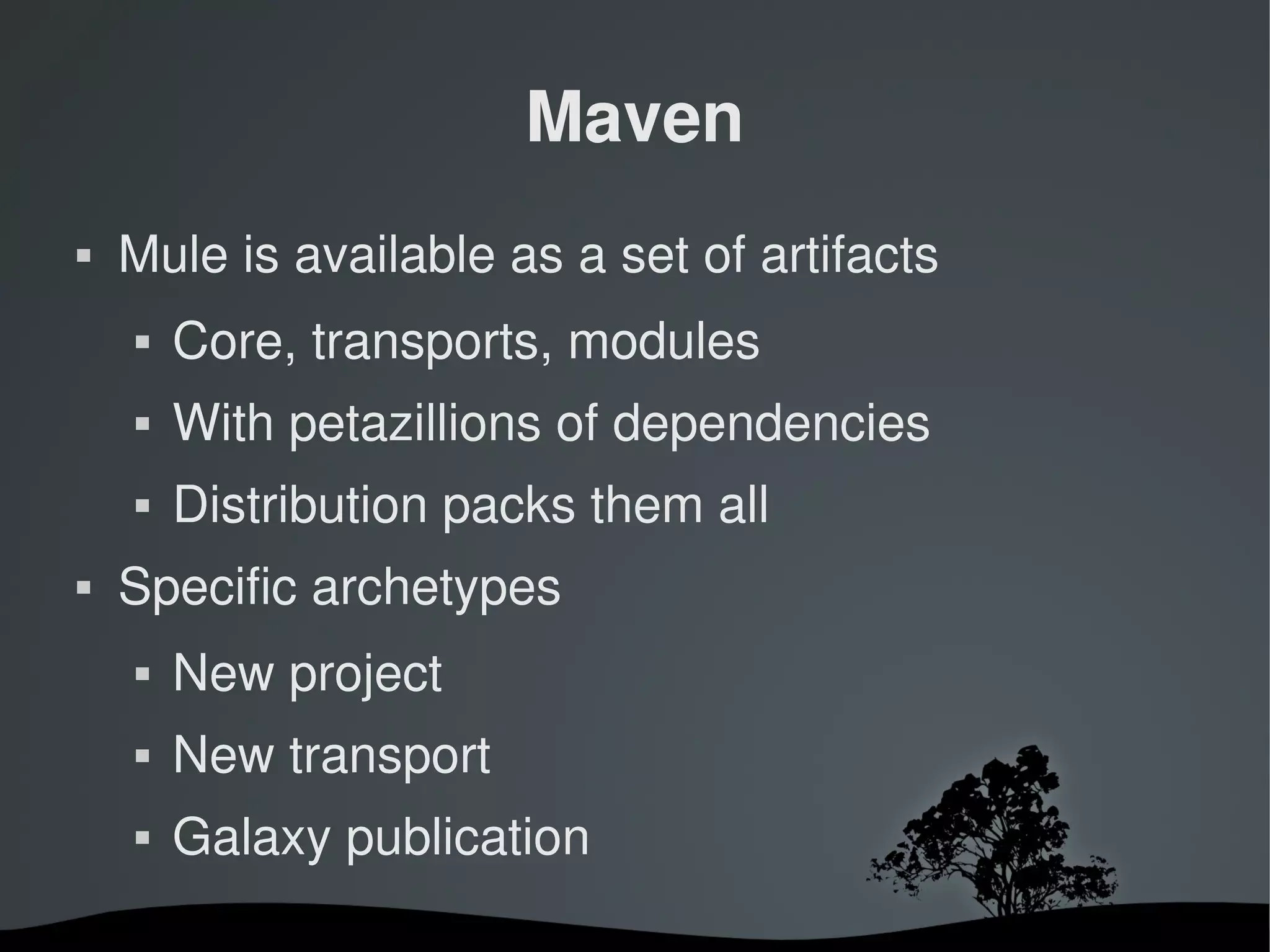

79. Maven
 Mule is available as a set of artifacts
 Core, transports, modules
 With petazillions of dependencies
 Distribution packs them all
 Specific archetypes
 New project
 New transport
 Galaxy publication

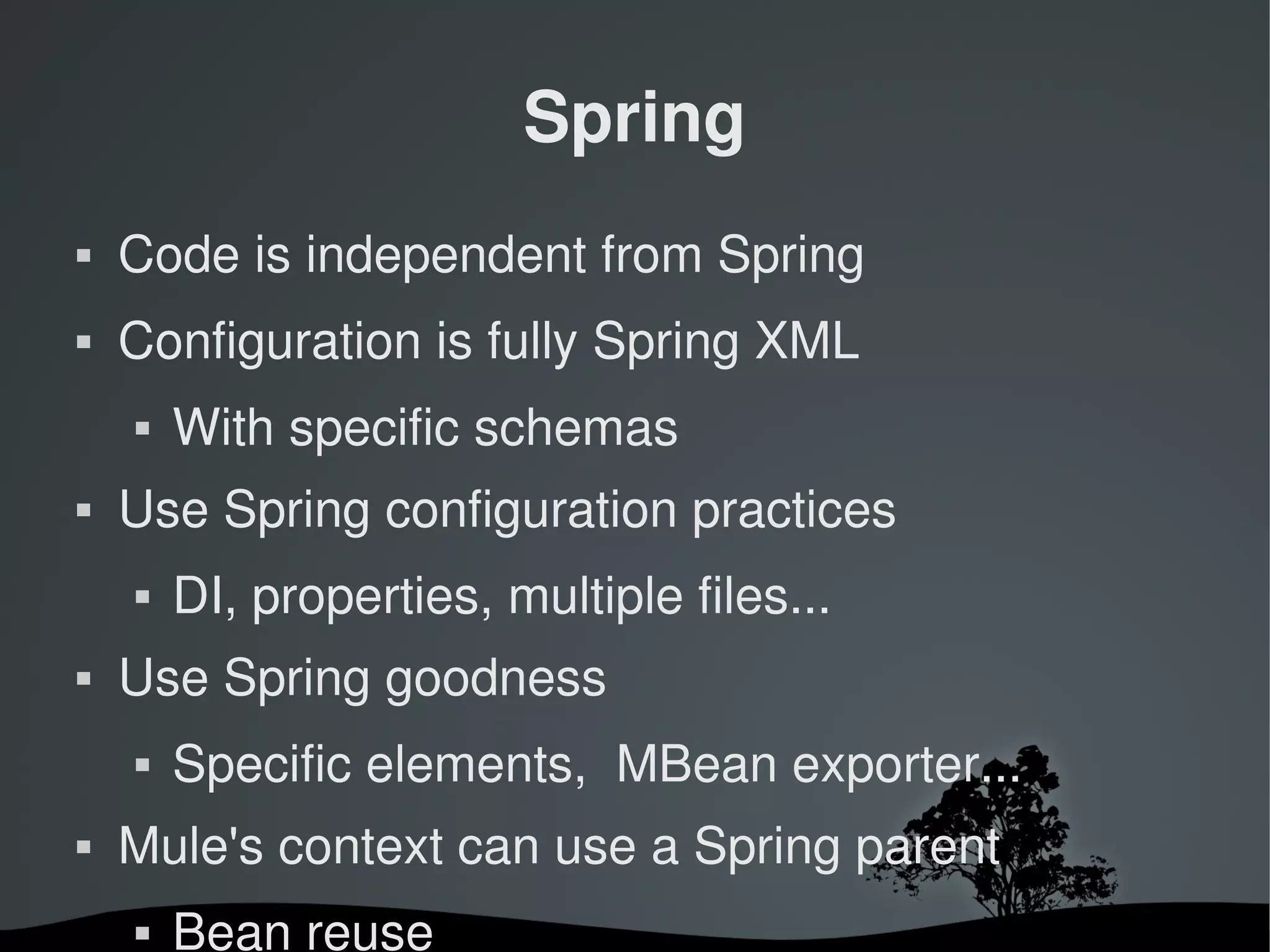

80. Spring
 Code is independent from Spring
 Configuration is fully Spring XML
 With specific schemas
 Use Spring configuration practices
 DI, properties, multiple files...
 Use Spring goodness
 Specific elements, MBean exporter...
 Mule's context can use a Spring parent
 Bean reuse

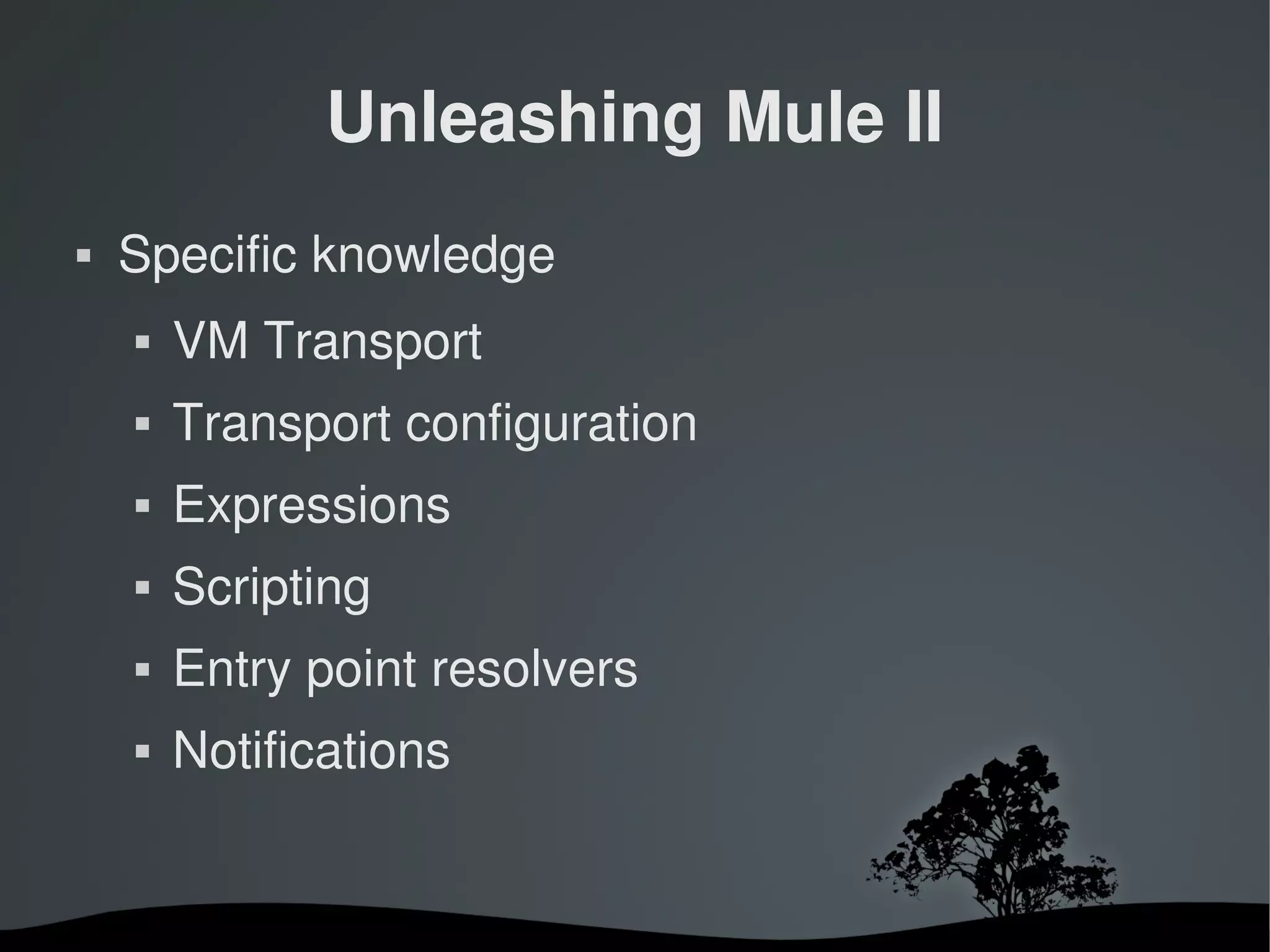

81. Unleashing Mule II
 Specific knowledge
 VM Transport
 Transport configuration
 Expressions
 Scripting
 Entry point resolvers
 Notifications

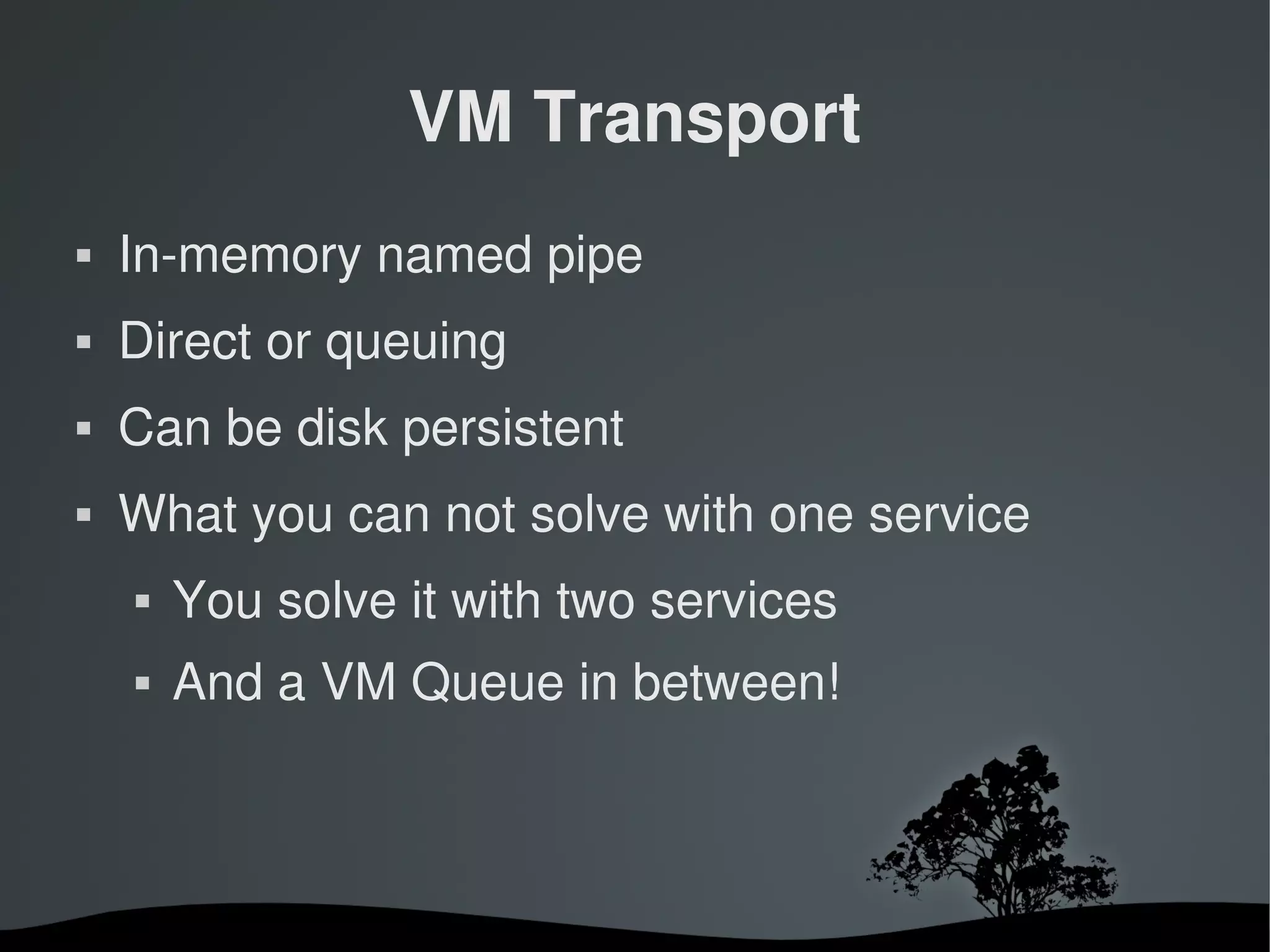

82. VM Transport
 In­memory named pipe
 Direct or queuing
 Can be disk persistent
 What you can not solve with one service
 You solve it with two services
 And a VM Queue in between!

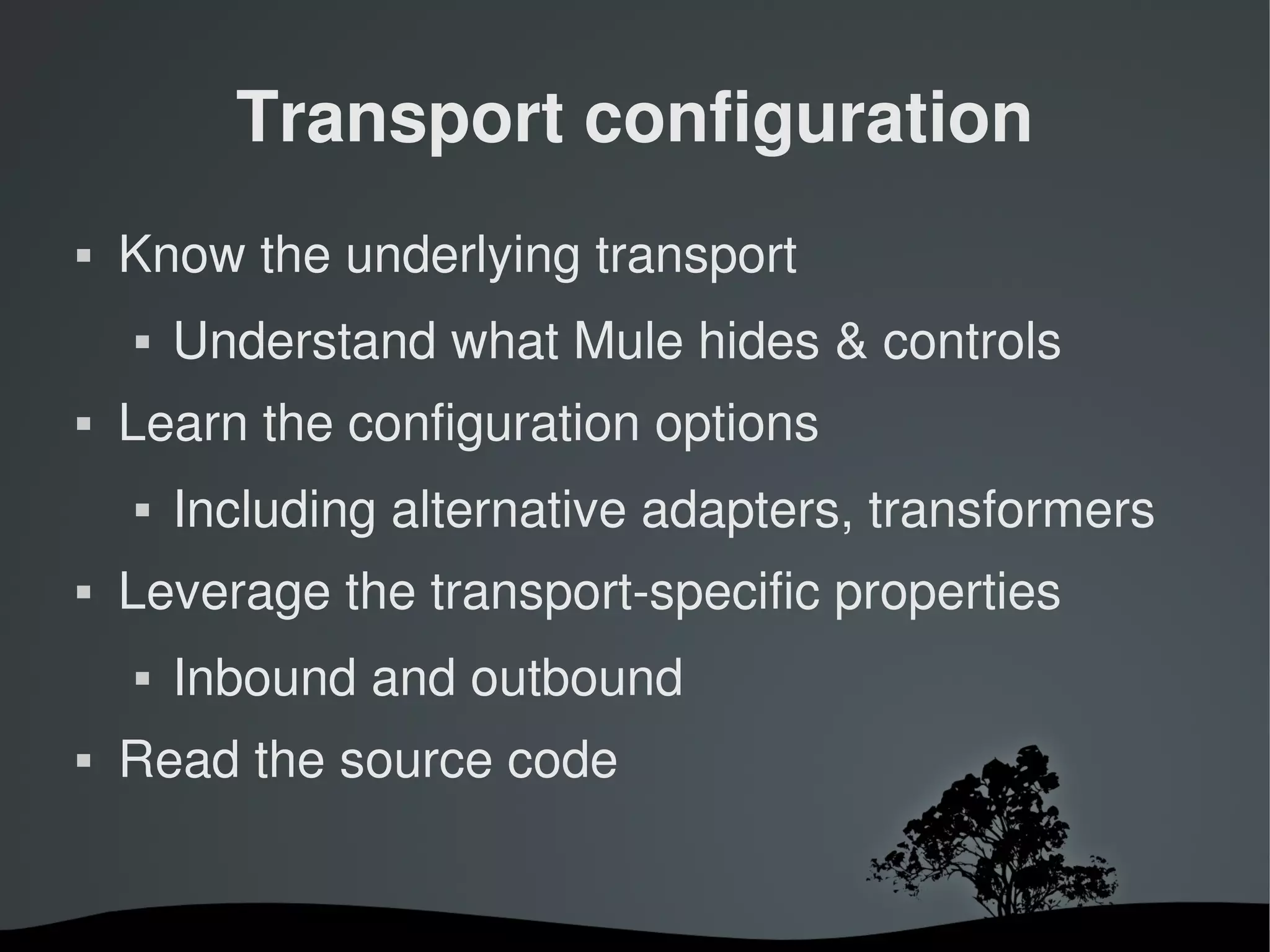

83. Transport configuration
 Know the underlying transport
 Understand what Mule hides & controls
 Learn the configuration options
 Including alternative adapters, transformers
 Leverage the transport­specific properties
 Inbound and outbound
 Read the source code

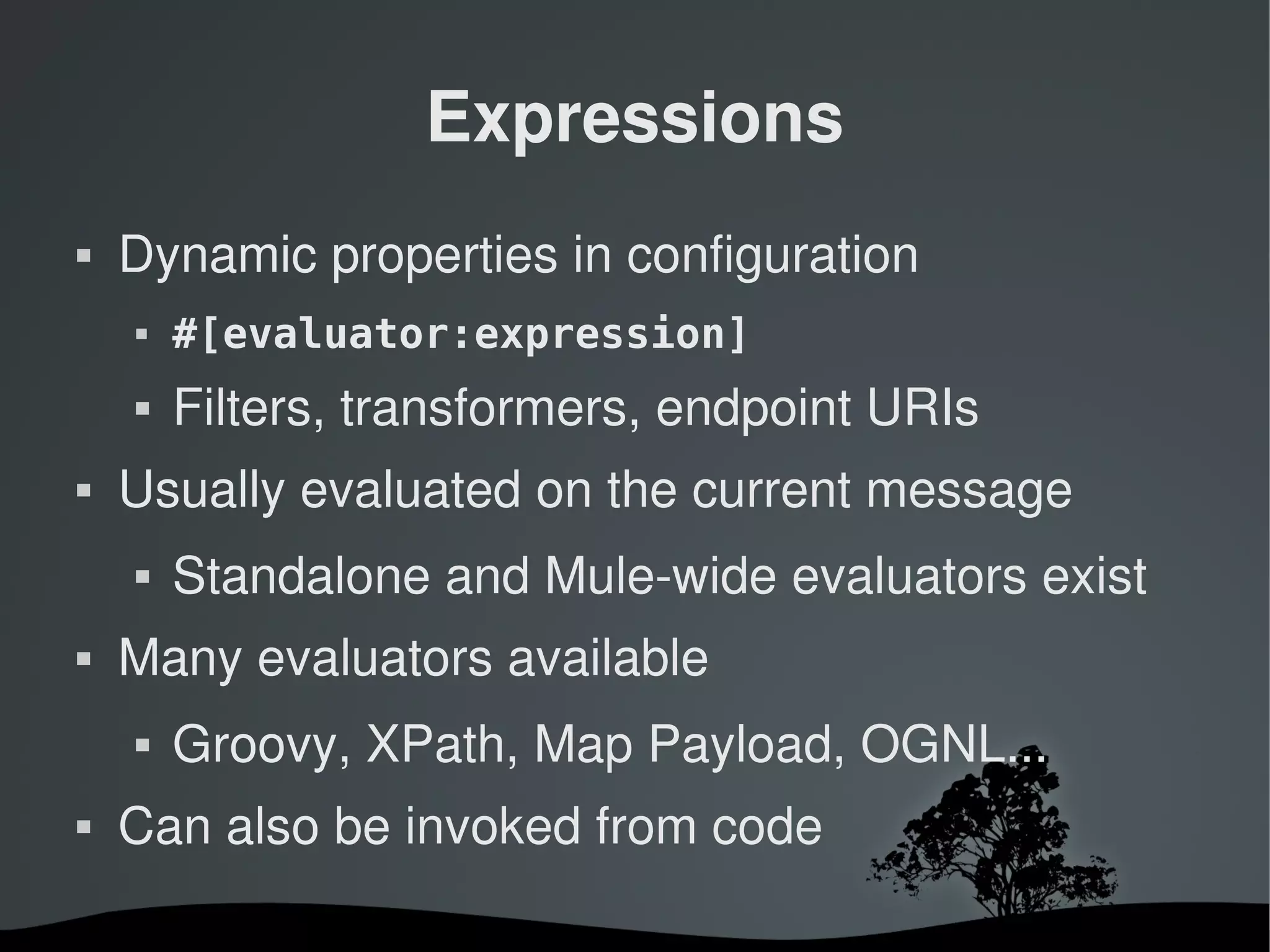

84. Expressions
 Dynamic properties in configuration
 #[evaluator:expression]
 Filters, transformers, endpoint URIs
 Usually evaluated on the current message
 Standalone and Mule­wide evaluators exist
 Many evaluators available
 Groovy, XPath, Map Payload, OGNL...
 Can also be invoked from code

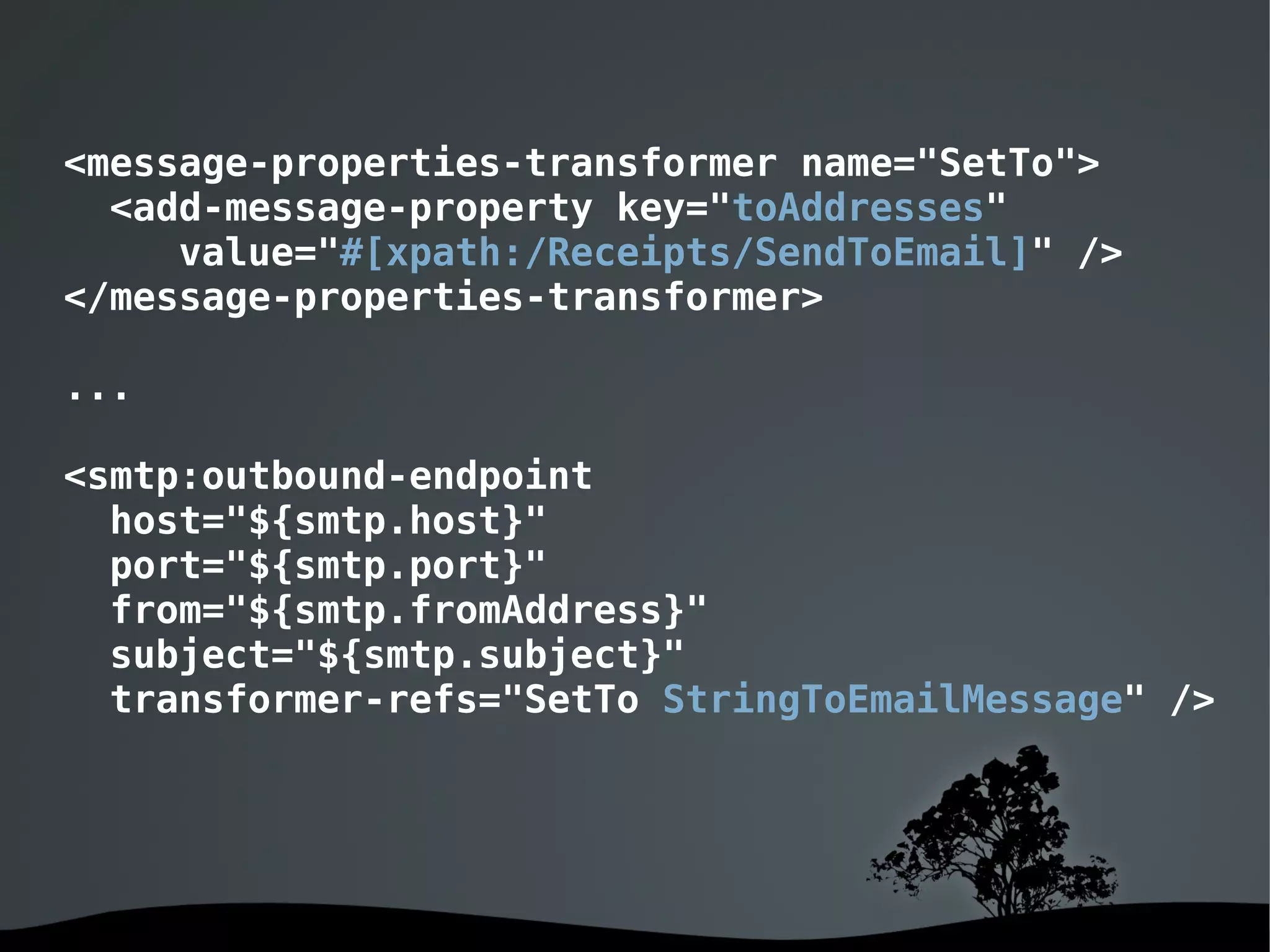

85. <message-properties-transformer name="SetTo">
<add-message-property key="toAddresses"
value="#[xpath:/Receipts/SendToEmail]" />
</message-properties-transformer>
...
<smtp:outbound-endpoint
host="${smtp.host}"
port="${smtp.port}"
from="${smtp.fromAddress}"
subject="${smtp.subject}"
transformer-refs="SetTo StringToEmailMessage" />

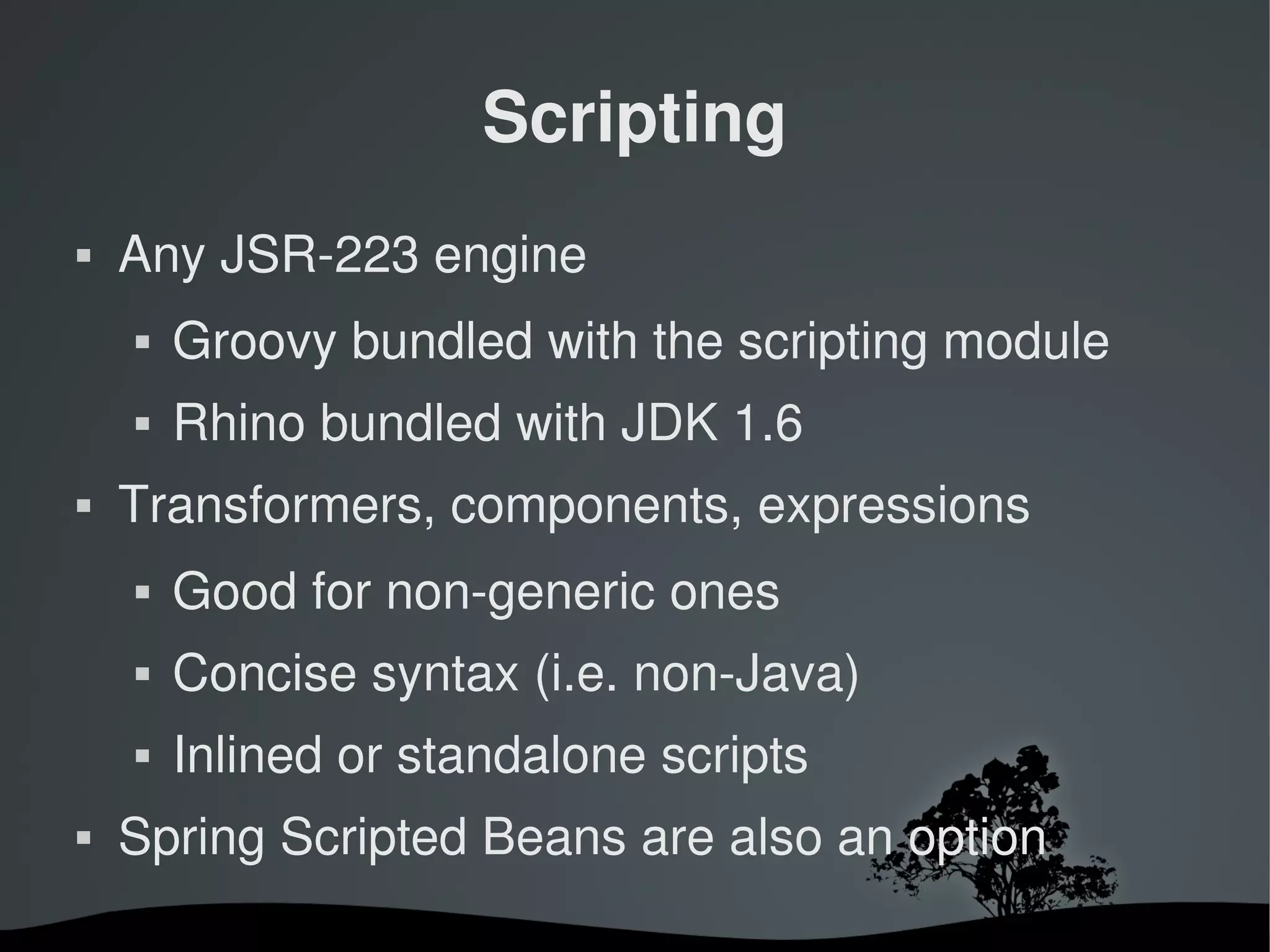

86. Scripting
 Any JSR­223 engine
 Groovy bundled with the scripting module
 Rhino bundled with JDK 1.6
 Transformers, components, expressions
 Good for non­generic ones
 Concise syntax (i.e. non­Java)
 Inlined or standalone scripts
 Spring Scripted Beans are also an option

87. <scripting:transformer name="toUpperCase">
<scripting:script engine="groovy">
return payload.toUpperCase()
</scripting:script>
</scripting:transformer>
<scripting:component>
<scripting:script engine="js">
if (payload.search("STATUS: CRITICAL") != -1) {
message.setProperty("PRIORITY", 'HIGH')
}
return message
</scripting:script>
</scripting:component>
<expression-filter evaluator="groovy"
expression="message.payloadAsBytes.length>1024" />

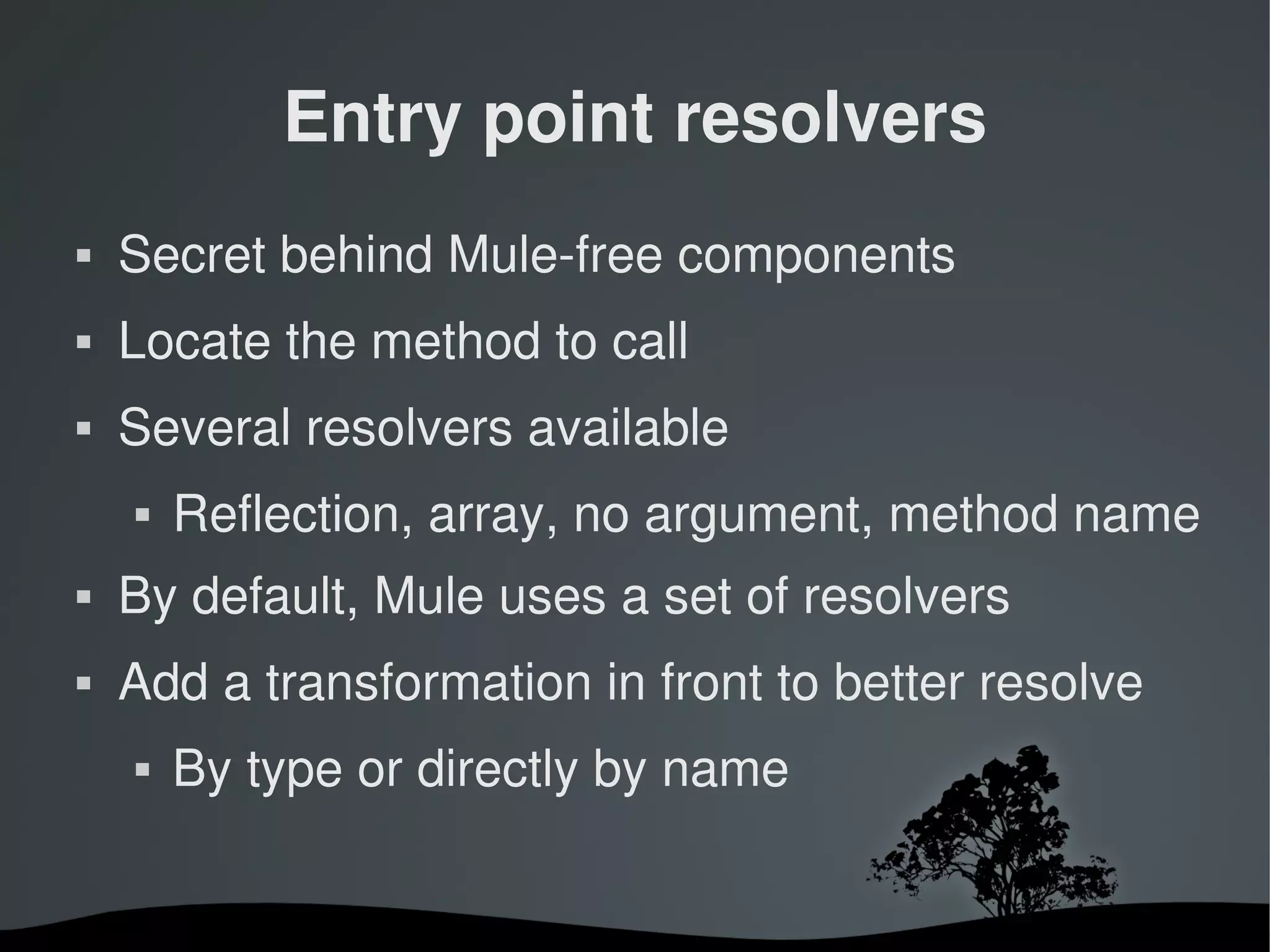

88. Entry point resolvers
 Secret behind Mule­free components
 Locate the method to call
 Several resolvers available
 Reflection, array, no argument, method name
 By default, Mule uses a set of resolvers
 Add a transformation in front to better resolve
 By type or directly by name

89. Notifications
 Internal notification framework
 Extreme diversity of events
 Mule lifecycle, routing, errors, time­outs...
 Standard consumers
 JMX, Log4J, publish to endpoint
 Custom consumers
 Components, interceptors...

90. In Action

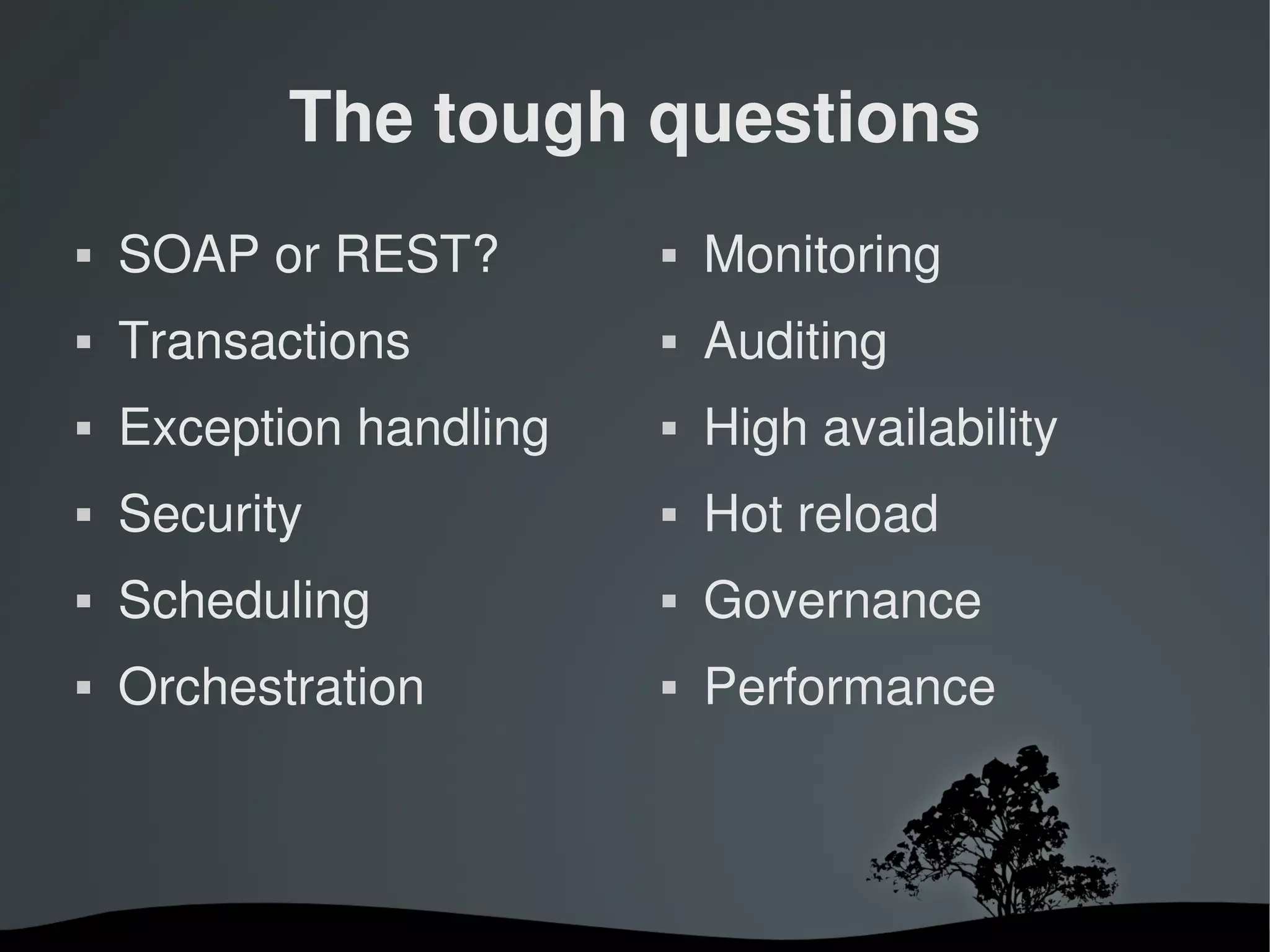

91. The tough questions

92. The tough questions
 SOAP or REST?  Monitoring
 Transactions  Auditing
 Exception handling  High availability
 Security  Hot reload
 Scheduling  Governance
 Orchestration  Performance

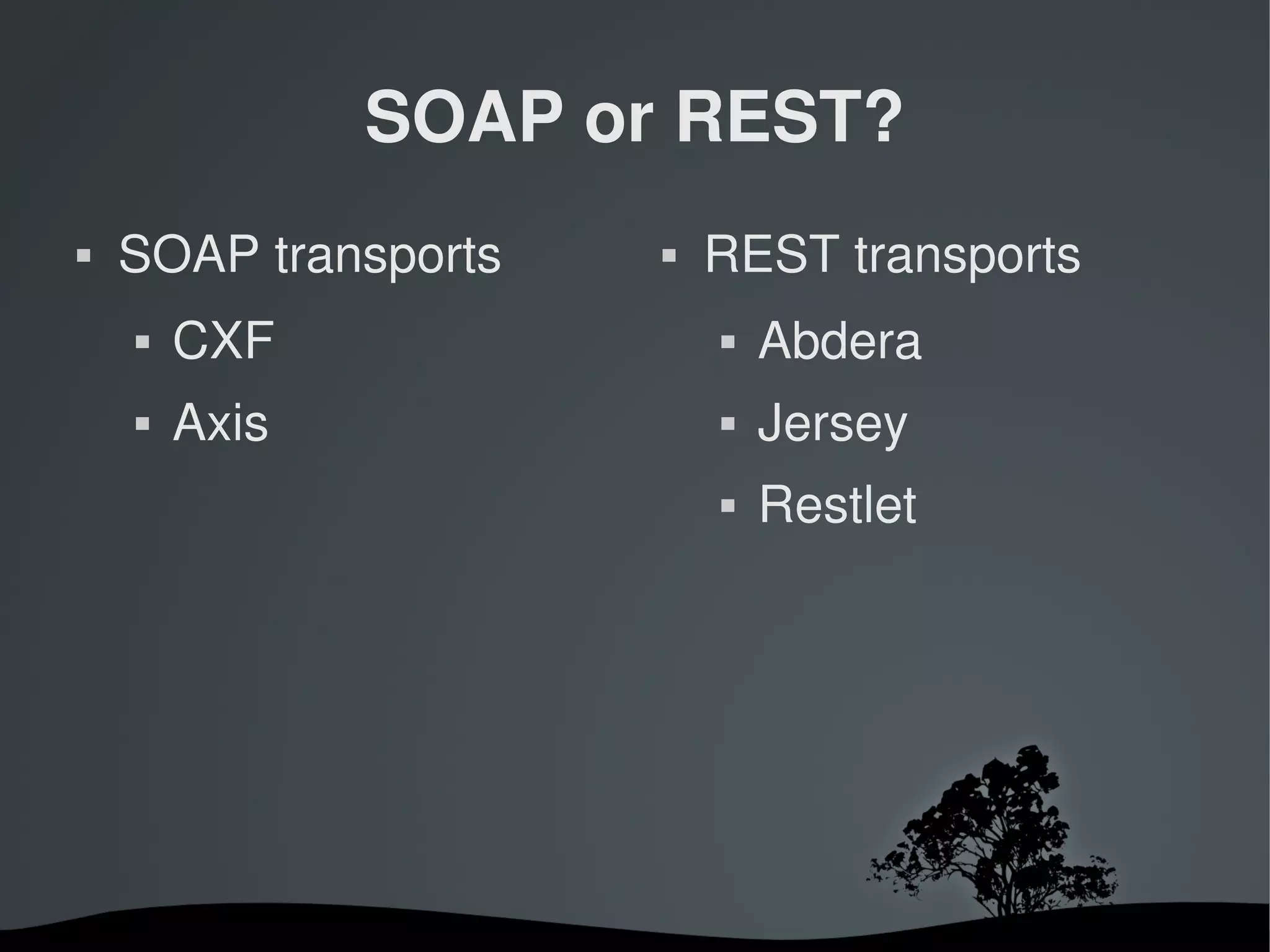

93. SOAP or REST?
 SOAP transports  REST transports
 CXF  Abdera
 Axis  Jersey
 Restlet

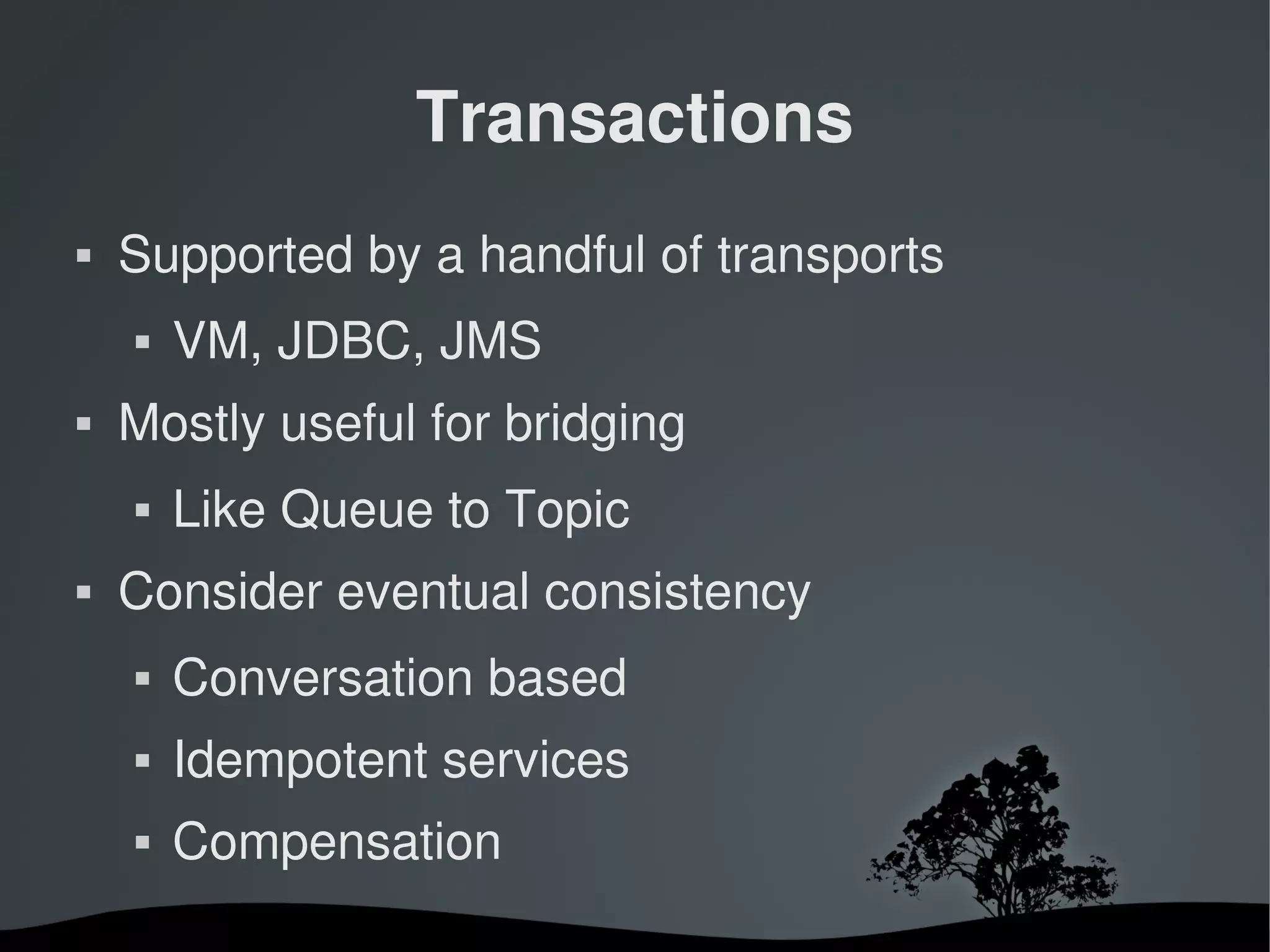

94. Transactions
 Supported by a handful of transports
 VM, JDBC, JMS
 Mostly useful for bridging
 Like Queue to Topic
 Consider eventual consistency
 Conversation based
 Idempotent services
 Compensation

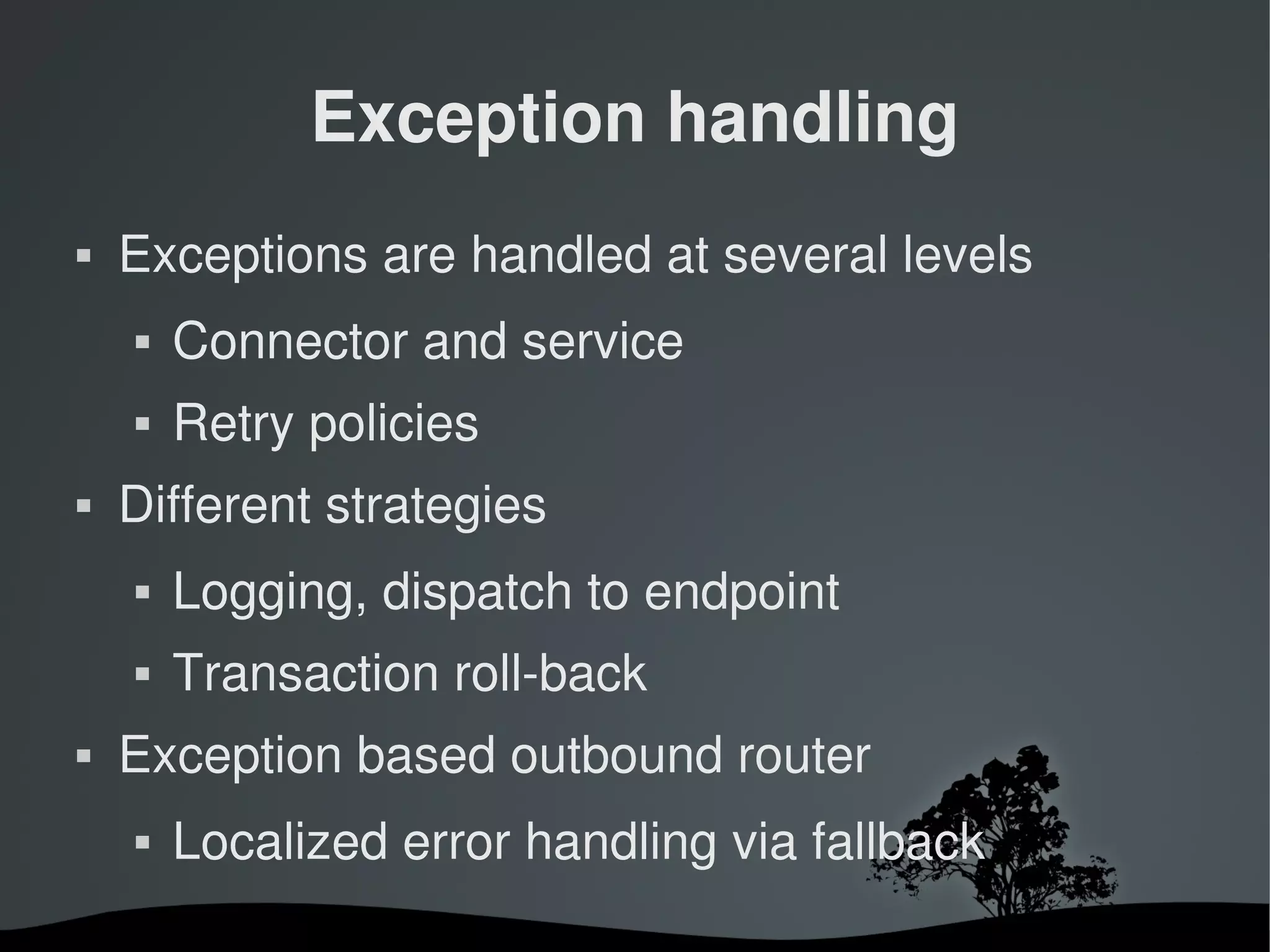

95. Exception handling
 Exceptions are handled at several levels
 Connector and service
 Retry policies
 Different strategies
 Logging, dispatch to endpoint
 Transaction roll­back
 Exception based outbound router
 Localized error handling via fallback

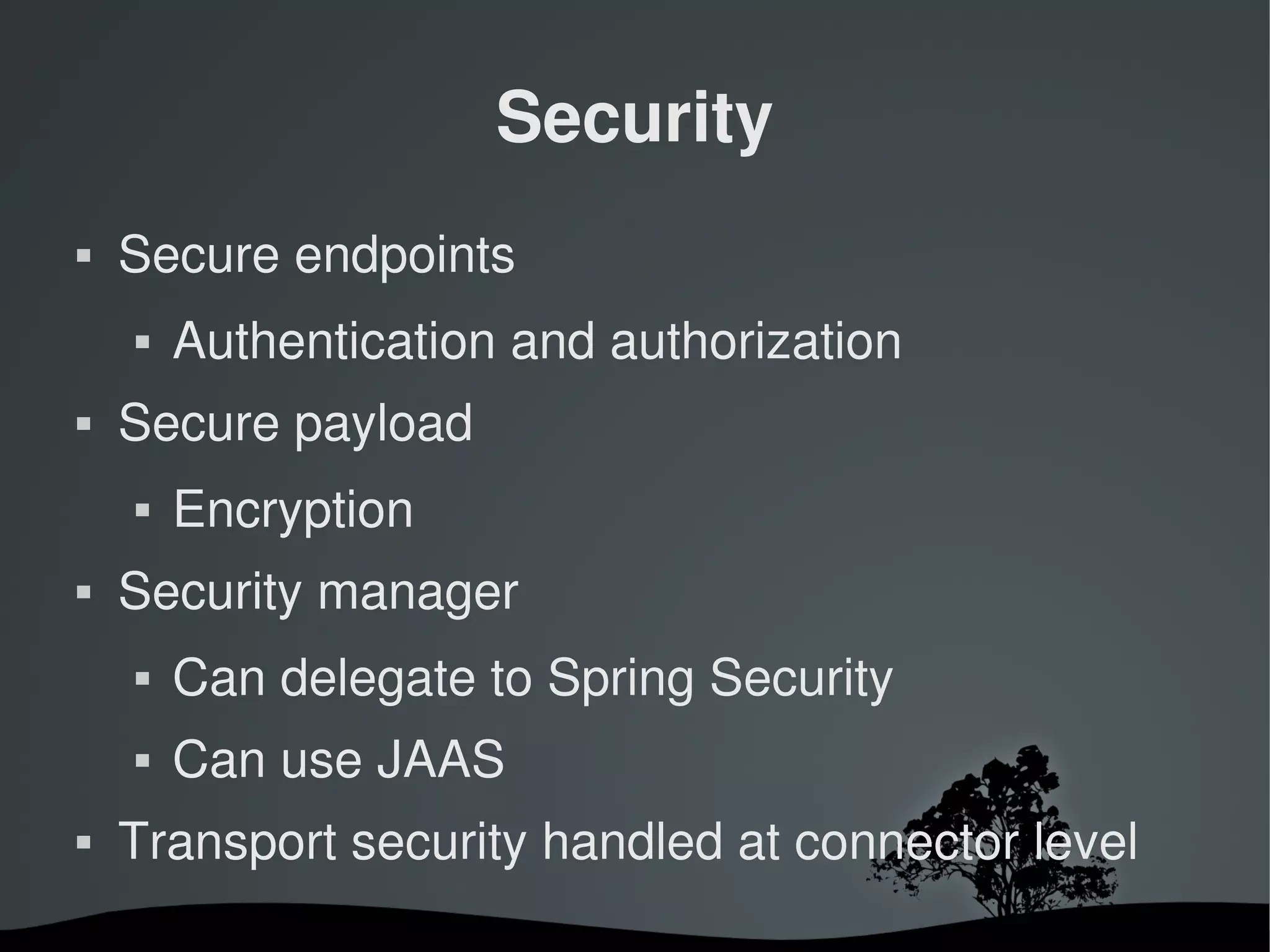

96. Security
 Secure endpoints
 Authentication and authorization
 Secure payload
 Encryption
 Security manager
 Can delegate to Spring Security
 Can use JAAS
 Transport security handled at connector level

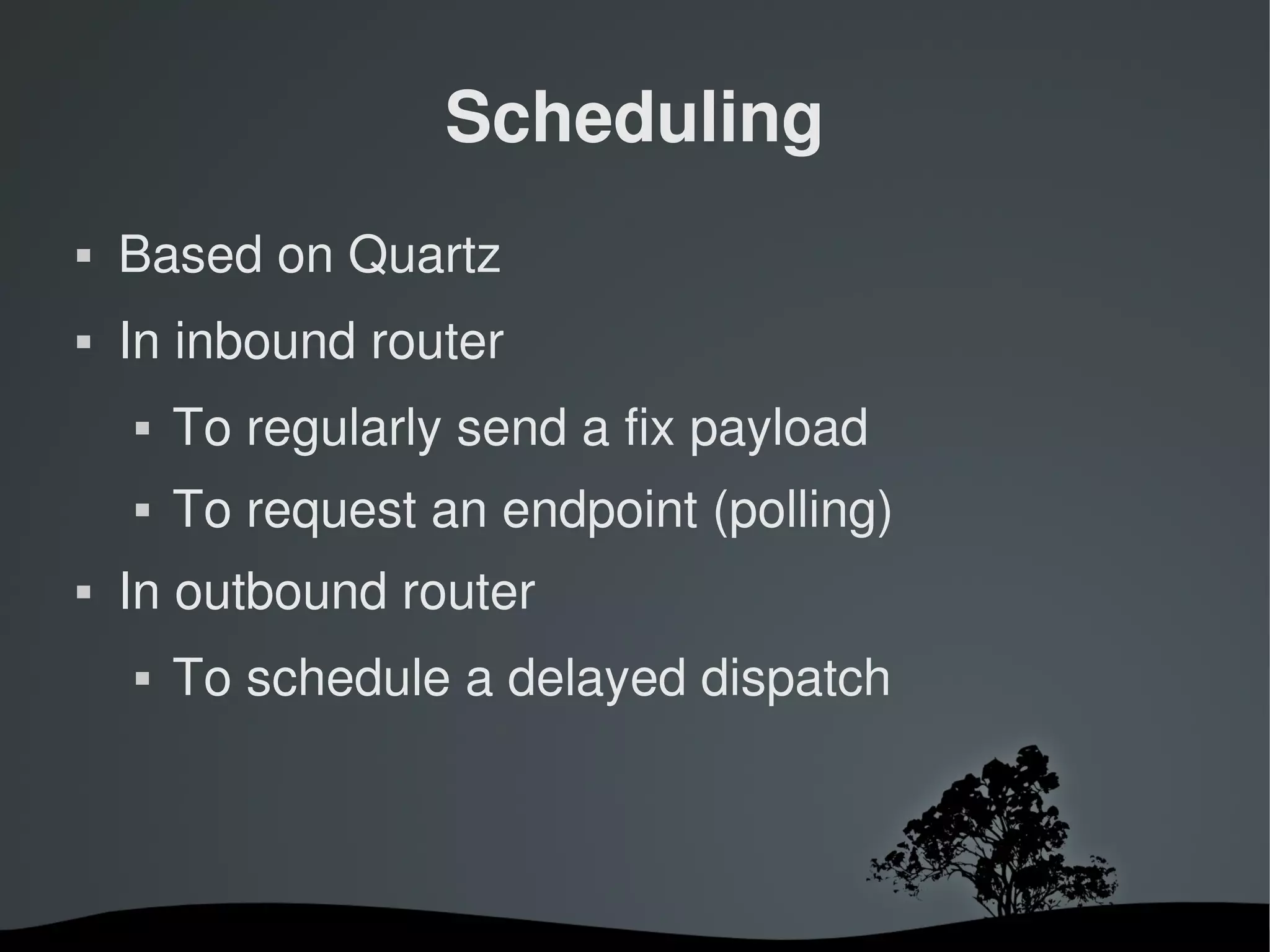

97. Scheduling
 Based on Quartz
 In inbound router
 To regularly send a fix payload
 To request an endpoint (polling)
 In outbound router
 To schedule a delayed dispatch

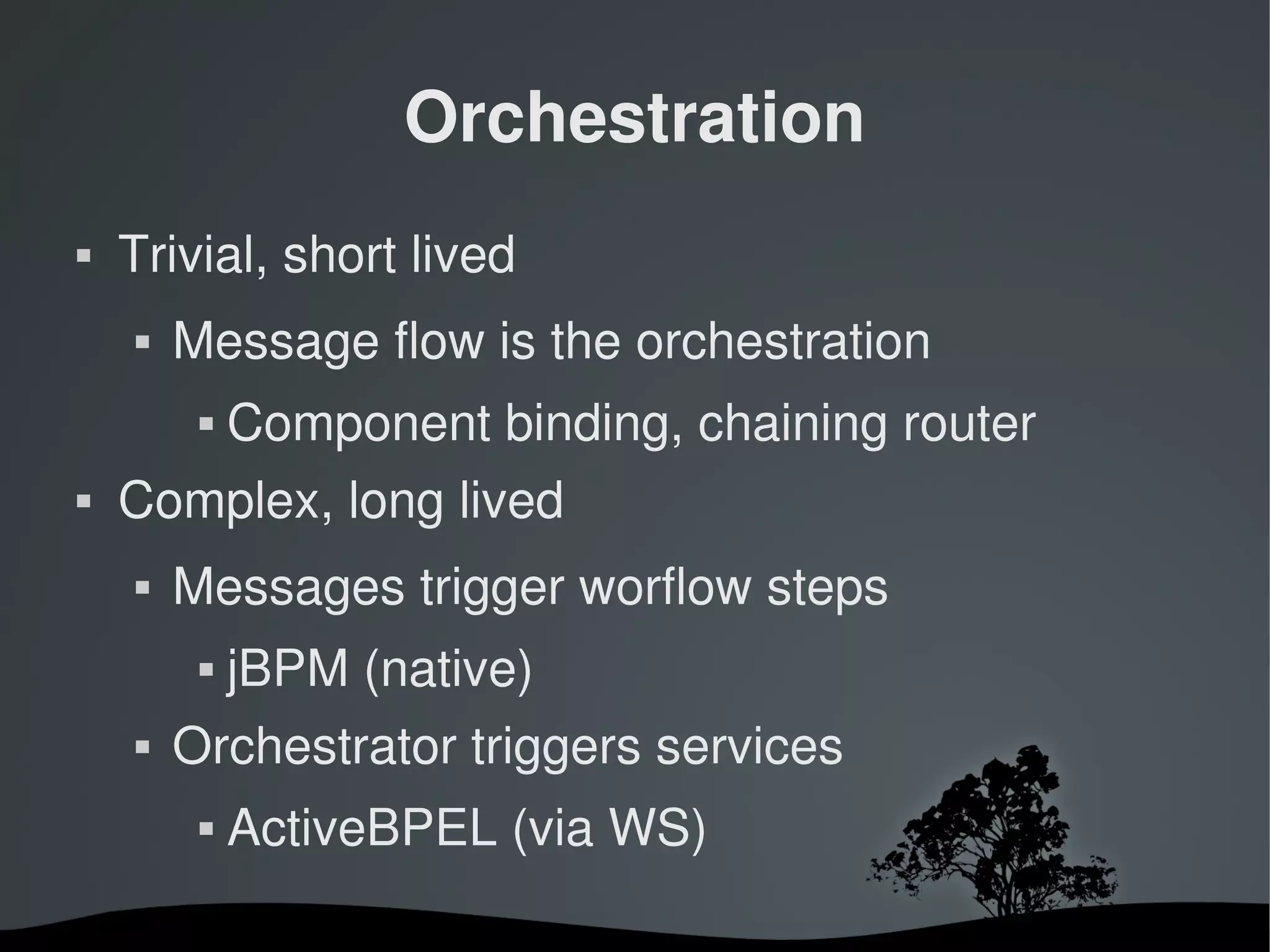

98. Orchestration
 Trivial, short lived
 Message flow is the orchestration
 Component binding, chaining router
 Complex, long lived
 Messages trigger worflow steps
 jBPM (native)
 Orchestrator triggers services
 ActiveBPEL (via WS)

99. Chaining router
<service name="WeatherDispatchService">
<inbound>
<inbound-endpoint ref="WeatherRequest" />
</inbound>
<outbound>
<chaining-router>
<outbound-endpoint ref="WeatherChannel" />
<jms:outbound-endpoint queue="weather" />
</chaining-router>
</outbound>
</service>

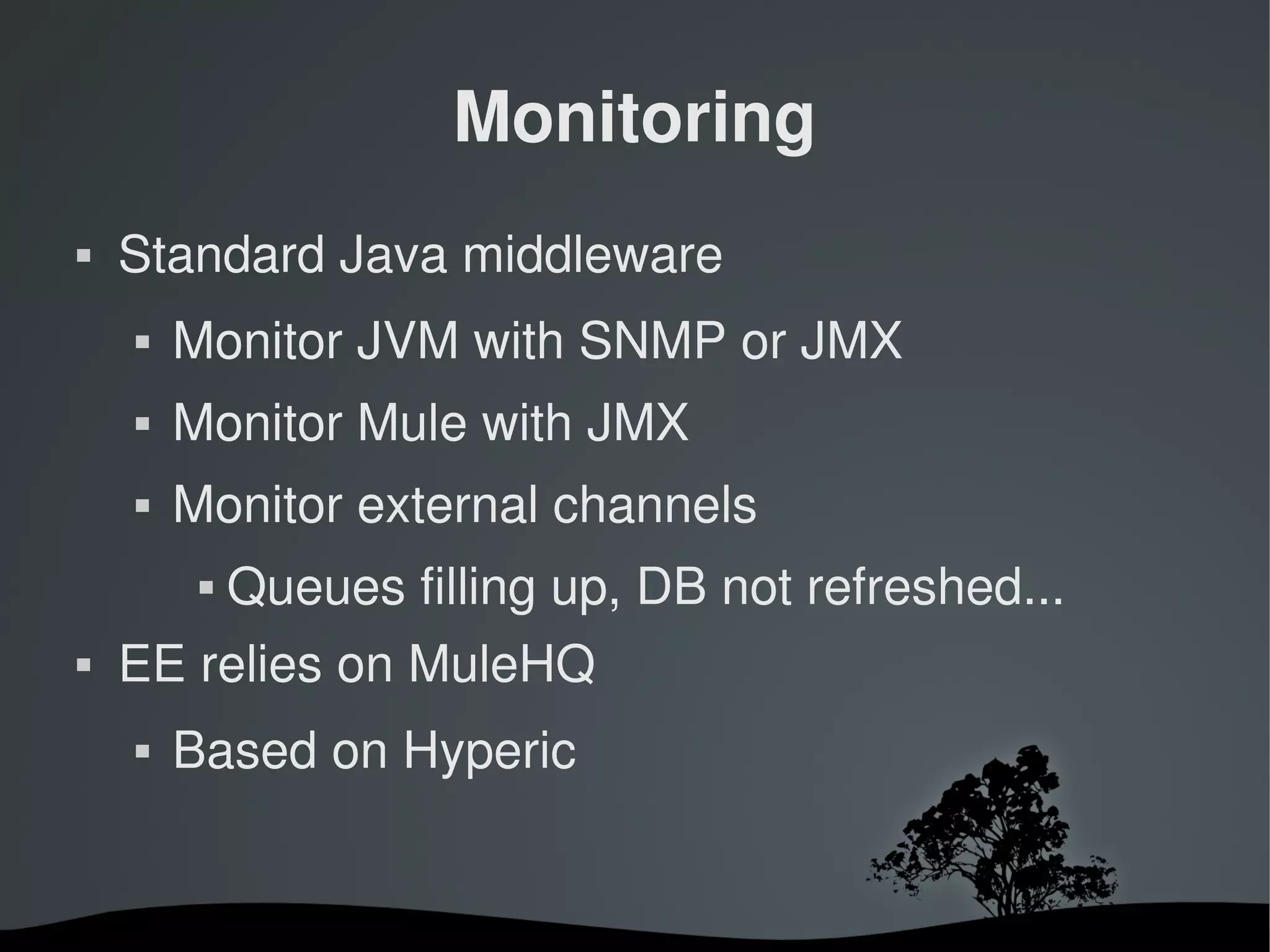

100. Monitoring
 Standard Java middleware
 Monitor JVM with SNMP or JMX
 Monitor Mule with JMX
 Monitor external channels
 Queues filling up, DB not refreshed...
 EE relies on MuleHQ
 Based on Hyperic

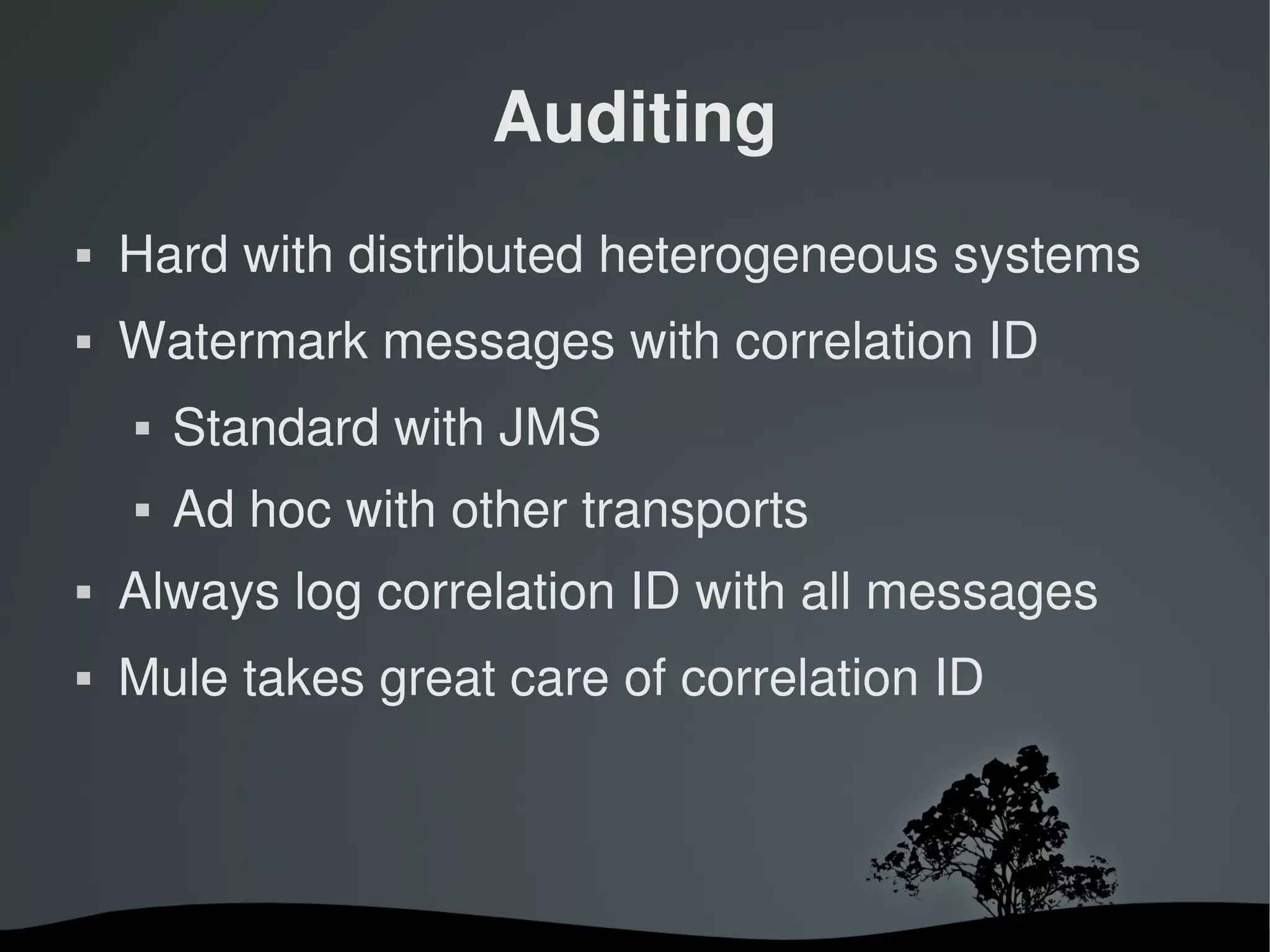

101. Auditing
 Hard with distributed heterogeneous systems
 Watermark messages with correlation ID
 Standard with JMS
 Ad hoc with other transports
 Always log correlation ID with all messages
 Mule takes great care of correlation ID

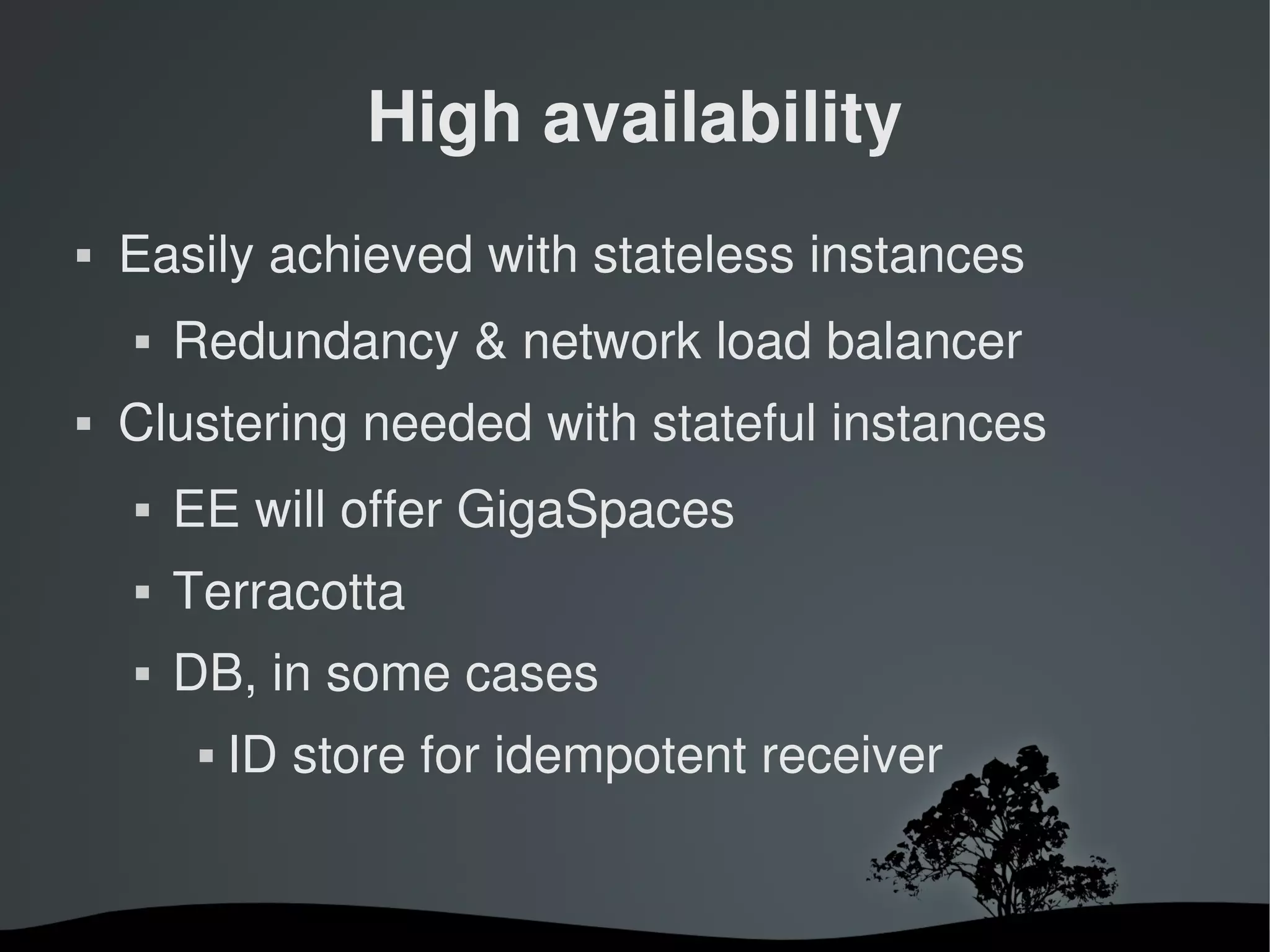

102. High availability
 Easily achieved with stateless instances
 Redundancy & network load balancer
 Clustering needed with stateful instances
 EE will offer GigaSpaces
 Terracotta
 DB, in some cases
 ID store for idempotent receiver

103. Mythical hot reload
 Everybody wants it
 Really?
 Mule configuration can be hot reloaded
 Since 2.2.2
 Mule libraries are OSGi bundles
 But Mule is not (yet) running on OSGi

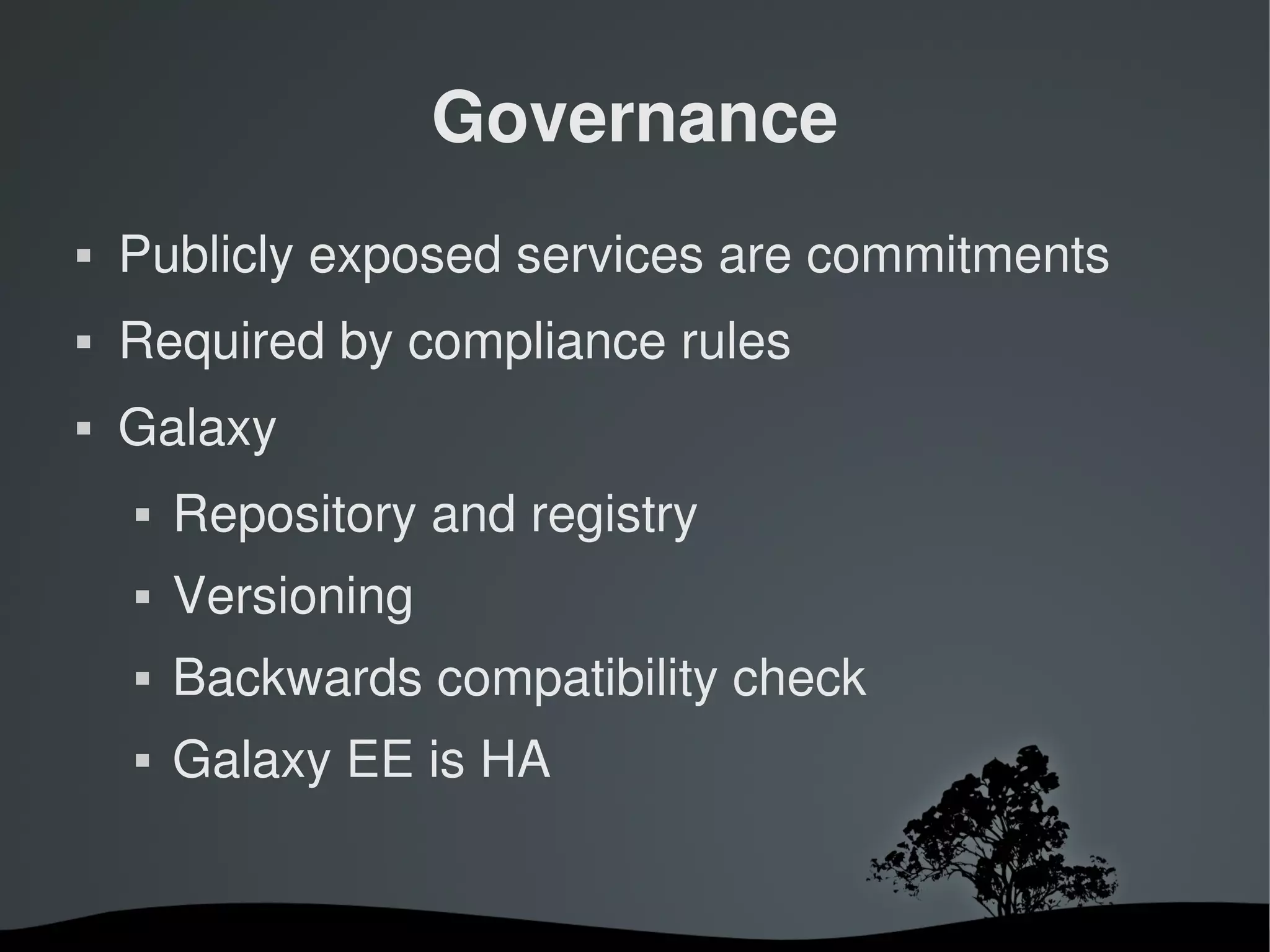

104. Governance
 Publicly exposed services are commitments
 Required by compliance rules
 Galaxy
 Repository and registry
 Versioning
 Backwards compatibility check
 Galaxy EE is HA

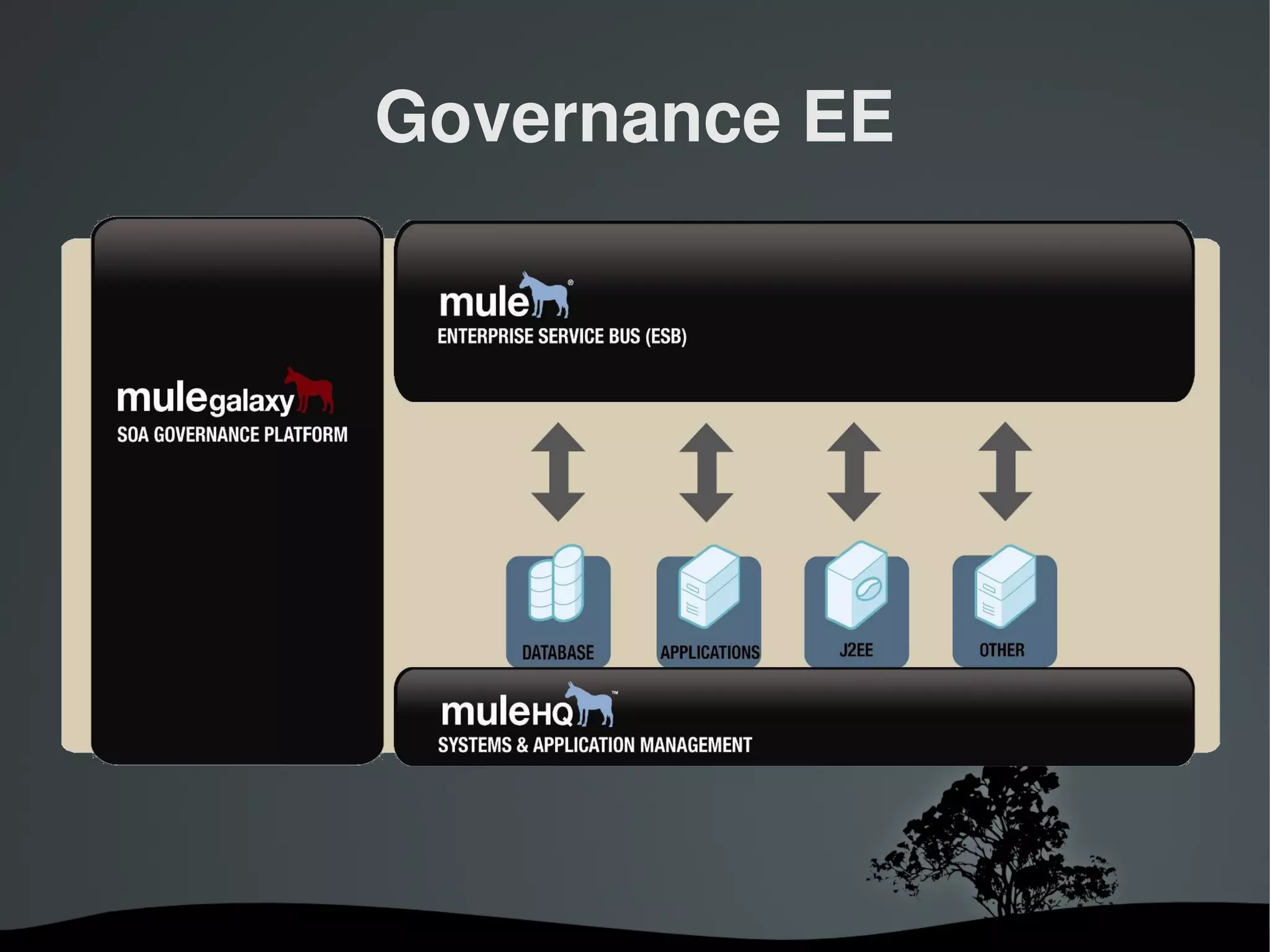

105. Governance EE

106. Performance

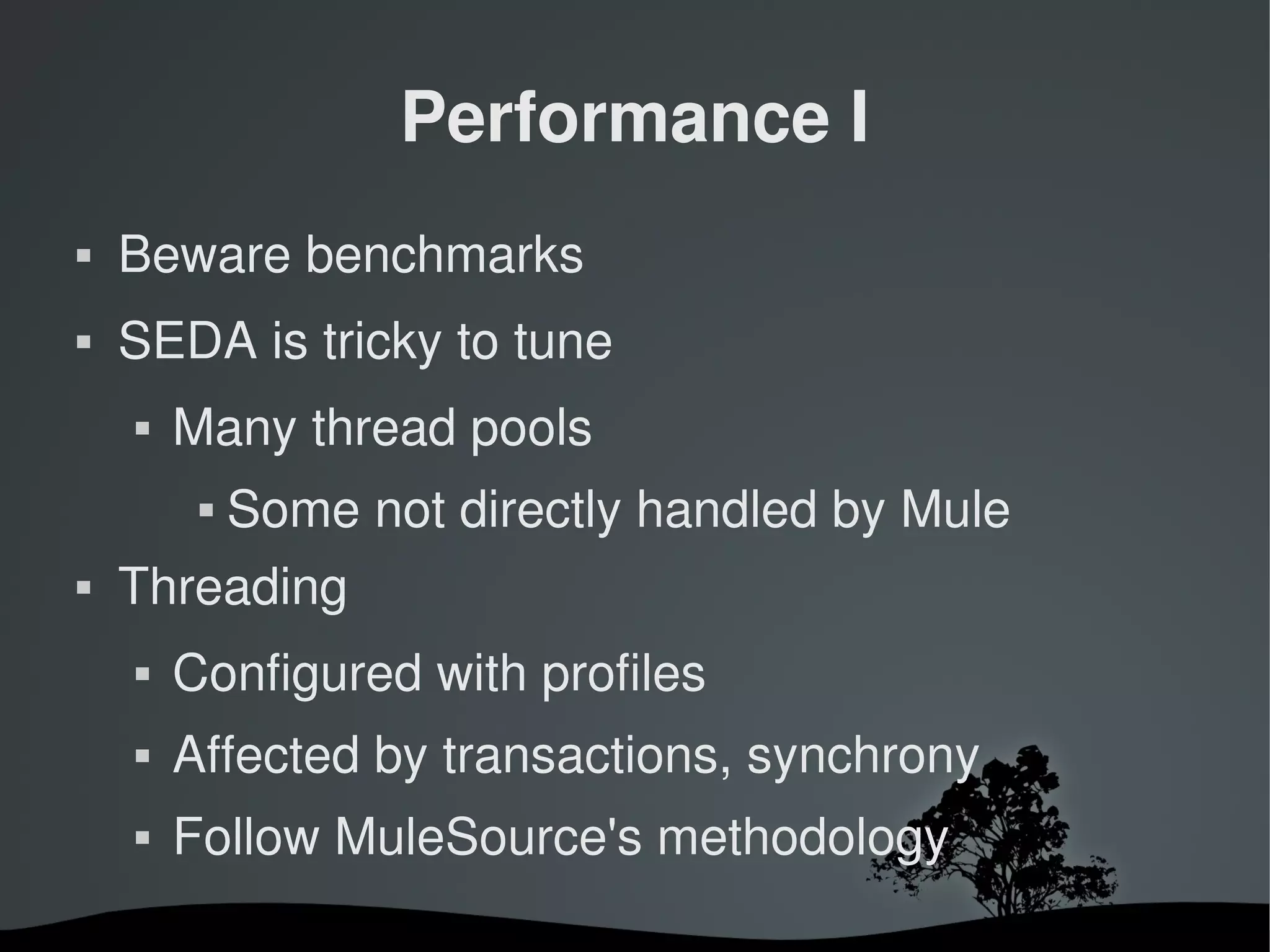

107. Performance I
 Beware benchmarks
 SEDA is tricky to tune
 Many thread pools
 Some not directly handled by Mule
 Threading
 Configured with profiles
 Affected by transactions, synchrony
 Follow MuleSource's methodology

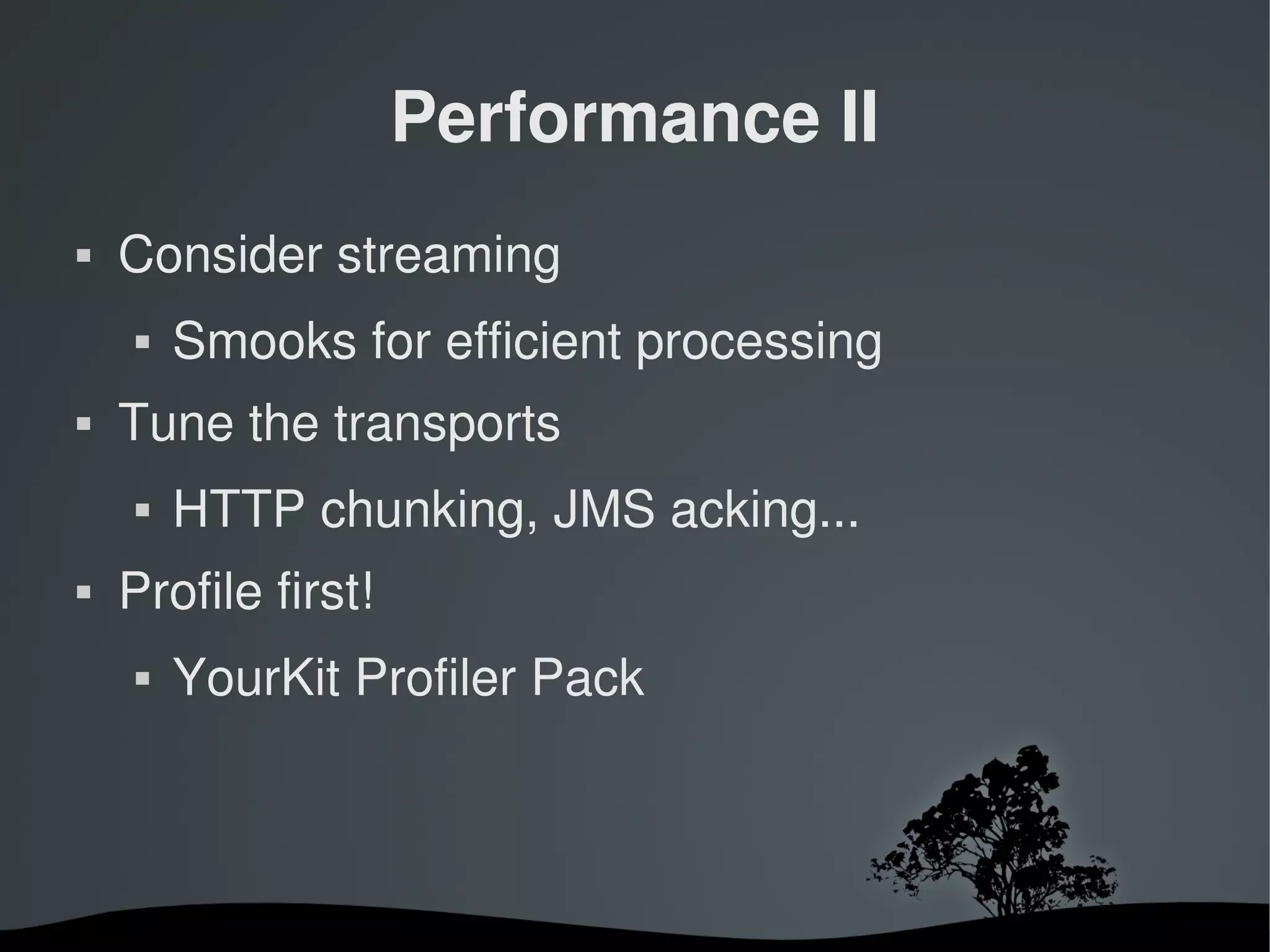

108. Performance II
 Consider streaming
 Smooks for efficient processing
 Tune the transports
 HTTP chunking, JMS acking...
 Profile first!
 YourKit Profiler Pack

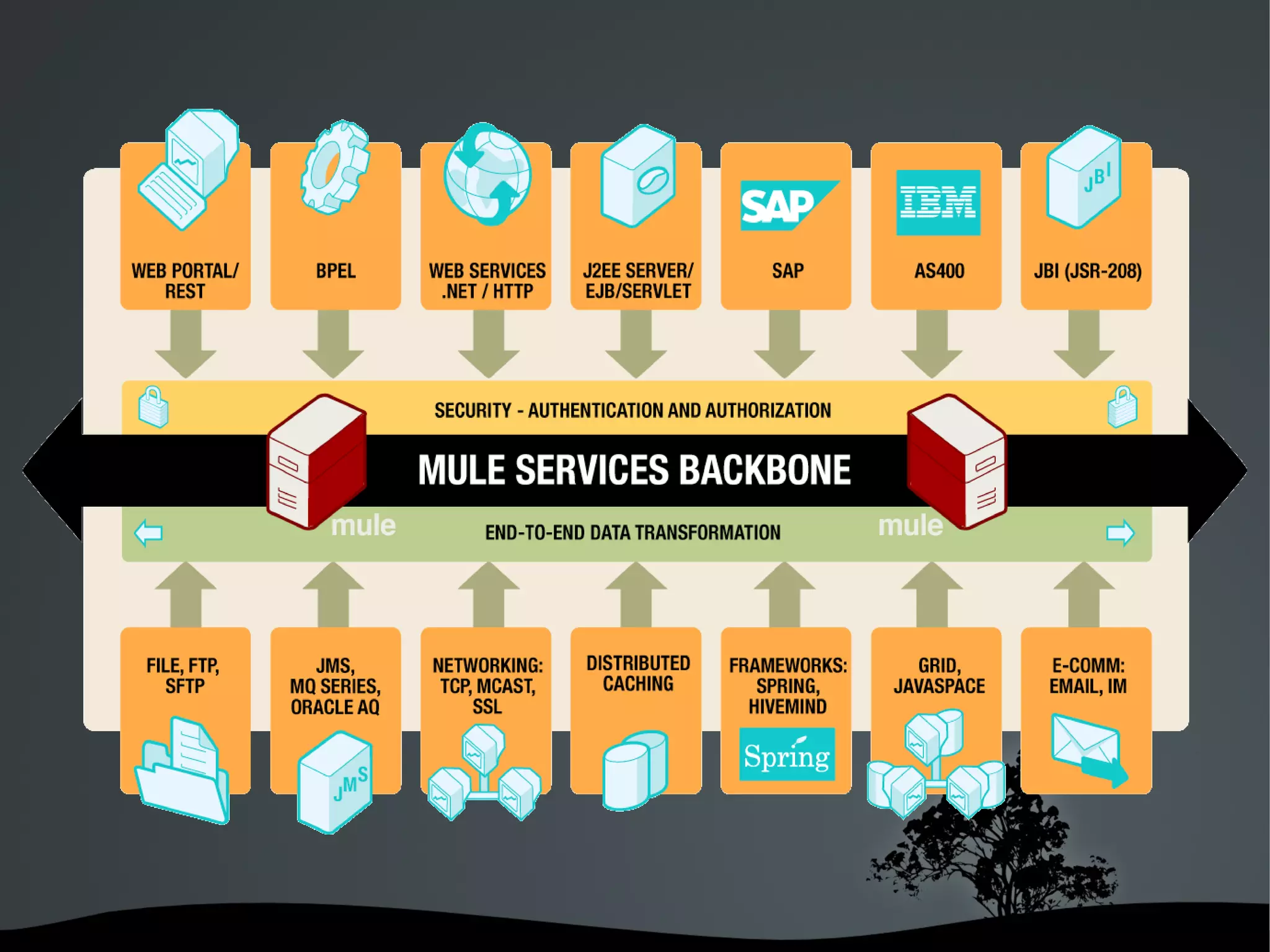

109. The big picture

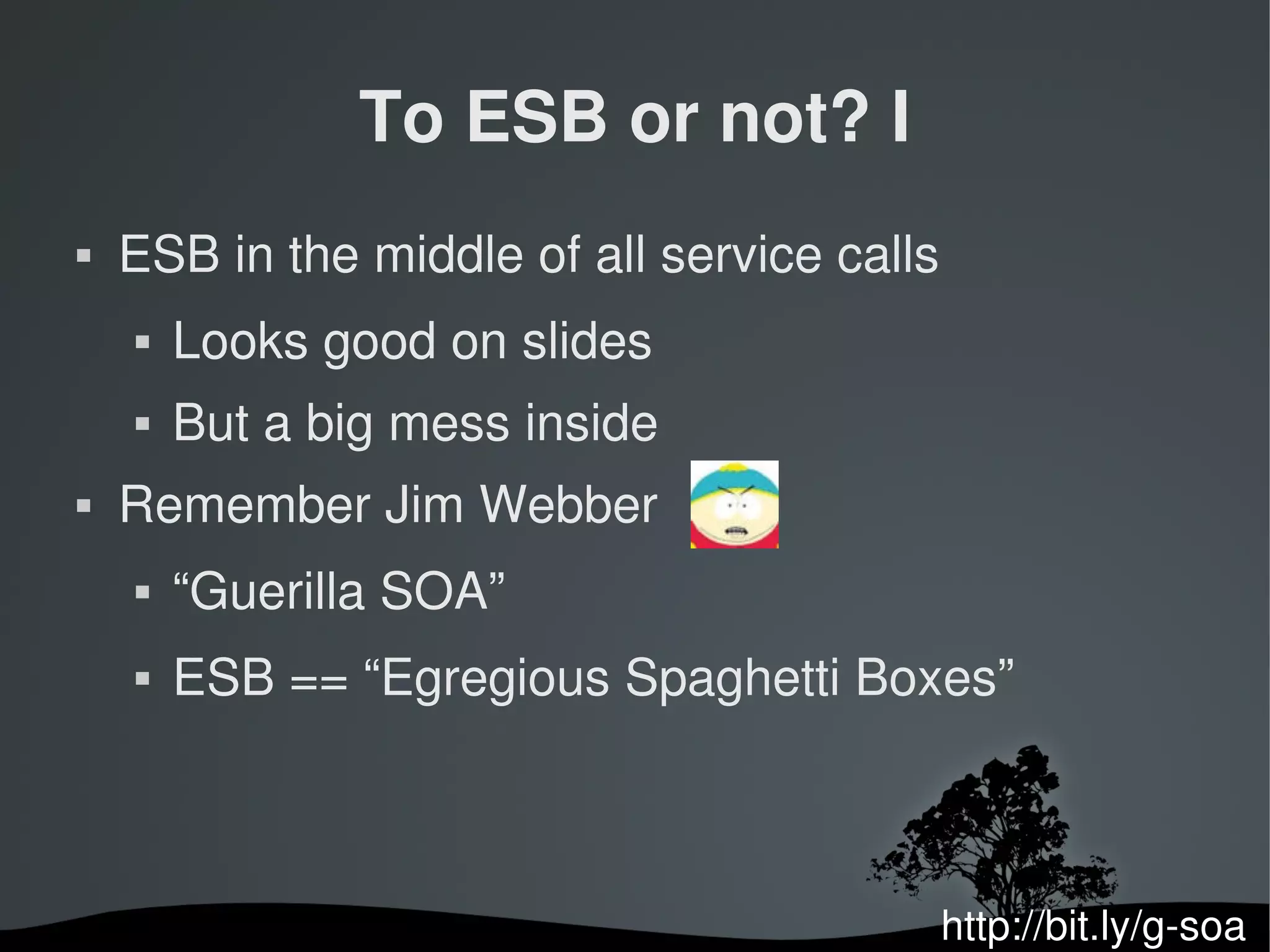

111. To ESB or not? I
 ESB in the middle of all service calls
 Looks good on slides
 But a big mess inside
 Remember Jim Webber
 “Guerilla SOA”
 ESB == “Egregious Spaghetti Boxes”
http://bit.ly/g­soa

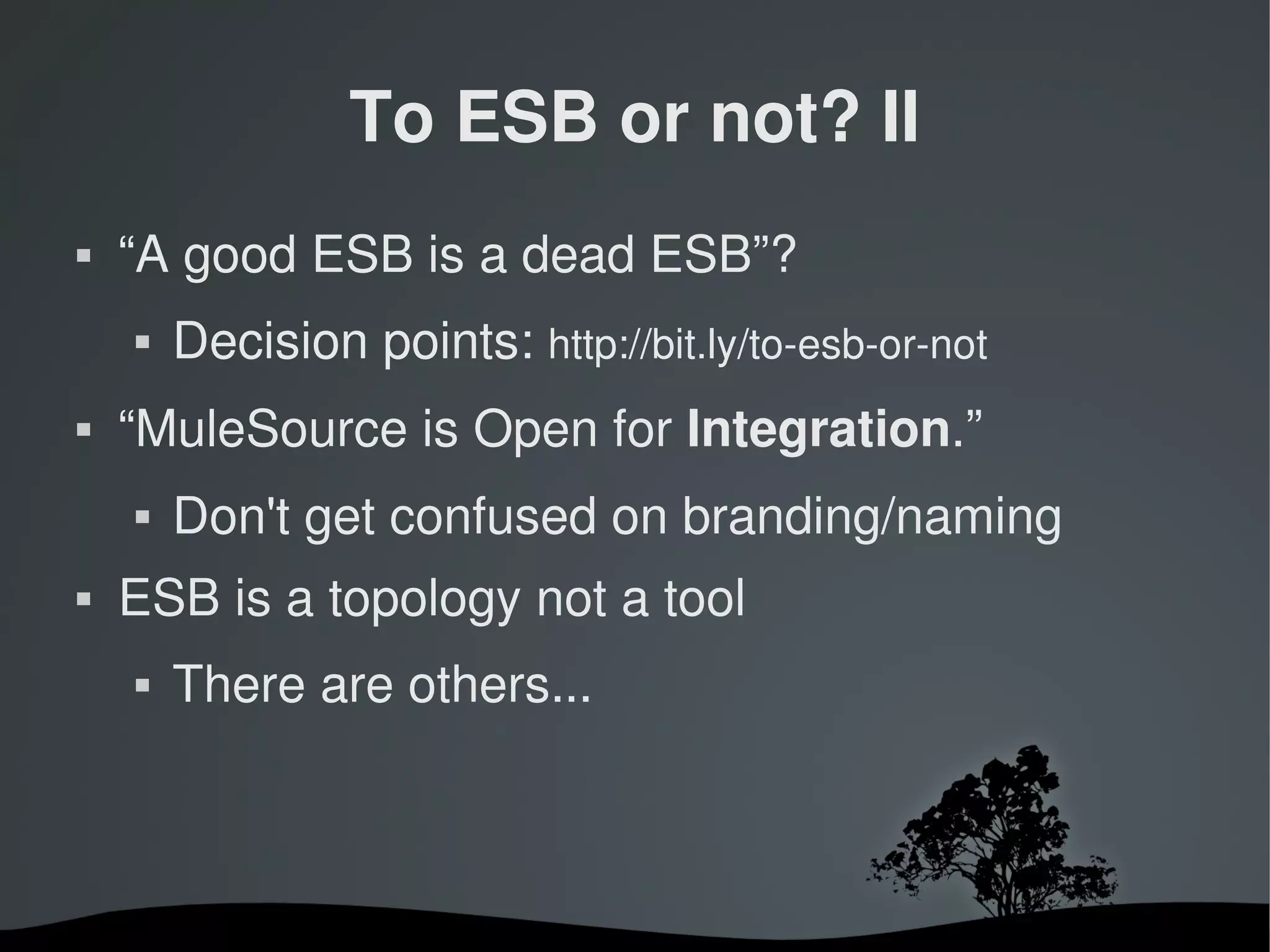

112. To ESB or not? II
 “A good ESB is a dead ESB”?
 Decision points: http://bit.ly/to­esb­or­not
 “MuleSource is Open for Integration.”
 Don't get confused on branding/naming
 ESB is a topology not a tool
 There are others...

113. Topology
 ESB
 JMS backbone
 ESN
 Direct service to service
 Hub & Spoke
 Centralized broker
 Client / Server
 ...

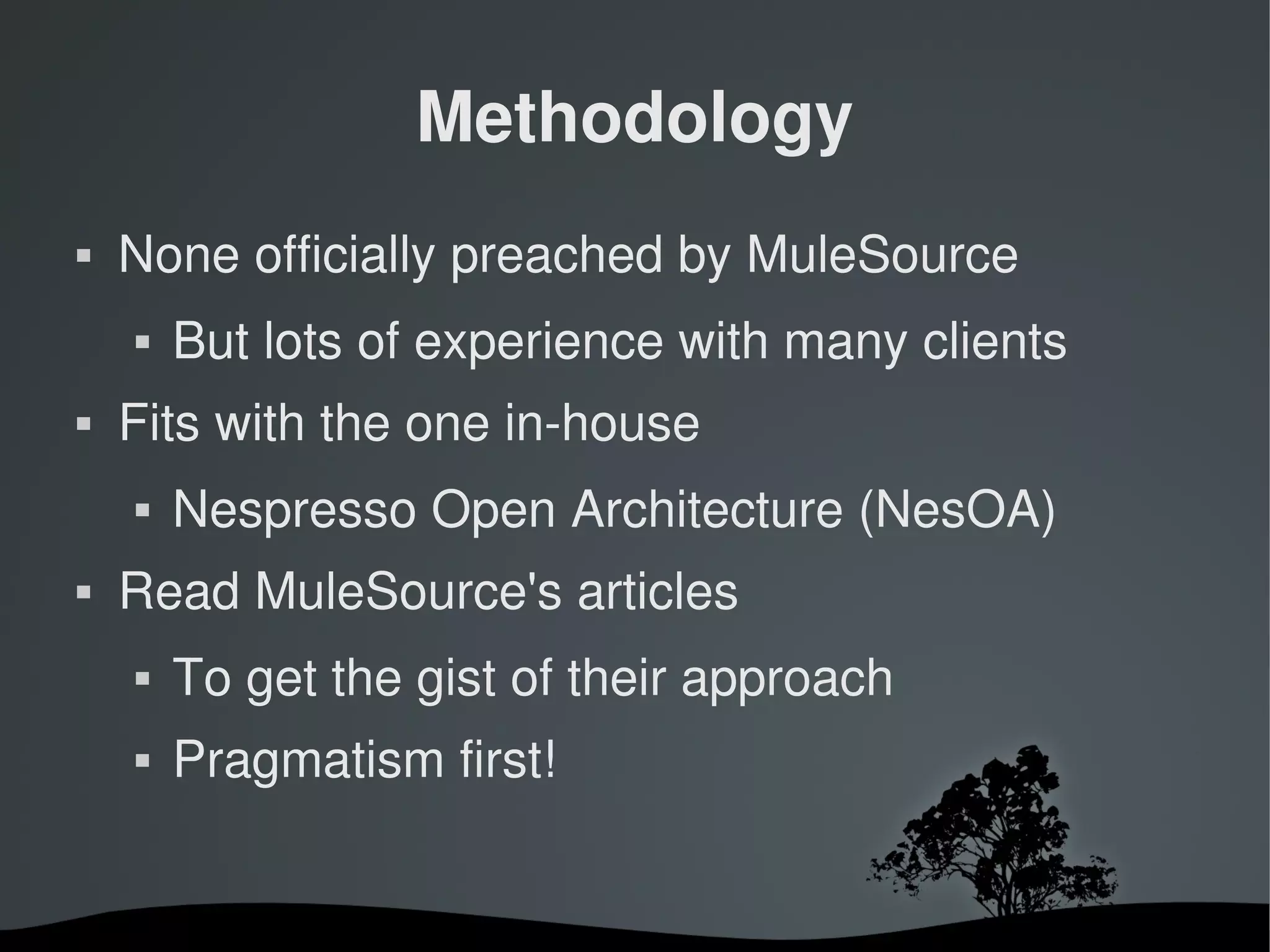

114. Methodology
 None officially preached by MuleSource
 But lots of experience with many clients
 Fits with the one in­house
 Nespresso Open Architecture (NesOA)
 Read MuleSource's articles
 To get the gist of their approach
 Pragmatism first!

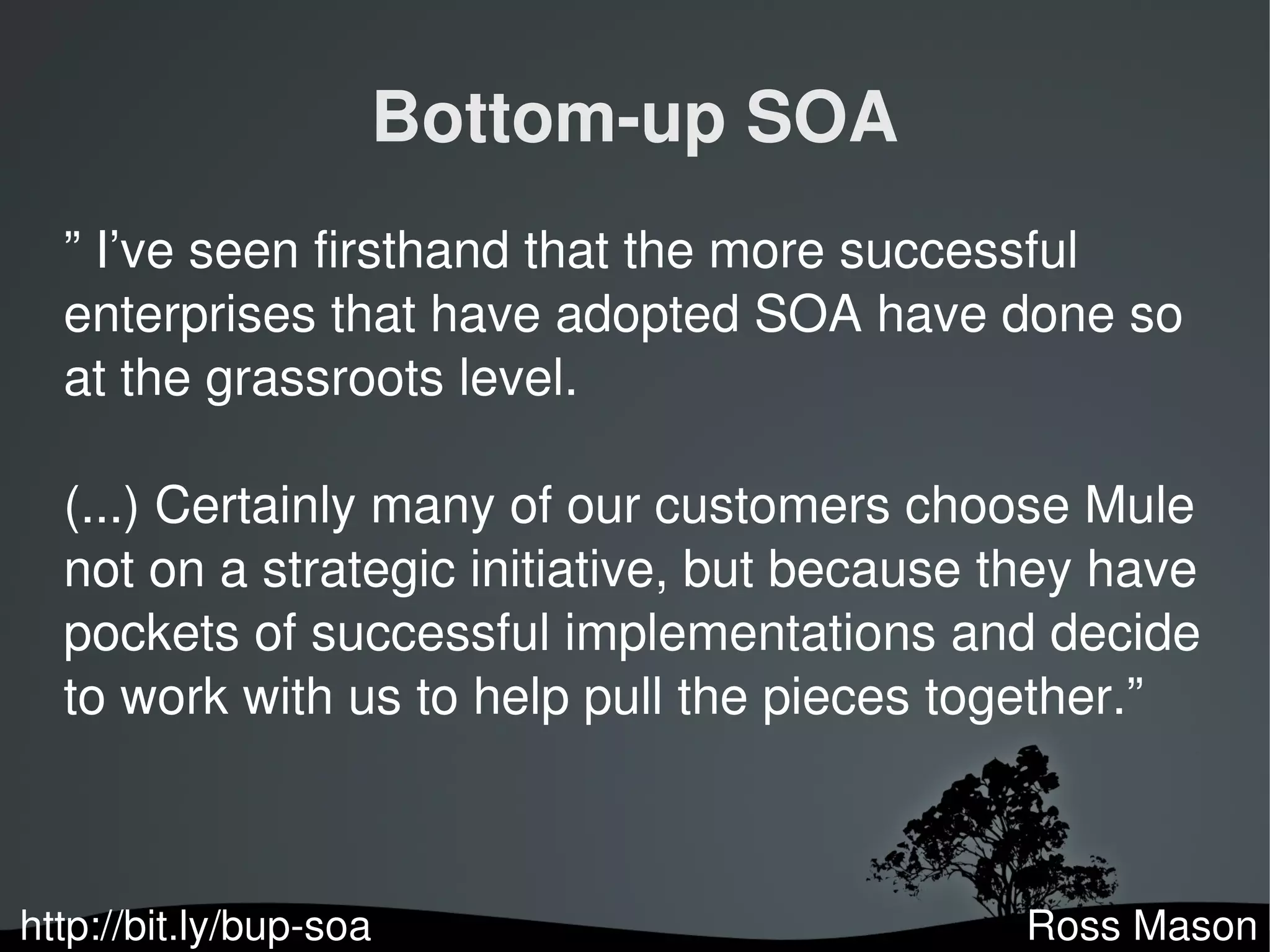

115. Bottom­up SOA
” I’ve seen firsthand that the more successful
enterprises that have adopted SOA have done so
at the grassroots level.
(...) Certainly many of our customers choose Mule
not on a strategic initiative, but because they have
pockets of successful implementations and decide
to work with us to help pull the pieces together.”
http://bit.ly/bup­soa
Ross Mason

116. Time to hit it!

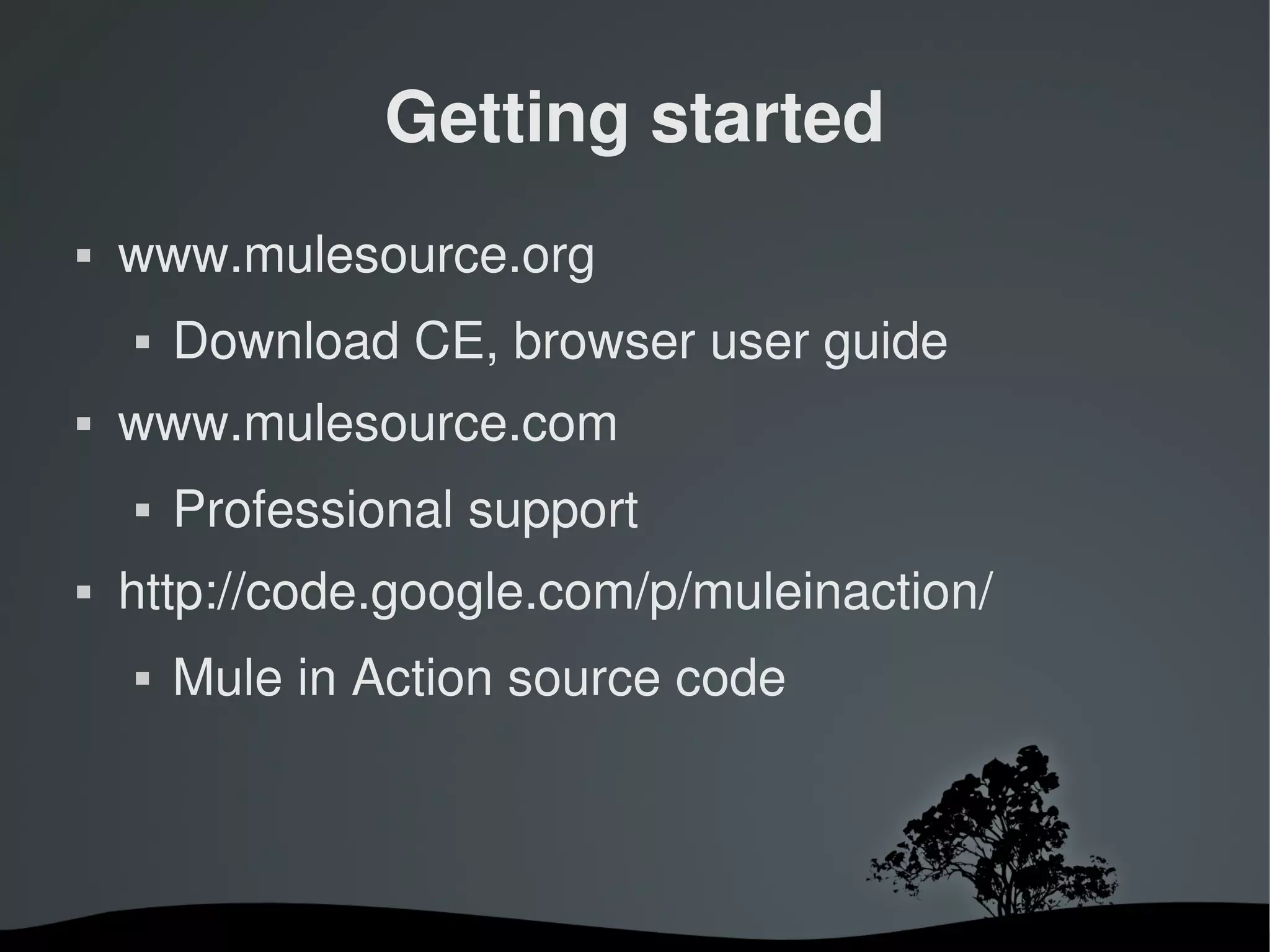

117. Getting started
 www.mulesource.org
 Download CE, browser user guide
 www.mulesource.com
 Professional support
 http://code.google.com/p/muleinaction/
 Mule in Action source code

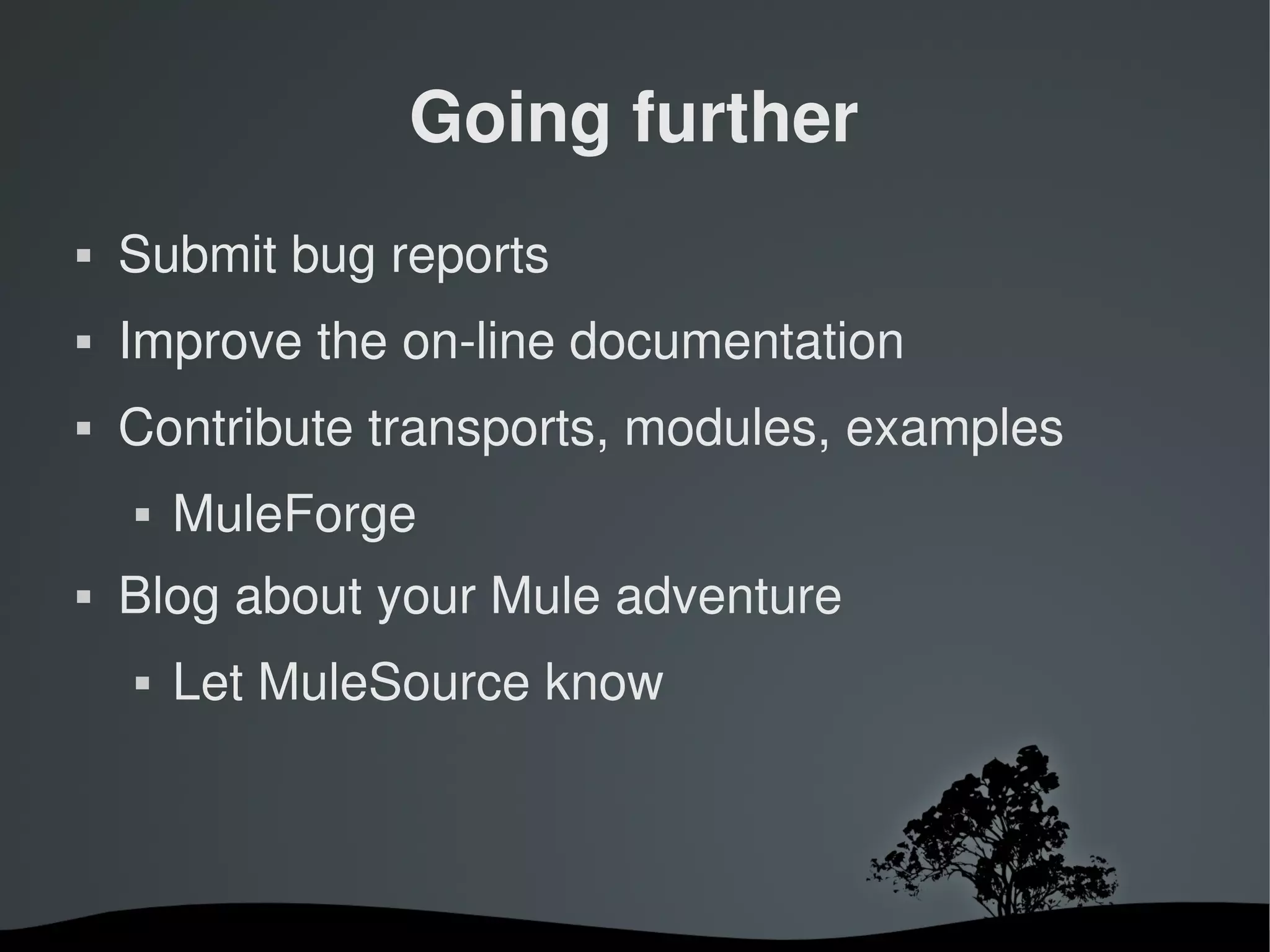

118. Going further
 Submit bug reports
 Improve the on­line documentation
 Contribute transports, modules, examples
 MuleForge
 Blog about your Mule adventure
 Let MuleSource know

119. Books

120. Thank you!
 VIJUG
 Manning Publications
 VIJUG's sponsors
 ... and you!

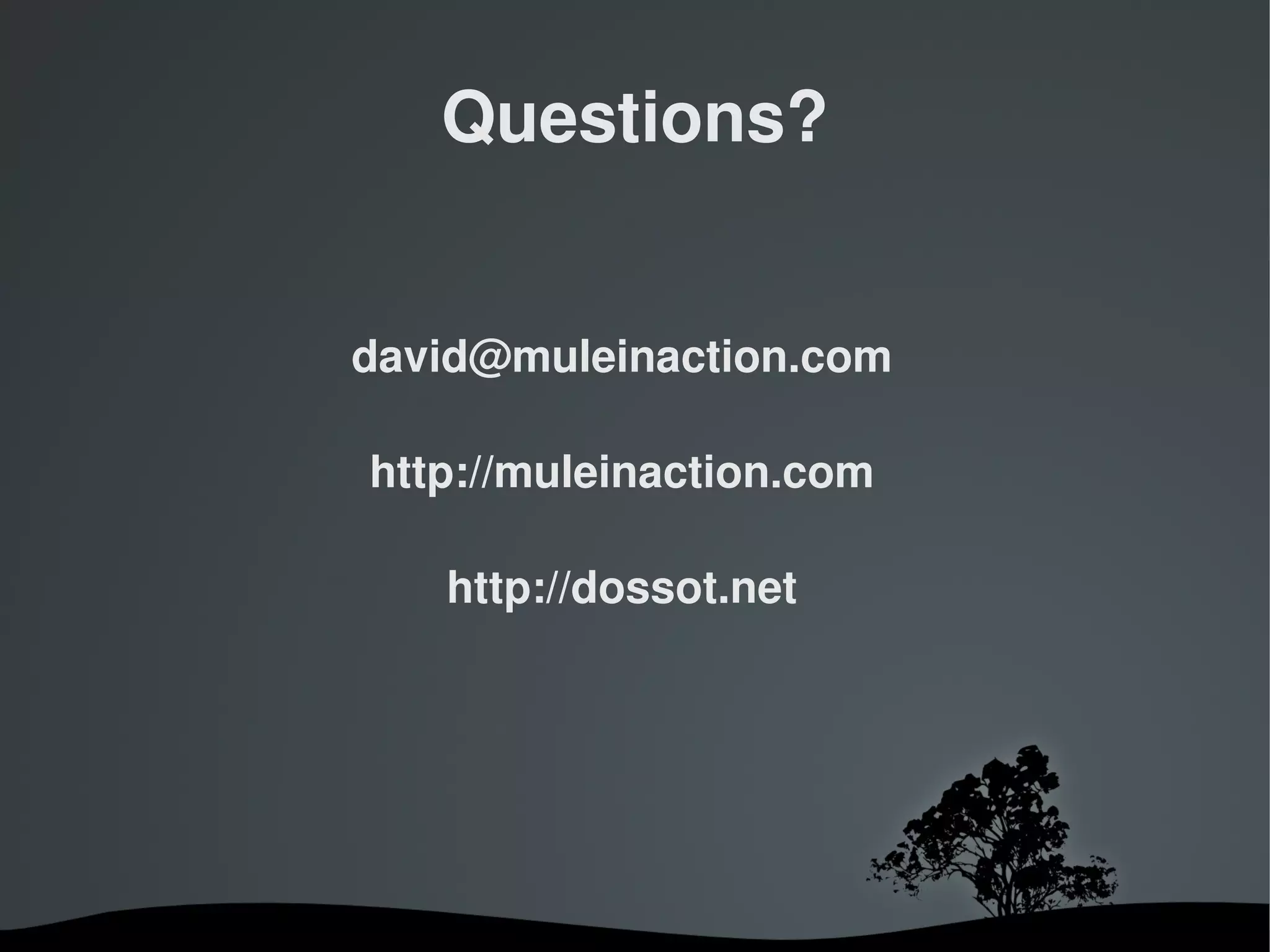

121. Questions?
david@muleinaction.com
http://muleinaction.com
http://dossot.net
