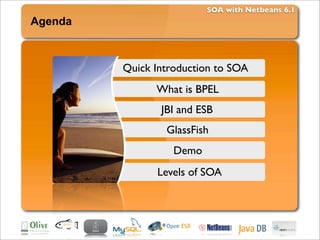

Agenda
Quick Introduction to SOA
What is BPEL
JBI and ESB
GlassFish
Demo
Levels of SOA

3. SOA with Netbeans 6.1
Quick Introduction to SOA

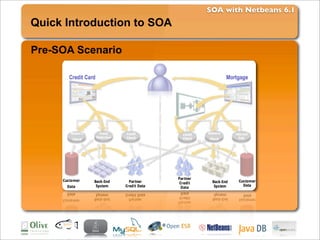

Pre-SOA Scenario

4. SOA with Netbeans 6.1
Quick Introduction to SOA

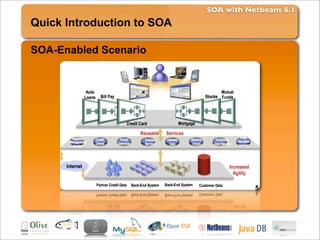

SOA-Enabled Scenario

5. SOA with Netbeans 6.1

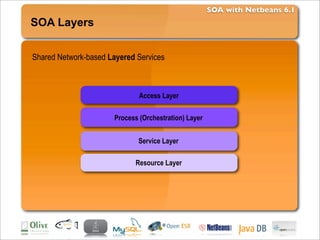

SOA Layers
Shared Network-based Layered Services
Access Layer
Process (Orchestration) Layer
Service Layer
Resource Layer

6. SOA with Netbeans 6.1

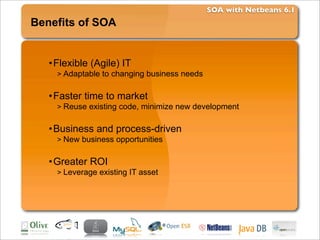

Benefits of SOA
• Flexible (Agile) IT
> Adaptable to changing business needs
• Faster time to market
> Reuse existing code, minimize new development
• Business and process-driven
> New business opportunities
• Greater ROI
> Leverage existing IT asset

7. SOA with Netbeans 6.1

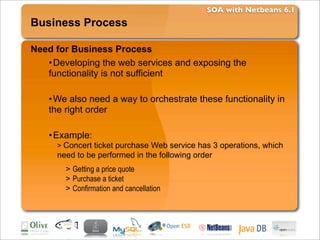

Business Process
Need for Business Process
• Developing the web services and exposing the
functionality is not sufficient
• We also need a way to orchestrate these functionality in
the right order
• Example:
> Concert ticket purchase Web service has 3 operations, which
need to be performed in the following order
> Getting a price quote
> Purchase a ticket
> Confirmation and cancellation

8. SOA with Netbeans 6.1

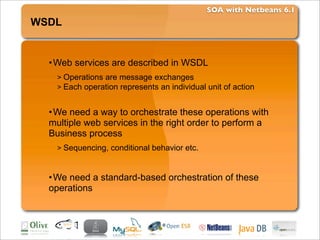

WSDL
• Web services are described in WSDL
> Operations are message exchanges
> Each operation represents an individual unit of action
• We need a way to orchestrate these operations with
multiple web services in the right order to perform a
Business process
> Sequencing, conditional behavior etc.
• We need a standard-based orchestration of these
operations

9. SOA with Netbeans 6.1

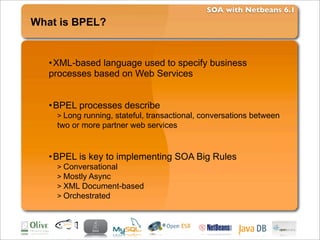

What is BPEL?
• XML-based language used to specify business
processes based on Web Services
• BPEL processes describe
> Long running, stateful, transactional, conversations between
two or more partner web services
• BPEL is key to implementing SOA Big Rules
> Conversational
> Mostly Async
> XML Document-based
> Orchestrated

10. SOA with Netbeans 6.1

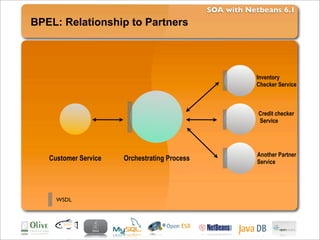

BPEL: Relationship to Partners
Inventory
Checker Service
Credit checker
Service
Another Partner
Customer Service Orchestrating Process Service
WSDL

11. SOA with Netbeans 6.1

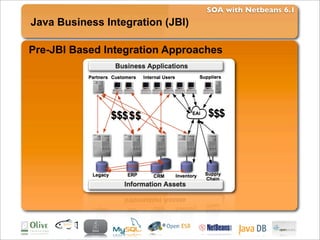

Java Business Integration (JBI)
Pre-JBI Based Integration Approaches

12. SOA with Netbeans 6.1

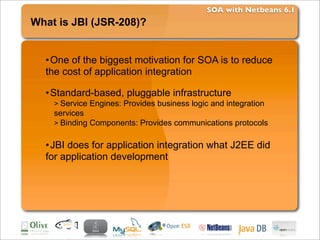

What is JBI (JSR-208)?
• One of the biggest motivation for SOA is to reduce
the cost of application integration
• Standard-based, pluggable infrastructure
> Service Engines: Provides business logic and integration
services
> Binding Components: Provides communications protocols
• JBI does for application integration what J2EE did
for application development

13. SOA with Netbeans 6.1

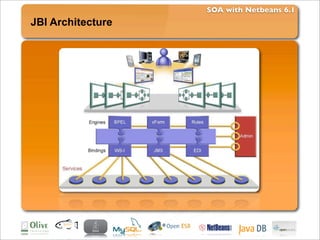

JBI Architecture

14. SOA with Netbeans 6.1

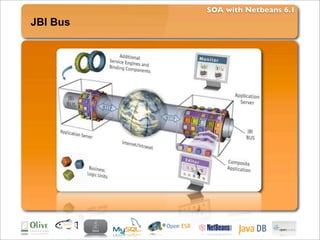

JBI Bus

15. SOA with Netbeans 6.1

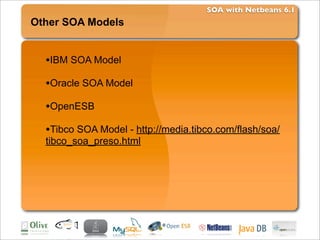

Other SOA Models
•IBM SOA Model
•Oracle SOA Model
•OpenESB
•Tibco SOA Model - http://media.tibco.com/flash/soa/
tibco_soa_preso.html

16. SOA with Netbeans 6.1
GlassFish
It’s an Open Source Application Server.
Below colored dots represent active users.

17. SOA with Netbeans 6.1
Demo
I am using Netbeans IDE to Develop SOA

18. SOA with Netbeans 6.1

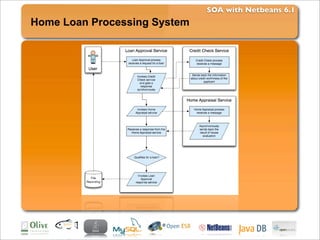

Home Loan Processing System

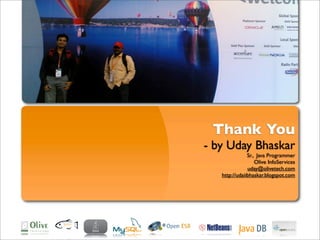

19. Thank You
