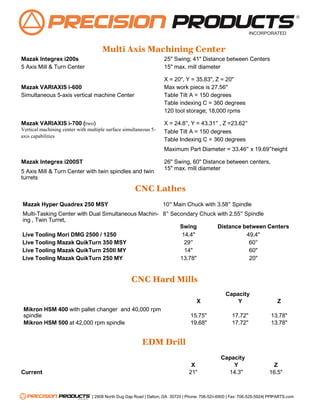

1. Mazak Integrex i200s 25" Swing; 41" Distance between Centers
5 Axis Mill & Turn Center 15" max. mill diameter
X = 20", Y = 35.83", Z = 20"
Mazak VARIAXIS i-600 Max work piece is 27.56"
Simultaneous 5-axis vertical machine Center Table Tilt A = 150 degrees
Table indexing C = 360 degrees
120 tool storage; 18,000 rpms
X = 24.8”, Y = 43.31” , Z =23.62”
Table Tilt A = 150 degrees
Table Indexing C = 360 degrees
Maximum Part Diameter = 33.46” x 19.69”height
26" Swing, 60" Distance between centers,
Mazak VARIAXIS i-700 (two)
Vertical machining center with multiple surface simultaneous 5-
axis capabilities
Mazak Integrex i200ST
5 Axis Mill & Turn Center with twin spindles and twin
turrets
15" max. mill diameter
Multi Axis Machining Center
CNC Hard Mills
Capacity
X Y Z
Mikron HSM 400 with pallet changer and 40,000 rpm
spindle 15.75" 17.72" 13.78"
Mikron HSM 500 at 42,000 rpm spindle 19.68" 17.72" 13.78"
EDM Drill
Capacity
X Y Z
Current 21" 14.3" 16.5"
CNC Lathes
| 2908 North Dug Gap Road | Dalton, GA 30720 | Phone: 706-529-6900 | Fax: 706-529-5924| PPIPARTS.com
Swing Distance between Centers
Live Tooling Mori DMG 2500 / 1250 14.4" 49.4"
Live Tooling Mazak QuikTurn 350 MSY 29” 60”
Live Tooling Mazak QuikTurn 250II MY 14" 60"
Live Tooling Mazak QuikTurn 250 MY 13.78" 20"
Mazak Hyper Quadrex 250 MSY 10” Main Chuck with 3.58” Spindle
Multi-Tasking Center with Dual Simultaneous Machin-
ing , Twin Turret,
8” Secondary Chuck with 2.55” Spindle

2. CNC Mills
Capacity
X Y Z
22.05" 25.2" 22.2"
40" 20" 24"
21.65" 13.78" 15.75"
41" 20" 20"
Mazak HCN-4000 Horizontal Mill w pallet changer
Fadal XT 15 with 4th axis
Fadal 4020 with 4th axis
Mazak Nexus 510C with 4th axis
Mazak Nexus 510C ii with 4th axis (x 2)
Mazak Nexus FJU 35/80E with 4th axis
41" 20" 20"
Conventional Machines
Capacity
X Y Z
Harig Grinder 16.25" 6" 14"
540 J&S Grinder 11.5" 6" 9.25"
Chevalier Auto Grinder 2060 60" 20" 16"
Mitek MT 2060 ASD 60” 20”
Acer AGS 2040 40” 20”

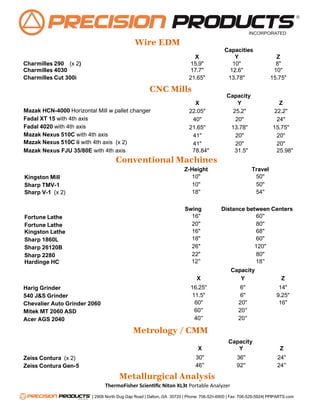

Wire EDM
Capacities
X Y Z
15.9" 10" 8"
17.7" 12.6" 10"
Charmilles 290 (x 2)
Charmilles 4030
Charmilles Cut 300i 21.65" 13.78" 15.75"
Capacity
X Y Z
Zeiss Contura (x 2) 30" 36" 24"
Zeiss Contura Gen-5 46” 92” 24”
Metallurgical Analysis
ThermoFisher Scientific Niton XL3t Portable Analyzer
Metrology / CMM
| 2908 North Dug Gap Road | Dalton, GA 30720 | Phone: 706-529-6900 | Fax: 706-529-5924| PPIPARTS.com
Z-Height Travel
Kingston Mill 10" 50"
Sharp TMV-1 10" 50"
Sharp V-1 (x 2) 18" 54"
Swing Distance between Centers
Fortune Lathe 16" 60"
Fortune Lathe 20" 80"
Kingston Lathe 16" 68"
Sharp 1860L 18" 60"
Sharp 26120B 26" 120"
Sharp 2280 22" 80"
Hardinge HC 12” 18”
78.84" 31.5" 25.98"
