1. Rumba
A Python framework enabling large scale
experimentation with the Recursive InterNetwork
Architecture (RINA)

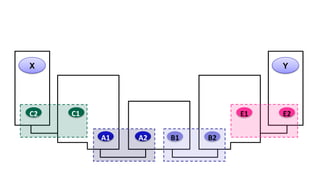

2. X Y
C2 C1
A1 A2 B1 B2
E1 E2

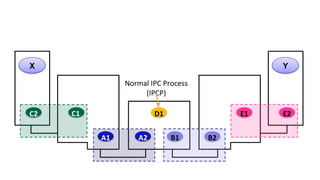

3. X Y
C2 C1
A1 A2 B1 B2
E1 E2
Normal IPC Process
(IPCP)
D1

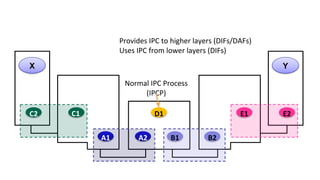

4. X Y
C2 C1
A1 A2 B1 B2
E1 E2
Provides IPC to higher layers (DIFs/DAFs)
Uses IPC from lower layers (DIFs)
Normal IPC Process
(IPCP)
D1

5. X Y
A1 A2 B1 B2
C2 C1 E1 E2D1
IPCP D1 registers in 2 DIFs (A, B)
D1/A2 D1/B1

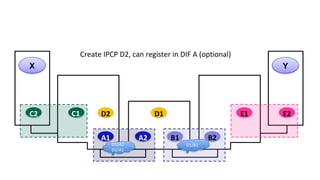

6. X Y
A1 A2 B1 B2
C2 C1 E1 E2D1D2
D1/A2
D2/A1
D1/B1
Create IPCP D2, can register in DIF A (optional)

7. X Y
A1 A2 B1 B2
C2 C1 E1 E2D1D2
IPCP D2 allocates a flow with D1
D2 can now send messages to D1
D1/A2
D2/A1
D1/B1

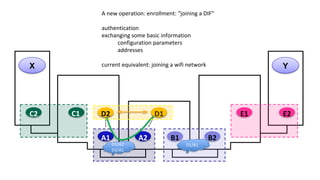

8. X Y
A1 A2 B1 B2
C2 C1 E1 E2D1D2
A new operation: enrollment: “joining a DIF”
authentication
exchanging some basic information
configuration parameters
addresses
current equivalent: joining a wifi network
D1D2
D1/A2
D2/A1
D1/B1

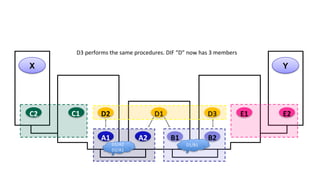

9. X Y
A1 A2 B1 B2
C2 C1 E1 E2
D3 performs the same procedures. DIF “D” now has 3 members
D1 D3D2
D1/A2
D2/A1
D1/B1

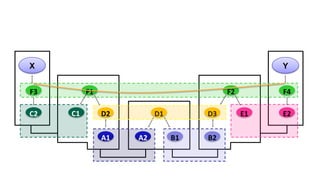

10. X Y
A1 A2 B1 B2
C2 C1 E1 E2
F1 F2F3 F4
D1 D3D2

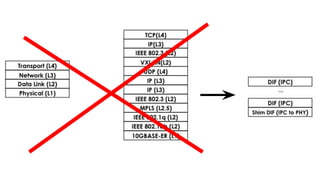

12. Rumba core

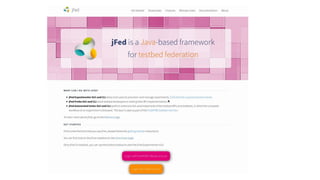

jFed plugin
Emulab plugin
QEMU VMs
plugin
IRATI plugin
rlite plugin
Ouroboros
plugin
User program

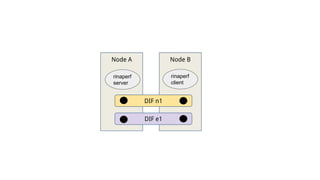

14. Node A Node B
DIF e1
DIF n1
rinaperf
client
rinaperf
server

15. #!/usr/bin/env python
# An example script using the rumba package
from rumba.model import *
# import testbed plugins
import rumba.testbeds.emulab as emulab
import rumba.testbeds.jfed as jfed
import rumba.testbeds.qemu as qemu
# import prototype plugins
import rumba.prototypes.ouroboros as our
import rumba.prototypes.rlite as rl
import rumba.prototypes.irati as irati
import rumba.log as log
log.set_logging_level('DEBUG')
n1 = NormalDIF("n1")
n1.add_policy("rmt.pff", "lfa")
n1.add_policy("security-manager", "passwd")
e1 = ShimEthDIF("e1")
a = Node("A",
difs = [n1, e1],
dif_registrations = {n1 : [e1]})
b = Node("B",
difs = [e1, n1],
dif_registrations = {n1 : [e1]},
client = True)
tb = jfed.Testbed(exp_name = "example1",
username = "user1",
cert_file = "/home/user1/cert.pem")
exp = rl.Experiment(tb, nodes = [a, b])
print(exp)
try:
exp.swap_in()
exp.bootstrap_prototype()
c1 = Client("rinaperf",
options ="-t perf -s 1000 -c 10000")
s1 = Server("rinaperf", arrival_rate=2,
mean_duration=5,
options = "-l",
nodes = [a],
clients = [c1])
sb = StoryBoard(exp, 3600, servers = [s1])
sb.start()
finally:
exp.swap_out()

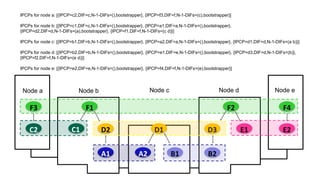

16. C2 C1 E1 E2
F1 F2F3 F4
D1 D3D2
A1 A2 B1 B2
IPCPs for node a: [{IPCP=c2,DIF=c,N-1-DIFs=(),bootstrapper}, {IPCP=f3,DIF=f,N-1-DIFs=(c),bootstrapper}]
IPCPs for node b: [{IPCP=c1,DIF=c,N-1-DIFs=(),bootstrapper}, {IPCP=a1,DIF=a,N-1-DIFs=(),bootstrapper},
{IPCP=d2,DIF=d,N-1-DIFs=(a),bootstrapper}, {IPCP=f1,DIF=f,N-1-DIFs=(c d)}]
IPCPs for node c: [{IPCP=b1,DIF=b,N-1-DIFs=(),bootstrapper}, {IPCP=a2,DIF=a,N-1-DIFs=(),bootstrapper}, {IPCP=d1,DIF=d,N-1-DIFs=(a b)}]
IPCPs for node d: [{IPCP=b2,DIF=b,N-1-DIFs=(),bootstrapper}, {IPCP=e1,DIF=e,N-1-DIFs=(),bootstrapper}, {IPCP=d3,DIF=d,N-1-DIFs=(b)},
{IPCP=f2,DIF=f,N-1-DIFs=(e d)}]
IPCPs for node e: [{IPCP=e2,DIF=e,N-1-DIFs=(),bootstrapper}, {IPCP=f4,DIF=f,N-1-DIFs=(e),bootstrapper}]
Node a Node b Node c Node d Node e

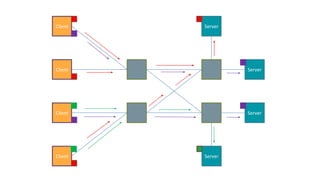

17. Client Server
Client
Client
Client
Server
Server
Server

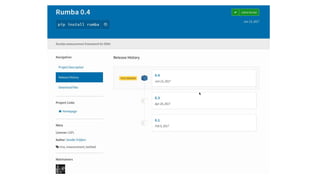

20. Node DNode A Node B
DIF e1
Node C
DIF e2
DIF n1
DIF e3
DIF n2

21. Sander Vrijders (sander.vrijders@ugent.be)
Vincenzo Maffione (v.maffione@nextworks.it)
Marco Capitani (m.capitani@nextworks.it)
Dimitri Staessens (dimitri.staessens@ugent.be)
