4 Pin / G24 Socket CFL to LED Conversion for Canned Lights
The document provides instructions for bypassing a 4-pin CFL ballast for LED retrofit installations, detailing the wiring diagram and necessary components such as wire connectors. It highlights the compliance with California Title 24 regulations and includes a link to a how-to video for further guidance. The process involves reusing certain wires and correctly connecting the LED to the existing socket.
More Related Content
Recently uploaded
4 Pin / G24 Socket CFL to LED Conversion for Canned Lights

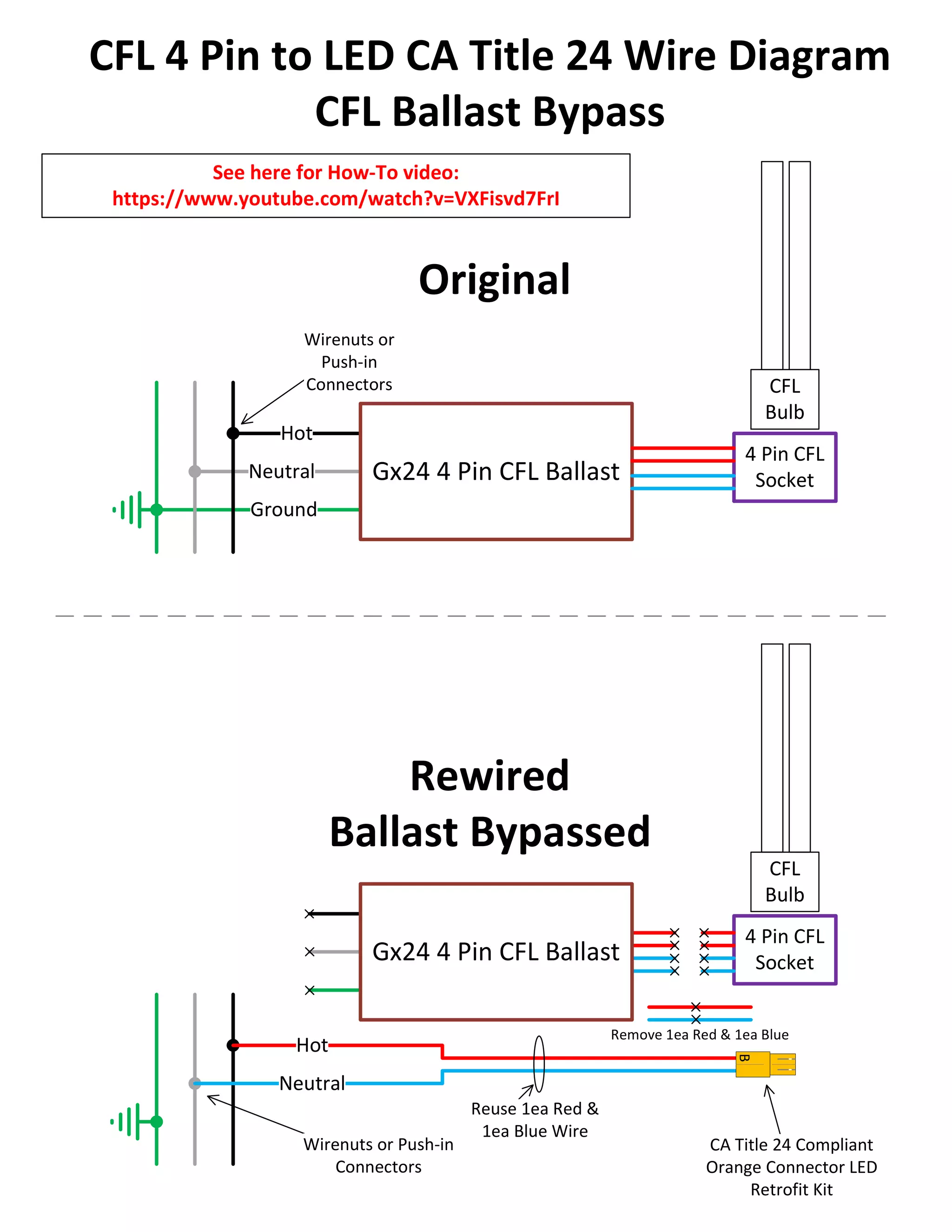

- 1. CFL 4 Pinto LED CA Title 24 Wire Diagram CFL Ballast Bypass 4 Pin CFL Socket CFL Bulb Wirenuts or Push-in Connectors Gx24 4 Pin CFL Ballast Remove 1ea Red & 1ea Blue Hot Neutral B Rewired Ballast Bypassed Hot Neutral 4 Pin CFL Socket CFL Bulb Ground Gx24 4 Pin CFL Ballast Wirenuts or Push-in Connectors Original CA Title 24 Compliant Orange Connector LED Retrofit Kit Reuse 1ea Red & 1ea Blue Wire See here for How-To video: https://www.youtube.com/watch?v=VXFisvd7FrI
