2. mORMot & Friends
Arnaud Bouchez

3. Opinions
Ahead

4. Great times for us

5. Great times for us
Delphi is Hype
Delphi + Pascal > Ruby
If you say Delphi is dead,
YOU are dead!

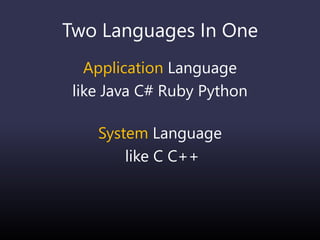

6. Two Languages In One
Application Language
like Java C# Ruby Python
System Language
like C C++

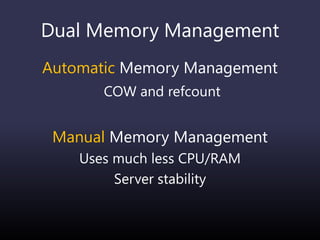

7. Dual Memory Management
Automatic Memory Management
COW and refcount
Manual Memory Management
Uses much less CPU/RAM
Server stability

8. Dual Memory Management
Automatic Memory Management
COW and refcount
Manual Memory Management
Uses much less CPU/RAM
Server stability
ARC

9. New opportunities
New platforms
New compilers
Great communities
Third parties
Open Source

10. Unleash your power
Decades of experience
Business knowledge
Productive tools

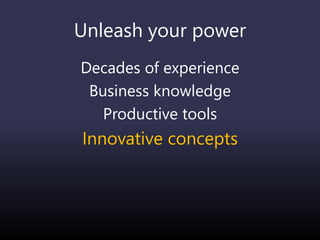

11. Unleash your power
Decades of experience
Business knowledge
Productive tools
Innovative concepts

12. mORMot & Friends
Open Source
Architecture & Design
Cross-Cutting features

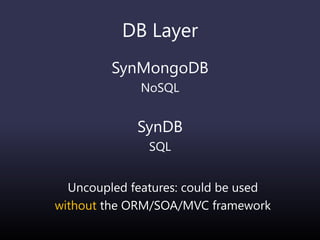

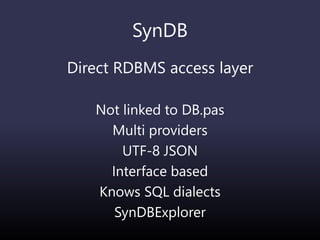

DB Layer
ORM/ODM/SOA/MVC
Cross platform
Q&A

13. mORMot & Friends
Open Source
Architecture & Design
Cross-Cutting features
DB Layer
ORM/ODM/SOA/MVC
Cross platform
Q&A

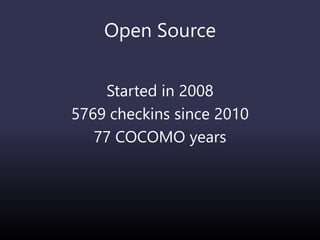

14. Open Source
Started in 2008
5769 checkins since 2010
77 COCOMO years

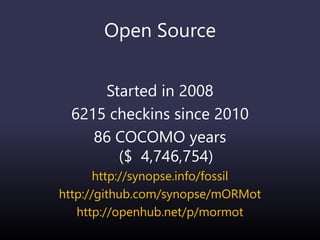

15. Open Source
Started in 2008
6215 checkins since 2010
86 COCOMO years
($ 4,746,754)
http://synopse.info/fossil
http://github.com/synopse/mORMot
http://openhub.net/p/mormot

16. LOC
Code 324,415
Comments 75,913
Blanks 34,197
Total 434,525
http://synopse.info/fossil
http://github.com/synopse/mORMot
http://openhub.net/p/mormot

17. Doc as Specs
Exhaustive
Maintained
Open Source
http://synopse.info/files/html
2100 pages of pdf
SynProject powered

18. Test Driven
27,019,014 tests
Write the test
Fail the test
Write the implementation
Pass the test

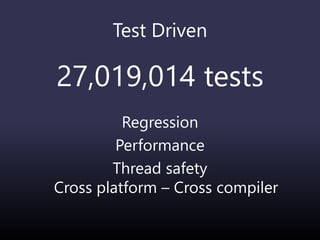

19. Test Driven
27,019,014 tests
Regression
Performance
Thread safety
Cross platform – Cross compiler

20. Test Driven
27,019,014

21. http://synopse.info/forum
Feedback and support
Topics 3,603
Posts 22,112
Registered users 1,662

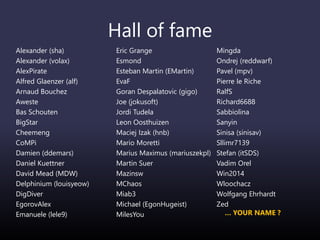

22. Hall of fame
Alexander (sha)
Alexander (volax)
AlexPirate
Alfred Glaenzer (alf)
Arnaud Bouchez
Aweste
Bas Schouten
BigStar
Cheemeng
CoMPi
Damien (ddemars)
Daniel Kuettner
David Mead (MDW)
Delphinium (louisyeow)
DigDiver
EgorovAlex
Emanuele (lele9)
Eric Grange
Esmond
Esteban Martin (EMartin)
EvaF
Goran Despalatovic (gigo)
Joe (jokusoft)
Jordi Tudela
Leon Oosthuizen
Maciej Izak (hnb)
Mario Moretti
Marius Maximus (mariuszekpl)
Martin Suer
Mazinsw
MChaos
Miab3
Michael (EgonHugeist)
MilesYou
Mingda
Ondrej (reddwarf)
Pavel (mpv)
Pierre le Riche
RalfS
Richard6688
Sabbiolina
Sanyin
Sinisa (sinisav)
Sllimr7139
Stefan (itSDS)
Vadim Orel
Win2014
Wloochacz
Wolfgang Ehrhardt
Zed

23. Hall of fame
Alexander (sha)
Alexander (volax)
AlexPirate
Alfred Glaenzer (alf)
Arnaud Bouchez
Aweste
Bas Schouten
BigStar
Cheemeng
CoMPi
Damien (ddemars)
Daniel Kuettner
David Mead (MDW)
Delphinium (louisyeow)
DigDiver
EgorovAlex
Emanuele (lele9)
Eric Grange
Esmond
Esteban Martin (EMartin)
EvaF
Goran Despalatovic (gigo)
Joe (jokusoft)
Jordi Tudela
Leon Oosthuizen
Maciej Izak (hnb)
Mario Moretti
Marius Maximus (mariuszekpl)
Martin Suer
Mazinsw
MChaos
Miab3
Michael (EgonHugeist)
MilesYou
Mingda
Ondrej (reddwarf)
Pavel (mpv)
Pierre le Riche
RalfS
Richard6688
Sabbiolina
Sanyin
Sinisa (sinisav)
Sllimr7139
Stefan (itSDS)
Vadim Orel
Win2014
Wloochacz
Wolfgang Ehrhardt
Zed
… YOUR NAME ?

24. mORMot & Friends
Open Source
Architecture & Design
Cross-Cutting features
DB Layer
ORM/ODM/SOA/MVC
Cross platform
Q&A

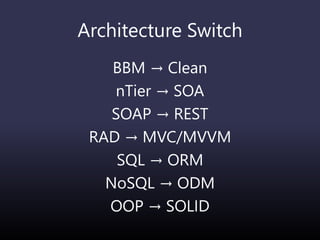

25. Architecture Switch
BBM → Clean
nTier → SOA
SOAP → REST
RAD → MVC/MVVM
SQL → ORM
NoSQL → ODM
OOP → SOLID

26. Architecture Switch
### → ###
… see corresponding
set of Slides

27. Design with Interfaces
What, not how
A type that comprises
abstract virtual methods
Rely on abstraction
rather than implementation

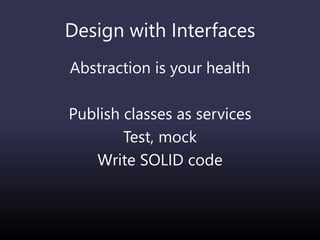

28. Design with Interfaces
Abstraction is your health
Publish classes as services
Test, mock
Write SOLID code

29. Design with Interfaces
Abstraction is your health
Publish classes as services
Test, mock
Write SOLID code
and manage memory for you

30. Design with Interfaces
Abstraction is your health
Publish classes as services
Test, mock
Write SOLID code
and manage memory for you
unless zeroing weak pointers

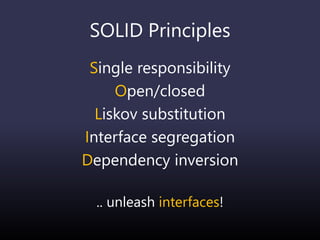

31. SOLID Principles
Single responsibility
Open/closed
Liskov substitution
Interface segregation
Dependency inversion
.. unleash interfaces!

32. mORMot & Friends
Open Source
Architecture & Design
Cross-Cutting features
DB Layer
ORM/ODM/SOA/MVC
Cross platform
Q&A

33. Cross Cutting Features
UTF-8 JSON
TDynArray
TDocVariant
Logging
Testing
Compression
Crypto ECC
PDF
Mustache

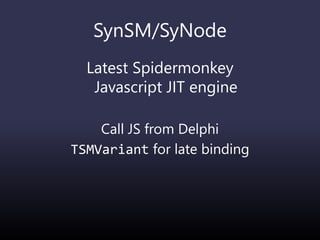

SpiderMonkey
Uncoupled features: could be used
without the ORM/SOA/MVC framework

34. SynCommons
UTF-8 JSON
From the ground up
With objects, records,
dynamic arrays, variants, any value
Performance and integration

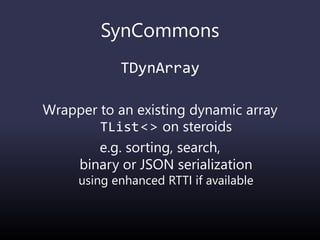

35. SynCommons
TDynArray
Wrapper to an existing dynamic array
TList<> on steroids
e.g. sorting, search,
binary or JSON serialization
using enhanced RTTI if available

36. SynCommons
TDynArray
In conjunction with records and variants:
value objects
data transfer objects (DTO)

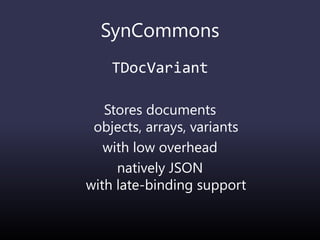

37. SynCommons
TDocVariant
Stores documents
objects, arrays, variants
with low overhead
natively JSON
with late-binding support

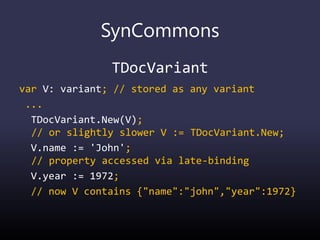

38. SynCommons
TDocVariant
var V: variant; // stored as any variant
...
TDocVariant.New(V);
// or slightly slower V := TDocVariant.New;
V.name := 'John';
// property accessed via late-binding
V.year := 1972;
// now V contains {"name":"john","year":1972}

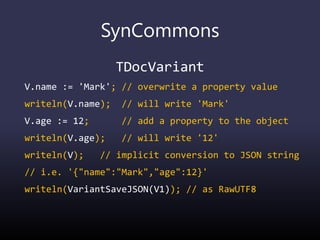

39. SynCommons
TDocVariant
V.name := 'Mark'; // overwrite a property value
writeln(V.name); // will write 'Mark'
V.age := 12; // add a property to the object
writeln(V.age); // will write '12'
writeln(V); // implicit conversion to JSON string
// i.e. '{"name":"Mark","age":12}'
writeln(VariantSaveJSON(V1)); // as RawUTF8

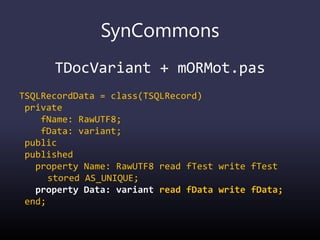

40. SynCommons
TDocVariant + mORMot.pas
TSQLRecordData = class(TSQLRecord)
private
fName: RawUTF8;
fData: variant;
public
published
property Name: RawUTF8 read fTest write fTest
stored AS_UNIQUE;
property Data: variant read fData write fData;
end;

41. TDocVariant + mORMot.pas
property Data: variant read fData write fData;
We store a TDocVariant in Data
to mutate a SQL database
into a NoSQL engine

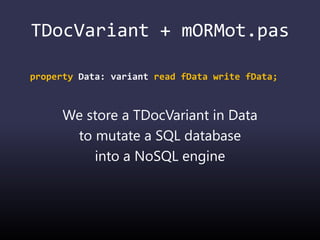

42. TDocVariant + mORMot.pas
property Data: variant read fData write fData;
We store a TDocVariant in Data
to mutate a SQL database
into a NoSQL engine

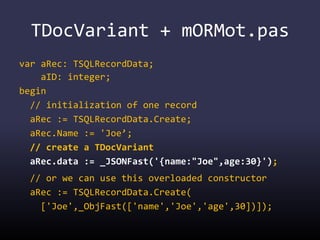

43. TDocVariant + mORMot.pas
var aRec: TSQLRecordData;
aID: integer;
begin
// initialization of one record
aRec := TSQLRecordData.Create;
aRec.Name := 'Joe’;
// create a TDocVariant
aRec.data := _JSONFast('{name:"Joe",age:30}');
// or we can use this overloaded constructor
aRec := TSQLRecordData.Create(
['Joe',_ObjFast(['name','Joe','age',30])]);

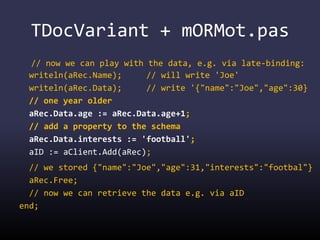

44. TDocVariant + mORMot.pas
// now we can play with the data, e.g. via late-binding:
writeln(aRec.Name); // will write 'Joe'
writeln(aRec.Data); // write '{"name":"Joe","age":30}
// one year older
aRec.Data.age := aRec.Data.age+1;
// add a property to the schema
aRec.Data.interests := 'football';
aID := aClient.Add(aRec);
// we stored {"name":"Joe","age":31,"interests":"footbal"}
aRec.Free;
// now we can retrieve the data e.g. via aID
end;

45. TDocVariant + mORMot.pas
property Data: variant read fData write fData;
Data will be stored as TEXT
in the underlying RDBMS

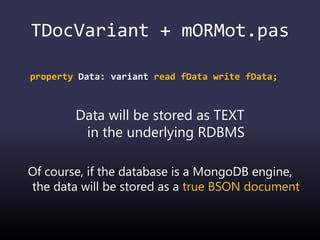

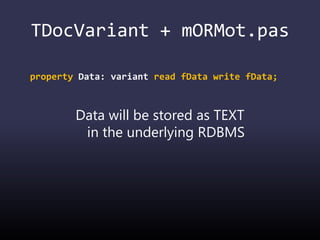

46. TDocVariant + mORMot.pas
property Data: variant read fData write fData;
Data will be stored as TEXT
in the underlying RDBMS
Of course, if the database is a MongoDB engine,
the data will be stored as a true BSON document

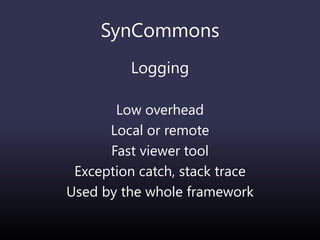

47. SynCommons
Logging
Low overhead
Local or remote
Fast viewer tool
Exception catch, stack trace
Used by the whole framework

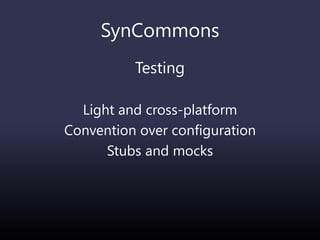

48. SynCommons
Testing
Light and cross-platform
Convention over configuration
Stubs and mocks

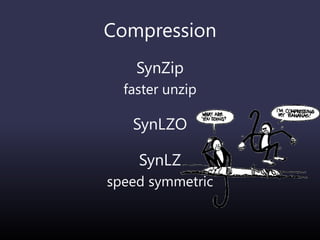

49. Compression
SynZip
faster unzip
SynLZO
SynLZ
speed symmetric

50. SynCrtSock
Cross-platform Network library
Socket WinHTTP WinINet clients
Optimized HTTP server
IOCP driven
http.sys kernel-mode
WebSockets

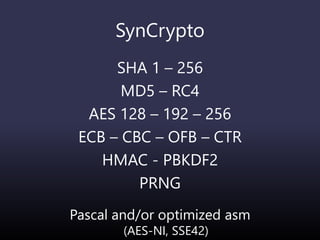

51. SynCrypto
SHA 1 – 256
MD5 – RC4
AES 128 – 192 – 256
ECB – CBC – OFB – CTR
HMAC - PBKDF2
PRNG
Pascal and/or optimized asm
(AES-NI, SSE42)

52. SynECC
Certificate-based
public-key cryptography
using cutting edge ECC-secp256r1
For data signature,
content encryption
and safe transmission

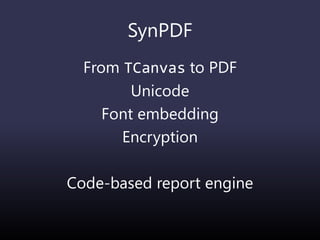

53. SynPDF
From TCanvas to PDF
Unicode
Font embedding
Encryption

54. SynPDF
From TCanvas to PDF
Unicode
Font embedding
Encryption
Code-based report engine

55. SynMustache
Mustache template system
Data context as TDocVariant
UTF-8 JSON
With extensions

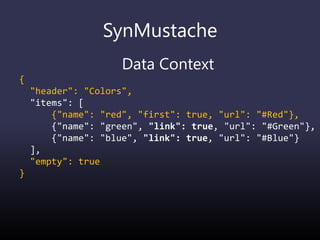

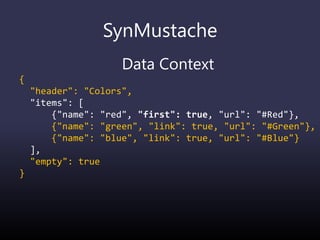

56. SynMustache
Data Context
{
"header": "Colors",
"items": [
{"name": "red", "first": true, "url": "#Red"},
{"name": "green", "link": true, "url": "#Green"},
{"name": "blue", "link": true, "url": "#Blue"}
],
"empty": true
}

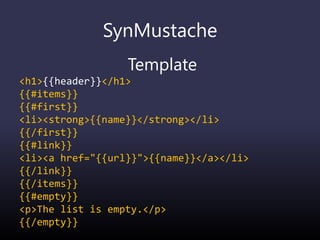

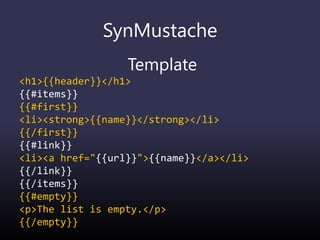

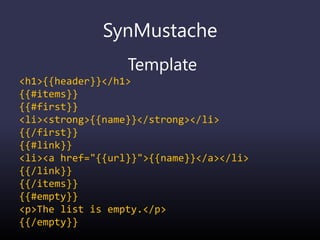

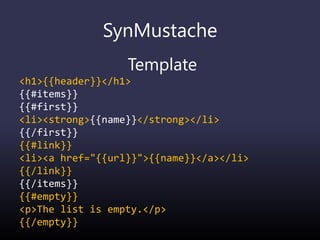

57. SynMustache
Template
<h1>{{header}}</h1>
{{#items}}
{{#first}}
<li><strong>{{name}}</strong></li>
{{/first}}
{{#link}}
<li><a href="{{url}}">{{name}}</a></li>
{{/link}}
{{/items}}
{{#empty}}
<p>The list is empty.</p>
{{/empty}}

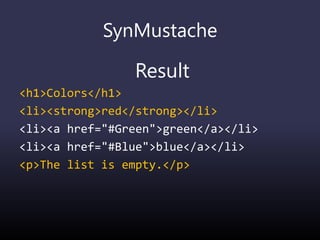

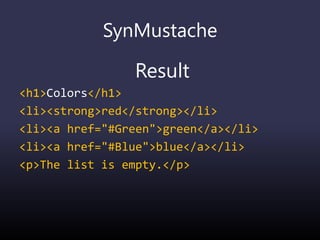

58. SynMustache
Result
<h1>Colors</h1>
<li><strong>red</strong></li>
<li><a href="#Green">green</a></li>
<li><a href="#Blue">blue</a></li>
<p>The list is empty.</p>

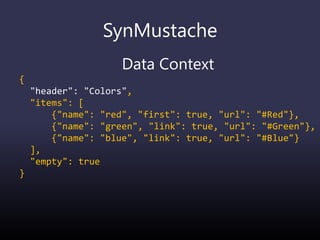

59. SynMustache
Data Context
{
"header": "Colors",
"items": [
{"name": "red", "first": true, "url": "#Red"},
{"name": "green", "link": true, "url": "#Green"},
{"name": "blue", "link": true, "url": "#Blue"}
],
"empty": true
}

60. SynMustache
Template
<h1>{{header}}</h1>
{{#items}}
{{#first}}
<li><strong>{{name}}</strong></li>
{{/first}}
{{#link}}
<li><a href="{{url}}">{{name}}</a></li>
{{/link}}
{{/items}}
{{#empty}}
<p>The list is empty.</p>
{{/empty}}

61. SynMustache
Result
<h1>Colors</h1>
<li><strong>red</strong></li>
<li><a href="#Green">green</a></li>
<li><a href="#Blue">blue</a></li>
<p>The list is empty.</p>

62. SynMustache
Data Context
{
"header": "Colors",
"items": [
{"name": "red", "first": true, "url": "#Red"},
{"name": "green", "link": true, "url": "#Green"},
{"name": "blue", "link": true, "url": "#Blue"}
],
"empty": true
}

63. SynMustache
Template
<h1>{{header}}</h1>
{{#items}}
{{#first}}
<li><strong>{{name}}</strong></li>
{{/first}}
{{#link}}
<li><a href="{{url}}">{{name}}</a></li>
{{/link}}
{{/items}}
{{#empty}}
<p>The list is empty.</p>
{{/empty}}

64. SynMustache
Result
<h1>Colors</h1>
<li><strong>red</strong></li>
<li><a href="#Green">green</a></li>
<li><a href="#Blue">blue</a></li>
<p>The list is empty.</p>

65. SynMustache
Data Context
{
"header": "Colors",
"items": [
{"name": "red", "first": true, "url": "#Red"},
{"name": "green", "link": true, "url": "#Green"},
{"name": "blue", "link": true, "url": "#Blue"}
],
"empty": true
}

66. SynMustache
Template
<h1>{{header}}</h1>
{{#items}}
{{#first}}
<li><strong>{{name}}</strong></li>
{{/first}}
{{#link}}
<li><a href="{{url}}">{{name}}</a></li>
{{/link}}
{{/items}}
{{#empty}}
<p>The list is empty.</p>
{{/empty}}

67. SynMustache
Result
<h1>Colors</h1>
<li><strong>red</strong></li>
<li><a href="#Green">green</a></li>
<li><a href="#Blue">blue</a></li>
<p>The list is empty.</p>

68. SynSM/SyNode
Latest Spidermonkey
Javascript JIT engine
Call JS from Delphi
TSMVariant for late binding

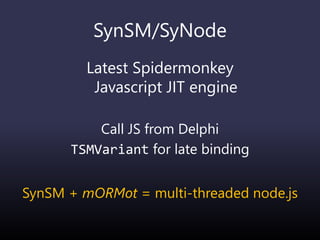

69. SynSM/SyNode
Latest Spidermonkey
Javascript JIT engine
Call JS from Delphi
TSMVariant for late binding
SynSM + mORMot = multi-threaded node.js

70. Sample 23

71. mORMot & Friends
Open Source
Architecture & Design
Cross-Cutting features
DB Layer
ORM/ODM/SOA/MVC
Cross platform
Q&A

72. DB Layer
SynMongoDB
NoSQL
SynDB
SQL
Uncoupled features: could be used
without the ORM/SOA/MVC framework

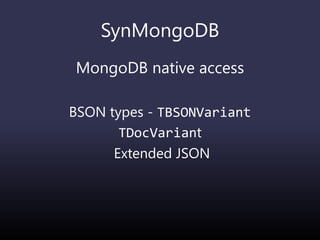

73. SynMongoDB
MongoDB native access
BSON types - TBSONVariant
TDocVariant
Extended JSON

74. Sample 24

75. SynDB
Direct RDBMS access layer
Not linked to DB.pas
Multi providers
UTF-8 JSON
Interface based
Knows SQL dialects
SynDBExplorer

76. SynDB
Not linked to DB.pas
Enter the 21th century
Less data types
By-pass slow TDataSet
Unicode even before Delphi 2009
Array binding
Native JSON support
Remote access

77. SynDB
Providers

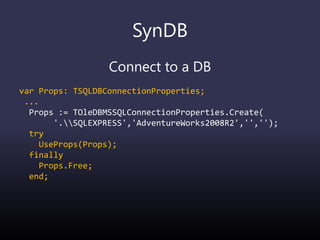

78. SynDB
Connect to a DB
var Props: TSQLDBConnectionProperties;
...
Props := TOleDBMSSQLConnectionProperties.Create(
'.SQLEXPRESS','AdventureWorks2008R2','','');
try
UseProps(Props);
finally
Props.Free;
end;

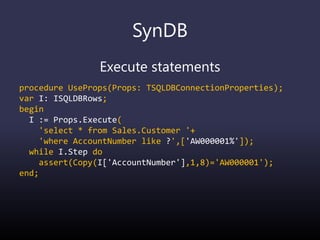

79. SynDB
Execute statements
procedure UseProps(Props: TSQLDBConnectionProperties);
var I: ISQLDBRows;
begin
I := Props.Execute(
'select * from Sales.Customer '+
'where AccountNumber like ?',['AW000001%']);
while I.Step do
assert(Copy(I['AccountNumber'],1,8)='AW000001');
end;

80. SynDB
Late-binding
procedure UseProps(Props: TSQLDBConnectionProperties);
var Row: Variant;
begin
with Props.Execute(
'select * from Sales.Customer '+
'where AccountNumber like ?‘,['AW000001%'],@Row) do
while Step do
assert(Copy(Row.AccountNumber,1,8)='AW000001');
end;

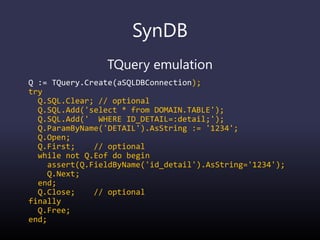

81. SynDB
TQuery emulation
Q := TQuery.Create(aSQLDBConnection);
try
Q.SQL.Clear; // optional
Q.SQL.Add('select * from DOMAIN.TABLE');
Q.SQL.Add(' WHERE ID_DETAIL=:detail;');
Q.ParamByName('DETAIL').AsString := '1234';
Q.Open;
Q.First; // optional
while not Q.Eof do begin
assert(Q.FieldByName('id_detail').AsString='1234');
Q.Next;
end;
Q.Close; // optional
finally
Q.Free;
end;

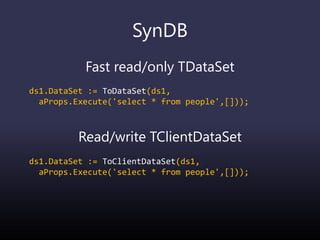

82. SynDB
Fast read/only TDataSet
ds1.DataSet := ToDataSet(ds1,
aProps.Execute('select * from people',[]));
Read/write TClientDataSet
ds1.DataSet := ToClientDataSet(ds1,
aProps.Execute('select * from people',[]));

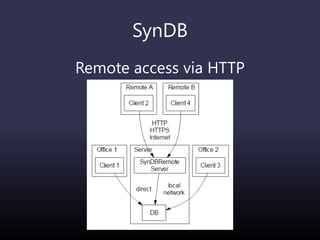

83. SynDB
Remote access via HTTP

84. SynDB
Remote access via HTTP
http.sys based server
SynLZ compression
Digital signature
Authentication

85. SynDB
Remote access via HTTP
Mutate SQLite3 into a
high performance Client-Server RDBMS
No library to deploy on Client side
Easy remote hosting on Server side

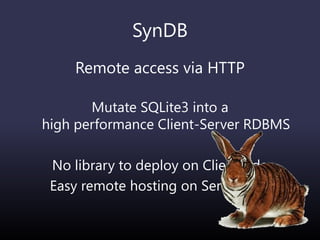

86. SynDB
Remote access via HTTP
Mutate SQLite3 into a
high performance Client-Server RDBMS
No library to deploy on Client side
Easy remote hosting on Server side

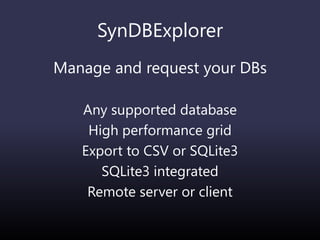

87. SynDBExplorer
Manage and request your DBs
Any supported database
High performance grid
Export to CSV or SQLite3
SQLite3 integrated
Remote server or client

88. SynDBExplorer

89. mORMot & Friends
Open Source
Architecture & Design
Cross-Cutting features
DB Layer
ORM/ODM/SOA/MVC
Cross platform
Q&A

90. ORM/ODM/SOA/MVC

91. ORM/ODM/SOA/MVC
RESTful
ORM/ODM
SOA
Real Time
MVC

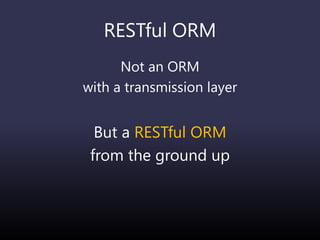

92. RESTful ORM
Not an ORM
with a transmission layer
But a RESTful ORM
from the ground up

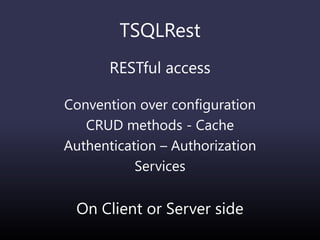

93. TSQLRest
RESTful access
Convention over configuration
CRUD methods - Cache
Authentication – Authorization
Services
On Client or Server side

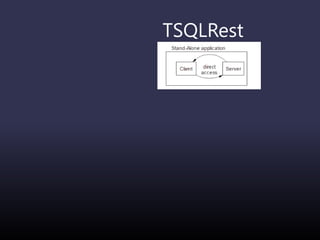

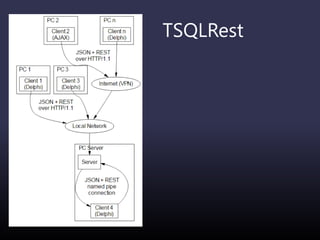

94. TSQLRest

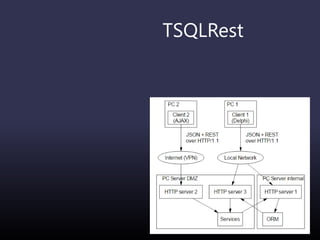

95. TSQLRest

96. TSQLRest

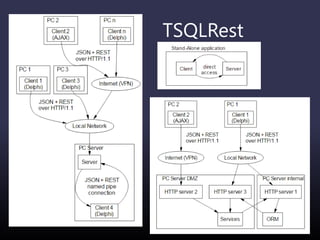

97. TSQLRest

98. TSQLRestServer
Server Storage
In-memory
SQLite3 local
External SQL
External NoSQL
Redirected

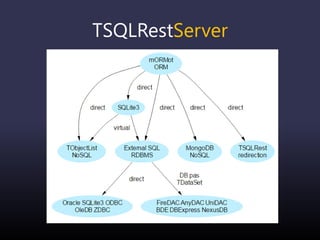

99. TSQLRestServer

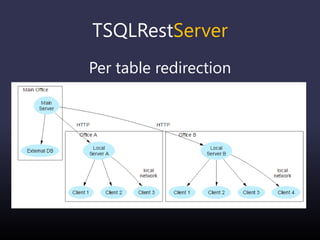

100. TSQLRestServer
Per table redirection

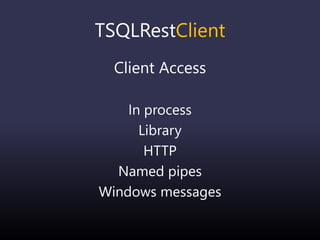

101. TSQLRestClient
Client Access
In process
Library
HTTP
Named pipes
Windows messages

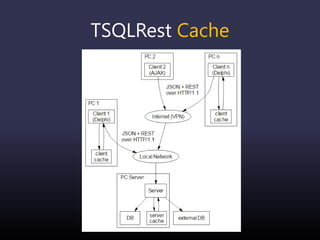

102. TSQLRest Cache

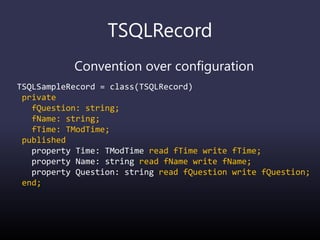

103. TSQLRecord
Convention over configuration
TSQLSampleRecord = class(TSQLRecord)
private
fQuestion: string;
fName: string;
fTime: TModTime;
published
property Time: TModTime read fTime write fTime;
property Name: string read fName write fName;
property Question: string read fQuestion write fQuestion;
end;

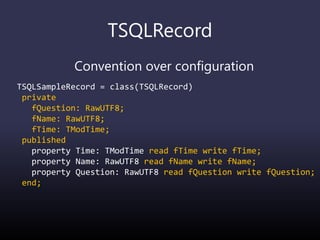

104. TSQLRecord
Convention over configuration
TSQLSampleRecord = class(TSQLRecord)
private
fQuestion: RawUTF8;
fName: RawUTF8;
fTime: TModTime;
published
property Time: TModTime read fTime write fTime;
property Name: RawUTF8 read fName write fName;
property Question: RawUTF8 read fQuestion write fQuestion;
end;

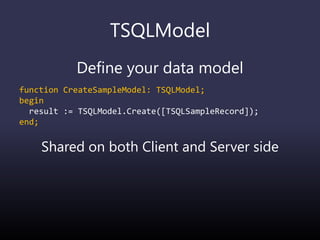

105. TSQLModel
Define your data model
function CreateSampleModel: TSQLModel;
begin
result := TSQLModel.Create([TSQLSampleRecord]);
end;
Shared on both Client and Server side

106. Database: TSQLRest
CRUD Operations
procedure TForm1.FindButtonClick(Sender: TObject);
var Rec: TSQLSampleRecord;
begin
Rec := TSQLSampleRecord.Create(
Database,'Name=?',[StringToUTF8(NameEdit.Text)]);
try
if Rec.ID=0 then
QuestionMemo.Text := 'Not found' else
QuestionMemo.Text := UTF8ToString(Rec.Question);
finally
Rec.Free;
end;
end;

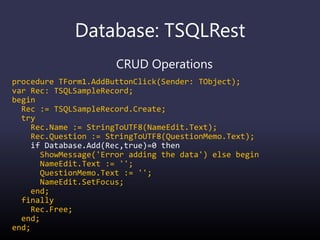

107. Database: TSQLRest
CRUD Operations
procedure TForm1.AddButtonClick(Sender: TObject);
var Rec: TSQLSampleRecord;
begin
Rec := TSQLSampleRecord.Create;
try
Rec.Name := StringToUTF8(NameEdit.Text);
Rec.Question := StringToUTF8(QuestionMemo.Text);
if Database.Add(Rec,true)=0 then
ShowMessage('Error adding the data') else begin
NameEdit.Text := '';
QuestionMemo.Text := '';
NameEdit.SetFocus;
end;
finally
Rec.Free;
end;
end;

108. TSQLRestServer
var Model: TSQLModel;
Database: TSQLRestServerDB;
HTTPServer: TSQLHttpServer;
…
Model := CreateSampleModel;
Database := TSQLRestServerDB.Create(Model,'data.db3');
Database.CreateMissingTables;
HTTPServer := TSQLHttpServer.Create('8080',[Database]);
HTTPServer.AccessControlAllowOrigin := '*';

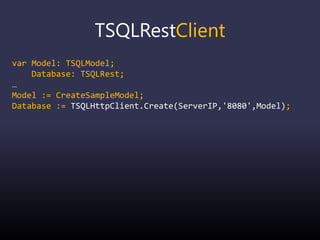

109. TSQLRestClient
var Model: TSQLModel;
Database: TSQLRest;
…
Model := CreateSampleModel;
Database := TSQLHttpClient.Create(ServerIP,'8080',Model);

110. Sample 04

111. Sample 04
http://localhost:8080/root
http://localhost:8080/root/samplerecord
disable authentication…
http://localhost:8080/root/samplerecord
http://localhost:8080/root/samplerecord/1

112. SynFile

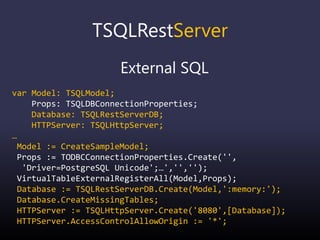

113. TSQLRestServer
External SQL
var Model: TSQLModel;
Props: TSQLDBConnectionProperties;
Database: TSQLRestServerDB;
HTTPServer: TSQLHttpServer;
…
Model := CreateSampleModel;
Props := TODBCConnectionProperties.Create('',
'Driver=PostgreSQL Unicode';…','','');
VirtualTableExternalRegisterAll(Model,Props);
Database := TSQLRestServerDB.Create(Model,':memory:');
Database.CreateMissingTables;
HTTPServer := TSQLHttpServer.Create('8080',[Database]);
HTTPServer.AccessControlAllowOrigin := '*';

114. Sample 28

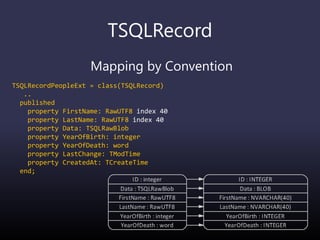

115. TSQLRecord
Mapping by Convention
TSQLRecordPeopleExt = class(TSQLRecord)
..
published
property FirstName: RawUTF8 index 40
property LastName: RawUTF8 index 40
property Data: TSQLRawBlob
property YearOfBirth: integer
property YearOfDeath: word
property LastChange: TModTime
property CreatedAt: TCreateTime
end;

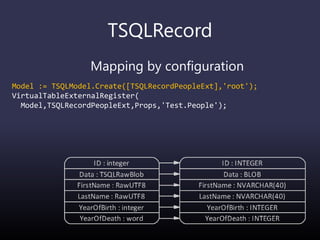

116. TSQLRecord
Mapping by configuration
Model := TSQLModel.Create([TSQLRecordPeopleExt],'root');
VirtualTableExternalRegister(
Model,TSQLRecordPeopleExt,Props,'Test.People');

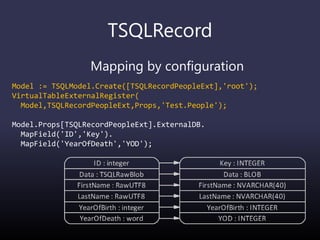

117. TSQLRecord
Mapping by configuration
Model := TSQLModel.Create([TSQLRecordPeopleExt],'root');
VirtualTableExternalRegister(
Model,TSQLRecordPeopleExt,Props,'Test.People');
Model.Props[TSQLRecordPeopleExt].ExternalDB.
MapField('ID','Key').
MapField('YearOfDeath','YOD');

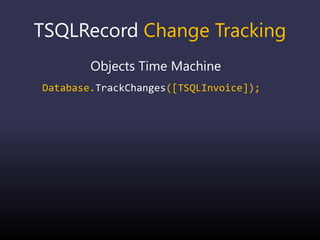

118. TSQLRecord Change Tracking
Objects Time Machine
Database.TrackChanges([TSQLInvoice]);

119. TSQLRecord Change Tracking
Objects Time Machine
Database.TrackChanges([TSQLInvoice]);
aInvoice := TSQLInvoice.Create;
aHist := TSQLRecordHistory.CreateHistory(
aClient,TSQLInvoice,400);
try
writeln('History Count: ',aHist.HistoryCount);
for i := 0 to aHist.HistoryCount-1 do begin
aHist.HistoryGet(i,aEvent,aTimeStamp,aInvoice);
writeln;
writeln('Event: ',ord(aEvent))^);
writeln('TimeStamp: ',TTimeLogBits(aTimeStamp).ToText);
writeln('Identifier: ',aInvoice.Number);
end;

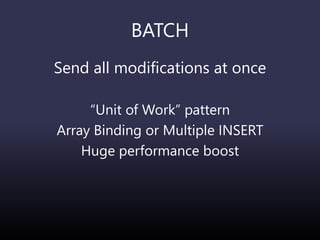

120. BATCH
Send all modifications at once
“Unit of Work” pattern
Array Binding or Multiple INSERT
Huge performance boost

121. Sample 15

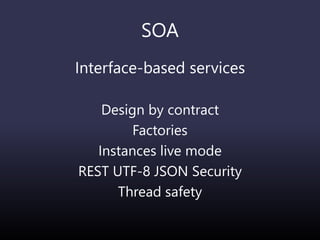

122. SOA
Interface-based services
Design by contract
Factories
Instances live mode
REST UTF-8 JSON Security
Thread safety

123. SOA
Define the contract
type
ICalculator = interface(IInvokable)
['{9A60C8ED-CEB2-4E09-87D4-4A16F496E5FE}']
/// add two signed 32 bit integers
function Add(n1,n2: integer): integer;
end;

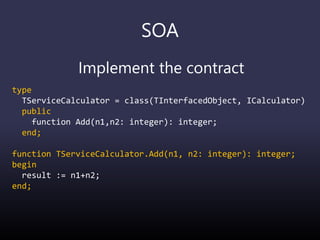

124. SOA
Implement the contract
type
TServiceCalculator = class(TInterfacedObject, ICalculator)
public
function Add(n1,n2: integer): integer;
end;
function TServiceCalculator.Add(n1, n2: integer): integer;
begin
result := n1+n2;
end;

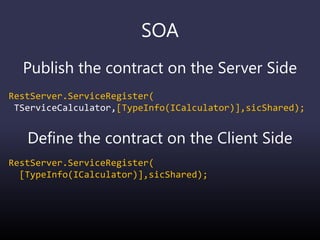

125. SOA
Publish the contract on the Server Side
RestServer.ServiceRegister(
TServiceCalculator,[TypeInfo(ICalculator)],sicShared);
Define the contract on the Client Side
RestServer.ServiceRegister(
[TypeInfo(ICalculator)],sicShared);

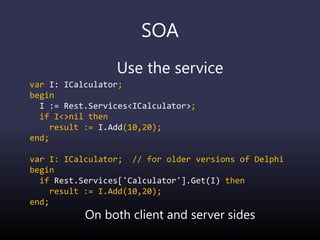

126. SOA
Use the service
var I: ICalculator;
begin
I := Rest.Services<ICalculator>;
if I<>nil then
result := I.Add(10,20);
end;
var I: ICalculator; // for older versions of Delphi
begin
if Rest.Services['Calculator'].Get(I) then
result := I.Add(10,20);
end;
On both client and server sides

127. Sample 14

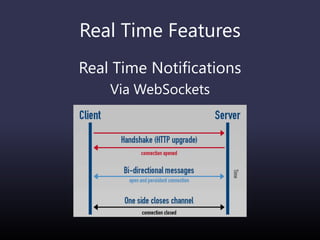

128. Real Time Features
Real Time Notifications
Via WebSockets

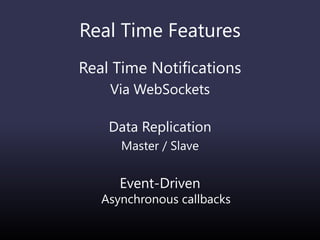

129. Real Time Features
Real Time Notifications
Via WebSockets
Data Replication
Master / Slave

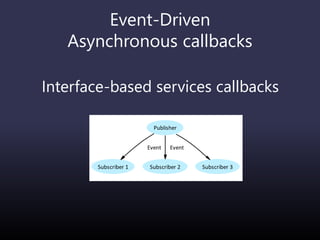

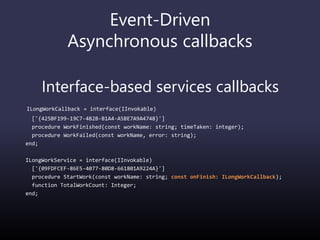

Event-Driven
Asynchronous callbacks

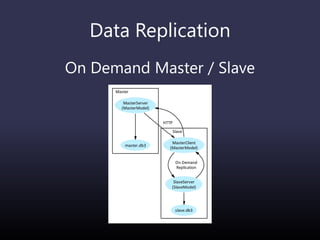

130. Data Replication
On Demand Master / Slave
Master
Slave
MasterServer
(MasterModel)
master.db3
MasterClient
(MasterModel)
HTTP
SlaveServer
(SlaveModel)
On Demand
Replication
slave.db3

131. Data Replication
Real Time Master / Slave
Master
Slave
MasterServer
(MasterModel)
master.db3
MasterClient
(MasterModel)
WebSockets
TCP/IP
SlaveServer
(SlaveModel)
Replication
slave.db3

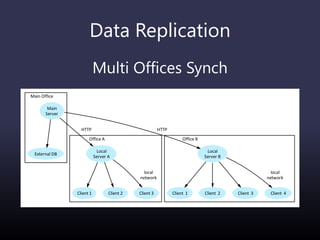

132. Data Replication
Multi Offices Synch
Main Office
Office A Office B
Main
Server
External DB
Local
Server A
HTTP
Local
Server B
HTTP
Client 1 Client 2 Client 3
local
network
Client 1 Client 2 Client 3 Client 4
local
network

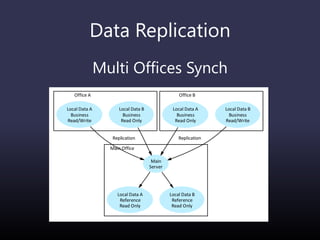

133. Data Replication
Multi Offices Synch
Main Office
Office A Office B
Main
Server
Local Data A
Reference
Read Only
Local Data B
Reference
Read Only
Local Data A
Business
Read/Write
Replication
Local Data B
Business
Read Only
Local Data A
Business
Read Only
Replication
Local Data B
Business
Read/Write

134. Real Time Features
Event-Driven
Asynchronous callbacks
Interface-based services callbacks
Bi-directional connection via WebSockets
using application-level protocols
Security, frame gathering, REST emulation

135. Event-Driven
Asynchronous callbacks
Interface-based services callbacks
ILongWorkCallback = interface(IInvokable)
['{425BF199-19C7-4B2B-B1A4-A5BE7A9A4748}']
procedure WorkFinished(const workName: string; timeTaken: integer);
procedure WorkFailed(const workName, error: string);
end;
ILongWorkService = interface(IInvokable)
['{09FDFCEF-86E5-4077-80D8-661801A9224A}']
procedure StartWork(const workName: string; const onFinish: ILongWorkCallback);
function TotalWorkCount: Integer;
end;

136. Event-Driven
Asynchronous callbacks
Interface-based services callbacks
Publisher
Subscriber 1
Event
Subscriber 2
Event
Subscriber 3

137. Sample 31

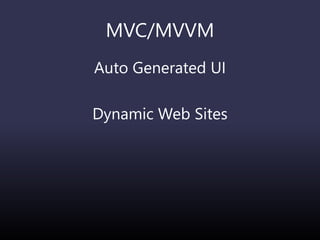

138. MVC/MVVM
Auto Generated UI
Dynamic Web Sites

139. Web Apps
Classic MVC

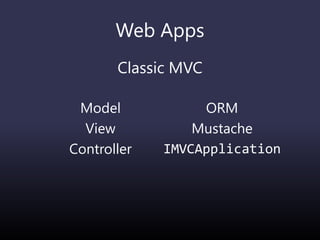

140. Web Apps
Model
View
Controller
ORM
Mustache
IMVCApplication
Classic MVC

141. Web Apps
Model
View
Controller
MVCModel.pas
*.html
MVCViewModel.pas
Blog MVC Sample

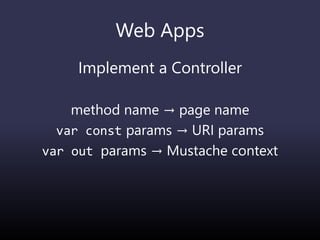

142. Web Apps
Implement a Controller
method name → page name
var const params → URI params
var out params → Mustache context

143. Web Apps
Implement a Controller
procedure TBlogApplication.AuthorView(var ID: integer;
out Author: TSQLAuthor; out Articles: variant);
begin
RestModel.Retrieve(ID,Author);
Author.HashedPassword := ''; // no need to publish it
if Author.ID<>0 then
Articles := RestModel.RetrieveDocVariantArray(
TSQLArticle,'','Author=? order by RowId desc limit
50',[ID],ARTICLE_FIELDS) else
raise EMVCApplication.CreateGotoError(HTML_NOTFOUND);
End;
→ /blog/AuthorView?....

144. Web Apps
Implement a Controller
procedure TBlogApplication.AuthorView(var ID: integer;
out Author: TSQLAuthor; out Articles: variant);
http://localhost:8092/blog/mvc-info
→ /blog/AuthorView?ID=..[integer]..
{{Main}}: variant
{{ID}}: integer
{{Author}}: TSQLAuthor
{{Articles}}: variant

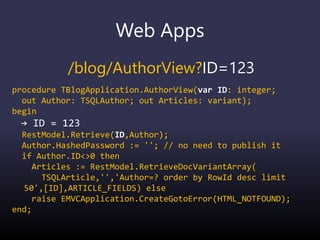

145. Web Apps
/blog/AuthorView?ID=123
procedure TBlogApplication.AuthorView(var ID: integer;
out Author: TSQLAuthor; out Articles: variant);
begin
→ ID = 123
RestModel.Retrieve(ID,Author);
Author.HashedPassword := ''; // no need to publish it
if Author.ID<>0 then
Articles := RestModel.RetrieveDocVariantArray(
TSQLArticle,'','Author=? order by RowId desc limit
50',[ID],ARTICLE_FIELDS) else
raise EMVCApplication.CreateGotoError(HTML_NOTFOUND);
end;

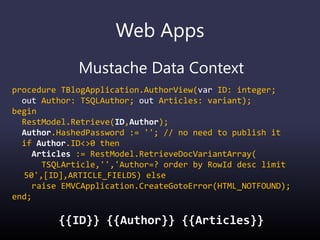

146. Web Apps
Mustache Data Context
procedure TBlogApplication.AuthorView(var ID: integer;
out Author: TSQLAuthor; out Articles: variant);
begin
RestModel.Retrieve(ID,Author);
Author.HashedPassword := ''; // no need to publish it
if Author.ID<>0 then
Articles := RestModel.RetrieveDocVariantArray(
TSQLArticle,'','Author=? order by RowId desc limit
50',[ID],ARTICLE_FIELDS) else
raise EMVCApplication.CreateGotoError(HTML_NOTFOUND);
end;
{{ID}} {{Author}} {{Articles}}

147. Sample 30

148. Web Apps
Sample 30
http://localhost:8092/blog/default
http://localhost:8092/blog/mvc-info
http://localhost:8092/blog/articleView?id=99
http://localhost:8092/blog/articleView/json?id=99
http://localhost:8092/blog/authorView?id=1

149. mORMot & Friends
Open Source
Architecture & Design
Cross-Cutting features
DB Layer
ORM/ODM/SOA/MVC
Cross platform
Q&A

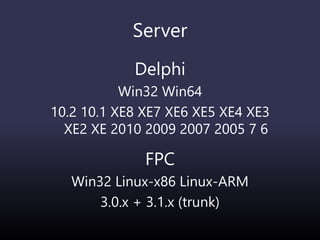

150. Server
Delphi
Win32 Win64
10.2 10.1 XE8 XE7 XE6 XE5 XE4 XE3
XE2 XE 2010 2009 2007 2005 7 6
FPC
Win32 Linux-x86 Linux-ARM
3.0.x + 3.1.x (trunk)

151. Clients
Delphi
Win32 Win64 OSX Android iOS
10.2 10.1 XE8 XE7 XE6 XE5 XE4 XE3
XE2 XE 2010 2009 2007 2005 7 6 5
FPC
All platforms
2.6.x 3.x.x

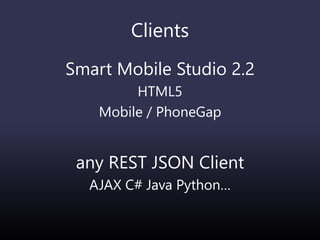

152. Clients
Smart Mobile Studio 2.2
HTML5
Mobile / PhoneGap
any REST JSON Client
AJAX C# Java Python…

153. Sample 27

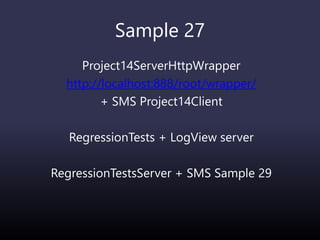

154. Sample 27
Project14ServerHttpWrapper
http://localhost:888/root/wrapper/
+ SMS Project14Client
RegressionTests + LogView server
RegressionTestsServer + SMS Sample 29

155. mORMot & Friends
Open Source
Architecture & Design
Cross-Cutting features
DB Layer
ORM/ODM/SOA/MVC
Cross platform
Q&A
