This document provides information on the 2012 Ford Mustang Boss 302, including its specifications and features. It describes the Boss 302 as having a 5.0L high-output V8 engine producing 444 hp, a 3.73:1 gear ratio, limited slip differential, and select GT features. Details are provided on modifications made to the engine compared to the GT model, such as forged aluminum pistons and revised oil pan baffling. Performance upgrades included in the Laguna Seca package, such as front brake cooling ducts and low-expansion brake lines, are also mentioned.

1. 2012 MUSTANG

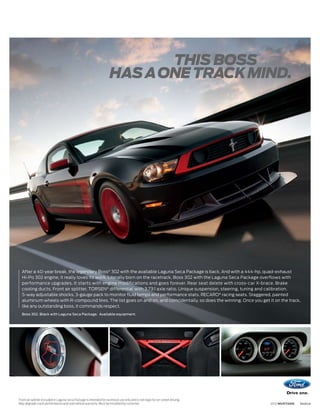

2. THIS BOSS
HAS A ONE TRACK MIND.
After a 40-year break, the legendary Boss® 302 with the available Laguna Seca Package is back. And with a 444-hp, quad-exhaust
Hi-Po 302 engine, it really loves its work. Literally born on the racetrack, Boss 302 with the Laguna Seca Package overflows with
performance upgrades. It starts with engine modifications and goes forever. Rear seat delete with cross-car X-brace. Brake
cooling ducts. Front air splitter. TORSEN® differential with 3.73:1 axle ratio. Unique suspension, steering, tuning and calibration.
5-way adjustable shocks. 3-gauge pack to monitor fluid temps and performance stats. RECARO® racing seats. Staggered, painted
aluminum wheels with R-compound tires. The list goes on and on, and coincidentally, so does the winning. Once you get it on the track,
like any outstanding boss, it commands respect.
Boss 302. Black with Laguna Seca Package. Available equipment.
Front air splitter included in Laguna Seca Package is intended for racetrack use only and is not legal for on-street driving.
May degrade crash performance and void vehicle warranty. Must be installed by customer. 2012 MUSTANG ford.ca

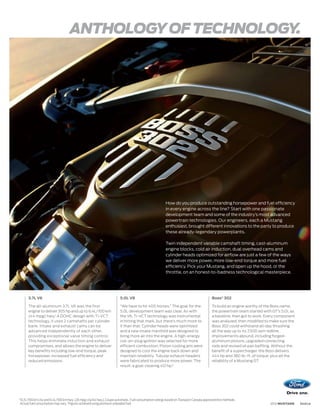

3. ANTHOLOGY OF TECHNOLOGY.
How do you produce outstanding horsepower and fuel efficiency
in every engine across the line? Start with one passionate
development team and some of the industry’s most advanced
powertrain technologies. Our engineers, each a Mustang
enthusiast, brought different innovations to the party to produce
these already-legendary powerplants.
Twin independent variable camshaft timing, cast-aluminum
engine blocks, cold air induction, dual overhead cams and
cylinder heads optimized for airflow are just a few of the ways
we deliver more power, more low-end torque and more fuel
efficiency. Pick your Mustang, and open up the hood, or the
throttle, on an honest-to-badness technological masterpiece.
3.7L V6 5.0L V8 Boss® 302
The all-aluminum 3.7L V6 was the first “We have to hit 400 horses.” The goal for the To build an engine worthy of the Boss name,
engine to deliver 305 hp and up to 6.4L/100 km 5.0L development team was clear. As with the powertrain team started with GT’s 5.0L as
(44 mpg) hwy.1 A DOHC design with Ti-VCT the V6, Ti-VCT technology was instrumental a baseline, then got to work. Every component
technology, it uses 2 camshafts per cylinder in hitting that mark, but there’s much more to was analyzed, then modified to make sure the
bank. Intake and exhaust cams can be it than that. Cylinder heads were optimized Boss 302 could withstand all-day thrashing
advanced independently of each other, and a new intake manifold was designed to all the way up to its 7,500 rpm redline.
providing exceptional valve timing control. bring more air into the engine. A high-energy Improvements abound, including forged-
This helps eliminate induction and exhaust coil-on-plug ignition was selected for more aluminum pistons, upgraded connecting
compromises, and allows the engine to deliver efficient combustion. Piston cooling jets were rods and revised oil pan baffling. Without the
key benefits including low-end torque, peak designed to cool the engine back down and benefit of a supercharger, the Boss delivers
horsepower, increased fuel efficiency and maintain reliability. Tubular exhaust headers 444 hp and 380 lb.-ft. of torque, plus all the
reduced emissions. were fabricated to produce more power. The reliability of a Mustang GT.
result: a goal-clearing 412 hp.2
1
10.7L/100 km city and 6.4L/100 km hwy. (26 mpg city/44 hwy.), Coupe automatic. Fuel consumption ratings based on Transport Canada approved test methods.
Actual fuel consumption may vary. 2 Figures achieved using premium unleaded fuel. 2012 MUSTANG ford.ca

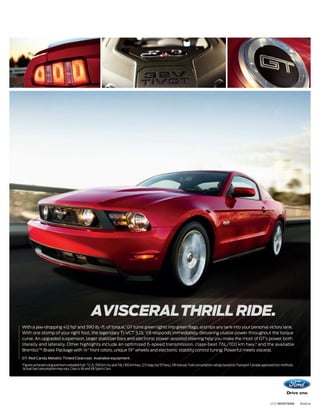

4. AVISCERAL THRILL RIDE.
With a jaw-dropping 412 hp1 and 390 lb.-ft. of torque,1 GT turns green lights into green flags, and rips any lane into your personal victory lane.
With one stomp of your right foot, the legendary Ti-VCT 5.0L V8 responds immediately, delivering usable power throughout the torque
curve. An upgraded suspension, larger stabilizer bars and electronic power-assisted steering help you make the most of GT’s power, both
literally and laterally. Other highlights include an optimized 6-speed transmission, class-best 7.6L/100 km hwy.2 and the available
BremboTM Brake Package with 14" front rotors, unique 19" wheels and electronic stability control tuning. Powerful meets visceral.
GT. Red Candy Metallic Tinted Clearcoat. Available equipment.
1
Figures achieved using premium unleaded fuel. 2 12.2L/100 km city and 7.6L/100 km hwy. (23 mpg city/37 hwy.), V8 manual. Fuel consumption ratings based on Transport Canada approved test methods.
Actual fuel consumption may vary. Class is V6 and V8 Sports Cars.
2012 MUSTANG ford.ca

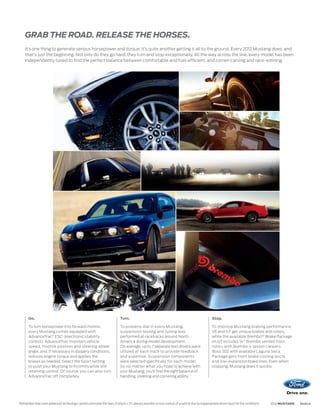

5. GRAB THE ROAD. RELEASE THE HORSES.
It’s one thing to generate serious horsepower and torque; it’s quite another getting it all to the ground. Every 2012 Mustang does, and
that’s just the beginning. Not only do they go hard, they turn and stop exceptionally. All the way across the line, every model has been
independently tuned to find the perfect balance between comfortable and fuel-efficient, and corner-carving and race-winning.
Go. Turn. Stop.
To turn horsepower into forward motion, To properly dial in every Mustang, To improve Mustang braking performance,
every Mustang comes equipped with suspension testing and tuning was V6 and GT get unique brakes and rotors,
AdvanceTrac® ESC1 (electronic stability performed at racetracks around North while the available BremboTM Brake Package
control). AdvanceTrac monitors vehicle America during model development. on GT includes 14 Brembo vented front
speed, throttle position and steering wheel On average, up to 7 separate test drivers were rotors with Brembo 4-piston calipers.
angle, and, if necessary in slippery conditions, utilized at each track to provide feedback Boss 302 with available Laguna Seca
reduces engine torque and applies the and expertise. Suspension components Package gets front brake cooling ducts
brakes as needed. Select the Sport setting were selected specifically for each model. and low-expansion brake lines. Even when
to push your Mustang to its limits while still So no matter what you hope to achieve with stopping, Mustang does it quickly.
retaining control. Of course, you can also turn your Mustang, you’ll find the right balance of
AdvanceTrac off completely. handling, steering and cornering ability.
Remember that even advanced technology cannot overcome the laws of physics. It’s always possible to lose control of a vehicle due to inappropriate driver input for the conditions.
1
2012 MUSTANG ford.ca

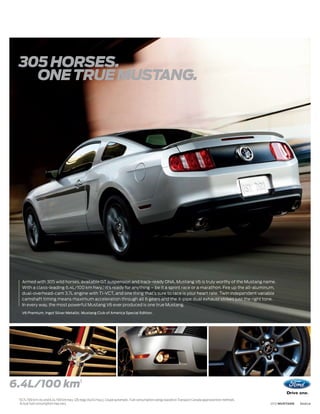

6. 305 HORSES.
ONE TRUE MUSTANG.
Armed with 305 wild horses, available GT suspension and track-ready DNA, Mustang V6 is truly worthy of the Mustang name.
With a class-leading 6.4L/100 km hwy.,1 it’s ready for anything – be it a sprint race or a marathon. Fire up the all-aluminum,
dual-overhead-cam 3.7L engine with Ti-VCT, and one thing that’s sure to race is your heart rate. Twin independent variable
camshaft timing means maximum acceleration through all 6 gears and the X-pipe dual exhaust strikes just the right tone.
In every way, the most powerful Mustang V6 ever produced is one true Mustang.
V6 Premium. Ingot Silver Metallic. Mustang Club of America Special Edition.
6.4L/100 km1
1
10.7L/100 km city and 6.4L/100 km hwy. (26 mpg city/44 hwy.), Coupe automatic. Fuel consumption ratings based on Transport Canada approved test methods.
Actual fuel consumption may vary. 2012 MUSTANG ford.ca

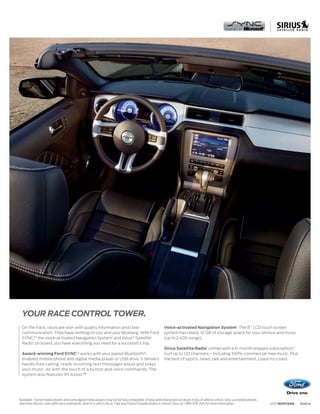

7. YOUR RACE CONTROL TOWER.
On the track, races are won with quality information and clear Voice-activated Navigation System1 The 8 LCD touch screen
communication. They have nothing on you and your Mustang. With Ford system has nearly 10 GB of storage space for your photos and music
SYNC,®1 the voice-activated Navigation System1 and Sirius® Satellite (up to 2,400 songs).
Radio1 on board, you have everything you need for a successful trip.
Sirius Satellite Radio1 comes with a 6-month prepaid subscription.3
Award-winning Ford SYNC1,2 works with your paired Bluetooth®- Surf up to 120 channels – including 100% commercial-free music. Plus
enabled mobile phone and digital media player or USB drive. It delivers the best of sports, news, talk and entertainment, coast-to-coast.
hands-free calling, reads incoming text messages aloud and plays
your music. All with the touch of a button and voice commands. The
system also features 911 Assist.TM
1
Available. 2Some mobile phones and some digital media players may not be fully compatible. Driving while distracted can result in loss of vehicle control. Only use mobile phones
and other devices, even with voice commands, when it is safe to do so. 3 See your Ford of Canada Dealer or contact Sirius at 1-888-539-7474 for more information. 2012 MUSTANG ford.ca

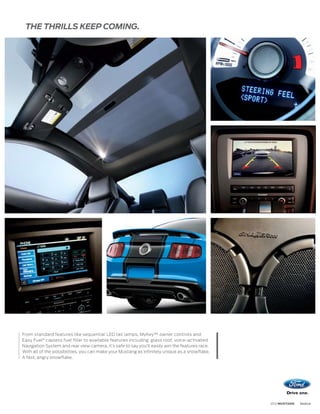

8. THE THRILLS KEEP COMING.
From standard features like sequential LED tail lamps, MyKey™ owner controls and
Easy Fuel® capless fuel filler to available features including glass roof, voice-activated
Navigation System and rear view camera, it’s safe to say you’ll easily win the features race.
With all of the possibilities, you can make your Mustang as infinitely unique as a snowflake.
A fast, angry snowflake.
2012 MUSTANG ford.ca

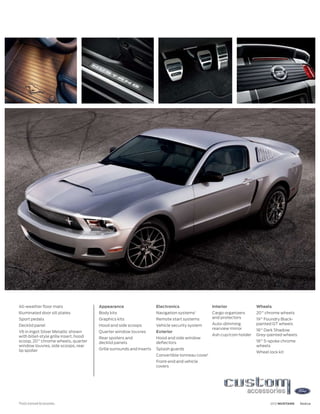

9. All-weather floor mats Appearance Electronics Interior Wheels
Illuminated door sill plates Body kits Navigation systems1 Cargo organizers 20 chrome wheels
Sport pedals Graphics kits Remote start systems and protectors 19 Foundry Black-
Decklid panel Hood and side scoops Vehicle security system Auto-dimming painted GT wheels
rearview mirror 18 Dark Shadow
V6 in Ingot Silver Metallic shown Quarter window louvres Exterior
with billet-style grille insert, hood Ash cup/coin holder Grey-painted wheels
Rear spoilers and Hood and side window
scoop, 20 chrome wheels, quarter decklid panels deflectors 18 5-spoke chrome
window louvres, side scoops, rear wheels
lip spoiler Grille surrounds and inserts Splash guards
Wheel lock kit
Convertible tonneau cover1
Front-end and vehicle
covers
1
Ford Licensed Accessories. 2012 MUSTANG ford.ca

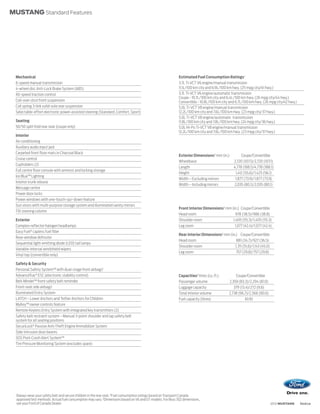

10. MUSTANG Standard Features
Mechanical Estimated Fuel Consumption Ratings2
6-speed manual transmission 3.7L Ti-VCT V6 engine/manual transmission
4-wheel disc Anti-Lock Brake System (ABS) 11.1L/100 km city and 6.9L/100 km hwy. (25 mpg city/41 hwy.)
All-speed traction control 3.7L Ti-VCT V6 engine/automatic transmission
Coupe - 10.7L/100 km city and 6.4L/100 km hwy. (26 mpg city/44 hwy.)
Coil-over strut front suspension Convertible - 10.8L/100 km city and 6.7L/100 km hwy. (26 mpg city/42 hwy.)
Coil spring 3-link solid-axle rear suspension 5.0L Ti-VCT V8 engine/manual transmission
Selectable-effort electronic power-assisted steering (Standard, Comfort, Sport) 12.2L/100 km city and 7.6L/100 km hwy. (23 mpg city/37 hwy.)
5.0L Ti-VCT V8 engine/automatic transmission
Seating 11.8L/100 km city and 7.8L/100 km hwy. (24 mpg city/36 hwy.)
50/50 split-fold rear seat (coupe only) 5.0L Hi-Po Ti-VCT V8 engine/manual transmission
12.2L/100 km city and 7.6L/100 km hwy. (23 mpg city/37 hwy.)
Interior
Air conditioning
Auxiliary audio input jack
Carpeted front floor mats in Charcoal Black
Exterior Dimensions3 mm (in.) Coupe/Convertible
Cruise control
Wheelbase 2,720 (107.1)/2,720 (107.1)
Cupholders (2)
Length 4,778 (188.1)/4,778 (188.1)
Full centre floor console with armrest and locking storage
Height 1,412 (55.6)/1,425 (56.1)
Ice Blue TM Lighting
Width – Excluding mirrors 1,877 (73.9)/1,877 (73.9)
Interior trunk release
Width – Including mirrors 2,035 (80.1)/2,035 (80.1)
Message centre
Power door locks
Power windows with one-touch-up/-down feature
Sun visors with multi-purpose storage system and illuminated vanity mirrors
Front Interior Dimensions3 mm (in.) Coupe/Convertible
Tilt steering column
Head room 978 (38.5)/986 (38.8)
Exterior Shoulder room 1,405 (55.3)/1,405 (55.3)
Complex-reflector halogen headlamps Leg room 1,077 (42.4)/1,077 (42.4)
Easy Fuel® capless fuel filler
Rear Interior Dimensions3 mm (in.) Coupe/Convertible
Rear-window defroster
Head room 881 (34.7)/927 (36.5)
Sequential light-emitting diode (LED) tail lamps
Shoulder room 1,311 (51.6)/1,143 (45.0)
Variable-interval windshield wipers
Leg room 757 (29.8)/757 (29.8)
Vinyl top (convertible only)
Safety & Security
Personal Safety SystemTM with dual-stage front airbags1
AdvanceTrac® ESC (electronic stability control) Capacities3 litres (cu. ft.) Coupe/Convertible
Belt-MinderTM front safety belt reminder Passenger volume 2,359 (83.3)/2,294 (81.0)
Front-seat side airbags1 Luggage capacity 379 (13.4)/272 (9.6)
Illuminated Entry System Total interior volume 2,738 (96.7)/2,566 (90.6)
LATCH – Lower Anchors and Tether Anchors for Children Fuel capacity (litres) 61/61
MyKeyTM owner controls feature
Remote Keyless Entry System with integrated key transmitters (2)
Safety belt restraint system – Manual 3-point shoulder and lap safety belt
system for all seating positions
SecuriLock® Passive Anti-Theft Engine Immobilizer System
Side-intrusion door beams
SOS Post-Crash Alert SystemTM
Tire Pressure Monitoring System (excludes spare)
1
Always wear your safety belt and secure children in the rear seat. 2Fuel consumption ratings based on Transport Canada
approved test methods. Actual fuel consumption may vary. 3Dimensions based on V6 and GT models. For Boss 302 dimensions,
see your Ford of Canada Dealer. 2012 MUSTANG ford.ca

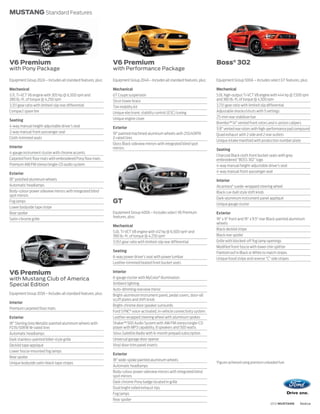

11. MUSTANG Standard Features
V6 Premium V6 Premium Boss® 302
with Pony Package with Performance Package
Equipment Group 202A – Includes all standard features, plus: Equipment Group 204A – Includes all standard features, plus: Equipment Group 500A – Includes select GT features, plus:
Mechanical Mechanical Mechanical
3.7L Ti-VCT V6 engine with 305 hp @ 6,500 rpm and GT Coupe suspension 5.0L high-output Ti-VCT V8 engine with 444 hp @ 7,500 rpm
280 lb.-ft. of torque @ 4,250 rpm Strut-tower brace and 380 lb.-ft. of torque @ 4,500 rpm
3.31:1 gear ratio with limited-slip rear differential Tire mobility kit 3.73:1 gear ratio with limited slip differential
Compact spare tire Unique electronic stability control (ESC) tuning Adjustable shocks/struts with 5 settings
Unique engine cover 25-mm rear stabilizer bar
Seating
BremboTM 14" vented front rotors and 4-piston calipers
4-way manual height-adjustable driver’s seat Exterior 11.8" vented rear rotors with high-performance pad compound
2-way manual front-passenger seat 19" painted machined aluminum wheels with 255/40R19 Quad exhaust with 2 side and 2 rear outlets
Cloth-trimmed seats Z-rated tires
Unique intake manifold with production number plate
Gloss Black sideview mirrors with integrated blind spot
Interior mirrors Seating
4-gauge instrument cluster with chrome accents
Charcoal Black cloth front bucket seats with grey
Carpeted front floor mats with embroidered Pony floor mats embroidered “BOSS 302” logo
Premium AM/FM stereo/single-CD audio system 4-way manual height-adjustable driver’s seat
4-way manual front-passenger seat
Exterior
18" polished aluminum wheels Interior
Automatic headlamps Alcantara® suede-wrapped steering wheel
Body-colour power sideview mirrors with integrated blind Black cue-ball style shift knob
spot mirrors
Dark-aluminum instrument panel appliqué
Fog lamps GT Unique gauge cluster
Lower bodyside tape stripe
Rear spoiler Equipment Group 400A – Includes select V6 Premium Exterior
features, plus:
Satin-chrome grille 19" x 9" front and 19" x 9.5" rear Black-painted aluminum
wheels
Mechanical
Black decklid stripe
5.0L Ti-VCT V8 engine with 412 hp @ 6,500 rpm1 and
390 lb.-ft. of torque @ 4,250 rpm1 Black rear spoiler
3.55:1 gear ratio with limited-slip rear differential Grille with blocked-off fog lamp openings
Modified front fascia with lower chin splitter
Seating Painted roof in Black or White to match stripes
6-way power driver’s seat with power lumbar Unique hood stripe and reverse “C” side stripes
Leather-trimmed heated front bucket seats
V6 Premium Interior
with Mustang Club of America 6-gauge cluster with MyColor® illumination
Special Edition Ambient lighting
Auto-dimming rearview mirror
Equipment Group 203A – Includes all standard features, plus: Bright-aluminum instrument panel, pedal covers, door-sill
scuff plates and shift knob
Interior
Bright-chrome door speaker surrounds
Premium carpeted floor mats
Ford SYNC® voice-activated, in-vehicle connectivity system
Exterior Leather-wrapped steering wheel with aluminum spokes
18" Sterling Grey Metallic-painted aluminum wheels with ShakerTM 500 Audio System with AM/FM stereo/single-CD
P235/50R18 W-rated tires player with MP3 capability, 8 speakers and 500 watts
Automatic headlamps Sirius Satellite Radio with 6-month prepaid subscription
Dark stainless-painted billet-style grille Universal garage door opener
Decklid tape appliqué Vinyl door-trim panel inserts
Lower fascia-mounted fog lamps
Exterior
Rear spoiler
18" wide-spoke painted aluminum wheels
Unique bodyside satin-black tape stripes 1
Figures achieved using premium unleaded fuel.
Automatic headlamps
Body-colour power sideview mirrors with integrated blind
spot mirrors
Dark-chrome Pony badge located in grille
Dual bright rolled exhaust tips
Fog lamps
Rear spoiler
2012 MUSTANG ford.ca

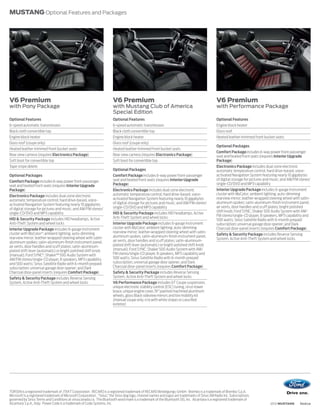

12. MUSTANG Optional Features and Packages
V6 Premium V6 Premium V6 Premium
with Pony Package with Mustang Club of America with Performance Package
Special Edition
Optional Features Optional Features Optional Features
6-speed automatic transmission 6-speed automatic transmission Engine block heater
Black cloth convertible top Black cloth convertible top Glass roof
Engine block heater Engine block heater Heated leather-trimmed front bucket seats
Glass roof (coupe only) Glass roof (coupe only)
Optional Packages
Heated leather-trimmed front bucket seats Heated leather-trimmed front bucket seats
Comfort Package includes 6-way power front-passenger
Rear view camera (requires Electronics Package) Rear view camera (requires Electronics Package) seat and heated front seats (requires Interior Upgrade
Soft boot for convertible top Soft boot for convertible top Package)
Tape stripe delete Electronics Package includes dual-zone electronic
Optional Packages automatic temperature control; hard drive-based, voice-
Optional Packages Comfort Package includes 6-way power front-passenger activated Navigation System featuring nearly 10 gigabytes
seat and heated front seats (requires Interior Upgrade of digital storage for pictures and music; and AM/FM stereo/
Comfort Package includes 6-way power front-passenger
Package) single-CD/DVD and MP3 capability
seat and heated front seats (requires Interior Upgrade
Package) Electronics Package includes dual-zone electronic Interior Upgrade Package includes 6-gauge instrument
automatic temperature control; hard drive-based, voice- cluster with MyColor; ambient lighting; auto-dimming
Electronics Package includes dual-zone electronic
activated Navigation System featuring nearly 10 gigabytes rearview mirror; leather-wrapped steering wheel with satin-
automatic temperature control; hard drive-based, voice-
of digital storage for pictures and music; and AM/FM stereo/ aluminum spokes; satin-aluminum-finish instrument panel,
activated Navigation System featuring nearly 10 gigabytes
single-CD/DVD and MP3 capability air vents, door handles and scuff plates; bright polished
of digital storage for pictures and music; and AM/FM stereo/
shift knob; Ford SYNC; Shaker 500 Audio System with AM/
single-CD/DVD and MP3 capability HID & Security Package includes HID headlamps, Active
FM stereo/single-CD player, 8 speakers, MP3 capability and
HID & Security Package includes HID headlamps, Active Anti-Theft System and wheel locks
500 watts; Sirius Satellite Radio with 6-month prepaid
Anti-Theft System and wheel locks Interior Upgrade Package includes 6-gauge instrument subscription; universal garage door opener; and Dark
Interior Upgrade Package includes 6-gauge instrument cluster with MyColor; ambient lighting; auto-dimming Charcoal door-panel inserts (requires Comfort Package)
cluster with MyColor®; ambient lighting; auto-dimming rearview mirror; leather-wrapped steering wheel with satin-
Safety & Security Package includes Reverse Sensing
rearview mirror; leather-wrapped steering wheel with satin- aluminum spokes; satin-aluminum-finish instrument panel,
System, Active Anti-Theft System and wheel locks
aluminum spokes; satin-aluminum-finish instrument panel, air vents, door handles and scuff plates; satin-aluminum-
air vents, door handles and scuff plates; satin-aluminum- plated shift lever (automatic) or bright polished shift knob
plated shift lever (automatic) or bright polished shift knob (manual); Ford SYNC; Shaker 500 Audio System with AM/
(manual); Ford SYNC®; ShakerTM 500 Audio System with FM stereo/single-CD player, 8 speakers, MP3 capability and
AM/FM stereo/single-CD player, 8 speakers, MP3 capability 500 watts; Sirius Satellite Radio with 6-month prepaid
and 500 watts; Sirius Satellite Radio with 6-month prepaid subscription; universal garage door opener; and Dark
subscription; universal garage door opener; and Dark Charcoal door-panel inserts (requires Comfort Package)
Charcoal door-panel inserts (requires Comfort Package) Safety & Security Package includes Reverse Sensing
Safety & Security Package includes Reverse Sensing System, Active Anti-Theft System and wheel locks
System, Active Anti-Theft System and wheel locks V6 Performance Package includes GT Coupe suspension,
unique electronic stability control (ESC) tuning, strut-tower
brace, unique engine cover, 19 painted machined aluminum
wheels, gloss Black sideview mirrors and tire mobility kit
(manual coupe only; n/a with white stripes or Lava Red
exterior)
TORSEN is a registered trademark of JTEKT Corporation. RECARO is a registered trademark of RECARO Beteiligungs-GmbH. Brembo is a trademark of Brembo S.p.A.
Microsoft is a registered trademark of Microsoft Corporation. “Sirius,” the Sirius dog logo, channel names and logos are trademarks of Sirius XM Radio Inc. Subscriptions
governed by Sirius Terms and Conditions at siriuscanada.ca. The Bluetooth word mark is a trademark of the Bluetooth SIG, Inc. Alcantara is a registered trademark of
Alcantara S.p.A., Italy. Power Code is a trademark of Code Systems, Inc. 2012 MUSTANG ford.ca

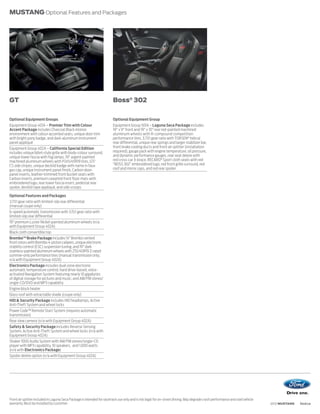

13. MUSTANG Optional Features and Packages
GT Boss® 302
Optional Equipment Groups Optional Equipment Group
Equipment Group 401A – Premier Trim with Colour Equipment Group 501A – Laguna Seca Package includes
Accent Package includes Charcoal Black interior 19" x 9" front and 19" x 10" rear red-painted machined
environment with colour-accented seats, unique door trim aluminum wheels with R-compound competition
with bright pony badge, and dark-aluminum instrument performance tires, 3.73:1 gear ratio with TORSEN® helical
panel appliqué rear differential, unique rear springs and larger stabilizer bar,
Equipment Group 402A – California Special Edition front brake cooling ducts and front air splitter (installation
includes unique billet-style grille with body-colour surround, required), gauge pack with engine temperature, oil pressure,
unique lower fascia with fog lamps, 19" argent-painted and dynamic performance gauges, rear seat delete with
machined aluminum wheels with P245/45R19 tires, GT/ red cross-car X-brace, RECARO® Sport cloth seats with red
CS side stripes, unique decklid badge with name in faux “BOSS 302” embroidered logo, red front grille surround, red
gas cap, unique instrument panel finish, Carbon door- roof and mirror caps, and red rear spoiler
panel inserts, leather-trimmed front bucket seats with
Carbon inserts, premium carpeted front floor mats with
embroidered logo, rear lower fascia insert, pedestal rear
spoiler, decklid tape appliqué, and side scoops
Optional Features and Packages
3.73:1 gear ratio with limited-slip rear differential
(manual coupe only)
6-speed automatic transmission with 3.15:1 gear ratio with
limited-slip rear differential
19" premium Luster Nickel-painted aluminum wheels (n/a
with Equipment Group 402A)
Black cloth convertible top
BremboTM Brake Package includes 14" Brembo vented
front rotors with Brembo 4-piston calipers, unique electronic
stability control (ESC) suspension tuning, and 19" dark
stainless-painted aluminum wheels with 255/40R19 Z-rated
summer-only performance tires (manual transmission only;
n/a with Equipment Group 402A)
Electronics Package includes dual-zone electronic
automatic temperature control; hard drive-based, voice-
activated Navigation System featuring nearly 10 gigabytes
of digital storage for pictures and music; and AM/FM stereo/
single-CD/DVD and MP3 capability
Engine block heater
Glass roof with retractable shade (coupe only)
HID & Security Package includes HID headlamps, Active
Anti-Theft System and wheel locks
Power Code TM Remote Start System (requires automatic
transmission)
Rear view camera (n/a with Equipment Group 402A)
Safety & Security Package includes Reverse Sensing
System, Active Anti-Theft System and wheel locks (n/a with
Equipment Group 402A)
Shaker 1000 Audio System with AM/FM stereo/single-CD
player with MP3 capability, 10 speakers, and 1,000 watts
(n/a with Electronics Package)
Spoiler delete option (n/a with Equipment Group 402A)
Front air splitter included in Laguna Seca Package is intended for racetrack use only and is not legal for on-street driving. May degrade crash performance and void vehicle
warranty. Must be installed by customer. 2012 MUSTANG ford.ca

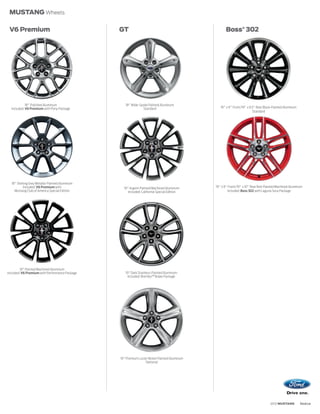

14. MUSTANG Wheels
V6 Premium GT Boss® 302
18 Polished Aluminum 18 Wide-Spoke Painted Aluminum
Included: V6 Premium with Pony Package Standard 19 x 9 Front/19 x 9.5 Rear Black-Painted Aluminum
Standard
18 Sterling Grey Metallic-Painted Aluminum
Included: V6 Premium with 19 Argent-Painted Machined Aluminum 19 x 9 Front/19 x 10 Rear Red-Painted Machined Aluminum
Mustang Club of America Special Edition Included: California Special Edition Included: Boss 302 with Laguna Seca Package
19 Painted Machined Aluminum
Included: V6 Premium with Performance Package 19 Dark Stainless-Painted Aluminum
Included: Brembo TM Brake Package
19 Premium Luster Nickel-Painted Aluminum
Optional
2012 MUSTANG ford.ca

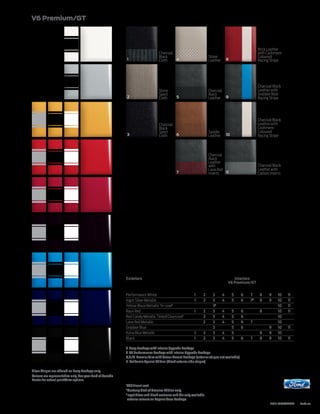

15. V6 Premium/GT
Brick Leather
Charcoal with Cashmere-
Black Stone Coloured
1 Cloth 4 Leather 8 Racing Stripe
Charcoal Black
Stone Charcoal Leather with
Sport Black Grabber Blue
2 Cloth 5 Leather 9 Racing Stripe
Charcoal Black
Charcoal Leather with
Black Cashmere-
Sport Saddle Coloured
3 Cloth 6 Leather 10 Racing Stripe
Charcoal
Black
Leather
with Charcoal Black
Lava Red Leather with
7 Inserts 11 Carbon Inserts
Exteriors Interiors
V6 Premium/GT
Performance White 1 2 3 4 5 6 7 8 9 10 11
Ingot Silver Metallic 1 2 3 4 5 6 73 8 9 10 11
Yellow Blaze Metallic Tri-coat1 32 10 11
Race Red 1 2 3 4 5 6 8 10 11
Red Candy Metallic Tinted Clearcoat1 2 3 4 5 6 10
Lava Red Metallic 2 3 4 5 6 7 10
Grabber Blue 3 5 6 9 10 11
Kona Blue Metallic 1 2 3 4 5 8 9 10
Black 1 2 3 4 5 6 7 8 9 10 11
2 Pony Package with Interior Upgrade Package.
3 V6 Performance Package with Interior Upgrade Package.
8,9,10 Premier Trim with Colour Accent Package (exterior stripes not available).
11 California Special Edition (Black exterior side stripes).
Silver Stripes are offered on Pony Package only.
Colours are representative only. See your Ford of Canada
Dealer for actual paint/trim options.
1
Additional cost.
2
Mustang Club of America Edition only.
3
Ingot Silver and Black exclusive and the only available
exterior colours on Laguna Seca Package.
2012 MUSTANG ford.ca

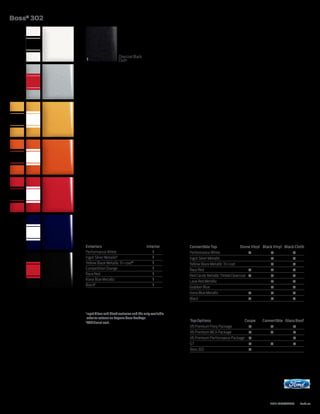

16. Boss® 302
Charcoal Black
1 Cloth
Exteriors Interior Convertible Top Stone Vinyl Black Vinyl Black Cloth
Performance White 1 Performance White
Ingot Silver Metallic1 1 Ingot Silver Metallic
Yellow Blaze Metallic Tri-coat2 1 Yellow Blaze Metallic Tri-coat
Competition Orange 1 Race Red
Race Red 1 Red Candy Metallic Tinted Clearcoat
Kona Blue Metallic 1 Lava Red Metallic
Black1 1
Grabber Blue
Kona Blue Metallic
Black
1
Ingot Silver and Black exclusive and the only available
exterior colours on Laguna Seca Package
2
Additional cost..
Top Options Coupe Convertible Glass Roof
V6 Premium Pony Package
V6 Premium MCA Package
V6 Premium Performance Package
GT
Boss 302
2012 MUSTANG ford.ca

17. QUALITY GREEN, SAFE AND SMART.
, ford.ca
Our commitment to you... Peace-of-Mind Protection
Basic Coverage: 3 years/60,000 km Powertrain Limited Warranty: 5 years/100,000 km Corrosion Warranty: 5 years/unlimited distance Roadside Assistance: 5 years/100,000 km
Certain conditions apply. For more information on these warranties and coverages, ask your local Ford of Canada Dealer or visit ford.ca.
Ford Extended Service Plan. Help protect your investment and add to your peace of mind by complementing your vehicle purchase or lease with a Ford Extended Service Plan (ESP).
Ford ESP protects you against unexpected repair costs a er your New Vehicle Basic Warranty expires by covering many vehicle components. Enjoy the drive even more by complementing
your ESP with a prepaid maintenance plan, which covers all required scheduled maintenance for your vehicle, plus 8 wear items. See your Ford of Canada Dealer for details. Ford Credit.
Get the ride you want. Whether you plan to lease or finance, you’ll find the choices that are right for you at Ford Credit. Ask your local Ford of Canada Dealer for details or check us out
at fordcredit.ca. For prompt, courteous answers to your questions: Ford Customer Relationship Centre 1-800-565-3673 or Ford Credit Customer Service Centre 1-877-636-7346.
Ford of Canada warrants that its authorized Dealers will repair or replace any Genuine Ford Accessory that is properly installed by the authorized Dealer that sold the accessory and
found to be defective in factory-supplied materials or workmanship. The accessory will be warranted for whichever provides you the greatest benefit: 12 months/20,000 km
(whichever occurs first), or the remainder of your 36-month/60,000-km (whichever occurs first) Basic Coverage in the New Vehicle Limited Warranty. Contact your local Ford of Canada Dealer
for details. Ford Licensed Accessories (FLA) are warranted by the accessory manufacturer’s limited warranty. The warranty coverage will vary by accessory manufacturer. Ford Licensed
Accessories are fully designed and developed by the accessory manufacturer and have not been designed or tested to Ford Motor Company engineering requirements. Contact your local Ford
of Canada Dealer for details regarding the accessory manufacturer’s limited warranty and/or for a copy of the FLA product limited warranty o ered by the accessory manufacturer.
Please note: The electronic version of the Ford of Canada vehicle brochure is a condensed version of the original printed version.
Competitive comparisons are based on 2011 competitive models, publicly available information and Ford data at the time of printing of the 2011 original printed version. Some features
discussed may be optional. Vehicles shown may contain optional equipment. Features shown may be offered only in combination with other options or subject to additional ordering
requirements or limitations. Dimensions shown may vary due to optional features and/or production variability. Following publication of the 2011 original printed brochure, certain changes
in standard equipment, options and the like, or product delays may have occurred which would not be included in these pages. Your Ford of Canada Dealer is your best source for up-to-
date information. Ford Motor Company of Canada, Limited, reserves the right to change product specifications at any time without incurring obligations. Colours may not be exactly as
illustrated. Please see your sales consultant for specific colour and model availability. Please visit your local dealer or ford.ca for complete vehicle details.
©2011 Ford Motor Company of Canada, Limited 2012 MUSTANG ford.ca
