Dave Orchard - Offline Web Apps with HTML5
The document outlines key concepts related to HTML5, including web storage, application cache, and web SQL, highlighting both simple and complex aspects. It explains the use of localStorage and sessionStorage for data storage, as well as the structure and functionality of cache manifests for offline applications. Additionally, it discusses challenges related to cache invalidation, client-side writes, messaging reliability, and security considerations for web applications.
More Related Content
Similar to Dave Orchard - Offline Web Apps with HTML5
Dave Orchard - Offline Web Apps with HTML5
- 1. HTML5 and OfflineDavidOrchardMobile Architect

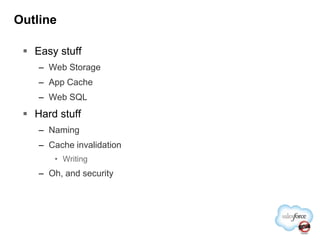

- 2. OutlineEasy stuffWeb StorageAppCacheWeb SQLHard stuffNamingCache invalidationWritingOh, and security
- 3.
- 4. Web StorageAka HTML5StorageSessionStorageScoped to sessionNo sharing across windowsLocalStoragePersistentShared across windowsSize: 5M, 10M, expandable

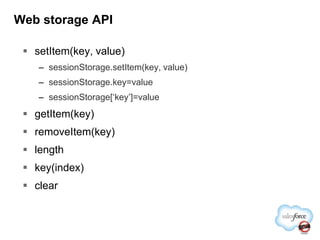

- 5. Web storage API setItem(key,value)sessionStorage.setItem(key, value)sessionStorage.key=valuesessionStorage[‘key’]=valuegetItem(key)removeItem(key)lengthkey(index)clear

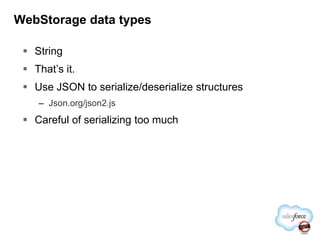

- 6. WebStorage data typesStringThat’sit.Use JSON to serialize/deserialize structuresJson.org/json2.jsCareful of serializing too much

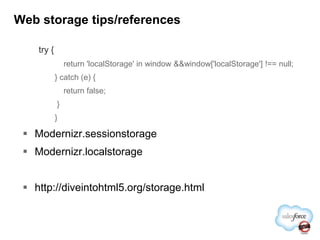

- 7. Web storage tips/referencestry{ return 'localStorage' in window && window['localStorage'] !== null;} catch (e) { return false; }}Modernizr.sessionstorageModernizr.localstoragehttp://diveintohtml5.org/storage.html

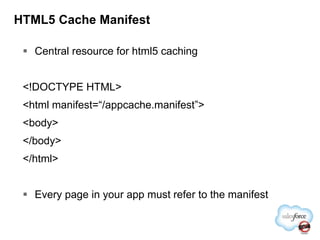

- 8. HTML5 Cache ManifestCentralresource for html5 caching<!DOCTYPE HTML><html manifest=“/appcache.manifest”><body></body></html>Every page in your app must refer to the manifest

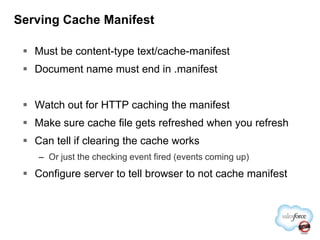

- 9. Serving Cache ManifestMustbe content-type text/cache-manifestDocument name must end in .manifestWatch out for HTTP caching the manifestMake sure cache file gets refreshed when you refreshCan tell if clearing the cache worksOr just the checking event fired (events coming up)Configure server to tell browser to not cache manifest

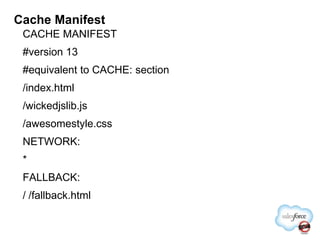

- 10. Cache Manifest CACHE MANIFEST#version13#equivalent to CACHE: section/index.html/wickedjslib.js/awesomestyle.cssNETWORK:*FALLBACK:/ /fallback.html

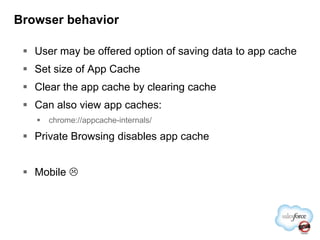

- 11. Browser behaviorUser maybe offered option of saving data to app cacheSet size of App CacheClear the app cache by clearing cacheCan also view app caches:chrome://appcache-internals/Private Browsing disables app cacheMobile

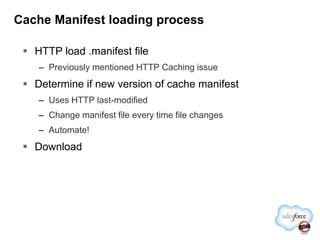

- 12. Cache Manifest loadingprocessHTTP load .manifest filePreviously mentioned HTTP Caching issueDetermine if new version of cache manifestUses HTTP last-modifiedChange manifest file every time file changesAutomate!Download

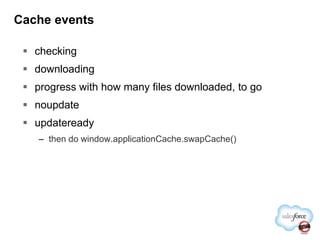

- 13. Cache eventscheckingdownloadingprogress withhow many files downloaded, to gonoupdateupdatereadythen do window.applicationCache.swapCache()

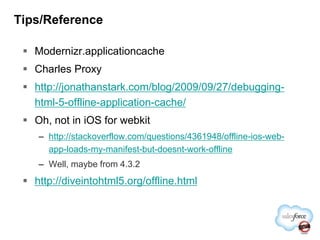

- 14. Tips/ReferenceModernizr.applicationcacheCharles Proxyhttp://jonathanstark.com/blog/2009/09/27/debugging-html-5-offline-application-cache/Oh, notin iOS for webkithttp://stackoverflow.com/questions/4361948/offline-ios-web-app-loads-my-manifest-but-doesnt-work-offlineWell, maybe from 4.3.2http://diveintohtml5.org/offline.html

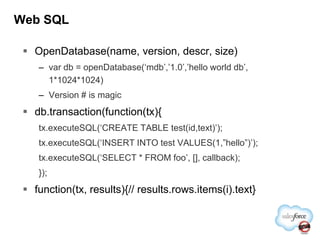

- 15. Web SQLOpenDatabase(name, version,descr, size)var db = openDatabase(‘mdb’,’1.0’,’hello world db’, 1*1024*1024)Version # is magicdb.transaction(function(tx){tx.executeSQL(‘CREATE TABLE test(id,text)’);tx.executeSQL(‘INSERT INTO test VALUES(1,”hello”)’);tx.executeSQL(‘SELECT * FROM foo’, [], callback);});function(tx, results){// results.rows.items(i).text}

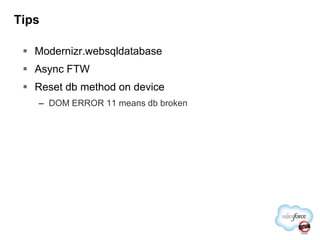

- 16. TipsModernizr.websqldatabaseAsync FTWReset dbmethod on deviceDOM ERROR 11 means db broken

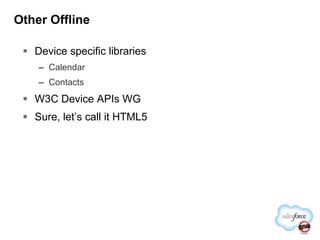

- 17. Other OfflineDevice specificlibrariesCalendarContactsW3C Device APIs WGSure, let’s call it HTML5

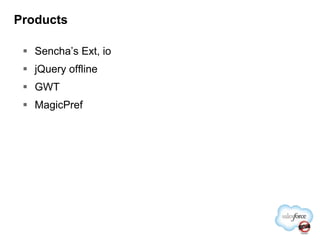

- 18. ProductsSencha’s Ext, iojQueryofflineGWTMagicPref

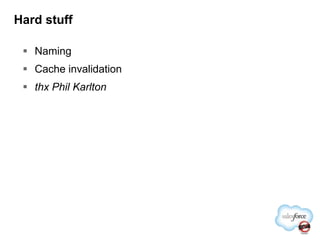

- 19. Hard stuffNamingCache invalidationthxPhil Karlton
- 20.

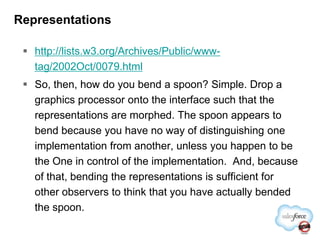

- 22. Representationshttp://lists.w3.org/Archives/Public/www-tag/2002Oct/0079.htmlSo, then, howdo you bend a spoon? Simple. Drop a graphics processor onto the interface such that the representations are morphed. The spoon appears to bend because you have no way of distinguishing one implementation from another, unless you happen to be the One in control of the implementation. And, because of that, bending the representations is sufficient for other observers to think that you have actually bended the spoon.

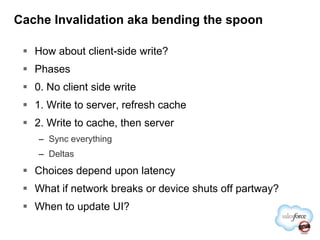

- 23. Cache Invalidation akabending the spoonHow about client-side write?Phases0. No client side write1. Write to server, refresh cache2. Write to cache, then serverSync everythingDeltasChoices depend upon latencyWhat if network breaks or device shuts off partway?When to update UI?

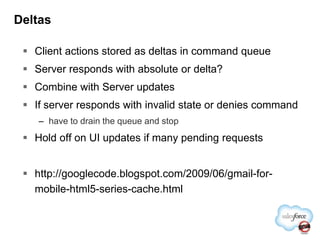

- 24. DeltasClient actions storedas deltas in command queueServer responds with absolute or delta?Combine with Server updatesIf server responds with invalid state or denies commandhave to drain the queue and stopHold off on UI updates if many pending requestshttp://googlecode.blogspot.com/2009/06/gmail-for-mobile-html5-series-cache.html

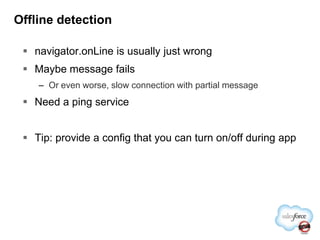

- 25. Offline detectionnavigator.onLine isusually just wrongMaybe message failsOr even worse, slow connection with partial messageNeed a ping serviceTip: provide a config that you can turn on/off during app

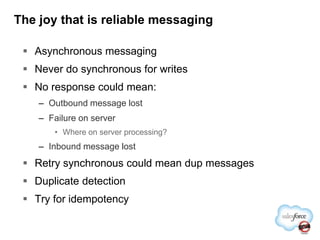

- 26. The joy thatis reliable messagingAsynchronous messagingNever do synchronous for writesNo response could mean:Outbound message lostFailure on serverWhere on server processing?Inbound message lostRetry synchronous could mean dup messagesDuplicate detectionTry for idempotency

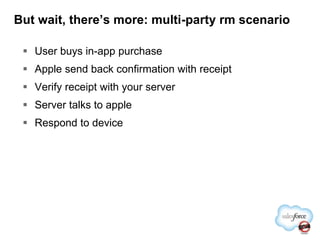

- 27. But wait, there’smore: multi-party rm scenarioUser buys in-app purchaseApple send back confirmation with receiptVerify receipt with your serverServer talks to appleRespond to device

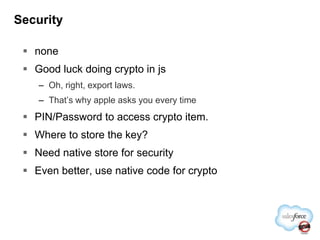

- 28. SecuritynoneGood luck doingcrypto in jsOh, right, export laws.That’s why apple asks you every timePIN/Password to access crypto item. Where to store the key?Need native store for securityEven better, use native code for crypto
- 29. OutlineEasy stuffWeb StorageAppCacheWeb SQLHard stuffNamingCache invalidationWritingOh, and security
