1. DEPARTMENT OF COMPUTER SCIENCE & ENGINEERING
CSS308 – OPERATING SYSTEMS
IIIYEAR / V SEMESTER
Prepared by
Dr.Thanuja R
Assistant Professor/ CSE

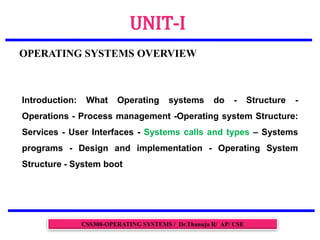

2. UNIT-I
OPERATING SYSTEMS OVERVIEW
CSS308-OPERATING SYSTEMS / Dr.Thanuja R/ AP/ CSE
Introduction: What Operating systems do - Structure -
Operations - Process management -Operating system Structure:
Services - User Interfaces - Systems calls and types – Systems
programs - Design and implementation - Operating System
Structure - System boot

3. SystemCalls
 Programminginterface to the servicesprovided by the O
S
 Typicallywritten in ahigh-levellanguage(Cor C++)
 Mostly accessed by programs via a high-level Application Programming
Interface(API)rather than direct systemcalluse
 Three most common APIs are Win32 API for Windows, POSIXAPI for
POSIX-basedsystems (including virtually all versions of UNIX, Linux, and
MacO
SX),andJavaAPIfor the Javavirtual machine (JVM)
CSS308-OPERATING SYSTEMS / Dr.Thanuja R/ AP/ CSE

4. Exampleof SystemCalls
 Systemcall sequenceto copythe contents of one file to another file
4

5. SystemCallImplementation
Typically,anumber associatedwith eachsystemcall
System-callinterfacemaintains atable indexedaccordingto these
numbers
The system call interface invokes the intended system call in OS
kernel and returns status of the systemcall and any return values
The caller need know nothing about how the system call is
implemented
Justneedsto obeyAPIandunderstand what OSwill do asaresult call
Most details of OSinterface hidden from programmer byAPI
Managedbyrun-time supportlibrary (set of functionsbuilt into libraries
included with compiler)
Why we use APIs rather than system call?
CSS308-OPERATING SYSTEMS / Dr.Thanuja R/ AP/ CSE

6. API–SystemCall–OSRelationship
CSS308-OPERATING SYSTEMS / Dr.Thanuja R/ AP/ CSE

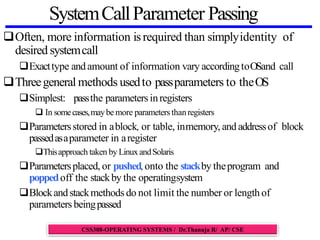

7. SystemCallParameter Passing
Often, more information isrequired than simplyidentity of
desired systemcall
Exacttype andamount of information vary accordingtoOSand call
Threegeneral methods usedto passparameters to theOS
Simplest: passthe parameters inregisters
 In somecases,maybe more parameters thanregisters
Parametersstored in ablock, or table, inmemory, and addressof block
passedasaparameter in aregister
Thisapproach taken by LinuxandSolaris
Parametersplaced, or pushed,onto the stackby theprogram and
poppedoff the stackby the operatingsystem
Blockandstackmethods do not limit the number or length of
parameters beingpassed
CSS308-OPERATING SYSTEMS / Dr.Thanuja R/ AP/ CSE

8. Parameter Passingvia Table
CSS308-OPERATING SYSTEMS / Dr.Thanuja R/ AP/ CSE

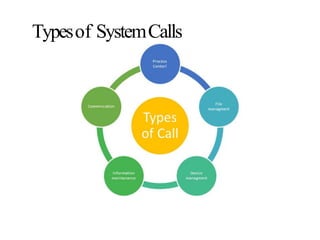

9. Typesof SystemCalls

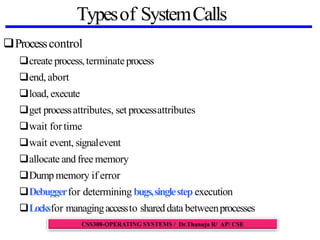

10. Typesof SystemCalls
Processcontrol
create process,terminateprocess
end, abort
load, execute
get processattributes, set processattributes
wait fortime
wait event, signalevent
allocate and free memory
Dump memory if error
Debuggerfor determining bugs,singlestep execution
Locksfor managingaccessto shareddata betweenprocesses
CSS308-OPERATING SYSTEMS / Dr.Thanuja R/ AP/ CSE

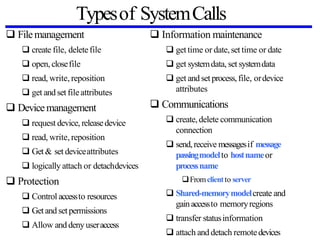

11. Typesof SystemCalls
 Filemanagement
 create file, deletefile
 open, closefile
 read, write, reposition
 get and set fileattributes
 Devicemanagement
 request device, releasedevice
 read, write, reposition
 Get& set deviceattributes
 logically attach or detachdevices
 Protection
 Control accessto resources
 Getand setpermissions
 Allow and denyuseraccess
 Information maintenance
 gettime or date,set time or date
 get systemdata, set systemdata
 get and set process,file, ordevice
attributes
 Communications
 create, delete communication
connection
 send,receive messagesif message
passingmodelto hostnameor
processname
Fromclientto server
 Shared-memorymodelcreate and
gainaccessto memoryregions
 transfer statusinformation
 attach and detach remotedevices

12. Pipe() system call Communications

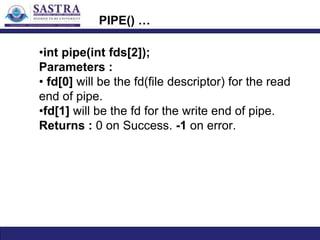

13. PIPE() …
•int pipe(int fds[2]);
Parameters :
• fd[0] will be the fd(file descriptor) for the read
end of pipe.
•fd[1] will be the fd for the write end of pipe.
Returns : 0 on Success. -1 on error.

14. Ex:Windows and Unix SystemCalls
StandardCLibraryExample
 C program invoking
printf() library call,
which calls write()
system call
CSS308-OPERATING SYSTEMS / Dr.Thanuja R/ AP/ CSE

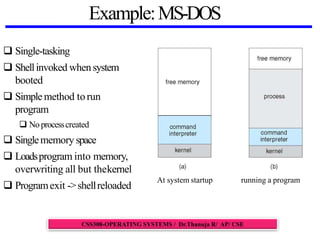

15. Example:MS-DOS
 Single-tasking
 Shellinvoked whensystem
booted
 Simplemethod torun
program
 Noprocesscreated
 Singlememory space
 Loadsprogram into memory,
overwriting all but thekernel
 Programexit ->shellreloaded
At system startup running a program
CSS308-OPERATING SYSTEMS / Dr.Thanuja R/ AP/ CSE

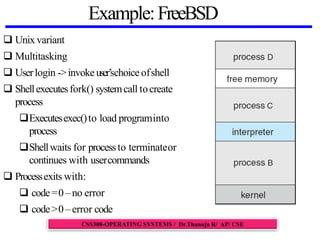

16. Example:FreeBSD
 Unix variant
 Multitasking
 Userlogin ->invokeuser’schoiceofshell
 Shellexecutesfork() systemcall tocreate
process
Executesexec()to load programinto
process
Shellwaits for processto terminateor
continues with usercommands
 Processexits with:
 code=0 –no error
 code>0 –error code
CSS308-OPERATING SYSTEMS / Dr.Thanuja R/ AP/ CSE
