Suitable for SANDVIK Crusher Liners
Shanghai Bogvik Wear Material Co., Ltd is one of the most professional crusher parts manufacturer and distributor. We major supply crusher wear parts from 5kgs to 10000kgs in a broad variety of Managnese steel crusher wear parts and alloys steel and chromium iron, Ceramic Insert hammers or blow bars ,Titanium Carbide Insert Liners and crusher spare parts of famous crusher brand .
Wear and spare parts are at the heart of BOGVIK business and we are continually driven to find new and improved ways to optimize component life and equipment performance.
Depending on the application & our clients requirements we offer a range of manganese steel wear parts including Manganese13%, Manganese18% and Manganese22% all with or without chrome & / or molybdenum additions. All manganese liners supplied by BOGVIK are made to our own internal material specifications which are for more stringent than “standard” foundry material specifications.
BOGVIK has in excess of 10000 wear part patterns to fit the world’s most popular crushers. Our patterns cover jaw crushers, cone crushers, gyratory crushers, roll crushers, hammer crushers, horizontal shaft impactors and vertical shaft impactors. No matter what your requirements are, BOGVIK probably already has existing patterns for the wear parts.
We believe in collaboration and work hand-in-hand with our customers to develop solutions that leverages our practical experience, in-house engineering & metallurgical capabilities and manufacturing capacity to provide a complete solution that meets our customer needs.
Contact us today to see how we can help extend service life, improve throughput, optimize supply chain and reduce the total cost of ownership.
sales@bogvik.com
中文:
上海勃格维克耐磨材料有限公司是国内最专业的破碎机配件制造商和经销商之一。我们主要供应从 5 公斤到 10000 公斤的各种锰钢破碎机磨损件和合金钢和铬铁、陶瓷插入锤或板锤、碳化钛插入衬板和著名破碎机品牌的破碎机备件。
磨损和备件是勃格维克 业务的核心,我们不断寻求新的和改进的方法来优化部件寿命和设备性能。
根据应用和我们客户的要求,我们提供一系列锰钢耐磨部件,包括锰13%、锰18% 和锰22%,均添加或不添加铬和/或钼。勃格维克 提供的所有锰衬板均按照我们自己的内部材料规格制造,这些规格比“标准”铸造材料规格更严格。
勃格维克 拥有超过 10000 种磨损零件的模具,以适合世界上最受欢迎的破碎机。我们的模具涵盖颚式破碎机、圆锥破碎机、旋回破碎机、辊式破碎机、锤式破碎机、卧式冲击破碎机和立轴式冲击破碎机。无论您需求什么类型的易损件,勃格维克可能已经有此零件的模具。
我们相信与客户携手合作,开发解决方案,利用我们的实践经验、内部工程和冶金能力以及制造能力,提供满足客户需求的完整解决方案。
立即联系我们,了解我们如何帮助延长使用寿命、提高吞吐量、优化供应链并降低总拥有成本。
Высококачественные тормозные колодки
Это основная составляющая часть тормозной системы, которая отвечает за создание тормозного ускорения. Данный элемент используется во всех транспортных средствах. Изделия постепенно изнашиваются, поэтому необходимо следить за их состоянием и регулярно производить замену на новые.
Наши цены не зависят от погоды!
Скидки до 70% на товары со вклада только до конца января. Смотрите весь перечень товаров в приложении, а также на сайте Торгового Дома Холдинга «Теплоком».
Наши цены не зависят от погоды!
Скидки до 70% на товары со склада только до конца января. Смотрите весь перечень товаров в приложении, а также на сайте Торгового Дома Холдинга «Теплоком».
Наши цены не зависят от погоды!
Скидки до 70% на товары со склада только до конца января. Смотрите весь перечень товаров в приложении, а также на сайте Торгового Дома Холдинга «Теплоком».
Высококачественные тормозные колодки
Это основная составляющая часть тормозной системы, которая отвечает за создание тормозного ускорения. Данный элемент используется во всех транспортных средствах. Изделия постепенно изнашиваются, поэтому необходимо следить за их состоянием и регулярно производить замену на новые.
Наши цены не зависят от погоды!
Скидки до 70% на товары со вклада только до конца января. Смотрите весь перечень товаров в приложении, а также на сайте Торгового Дома Холдинга «Теплоком».
Наши цены не зависят от погоды!
Скидки до 70% на товары со склада только до конца января. Смотрите весь перечень товаров в приложении, а также на сайте Торгового Дома Холдинга «Теплоком».
Наши цены не зависят от погоды!
Скидки до 70% на товары со склада только до конца января. Смотрите весь перечень товаров в приложении, а также на сайте Торгового Дома Холдинга «Теплоком».
Shanghai Bogvik Wear Material Co., Ltd is one of the most professional crusher parts manufacturer and distributor. We major supply crusher wear parts from 5kgs to 10000kgs in a broad variety of Managnese steel crusher wear parts and alloys steel and chromium iron, Ceramic Insert hammers or blow bars ,Titanium Carbide Insert Liners and crusher spare parts of famous crusher brand .
Wear and spare parts are at the heart of BOGVIK business and we are continually driven to find new and improved ways to optimize component life and equipment performance.
Depending on the application & our clients requirements we offer a range of manganese steel wear parts including Manganese13%, Manganese18% and Manganese22% all with or without chrome & / or molybdenum additions. All manganese liners supplied by BOGVIK are made to our own internal material specifications which are for more stringent than “standard” foundry material specifications.
BOGVIK has in excess of 10000 wear part patterns to fit the world’s most popular crushers. Our patterns cover jaw crushers, cone crushers, gyratory crushers, roll crushers, hammer crushers, horizontal shaft impactors and vertical shaft impactors. No matter what your requirements are, BOGVIK probably already has existing patterns for the wear parts.
We believe in collaboration and work hand-in-hand with our customers to develop solutions that leverages our practical experience, in-house engineering & metallurgical capabilities and manufacturing capacity to provide a complete solution that meets our customer needs.
Contact us today to see how we can help extend service life, improve throughput, optimize supply chain and reduce the total cost of ownership.
sales@bogvik.com
中文:
上海勃格维克耐磨材料有限公司是国内最专业的破碎机配件制造商和经销商之一。我们主要供应从 5 公斤到 10000 公斤的各种锰钢破碎机磨损件和合金钢和铬铁、陶瓷插入锤或板锤、碳化钛插入衬板和著名破碎机品牌的破碎机备件。
磨损和备件是勃格维克 业务的核心,我们不断寻求新的和改进的方法来优化部件寿命和设备性能。
根据应用和我们客户的要求,我们提供一系列锰钢耐磨部件,包括锰13%、锰18% 和锰22%,均添加或不添加铬和/或钼。勃格维克 提供的所有锰衬板均按照我们自己的内部材料规格制造,这些规格比“标准”铸造材料规格更严格。
勃格维克 拥有超过 10000 种磨损零件的模具,以适合世界上最受欢迎的破碎机。我们的模具涵盖颚式破碎机、圆锥破碎机、旋回破碎机、辊式破碎机、锤式破碎机、卧式冲击破碎机和立轴式冲击破碎机。无论您需求什么类型的易损件,勃格维克可能已经有此零件的模具。
我们相信与客户携手合作,开发解决方案,利用我们的实践经验、内部工程和冶金能力以及制造能力,提供满足客户需求的完整解决方案。
立即联系我们,了解我们如何帮助延长使用寿命、提高吞吐量、优化供应链并降低总拥有成本。
12 tic insert liners double the service lifeFernando Zhang
Why is TIC Liner more wearable?
A. The structure and properties of the matrix of the parts have changed. We have increased the content of Mn, Mo, and rare earth.
Therefore, the metallographic grain size of Hadfield steel is refined and the strength is enhanced.
B. The hardness of TIC Insert exceeds HRC60, and the hardness is about 3 times that of Hadfield steel!
The arrangement of Fine Chamber is almost the same as that of rough Chamber. According to the structure of the casting, Feed Size, make some small adjustments, there is no major change.
C. TIC Insert is a mesh-like structure, which is divided into points on the wear part, so as to achieve the purpose of improving the wear resistance of the part as a whole.
For TIC design, our engineers once again improved the design based on the wear curve of the parts you provided.
The size of the ore entering the Fine Chamber is very small, so we reduced the diameter and arrangement spacing of the TIC in order to obtain the best wear effect.
I share these ideas with you to let you fully understand the in-depth research we have done in this project.
Every new project is full of challenges and unknowns, but we are willing to challenge some interesting & valuable projects together with new customer.
How to solve the problem of excessive wear on both ends of Jaw liners? This is a classic case
One of our customers is in Shandong Province, China, and they have 2 crushers to crush iron ore.
One is 36X48 Jaw Crusher
One is 42X54 Jaw Crusher
We are told by customers that when they use OEM Liners, both ends of the Liners wear out very quickly! So productivity quickly dropped.
We filled the two ends of the teeth for our customers, and inlaid a lot of TIC Inserts at both ends.
The service life of the improved Liners is 3.68 times that of OEM Liners!
The customer was very satisfied with this and gave BOGVIK all their orders for Liners from dozens of sites in China

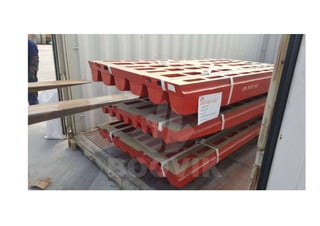

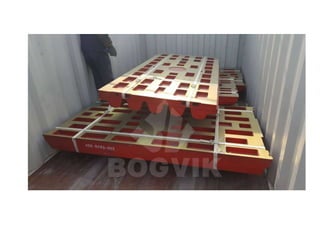

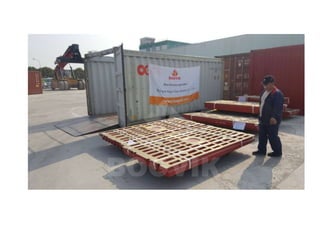

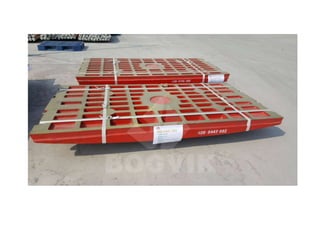

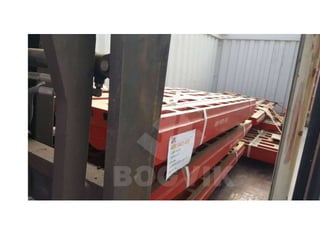

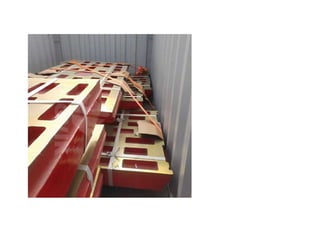

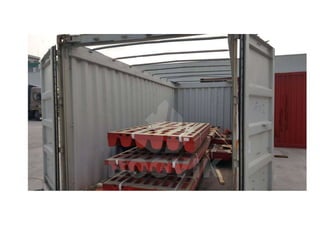

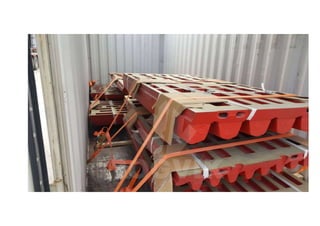

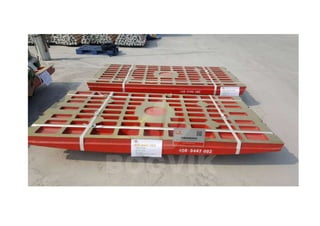

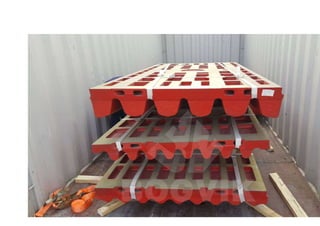

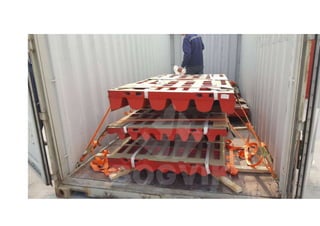

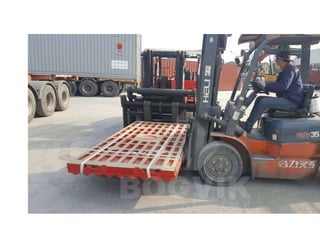

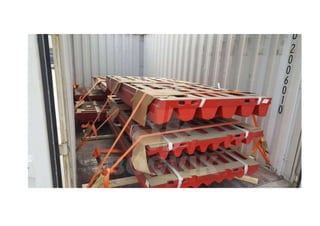

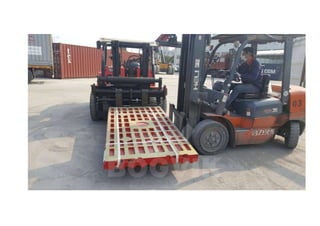

Some stock order parts from BOGVIK
Stock parts can be shipped at any time
If you have any specific needs, please feel free to contact me sales@bogvik.com

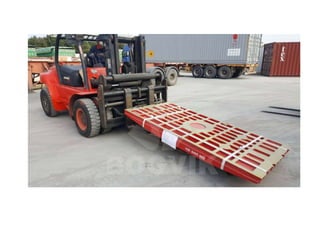

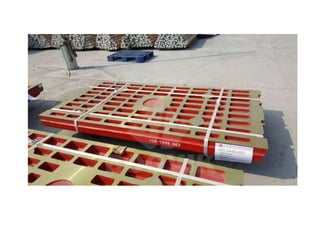

10 one of bogvik’s strongest product categories is plates made of manganese s...Fernando Zhang
One of Bogvik’s strongest product categories is plates made of manganese steel for jaw crushers.
This year, BOGVIK launched a new product — BOGVIK TIC plates. These are linings made of the standard alloys C, D and D1 but are reinforced with titanium carbide inserts. They show higher resistance to shock loads and cracking. This effect is achieved by special casting processes and heat treatment of the finished product, and the base alloy is selected in accordance with a rock type.
During the tests, the linings with inserts boasted an operating time that was 1.5 to 4 times more than that of classic manganese steel wear parts without inserts.
If you seek solutions to increase the intervals between plate replacement, reduce the number of maintenance stops, and lower your unit production costs — BOGVIK is what you need.
Contact our crushing&screening department to request individual solutions at: sales@bogvik.com
Ready to ship to the U.S.
Ready to ship to the U.S.
A reliable manufacturer of spare and wear parts and a supplier of engineering solutions for mining and construction equipment
sales@bogvik.com
Jaquess 36X48 Jaw
Our Customer would like to fill both ends to 18" F.I.E.
Just like in the photo, this design will be more durable。
If the crusher operates in very abrasive conditions at a very tight css then bottom of the jaws wear very quickly, fill jaw at both ends will help. But when you crush rock it expands by volume, corrugations allow this to occur, with this type of jaw enormous stress is transferred into the lower jaw frame and pitman/ bearings.
If rock is abrasive and soft no big deal, if its abrasive and tough, it can cause big issues.
We saw this problem with 50X60 Jaw at Huzhou quarry outside Shanghai.
So if possible good to know actual application and type of rock to decide best option.
Nip angle in crushing chamber is very important, smaller the better which is why thicker jaws with curve are requested by many people.
Kleemann Crusher Liners
MCO9 Crusher Liners
Crushing cone standard Cone S Part No. 2450546
Crushing shell standard fine Shell SF Part No. 2450551
MCO9 Crusher Liners
Crushing cone standard Cone S Part No. 2295672
Crushing shell standard medium Shell SM 2295649
C125 1P Quarry Type Jaw Plate
N11954343 JAW, FIXED QUARRY 1P 40mm Thick
N11954353 JAW MVBL QUARRY 1P Standard
It is suitable for quarry, and the use time is longer than OEM standard!
Contact BOGVIK for a quote: sales@bogvik.com
Shanghai Bogvik Wear Material Co., Ltd is one of the most professional crusher parts manufacturer and distributor. We major supply crusher wear parts from 5kgs to 10000kgs in a broad variety of Managnese steel crusher wear parts and alloys steel and chromium iron, Ceramic Insert hammers or blow bars ,Titanium Carbide Insert Liners and crusher spare parts of famous crusher brand .
Wear and spare parts are at the heart of BOGVIK business and we are continually driven to find new and improved ways to optimize component life and equipment performance.
Depending on the application & our clients requirements we offer a range of manganese steel wear parts including Manganese13%, Manganese18% and Manganese22% all with or without chrome & / or molybdenum additions. All manganese liners supplied by BOGVIK are made to our own internal material specifications which are for more stringent than “standard” foundry material specifications.
BOGVIK has in excess of 10000 wear part patterns to fit the world’s most popular crushers. Our patterns cover jaw crushers, cone crushers, gyratory crushers, roll crushers, hammer crushers, horizontal shaft impactors and vertical shaft impactors. No matter what your requirements are, BOGVIK probably already has existing patterns for the wear parts.
We believe in collaboration and work hand-in-hand with our customers to develop solutions that leverages our practical experience, in-house engineering & metallurgical capabilities and manufacturing capacity to provide a complete solution that meets our customer needs.
Contact us today to see how we can help extend service life, improve throughput, optimize supply chain and reduce the total cost of ownership.
sales@bogvik.com
上海勃格维克耐磨材料有限公司是国内最专业的破碎机配件制造商和经销商之一。我们主要供应从 5 公斤到 10000 公斤的各种锰钢破碎机磨损件和合金钢和铬铁、陶瓷插入锤或板锤、碳化钛插入衬板和著名破碎机品牌的破碎机备件。
磨损和备件是勃格维克 业务的核心,我们不断寻求新的和改进的方法来优化部件寿命和设备性能。
根据应用和我们客户的要求,我们提供一系列锰钢耐磨部件,包括锰13%、锰18% 和锰22%,均添加或不添加铬和/或钼。勃格维克 提供的所有锰衬板均按照我们自己的内部材料规格制造,这些规格比“标准”铸造材料规格更严格。
勃格维克 拥有超过 10000 种磨损零件的模具,以适合世界上最受欢迎的破碎机。我们的模具涵盖颚式破碎机、圆锥破碎机、旋回破碎机、辊式破碎机、锤式破碎机、卧式冲击破碎机和立轴式冲击破碎机。无论您需求什么类型的易损件,勃格维克可能已经有此零件的模具。
我们相信与客户携手合作,开发解决方案,利用我们的实践经验、内部工程和冶金能力以及制造能力,提供满足客户需求的完整解决方案。
立即联系我们,了解我们如何帮助延长使用寿命、提高吞吐量、优化供应链并降低总拥有成本。
MP1000 New Design
Mantle SPE STD F OS MX2 MM1564689 6284KG/PCS
Bowl Liners STD F MM1603957 5912KG/PCS
Original Equipment Replacement MP1000 Cone Crusher Parts
High quality cone crusher parts are a perfect fit
TIC Insert Jaw Crusher Wear Parts Manufacturer
BOGVIK has improved our customer Crusher Liners by TIC (titanium carbide) insert. BOGVIK TIC insert Crusher Liners are designed to improve efficiency and reduce costs by extending wear life and minimizing downtime. Compare with normal manganese crusher liners, our TIC insert wear parts span life can be 2-3 times. Based on our customer feedback, the more hard material to crush, the longer span life.
Benefits
2-3 times span life than normal manganese Crusher Liners
TIC insert Crusher Liners can decrease your plant downtime
Higher cost performance compare with normal manganese Crusher Liners
More easily to install
Original equipment replacement MP1000 cone crusher parts ensure proper fit, form and function to reduce maintenance issues and increase longevity. If your equipment fails, productivity of your entire plant is at risk. To avoid such losses, you must be sure critical replacement parts are readily available when you need them.
BOGVIK provides a complete offering, for both standard and engineered-to-order parts, ensuring you have the availability and support required. We provide flexible options to secure parts on a one-time basis, as a turn-key service, or anywhere in between.
Wear parts
Feed cone
Main frame liners
Mantle liners
Bowl liners
Protection cones
Arm guards
01 bogvik customizes the sandvik ch550 for customers with different chamber l...Fernando Zhang
BOGVIK customizes the CH550 for customers with different Chamber liners
CH550 CONCAVE F 452.8600-001
CH550 MANTLE B 452.8602-001
CH550 CONCAVE EC TOP GRIP 452.7843-001
CH550 MANTLE A 452.7626-001
CH550 CONCAVE C 452.8500-001
CH550 FILLER RING C 452.7388-001
CH550 CONCAVE MC 452.8496-001
CH550 CONCAVE M 452.8601-001
CH550 FILLER RING M 452.7386-001
CH550 MANTLE FF BG00133846-01
Hi Morning!
BOGVIK has in excess of 10000 wear part patterns to fit the world’s most popular crushers. Our patterns cover jaw crushers, cone crushers, gyratory crushers, roll crushers, hammer crushers, horizontal shaft impactors and vertical shaft impactors. No matter what your requirements are, BOGVIK probably already has existing patterns for the wear parts.
Depending on the application & our clients requirements we offer a range of manganese steel wear parts including Mn13%, Mn18% and Mn22% all with or without chrome & / or molybdenum additions. All manganese liners supplied by BOGVIK are made to our own internal material specifications which are for more stringent than “standard” foundry material specifications.
Dear Valued BOGVIK Customers,
We have already come back to the office after enjoying a pleasant CNY holiday. All orders can be proceeded as scheduled.
Any new inquiry, Kindly feel free to contact me.
Looking forward to further cooperation in 2021.
Rgeards
Fernando
Customized solutions for wear parts
Since establishment in 1996, BOGVIK has become a major supplier of Crusher wear parts. Our wear parts are known for their guaranteed outstanding performance and are widely accepted by original equipment manufacturers, major mining houses and aggregate producing companies worldwide.
BOGVIK has in excess of 10000 wear part patterns to fit the world’s most popular crushers. Our patterns cover jaw crushers, cone crushers, gyratory crushers, roll crushers, hammer crushers, horizontal shaft impactors and vertical shaft impactors. No matter what your requirements are, BOGVIK probably already has existing patterns for the wear parts.
Depending on the application & our clients requirements we offer a range of manganese steel wear parts including Mn13%, Mn18% and Mn22% all with or without chrome & / or molybdenum additions. All manganese liners supplied by BOGVIK are made to our own internal material specifications which are for more stringent than “standard” foundry material specifications.
Here are some of our recent excellent work for your reference:
Wear and spare parts are at the heart of BOGVIK business and we are continually driven to find new and improved ways to optimize component life and equipment performance.
We believe in collaboration and work hand-in-hand with our customers to develop solutions that leverages our practical experience, in-house engineering & metallurgical capabilities and manufacturing capacity to provide a complete solution that meets our customer needs.
Contact us today to see how we can help extend service life, improve throughput, optimize supply chain and reduce the total cost of ownership.
