This document introduces multi-threading in Java. It discusses that threads allow a program to have multiple paths of execution. Threads can be created by extending the Thread class or implementing the Runnable interface. The key method for threads is run, which contains the logic to be executed. The document covers starting threads, potential problems with threads accessing shared resources, and techniques for thread synchronization like synchronized methods, waits and notifies.

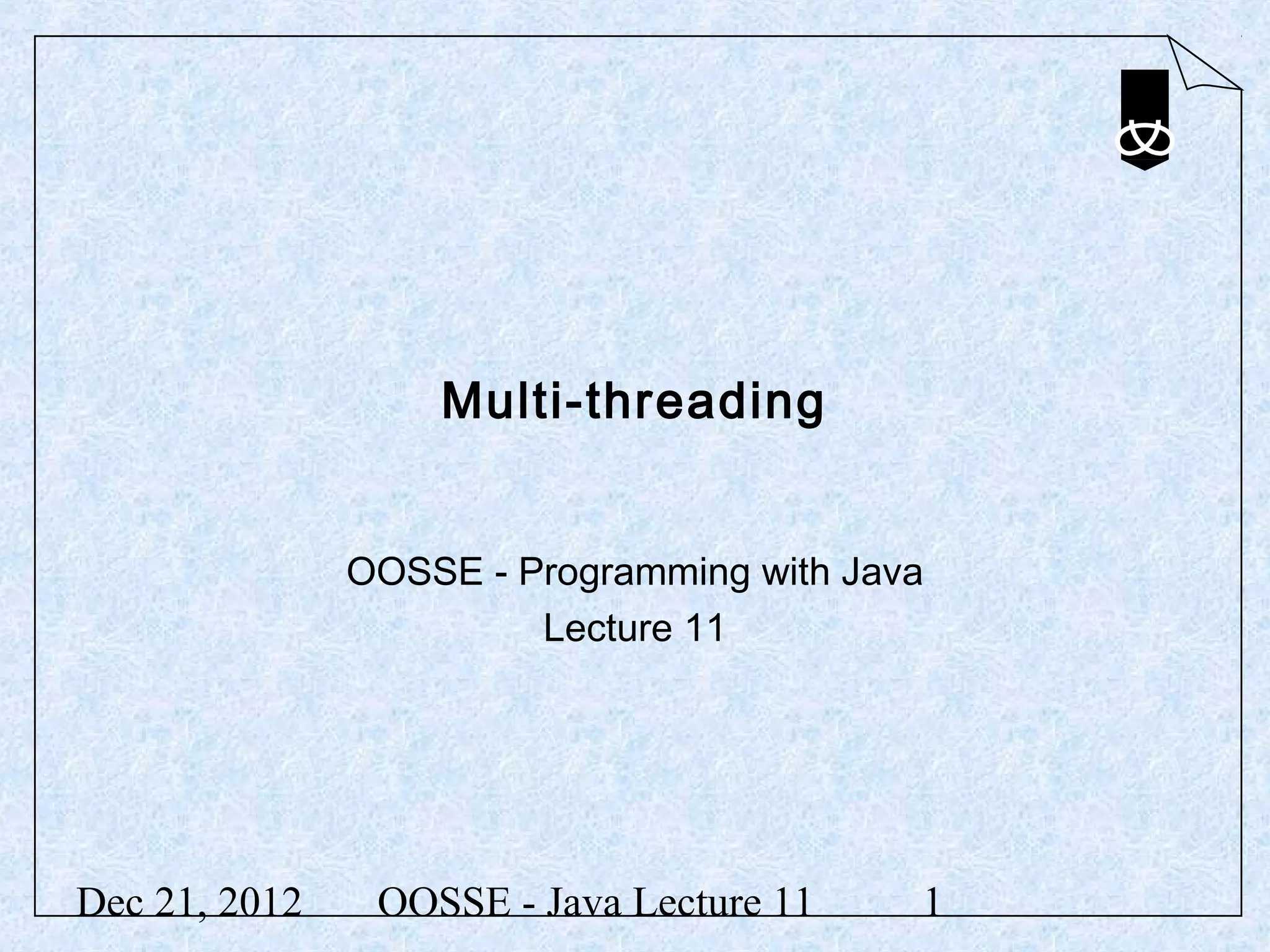

1. Multi-threading
OOSSE - Programming with Java
Lecture 11
Dec 21, 2012 OOSSE - Java Lecture 11 1

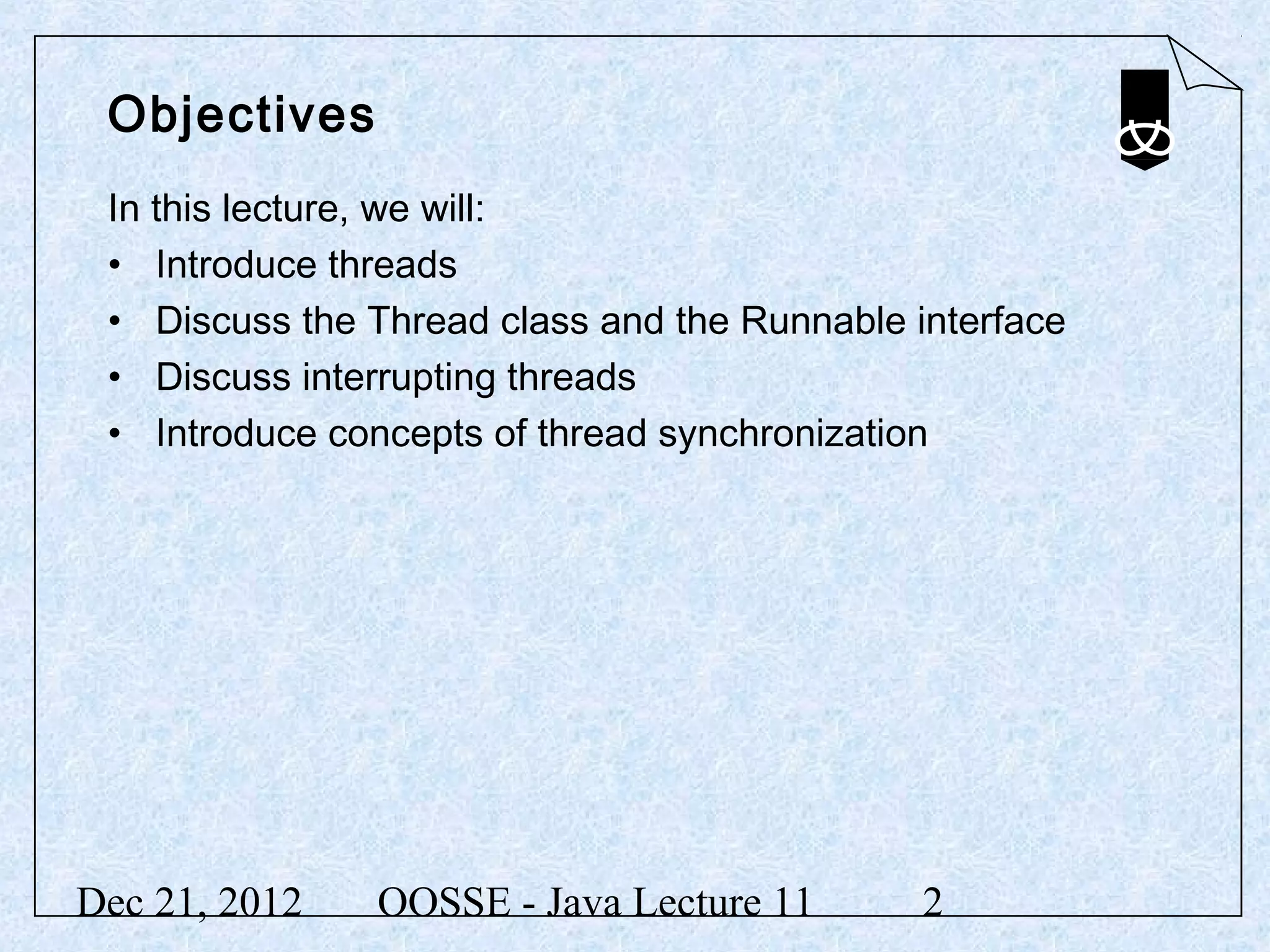

2. Objectives
In this lecture, we will:
• Introduce threads
• Discuss the Thread class and the Runnable interface
• Discuss interrupting threads
• Introduce concepts of thread synchronization
Dec 21, 2012 OOSSE - Java Lecture 11 2

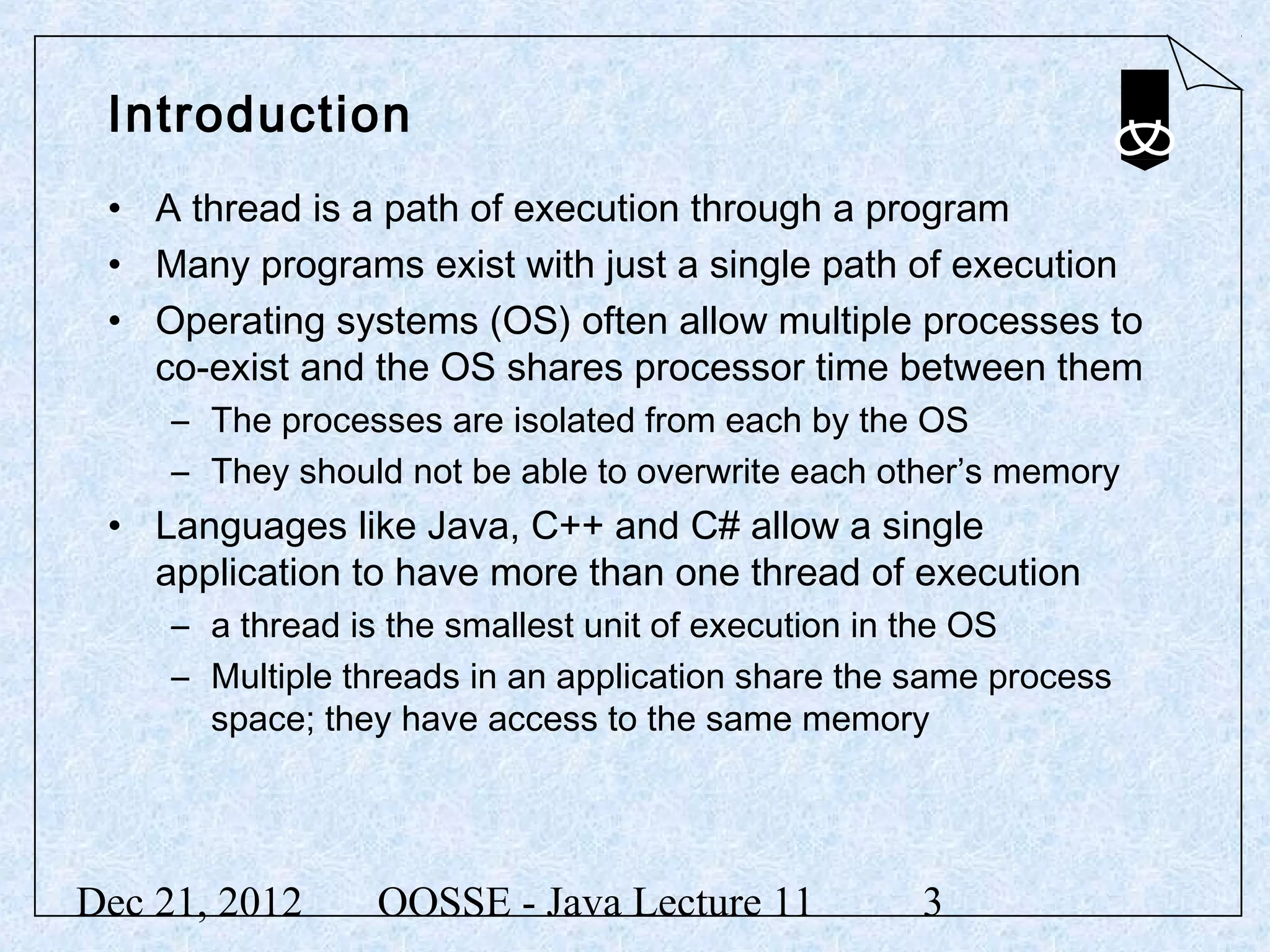

3. Introduction
• A thread is a path of execution through a program
• Many programs exist with just a single path of execution
• Operating systems (OS) often allow multiple processes to
co-exist and the OS shares processor time between them
– The processes are isolated from each by the OS
– They should not be able to overwrite each other’s memory
• Languages like Java, C++ and C# allow a single
application to have more than one thread of execution
– a thread is the smallest unit of execution in the OS
– Multiple threads in an application share the same process
space; they have access to the same memory
Dec 21, 2012 OOSSE - Java Lecture 11 3

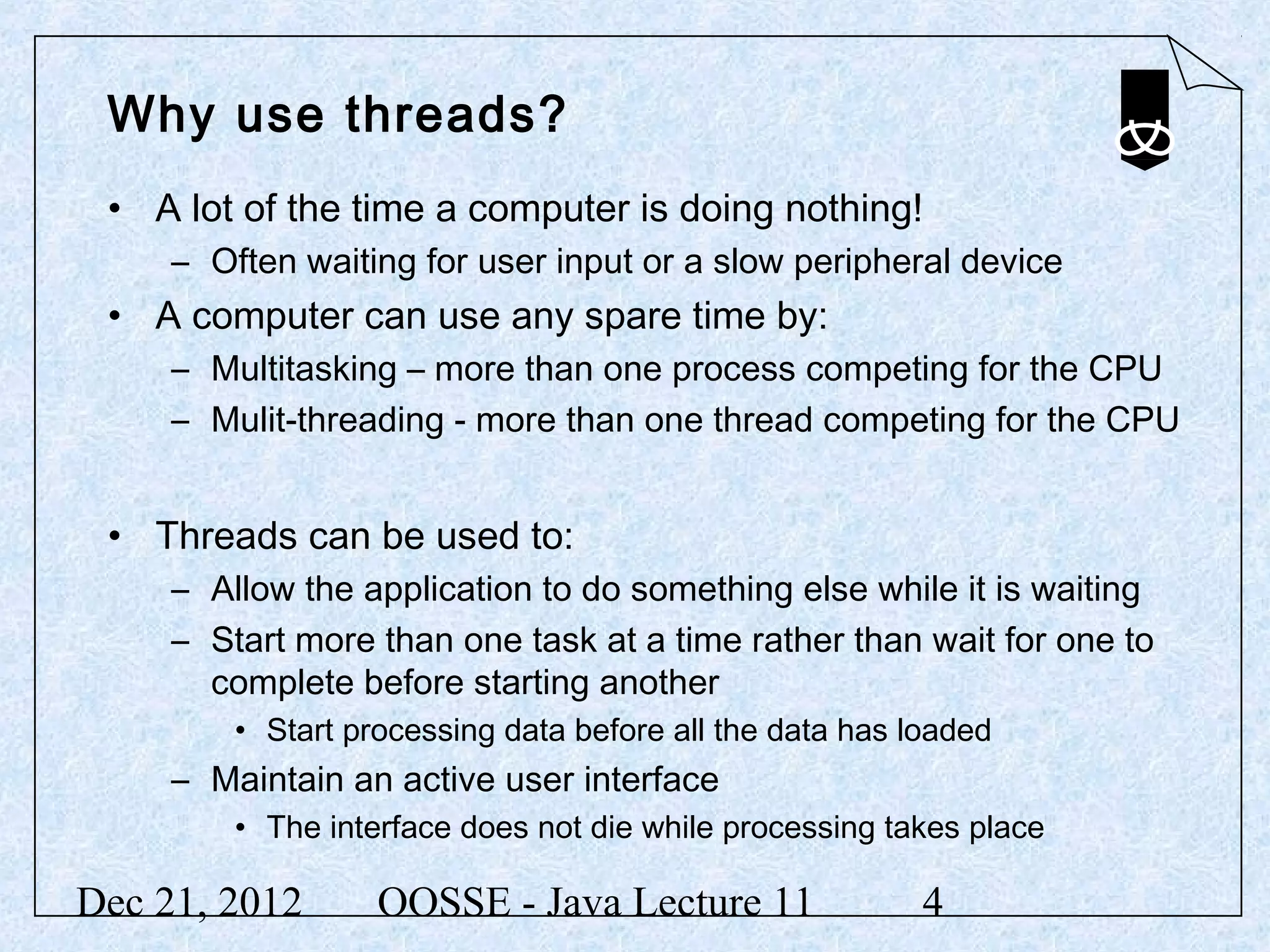

4. Why use threads?
• A lot of the time a computer is doing nothing!
– Often waiting for user input or a slow peripheral device
• A computer can use any spare time by:
– Multitasking – more than one process competing for the CPU
– Mulit-threading - more than one thread competing for the CPU
• Threads can be used to:
– Allow the application to do something else while it is waiting
– Start more than one task at a time rather than wait for one to
complete before starting another
• Start processing data before all the data has loaded
– Maintain an active user interface
• The interface does not die while processing takes place
Dec 21, 2012 OOSSE - Java Lecture 11 4

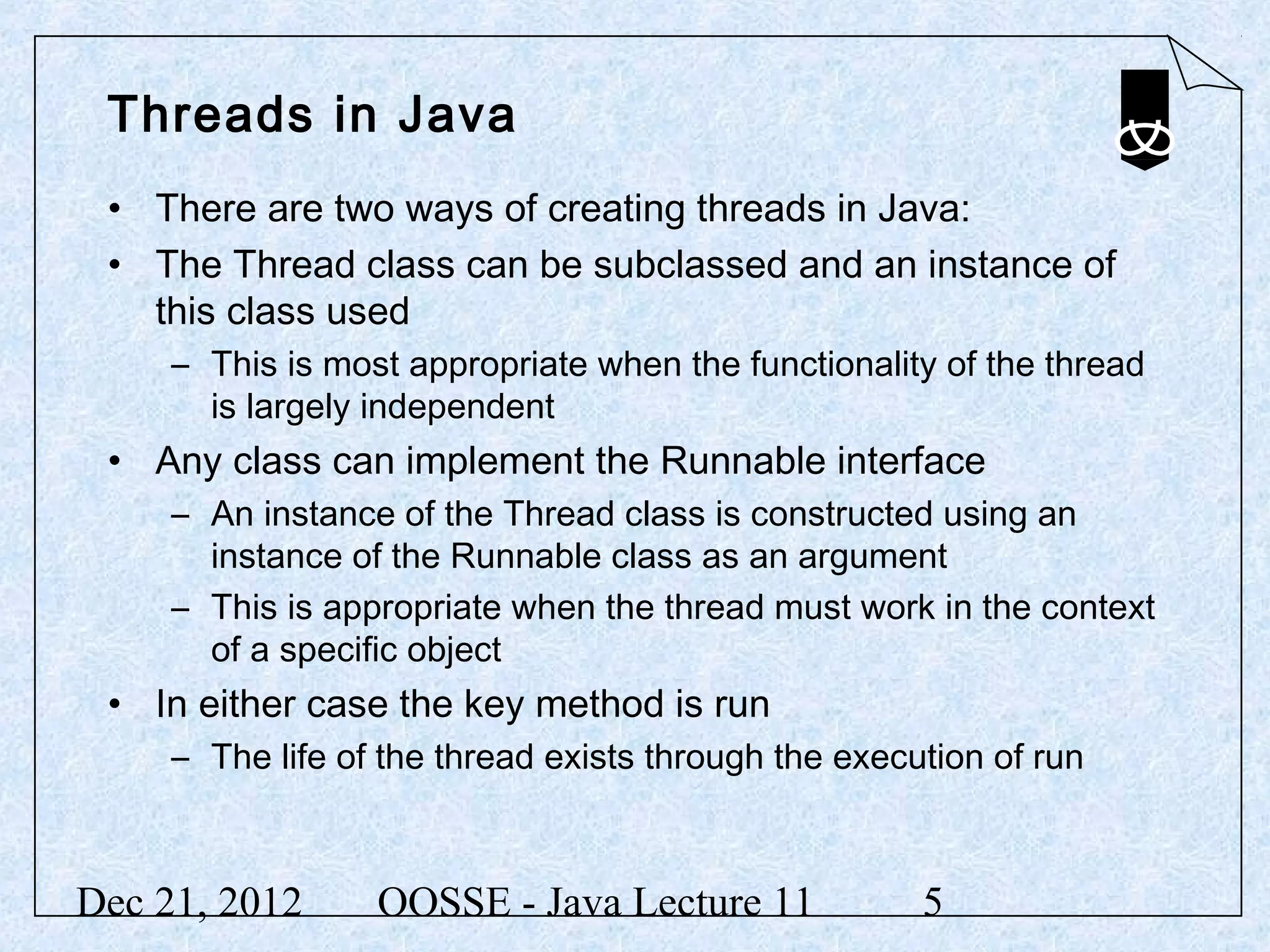

5. Threads in Java
• There are two ways of creating threads in Java:
• The Thread class can be subclassed and an instance of
this class used
– This is most appropriate when the functionality of the thread
is largely independent
• Any class can implement the Runnable interface
– An instance of the Thread class is constructed using an
instance of the Runnable class as an argument
– This is appropriate when the thread must work in the context
of a specific object
• In either case the key method is run
– The life of the thread exists through the execution of run
Dec 21, 2012 OOSSE - Java Lecture 11 5

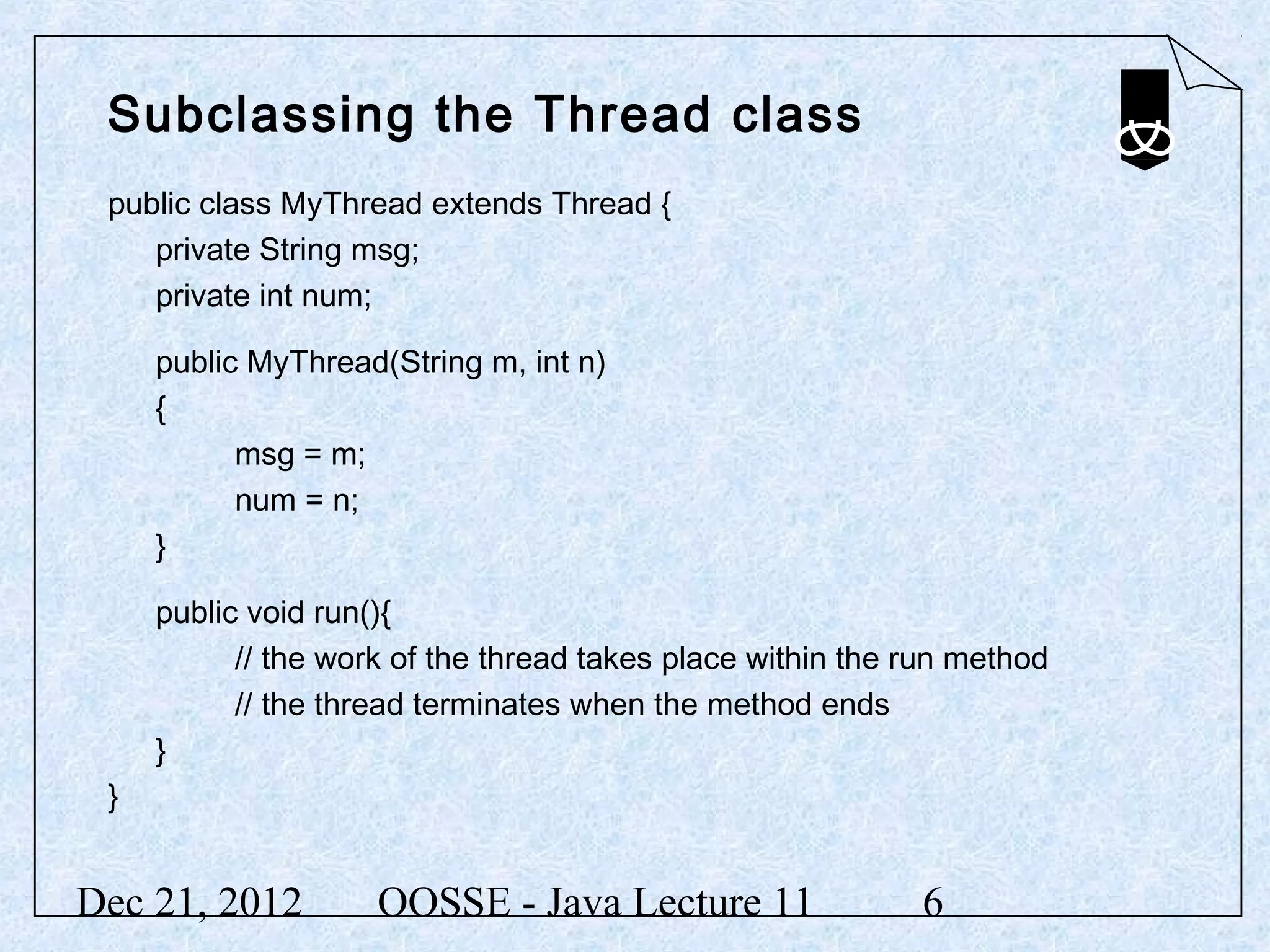

6. Subclassing the Thread class
public class MyThread extends Thread {
private String msg;
private int num;
public MyThread(String m, int n)
{
msg = m;
num = n;
}
public void run(){
// the work of the thread takes place within the run method
// the thread terminates when the method ends
}
}
Dec 21, 2012 OOSSE - Java Lecture 11 6

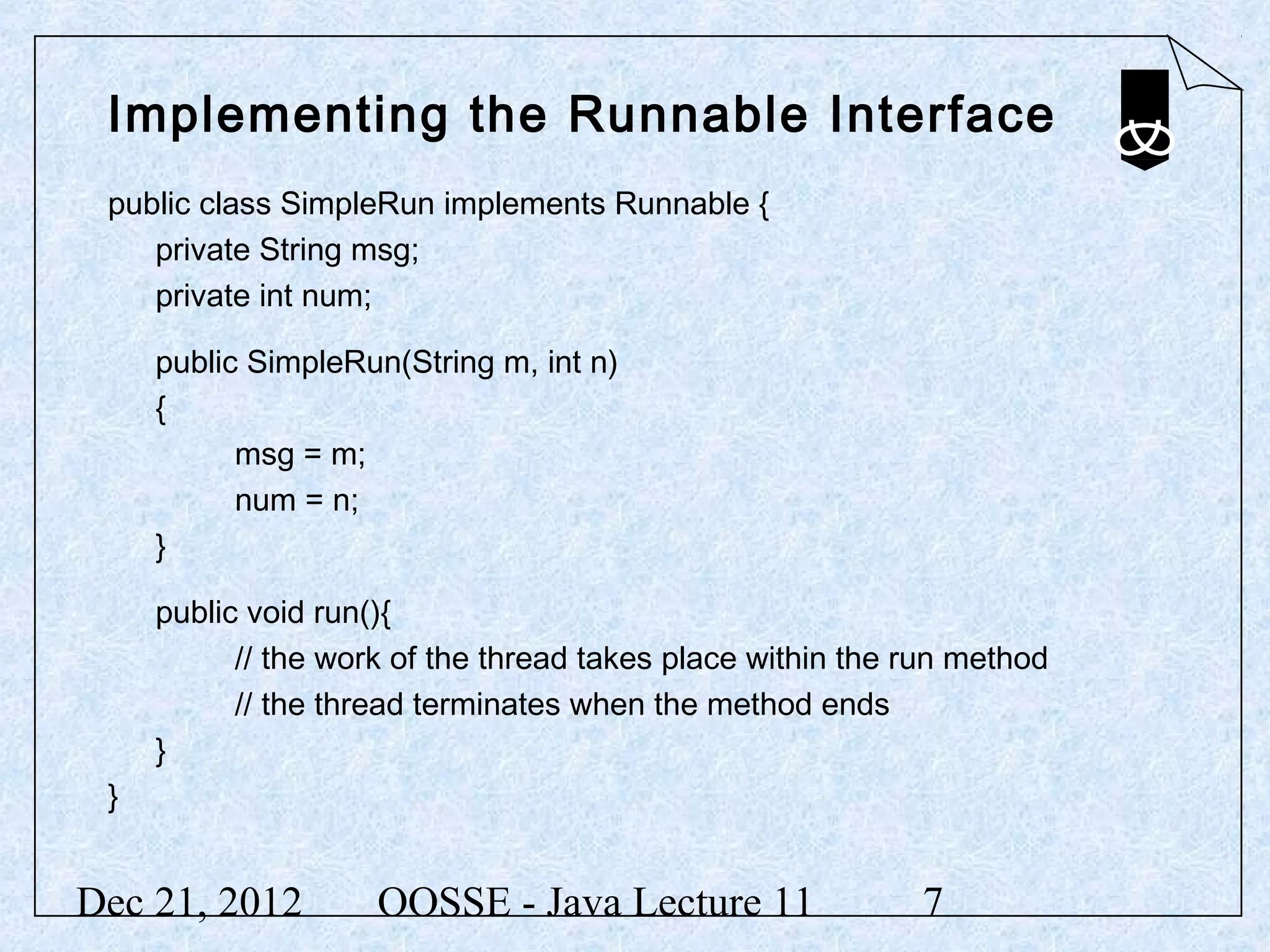

7. Implementing the Runnable Interface
public class SimpleRun implements Runnable {
private String msg;
private int num;
public SimpleRun(String m, int n)
{
msg = m;
num = n;
}
public void run(){
// the work of the thread takes place within the run method
// the thread terminates when the method ends
}
}
Dec 21, 2012 OOSSE - Java Lecture 11 7

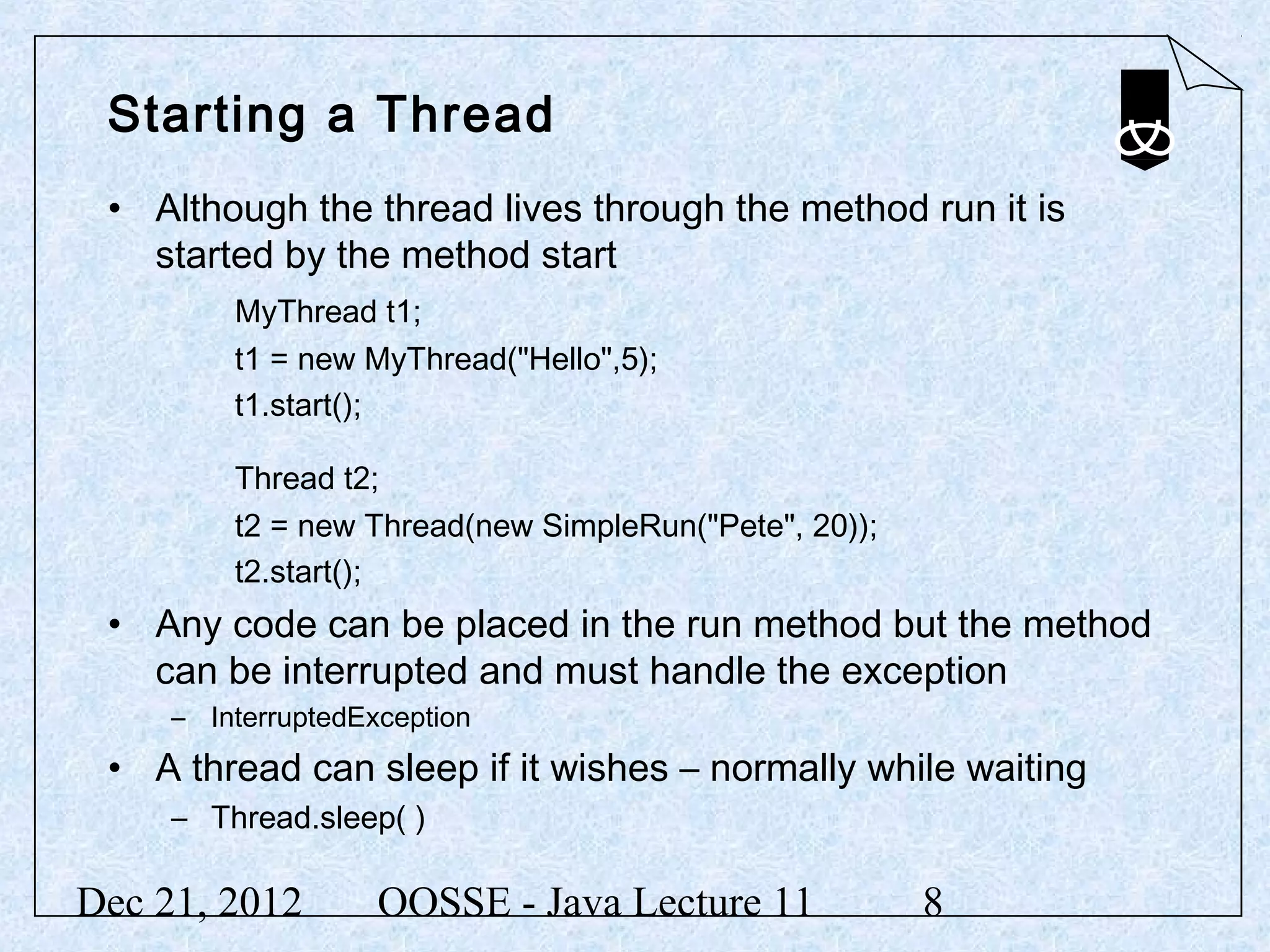

8. Starting a Thread
• Although the thread lives through the method run it is
started by the method start
MyThread t1;
t1 = new MyThread("Hello",5);
t1.start();
Thread t2;
t2 = new Thread(new SimpleRun("Pete", 20));
t2.start();
• Any code can be placed in the run method but the method
can be interrupted and must handle the exception
– InterruptedException
• A thread can sleep if it wishes – normally while waiting
– Thread.sleep( )
Dec 21, 2012 OOSSE - Java Lecture 11 8

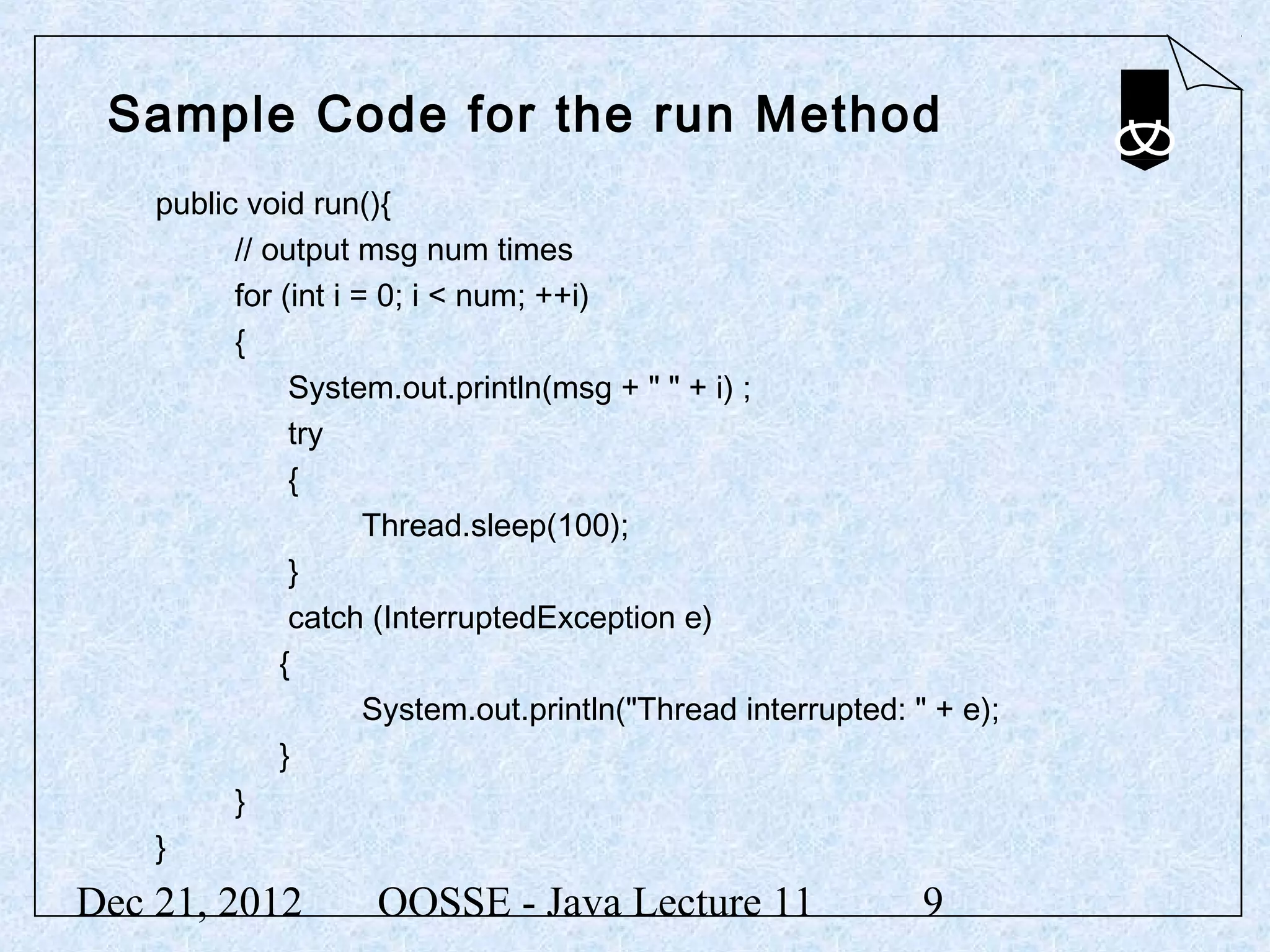

9. Sample Code for the run Method
public void run(){
// output msg num times
for (int i = 0; i < num; ++i)
{
System.out.println(msg + " " + i) ;
try
{
Thread.sleep(100);
}
catch (InterruptedException e)
{
System.out.println("Thread interrupted: " + e);
}
}
}
Dec 21, 2012 OOSSE - Java Lecture 11 9

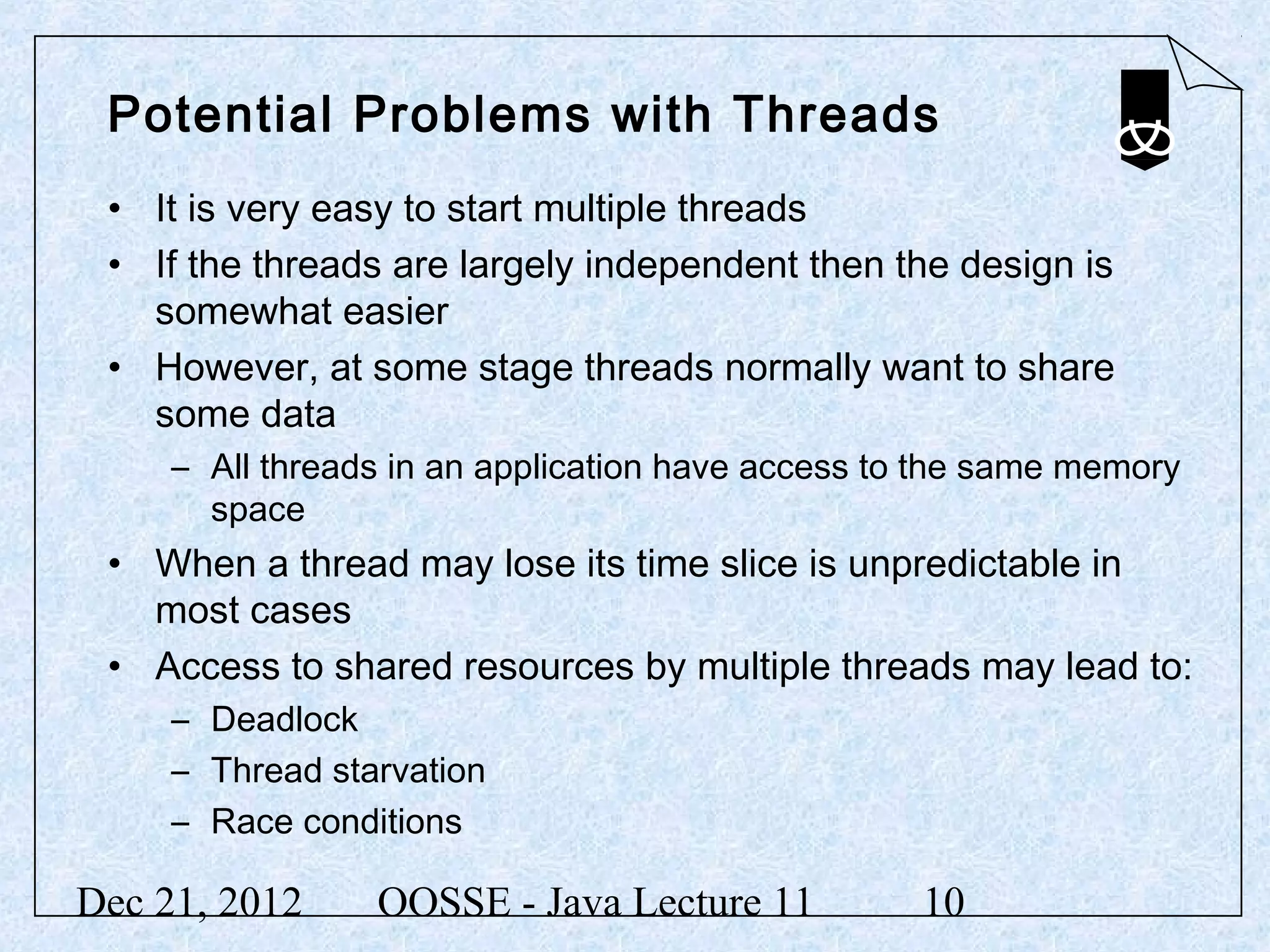

10. Potential Problems with Threads
• It is very easy to start multiple threads
• If the threads are largely independent then the design is
somewhat easier
• However, at some stage threads normally want to share
some data
– All threads in an application have access to the same memory
space
• When a thread may lose its time slice is unpredictable in
most cases
• Access to shared resources by multiple threads may lead to:
– Deadlock
– Thread starvation
– Race conditions
Dec 21, 2012 OOSSE - Java Lecture 11 10

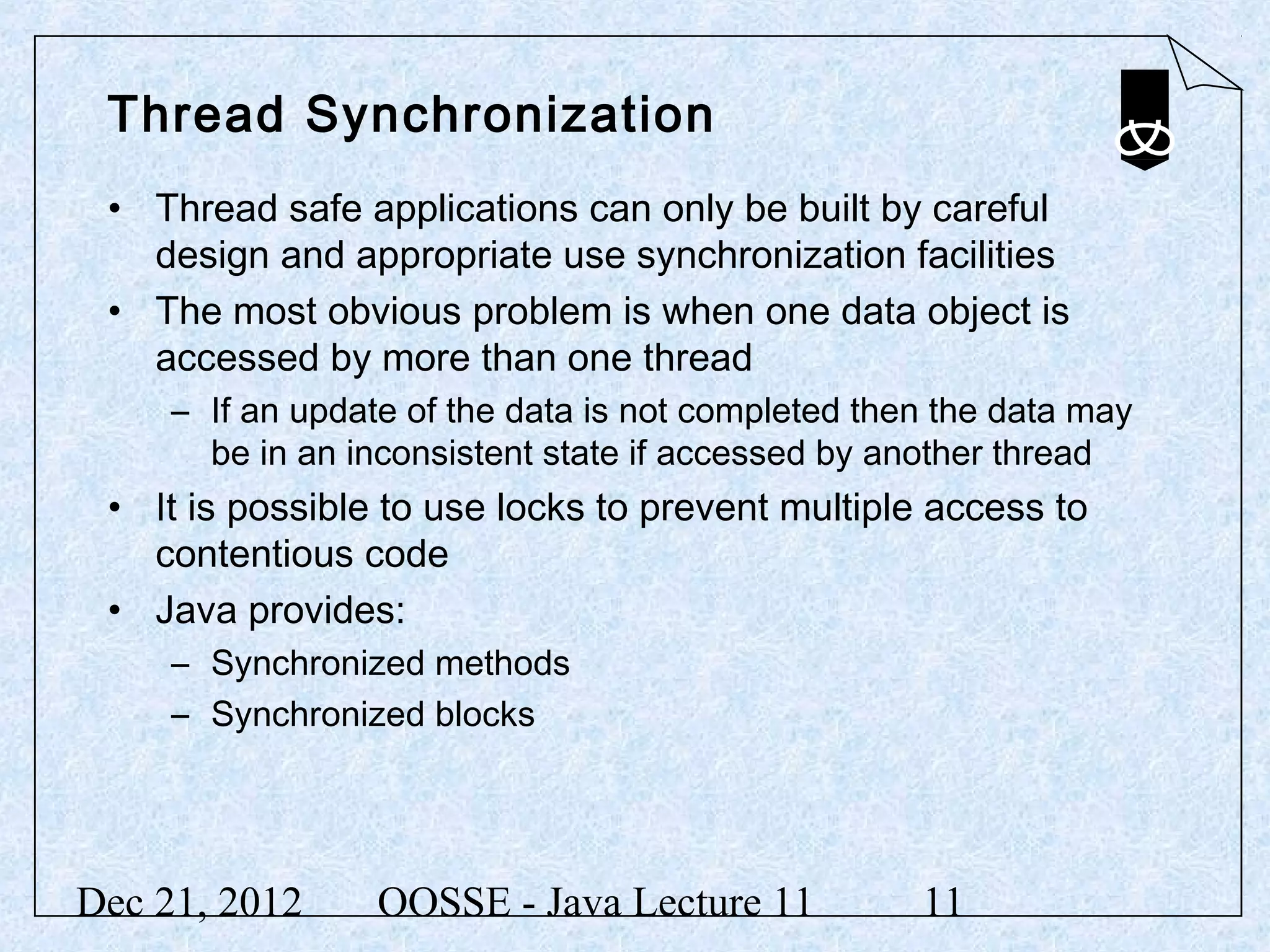

11. Thread Synchronization
• Thread safe applications can only be built by careful
design and appropriate use synchronization facilities
• The most obvious problem is when one data object is
accessed by more than one thread
– If an update of the data is not completed then the data may
be in an inconsistent state if accessed by another thread
• It is possible to use locks to prevent multiple access to
contentious code
• Java provides:
– Synchronized methods
– Synchronized blocks
Dec 21, 2012 OOSSE - Java Lecture 11 11

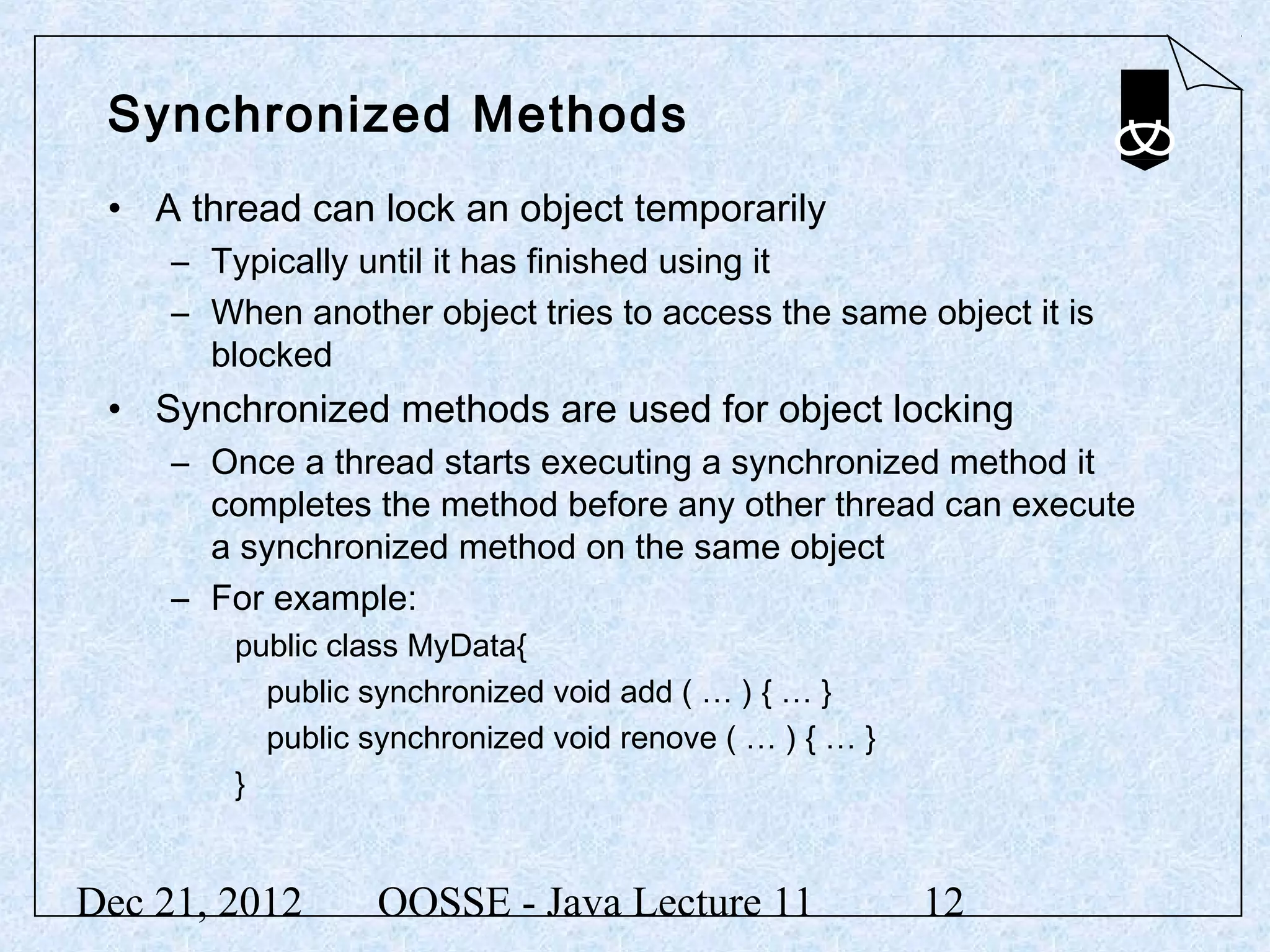

12. Synchronized Methods
• A thread can lock an object temporarily
– Typically until it has finished using it
– When another object tries to access the same object it is
blocked
• Synchronized methods are used for object locking
– Once a thread starts executing a synchronized method it
completes the method before any other thread can execute
a synchronized method on the same object
– For example:
public class MyData{
public synchronized void add ( … ) { … }
public synchronized void renove ( … ) { … }
}
Dec 21, 2012 OOSSE - Java Lecture 11 12

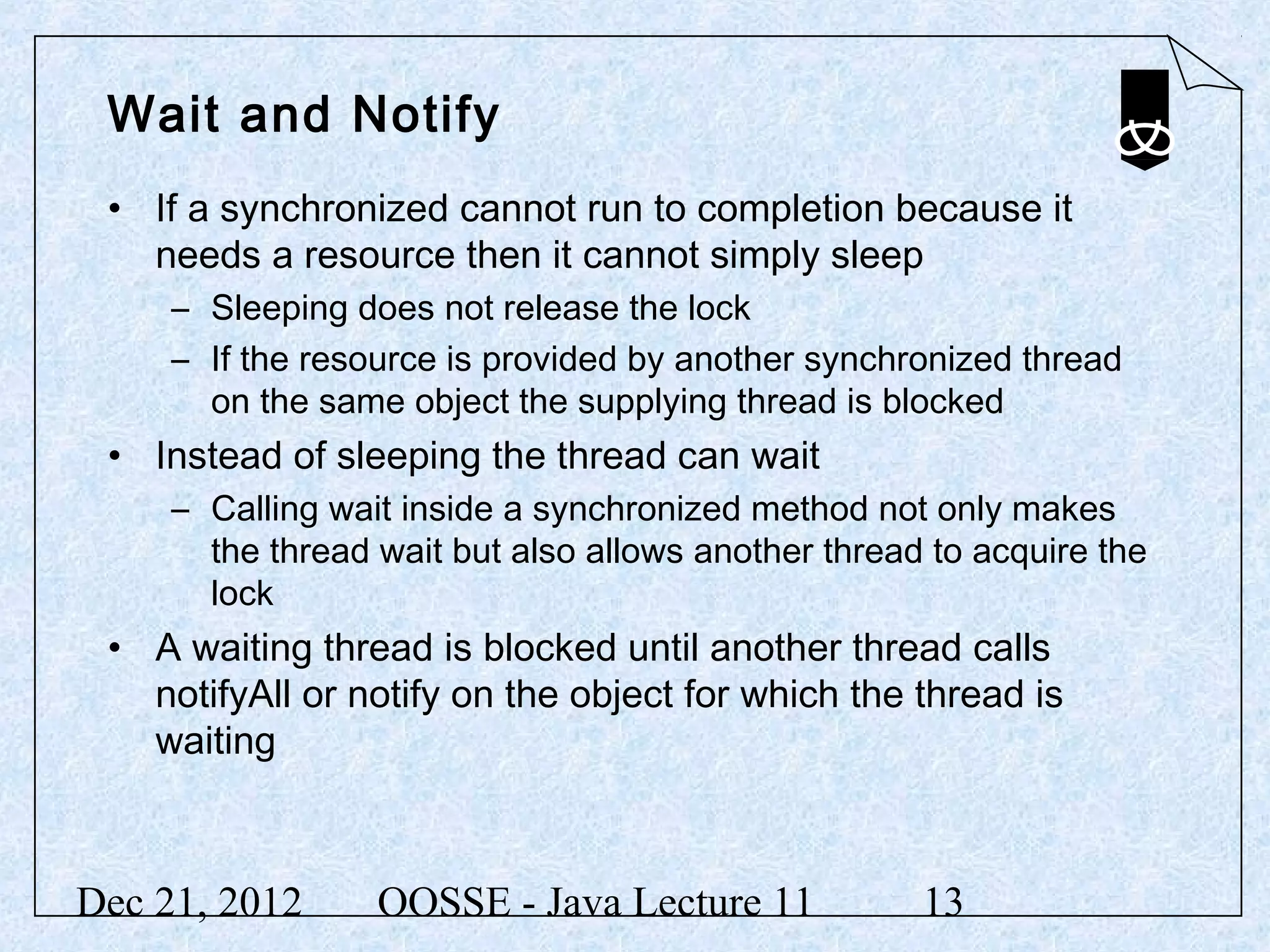

13. Wait and Notify
• If a synchronized cannot run to completion because it
needs a resource then it cannot simply sleep
– Sleeping does not release the lock
– If the resource is provided by another synchronized thread
on the same object the supplying thread is blocked
• Instead of sleeping the thread can wait
– Calling wait inside a synchronized method not only makes
the thread wait but also allows another thread to acquire the
lock
• A waiting thread is blocked until another thread calls
notifyAll or notify on the object for which the thread is
waiting
Dec 21, 2012 OOSSE - Java Lecture 11 13

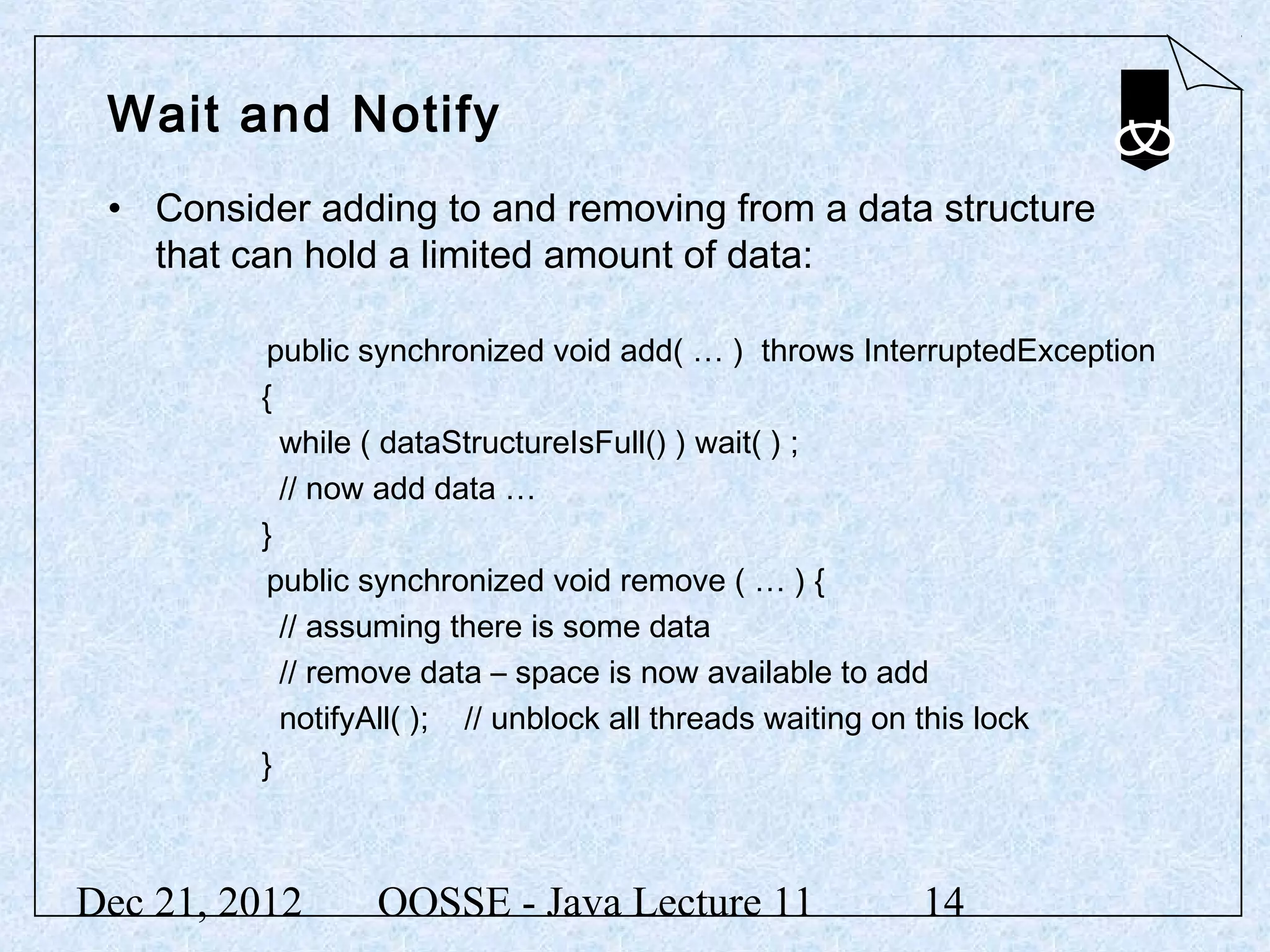

14. Wait and Notify
• Consider adding to and removing from a data structure
that can hold a limited amount of data:
public synchronized void add( … ) throws InterruptedException
{
while ( dataStructureIsFull() ) wait( ) ;
// now add data …
}
public synchronized void remove ( … ) {
// assuming there is some data
// remove data – space is now available to add
notifyAll( ); // unblock all threads waiting on this lock
}
Dec 21, 2012 OOSSE - Java Lecture 11 14

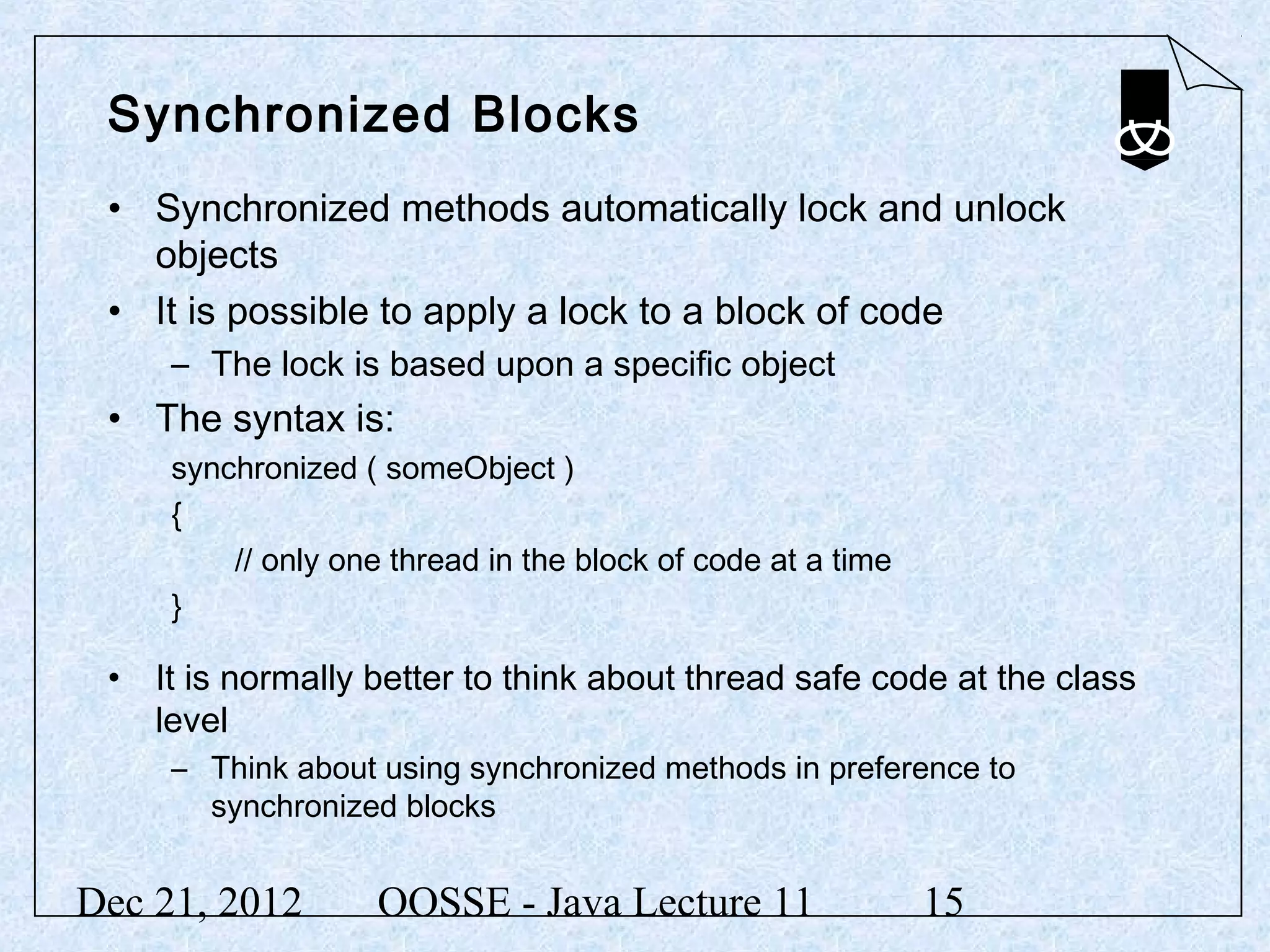

15. Synchronized Blocks
• Synchronized methods automatically lock and unlock
objects
• It is possible to apply a lock to a block of code
– The lock is based upon a specific object
• The syntax is:
synchronized ( someObject )
{
// only one thread in the block of code at a time
}
• It is normally better to think about thread safe code at the class
level
– Think about using synchronized methods in preference to
synchronized blocks
Dec 21, 2012 OOSSE - Java Lecture 11 15

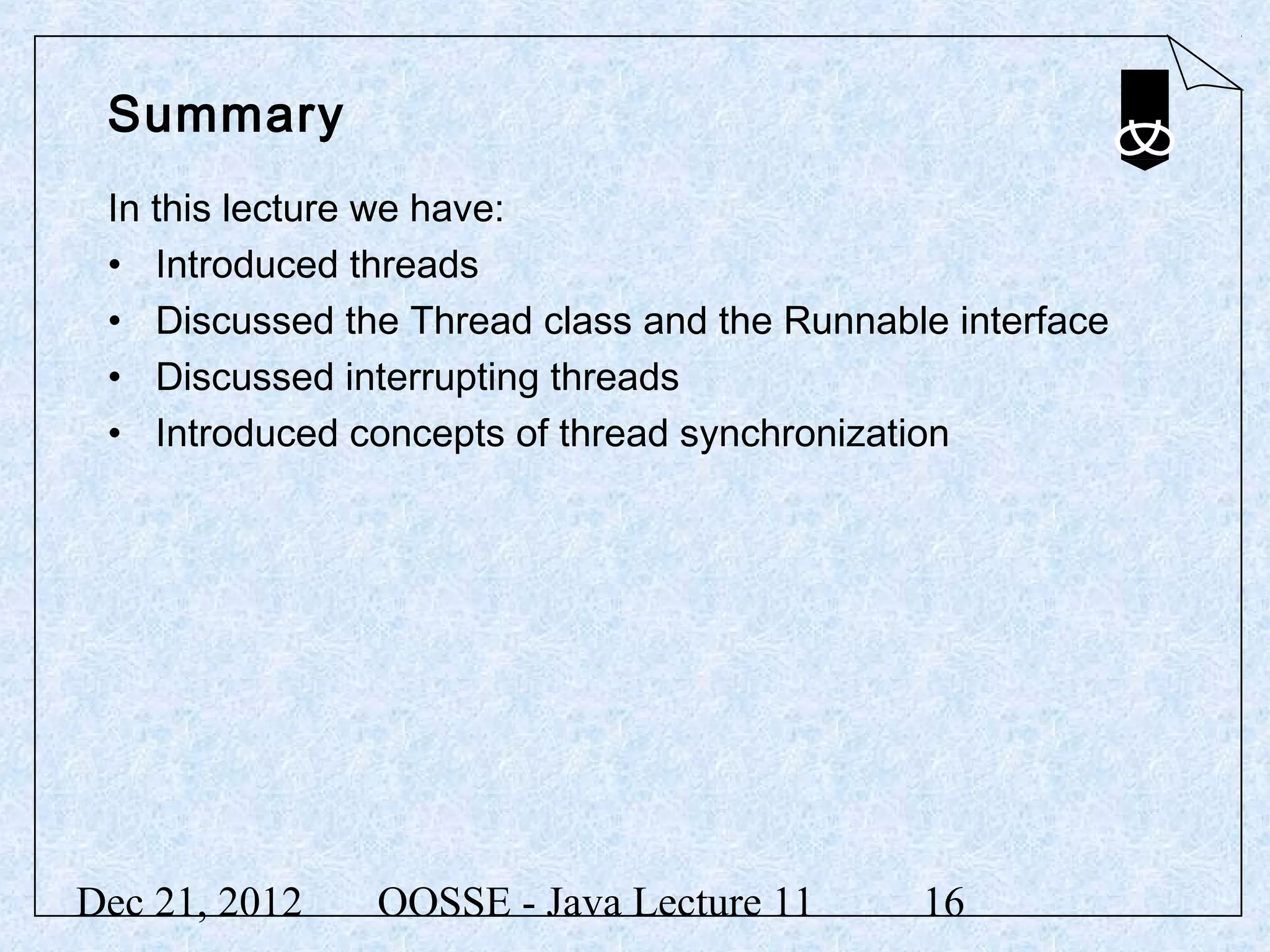

16. Summary
In this lecture we have:
• Introduced threads
• Discussed the Thread class and the Runnable interface
• Discussed interrupting threads
• Introduced concepts of thread synchronization
Dec 21, 2012 OOSSE - Java Lecture 11 16
