The 104R is a distribution amplifier that takes one RF input signal and distributes it to four identical outputs. It has a high bandwidth of 3000MHz, an RF gain of +6dB across the band, and can be rack mounted in a 1U rack space alongside two other units using an optional rack adapter. The 104R provides RF distribution with technical specifications including an input of 0.5Vpp/75Ω, outputs of 0.5Vpp/75Ω, and a bandwidth of 40MHz to 3000MHz (+/-3dB).

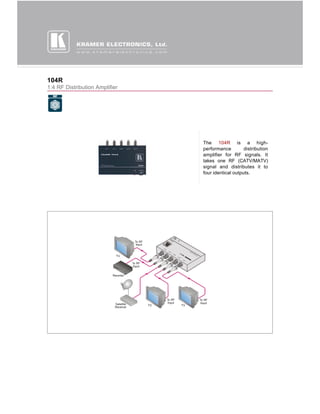

1. 104R
1:4 RF Distribution Amplifier
The 104R is a high-
performance distribution
amplifier for RF signals. It
takes one RF (CATV/MATV)
signal and distributes it to
four identical outputs.

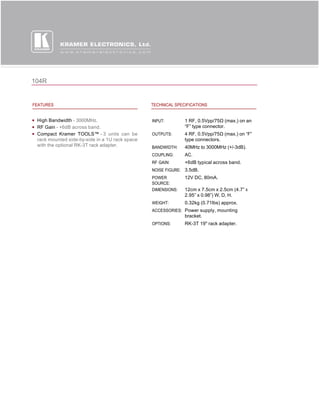

2. 104R
FEATURES TECHNICAL SPECIFICATIONS
High Bandwidth - 3000MHz. INPUT: 1 RF, 0.5Vpp/75Ω (max.) on an
RF Gain - +6dB across band. “F” type connector.
Compact Kramer TOOLS™ - 3 units can be OUTPUTS: 4 RF, 0.5Vpp/75Ω (max.) on “F”
rack mounted side-by-side in a 1U rack space type connectors.
with the optional RK-3T rack adapter. BANDWIDTH: 40MHz to 3000MHz (+/-3dB).
COUPLING: AC.
RF GAIN: +6dB typical across band.
NOISE FIGURE: 3.5dB.
POWER 12V DC, 80mA.
SOURCE:
DIMENSIONS: 12cm x 7.5cm x 2.5cm (4.7” x
2.95” x 0.98”) W, D, H.
WEIGHT: 0.32kg (0.71lbs) approx.
ACCESSORIES: Power supply, mounting
bracket.
OPTIONS: RK-3T 19" rack adapter.
