1. EVENT DETECTION
4th BDE Hang-out “Big Data in Secure
societies”
4/05/2017
George Giannakopoulos and
Nikiforos Pittaras,
NCSR "Demokritos"

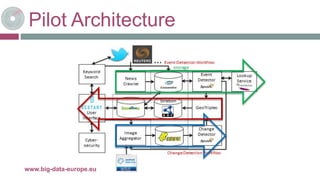

2. Pilot Architecture
8-mai-17www.big-data-europe.eu

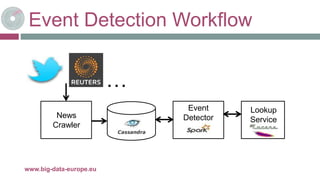

3. Event Detection Workflow
8-mai-17www.big-data-europe.eu
News
Crawler
…
Event
Detector
Lookup
Service

4. ED Workflow: News Crawler
 Runs periodically
 Monitored sources:
o Reuters news feeds (RSS)
o Selected Twitter accounts
o Keyword-based search
 Possible to cover more sources if needed
 Possible to process explicitly specified items
8-mai-17www.big-data-europe.eu

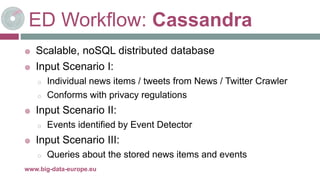

5. ED Workflow: Cassandra
 Scalable, noSQL distributed database
 Input Scenario I:
o Individual news items / tweets from News / Twitter Crawler
o Conforms with privacy regulations
 Input Scenario II:
o Events identified by Event Detector
 Input Scenario III:
o Queries about the stored news items and events
8-mai-17www.big-data-europe.eu

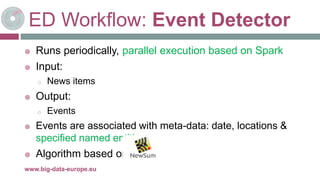

6. ED Workflow: Event Detector
 Runs periodically, parallel execution based on Spark
 Input:
o News items
 Output:
o Events
 Events are associated with meta-data: date, locations &
specified named entities
 Algorithm based on
8-mai-17www.big-data-europe.eu

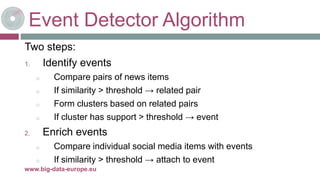

7. Event Detector Algorithm
Two steps:
1. Identify events
o Compare pairs of news items
o If similarity > threshold → related pair
o Form clusters based on related pairs
o If cluster has support > threshold → event
2. Enrich events
o Compare individual social media items with events
o If similarity > threshold → attach to event
8-mai-17www.big-data-europe.eu

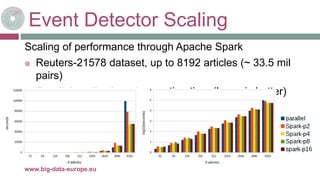

8. Event Detector Scaling
Scaling of performance through Apache Spark
 Reuters-21578 dataset, up to 8192 articles (~ 33.5 mil
pairs)
 Parallel vs distributed execution time (lower is better)
8-mai-17www.big-data-europe.eu

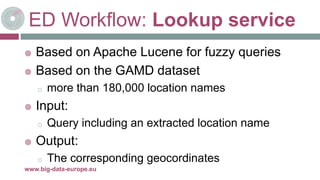

9. ED Workflow: Lookup service
 Based on Apache Lucene for fuzzy queries
 Based on the GAMD dataset
o more than 180,000 location names
 Input:
o Query including an extracted location name
 Output:
o The corresponding geocordinates
8-mai-17www.big-data-europe.eu

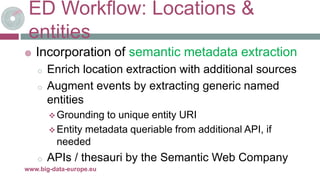

10. ED Workflow: Locations &
entities
 Incorporation of semantic metadata extraction
o Enrich location extraction with additional sources
o Augment events by extracting generic named
entities
 Grounding to unique entity URI
 Entity metadata queriable from additional API, if
needed
o APIs / thesauri by the Semantic Web Company
8-mai-17www.big-data-europe.eu

11. https://en.wikipedia.org/wiki/The_Godfather#Cast
ED Workflow: Locations &
entities
 Example: famous people thesaurus:
8-mai-17www.big-data-europe.eu
Extracto
r
API
http://bde.poolparty.biz/People/20
http://bde.poolparty.biz/People/446473
http://bde.poolparty.biz/People/688722
....
Metadat
a
API
name: Marlon Brando
uri: http://bde.poolparty.biz/People/688722
grounding:
http://dbpedia.org/resource/Marlon_Brando
broaders: http://bde.poolparty.biz/People/2
properties: http://www.w3.org/1999/02/22-rdf-syntax-
ns#type
...
Entity metadata Entities

12. ED Workflow: CD & Twitter
search
 Automatic triggering of the change detection
workflow
o Activated for events with a number of source
articles greater than a threshold
 Support for interactive twitter keyword search
o Receive Twitter post ids from Sextant
o Processed on the next crawler run
8-mai-17www.big-data-europe.eu

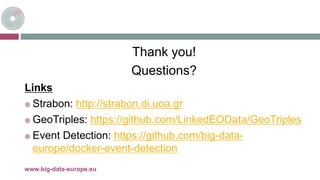

13. Thank you!
Questions?
Links
 Strabon: http://strabon.di.uoa.gr
 GeoTriples: https://github.com/LinkedEOData/GeoTriples
 Event Detection: https://github.com/big-data-
europe/docker-event-detection
8-mai-17www.big-data-europe.eu
