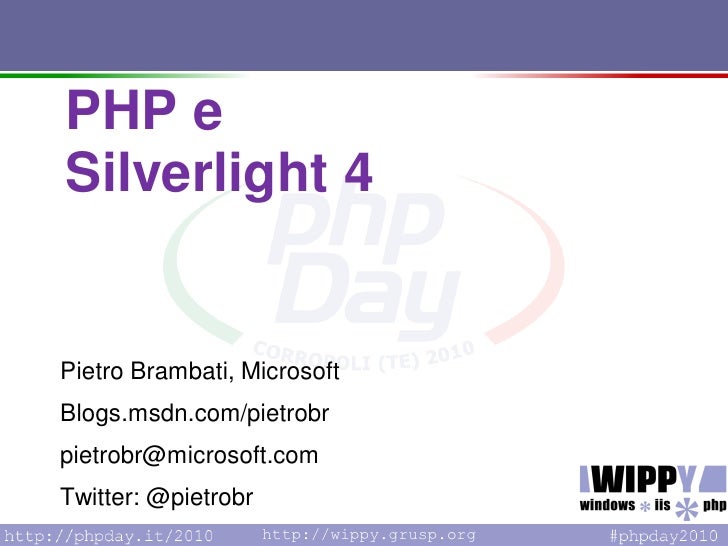

1. PHP e
Silverlight 4
Pietro Brambati, Microsoft
Blogs.msdn.com/pietrobr
pietrobr@microsoft.com
Twitter: @pietrobr
http://wippy.grusp.org

2. Agenda
Silverlight e Interoperabilità con PHP
Costruiamo un’applicazione Silverlight
http://wippy.grusp.org

3. Silverlight
Plugin cross-browser e cross-platform
Una versione light del runtime del .NET Framework che
gira nel browser
Installata con il plugin
Funzionalità Out-Of-The-Browser
Applicazioni di tipo multimediale
Video, animazioni…
Applicazioni di business
Ricco insieme di controlli
Accesso a sorgenti dati via Web Services: SOAP,
REST…
http://wippy.grusp.org

4. Silverlight
breve storia
Silverlight 4
Aprile 2010
Silverlight 3
Giugno 2009
Silverlight 2
15 ott 2008
Silverlight 1.0
Set 2007
http://wippy.grusp.org

5. Caricare un' applicazione Silverlight
http://wippy.grusp.org

6. Caricare il plug-in
Test.html
http://wippy.grusp.org

7. Anatomia di un’applicazione Silverlight 4 e
interoperabilità con PHP
DEMO
http://wippy.grusp.org

8. XAML, Controlli, Shapes
http://wippy.grusp.org

9. Markup = Object Model
<TextBlock FontSize="32" Text="Hello world" />
=
TextBlock t = new
TextBlock();
t.FontSize = 32;
t.Text = "Hello world";
http://wippy.grusp.org

10. XAML
Layout Control
<Canvas Width="300" Height="300"
xmlns="http://schemas.microsoft.com/client/2007"
Attached property
xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml">
<Ellipse Canvas.Left="20" Canvas.Top="20"
Height="200" Width="200"
Stroke="Black" StrokeThickness="10" Fill="Yellow" />
<Ellipse Canvas.Left="80" Canvas.Top="80"
Shapes
Height="35" Width="25" Stroke="Black" Fill="Black" />
<Ellipse Canvas.Left="140" Canvas.Top="80"
Height="35" Width="25" Stroke="Black" Fill="Black" />
<Path Data="M 70, 150 A 60, 60 0 0 0 170, 150"
Stroke="Black" StrokeThickness="15"
StrokeStartLineCap="Round" StrokeEndLineCap="Round" />
</Canvas>
http://wippy.grusp.org

11. Controlli in Silverlight 4
Form Controls: Core Controls: SDK Controls (*):
TextBox AutoCompleteBox
Border
Rich Text Box Calendar
Image ChildWindow
PasswordBox MediaElement DataGrid
Button MultiScaleImage DataPager
Toggle/Repeat Button ToolTip TabControl
ScrollViewer DatePicker
CheckBox DescriptionViewer
ProgressBar
RadioButton Validatio Summary
Save/OpenFileDialog
DataForm
ComboBox PasswordBox TreeView
ListBox Popup – …
Label Slider
Shapes:
Navigation Controls: Layout Controls:
Ellipse
HyperlinkButton
StackPanel Rectangle
Popup Line
Grid / GridSplitter
Frame TextBlock
Canvas
Path
http://wippy.grusp.org

12. Silverlight Toolkit
o Controlli con licenza Open Source (OSI MS-PL)
o Aggiornati ogni 6-8 settimane
o http://www.codeplex.com/Silverlight
http://wippy.grusp.org

13. Personalizzazione di Controlli
Styling e Skinning
Styling Skinning
http://wippy.grusp.org

14. Silverlight Flickr photo viewer
Costruire la UI
“Styling”
DEMO
http://wippy.grusp.org

15. DataBinding & DataTemplate
http://wippy.grusp.org

16. Collegare la UI ai Dati
Databinding
o Bidirezionale: dalla UI al modello e viceversa
o Funziona con oggetti che implementano IEnume-
IQueryable
o Array, Collections, Lists etc
o Notifica via INotifyPropertyChanged
XAML
<TextBlock Text="{Binding Points, Mode=OneWay}"/>
Binding binding = new Binding("Points"); C#
binding.Mode = BindingMode.OneWay;
TextBlock tb = new TextBlock();
tb.SetBinding(TextBlock.TextProperty, binding);
http://wippy.grusp.org

17. Layout della UI e Dati
DataTemplate
class Car
{
string Image {get;set} DataTemplate
string Model {get;set}
}
<DataTemplate x:Key="carTemplate">
<StackPanel>
<Image Source="{Binding Image}" />
<TextBlock TextContent="{Binding Model}" />
</StackPanel>
</DataTemplate>
http://wippy.grusp.org

18. Networking
http://wippy.grusp.org

19. Funzionalità di Networking
HTTP/S [WebClient HttpWebRequest]
WS*/SOAP [via Proxy WCF]
REST [WebClient HttpWebRequest]
RSS [Syndication API]
Sockets
Chiamate Cross Domain
http://wippy.grusp.org

20. Chiamate Cross-Domain
<?xml version="1.0"?>
2 formati: <!DOCTYPE cross-domain-policy SYSTEM
"http://www.macromedia.com/xml/dtds/cross-
Flash policy file
domain-policy.dtd">
<cross-domain-policy>
Silverlight policy file
<allow-access-from domain="*" />
</cross-domain-policy>
<?xml version="1.0"?>
<access-policy> Cross-domain.xml
<cross-domain-access>
<policy>
<allow-from>
<domain uri="http://customers.shop.com”/>"
<domain uri="http://partner.com/app.xap"/>
</allow-from>
<grant-to>
<grant path="/sales/serialnumbers.xml" />
<grant path="/partners" include-subpaths="false"/>
</grant-to>
</policy> clientaccesspolicy.xml
</cross-domain-access>
</access-policy>
http://wippy.grusp.org

21. Trace
http://wippy.grusp.org

22. DataBinding
DataTemplate
Networking
Skinning
DEMO
http://wippy.grusp.org

23. Salviamo lo stato
Isolated Storage API
Come un cookie
Virtual file system
AppDataLocalLow (in Vista/7)
Specifico per utente
A livello di applicazione
(http://.. pippo.xap != http://..pluto.xap)
IsolatedStorageSettings [KeyValue]
IsolatedStorageFile [Files e directory]
http://wippy.grusp.org

24. Cosa NON abbiamo visto
OpenFile Dialog
Download on demand
Splash Screen
Dynamic CLR
IronRuby, Ironpyton, Managed Jscript
Visual State Manager
DRM, via PlayReady e WMDRM 10
DeepZoom
OOB
HW Acceleration, Graphics
http://wippy.grusp.org

25. In Conclusione
Una piattaforma completa per le RIA
.NET Framework con una ricca BCL
Numerosi Controlli out-of-the box
Skinning avanzato
Stack di Networking
Integrazione PHP
http://wippy.grusp.org
