Reliability Engineering for Enterprise Serverless

1,699 views

Published on

日本語が消えてしまっています。。。完全版はSpeakerDeckの方に上げました↓
https://speakerdeck.com/marcyterui/reliability-engineering-for-enterprise-serverless

Published in: Technology

Reliability Engineering for Enterprise Serverless

  1. 1. RELIABILITY ENGINEERING FOR ENTERPRISE SERVERLESS MASASHI TERUI @ JAWS DAYS 2018
  2. 2. SERVERWORKS CO.,LTD. + FREELANCER • Serverless Oji-san • Serverless Framework Plugin Developer • Serverlessconf Tokyo 2016/2017 speaker • Remote worker (in Sapporo) • The best Cloud Engineer in Hokkaido!! (でありたい) MASASHI TERUI ARCHITECT / DEVELOPER

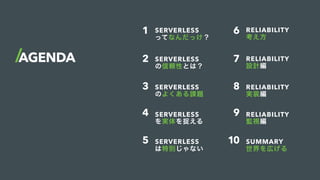

  3. 3. AGENDA SERVERLESS ってなんだっけ? 1 6 2 7 3 8 4 9 5 10 SERVERLESS の信頼性とは? SERVERLESS のよくある課題 SERVERLESS を実体を捉える RELIABILITY 考え方 RELIABILITY 設計編 RELIABILITY 実装編 RELIABILITY 監視編 SUMMARY 世界を広げる SERVERLESS は特別じゃない
  4. 4. SERVERLESSってなんだっけ? WHAT IS
  5. 5. CNCF SERVERLESS WHITEPAPER V1.0 • Serverless computing refers to the concept of building and running applications that do not require server management • A platform may provide one or both of the following: • Functions-as-a-Service (FaaS) • Backend-as-a-Service (BaaS) • Products or platforms deliver the following benefits to developers: • Zero Server Ops • No Compute Cost When Idle
 https://github.com/cncf/wg-serverless/tree/master/whitepaper
  6. 6. SERVERLESS IS NOT GLUE IN ENTERPRISE APPLICATION ”THE ORCHESTRATOR MANAGES THE TRADES USING A GRAPH OF STATES”
  7. 7. SERVERLESS CLOUD NATIVE LANDSCAPE
  8. 8. BUT I PREFER THIS ONE https://www.slideshare.net/acloudguru/ant-stanley-being-serverless

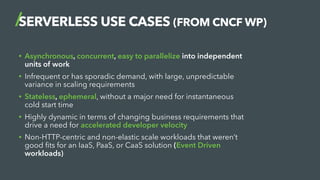

  9. 9. SERVERLESS USE CASES (FROM CNCF WP) • Asynchronous, concurrent, easy to parallelize into independent units of work • Infrequent or has sporadic demand, with large, unpredictable variance in scaling requirements • Stateless, ephemeral, without a major need for instantaneous cold start time • Highly dynamic in terms of changing business requirements that drive a need for accelerated developer velocity • Non-HTTP-centric and non-elastic scale workloads that weren’t good fits for an IaaS, PaaS, or CaaS solution (Event Driven workloads)

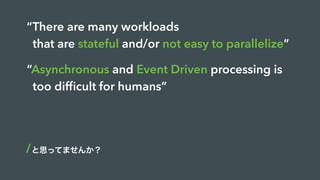

  10. 10. “There are many workloads that are stateful and/or not easy to parallelize” と思ってませんか? “Asynchronous and Event Driven processing is too difficult for humans”
  11. 11. SERVERLESSの信頼性とは? Reliability
  12. 12. RELIABILITY(RASIS) 細分化すると色々ある • Reliability • Availability • Serviceability • Integrity • Security ここでは以下のように定義
 「Reliability = 広義の信頼性(RASIS)」 Reliability Availability Serviceability Integrity Security Reliability
  13. 13. IS SERVERLESS DIFFICULT TO GUARANTEE THE RELIABILITY? • Strongly depends on FaaS platform and BaaS products • Lose the business continuity (Reliability, Availability) • Distributed Instances • Lose the traceability (Serviceability) • Hard to develop • All become functions (Serviceability) • NoSQL matches better than RDB (Integrity)
  14. 14. SERVERLESSのよくある課題 i s s u e s
  15. 15. FaaSのよくある課題 • How to test the functions? • Granularity of the functions • Messaging between the functions and backends • Handling request and response (Error Handling) • Log Aggregation, Traceability • Monitoring
  16. 16. BaaSのよくある課題 • How to choose the services? • Fault Tolerance • Monitoring
  17. 17. SERVERLESSの実体を捉える MechanismHINT
  18. 18. MECANISM OF FAAS

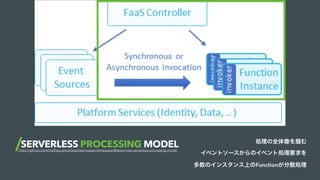

  19. 19. SERVERLESS PROCESSING MODELhttps://github.com/cncf/wg-serverless/tree/master/whitepaper#detail-view-serverless-processing-model 処理の全体像を掴む イベントソースからのイベント処理要求を 多数のインスタンス上のFunctionが分散処理
  20. 20. THE INTERNAL FLOW OF PROCESSINGhttps://github.com/apache/incubator-openwhisk/blob/master/docs/about.md#the-internal-flow-of-processing イベント(HTTP)が処理される流れを掴む ストリームやキューを挟んで分散処理するのが基本 外から見て同期でも中は非同期かつ分散
  21. 21. THE FUNCTIONS THAT INVOKED ASYNCHRONOUS IN THE CONTAINERS FaaS is… コンテナ内で非同期に呼び出される関数
  22. 22. WHAT IS BAAS?

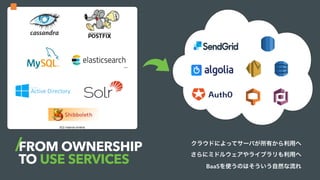

  23. 23. FROM OWNERSHIP TO USE SERVICES クラウドによってサーバが所有から利用へ さらにミドルウェアやライブラリも利用へ BaaSを使うのはそういう自然な流れ
  24. 24. FULLY MANAGED AND ABSTRACTED MIDDLEWARES AND LIBRARIES BaaS is… フルマネージドかつ抽象化されたMWやライブラリ
  25. 25. SERVERLESSは特別じゃない is not special
  26. 26. CONSTITUTED OF THE ABSTRACTED FUNCTIONS AND MIDDLEWARES Serverless is… 抽象化されてるだけで関数とMWでできてる
  27. 27. WE CAN MAKE RELIABLE SERVERLESS APPLICATION SO… 信頼性は作れる!
  28. 28. RELIABILITYの考え方 Method of thinking

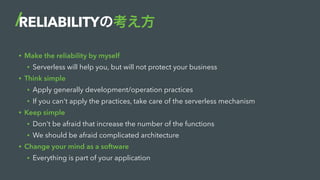

  29. 29. RELIABILITYの考え方 • Make the reliability by myself • Serverless will help you, but will not protect your business • Think simple • Apply generally development/operation practices • If you can't apply the practices, take care of the serverless mechanism • Keep simple • Don't be afraid that increase the number of the functions • We should be afraid complicated architecture • Change your mind as a software • Everything is part of your application
  30. 30. RELIABILITY 設計 Architecting
  31. 31. ALL EVENTS FLOWS IN THE SAME DIRECTION イベント(データ)は同じ方向に流す 結果が必要なら同期で返さず 取りに行かせる 🙅 🙆

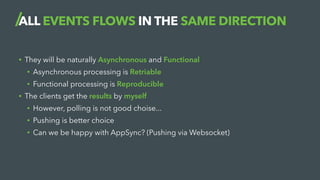

  32. 32. ALL EVENTS FLOWS IN THE SAME DIRECTION • They will be naturally Asynchronous and Functional • Asynchronous processing is Retriable • Functional processing is Reproducible • The clients get the results by myself • However, polling is not good choise... • Pushing is better choice • Can we be happy with AppSync? (Pushing via Websocket)

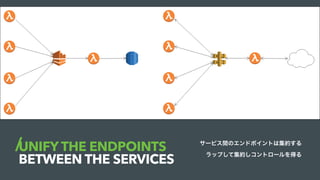

  33. 33. UNIFY THE ENDPOINTS BETWEEN THE SERVICES サービス間のエンドポイントは集約する ラップして集約しコントロールを得る

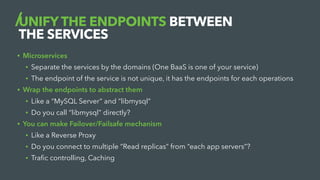

  34. 34. UNIFY THE ENDPOINTS BETWEEN THE SERVICES • Microservices • Separate the services by the domains (One BaaS is one of your service) • The endpoint of the service is not unique, it has the endpoints for each operations • Wrap the endpoints to abstract them • Like a “MySQL Server” and “libmysql” • Do you call “libmysql” directly? • You can make Failover/Failsafe mechanism • Like a Reverse Proxy • Do you connect to multiple “Read replicas” from “each app servers”? • Trafic controlling, Caching
  35. 35. ALL SERIES OF EVENTS HAVE THE SAME ID 一連の処理には同じIDを付与 それを引き回すことでIDでトレースできる このIDは様々な制御にも使える

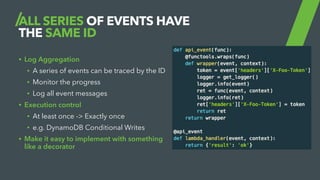

  36. 36. ALL SERIES OF EVENTS HAVE THE SAME ID • Log Aggregation • A series of events can be traced by the ID • Monitor the progress • Log all event messages • Execution control • At least once -> Exactly once • e.g. DynamoDB Conditional Writes • Make it easy to implement with something like a decorator
  37. 37. DATA MODELING • Become the friend with DynamoDB • Distributed by Partition Key and Indexed(B-tree) by Sort Key, LSI • GSI is a projection of sorted(indexed) data • The consistency can be guaranteed without ACID transaction • Denormalization • Strong consistency reading,
 Conditional Writing • There are some difficult situation • Write asynchronous to RDB

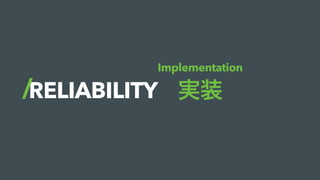

  38. 38. RELIABILITY 実装 Implementation

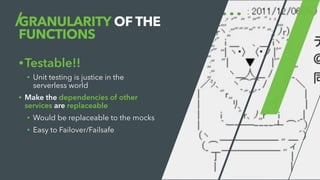

  39. 39. GRANULARITY OF THE FUNCTIONS •Testable!! • Unit testing is justice in the serverless world • Make the dependencies of other services are replaceable • Would be replaceable to the mocks • Easy to Failover/Failsafe

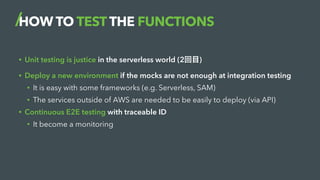

  40. 40. HOW TO TEST THE FUNCTIONS • Unit testing is justice in the serverless world (2回目) • Deploy a new environment if the mocks are not enough at integration testing • It is easy with some frameworks (e.g. Serverless, SAM) • The services outside of AWS are needed to be easily to deploy (via API) • Continuous E2E testing with traceable ID • It become a monitoring
  41. 41. RELIABILITY 監視 Monitoring
  42. 42. RELIABILITY MONITORING • The greatest monitoring is the notifications from the application • Be sure to catch the errors and notify them • Collect the metrics of the services • CloudWatch • This is a condition to choice the services outside of AWS • Continuous E2E testing with traceable ID
  43. 43. SUMMARY
  44. 44. “SERVERLESS IS NOT SPECIAL” THANKS!! “MAKE THE RELIABILITY BY MYSELF” “THINK SIMPLE, KEEP SIMPLE” “EVERYTHING IS PART OF YOUR APPLICATION” “LET'S EXPAND SERVERLESS WORLD”
  45. 45. bit.ly/jd2018-sls #jawsdays #jd2018_a PLEASE TAKE A SURVEY

×
