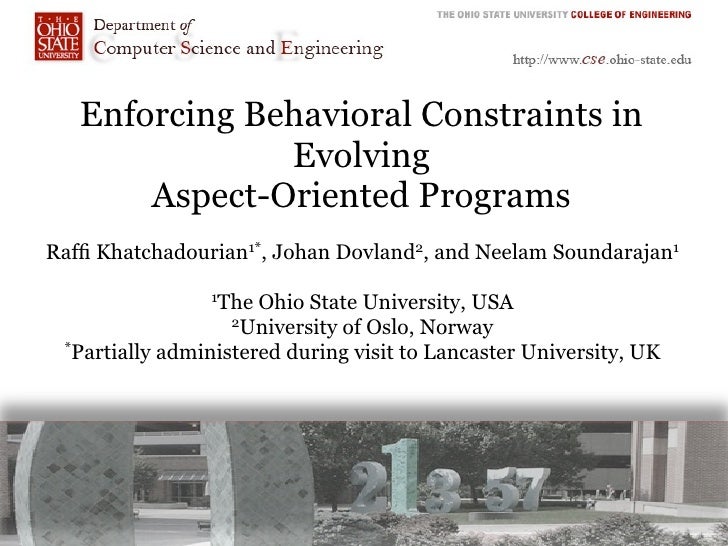

1. Enforcing Behavioral Constraints in
Evolving
Aspect-Oriented Programs
Raffi Khatchadourian1*, Johan Dovland2, and Neelam Soundarajan1
1The Ohio State University, USA
2University of Oslo, Norway
*Partially administered during visit to Lancaster University, UK

2. Introduction

3. Introduction
• AOP enables modular implementation of cross-
cutting concerns.

4. Introduction
• AOP enables modular implementation of cross-
cutting concerns.
• Both formal and informal reasoning about AOP
presents unique challenges especially in respect to
evolution.

5. Introduction
• AOP enables modular implementation of cross-
cutting concerns.
• Both formal and informal reasoning about AOP
presents unique challenges especially in respect to
evolution.
• As components enter, exit, and re-enter software,
conclusions about behavior of components may be
invalidated.

6. C

7. A
C

8. A
C

9. A
C

10. A
C
Behavior of C+A

11. C
Behavior of C+A

12. C
Behavior of C+A

13. C
Behavior of C+A

14. C

15. What We Want

16. What We Want
• Desire a compositional reasoning approach, however
the invasive nature of AOP makes this difficult.

17. What We Want
• Desire a compositional reasoning approach, however
the invasive nature of AOP makes this difficult.
• In the worst case, changes made to a single
component require reexamining the entire program.

18. Questions

19. Questions
• Can we draw meaningful conclusions about
component code without considering the actual
advice code?

20. Questions
• Can we draw meaningful conclusions about
component code without considering the actual
advice code?
• Can we specify the behavior of components without
any particular advice in mind?

21. Questions
• Can we draw meaningful conclusions about
component code without considering the actual
advice code?
• Can we specify the behavior of components without
any particular advice in mind?
• Can we parameterize specifications over all possibly
applicable aspects?

22. Questions
• Can we draw meaningful conclusions about
component code without considering the actual
advice code?
• Can we specify the behavior of components without
any particular advice in mind?
• Can we parameterize specifications over all possibly
applicable aspects?
• Can we suitably constrain the behavior of aspects as
the software evolves?

23. Hiding Behind Interfaces

24. Hiding Behind Interfaces
• Using interface is
one answer (e.g.,
XPIs, Open
Modules)

25. Hiding Behind Interfaces
• Using interface is
one answer (e.g.,
XPIs, Open
Modules)
• But it would be
nice to have a way
to derive the
enriched behavior
of the base plus the
aspects at compile
time.

26. Insight

27. Insight
• AO programs inherently enjoy plug-n-play
capabilities [Laddad03]

28. Insight
• AO programs inherently enjoy plug-n-play
capabilities [Laddad03]
• Crosscutting features can be plugged-in to enrich the
behavior of advised components.

29. Insight
• AO programs inherently enjoy plug-n-play
capabilities [Laddad03]
• Crosscutting features can be plugged-in to enrich the
behavior of advised components.
• Likewise, can we specify components so that we can
derive their behaviors in a similar fashion?

30. C

31. Spec(C)
C

32. Spec(C)
C

33. Spec(C)
C

34. Spec(C)
A1 C A2

35. Spec(C)
Spec(A1 ) Spec(A2 )
A1 C A2

36. Spec(A1 ) Spec(C) Spec(A2 )

37. Spec(A1 ) Spec(C) Spec(A2 )
Compose
Behavior of C+A1

38. Spec(A1 ) Spec(C) Spec(A2 )
Compose
Compose
Behavior of C+A1 Behavior of C+A2

39. Spec(A1 ) Spec(C) Spec(A2 )
Compose
Compose
Compose
Behavior of C+A1 Behavior of C+A1+A2 Behavior of C+A2

40. Obstacles

41. Obstacles
• Usefulness

42. Obstacles
• Usefulness
• Is it possible to draw meaningful conclusions from
such incomplete information?

43. Obstacles
• Usefulness
• Is it possible to draw meaningful conclusions from
such incomplete information?
• Obliviousness

44. Obstacles
• Usefulness
• Is it possible to draw meaningful conclusions from
such incomplete information?
• Obliviousness
• Specifications contain “slots” for applications of
crosscutting concerns.

45. Obstacles

46. Obstacles
• Abstraction

47. Obstacles
• Abstraction
• Competing forces:

48. Obstacles
• Abstraction
• Competing forces:
• Specs abstract internal details components,
aspects directly manipulate them.

49. Obstacles
• Abstraction
• Competing forces:
• Specs abstract internal details components,
aspects directly manipulate them.
• Composition

50. Obstacles
• Abstraction
• Competing forces:
• Specs abstract internal details components,
aspects directly manipulate them.
• Composition
• Which pegs go into which holes?

51. Obstacles
• Abstraction
• Competing forces:
• Specs abstract internal details components,
aspects directly manipulate them.
• Composition
• Which pegs go into which holes?
• How to deal with dynamic and lexical pointcuts?

52. Obstacles
• Abstraction
• Competing forces:
• Specs abstract internal details components,
aspects directly manipulate them.
• Composition
• Which pegs go into which holes?
• How to deal with dynamic and lexical pointcuts?
• Complexity

53. Obstacles
• Abstraction
• Competing forces:
• Specs abstract internal details components,
aspects directly manipulate them.
• Composition
• Which pegs go into which holes?
• How to deal with dynamic and lexical pointcuts?
• Complexity
• What if no advice is applicable?

54. Tackling Specification Complexity

55. Tackling Specification Complexity
• May need to make assumptions about the behavior of
evolving components.

56. Tackling Specification Complexity
• May need to make assumptions about the behavior of
evolving components.
• Specification pointcuts

57. Tackling Specification Complexity
• May need to make assumptions about the behavior of
evolving components.
• Specification pointcuts
• Pointcut interfaces [Gudmundson01] annotated
with behavioral specifications.

58. Tackling Specification Complexity
• May need to make assumptions about the behavior of
evolving components.
• Specification pointcuts
• Pointcut interfaces [Gudmundson01] annotated
with behavioral specifications.
• “Exported” internal semantic events within the
component.

59. Tackling Specification Complexity
• May need to make assumptions about the behavior of
evolving components.
• Specification pointcuts
• Pointcut interfaces [Gudmundson01] annotated
with behavioral specifications.
• “Exported” internal semantic events within the
component.
• Adopt a rely-guarantee approach [Xu97] from
concurrent programming to constrain the behavior
of all possibly applicable advice using a rely clause.

60. Tackling Specification Complexity
• May need to make assumptions about the behavior of
evolving components.
• Specification pointcuts
• Pointcut interfaces [Gudmundson01] annotated
with behavioral specifications.
• “Exported” internal semantic events within the
component.
• Adopt a rely-guarantee approach [Xu97] from
concurrent programming to constrain the behavior
of all possibly applicable advice using a rely clause.
• A guar clause may be used to constrain components.

61. Review of R/G for AOP [Khatchadourian07,
Soundarajan07]
the set of all variables of
σ the program
states in which each
σi , σj , ... variable has a particular
value

63. !1
!2
!3

66. !1
Aspect
!2'
!3

68. !a
Aspect
!b

69. The state at a point in the execution
of a component is σa.
!a
Aspect
!b

70. The state at a point in the execution
of a component is σa.
!a
Aspect
!b
The state when the class gets control
back from an aspect is σb.

71. The state at a point in the execution
of a component is σa.
!a
Aspect
rely(σa, σb)
!b
The state when the class gets control
back from an aspect is σb.

72. Rely() Example
rely(σ, σ ) ≡ (σ = σ )

73. Rely() Example
The entire state of
C
rely(σ, σ ) ≡ (σ = σ )

74. Rely() Example
rely(σ, σ ) ≡ (σ = σ )
le y
ab an
lic g
pp kin e!
y a ma tat
an
s om he s
id fr t
rb e
o ic in
F v es
a d ang
ch

75. Rely() Example
This is
“Harmless”[D&W
POPL’06]
rely(σ, σ ) ≡ (σ = σ )

76. Deriving Effective Behavior

77. Deriving Effective Behavior
• Constraining parameterized behavior reduces
complexity, but ...

78. Deriving Effective Behavior
• Constraining parameterized behavior reduces
complexity, but ...
• How are formal parameters expressed?

79. Deriving Effective Behavior
• Constraining parameterized behavior reduces
complexity, but ...
• How are formal parameters expressed?
• How are actual parameters deduced?

80. Deriving Effective Behavior
• Constraining parameterized behavior reduces
complexity, but ...
• How are formal parameters expressed?
• How are actual parameters deduced?
• How are the specifications composed?

81. Deriving Effective Behavior
• Constraining parameterized behavior reduces
complexity, but ...
• How are formal parameters expressed?
• How are actual parameters deduced?
• How are the specifications composed?
• Aspects are typically used to enrich the behavior of
the an underlying component.

82. Deriving Effective Behavior
• Constraining parameterized behavior reduces
complexity, but ...
• How are formal parameters expressed?
• How are actual parameters deduced?
• How are the specifications composed?
• Aspects are typically used to enrich the behavior of
the an underlying component.
• Thus, we want to deriving the actual behavior of
components with the aspects.

83. Join Point Traces

84. Join Point Traces
• A Join Point Trace (JPT) variable is introduced to
track the flow-of-control through various join points
within a component.

85. Join Point Traces
• A Join Point Trace (JPT) variable is introduced to
track the flow-of-control through various join points
within a component.
• A JPT is used as a parameter over the actions of all
possibly applicable aspects.

86. Join Point Traces
• A Join Point Trace (JPT) variable is introduced to
track the flow-of-control through various join points
within a component.
• A JPT is used as a parameter over the actions of all
possibly applicable aspects.
• Method post-conditions will references to the JPT.

87. Join Point Traces
• A Join Point Trace (JPT) variable is introduced to
track the flow-of-control through various join points
within a component.
• A JPT is used as a parameter over the actions of all
possibly applicable aspects.
• Method post-conditions will references to the JPT.
• Informally, a JPT is used to refer to the actions and
resulting values taken by advice at certain join point.

88. Elements of the JPT

89. Elements of the JPT
• The JPT is composed of several components that are
associated with each join point.

90. Elements of the JPT
• The JPT is composed of several components that are
associated with each join point.
• Just as there are different kinds of join points (e.g.,
call, execution), there different kinds of JPT
entries.

91. JPT Method Call Completion Element
(oid , mid , aid , args, res, σ, σ )

92. JPT Method Call Completion Element
(oid , mid , aid , args, res, σ, σ )
Called Object

93. JPT Method Call Completion Element
Called
Method
(oid , mid , aid , args, res, σ, σ )
Called Object

94. JPT Method Call Completion Element
Called
Method
(oid , mid , aid , args, res, σ, σ )
Applicable
Called Object
Aspect

95. JPT Method Call Completion Element
Called Argument
Method Values
(oid , mid , aid , args, res, σ, σ )
Applicable
Called Object
Aspect

96. JPT Method Call Completion Element
Called Argument
Method Values
(oid , mid , aid , args, res, σ, σ )
Applicable Method
Called Object Return Value
Aspect

97. JPT Method Call Completion Element
σ, σ

98. JPT Method Call Completion Element
State Vectors
σ, σ

99. JPT Method Call Completion Element
State Vectors
σ, σ
σ[oid] State of object oid after
completion of method mid

100. JPT Method Call Completion Element
State Vectors
σ, σ
σ[oid] State of object oid after
completion of method mid
σ [oid] State of object oid after
completion of aspect aid

101. JPT Method Call Completion Element
State Vectors
σ, σ
σ[oid] State of object oid after
completion of method mid
σ [oid] State of object oid after
completion of aspect aid
No applicable advice =⇒ σ = σ

102. Rule for method specification

103. Rule for method specification
Normal
pre-condition

104. Rule for method specification
Post-condition, may
include references to
portions of JPT

105. Rule for method specification
R/G Clauses

106. Rule for method specification

107. Rule for method specification

108. Rule for method specification
Invocation of C.m
on the local JPT

109. Rule for method specification

110. Rule for method specification

111. Rule for method specification
Classic
Hoare Triple

112. Rule for method specification

113. Rule for method specification

114. Rule for method specification
Don’t forget
about the
guarantee

115. Rule for method specification

116. Rule for method specification

117. Rule for method specification
If when q holds and
applicable advice behaves
properly implies that ...

118. Rule for method specification

119. Rule for method specification

120. Rule for method specification
... our post-
condition holds with a a
new entry in the local
JPT

121. Rule for method specification
Not sure which
aspect is applicable yet, so
we’ll leave this blank

122. Rule for method specification
Replace all
occurrences of
σ with σ’

123. Rule for Method Calls

124. Rule for Method Calls

125. Rule for Method Calls
Substitute
actuals for formals

126. Rule for Method Calls

127. Rule for Method Calls

128. Rule for Method Calls
Local JPT for
caller

129. Rule for Method Calls
Local JPT for
callee

130. Rule for Method Calls
Substitute
formals for actuals

131. Rule for Aspect Application (Simple)

132. Rule for Aspect Application (Simple)
Base-code
plus an aspect

133. Rule for Aspect Application (Simple)
Base-code
pre-condition

134. Rule for Aspect Application (Simple)
Aspect pre-
condition

135. Rule for Aspect Application (Simple)
Base-code
post-condition

136. Rule for Aspect Application (Simple)
Aspect post-
condition

137. Rule for Aspect Application (Simple)

138. Rule for Aspect Application (Simple)
Base-code
satisfies guar

139. Rule for Aspect Application (Simple)
Advice body

140. Rule for Aspect Application (Simple)
State vector
immediately prior to
the execution of the
advice

141. Rule for Aspect Application (Simple)

142. Conclusion

143. Conclusion
• On-going work (hopefully thesis worthy! ;) )

144. Conclusion
• On-going work (hopefully thesis worthy! ;) )
• Complete formal model (suggestions here?)

145. Conclusion
• On-going work (hopefully thesis worthy! ;) )
• Complete formal model (suggestions here?)
• Sound axiomatic proof system

146. Conclusion
• On-going work (hopefully thesis worthy! ;) )
• Complete formal model (suggestions here?)
• Sound axiomatic proof system
• Curbing notational complexity via predicates.

147. Conclusion
• On-going work (hopefully thesis worthy! ;) )
• Complete formal model (suggestions here?)
• Sound axiomatic proof system
• Curbing notational complexity via predicates.
• Integration with IDE/theorem provers.

148. Conclusion
• On-going work (hopefully thesis worthy! ;) )
• Complete formal model (suggestions here?)
• Sound axiomatic proof system
• Curbing notational complexity via predicates.
• Integration with IDE/theorem provers.
• Complement the Eclipse AJDT with a behavioral
cross reference view?

149. Conclusion
• On-going work (hopefully thesis worthy! ;) )
• Complete formal model (suggestions here?)
• Sound axiomatic proof system
• Curbing notational complexity via predicates.
• Integration with IDE/theorem provers.
• Complement the Eclipse AJDT with a behavioral
cross reference view?
• Integration with languages (e.g., via annotated
pointcuts, JML)
