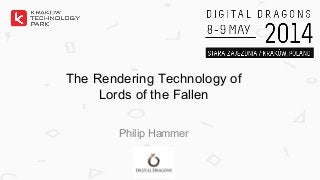

The Rendering Technology of
Lords of the Fallen
Philip Hammer
Philip Hammer, The Rendering Technology of ‘Lords of the Fallen’
Intro

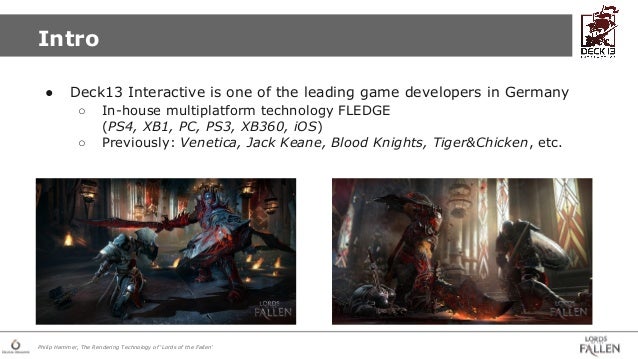

● Deck13 Interactive is one of the leading game dev...
Philip Hammer, The Rendering Technology of ‘Lords of the Fallen’
Intro

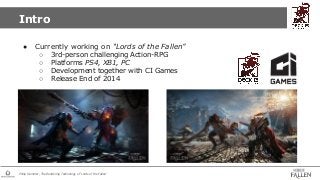

● Currently working on “Lords of the Fallen”
○ 3rd-...
Philip Hammer, The Rendering Technology of ‘Lords of the Fallen’

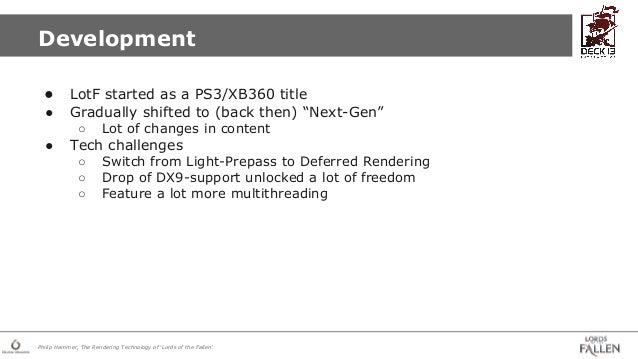

Development
● LotF started as a PS3/XB360 title
● Gradual...
Philip Hammer, The Rendering Technology of ‘Lords of the Fallen’

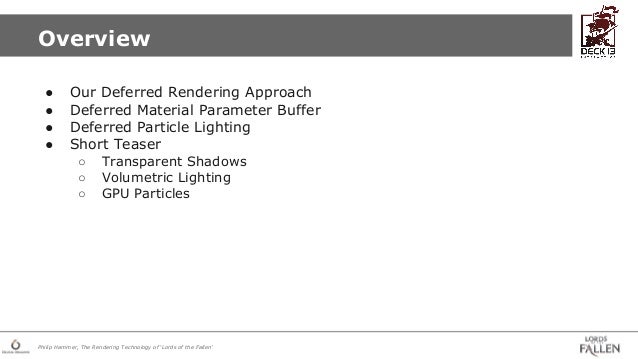

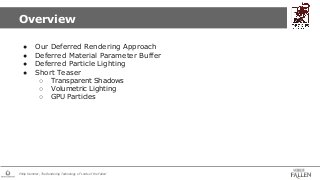

Overview
● Our Deferred Rendering Approach
● Deferred Mat...
Philip Hammer, The Rendering Technology of ‘Lords of the Fallen’

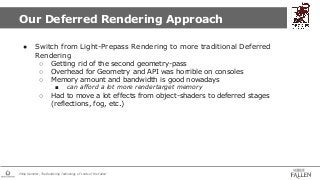

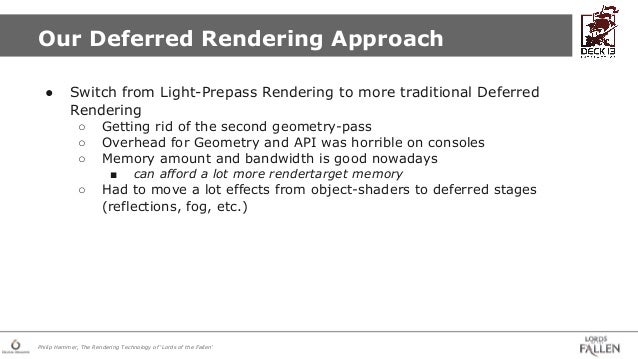

Our Deferred Rendering Approach
● Switch from Light-Prepa...
Philip Hammer, The Rendering Technology of ‘Lords of the Fallen’

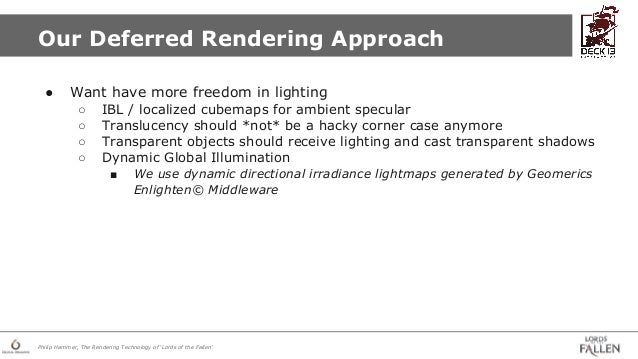

Our Deferred Rendering Approach
● Want have more freedom ...
Philip Hammer, The Rendering Technology of ‘Lords of the Fallen’

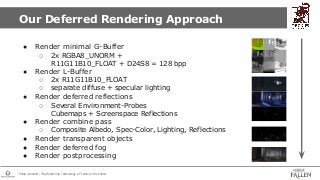

Our Deferred Rendering Approach
● Render minimal G-Buffer...
Philip Hammer, The Rendering Technology of ‘Lords of the Fallen’

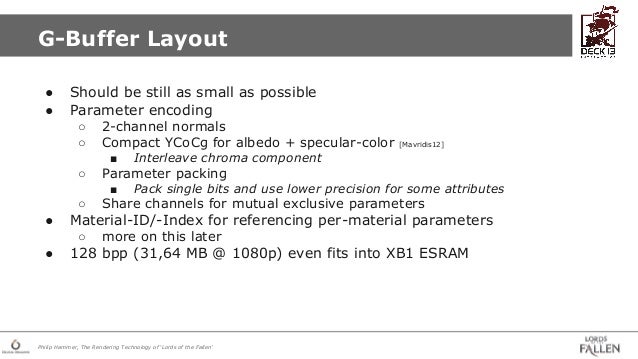

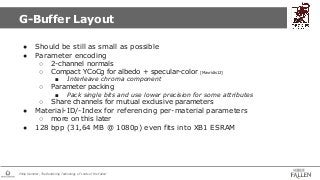

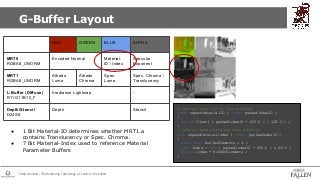

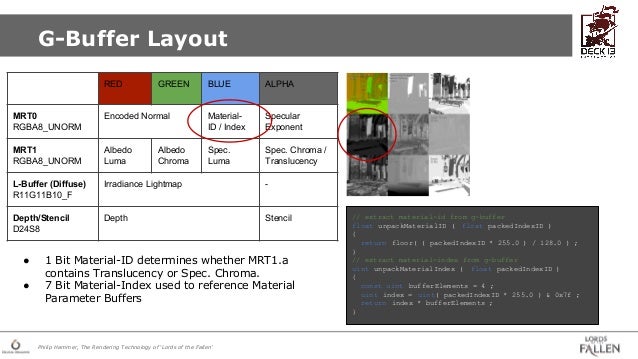

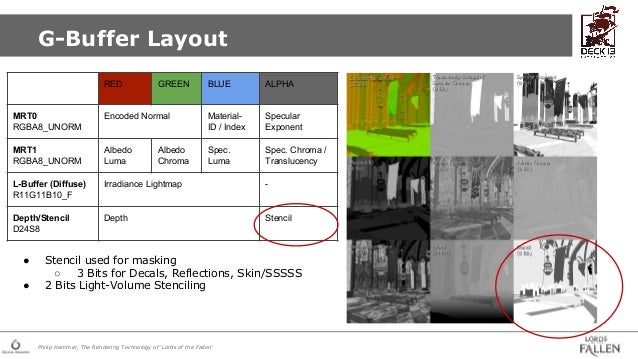

G-Buffer Layout
● Should be still as small as possible
● ...
Philip Hammer, The Rendering Technology of ‘Lords of the Fallen’

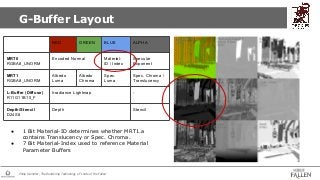

G-Buffer Layout
RED GREEN BLUE ALPHA
MRT0
RGBA8_UNORM
Enc...
Philip Hammer, The Rendering Technology of ‘Lords of the Fallen’
G-Buffer Layout
RED GREEN BLUE ALPHA
MRT0
RGBA8_UNORM
Enc...
Philip Hammer, The Rendering Technology of ‘Lords of the Fallen’
G-Buffer Layout
RED GREEN BLUE ALPHA
MRT0
RGBA8_UNORM
Enc...
Philip Hammer, The Rendering Technology of ‘Lords of the Fallen’

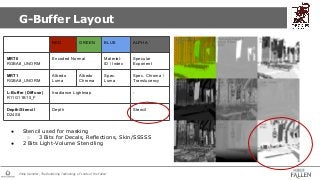

G-Buffer Layout
RED GREEN BLUE ALPHA
MRT0
RGBA8_UNORM
Enc...
Philip Hammer, The Rendering Technology of ‘Lords of the Fallen’

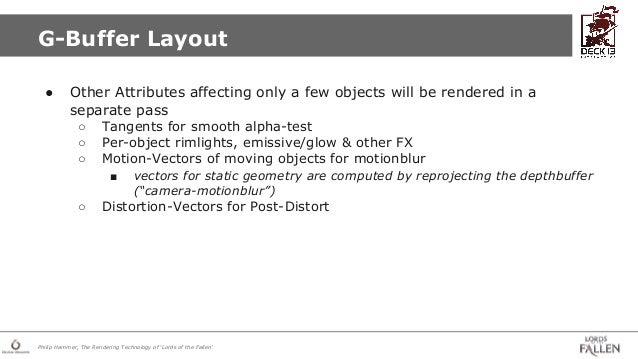

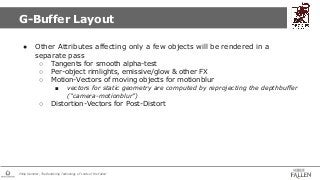

G-Buffer Layout
● Other Attributes affecting only a few o...
Philip Hammer, The Rendering Technology of ‘Lords of the Fallen’

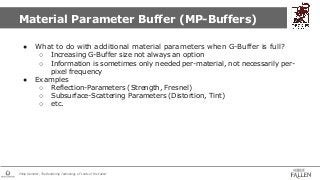

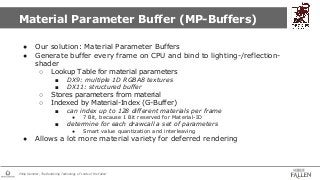

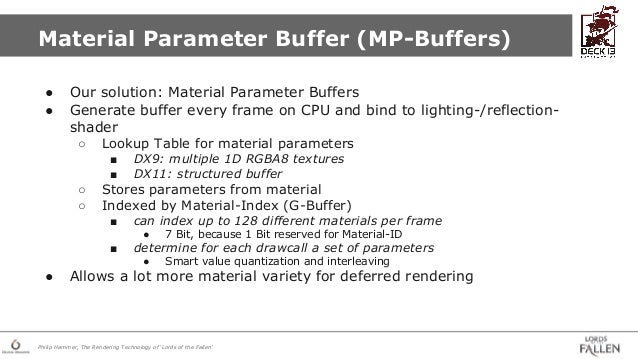

Material Parameter Buffer (MP-Buffers)
● What to do with ...
Philip Hammer, The Rendering Technology of ‘Lords of the Fallen’
Material Parameter Buffer (MP-Buffers)
● Our solution: Ma...
Philip Hammer, The Rendering Technology of ‘Lords of the Fallen’

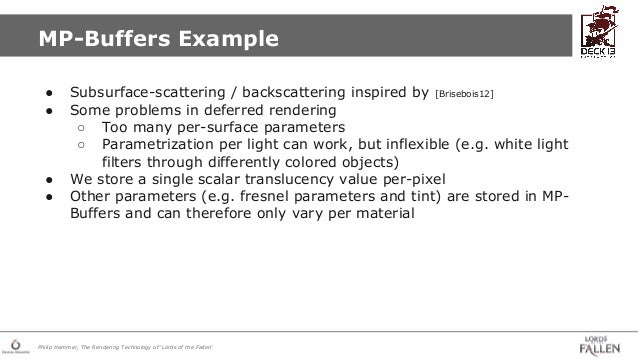

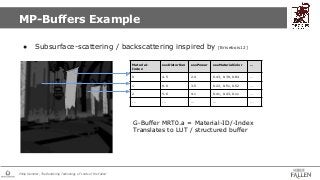

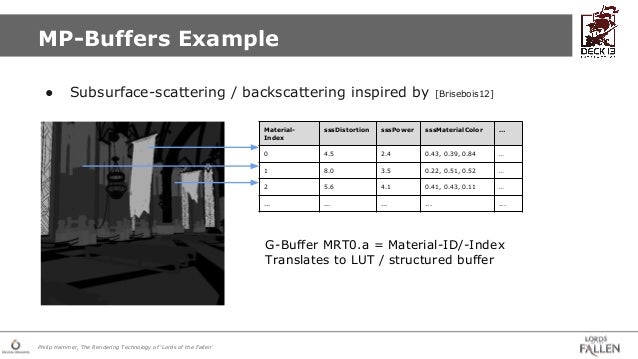

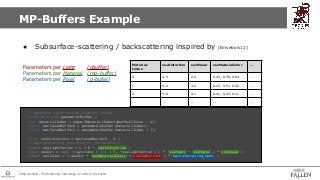

MP-Buffers Example
● Subsurface-scattering / backscatteri...
Philip Hammer, The Rendering Technology of ‘Lords of the Fallen’
● Subsurface-scattering / backscattering inspired by [Bri...
Philip Hammer, The Rendering Technology of ‘Lords of the Fallen’
● Subsurface-scattering / backscattering inspired by [Bri...
Philip Hammer, The Rendering Technology of ‘Lords of the Fallen’

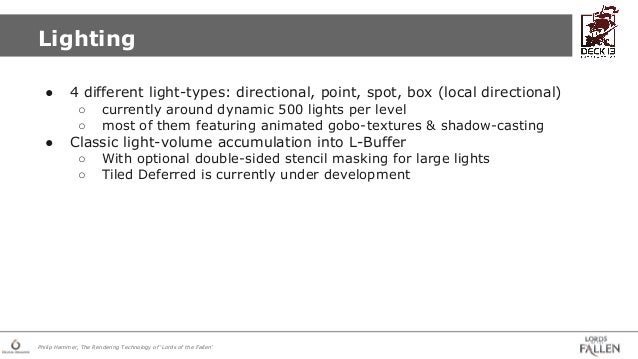

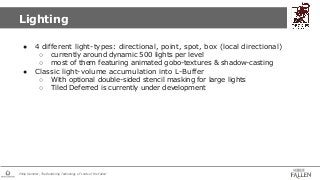

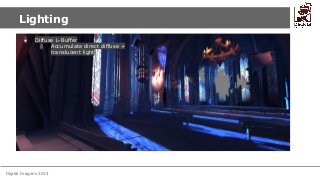

Lighting
● 4 different light-types: directional, point, s...
Digital Dragons 2014
Lighting

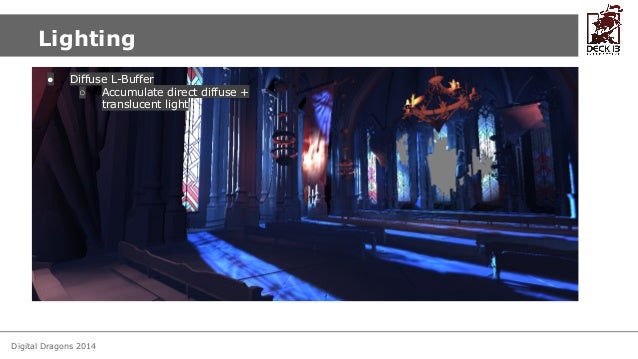

● Diffuse L-Buffer
○ Indirect lighting
○ Filled in G-Buffer stage
○ Directional irradiance l...
Digital Dragons 2014
Lighting
● Diffuse L-Buffer
○ Accumulate direct diffuse +
translucent light
Digital Dragons 2014
Lighting

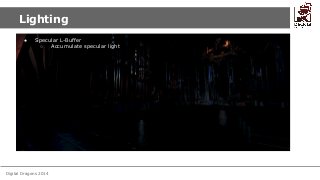

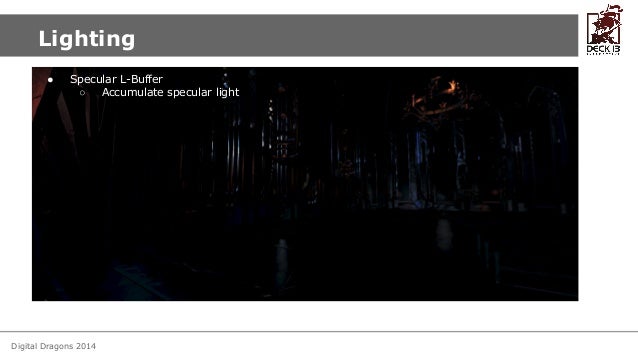

● Specular L-Buffer
○ Accumulate specular light
Digital Dragons 2014
Lighting

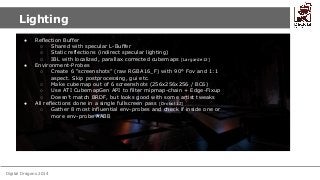

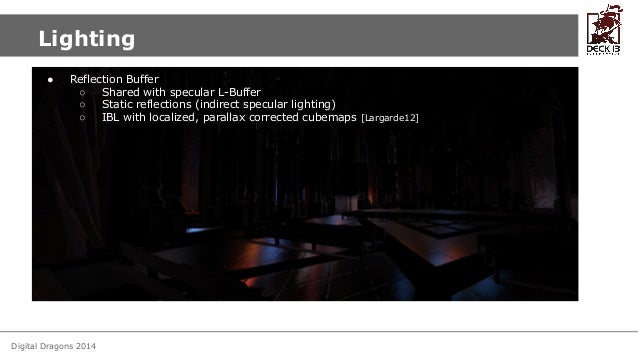

● Reflection Buffer
○ Shared with specular L-Buffer
○ Static reflections (indirect specular ...
Digital Dragons 2014
Lighting
● Reflection Buffer
○ Shared with specular L-Buffer
○ Static reflections (indirect specular ...
Digital Dragons 2014

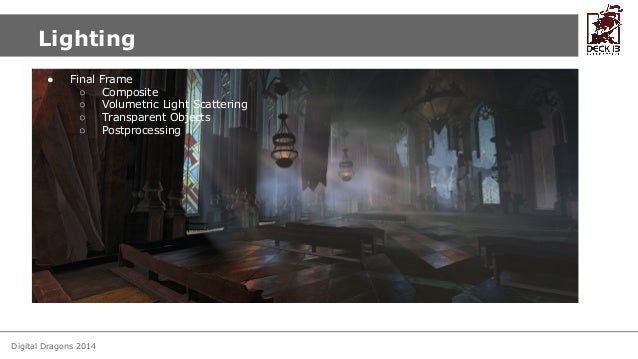

Lighting

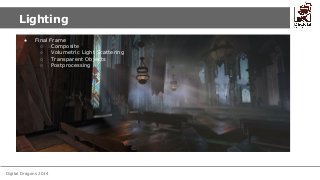

● Final Frame
○ Composite
○ Volumetric Light Scattering
○ Transparent Objects
○ Postprocessi...
Philip Hammer, The Rendering Technology of ‘Lords of the Fallen’

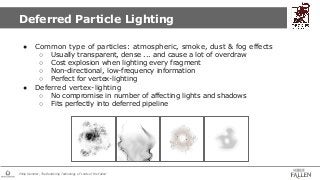

Deferred Particle Lighting

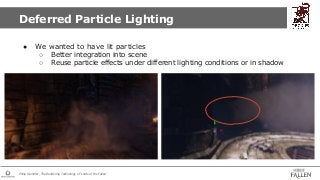

● We wanted to have lit partic...
Philip Hammer, The Rendering Technology of ‘Lords of the Fallen’
Deferred Particle Lighting
● Common type of particles: at...
Philip Hammer, The Rendering Technology of ‘Lords of the Fallen’

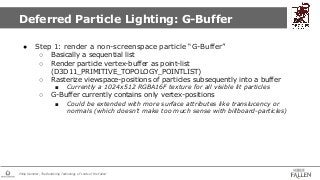

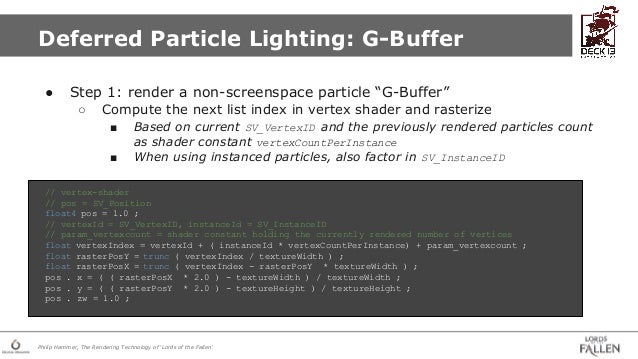

Deferred Particle Lighting: G-Buffer
● Step 1: render a n...
Philip Hammer, The Rendering Technology of ‘Lords of the Fallen’
Deferred Particle Lighting: G-Buffer
● Step 1: render a n...
Philip Hammer, The Rendering Technology of ‘Lords of the Fallen’

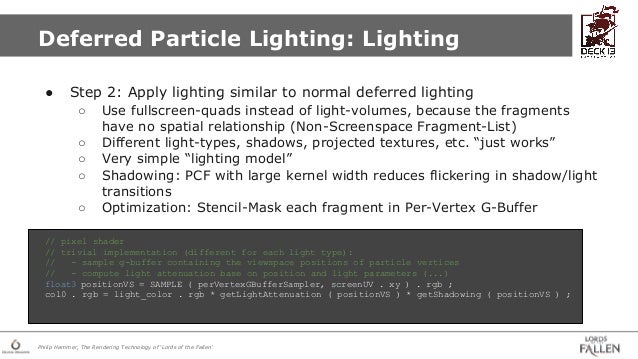

Deferred Particle Lighting: Lighting
● Step 2: Apply ligh...
Philip Hammer, The Rendering Technology of ‘Lords of the Fallen’

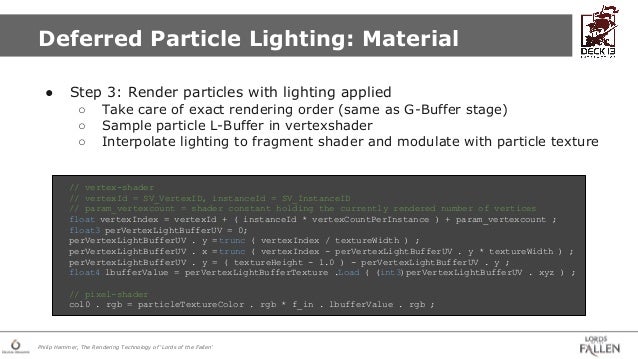

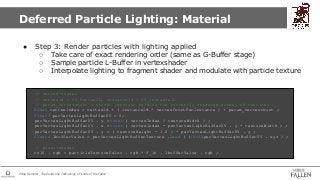

Deferred Particle Lighting: Material
● Step 3: Render par...
Philip Hammer, The Rendering Technology of ‘Lords of the Fallen’

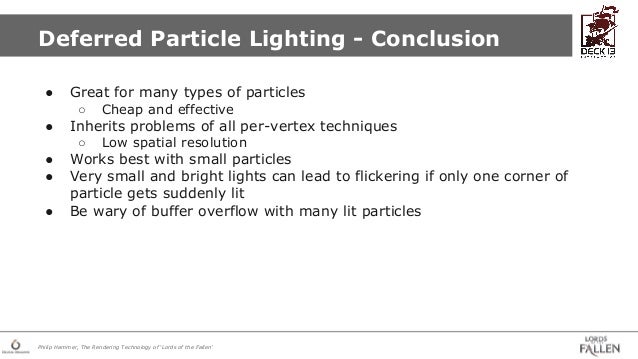

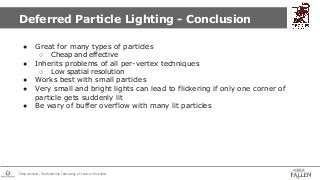

Deferred Particle Lighting - Conclusion
● Great for many ...
Philip Hammer, The Rendering Technology of ‘Lords of the Fallen’

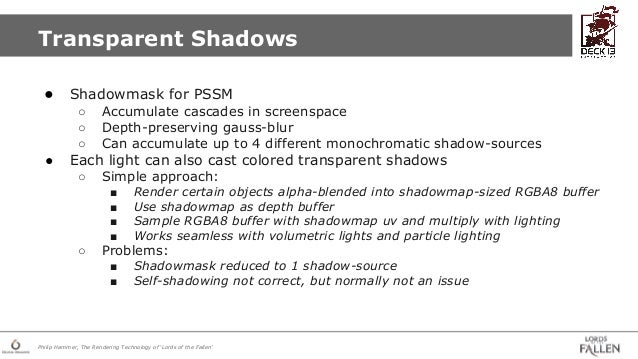

Transparent Shadows
● Shadowmask for PSSM
○ Accumulate ca...
Philip Hammer, The Rendering Technology of ‘Lords of the Fallen’

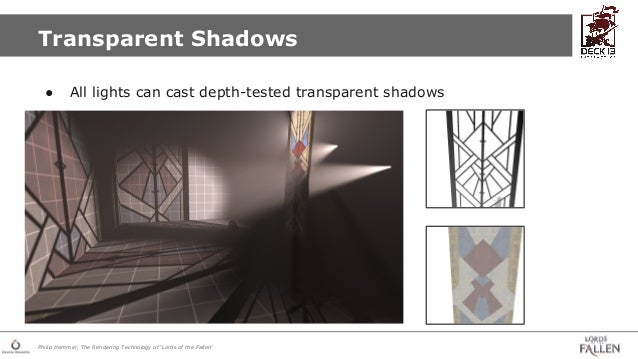

● All lights can cast depth-tested transparent shadows

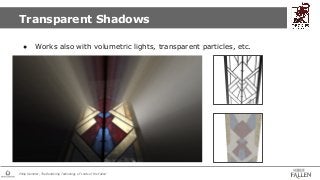

Tr...
Philip Hammer, The Rendering Technology of ‘Lords of the Fallen’
Transparent Shadows

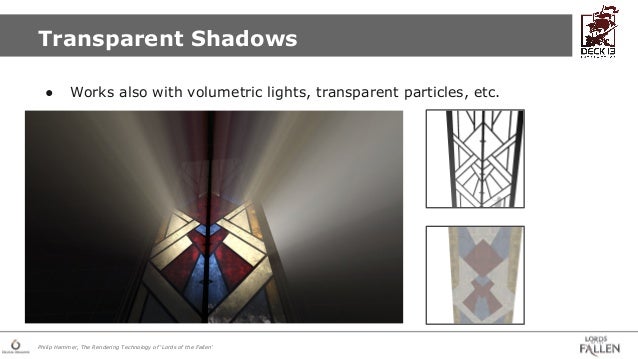

● Works also with volumetric lights, ...
Philip Hammer, The Rendering Technology of ‘Lords of the Fallen’

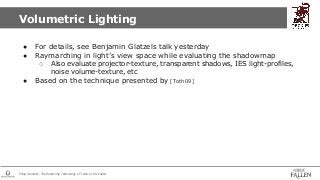

Volumetric Lighting
● For details, see Benjamin Glatzels ...
Philip Hammer, The Rendering Technology of ‘Lords of the Fallen’
Volumetric Lighting
Philip Hammer, The Rendering Technology of ‘Lords of the Fallen’

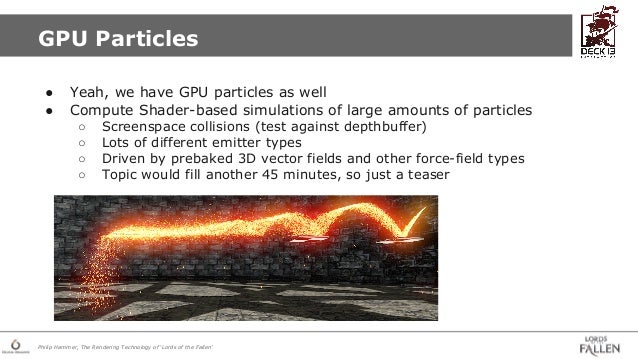

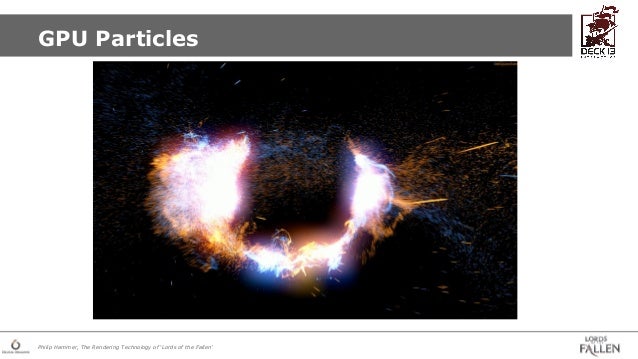

GPU Particles
● Yeah, we have GPU particles as well
● Com...
Philip Hammer, The Rendering Technology of ‘Lords of the Fallen’
GPU Particles
Philip Hammer, The Rendering Technology of ‘Lords of the Fallen’

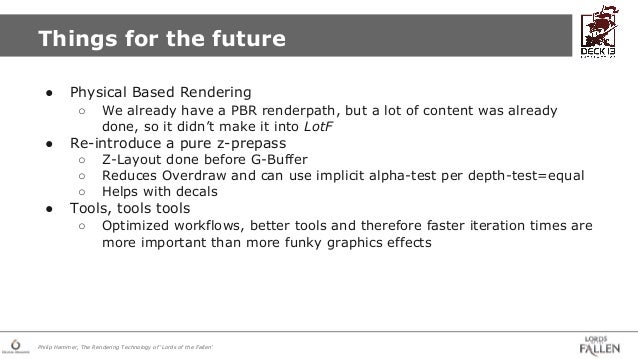

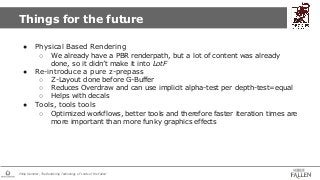

Things for the future
● Physical Based Rendering
○ We alr...
Digital Dragons 2014
@philiphammer0
phammer@deck13.com
http://www.deck13.com

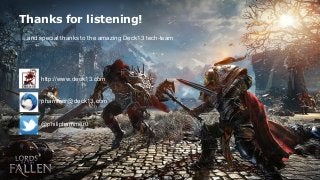

Thanks for listening!
...and special thanks t...
Philip Hammer, The Rendering Technology of ‘Lords of the Fallen’

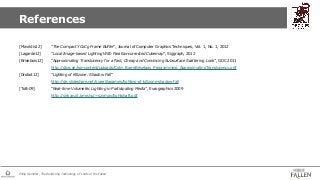

References
[Mavridis12] "The Compact YCoCg Frame Buffer",...
