Multiprocessor Game Loops:                                      Lessons from                                      Jason Gr...
Agenda       Game
Forum
Germany
2010   2Wednesday, January 27, 2010
Agenda       • Goal:       Game
Forum
Germany
2010   2Wednesday, January 27, 2010

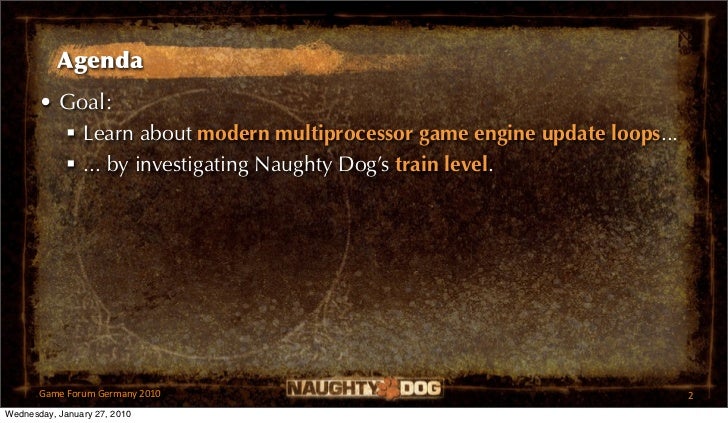

Agenda       • Goal:          Learn about modern multiprocessor game engine update loops...       Game
Forum
Germany
2010...
Agenda       • Goal:          Learn about modern multiprocessor game engine update loops...          ... by investigatin...
Game
Forum
Germany
2010   3Wednesday, January 27, 2010
Agenda       Game
Forum
Germany
2010   4Wednesday, January 27, 2010

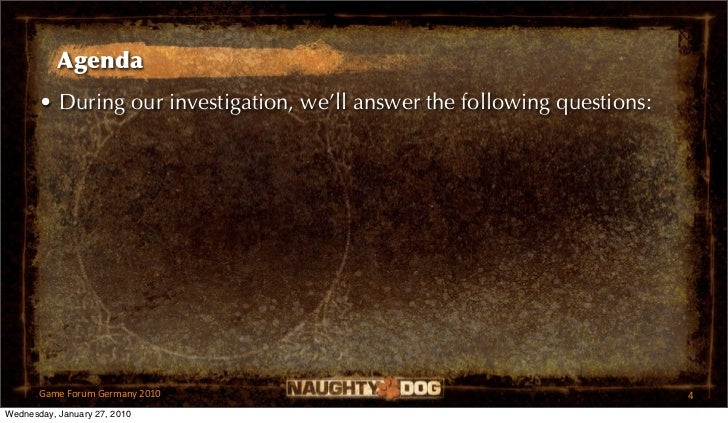

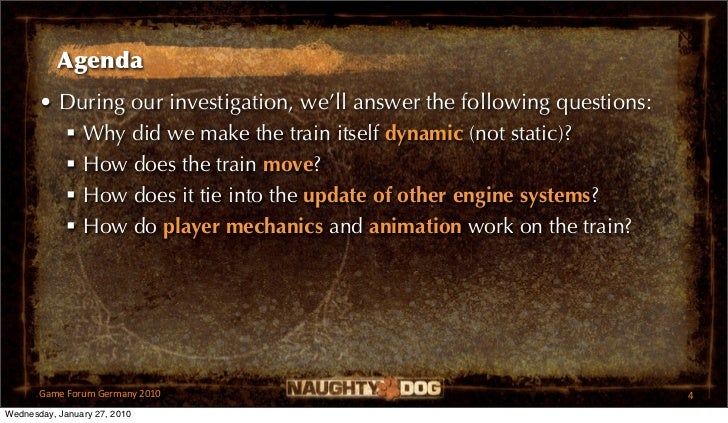

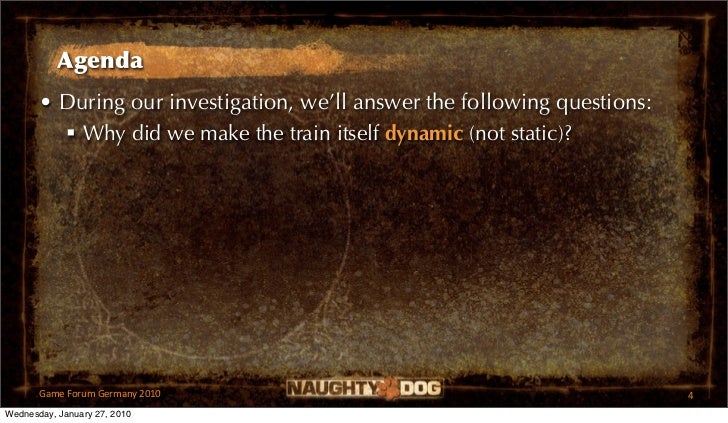

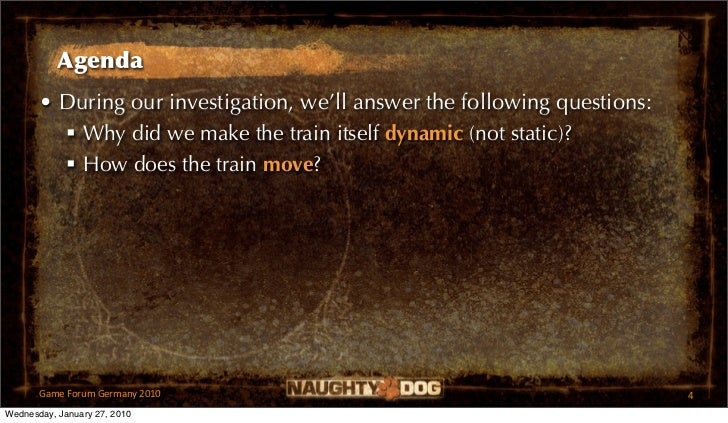

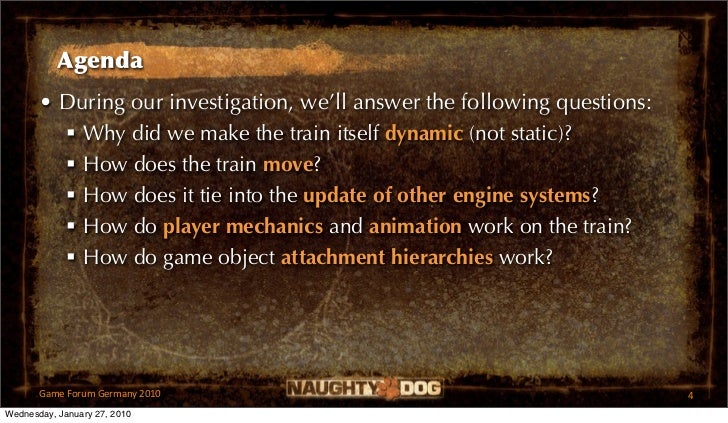

Agenda       • During our investigation, we’ll answer the following questions:       Game
Forum
Germany
2010              ...
Agenda       • During our investigation, we’ll answer the following questions:          Why did we make the train itself ...
Agenda       • During our investigation, we’ll answer the following questions:          Why did we make the train itself ...
Agenda       • During our investigation, we’ll answer the following questions:          Why did we make the train itself ...
Agenda       • During our investigation, we’ll answer the following questions:          Why did we make the train itself ...
Agenda       • During our investigation, we’ll answer the following questions:          Why did we make the train itself ...
Agenda       • During our investigation, we’ll answer the following questions:          Why did we make the train itself ...
Agenda       • During our investigation, we’ll answer the following questions:          Why did we make the train itself ...
Static or Dynamic?                                                   5Wednesday, January 27, 2010
Could the Train be Static?       • In the past, games with trains in them have used a static train         approach.      ...
Was That Good Enough for Us?       Game
Forum
Germany
2010            7Wednesday, January 27, 2010

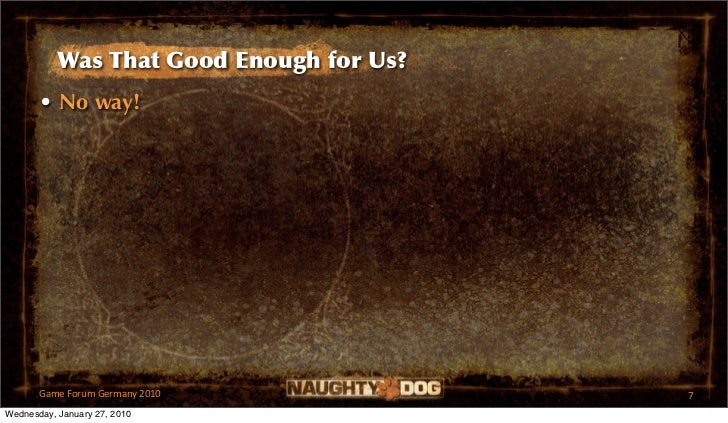

Was That Good Enough for Us?       • No way!       Game
Forum
Germany
2010            7Wednesday, January 27, 2010

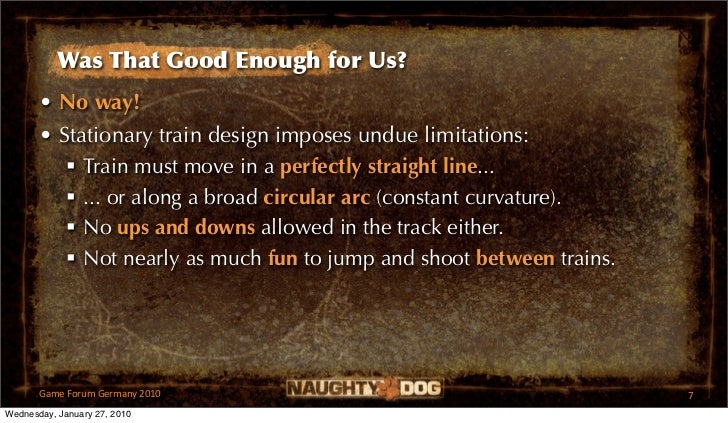

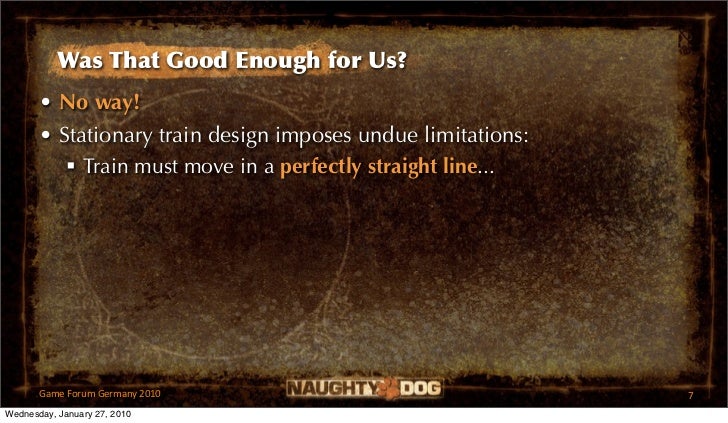

Was That Good Enough for Us?       • No way!       • Stationary train design imposes undue limitations:       Game
Forum
G...
Was That Good Enough for Us?       • No way!       • Stationary train design imposes undue limitations:           Train m...
Was That Good Enough for Us?       • No way!       • Stationary train design imposes undue limitations:           Train m...
Was That Good Enough for Us?       • No way!       • Stationary train design imposes undue limitations:           Train m...
Was That Good Enough for Us?       • No way!       • Stationary train design imposes undue limitations:           Train m...
Was That Good Enough for Us?       • No way!       • Stationary train design imposes undue limitations:           Train m...
Game
Forum
Germany
2010   8Wednesday, January 27, 2010
Train Movement                                               9Wednesday, January 27, 2010

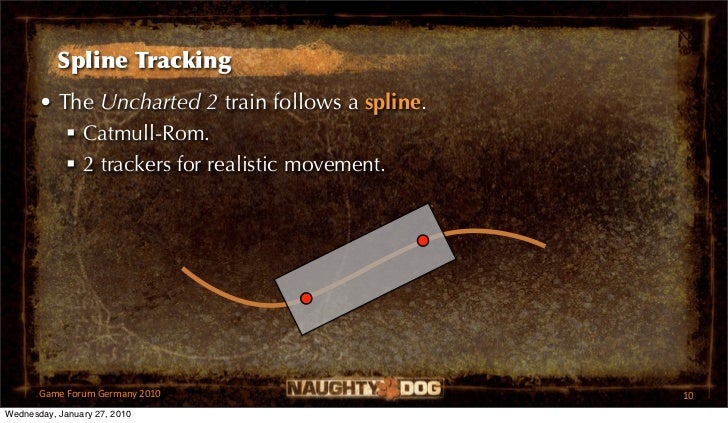

Spline Tracking       • The Uncharted 2 train follows a spline.           Catmull-Rom.           2 trackers for realisti...

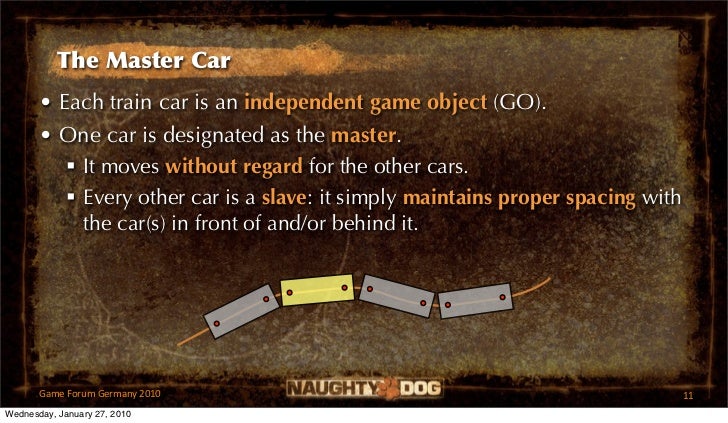

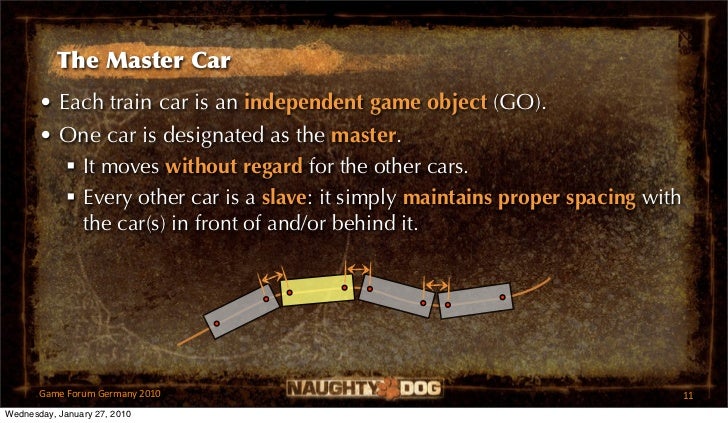

The Master Car       • Each train car is an independent game object (GO).       • One car is designated as the master.    ...
The Master Car       • Each train car is an independent game object (GO).       • One car is designated as the master.    ...

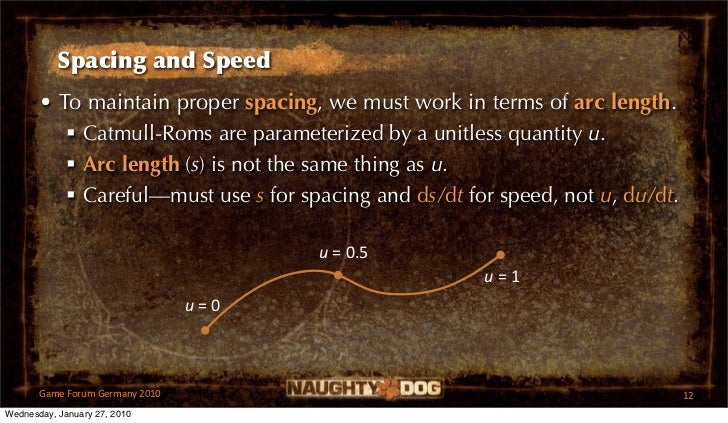

Spacing and Speed       • To maintain proper spacing, we must work in terms of arc length.           Catmull-Roms are par...
Spacing and Speed       • To maintain proper spacing, we must work in terms of arc length.           Catmull-Roms are par...

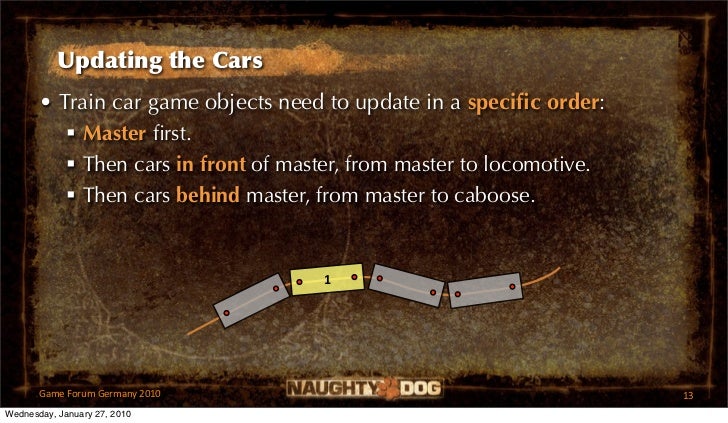

Updating the Cars       • Train car game objects need to update in a specific order:           Master first.           The...
Updating the Cars       • Train car game objects need to update in a specific order:           Master first.           The...
Updating the Cars       • Train car game objects need to update in a specific order:           Master first.           The...
Updating the Cars       • Train car game objects need to update in a specific order:           Master first.           The...

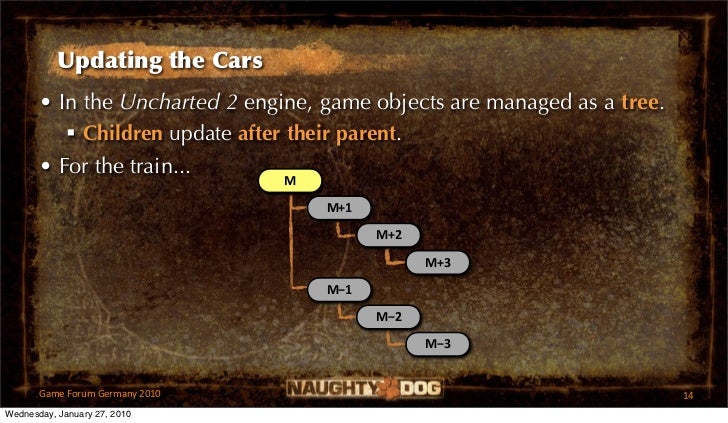

Updating the Cars       • In the Uncharted 2 engine, game objects are managed as a tree.           Children update after ...

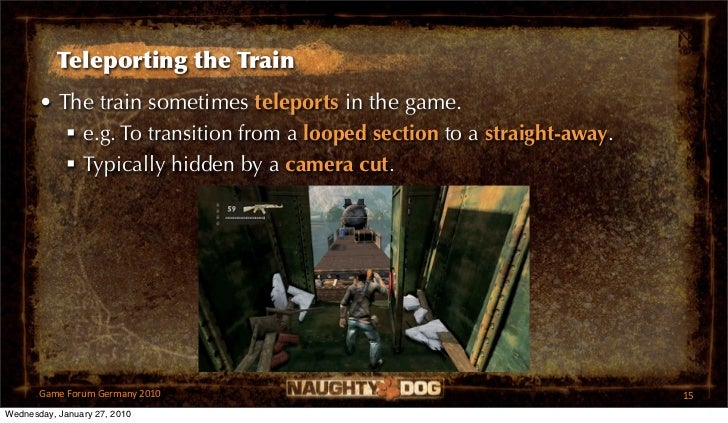

Teleporting the Train       • The train sometimes teleports in the game.           e.g. To transition from a looped secti...
Teleporting the Train       • The train sometimes teleports in the game.           e.g. To transition from a looped secti...

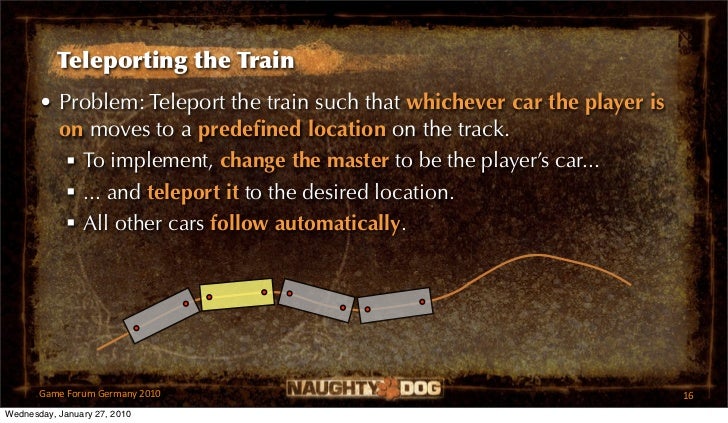

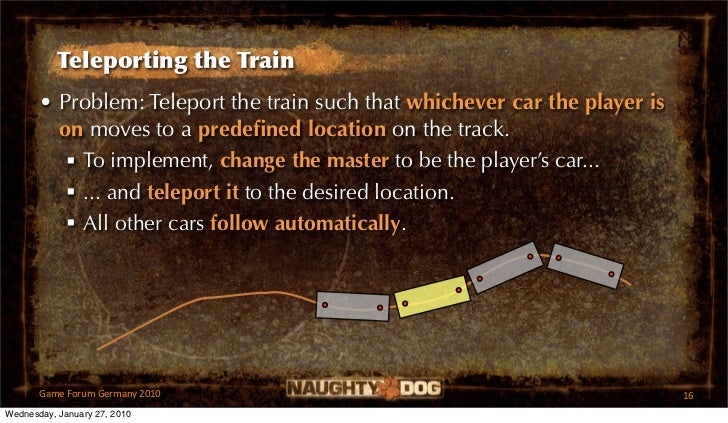

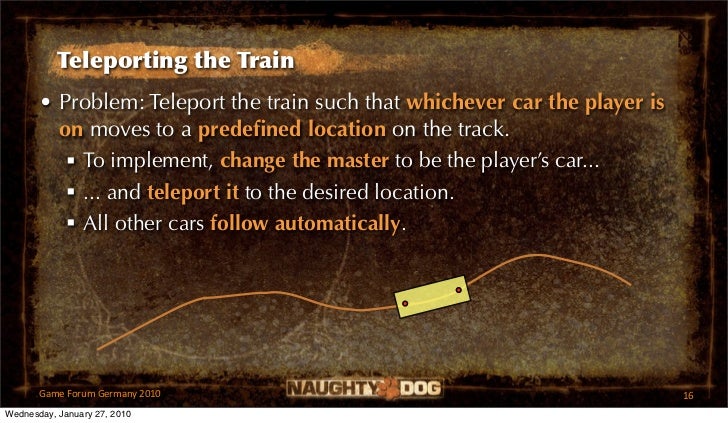

Teleporting the Train       • Problem: Teleport the train such that whichever car the player is         on moves to a pred...
Teleporting the Train       • Problem: Teleport the train such that whichever car the player is         on moves to a pred...
Teleporting the Train       • Problem: Teleport the train such that whichever car the player is         on moves to a pred...

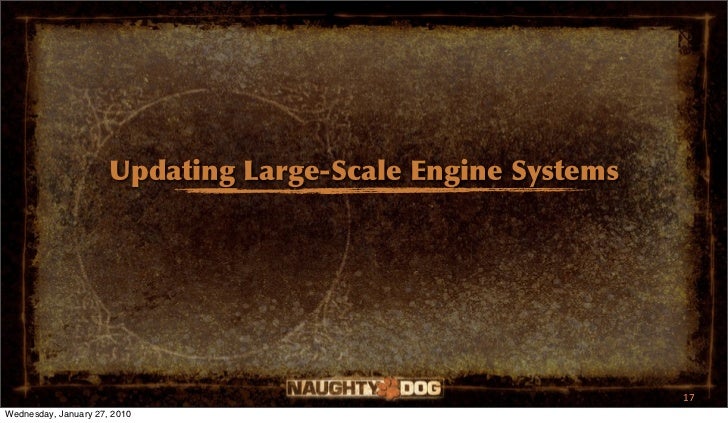

Updating Large-Scale Engine Systems                                                            17Wednesday, January 27, 2010

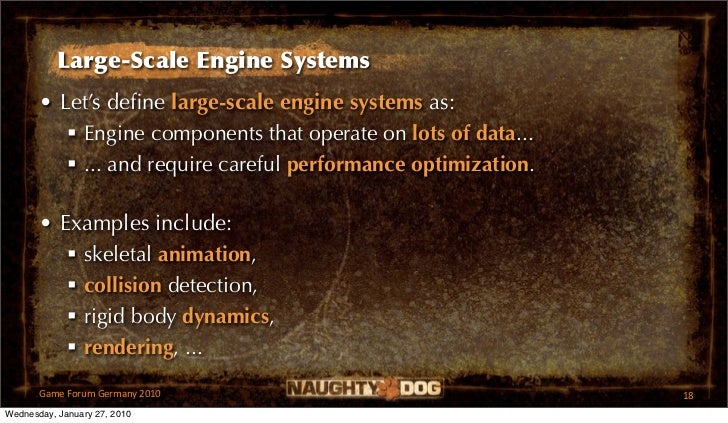

Large-Scale Engine Systems       • Let’s define large-scale engine systems as:           Engine components that operate on...

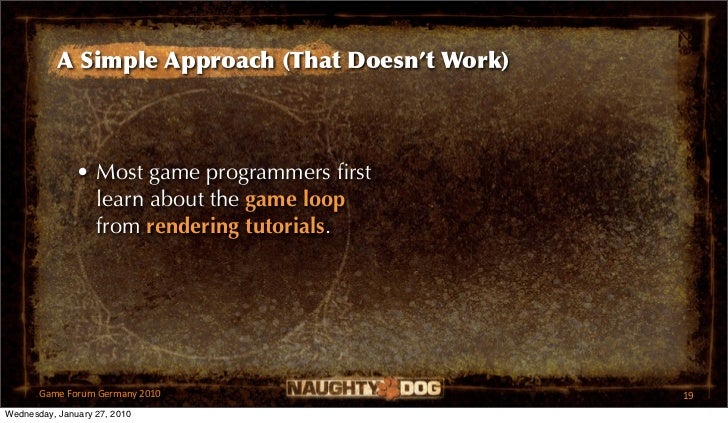

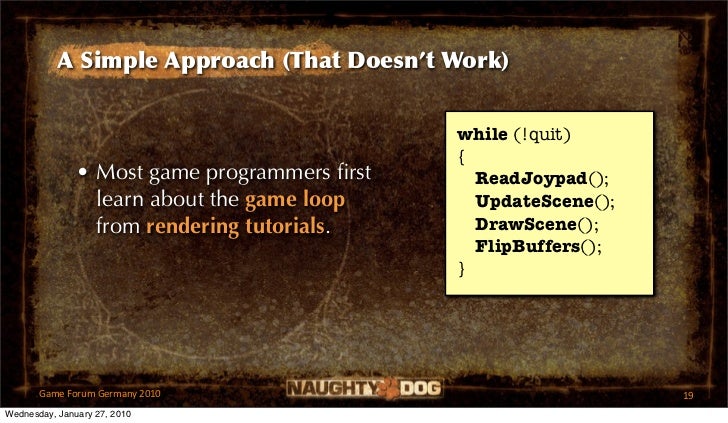

A Simple Approach (That Doesn’t Work)               • Most game programmers first                 learn about the game loop...
A Simple Approach (That Doesn’t Work)                                              while (!quit)                          ...

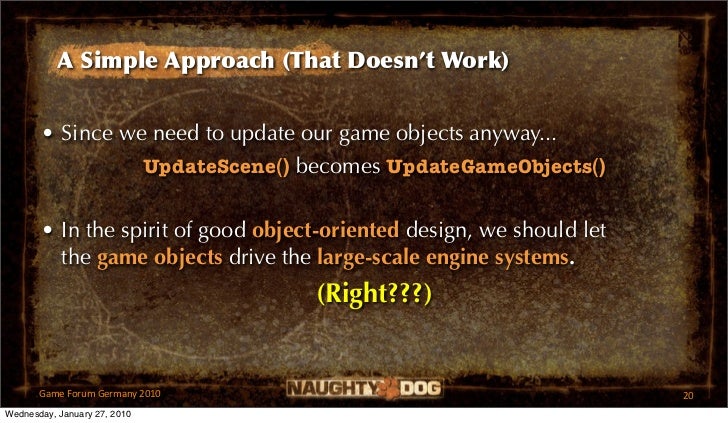

A Simple Approach (That Doesn’t Work)       • Since we need to update our game objects anyway...                 UpdateSce...

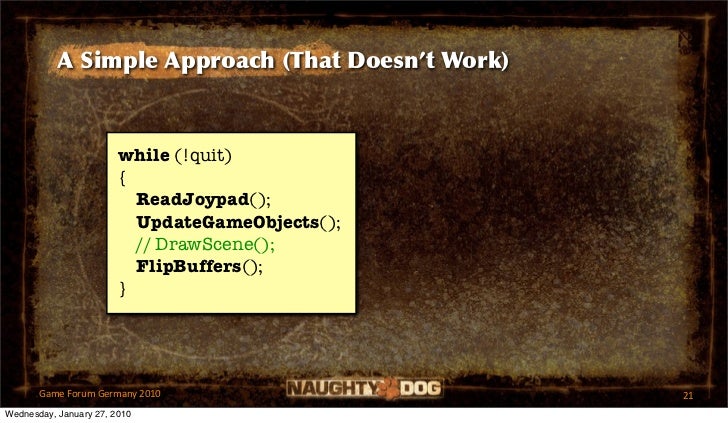

A Simple Approach (That Doesn’t Work)                        while (!quit)                        {                       ...
A Simple Approach (That Doesn’t Work)                                                 void Tank::Update ()                ...

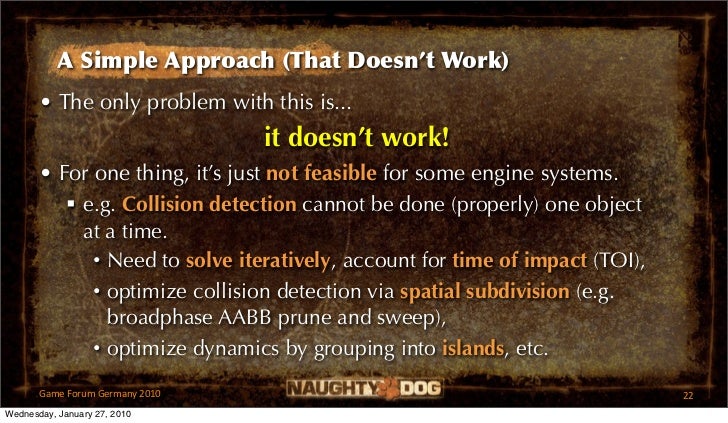

A Simple Approach (That Doesn’t Work)       • The only problem with this is...                                 it doesn’t ...
A Simple Approach (That Doesn’t Work)       Game
Forum
Germany
2010                     23Wednesday, January 27, 2010

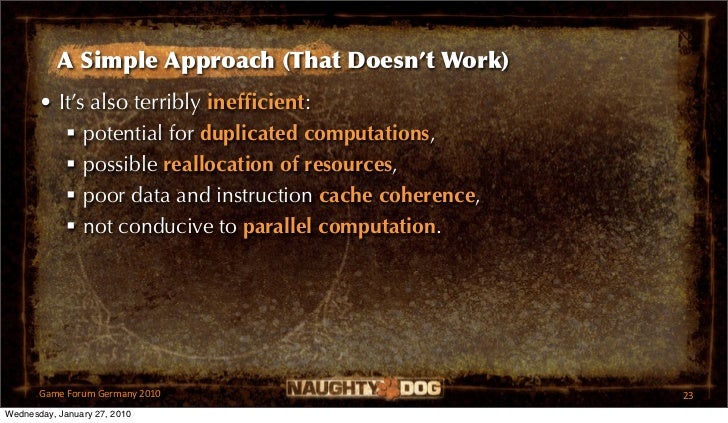

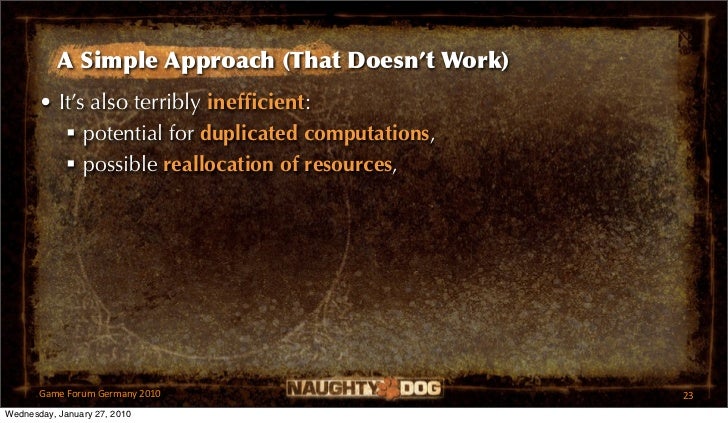

A Simple Approach (That Doesn’t Work)       • It’s also terribly inefficient:       Game
Forum
Germany
2010                ...
A Simple Approach (That Doesn’t Work)       • It’s also terribly inefficient:           potential for duplicated computati...
A Simple Approach (That Doesn’t Work)       • It’s also terribly inefficient:           potential for duplicated computati...
A Simple Approach (That Doesn’t Work)       • It’s also terribly inefficient:           potential for duplicated computati...
A Simple Approach (That Doesn’t Work)       • It’s also terribly inefficient:           potential for duplicated computati...
Hardware in the Old Days       • On an Intel Pentium 286 (cira 1982):          CPU speed was the bottleneck (6 MHz).     ...

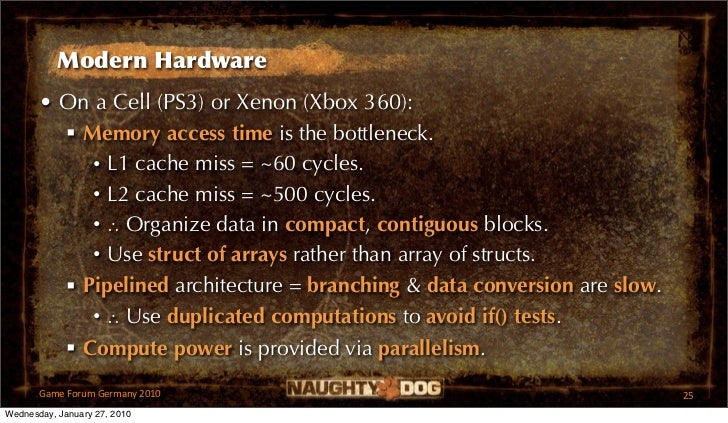

Modern Hardware       • On a Cell (PS3) or Xenon (Xbox 360):          Memory access time is the bottleneck.            • ...

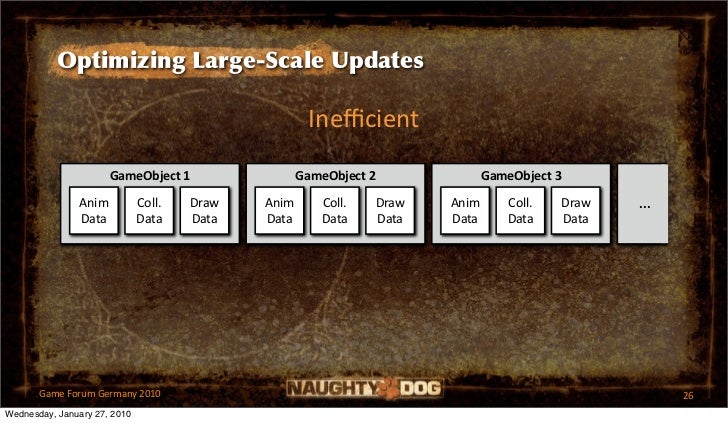

Optimizing Large-Scale Updates                                                       Inefficient                      GameOb...
Optimizing Large-Scale Updates                                                Much
beEer!                  Anima?on
Engine...
Optimizing Large-Scale Updates       • Game objects do not own their large-scale system data...           ... they point ...
Optimizing Large-Scale Updates                                                                                 Anima?on
  ...

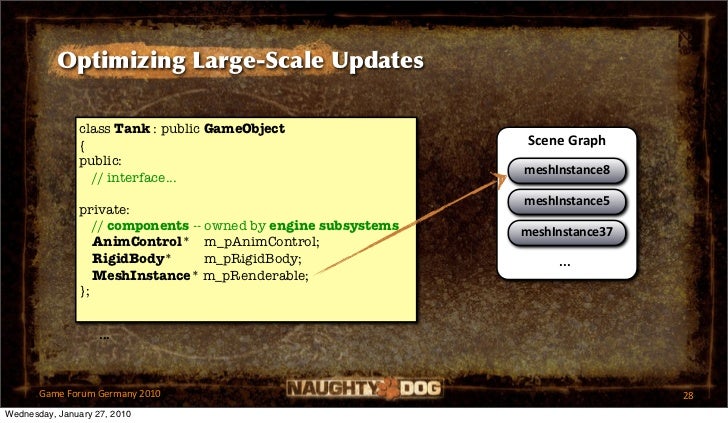

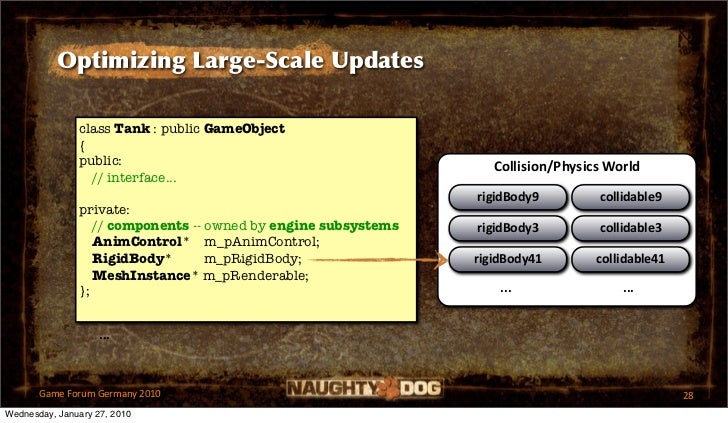

Optimizing Large-Scale Updates               class Tank : public GameObject               {               public:         ...
Optimizing Large-Scale Updates               class Tank : public GameObject               {                               ...

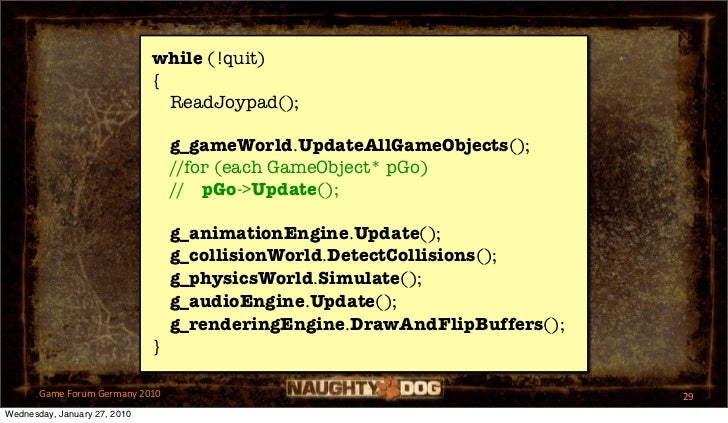

while (!quit)                              {                                ReadJoypad();                                 ...
Player Mechanics and Animation                                                               30Wednesday, January 27, 2010
Game
Forum
Germany
2010   31Wednesday, January 27, 2010

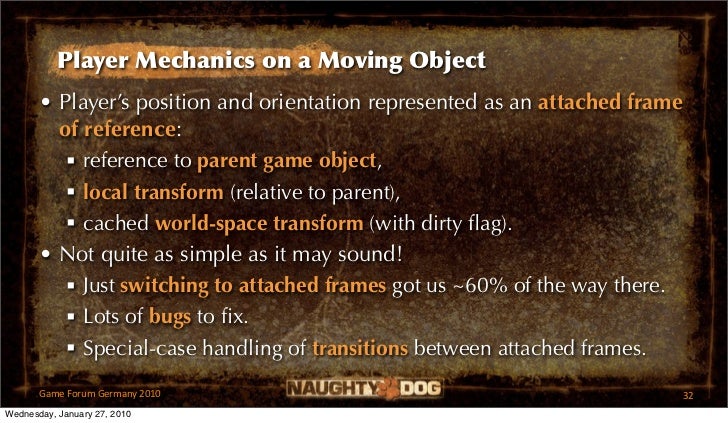

Player Mechanics on a Moving Object       • Player’s position and orientation represented as an attached frame         of ...

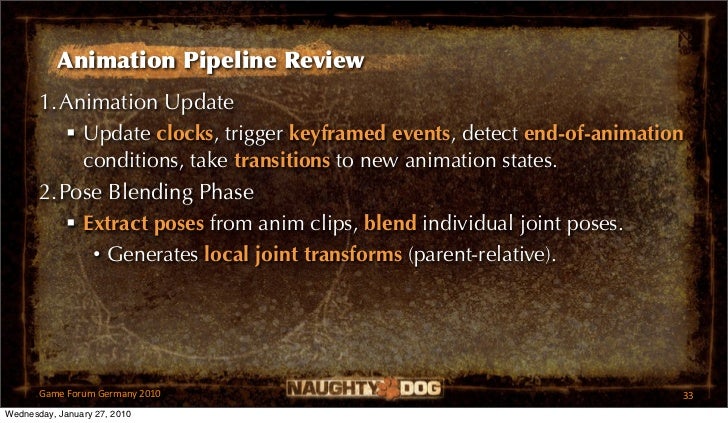

Animation Pipeline Review       1.Animation Update           Update clocks, trigger keyframed events, detect end-of-anima...

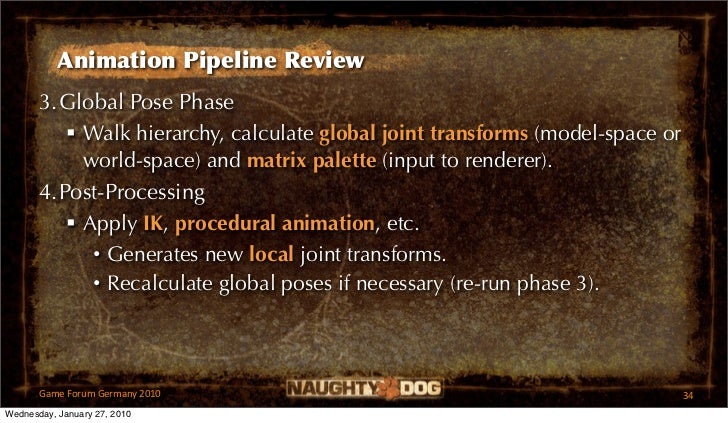

Animation Pipeline Review       3.Global Pose Phase           Walk hierarchy, calculate global joint transforms (model-sp...

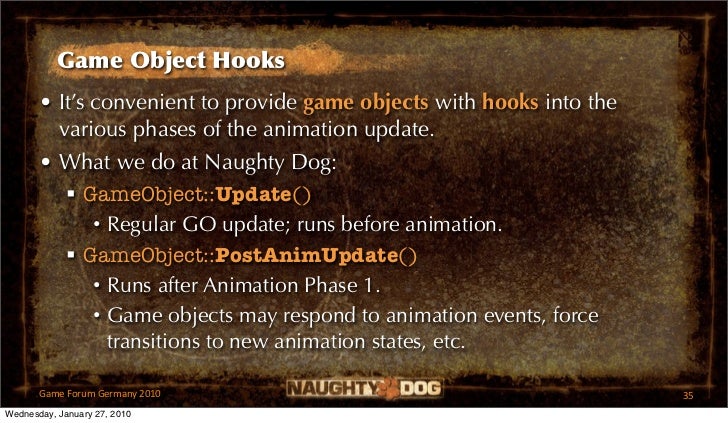

Game Object Hooks       • It’s convenient to provide game objects with hooks into the         various phases of the animat...

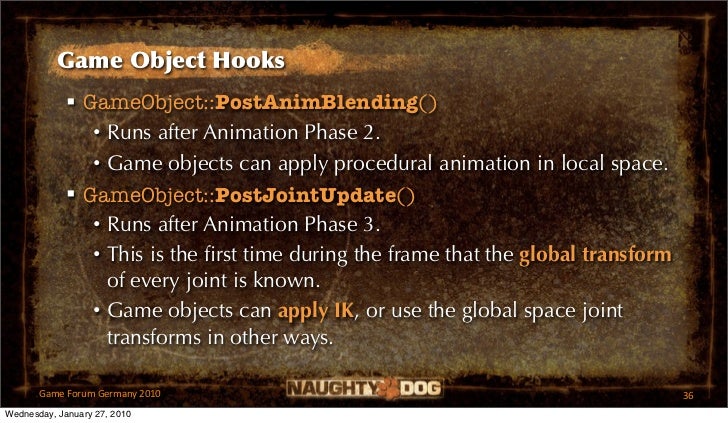

Game Object Hooks              GameObject::PostAnimBlending()                • Runs after Animation Phase 2.             ...

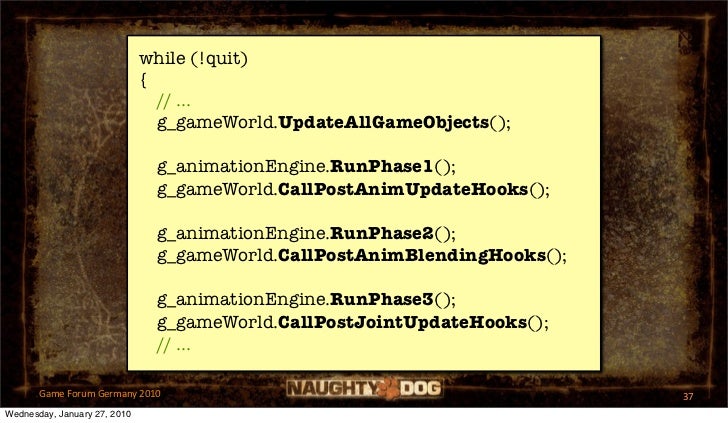

while (!quit)                              {                                // ...                                g_gameWo...
Object Attachment Hierarchy                                     Bucketed Updates                                          ...

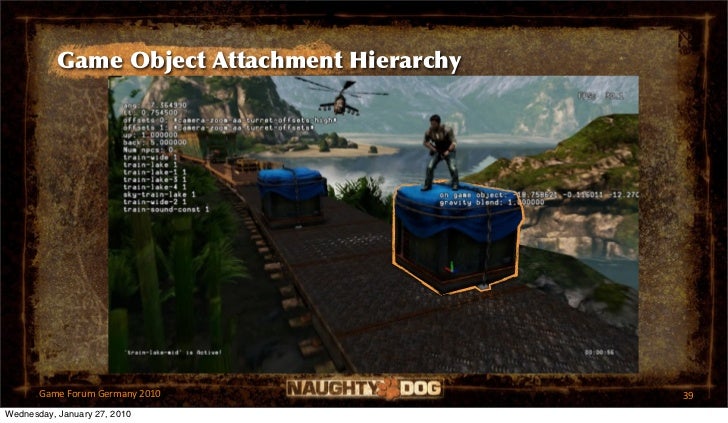

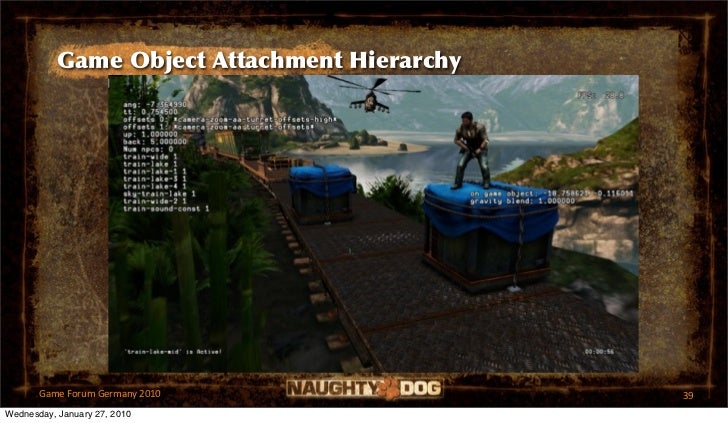

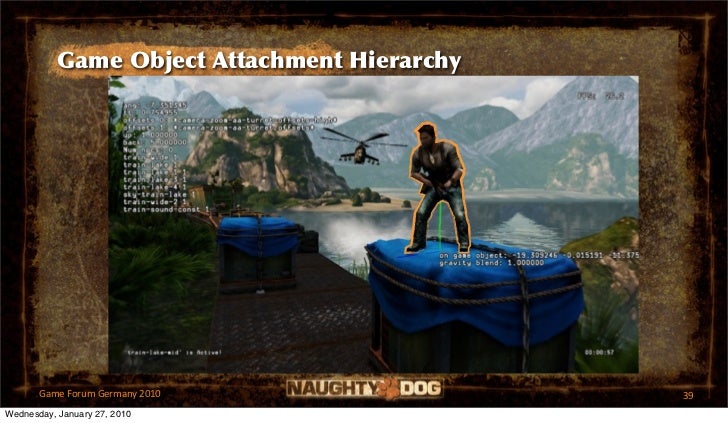

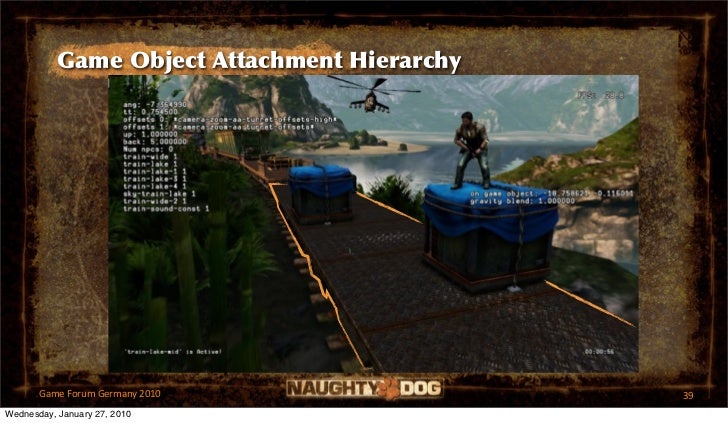

Game Object Attachment Hierarchy       Game
Forum
Germany
2010                39Wednesday, January 27, 2010
Game Object Attachment Hierarchy       Game
Forum
Germany
2010                39Wednesday, January 27, 2010
Game Object Attachment Hierarchy       Game
Forum
Germany
2010                39Wednesday, January 27, 2010
Game Object Attachment Hierarchy       Game
Forum
Germany
2010                39Wednesday, January 27, 2010
Game Object Attachment Hierarchy       Game
Forum
Germany
2010                39Wednesday, January 27, 2010

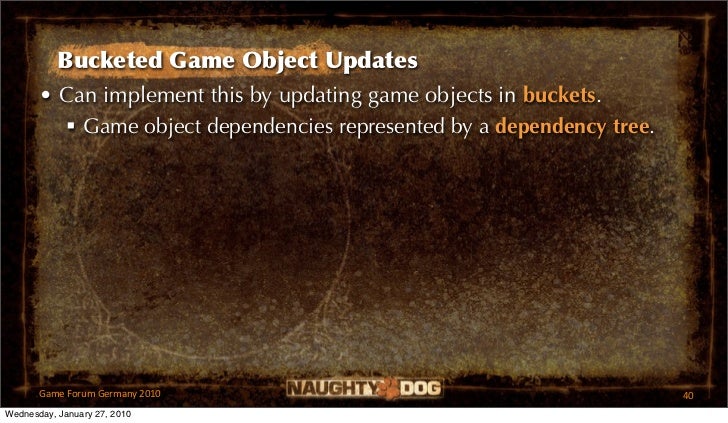

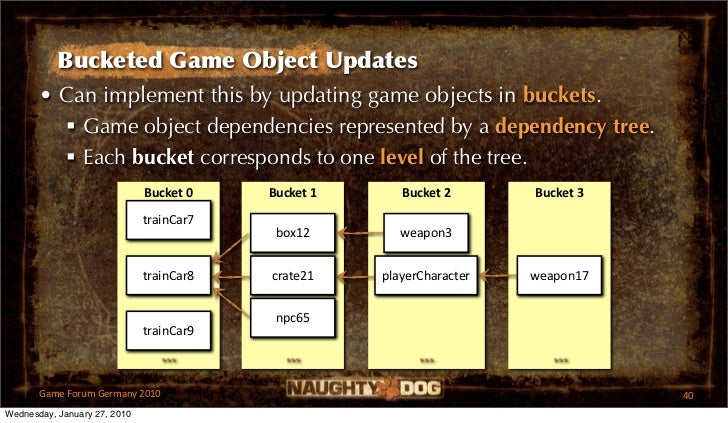

Bucketed Game Object Updates       • Can implement this by updating game objects in buckets.          Game object depende...
Bucketed Game Object Updates       • Can implement this by updating game objects in buckets.          Game object depende...

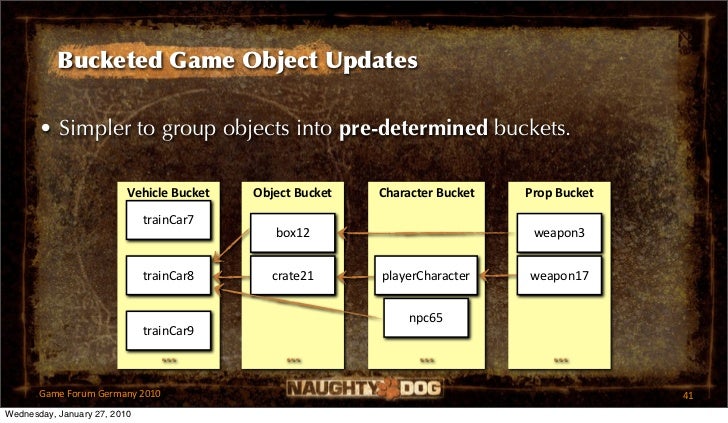

Bucketed Game Object Updates       • Simpler to group objects into pre-determined buckets.                          Vehicl...

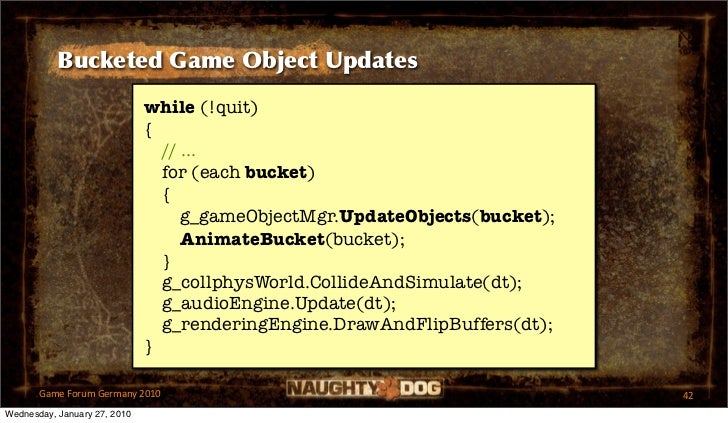

Bucketed Game Object Updates                              while (!quit)                              {                    ...

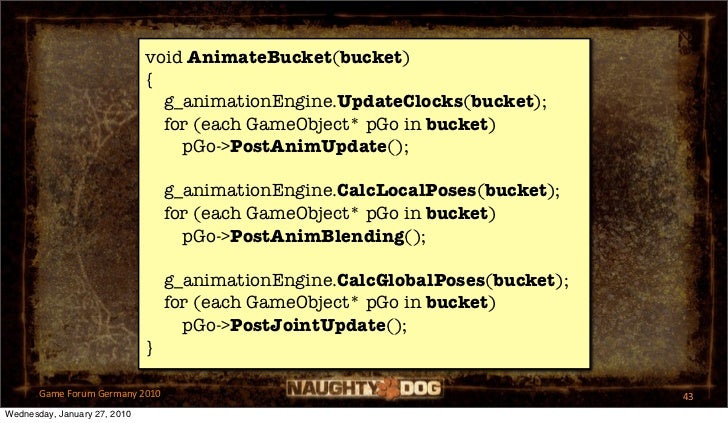

void AnimateBucket(bucket)                              {                                g_animationEngine.UpdateClocks(bu...
Ray and Sphere Casts                                                     44Wednesday, January 27, 2010

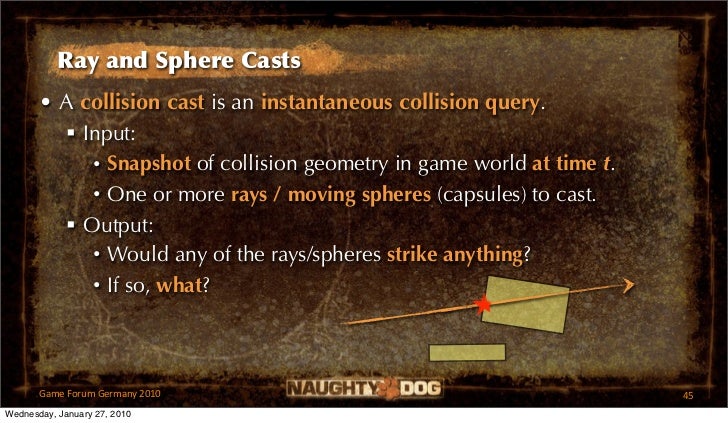

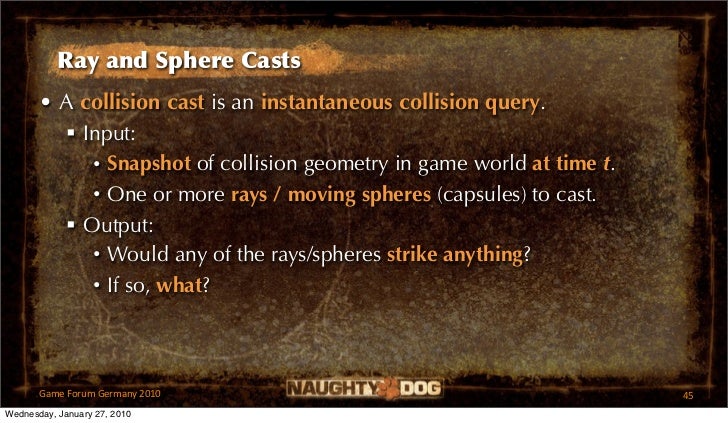

Ray and Sphere Casts       • A collision cast is an instantaneous collision query.          Input:            • Snapshot ...
Ray and Sphere Casts       • A collision cast is an instantaneous collision query.          Input:            • Snapshot ...
Ray and Sphere Casts       • A collision cast is an instantaneous collision query.          Input:            • Snapshot ...
Ray and Sphere Casts       • A collision cast is an instantaneous collision query.          Input:            • Snapshot ...
Ray and Sphere Casts       • A collision cast is an instantaneous collision query.          Input:            • Snapshot ...

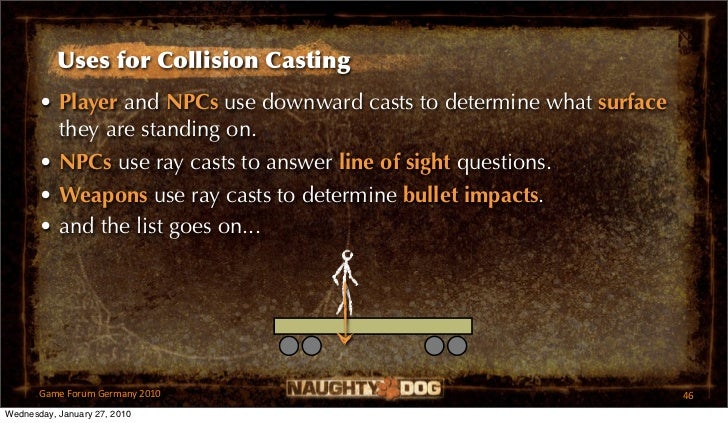

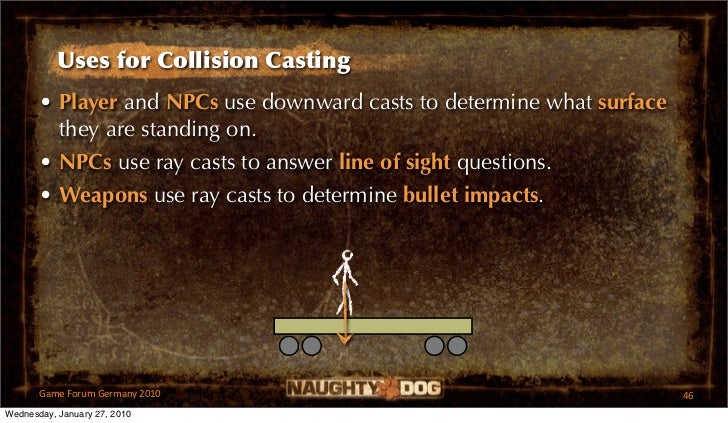

Uses for Collision Casting       • Player and NPCs use downward casts to determine what surface         they are standing ...
Uses for Collision Casting       • Player and NPCs use downward casts to determine what surface         they are standing ...
Uses for Collision Casting       • Player and NPCs use downward casts to determine what surface         they are standing ...
Uses for Collision Casting       • Player and NPCs use downward casts to determine what surface         they are standing ...
Uses for Collision Casting       • Player and NPCs use downward casts to determine what surface         they are standing ...
Uses for Collision Casting       • Player and NPCs use downward casts to determine what surface         they are standing ...
Inter-Game-Object Queries and Synchronization       • Synchronization problems can arise whenever:           game object ...

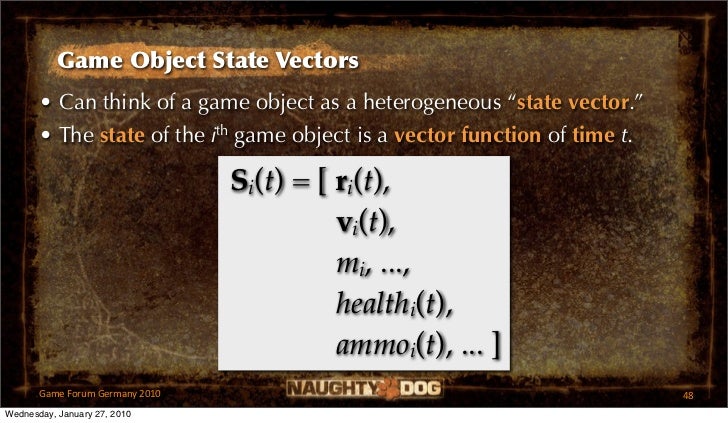

Game Object State Vectors       • Can think of a game object as a heterogeneous “state vector.”       • The state of the i...

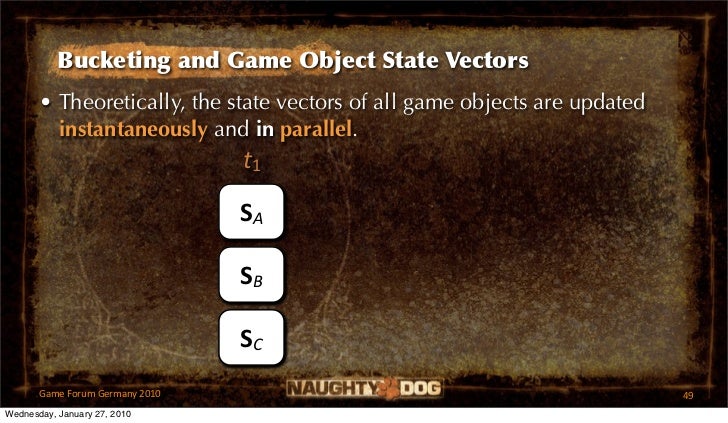

Bucketing and Game Object State Vectors       • Theoretically, the state vectors of all game objects are updated         i...
Bucketing and Game Object State Vectors       • Theoretically, the state vectors of all game objects are updated         i...

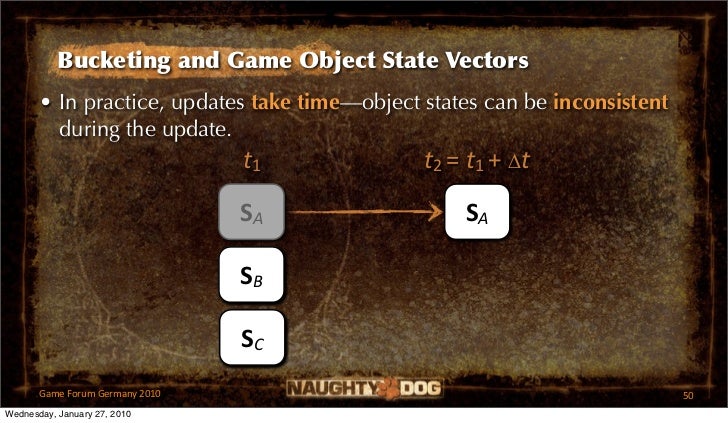

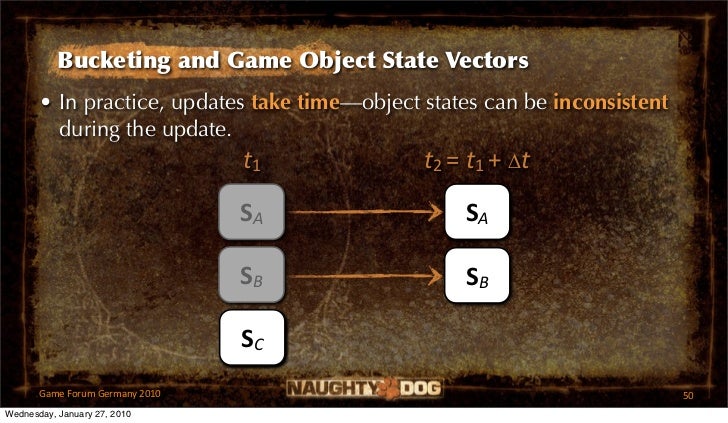

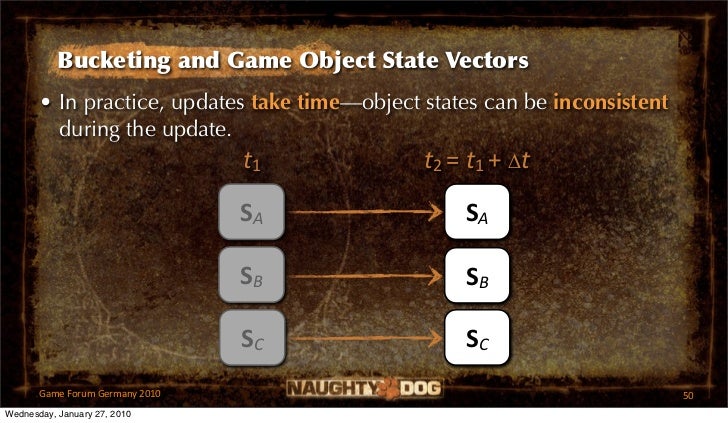

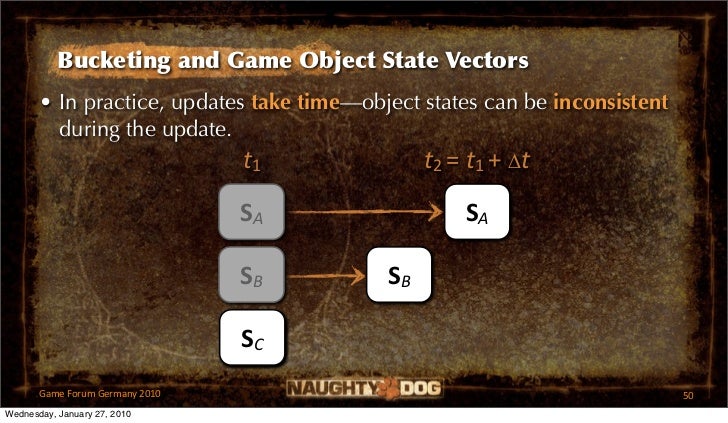

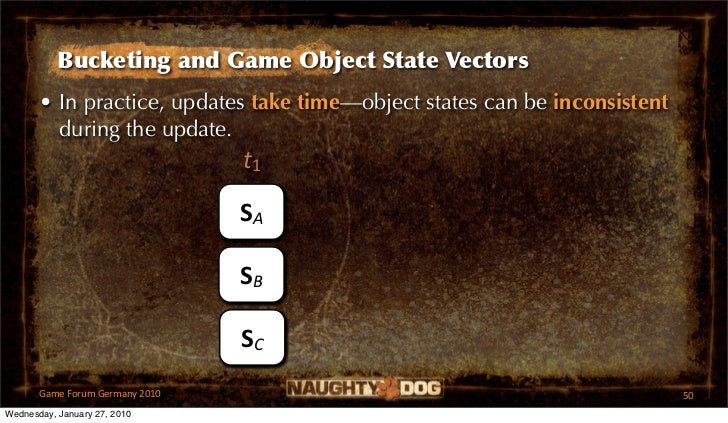

Bucketing and Game Object State Vectors       • In practice, updates take time—object states can be inconsistent         d...
Bucketing and Game Object State Vectors       • In practice, updates take time—object states can be inconsistent         d...
Bucketing and Game Object State Vectors       • In practice, updates take time—object states can be inconsistent         d...
Bucketing and Game Object State Vectors       • In practice, updates take time—object states can be inconsistent         d...
Bucketing and Game Object State Vectors       • In practice, updates take time—object states can be inconsistent         d...

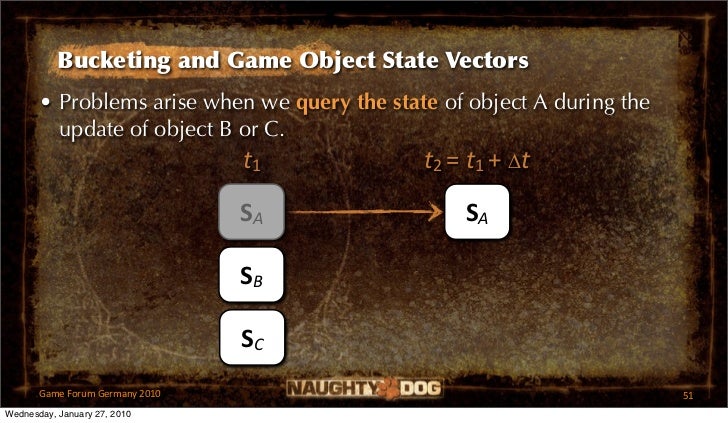

Bucketing and Game Object State Vectors       • Problems arise when we query the state of object A during the         upda...
Bucketing and Game Object State Vectors       • Problems arise when we query the state of object A during the         upda...

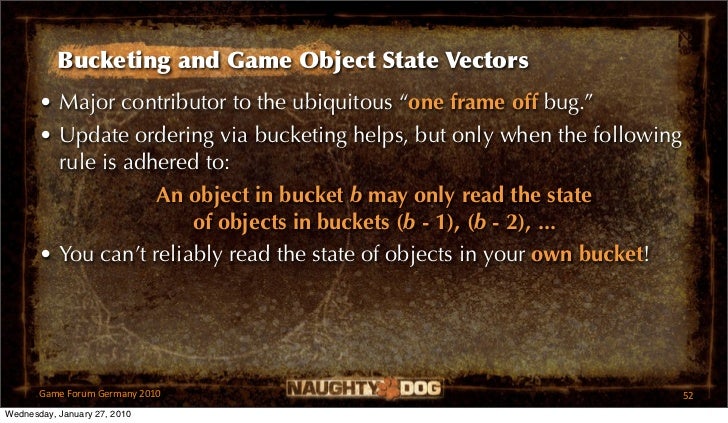

Bucketing and Game Object State Vectors       • Major contributor to the ubiquitous “one frame off bug.”       • Update or...

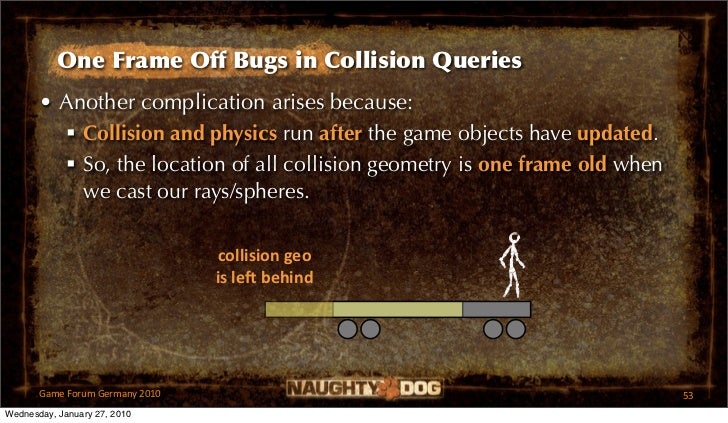

One Frame Off Bugs in Collision Queries       • Another complication arises because:          Collision and physics run a...
One Frame Off Bugs in Collision Queries       • Another complication arises because:          Collision and physics run a...
One Frame Off Bugs in Collision Queries       • Another complication arises because:          Collision and physics run a...

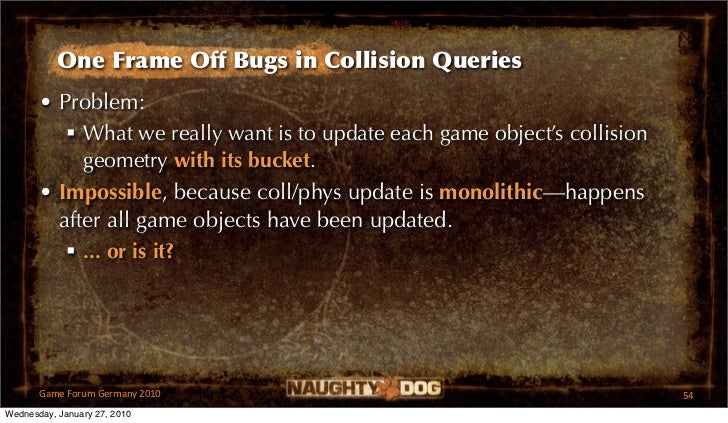

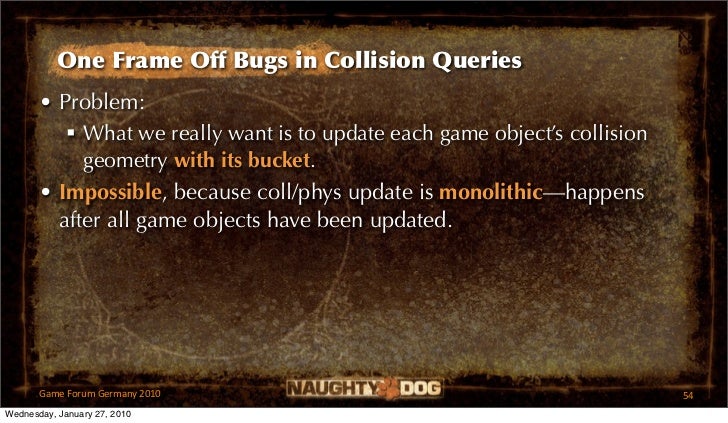

One Frame Off Bugs in Collision Queries       • Problem:           What we really want is to update each game object’s co...
One Frame Off Bugs in Collision Queries       • Problem:           What we really want is to update each game object’s co...

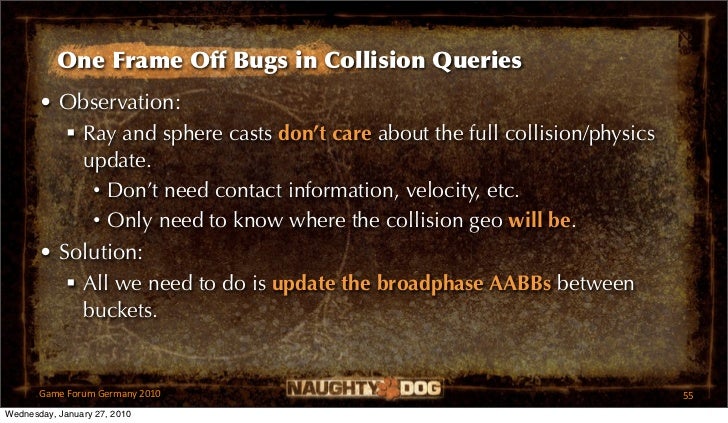

One Frame Off Bugs in Collision Queries       • Observation:           Ray and sphere casts don’t care about the full col...

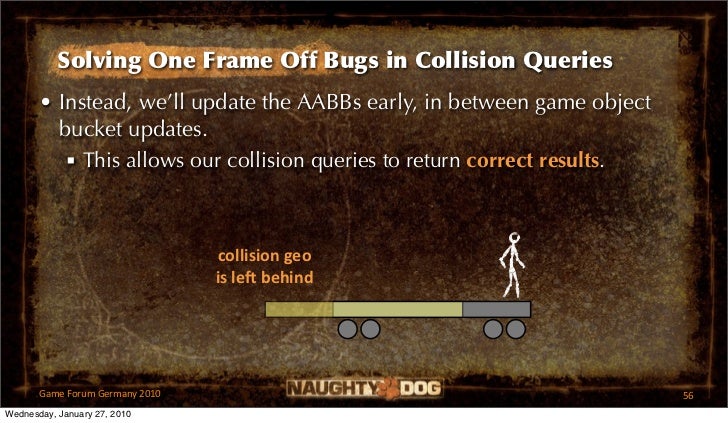

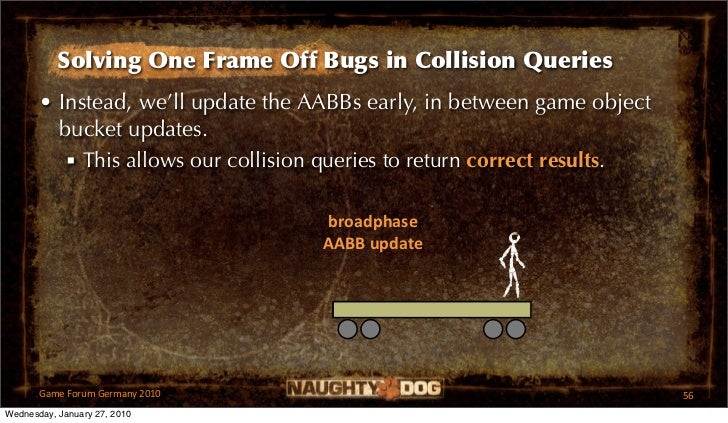

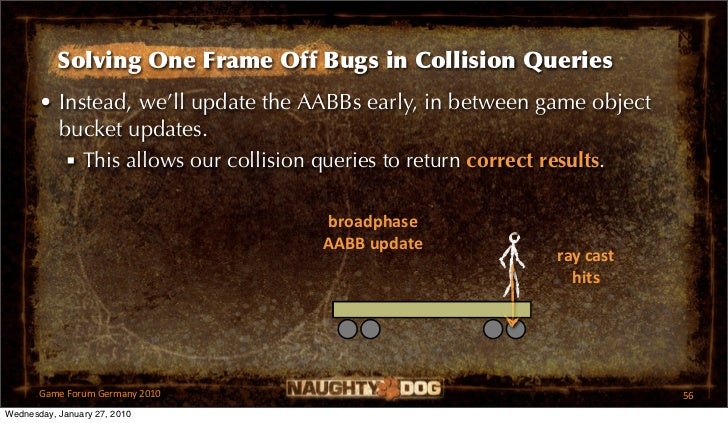

Solving One Frame Off Bugs in Collision Queries       • Instead, we’ll update the AABBs early, in between game object     ...
Solving One Frame Off Bugs in Collision Queries       • Instead, we’ll update the AABBs early, in between game object     ...
Solving One Frame Off Bugs in Collision Queries       • Instead, we’ll update the AABBs early, in between game object     ...
Solving One Frame Off Bugs in Collision Queries       • Instead, we’ll update the AABBs early, in between game object     ...
Achieving Parallelism                                                      57Wednesday, January 27, 2010

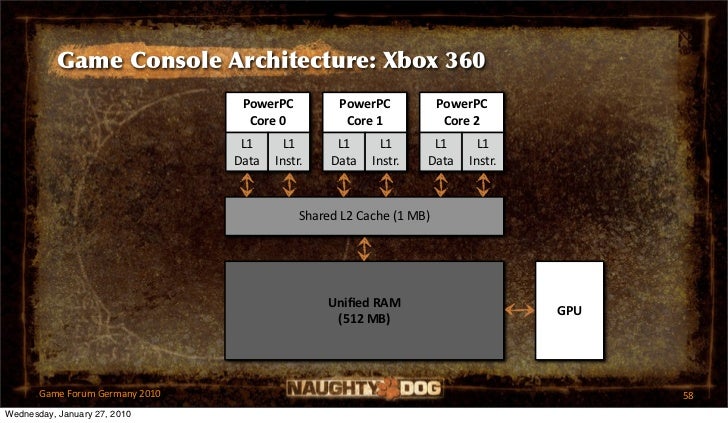

Game Console Architecture: Xbox 360                                  PowerPC          PowerPC            PowerPC          ...

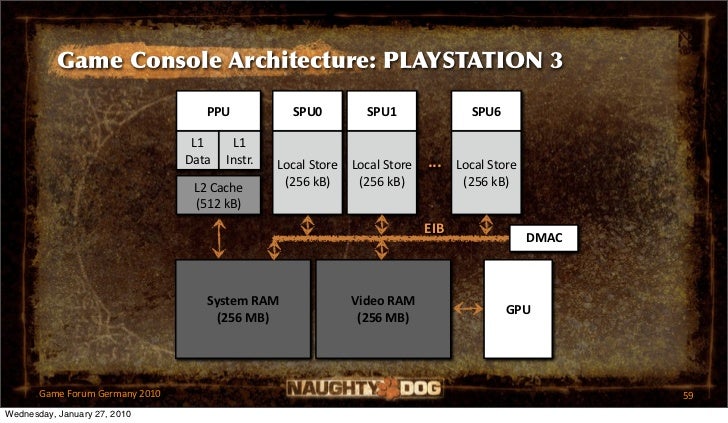

Game Console Architecture: PLAYSTATION 3                                    PPU            SPU0          SPU1             ...
Thinking About Modern Multiprocessor Hardware       • We’ll think in terms of multiple hardware threads.       • These cou...

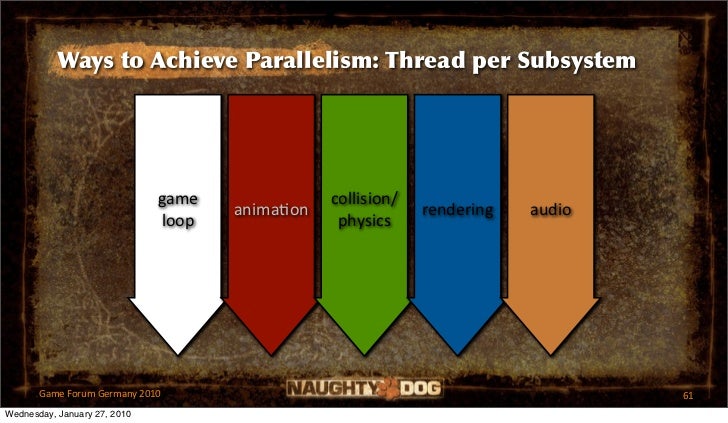

Ways to Achieve Parallelism: Thread per Subsystem                              game              collision/               ...
Ways to Achieve Parallelism: Thread per Subsystem                              game              collision/               ...

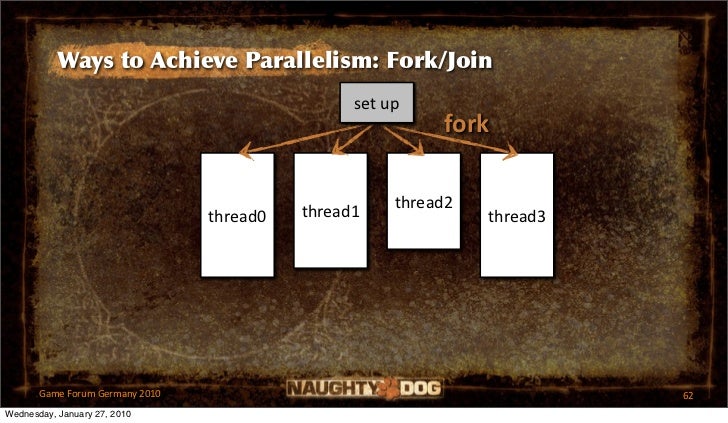

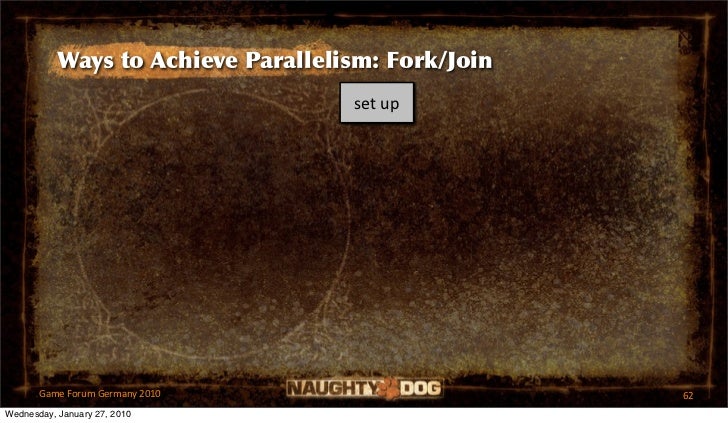

Ways to Achieve Parallelism: Fork/Join                                    set
up       Game
Forum
Germany
2010            ...
Ways to Achieve Parallelism: Fork/Join                                                 set
up                             ...
Ways to Achieve Parallelism: Fork/Join                                                 set
up                             ...

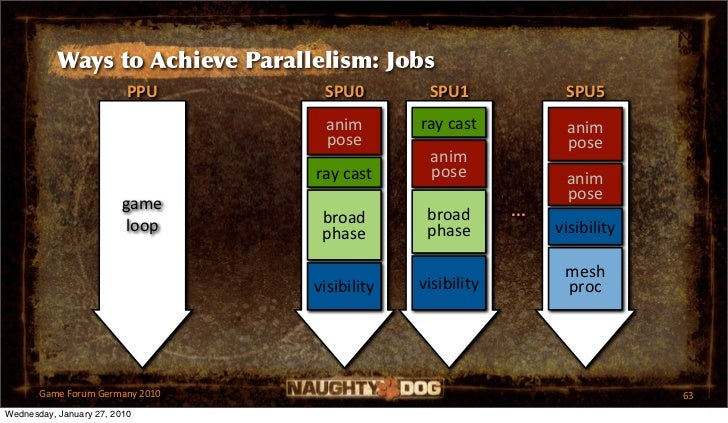

Ways to Achieve Parallelism: Jobs                          PPU     SPU0         SPU1               SPU5                   ...
Ways to Achieve Parallelism: Jobs                          PPU            SPU0         SPU1               SPU5            ...
Ways to Achieve Parallelism: Jobs                          PPU            SPU0         SPU1               SPU5            ...

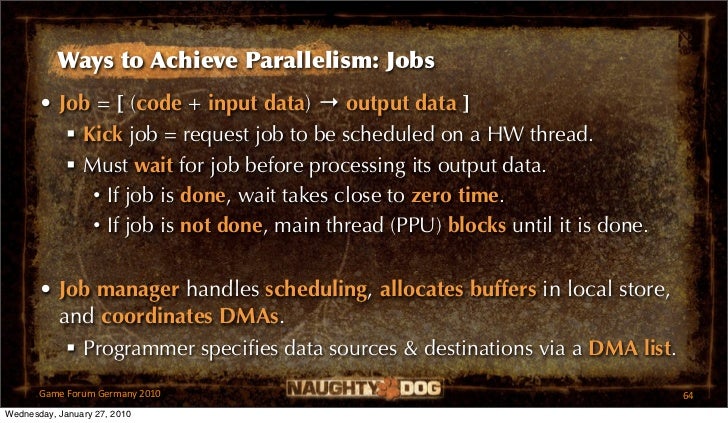

Ways to Achieve Parallelism: Jobs       • Job = [ (code + input data) → output data ]           Kick job = request job to...

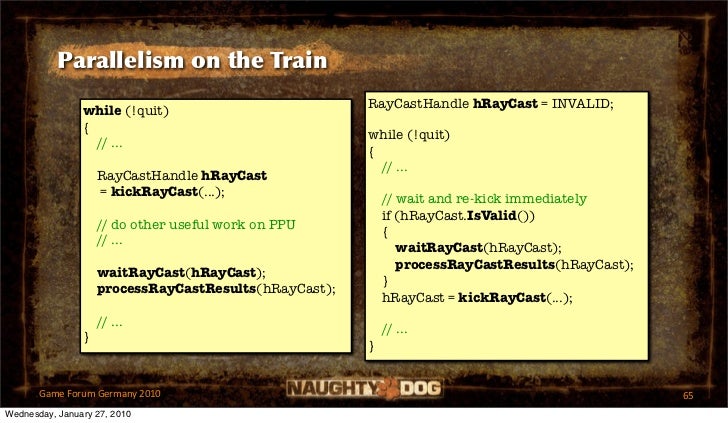

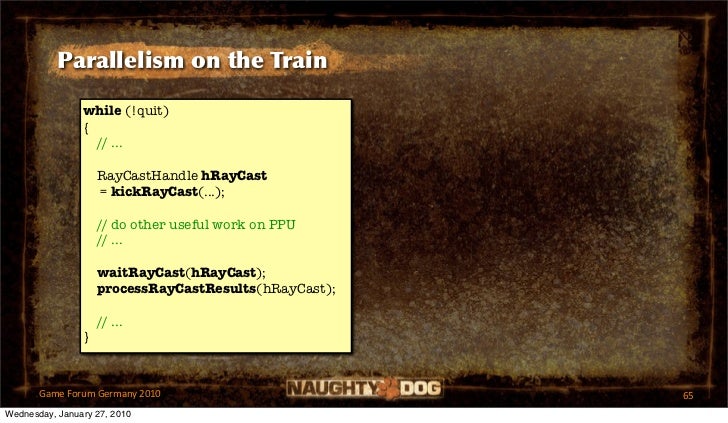

Parallelism on the Train                while (!quit)                {                  // ...                    RayCastH...
Parallelism on the Train                                                       RayCastHandle hRayCast = INVALID;          ...

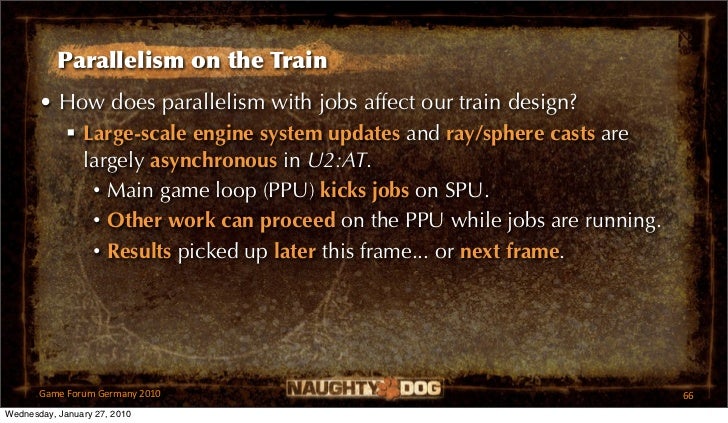

Parallelism on the Train       • How does parallelism with jobs affect our train design?          Large-scale engine syst...

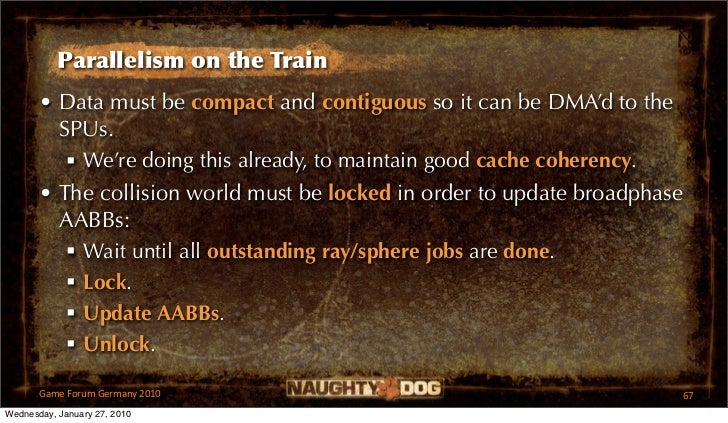

Parallelism on the Train       • Data must be compact and contiguous so it can be DMA’d to the         SPUs.           We...

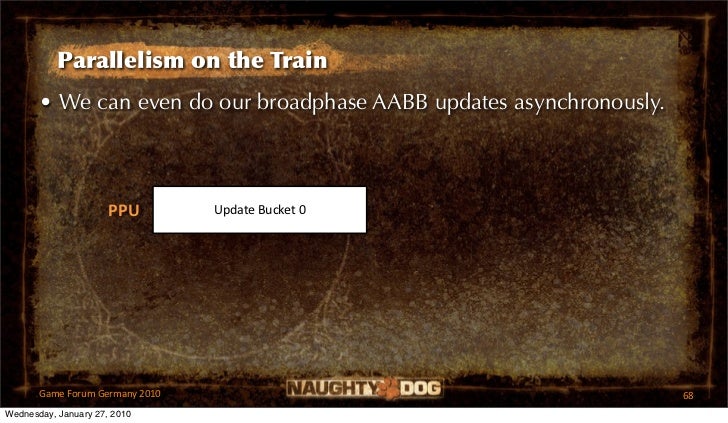

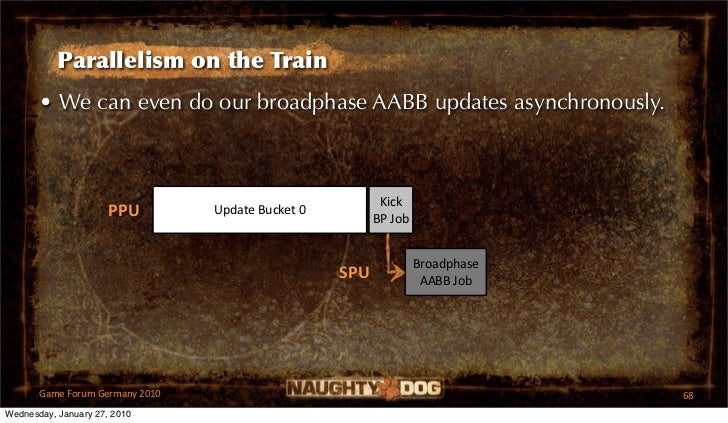

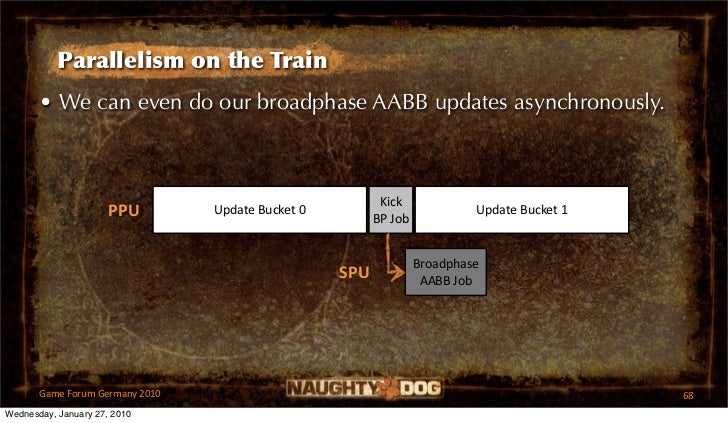

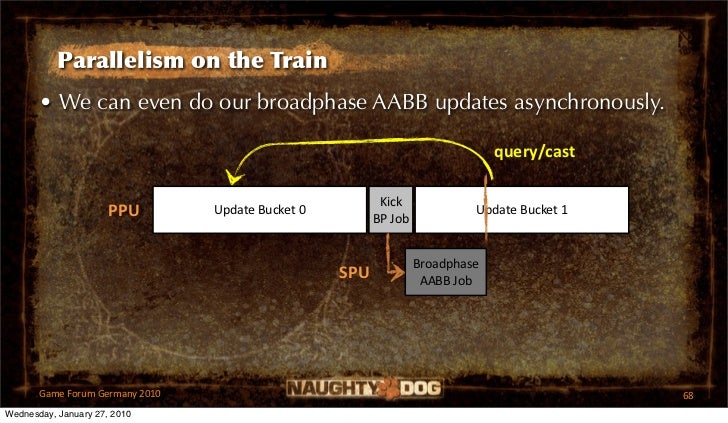

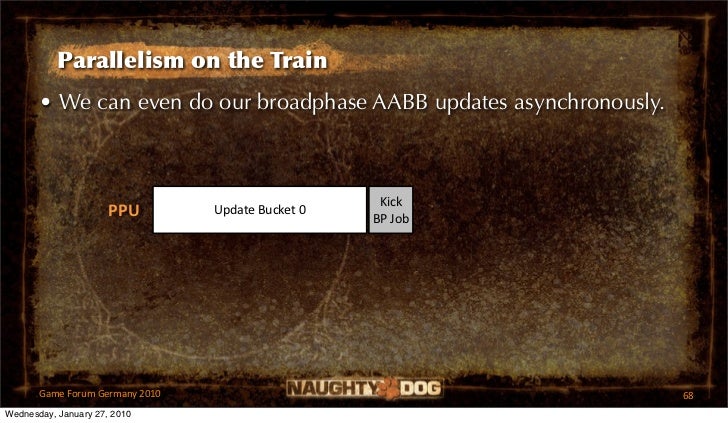

Parallelism on the Train       • We can even do our broadphase AABB updates asynchronously.                      PPU      ...
Parallelism on the Train       • We can even do our broadphase AABB updates asynchronously.                               ...
Parallelism on the Train       • We can even do our broadphase AABB updates asynchronously.                               ...
Parallelism on the Train       • We can even do our broadphase AABB updates asynchronously.                               ...
Parallelism on the Train       • We can even do our broadphase AABB updates asynchronously.                               ...
Conclusions                                            69Wednesday, January 27, 2010

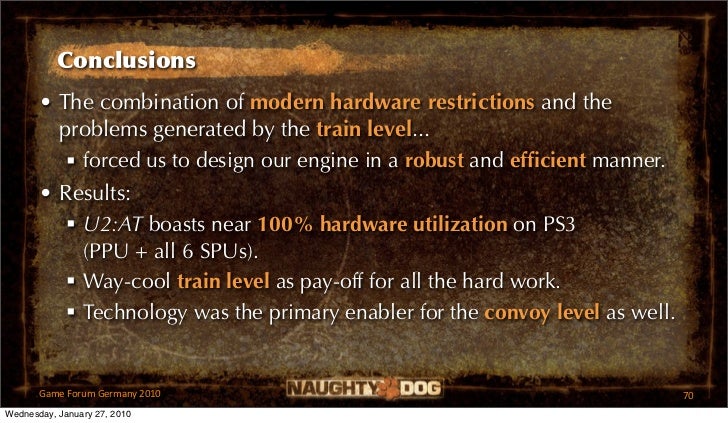

Conclusions       • The combination of modern hardware restrictions and the         problems generated by the train level....
Thanks For Listening!       • Free free to send questions to me at:                         jason_gregory@naughtydog.com  ...
Upcoming SlideShare
Loading in...5
×

Multiprocessor Game Loops: Lessons from Uncharted 2: Among Thieves

12,159

Published on

Published in: Technology
0 Comments
8 Likes
Statistics
Notes
  • Be the first to comment

No Downloads
Views
Total Views
12,159
On Slideshare
0
From Embeds
0
Number of Embeds
7
Actions
Shares
0
Downloads
0
Comments
0
Likes
8
Embeds 0
No embeds

No notes for slide

Transcript of "Multiprocessor Game Loops: Lessons from Uncharted 2: Among Thieves"

  1. 1. Multiprocessor Game Loops: Lessons from Jason Gregory Naughty Dog, Inc.Wednesday, January 27, 2010
  2. 2. Agenda Game
Forum
Germany
2010 2Wednesday, January 27, 2010
  3. 3. Agenda • Goal: Game
Forum
Germany
2010 2Wednesday, January 27, 2010
  4. 4. Agenda • Goal:  Learn about modern multiprocessor game engine update loops... Game
Forum
Germany
2010 2Wednesday, January 27, 2010
  5. 5. Agenda • Goal:  Learn about modern multiprocessor game engine update loops...  ... by investigating Naughty Dog’s train level. Game
Forum
Germany
2010 2Wednesday, January 27, 2010
  6. 6. Game
Forum
Germany
2010 3Wednesday, January 27, 2010
  7. 7. Agenda Game
Forum
Germany
2010 4Wednesday, January 27, 2010
  8. 8. Agenda • During our investigation, we’ll answer the following questions: Game
Forum
Germany
2010 4Wednesday, January 27, 2010
  9. 9. Agenda • During our investigation, we’ll answer the following questions:  Why did we make the train itself dynamic (not static)? Game
Forum
Germany
2010 4Wednesday, January 27, 2010
  10. 10. Agenda • During our investigation, we’ll answer the following questions:  Why did we make the train itself dynamic (not static)?  How does the train move? Game
Forum
Germany
2010 4Wednesday, January 27, 2010
  11. 11. Agenda • During our investigation, we’ll answer the following questions:  Why did we make the train itself dynamic (not static)?  How does the train move?  How does it tie into the update of other engine systems? Game
Forum
Germany
2010 4Wednesday, January 27, 2010
  12. 12. Agenda • During our investigation, we’ll answer the following questions:  Why did we make the train itself dynamic (not static)?  How does the train move?  How does it tie into the update of other engine systems?  How do player mechanics and animation work on the train? Game
Forum
Germany
2010 4Wednesday, January 27, 2010
  13. 13. Agenda • During our investigation, we’ll answer the following questions:  Why did we make the train itself dynamic (not static)?  How does the train move?  How does it tie into the update of other engine systems?  How do player mechanics and animation work on the train?  How do game object attachment hierarchies work? Game
Forum
Germany
2010 4Wednesday, January 27, 2010
  14. 14. Agenda • During our investigation, we’ll answer the following questions:  Why did we make the train itself dynamic (not static)?  How does the train move?  How does it tie into the update of other engine systems?  How do player mechanics and animation work on the train?  How do game object attachment hierarchies work?  How are ray and sphere casts used on the train? Game
Forum
Germany
2010 4Wednesday, January 27, 2010
  15. 15. Agenda • During our investigation, we’ll answer the following questions:  Why did we make the train itself dynamic (not static)?  How does the train move?  How does it tie into the update of other engine systems?  How do player mechanics and animation work on the train?  How do game object attachment hierarchies work?  How are ray and sphere casts used on the train?  How do we utilize the PS3’s parallel computing resources? Game
Forum
Germany
2010 4Wednesday, January 27, 2010
  16. 16. Static or Dynamic? 5Wednesday, January 27, 2010
  17. 17. Could the Train be Static? • In the past, games with trains in them have used a static train approach.  Train is actually stationary.  Background scrolls by to produce illusion of movement. • This solves a lot of problems.  Player mechanics, NPC locomotion, weapon mechanics, etc. are all the same as in a “regular” non-moving game level. Game
Forum
Germany
2010 6Wednesday, January 27, 2010
  18. 18. Was That Good Enough for Us? Game
Forum
Germany
2010 7Wednesday, January 27, 2010
  19. 19. Was That Good Enough for Us? • No way! Game
Forum
Germany
2010 7Wednesday, January 27, 2010
  20. 20. Was That Good Enough for Us? • No way! • Stationary train design imposes undue limitations: Game
Forum
Germany
2010 7Wednesday, January 27, 2010
  21. 21. Was That Good Enough for Us? • No way! • Stationary train design imposes undue limitations:  Train must move in a perfectly straight line... Game
Forum
Germany
2010 7Wednesday, January 27, 2010
  22. 22. Was That Good Enough for Us? • No way! • Stationary train design imposes undue limitations:  Train must move in a perfectly straight line...  ... or along a broad circular arc (constant curvature). Game
Forum
Germany
2010 7Wednesday, January 27, 2010
  23. 23. Was That Good Enough for Us? • No way! • Stationary train design imposes undue limitations:  Train must move in a perfectly straight line...  ... or along a broad circular arc (constant curvature).  No ups and downs allowed in the track either. Game
Forum
Germany
2010 7Wednesday, January 27, 2010
  24. 24. Was That Good Enough for Us? • No way! • Stationary train design imposes undue limitations:  Train must move in a perfectly straight line...  ... or along a broad circular arc (constant curvature).  No ups and downs allowed in the track either.  Not nearly as much fun to jump and shoot between trains. Game
Forum
Germany
2010 7Wednesday, January 27, 2010
  25. 25. Was That Good Enough for Us? • No way! • Stationary train design imposes undue limitations:  Train must move in a perfectly straight line...  ... or along a broad circular arc (constant curvature).  No ups and downs allowed in the track either.  Not nearly as much fun to jump and shoot between trains. ∴ We decided to go for a fully dynamic train. Game
Forum
Germany
2010 7Wednesday, January 27, 2010
  26. 26. Game
Forum
Germany
2010 8Wednesday, January 27, 2010
  27. 27. Train Movement 9Wednesday, January 27, 2010
  28. 28. Spline Tracking • The Uncharted 2 train follows a spline.  Catmull-Rom.  2 trackers for realistic movement. Game
Forum
Germany
2010 10Wednesday, January 27, 2010
  29. 29. The Master Car • Each train car is an independent game object (GO). • One car is designated as the master.  It moves without regard for the other cars.  Every other car is a slave: it simply maintains proper spacing with the car(s) in front of and/or behind it. Game
Forum
Germany
2010 11Wednesday, January 27, 2010
  30. 30. The Master Car • Each train car is an independent game object (GO). • One car is designated as the master.  It moves without regard for the other cars.  Every other car is a slave: it simply maintains proper spacing with the car(s) in front of and/or behind it. Game
Forum
Germany
2010 11Wednesday, January 27, 2010
  31. 31. Spacing and Speed • To maintain proper spacing, we must work in terms of arc length.  Catmull-Roms are parameterized by a unitless quantity u.  Arc length (s) is not the same thing as u.  Careful—must use s for spacing and ds/dt for speed, not u, du/dt. u
=
0.5 u
=
1 u
=
0 Game
Forum
Germany
2010 12Wednesday, January 27, 2010
  32. 32. Spacing and Speed • To maintain proper spacing, we must work in terms of arc length.  Catmull-Roms are parameterized by a unitless quantity u.  Arc length (s) is not the same thing as u.  Careful—must use s for spacing and ds/dt for speed, not u, du/dt. s
=
14 u
=
0.5 u
=
1 s
=
0 u
=
0 s
=
7 Game
Forum
Germany
2010 12Wednesday, January 27, 2010
  33. 33. Updating the Cars • Train car game objects need to update in a specific order:  Master first.  Then cars in front of master, from master to locomotive.  Then cars behind master, from master to caboose. Game
Forum
Germany
2010 13Wednesday, January 27, 2010
  34. 34. Updating the Cars • Train car game objects need to update in a specific order:  Master first.  Then cars in front of master, from master to locomotive.  Then cars behind master, from master to caboose. 1 Game
Forum
Germany
2010 13Wednesday, January 27, 2010
  35. 35. Updating the Cars • Train car game objects need to update in a specific order:  Master first.  Then cars in front of master, from master to locomotive.  Then cars behind master, from master to caboose. 1 4
...
n 2 3 Game
Forum
Germany
2010 13Wednesday, January 27, 2010
  36. 36. Updating the Cars • Train car game objects need to update in a specific order:  Master first.  Then cars in front of master, from master to locomotive.  Then cars behind master, from master to caboose. 1 4
...
n 2 3 n
+
1 n
+
2
...
m Game
Forum
Germany
2010 13Wednesday, January 27, 2010
  37. 37. Updating the Cars • In the Uncharted 2 engine, game objects are managed as a tree.  Children update after their parent. • For the train... M M+1 M+2 M+3 M−1 M−2 M−3 Game
Forum
Germany
2010 14Wednesday, January 27, 2010
  38. 38. Teleporting the Train • The train sometimes teleports in the game.  e.g. To transition from a looped section to a straight-away.  Typically hidden by a camera cut. Game
Forum
Germany
2010 15Wednesday, January 27, 2010
  39. 39. Teleporting the Train • The train sometimes teleports in the game.  e.g. To transition from a looped section to a straight-away.  Typically hidden by a camera cut. Game
Forum
Germany
2010 15Wednesday, January 27, 2010
  40. 40. Teleporting the Train • Problem: Teleport the train such that whichever car the player is on moves to a predefined location on the track.  To implement, change the master to be the player’s car...  ... and teleport it to the desired location.  All other cars follow automatically. Game
Forum
Germany
2010 16Wednesday, January 27, 2010
  41. 41. Teleporting the Train • Problem: Teleport the train such that whichever car the player is on moves to a predefined location on the track.  To implement, change the master to be the player’s car...  ... and teleport it to the desired location.  All other cars follow automatically. Game
Forum
Germany
2010 16Wednesday, January 27, 2010
  42. 42. Teleporting the Train • Problem: Teleport the train such that whichever car the player is on moves to a predefined location on the track.  To implement, change the master to be the player’s car...  ... and teleport it to the desired location.  All other cars follow automatically. Game
Forum
Germany
2010 16Wednesday, January 27, 2010
  43. 43. Updating Large-Scale Engine Systems 17Wednesday, January 27, 2010
  44. 44. Large-Scale Engine Systems • Let’s define large-scale engine systems as:  Engine components that operate on lots of data...  ... and require careful performance optimization. • Examples include:  skeletal animation,  collision detection,  rigid body dynamics,  rendering, ... Game
Forum
Germany
2010 18Wednesday, January 27, 2010
  45. 45. A Simple Approach (That Doesn’t Work) • Most game programmers first learn about the game loop from rendering tutorials. Game
Forum
Germany
2010 19Wednesday, January 27, 2010
  46. 46. A Simple Approach (That Doesn’t Work) while (!quit) { • Most game programmers first ReadJoypad(); learn about the game loop UpdateScene(); from rendering tutorials. DrawScene(); FlipBuffers(); } Game
Forum
Germany
2010 19Wednesday, January 27, 2010
  47. 47. A Simple Approach (That Doesn’t Work) • Since we need to update our game objects anyway... UpdateScene() becomes UpdateGameObjects() • In the spirit of good object-oriented design, we should let the game objects drive the large-scale engine systems. (Right???) Game
Forum
Germany
2010 20Wednesday, January 27, 2010
  48. 48. A Simple Approach (That Doesn’t Work) while (!quit) { ReadJoypad(); UpdateGameObjects(); // DrawScene(); FlipBuffers(); } Game
Forum
Germany
2010 21Wednesday, January 27, 2010
  49. 49. A Simple Approach (That Doesn’t Work) void Tank::Update () { MoveTank(); while (!quit) AimTurret(); { FireIfNecessary(); ReadJoypad(); UpdateGameObjects(); Animate(); // DrawScene(); DetectCollisions(); FlipBuffers(); SimulatePhysics(); } UpdateAudio(); Draw(); } Game
Forum
Germany
2010 21Wednesday, January 27, 2010
  50. 50. A Simple Approach (That Doesn’t Work) • The only problem with this is... it doesn’t work! • For one thing, it’s just not feasible for some engine systems.  e.g. Collision detection cannot be done (properly) one object at a time. • Need to solve iteratively, account for time of impact (TOI), • optimize collision detection via spatial subdivision (e.g. broadphase AABB prune and sweep), • optimize dynamics by grouping into islands, etc. Game
Forum
Germany
2010 22Wednesday, January 27, 2010
  51. 51. A Simple Approach (That Doesn’t Work) Game
Forum
Germany
2010 23Wednesday, January 27, 2010
  52. 52. A Simple Approach (That Doesn’t Work) • It’s also terribly inefficient: Game
Forum
Germany
2010 23Wednesday, January 27, 2010
  53. 53. A Simple Approach (That Doesn’t Work) • It’s also terribly inefficient:  potential for duplicated computations, Game
Forum
Germany
2010 23Wednesday, January 27, 2010
  54. 54. A Simple Approach (That Doesn’t Work) • It’s also terribly inefficient:  potential for duplicated computations,  possible reallocation of resources, Game
Forum
Germany
2010 23Wednesday, January 27, 2010
  55. 55. A Simple Approach (That Doesn’t Work) • It’s also terribly inefficient:  potential for duplicated computations,  possible reallocation of resources,  poor data and instruction cache coherence, Game
Forum
Germany
2010 23Wednesday, January 27, 2010
  56. 56. A Simple Approach (That Doesn’t Work) • It’s also terribly inefficient:  potential for duplicated computations,  possible reallocation of resources,  poor data and instruction cache coherence,  not conducive to parallel computation. Game
Forum
Germany
2010 23Wednesday, January 27, 2010
  57. 57. Hardware in the Old Days • On an Intel Pentium 286 (cira 1982):  CPU speed was the bottleneck (6 MHz). • ∴ Use if() tests to avoid unnecessary computations.  Integer instructions faster than floating-point. • ∴ Use fixed-point numbers, or FPU.  More compute power provided by adding transistors. Game
Forum
Germany
2010 24Wednesday, January 27, 2010
  58. 58. Modern Hardware • On a Cell (PS3) or Xenon (Xbox 360):  Memory access time is the bottleneck. • L1 cache miss = ~60 cycles. • L2 cache miss = ~500 cycles. • ∴ Organize data in compact, contiguous blocks. • Use struct of arrays rather than array of structs.  Pipelined architecture = branching & data conversion are slow. • ∴ Use duplicated computations to avoid if() tests.  Compute power is provided via parallelism. Game
Forum
Germany
2010 25Wednesday, January 27, 2010
  59. 59. Optimizing Large-Scale Updates Inefficient GameObject
1 GameObject
2 GameObject
3 Anim
 Coll.
 Draw
 Anim
 Coll.
 Draw
 Anim
 Coll.
 Draw


... Data Data Data Data Data Data Data Data Data Game
Forum
Germany
2010 26Wednesday, January 27, 2010
  60. 60. Optimizing Large-Scale Updates Much
beEer! Anima?on
Engine Collision
Engine Rendering
Engine GO
1
 GO
2
 GO
3
 GO
1
 GO
2
 GO
3
 GO
1
 GO
2
 GO
3
 Anim
 Anim
 Anim
 ... Coll.
 Coll.
 Coll.
 ... Draw
 Draw
 Draw
 ... Data Data Data Data Data Data Data Data Data Game
Forum
Germany
2010 26Wednesday, January 27, 2010
  61. 61. Optimizing Large-Scale Updates • Game objects do not own their large-scale system data...  ... they point to data that is owned by the large-scale systems. • Game objects should not mutate their large-scale system data...  ... they should only request changes. • That way, each large-scale system can:  apply any requested changes as part of its batch update,  organize its data in whatever manner is most efficient. Game
Forum
Germany
2010 27Wednesday, January 27, 2010
  62. 62. Optimizing Large-Scale Updates Anima?on
 Engine class Tank : public GameObject animControl15 skelInstance15 { public: animControl42 skelInstance42 // interface... animControl7 skelInstance7 private: ... ... // components -- owned by engine subsystems AnimControl* m_pAnimControl; RigidBody* m_pRigidBody; MeshInstance* m_pRenderable; }; ... Game
Forum
Germany
2010 28Wednesday, January 27, 2010
  63. 63. Optimizing Large-Scale Updates class Tank : public GameObject { public: Collision/Physics
World // interface... rigidBody9 collidable9 private: // components -- owned by engine subsystems rigidBody3 collidable3 AnimControl* m_pAnimControl; RigidBody* m_pRigidBody; rigidBody41 collidable41 MeshInstance* m_pRenderable; }; ... ... ... Game
Forum
Germany
2010 28Wednesday, January 27, 2010
  64. 64. Optimizing Large-Scale Updates class Tank : public GameObject { Scene
Graph public: meshInstance8 // interface... meshInstance5 private: // components -- owned by engine subsystems meshInstance37 AnimControl* m_pAnimControl; RigidBody* m_pRigidBody; ... MeshInstance* m_pRenderable; }; ... Game
Forum
Germany
2010 28Wednesday, January 27, 2010
  65. 65. while (!quit) { ReadJoypad(); g_gameWorld.UpdateAllGameObjects(); //for (each GameObject* pGo) // pGo->Update(); g_animationEngine.Update(); g_collisionWorld.DetectCollisions(); g_physicsWorld.Simulate(); g_audioEngine.Update(); g_renderingEngine.DrawAndFlipBuffers(); } Game
Forum
Germany
2010 29Wednesday, January 27, 2010
  66. 66. Player Mechanics and Animation 30Wednesday, January 27, 2010
  67. 67. Game
Forum
Germany
2010 31Wednesday, January 27, 2010
  68. 68. Player Mechanics on a Moving Object • Player’s position and orientation represented as an attached frame of reference:  reference to parent game object,  local transform (relative to parent),  cached world-space transform (with dirty flag). • Not quite as simple as it may sound!  Just switching to attached frames got us ~60% of the way there.  Lots of bugs to fix.  Special-case handling of transitions between attached frames. Game
Forum
Germany
2010 32Wednesday, January 27, 2010
  69. 69. Animation Pipeline Review 1.Animation Update  Update clocks, trigger keyframed events, detect end-of-animation conditions, take transitions to new animation states. 2.Pose Blending Phase  Extract poses from anim clips, blend individual joint poses. • Generates local joint transforms (parent-relative). Game
Forum
Germany
2010 33Wednesday, January 27, 2010
  70. 70. Animation Pipeline Review 3.Global Pose Phase  Walk hierarchy, calculate global joint transforms (model-space or world-space) and matrix palette (input to renderer). 4.Post-Processing  Apply IK, procedural animation, etc. • Generates new local joint transforms. • Recalculate global poses if necessary (re-run phase 3). Game
Forum
Germany
2010 34Wednesday, January 27, 2010
  71. 71. Game Object Hooks • It’s convenient to provide game objects with hooks into the various phases of the animation update. • What we do at Naughty Dog:  GameObject::Update() • Regular GO update; runs before animation.  GameObject::PostAnimUpdate() • Runs after Animation Phase 1. • Game objects may respond to animation events, force transitions to new animation states, etc. Game
Forum
Germany
2010 35Wednesday, January 27, 2010
  72. 72. Game Object Hooks  GameObject::PostAnimBlending() • Runs after Animation Phase 2. • Game objects can apply procedural animation in local space.  GameObject::PostJointUpdate() • Runs after Animation Phase 3. • This is the first time during the frame that the global transform of every joint is known. • Game objects can apply IK, or use the global space joint transforms in other ways. Game
Forum
Germany
2010 36Wednesday, January 27, 2010
  73. 73. while (!quit) { // ... g_gameWorld.UpdateAllGameObjects(); g_animationEngine.RunPhase1(); g_gameWorld.CallPostAnimUpdateHooks(); g_animationEngine.RunPhase2(); g_gameWorld.CallPostAnimBlendingHooks(); g_animationEngine.RunPhase3(); g_gameWorld.CallPostJointUpdateHooks(); // ... Game
Forum
Germany
2010 37Wednesday, January 27, 2010
  74. 74. Object Attachment Hierarchy Bucketed Updates 38Wednesday, January 27, 2010
  75. 75. Game Object Attachment Hierarchy Game
Forum
Germany
2010 39Wednesday, January 27, 2010
  76. 76. Game Object Attachment Hierarchy Game
Forum
Germany
2010 39Wednesday, January 27, 2010
  77. 77. Game Object Attachment Hierarchy Game
Forum
Germany
2010 39Wednesday, January 27, 2010
  78. 78. Game Object Attachment Hierarchy Game
Forum
Germany
2010 39Wednesday, January 27, 2010
  79. 79. Game Object Attachment Hierarchy Game
Forum
Germany
2010 39Wednesday, January 27, 2010
  80. 80. Bucketed Game Object Updates • Can implement this by updating game objects in buckets.  Game object dependencies represented by a dependency tree. Game
Forum
Germany
2010 40Wednesday, January 27, 2010
  81. 81. Bucketed Game Object Updates • Can implement this by updating game objects in buckets.  Game object dependencies represented by a dependency tree.  Each bucket corresponds to one level of the tree. Bucket
0 Bucket
1 Bucket
2 Bucket
3 trainCar7 box12 weapon3 trainCar8 crate21 playerCharacter weapon17 npc65 trainCar9 ... ... ... ... Game
Forum
Germany
2010 40Wednesday, January 27, 2010
  82. 82. Bucketed Game Object Updates • Simpler to group objects into pre-determined buckets. Vehicle
Bucket Object
Bucket Character
Bucket Prop
Bucket trainCar7 box12 weapon3 trainCar8 crate21 playerCharacter weapon17 npc65 trainCar9 ... ... ... ... Game
Forum
Germany
2010 41Wednesday, January 27, 2010
  83. 83. Bucketed Game Object Updates while (!quit) { // ... for (each bucket) { g_gameObjectMgr.UpdateObjects(bucket); AnimateBucket(bucket); } g_collphysWorld.CollideAndSimulate(dt); g_audioEngine.Update(dt); g_renderingEngine.DrawAndFlipBuffers(dt); } Game
Forum
Germany
2010 42Wednesday, January 27, 2010
  84. 84. void AnimateBucket(bucket) { g_animationEngine.UpdateClocks(bucket); for (each GameObject* pGo in bucket) pGo->PostAnimUpdate(); g_animationEngine.CalcLocalPoses(bucket); for (each GameObject* pGo in bucket) pGo->PostAnimBlending(); g_animationEngine.CalcGlobalPoses(bucket); for (each GameObject* pGo in bucket) pGo->PostJointUpdate(); } Game
Forum
Germany
2010 43Wednesday, January 27, 2010
  85. 85. Ray and Sphere Casts 44Wednesday, January 27, 2010
  86. 86. Ray and Sphere Casts • A collision cast is an instantaneous collision query.  Input: • Snapshot of collision geometry in game world at time t. • One or more rays / moving spheres (capsules) to cast.  Output: • Would any of the rays/spheres strike anything? • If so, what? Game
Forum
Germany
2010 45Wednesday, January 27, 2010
  87. 87. Ray and Sphere Casts • A collision cast is an instantaneous collision query.  Input: • Snapshot of collision geometry in game world at time t. • One or more rays / moving spheres (capsules) to cast.  Output: • Would any of the rays/spheres strike anything? • If so, what? Game
Forum
Germany
2010 45Wednesday, January 27, 2010
  88. 88. Ray and Sphere Casts • A collision cast is an instantaneous collision query.  Input: • Snapshot of collision geometry in game world at time t. • One or more rays / moving spheres (capsules) to cast.  Output: • Would any of the rays/spheres strike anything? • If so, what? Game
Forum
Germany
2010 45Wednesday, January 27, 2010
  89. 89. Ray and Sphere Casts • A collision cast is an instantaneous collision query.  Input: • Snapshot of collision geometry in game world at time t. • One or more rays / moving spheres (capsules) to cast.  Output: • Would any of the rays/spheres strike anything? • If so, what? Game
Forum
Germany
2010 45Wednesday, January 27, 2010
  90. 90. Ray and Sphere Casts • A collision cast is an instantaneous collision query.  Input: • Snapshot of collision geometry in game world at time t. • One or more rays / moving spheres (capsules) to cast.  Output: • Would any of the rays/spheres strike anything? • If so, what? Game
Forum
Germany
2010 45Wednesday, January 27, 2010
  91. 91. Uses for Collision Casting • Player and NPCs use downward casts to determine what surface they are standing on. • NPCs use ray casts to answer line of sight questions. • Weapons use ray casts to determine bullet impacts. • and the list goes on... Game
Forum
Germany
2010 46Wednesday, January 27, 2010
  92. 92. Uses for Collision Casting • Player and NPCs use downward casts to determine what surface they are standing on. • NPCs use ray casts to answer line of sight questions. • Weapons use ray casts to determine bullet impacts. • and the list goes on... Game
Forum
Germany
2010 46Wednesday, January 27, 2010
  93. 93. Uses for Collision Casting • Player and NPCs use downward casts to determine what surface they are standing on. • NPCs use ray casts to answer line of sight questions. • Weapons use ray casts to determine bullet impacts. • and the list goes on... Game
Forum
Germany
2010 46Wednesday, January 27, 2010
  94. 94. Uses for Collision Casting • Player and NPCs use downward casts to determine what surface they are standing on. • NPCs use ray casts to answer line of sight questions. Game
Forum
Germany
2010 46Wednesday, January 27, 2010
  95. 95. Uses for Collision Casting • Player and NPCs use downward casts to determine what surface they are standing on. • NPCs use ray casts to answer line of sight questions. • Weapons use ray casts to determine bullet impacts. Game
Forum
Germany
2010 46Wednesday, January 27, 2010
  96. 96. Uses for Collision Casting • Player and NPCs use downward casts to determine what surface they are standing on. • NPCs use ray casts to answer line of sight questions. • Weapons use ray casts to determine bullet impacts. • and the list goes on... Game
Forum
Germany
2010 46Wednesday, January 27, 2010
  97. 97. Inter-Game-Object Queries and Synchronization • Synchronization problems can arise whenever:  game object A...  ... queries game object B. • Not just limited to ray and sphere casts.  Any kind of inter-object query can be affected. Game
Forum
Germany
2010 47Wednesday, January 27, 2010
  98. 98. Game Object State Vectors • Can think of a game object as a heterogeneous “state vector.” • The state of the ith game object is a vector function of time t. Si(t) = [ ri(t), vi(t), mi, ..., healthi(t), ammoi(t), ... ] Game
Forum
Germany
2010 48Wednesday, January 27, 2010
  99. 99. Bucketing and Game Object State Vectors • Theoretically, the state vectors of all game objects are updated instantaneously and in parallel. t1 SA SB SC Game
Forum
Germany
2010 49Wednesday, January 27, 2010
  100. 100. Bucketing and Game Object State Vectors • Theoretically, the state vectors of all game objects are updated instantaneously and in parallel. t1 t2
=
t1
+
∆t SA SA SB SB SC SC Game
Forum
Germany
2010 49Wednesday, January 27, 2010
  101. 101. Bucketing and Game Object State Vectors • In practice, updates take time—object states can be inconsistent during the update. t1 SA SB SC Game
Forum
Germany
2010 50Wednesday, January 27, 2010
  102. 102. Bucketing and Game Object State Vectors • In practice, updates take time—object states can be inconsistent during the update. t1 t2
=
t1
+
∆t SA SA SB SC Game
Forum
Germany
2010 50Wednesday, January 27, 2010
  103. 103. Bucketing and Game Object State Vectors • In practice, updates take time—object states can be inconsistent during the update. t1 t2
=
t1
+
∆t SA SA SB SB SC Game
Forum
Germany
2010 50Wednesday, January 27, 2010
  104. 104. Bucketing and Game Object State Vectors • In practice, updates take time—object states can be inconsistent during the update. t1 t2
=
t1
+
∆t SA SA SB SB SC Game
Forum
Germany
2010 50Wednesday, January 27, 2010
  105. 105. Bucketing and Game Object State Vectors • In practice, updates take time—object states can be inconsistent during the update. t1 t2
=
t1
+
∆t SA SA SB SB SC SC Game
Forum
Germany
2010 50Wednesday, January 27, 2010
  106. 106. Bucketing and Game Object State Vectors • Problems arise when we query the state of object A during the update of object B or C. t1 t2
=
t1
+
∆t SA SA SB SC Game
Forum
Germany
2010 51Wednesday, January 27, 2010
  107. 107. Bucketing and Game Object State Vectors • Problems arise when we query the state of object A during the update of object B or C. t1 t2
=
t1
+
∆t SA SA SB query SC Game
Forum
Germany
2010 51Wednesday, January 27, 2010
  108. 108. Bucketing and Game Object State Vectors • Major contributor to the ubiquitous “one frame off bug.” • Update ordering via bucketing helps, but only when the following rule is adhered to: An object in bucket b may only read the state of objects in buckets (b - 1), (b - 2), ... • You can’t reliably read the state of objects in your own bucket! Game
Forum
Germany
2010 52Wednesday, January 27, 2010
  109. 109. One Frame Off Bugs in Collision Queries • Another complication arises because:  Collision and physics run after the game objects have updated.  So, the location of all collision geometry is one frame old when we cast our rays/spheres. Game
Forum
Germany
2010 53Wednesday, January 27, 2010
  110. 110. One Frame Off Bugs in Collision Queries • Another complication arises because:  Collision and physics run after the game objects have updated.  So, the location of all collision geometry is one frame old when we cast our rays/spheres. collision
geo is
leR
behind Game
Forum
Germany
2010 53Wednesday, January 27, 2010
  111. 111. One Frame Off Bugs in Collision Queries • Another complication arises because:  Collision and physics run after the game objects have updated.  So, the location of all collision geometry is one frame old when we cast our rays/spheres. collision
geo ray
cast is
leR
behind misses
its
target Game
Forum
Germany
2010 53Wednesday, January 27, 2010
  112. 112. One Frame Off Bugs in Collision Queries • Problem:  What we really want is to update each game object’s collision geometry with its bucket. • Impossible, because coll/phys update is monolithic—happens after all game objects have been updated. Game
Forum
Germany
2010 54Wednesday, January 27, 2010
  113. 113. One Frame Off Bugs in Collision Queries • Problem:  What we really want is to update each game object’s collision geometry with its bucket. • Impossible, because coll/phys update is monolithic—happens after all game objects have been updated.  ... or is it? Game
Forum
Germany
2010 54Wednesday, January 27, 2010
  114. 114. One Frame Off Bugs in Collision Queries • Observation:  Ray and sphere casts don’t care about the full collision/physics update. • Don’t need contact information, velocity, etc. • Only need to know where the collision geo will be. • Solution:  All we need to do is update the broadphase AABBs between buckets. Game
Forum
Germany
2010 55Wednesday, January 27, 2010
  115. 115. Solving One Frame Off Bugs in Collision Queries • Instead, we’ll update the AABBs early, in between game object bucket updates.  This allows our collision queries to return correct results. Game
Forum
Germany
2010 56Wednesday, January 27, 2010
  116. 116. Solving One Frame Off Bugs in Collision Queries • Instead, we’ll update the AABBs early, in between game object bucket updates.  This allows our collision queries to return correct results. collision
geo is
leR
behind Game
Forum
Germany
2010 56Wednesday, January 27, 2010
  117. 117. Solving One Frame Off Bugs in Collision Queries • Instead, we’ll update the AABBs early, in between game object bucket updates.  This allows our collision queries to return correct results. broadphase AABB
update Game
Forum
Germany
2010 56Wednesday, January 27, 2010
  118. 118. Solving One Frame Off Bugs in Collision Queries • Instead, we’ll update the AABBs early, in between game object bucket updates.  This allows our collision queries to return correct results. broadphase AABB
update ray
cast hits Game
Forum
Germany
2010 56Wednesday, January 27, 2010
  119. 119. Achieving Parallelism 57Wednesday, January 27, 2010
  120. 120. Game Console Architecture: Xbox 360 PowerPC PowerPC PowerPC Core
0 Core
1 Core
2 L1
 L1
 L1
 L1
 L1
 L1
 Data Instr. Data Instr. Data Instr. Shared
L2
Cache
(1
MB) Unified
RAM GPU (512
MB) Game
Forum
Germany
2010 58Wednesday, January 27, 2010
  121. 121. Game Console Architecture: PLAYSTATION 3 PPU SPU0 SPU1 SPU6 L1
 L1
 Data Instr. Local
Store Local
Store ... Local
Store L2
Cache (256
kB) (256
kB) (256
kB) (512
kB) EIB DMAC System
RAM Video
RAM GPU (256
MB) (256
MB) Game
Forum
Germany
2010 59Wednesday, January 27, 2010
  122. 122. Thinking About Modern Multiprocessor Hardware • We’ll think in terms of multiple hardware threads. • These could be provided by:  hyperthreaded CPU,  multiple cores,  SPUs on PS3/Cell. Game
Forum
Germany
2010 60Wednesday, January 27, 2010
  123. 123. Ways to Achieve Parallelism: Thread per Subsystem game collision/ animaUon rendering audio loop physics Game
Forum
Germany
2010 61Wednesday, January 27, 2010
  124. 124. Ways to Achieve Parallelism: Thread per Subsystem game collision/ animaUon rendering audio loop physics Game
Forum
Germany
2010 61Wednesday, January 27, 2010
  125. 125. Ways to Achieve Parallelism: Fork/Join set
up Game
Forum
Germany
2010 62Wednesday, January 27, 2010
  126. 126. Ways to Achieve Parallelism: Fork/Join set
up fork thread2 thread0 thread1 thread3 Game
Forum
Germany
2010 62Wednesday, January 27, 2010
  127. 127. Ways to Achieve Parallelism: Fork/Join set
up fork thread2 thread0 thread1 thread3 process
 join results Game
Forum
Germany
2010 62Wednesday, January 27, 2010
  128. 128. Ways to Achieve Parallelism: Jobs PPU SPU0 SPU1 SPU5 anim
 ray
cast anim
 pose pose anim
 ray
cast pose anim
 pose game ... broad
 broad
 loop phase phase visibility mesh
 visibility visibility proc Game
Forum
Germany
2010 63Wednesday, January 27, 2010
  129. 129. Ways to Achieve Parallelism: Jobs PPU SPU0 SPU1 SPU5 anim
 ray
cast anim
 pose pose anim
 kick ray
cast pose anim
 pose game ... broad
 broad
 loop phase phase visibility mesh
 visibility visibility proc Game
Forum
Germany
2010 63Wednesday, January 27, 2010
  130. 130. Ways to Achieve Parallelism: Jobs PPU SPU0 SPU1 SPU5 anim
 ray
cast anim
 pose pose anim
 kick ray
cast pose anim
 pose game ... broad
 broad
 loop phase phase visibility wait mesh
 visibility visibility proc Game
Forum
Germany
2010 63Wednesday, January 27, 2010
  131. 131. Ways to Achieve Parallelism: Jobs • Job = [ (code + input data) → output data ]  Kick job = request job to be scheduled on a HW thread.  Must wait for job before processing its output data. • If job is done, wait takes close to zero time. • If job is not done, main thread (PPU) blocks until it is done. • Job manager handles scheduling, allocates buffers in local store, and coordinates DMAs.  Programmer specifies data sources & destinations via a DMA list. Game
Forum
Germany
2010 64Wednesday, January 27, 2010
  132. 132. Parallelism on the Train while (!quit) { // ... RayCastHandle hRayCast = kickRayCast(...); // do other useful work on PPU // ... waitRayCast(hRayCast); processRayCastResults(hRayCast); // ... } Game
Forum
Germany
2010 65Wednesday, January 27, 2010
  133. 133. Parallelism on the Train RayCastHandle hRayCast = INVALID; while (!quit) { while (!quit) // ... { // ... RayCastHandle hRayCast = kickRayCast(...); // wait and re-kick immediately if (hRayCast.IsValid()) // do other useful work on PPU { // ... waitRayCast(hRayCast); processRayCastResults(hRayCast); waitRayCast(hRayCast); } processRayCastResults(hRayCast); hRayCast = kickRayCast(...); // ... // ... } } Game
Forum
Germany
2010 65Wednesday, January 27, 2010
  134. 134. Parallelism on the Train • How does parallelism with jobs affect our train design?  Large-scale engine system updates and ray/sphere casts are largely asynchronous in U2:AT. • Main game loop (PPU) kicks jobs on SPU. • Other work can proceed on the PPU while jobs are running. • Results picked up later this frame... or next frame. Game
Forum
Germany
2010 66Wednesday, January 27, 2010
  135. 135. Parallelism on the Train • Data must be compact and contiguous so it can be DMA’d to the SPUs.  We’re doing this already, to maintain good cache coherency. • The collision world must be locked in order to update broadphase AABBs:  Wait until all outstanding ray/sphere jobs are done.  Lock.  Update AABBs.  Unlock. Game
Forum
Germany
2010 67Wednesday, January 27, 2010
  136. 136. Parallelism on the Train • We can even do our broadphase AABB updates asynchronously. PPU Update
Bucket
0 Game
Forum
Germany
2010 68Wednesday, January 27, 2010
  137. 137. Parallelism on the Train • We can even do our broadphase AABB updates asynchronously. Kick
 PPU Update
Bucket
0 BP
Job Game
Forum
Germany
2010 68Wednesday, January 27, 2010
  138. 138. Parallelism on the Train • We can even do our broadphase AABB updates asynchronously. Kick
 PPU Update
Bucket
0 BP
Job Broadphase
 SPU AABB
Job Game
Forum
Germany
2010 68Wednesday, January 27, 2010
  139. 139. Parallelism on the Train • We can even do our broadphase AABB updates asynchronously. Kick
 PPU Update
Bucket
0 BP
Job Update
Bucket
1 Broadphase
 SPU AABB
Job Game
Forum
Germany
2010 68Wednesday, January 27, 2010
  140. 140. Parallelism on the Train • We can even do our broadphase AABB updates asynchronously. query/cast Kick
 PPU Update
Bucket
0 BP
Job Update
Bucket
1 Broadphase
 SPU AABB
Job Game
Forum
Germany
2010 68Wednesday, January 27, 2010
  141. 141. Conclusions 69Wednesday, January 27, 2010
  142. 142. Conclusions • The combination of modern hardware restrictions and the problems generated by the train level...  forced us to design our engine in a robust and efficient manner. • Results:  U2:AT boasts near 100% hardware utilization on PS3 (PPU + all 6 SPUs).  Way-cool train level as pay-off for all the hard work.  Technology was the primary enabler for the convoy level as well. Game
Forum
Germany
2010 70Wednesday, January 27, 2010
  143. 143. Thanks For Listening! • Free free to send questions to me at: jason_gregory@naughtydog.com Game
