• Share
  • Email
  • Embed
  • Like
  • Save
  • Private Content
Structuring software systems with OSGi - Ulf Fildebrandt


Structuring software systems with OSGi - Ulf Fildebrandt

on

  • 2,220 views

OSGi is providing a module system, but during implementation in projects it becomes difficult to really use the benefits of an OSGi runtime. Without follow the principles an OSGi system can evolve to ...

OSGi is providing a module system, but during implementation in projects it becomes difficult to really use the benefits of an OSGi runtime. Without follow the principles an OSGi system can evolve to a tightly-coupled system like in the past. Some principles and guidelines have to be followed to achieve a good architecture of a software system: - interface/implementation separation for bundles - visibility usage of bundles (import/export) - extensibility for services (and special focus on declarative services) - layering of bundles and using declarative service for layer communication - mocking of layers to achieve maturity of the implementation - interface evolution of bundles to achieve extensibility The presentation will show the changes by refactoring a small web application. The application starts as a tightly coupled system and will be improved by applying the architecture principles. So, in the presentation a lot of coding will be shown, until a good structure of the application is achieved. The guidelines are based on experiences in different projects and are used as best practices in new projects.

Statistics

Views

Total Views
2,220
Views on SlideShare
2,220
Embed Views
0

Actions

Likes
1
Downloads
168
Comments
0

0 Embeds 0

No embeds

Accessibility

Upload Details

Uploaded via as Adobe PDF

Usage Rights

© All Rights Reserved

Report content

Flagged as inappropriate Flag as inappropriate
Flag as inappropriate

Select your reason for flagging this presentation as inappropriate.

Cancel
  • Full Name Full Name Comment goes here.
    Are you sure you want to
    Your message goes here
    Processing…
Post Comment
Edit your comment

    Structuring software systems with OSGi - Ulf Fildebrandt Structuring software systems with OSGi - Ulf Fildebrandt Presentation Transcript

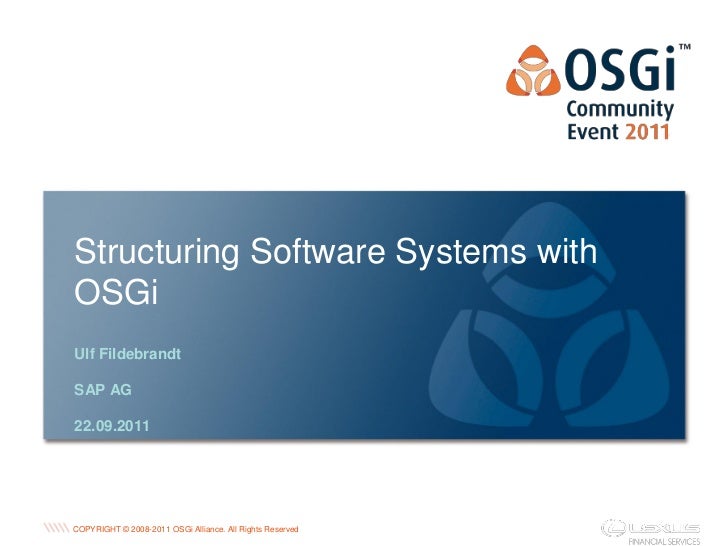

    • Structuring Software Systems withOSGiUlf FildebrandtSAP AG22.09.2011 OSGi Alliance Marketing © 2008-2010 . 1 PageCOPYRIGHT © 2008-2011 OSGi Alliance. All Rights Reserved All Rights Reserved
    • Agenda• OSGi: basic structure and declaration• Interface Usage• Layers• Services and Layers• Versioning• Testing• Assemblies Page 2 OSGi Alliance Community Event 2011© 2008-2011. All Rights Reserved
    • Agenda• OSGi: basic structure and declaration• Interface Usage• Layers• Services and Layers• Versioning• Testing• Assemblies Page 3 OSGi Alliance Community Event 2011© 2008-2011. All Rights Reserved
    • Principles of Modularity• Decoupling • Logic has to be decoupled, otherwise the structure evolves into a monolithic block („architecture erosion“)• Simplicity • Design the concepts as simple as possible, otherwise the system solves non- existing requirements• Extensibility • Decoupling implies that frameworks are open for logic • Extensibility for logic is not the exception, but rather the common principle for all frameworks Page 4 OSGi Alliance Marketing © 2008-2011 . All Rights Reserved
    • OSGi basics• Bundles are the atomic entities for structuring (containing binaries)• Services are the communication means between bundles• Exported packages are the public interface of bundles• Imported packages define the usages of bundles Page 5 OSGi Alliance Marketing © 2008-2011 . All Rights Reserved
    • Example• Web application to analyze data• OSGi bundles, services, and exported packages are used to structure the application Page 6 OSGi Alliance Marketing © 2008-2011 . All Rights Reserved
    • Structure of Application• Fulfills the business requirements, but no modularity (decoupling, extensibility) Servlet Data Data Source 1 Source 2 Page 7 OSGi Alliance Marketing © 2008-2011 . All Rights Reserved
    • Structure Of Application Servlet Data Aggregate Data Data Aggregator 1 Aggregator 2Data Source 1 Data Source 2 Data Aggregator Interface Page 8 Data Source OSGi Alliance Marketing © 2008-2011 . All Rights Reserved Interface
    • Agenda• OSGi: basic structure and declaration• Interface Usage• Layers• Services and Layers• Versioning• Testing• Assemblies Page 9 OSGi Alliance Community Event 2011© 2008-2011. All Rights Reserved
    • Interface Usage• Implementation should only use interfaces  Services in OSGi• Services are difficult to implement in OSGi fulfilling all lifecycle requirements (Service Tracker, Service Listener)  „boilerplate coding“• Frameworks: Declarative Services (DS) is part of the OSGi specification, Blueprint, etc. • DS are meant to declare the dependencies of services and service usage • DS is a mechanism to bring dependency injection into OSGi Page 10 OSGi Alliance Marketing © 2008-2011 . All Rights Reserved
    • Structure Of Application Servlet IDataAggregate Data Aggregate Data Data Aggregator 1 Aggregator 2Data Source 1 Data Source 2 IDataAggregator Data Aggregator Interface IDataSourceService IDataSource Page 11 Data Source OSGi Alliance Marketing © 2008-2011 . All Rights Reserved IDataItem Interface
    • Agenda• OSGi: basic structure and declaration• Interface Usage• Layers• Services and Layers• Versioning• Testing• Assemblies Page 12 OSGi Alliance Community Event 2011© 2008-2011. All Rights Reserved
    • Layers• In architecture, layers are used to structure the software• Entities within a layer can only have dependencies to lower layers• Bundles in OSGi belong to one layer only• In reality more coarse grained frameworks are used • Feature (P2, Eclipse) • Application (Aries) • OSGi sub system specification• For simplicity in these examples only bundles are used Page 13 OSGi Alliance Marketing © 2008-2011 . All Rights Reserved
    • Servlet UI Data Aggregate AggregateAggregator Data Data Aggregator 1 Aggregator 2 Data Source 1 Data Source 2 Data Provider Data AggregatorData Aggregator Interface InterfaceData Source InterfaceAlliance Marketing © 2008-2011 . All Rights ReservedSource Page 14 OSGi Data Interface
    • ClassStructure• Classes fit to bundle structure Page 15 OSGi Alliance Marketing © 2008-2011 . All Rights Reserved
    • Agenda• OSGi: basic structure and declaration• Interface Usage• Layers• Services and Layers• Versioning• Testing• Assemblies Page 16 OSGi Alliance Community Event 2011© 2008-2011. All Rights Reserved
    • Interface of a Layer• Layers should have a clear interface• API (Application Programming Interface) • is defining the publicly available functionality • is an interface • is implemented as service in OSGi • Example: IDataAggregate, IDataSourceService• SPI (Service Provider Interface) • is defining the extension point • is implemented as service in OSGi in a separate bundle • Example: IDataSource, IDataAggregator Page 17 OSGi Alliance Marketing © 2008-2011 . All Rights Reserved
    • Agenda• OSGi: basic structure and declaration• Interface Usage• Layers• Services and Layers• Versioning• Testing• Assemblies Page 18 OSGi Alliance Community Event 2011© 2008-2011. All Rights Reserved
    • Versioning in OSGi• Bundles and exported packages are versioned• Usage of versioning is different for implementation, API, SPI • Implementation: can be replaced easily, because interface is not changed • API: can be evolved in a compatible way, but implementation has to be adapted, too • SPI: evolution is difficult, because if interfaces are extended, then the old implementations are not valid any more • Java evolution: Ix  Ix2, e.g. IDataAggregator  IDataAggregator2 in the same package Page 19 OSGi Alliance Marketing © 2008-2011 . All Rights Reserved
    • Agenda• OSGi: basic structure and declaration• Interface Usage• Layers• Services and Layers• Versioning• Testing• Assemblies Page 20 OSGi Alliance Community Event 2011© 2008-2011. All Rights Reserved
    • Testing• Layers have to be separately testable • Mock objects (Easy Mock)• Example: DataAggregate layer Page 21 OSGi Alliance Marketing © 2008-2011 . All Rights Reserved
    • Agenda• OSGi: basic structure and declaration• Interface Usage• Layers• Services and Layers• Versioning• Testing• Assemblies Page 22 OSGi Alliance Community Event 2011© 2008-2011. All Rights Reserved
    • Multiple assemblies• Bundles assembled into multiple assemblies (e.g. products)• An assembly contains bundles from different layers • A layer does not have to be used completely• Examples: • Other access layer (REST) • Configuration data aggregator • DSL data aggregator Page 23 OSGi Alliance Marketing © 2008-2011 . All Rights Reserved
    • Summary• Module and service concepts should be used to structure software• Bundles expose clear interfaces• Communications works by using services (minimum requirement between layers)• Layers are testable separately• Different assemblies should be possible Page 29 OSGi Alliance Marketing © 2008-2011 . All Rights Reserved
