This document provides an overview and agenda for an ASP.NET MVC practice and guidelines session. The agenda includes discussing MVC programming fundamentals like models, views, controllers and routes. It also covers NuGet, Entity Framework Code First, common UI libraries, the repository pattern, application layer architecture and dependency injection principles. The session includes demonstrations of these various ASP.NET MVC and software design topics.

1. ASP.NET MVC
Practice and Guideline
Zubzib Black Coffee #7

2. About me
• Chalermpon Areepong (Nine)
• Microsoft MVP ASP.NET
• Work @

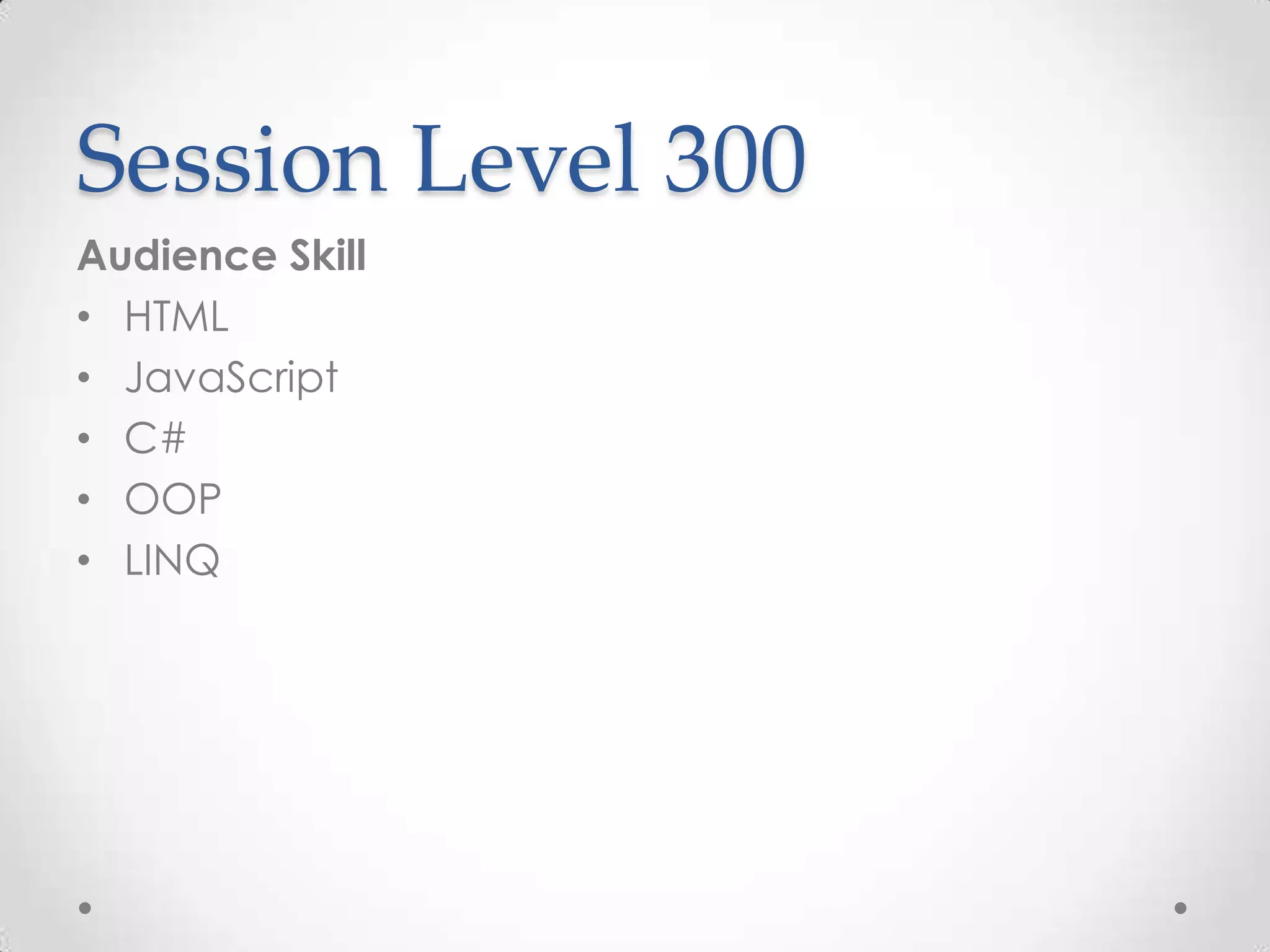

3. Session Level 300
Audience Skill
• HTML
• JavaScript
• C#
• OOP
• LINQ

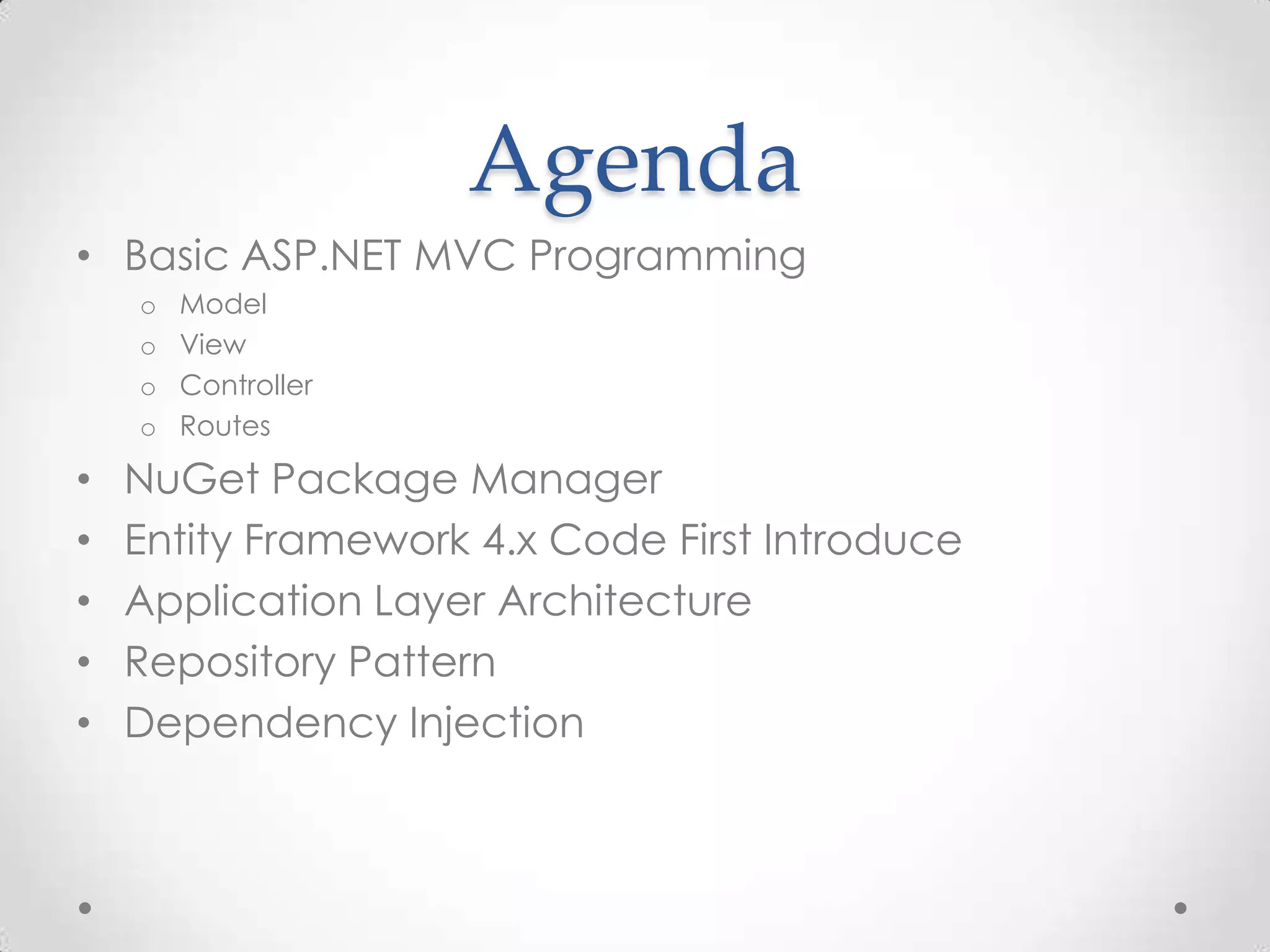

4. Agenda
• Basic ASP.NET MVC Programming
o Model
o View
o Controller
o Routes
• NuGet Package Manager
• Entity Framework 4.x Code First Introduce
• Application Layer Architecture
• Repository Pattern
• Dependency Injection

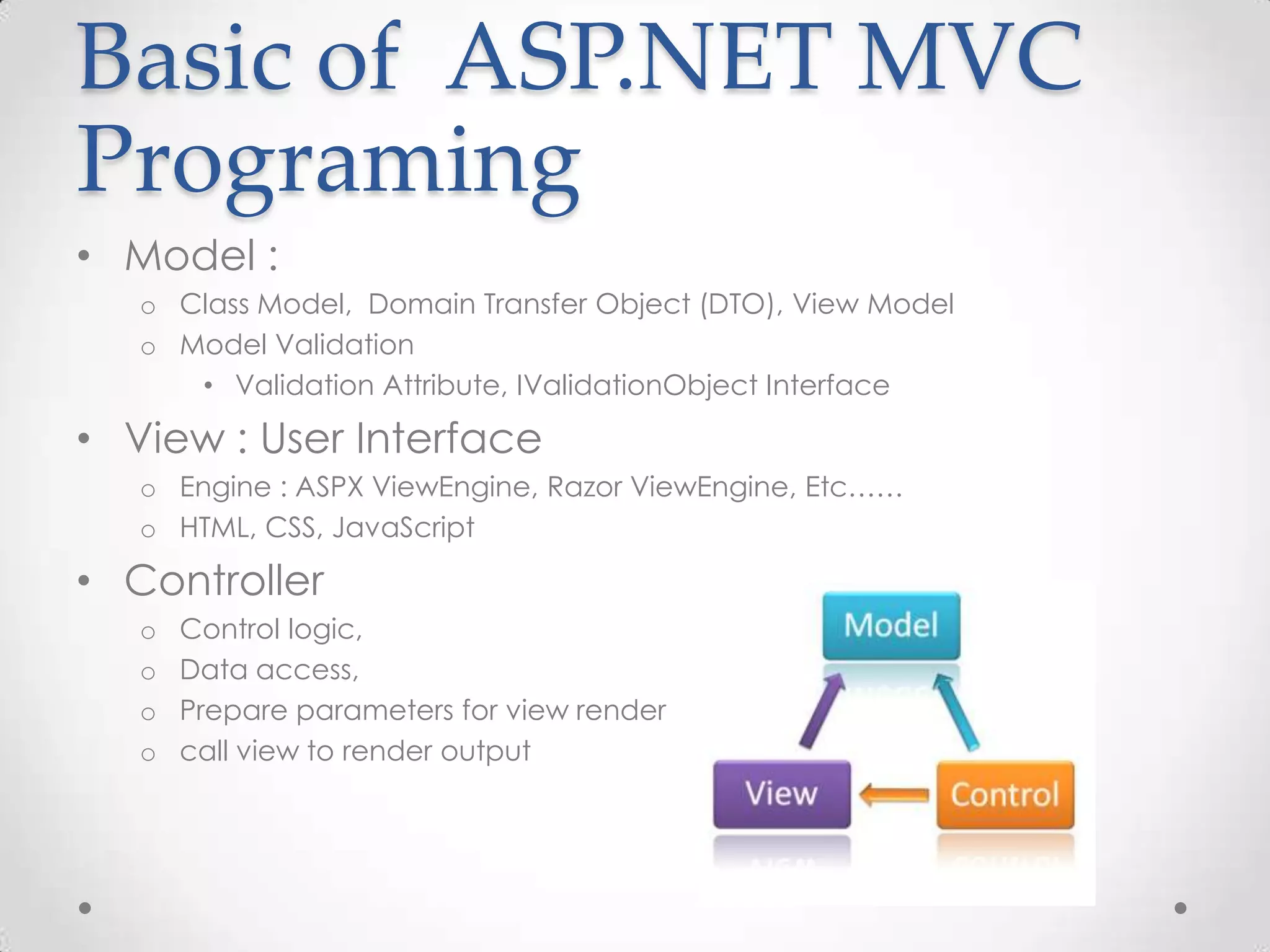

5. Basic of ASP.NET MVC
Programing
• Model :
o Class Model, Domain Transfer Object (DTO), View Model
o Model Validation
• Validation Attribute, IValidationObject Interface
• View : User Interface
o Engine : ASPX ViewEngine, Razor ViewEngine, Etc……
o HTML, CSS, JavaScript
• Controller
o Control logic,
o Data access,
o Prepare parameters for view render
o call view to render output

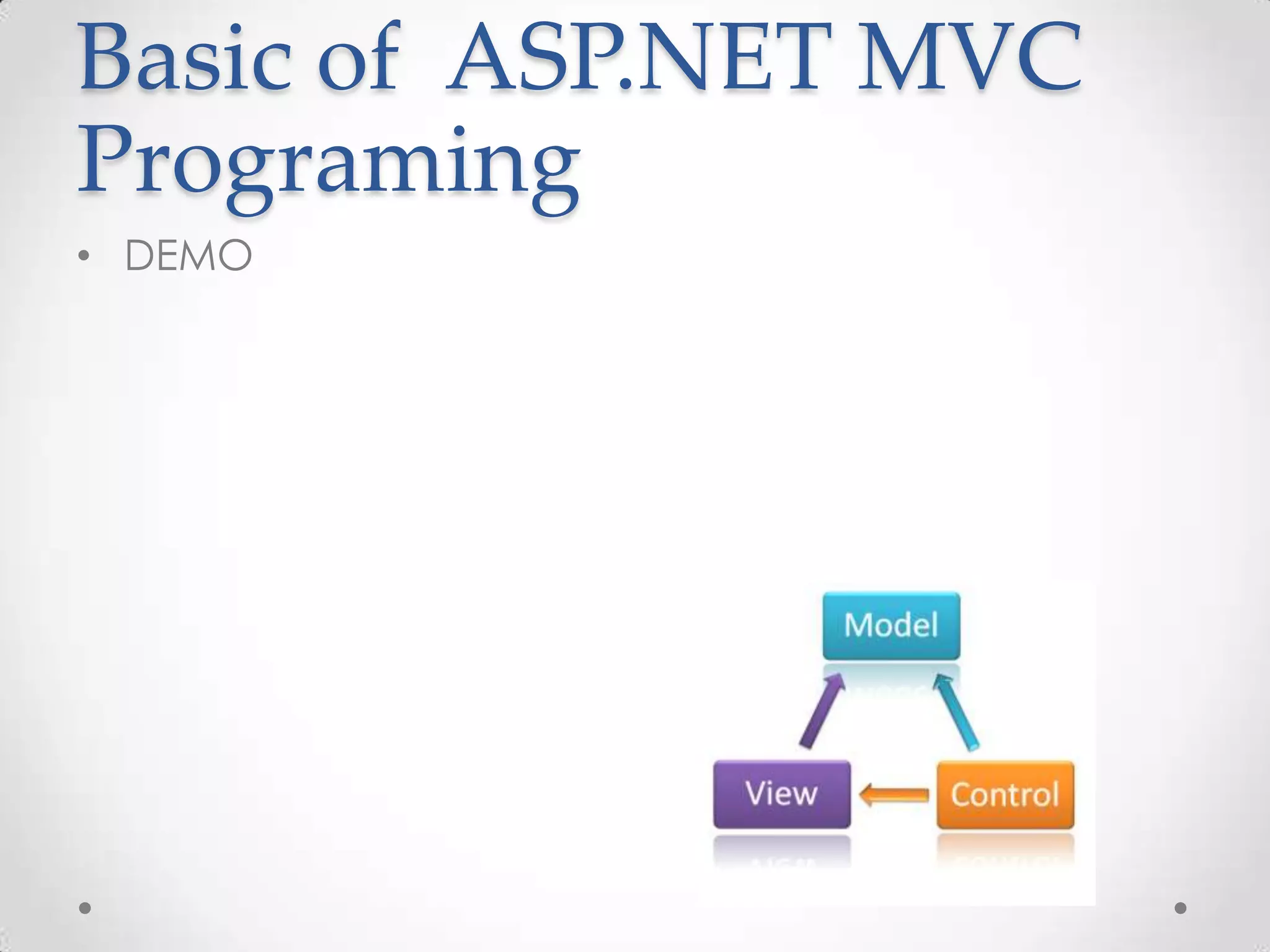

6. Basic of ASP.NET MVC
Programing
• DEMO

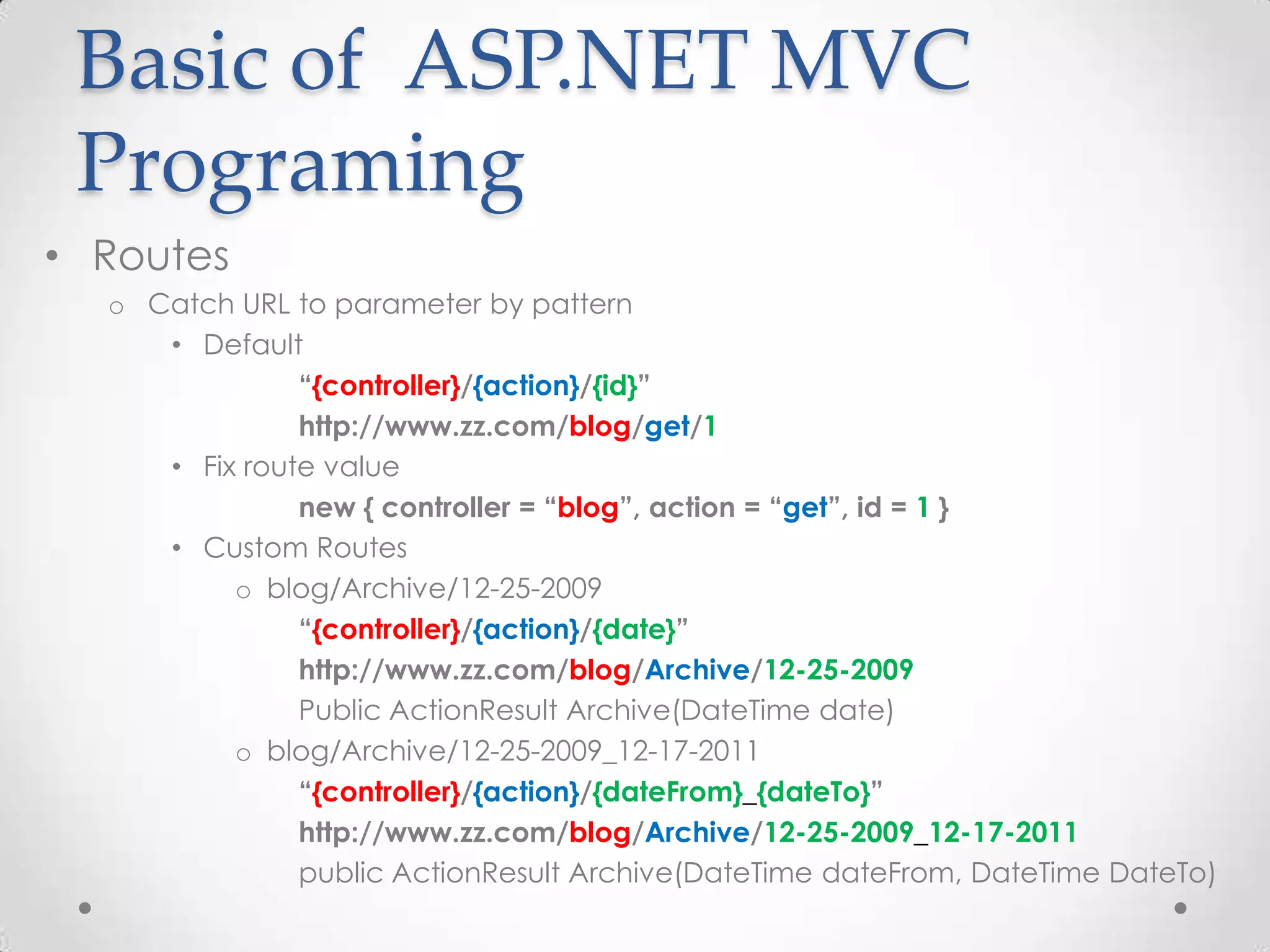

7. Basic of ASP.NET MVC
Programing
• Routes
o Catch URL to parameter by pattern
• Default
“{controller}/{action}/{id}”
http://www.zz.com/blog/get/1
• Fix route value
new { controller = “blog”, action = “get”, id = 1 }
• Custom Routes
o blog/Archive/12-25-2009
“{controller}/{action}/{date}”
http://www.zz.com/blog/Archive/12-25-2009
Public ActionResult Archive(DateTime date)
o blog/Archive/12-25-2009_12-17-2011
“{controller}/{action}/{dateFrom}_{dateTo}”
http://www.zz.com/blog/Archive/12-25-2009_12-17-2011
public ActionResult Archive(DateTime dateFrom, DateTime DateTo)

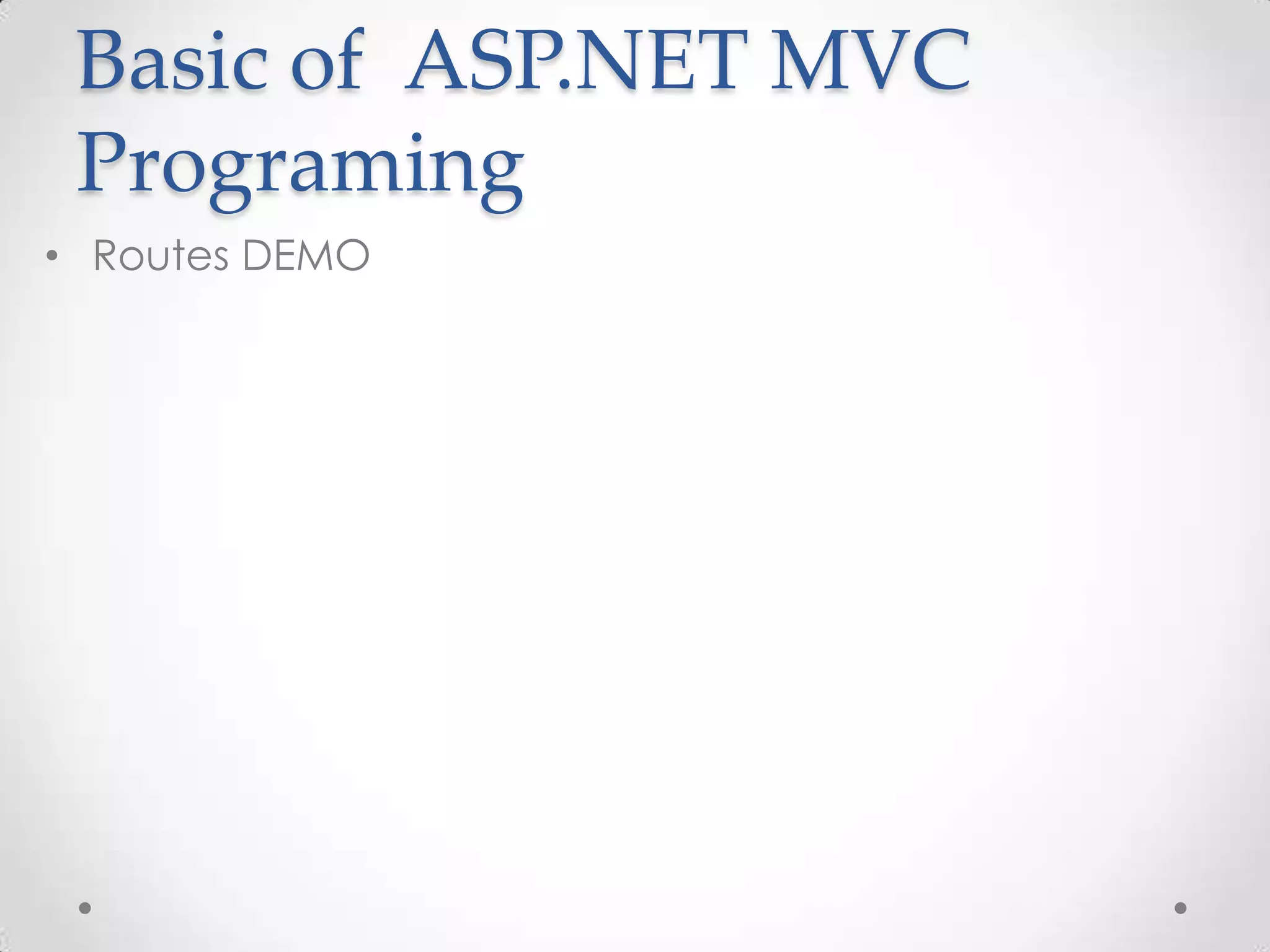

8. Basic of ASP.NET MVC
Programing
• Routes DEMO

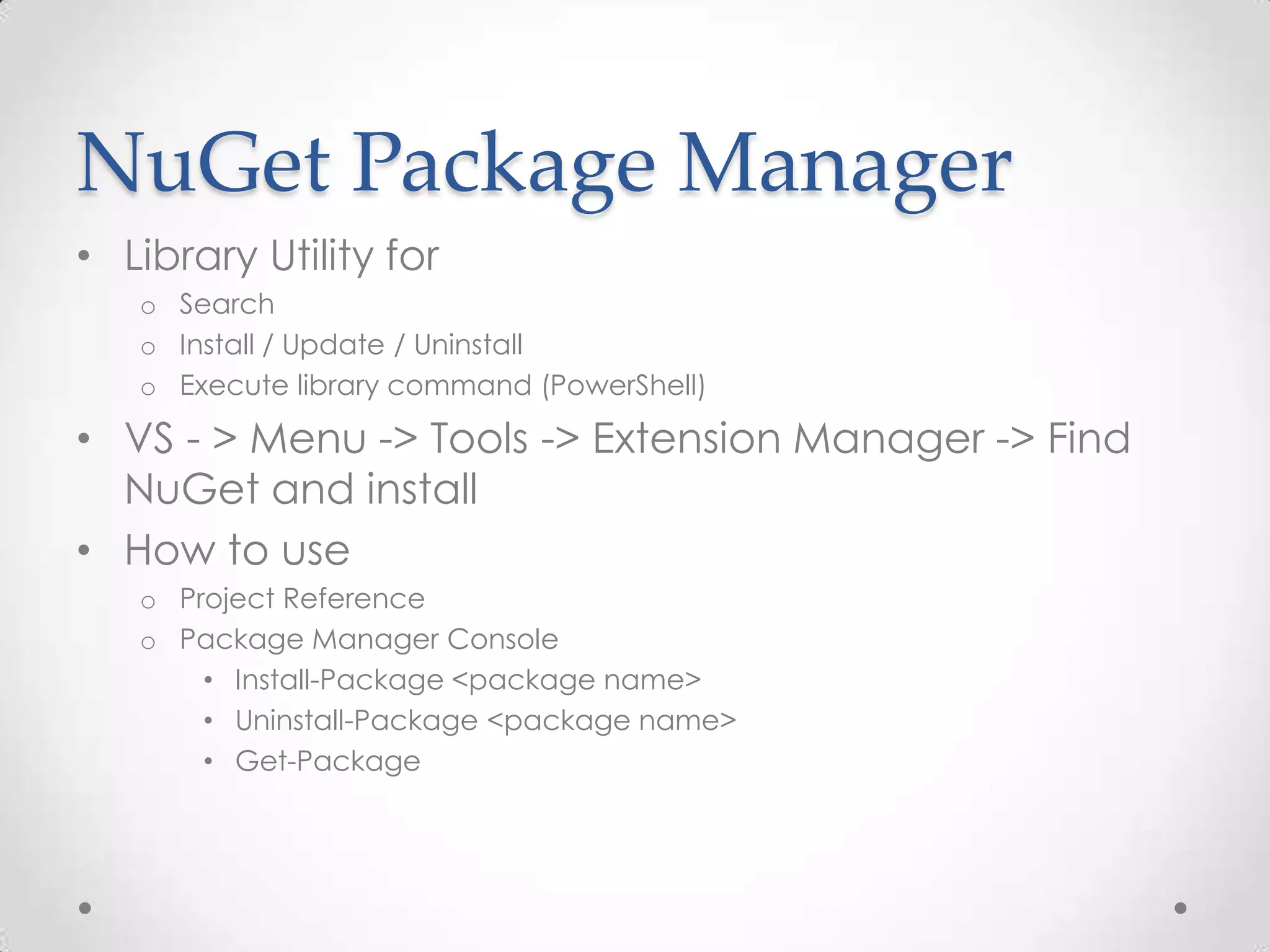

9. NuGet Package Manager
• Library Utility for
o Search
o Install / Update / Uninstall
o Execute library command (PowerShell)
• VS - > Menu -> Tools -> Extension Manager -> Find
NuGet and install
• How to use
o Project Reference
o Package Manager Console
• Install-Package <package name>
• Uninstall-Package <package name>
• Get-Package

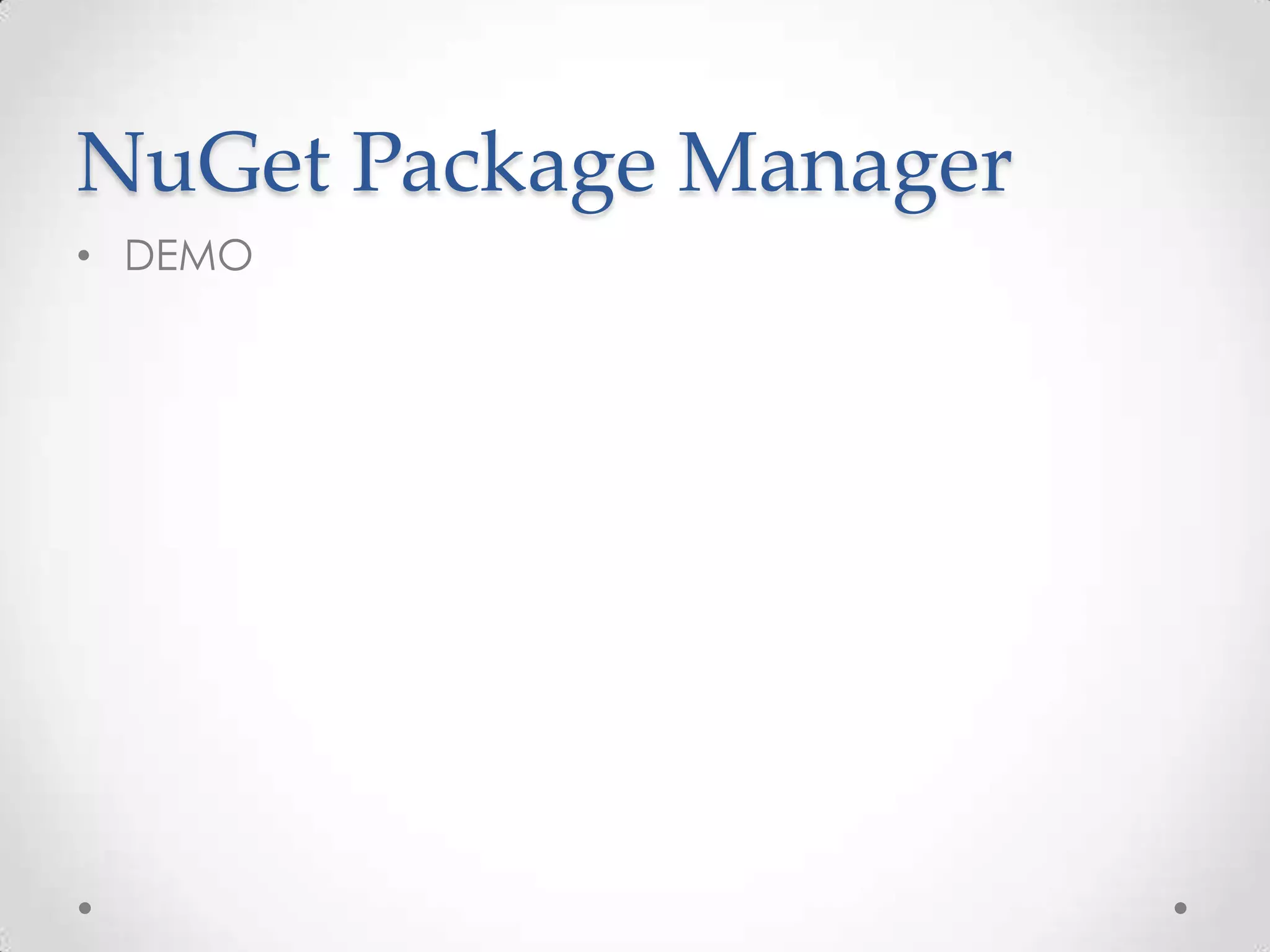

10. NuGet Package Manager
• DEMO

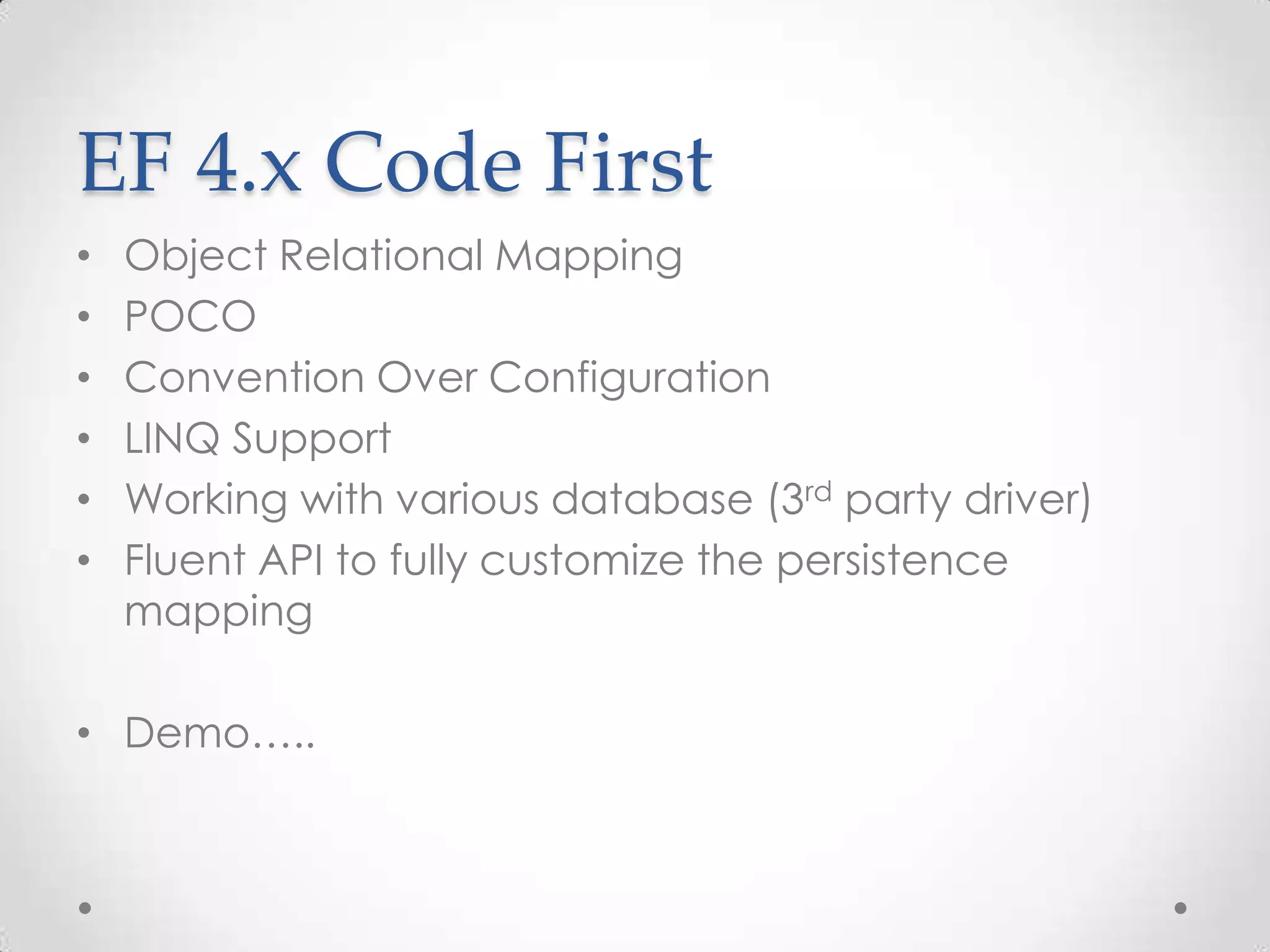

11. EF 4.x Code First
• Object Relational Mapping
• POCO
• Convention Over Configuration
• LINQ Support
• Working with various database (3rd party driver)
• Fluent API to fully customize the persistence
mapping
• Demo…..

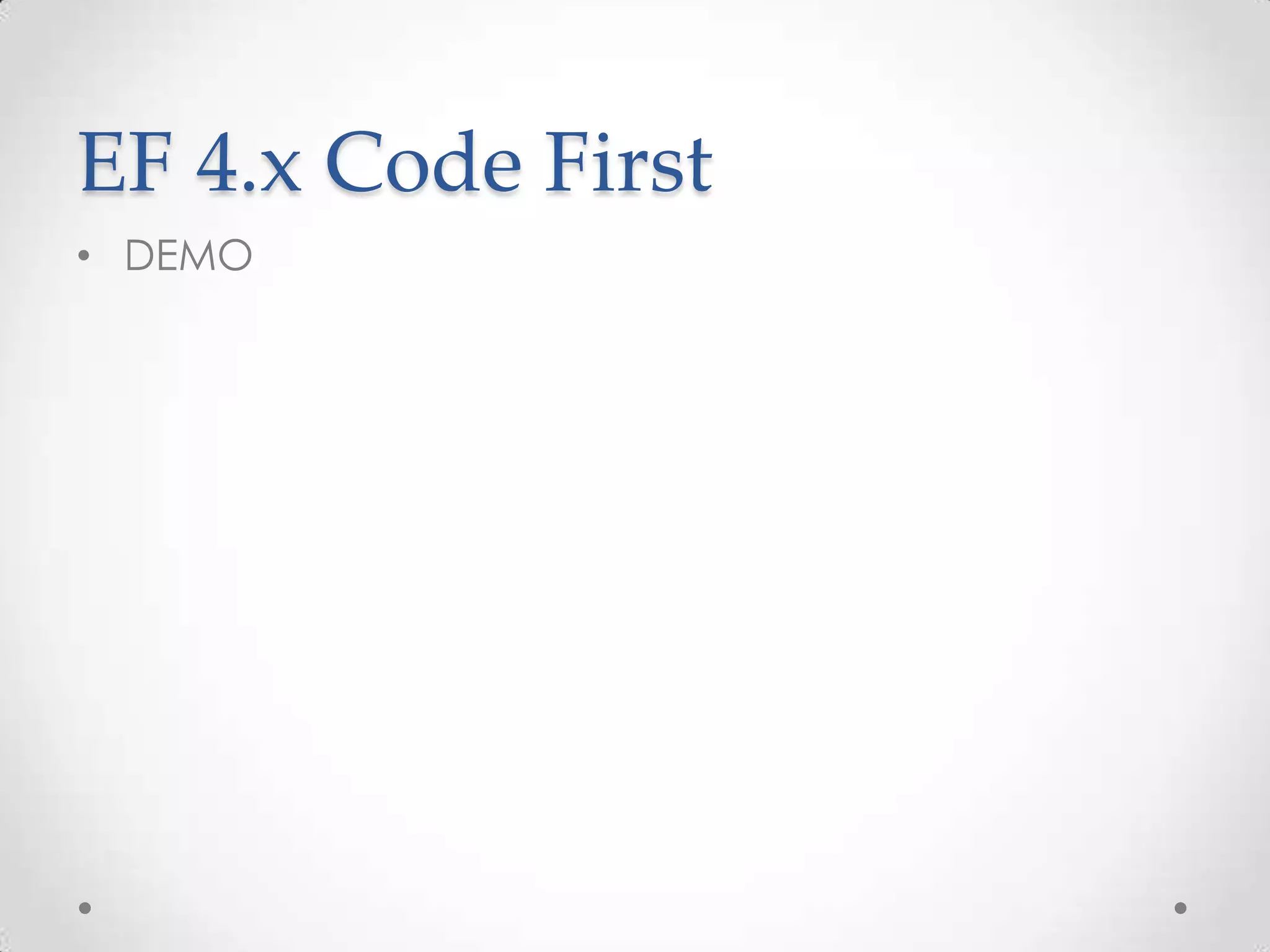

12. EF 4.x Code First
• DEMO

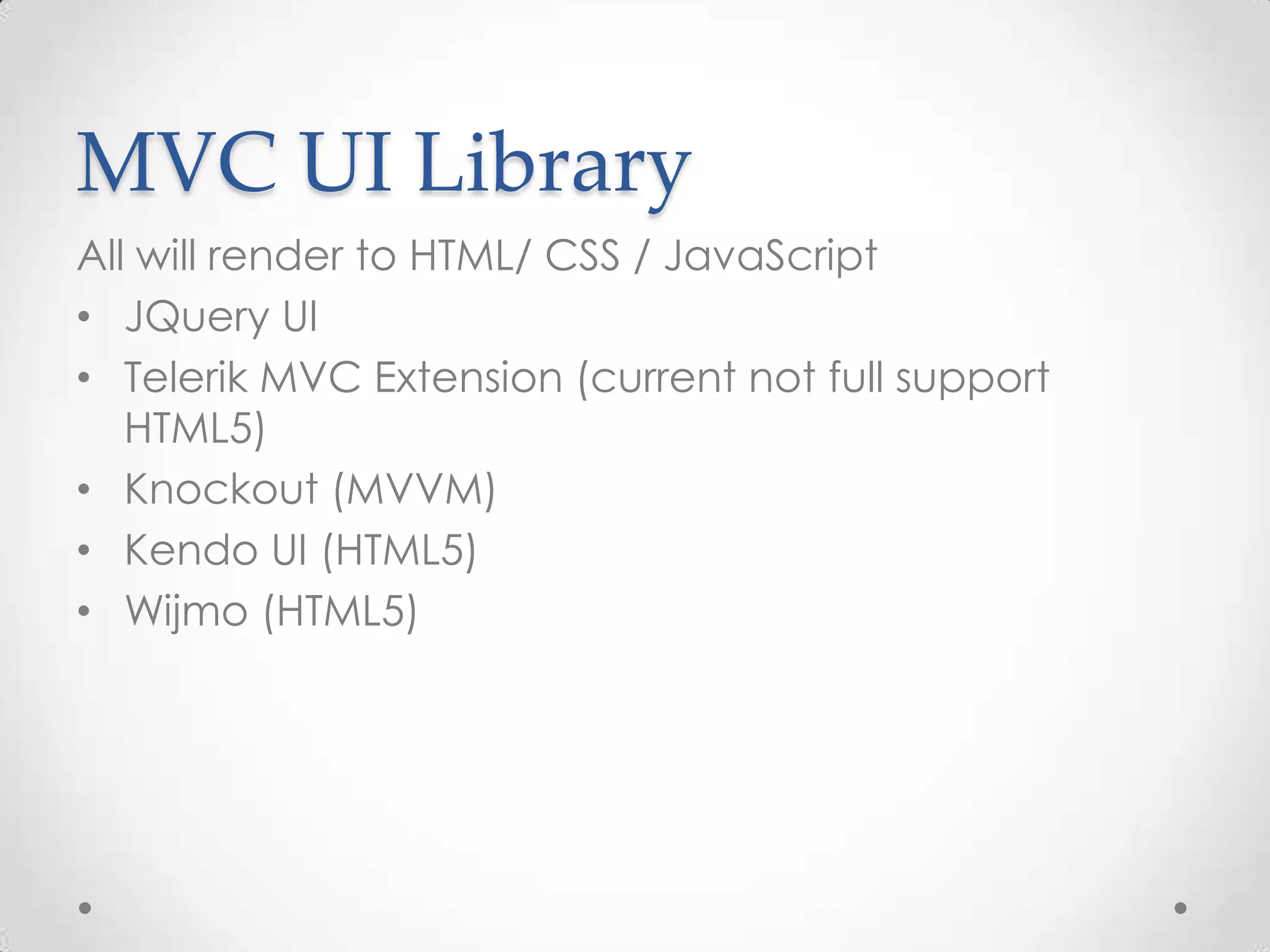

13. MVC UI Library
All will render to HTML/ CSS / JavaScript
• JQuery UI
• Telerik MVC Extension (current not full support
HTML5)
• Knockout (MVVM)
• Kendo UI (HTML5)
• Wijmo (HTML5)

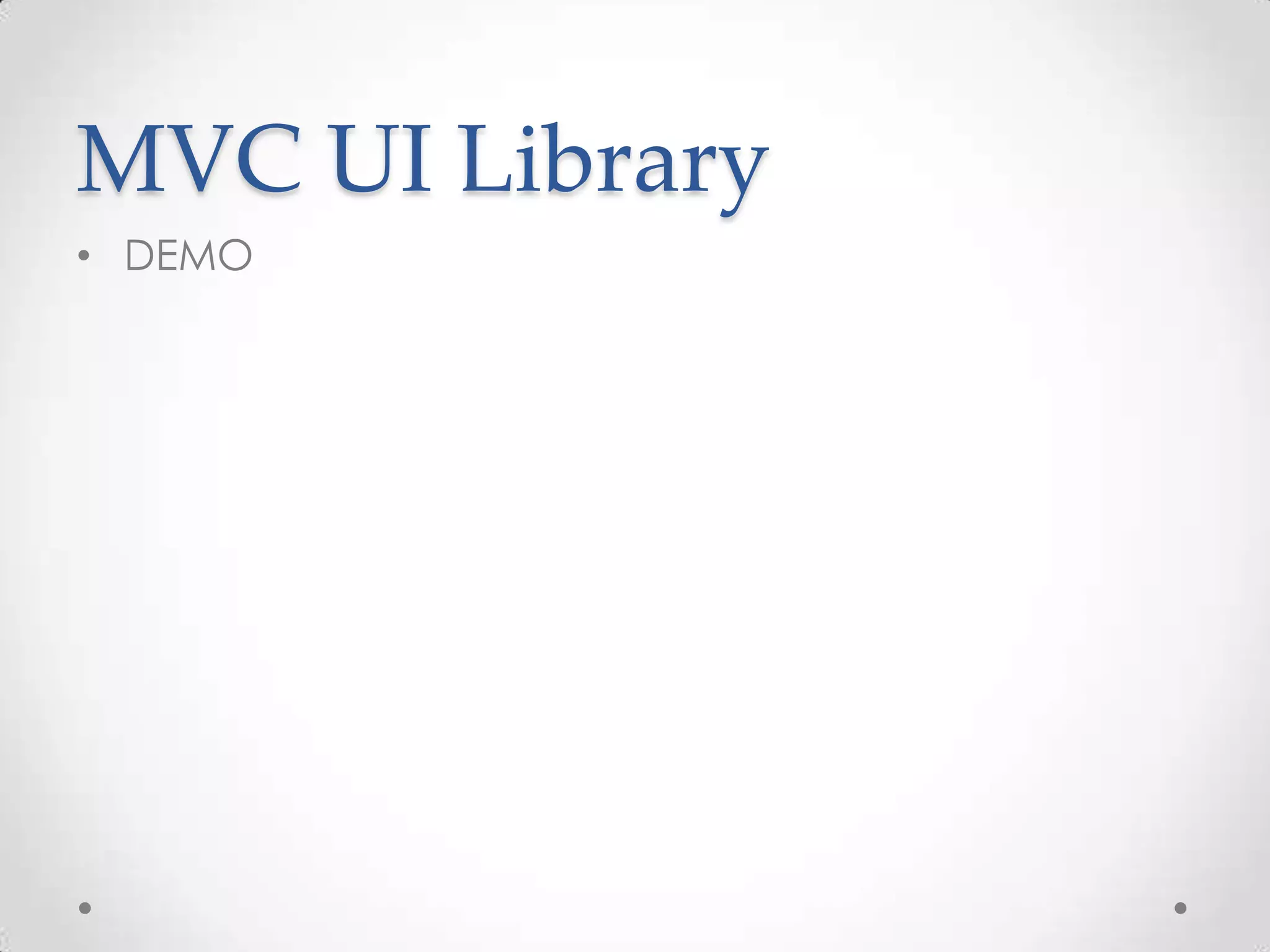

14. MVC UI Library
• DEMO

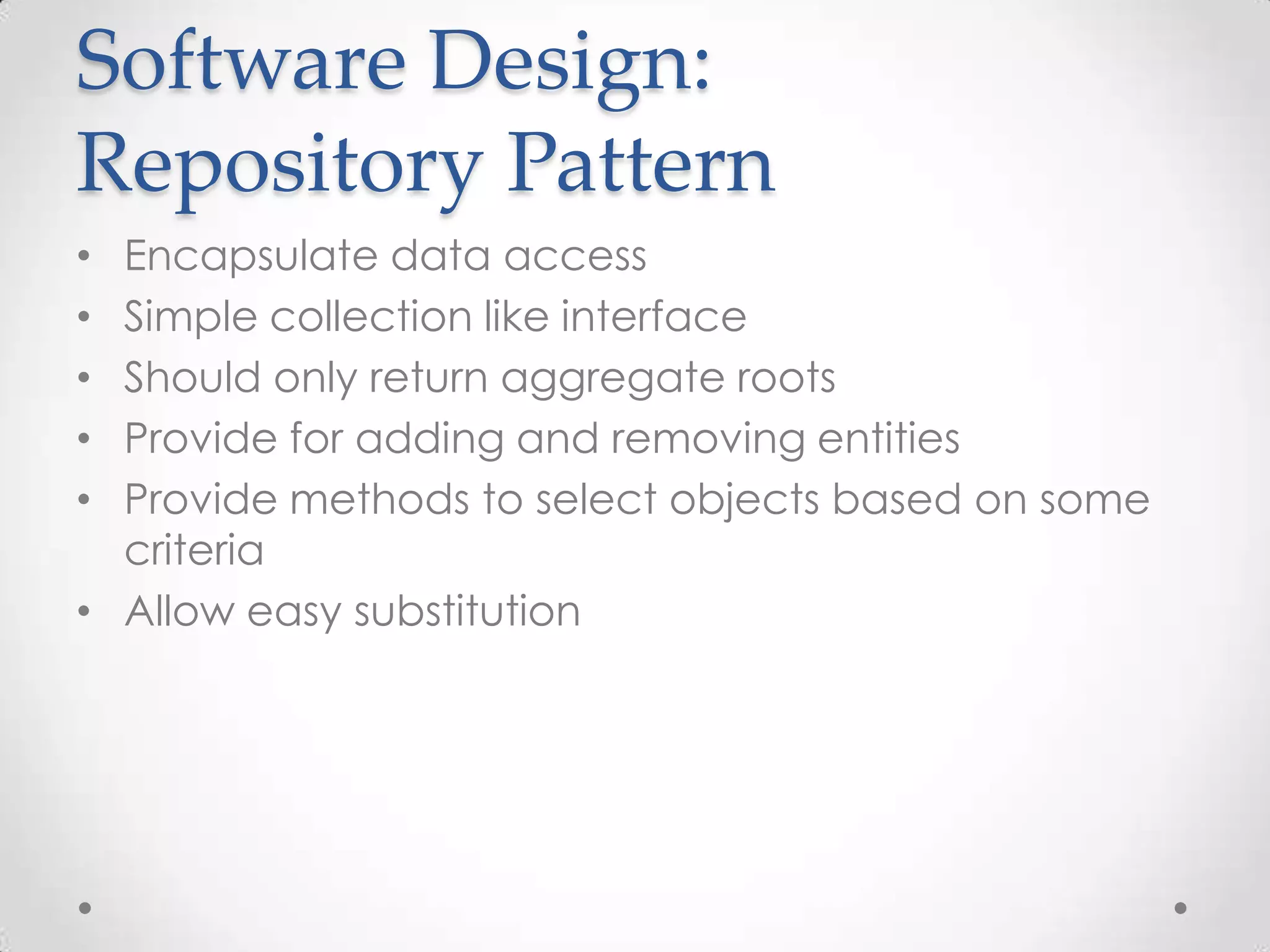

15. Software Design:
Repository Pattern
• Encapsulate data access
• Simple collection like interface
• Should only return aggregate roots
• Provide for adding and removing entities
• Provide methods to select objects based on some
criteria
• Allow easy substitution

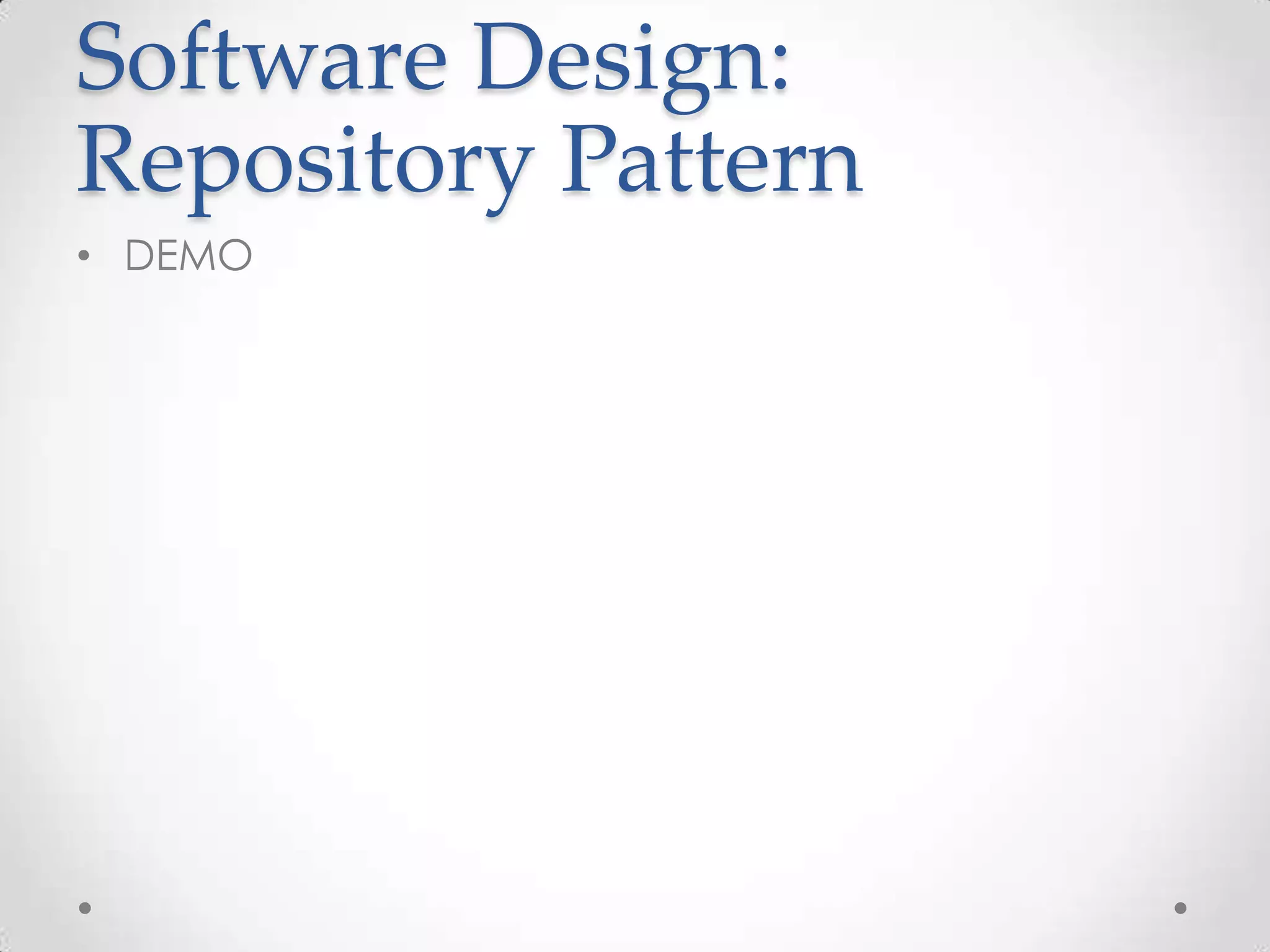

16. Software Design:
Repository Pattern
• DEMO

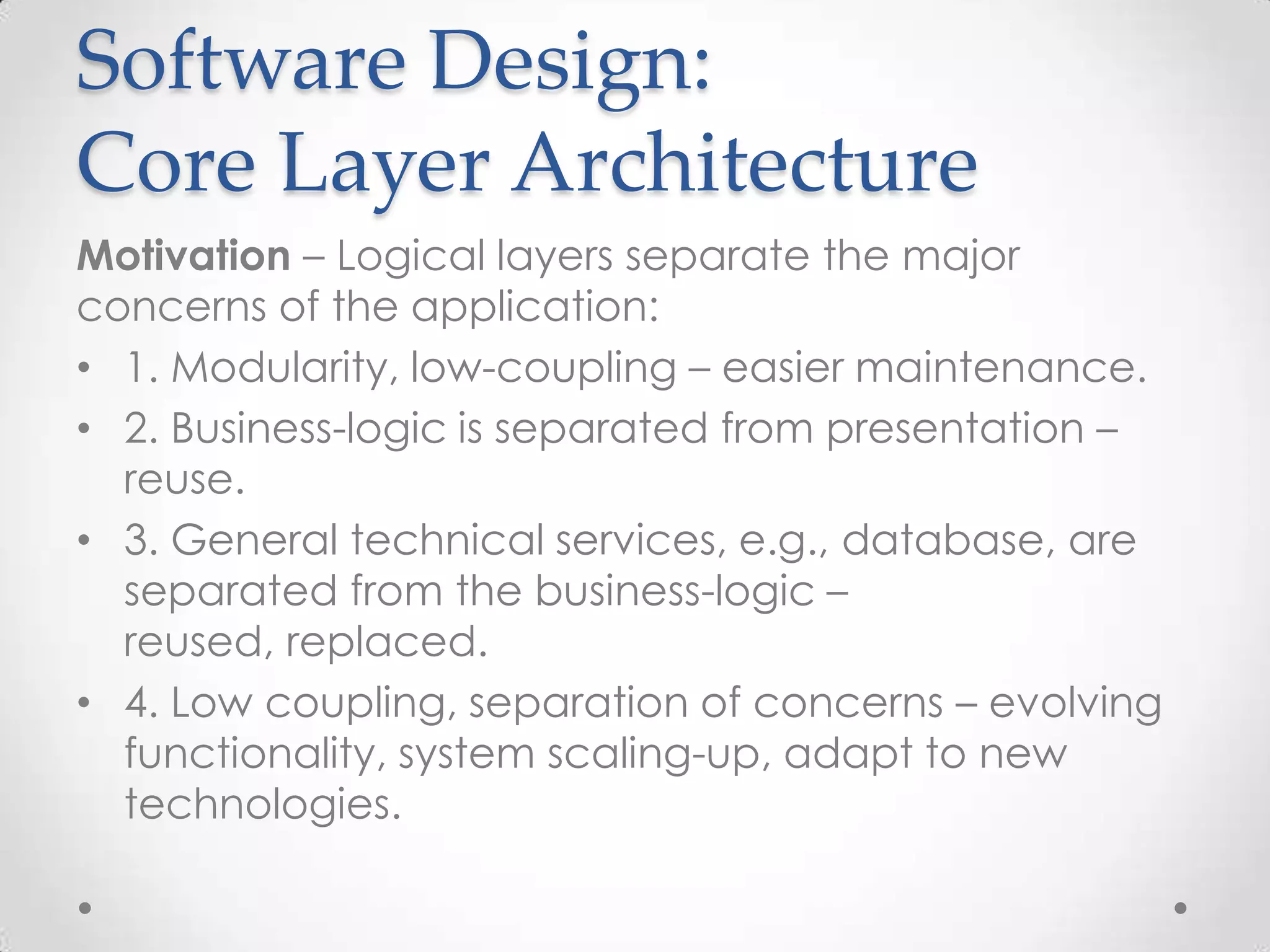

17. Software Design:
Core Layer Architecture
Motivation – Logical layers separate the major
concerns of the application:
• 1. Modularity, low-coupling – easier maintenance.
• 2. Business-logic is separated from presentation –
reuse.
• 3. General technical services, e.g., database, are
separated from the business-logic –
reused, replaced.
• 4. Low coupling, separation of concerns – evolving
functionality, system scaling-up, adapt to new
technologies.

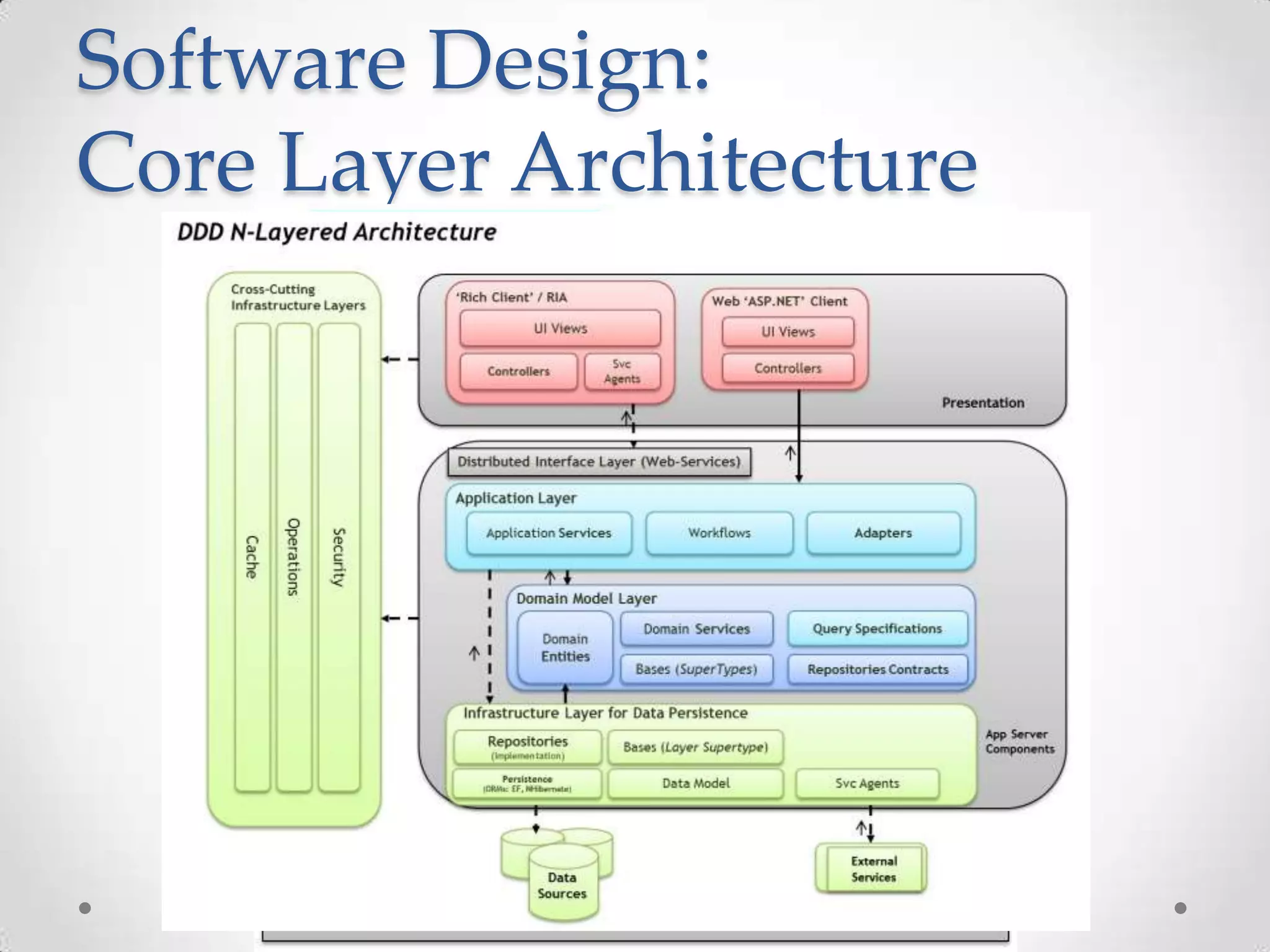

18. Software Design:
Core Layer Architecture

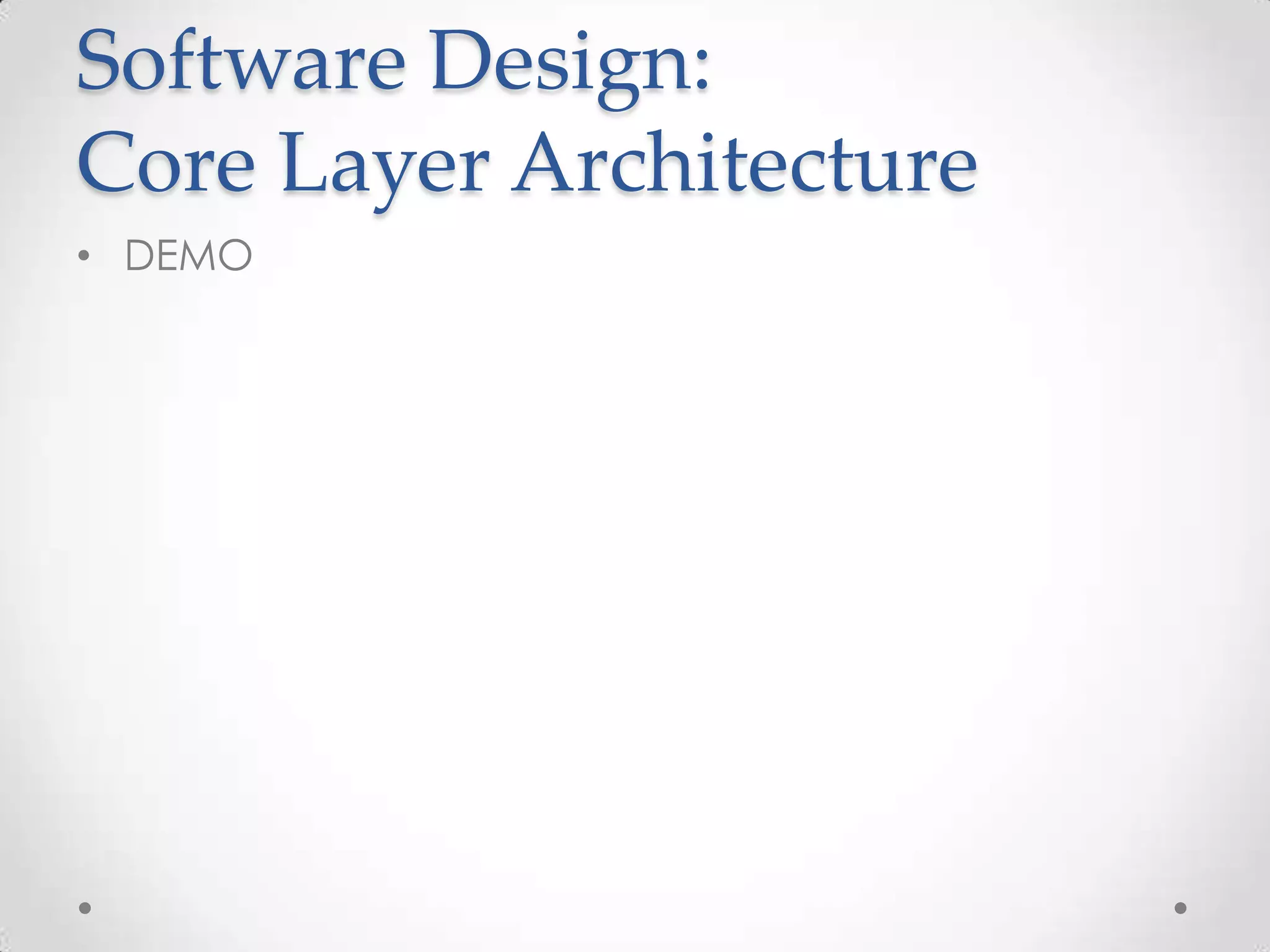

19. Software Design:
Core Layer Architecture
• DEMO

20. Dependency Injection
• Dependency Injection - one example of IoC design
principle.
• Also known as the Hollywood Principle
o Don’t call us, we’ll call you!
• Good OO Systems – organised as web of interacting
objects
• Goal – High cohesion, low coupling
• Advantages of low coupling
o Extensibility
o Testability
o Reusability
PS>Not so easy to achieve!

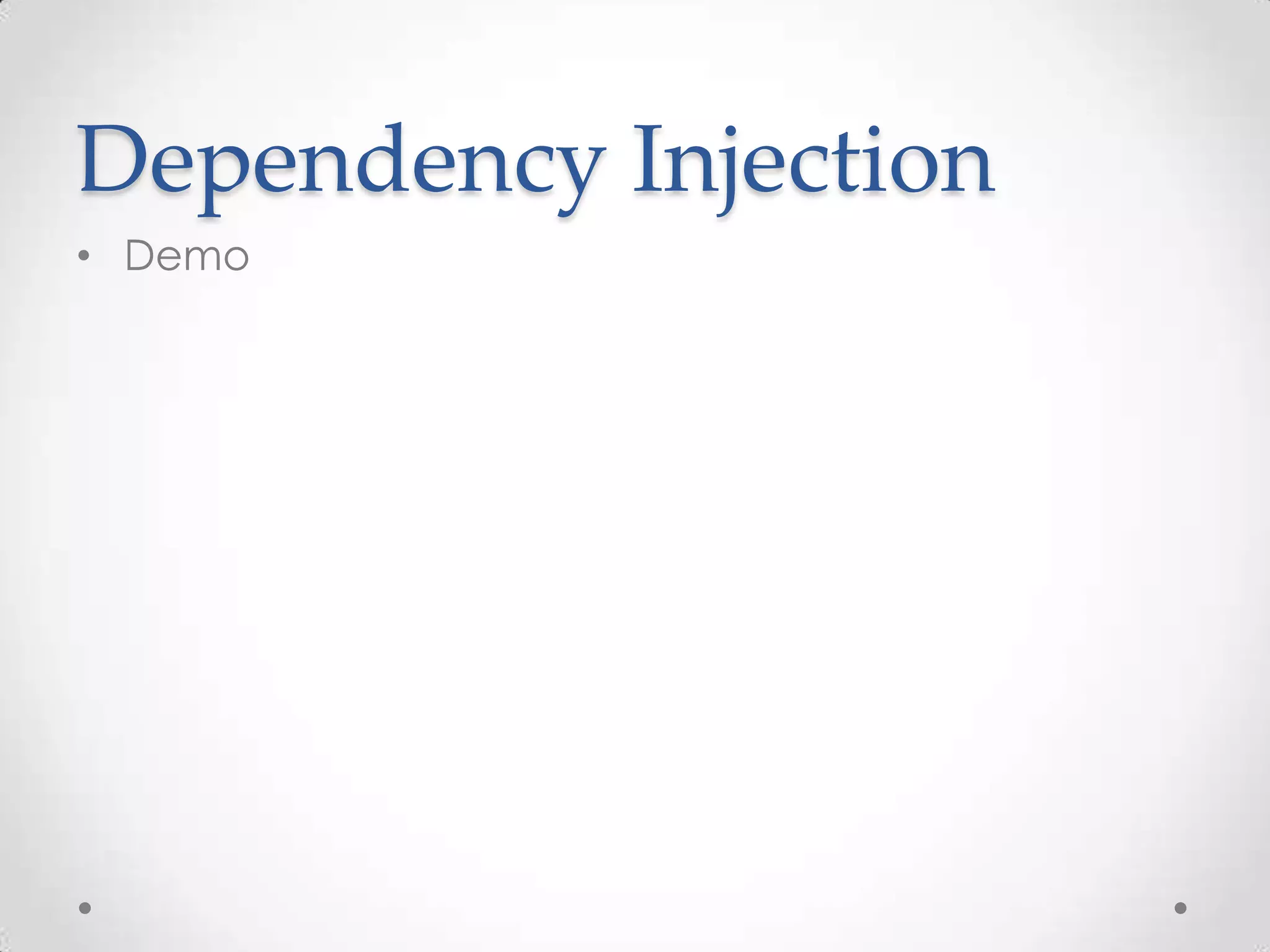

21. Dependency Injection
• Demo

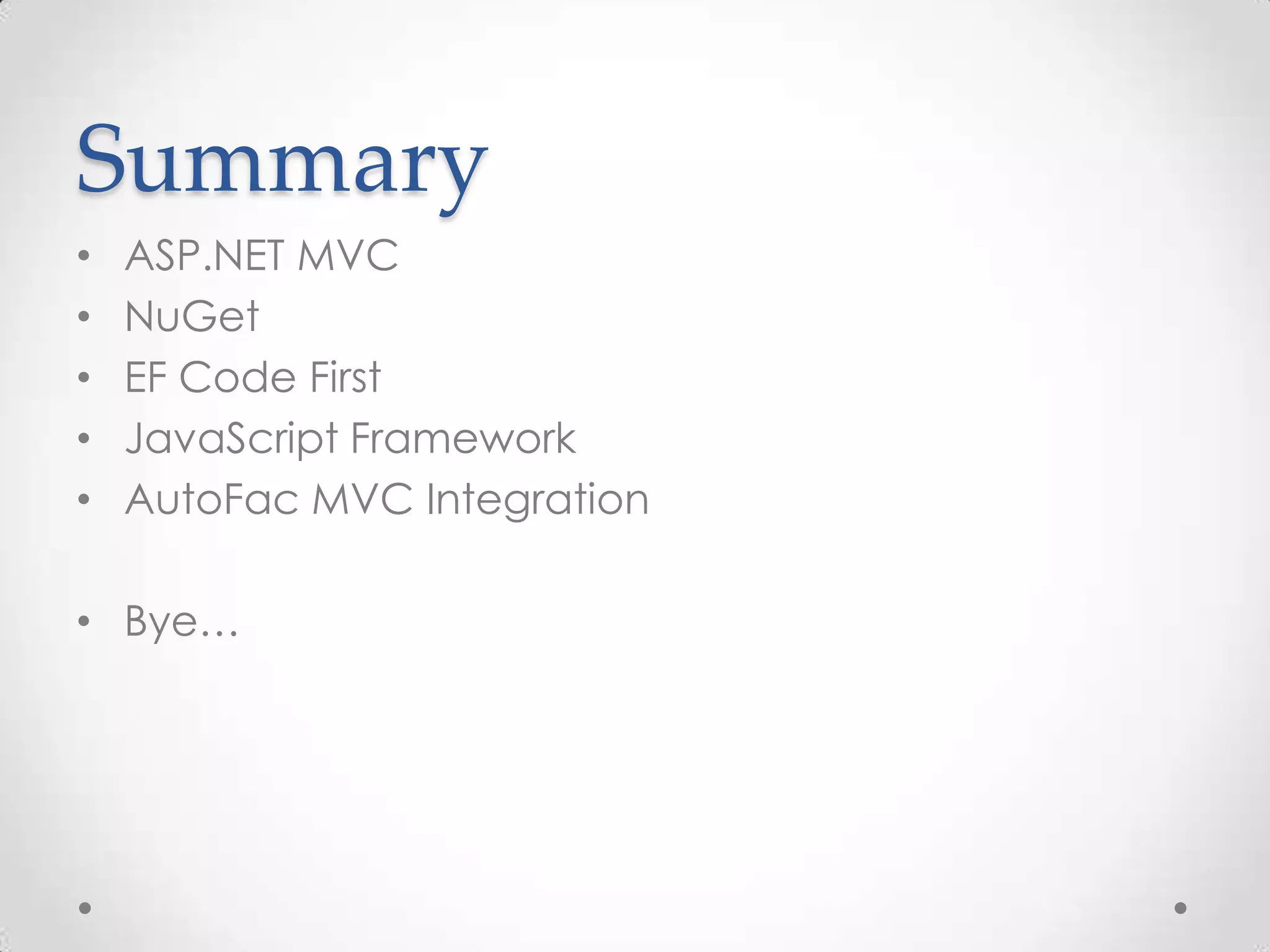

22. Summary
• ASP.NET MVC
• NuGet
• EF Code First
• JavaScript Framework
• AutoFac MVC Integration
• Bye…
