1. CASE STUDIES
ZOSTEL
SUBMITTED BY :
ROHIT MALVIYA
VAGMITA DANDWATE
By POORNIMA UNIVERSITY , Jaipur
Batch 2015-20

2. CASE STUDY LITERATURE CASE STUDY
MOUSTACHE, JAIPUR CENTRAL BUS STATION, VADODARA
(INDIAN CONTEXT)
THE VIETNAM HOSTEL, VIETNAM
(FOREIGN CONTEXT)

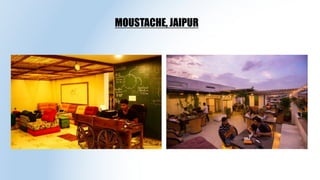

3. MOUSTACHE, JAIPUR

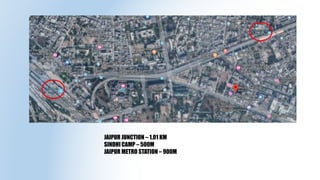

4. JAIPUR JUNCTION – 1.01 KM
SINDHI CAMP – 500M
JAIPUR METRO STATION – 900M

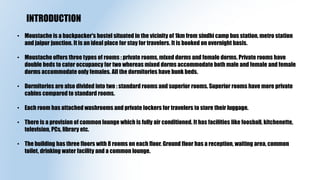

5. • Moustache is a backpacker's hostel situated in the vicinity of 1km from sindhi camp bus station, metro station
and jaipur junction. It is an ideal place for stay for travelers. It is booked on overnight basis.
• Moustache offers three types of rooms : private rooms, mixed dorms and female dorms. Private rooms have
double beds to cater occupancy for two whereas mixed dorms accommodate both male and female and female
dorms accommodate only females. All the dormitories have bunk beds.
• Dormitories are also divided into two : standard rooms and superior rooms. Superior rooms have more private
cabins compared to standard rooms.
• Each room has attached washrooms and private lockers for travelers to store their luggage.
• There is a provision of common lounge which is fully air conditioned. It has facilities like foosball, kitchenette,
television, PCs, library etc.
• The building has three floors with 8 rooms on each floor. Ground floor has a reception, waiting area, common
toilet, drinking water facility and a common lounge.
INTRODUCTION

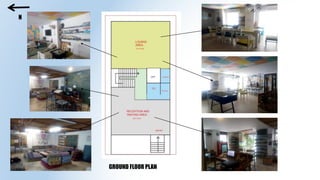

6. GROUND FLOOR PLAN
N

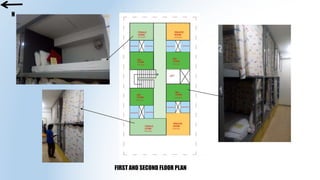

7. FIRST AND SECOND FLOOR PLAN
N

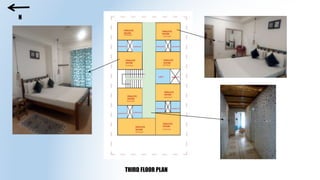

8. THIRD FLOOR PLAN
N

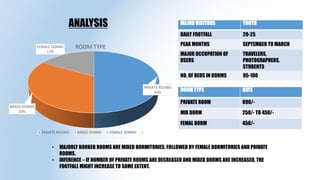

9. ANALYSIS
PRIVATE ROOMS
50%
MIXED DORMS
33%
FEMALE DORMS
17%
ROOM TYPE
PRIVATE ROOMS MIXED DORMS FEMALE DORMS
MAJOR VISITORS YOUTH
DAILY FOOTFALL 20-25
PEAK MONTHS SEPTEMBER TO MARCH
MAJOR OCCUPATION OF
USERS
TRAVELERS,
PHOTOGRAPHERS,
STUDENTS
NO. OF BEDS IN DORMS 95-100
ROOM TYPE RATE
PRIVATE ROOM 890/-
MIX DORM 250/- TO 450/-
FEMAL DORM 450/-
• MAJORLY BOOKED ROOMS ARE MIXED DORMITORIES, FOLLOWED BY FEMALE DORMITORIES AND PRIVATE
ROOMS.
• INFERENCE – IF NUMBER OF PRIVATE ROOMS ARE DECREASED AND MIXED DORMS ARE INCREASED, THE
FOOTFALL MIGHT INCREASE TO SOME EXTENT.

10. CENTRAL BUS STATION, VADODARA

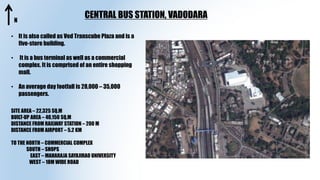

11. CENTRAL BUS STATION, VADODARA
SITE AREA – 22,325 SQ.M
BUILT-UP AREA – 40,150 SQ.M
DISTANCE FROM RAILWAY STATION – 200 M
DISTANCE FROM AIRPORT – 5.2 KM
TO THE NORTH – COMMERCIAL COMPLEX
SOUTH – SHOPS
EAST – MAHARAJA SAYAJIRAO UNIVERSITY
WEST – 18M WIDE ROAD
• It is also called as Ved Transcube Plaza and is a
five-store building.
• It is a bus terminal as well as a commercial
complex. It is comprised of an entire shopping
mall.
• An average day footfall is 28,000 – 35,000
passengers.
N

12. SHOPPING MALL AREA
WAITING AREA
TICKET GALLERY
OFFICES
BUS PARKING AREA
PICK UP/DROP OFF
AND ENTRY
GROUND FLOOR PLAN
STAIRCASE/LIFT
ENTRY
N

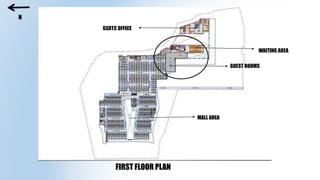

13. FIRST FLOOR PLAN
MALL AREA
GUEST ROOMS
WAITING AREA
GSRTC OFFICE
N

14. N
GUEST ROOMS AND WAITING AREA

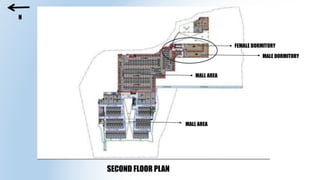

15. FEMALE DORMITORY
MALE DORMITORY
MALL AREA
MALL AREA
SECOND FLOOR PLAN
N

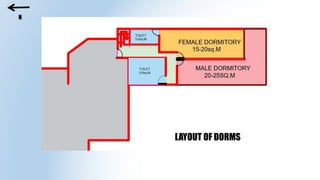

16. N
LAYOUT OF DORMS

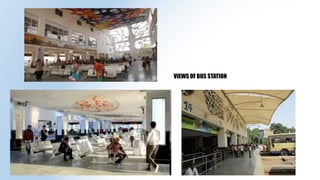

17. VIEWS OF BUS STATION

19. • It is located in the Danang city of
Vietnam. It lies on the route to Hoi An,
which is a world heritage site. This has
increased the tourism in Danang.
• To reduce the construction cost, the
Vietnam hostel is designed in a
minimalist form.
• It is constructed using environment
friendly materials like unbaked bricks
and have non plastered walls.
• Division of rooms : dormitories, private
rooms, tourist apartments.
THE VIETNAM HOSTEL
SPECIFICATIONS :
AREA – 600 SQ.M
NO. OF ROOMS – 18
NO. OF DORMITORIES – 4 (12 BEDS)
4 (8 BEDS)
NO. OF PRIVATE ROOMS – 6
NO. OF TOURIST APARTMENTS – 2
AIRPORT – 3 KM
METRO STATION – 672 M
N

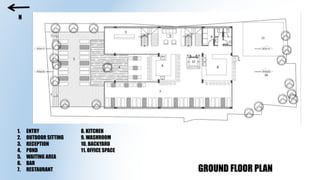

20. GROUND FLOOR PLAN
1. ENTRY
2. OUTDOOR SITTING
3. RECEPTION
4. POND
5. WAITING AREA
6. BAR
7. RESTAURANT
8. KITCHEN
9. WASHROOM
10. BACKYARD
11. OFFICE SPACE
N

21. FIRST AND SECOND FLOOR PLANDORM FOR 12
(6 BUNK BEDS)
DORM FOR 12
(6 BUNK BEDS)
DORM FOR 8
(4 BUNK BEDS)
DORM FOR 8
(4 BUNK BEDS)
COMMON
LOUNGE
N

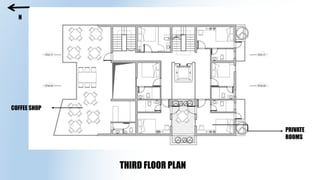

22. THIRD FLOOR PLAN
PRIVATE
ROOMS
COFFEE SHOP
N

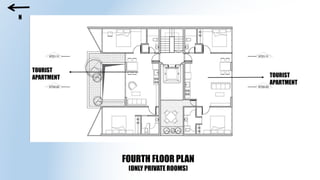

23. FOURTH FLOOR PLAN
(ONLY PRIVATE ROOMS)
TOURIST
APARTMENT
TOURIST
APARTMENT
N

24. PRIVATE ROOM
COMMON LOUNGE

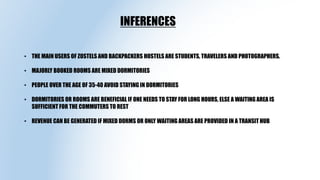

26. INFERENCES
• THE MAIN USERS OF ZOSTELS AND BACKPACKERS HOSTELS ARE STUDENTS, TRAVELERS AND PHOTOGRAPHERS.
• MAJORLY BOOKED ROOMS ARE MIXED DORMITORIES
• PEOPLE OVER THE AGE OF 35-40 AVOID STAYING IN DORMITORIES
• DORMITORIES OR ROOMS ARE BENEFICIAL IF ONE NEEDS TO STAY FOR LONG HOURS, ELSE A WAITING AREA IS
SUFFICIENT FOR THE COMMUTERS TO REST
• REVENUE CAN BE GENERATED IF MIXED DORMS OR ONLY WAITING AREAS ARE PROVIDED IN A TRANSIT HUB
