Zend Framework Form: Mastering Decorators

Zend Framework Form, Subforms, DisplayGroups and Decorators

Zend Framework
Presentation
Mastering Zend Form Decorators

Nick Belhomme
24 July 2009
PHP5 Zend Certified Engineer + Zend Framework Certified Engineer


About Me:
PHP5 Zend Certified Engineer (PHP5 ZCE)
Zend Framework Certified Engineer (ZFCE)
ZF Contributor since 2008
Freelance Consultant
PHP Community active member
Nick Belhomme
24 July 2009


Zend_Form
Zend_Form_SubForm
Zend_Form_DisplayGroup

Zend_Form_Element

Zend_Form_Decorator_Interface

Nick Belhomme
24 July 2009


Zend_Form

• Provides an object oriented interface to
building forms.

• Allows DRY by extending
implementations.

• Allows the input validation and filtering.

• Allows logical grouping of form elements
to act like small forms or one big form

• Allows logical grouping of elements to
aid in display purposes.

Nick Belhomme
24 July 2009


Zend_Form_SubForm

Creating logical element groups. Creating
multi-page forms. For instance Wizards.
Only once all sub forms validate would the
form be considered complete.

Create and Manipulate in Model

Nick Belhomme
24 July 2009

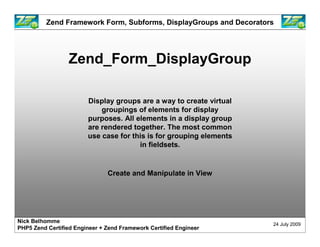

Zend_Form_DisplayGroup

Display groups are a way to create virtual
groupings of elements for display
purposes. All elements in a display group
are rendered together. The most common
use case for this is for grouping elements
in fieldsets.

Create and Manipulate in View

Nick Belhomme
24 July 2009


Zend_Form_Element
Smallest part of the form. This represents
an object representation of a regular html
form element.

This object is useful to:

• Bind filters to the input (Zend_Filter_Interface)

• Bind validators to the input (Zend_Validate_Interface)

• Bind Decorators (Zend_Form_Decorator_Interface)

Create and Manipulate in Model
Bind Decorators in View
Set Metadata like class, id in View

Nick Belhomme
24 July 2009


Zend_Form_Decorator_Interface

Handles the markup of the form.
Implements the Decorator Design Pattern.
Thus the order in which you append them
is important.

Create and Manipulate in View

Nick Belhomme
24 July 2009


Assigning Roles

Developers Web Integrators (html, css)
• Zend_Form_Element (Input handling) • Zend_Form_Decorator_Interface
• Zend_Form_SubForm • Zend_Form_DisplayGroup
• Zend_Form_Element (Metadata:
Class, Id)

Nick Belhomme
24 July 2009


Developers (controller - action)
$form = new Zend_Form();
$form->setAction('/')
->setMethod('post');

// Create and configure username element:
$username = $form->createElement('text', 'username');
$username->addValidator('alnum')
->addValidator('regex', false, array('/^[a-z]+/'))
->addValidator('stringLength', false, array(6, 20))
->setRequired(true)
->addFilter('StringToLower');

Nick Belhomme
24 July 2009


Developers (controller - action)
// Create and configure password element:
$password = $form->createElement('password', 'password');
$password->addValidator('StringLength', false, array(6))
->setRequired(true);

$submit = $form->createElement('submit', 'submit');
$submit->setIgnore(true);

// Add elements to form:
$form->addElement($username)
->addElement($password)
->addElement($submit);

$this->view->form = $form;

Nick Belhomme
24 July 2009

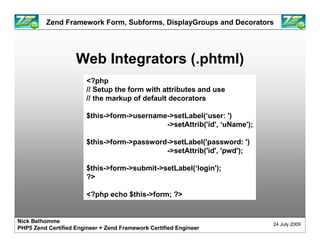

Web Integrators (.phtml)
<?php
// Setup the form with attributes and use
// the markup of default decorators

$this->form->username->setLabel(‘user: ')
->setAttrib('id', ‘uName');

$this->form->password->setLabel('password: ')
->setAttrib('id', 'pwd');

$this->form->submit->setLabel(‘login');
?>

<?php echo $this->form; ?>

Nick Belhomme
24 July 2009


Setup the form using
custom markup with the help of decorators

To understand how decorating works, you should
refresh your browser after each line of code you write.
You will see the form being build slowly.

<?php
// remove default markup:

$this->form->clearDecorators();

// now add the basic elements from the inside out
// (remember decorators use a strict order)

Nick Belhomme
24 July 2009

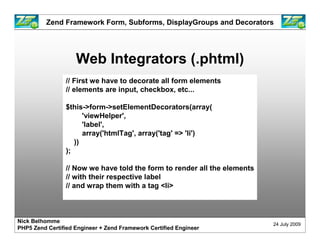

// First we have to decorate all form elements
// elements are input, checkbox, etc...

$this->form->setElementDecorators(array(
'viewHelper',
'label',
array('htmlTag', array('tag' => 'li')
))
);

// Now we have told the form to render all the elements
// with their respective label
// and wrap them with a tag <li>

Nick Belhomme
24 July 2009

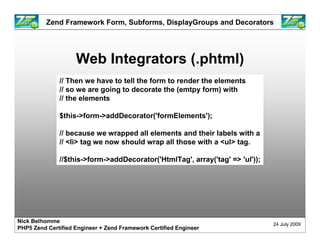

// Then we have to tell the form to render the elements
// so we are going to decorate the (emtpy form) with
// the elements

$this->form->addDecorator('formElements');

// because we wrapped all elements and their labels with a
// <li> tag we now should wrap all those with a <ul> tag.

//$this->form->addDecorator('HtmlTag', array('tag' => 'ul'));

Nick Belhomme
24 July 2009


// The elements are now printed to the screen in a nice UL list.
// we now should wrap (decorate) the ul list with the <form> tag

$this->form->addDecorator('form');

Congratulations, you decorated your first decorated form.

It wasn’t that hard now was it? Once you understand
On how decorating works and the order of the statements
It really is that easy.

Nick Belhomme
24 July 2009


Let’s move on to adding fieldsets with displaygroups

// first we define which elements should be inside the fieldset
// then we define the internal name of the group
// last we also tell the form not to use the default decorators
// as we are going to decorate ourselves

$this->form->addDisplayGroup(
array('username', 'password'),
'loginGroup',
array('disableLoadDefaultDecorators' => true));

As you can see, username and password are not displayed
anymore. This is because we wrapped them with the displaygroup
and explicitely told the form not to render the group by disabling
the default decorators. (The form doesn’t know how to render)
Nick Belhomme
24 July 2009

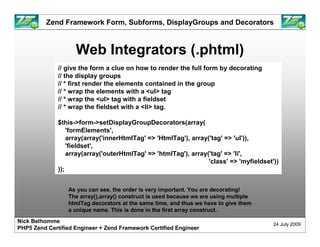

// give the form a clue on how to render the full form by decorating
// the display groups
// * first render the elements contained in the group
// * wrap the elements with a <ul> tag
// * wrap the <ul> tag with a fieldset
// * wrap the fieldset with a <li> tag.

$this->form->setDisplayGroupDecorators(array(
'formElements',
array(array('innerHtmlTag' => 'HtmlTag'), array('tag' => 'ul')),
'fieldset',
array(array('outerHtmlTag' => 'htmlTag'), array('tag' => 'li',
'class' => 'myfieldset'))
));

As you can see, the order is very important. You are decorating!
The array(),array() construct is used because we are using multiple
htmlTag decorators at the same time, and thus we have to give them
a unique name. This is done in the first array construct.
Nick Belhomme
24 July 2009

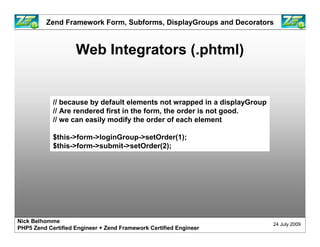

// because by default elements not wrapped in a displayGroup
// Are rendered first in the form, the order is not good.
// we can easily modify the order of each element

$this->form->loginGroup->setOrder(1);
$this->form->submit->setOrder(2);

Nick Belhomme
24 July 2009

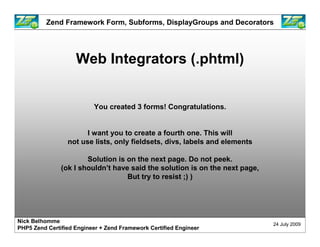

You created 3 forms! Congratulations.

I want you to create a fourth one. This will
not use lists, only fieldsets, divs, labels and elements

Solution is on the next page. Do not peek.
(ok I shouldn’t have said the solution is on the next page,
But try to resist ;) )

Nick Belhomme
24 July 2009


<?php
$this->form->clearDecorators();

$this->form->setElementDecorators(
array(
'viewHelper',
'label',
array('htmlTag', array('tag' => 'div')),
)
);
$this->form->addDecorator('formElements');
$this->form->addDecorator('form');

array('username', 'password'),
'loginGroup',
array('disableLoadDefaultDecorators' => true)
);

Nick Belhomme
24 July 2009

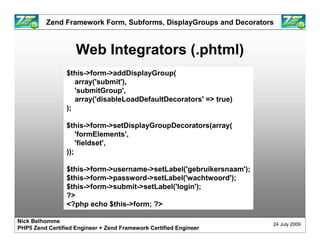

array('submit'),
'submitGroup',
array('disableLoadDefaultDecorators' => true)
);

$this->form->setDisplayGroupDecorators(array(
'formElements',
'fieldset',
));

$this->form->username->setLabel('gebruikersnaam');
$this->form->password->setLabel('wachtwoord');
$this->form->submit->setLabel('login');
?>
<?php echo $this->form; ?>

Nick Belhomme
24 July 2009


What about?
Now that you have seen Zend_Form_Decorator_Interface
Which uses the decorator pattern, maybe it is a good idea
to tackle the other design patterns. Because knowing how
to use the Zend Framework components doesn’t make
your Zend Framework application
easily maintainable and stable...

Design Patterns will help to achieve that goal.

Nick Belhomme
24 July 2009

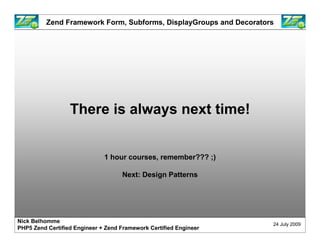

There is always next time!

1 hour courses, remember??? ;)

Next: Design Patterns

Nick Belhomme
24 July 2009


Resources

•http://blog.nickbelhomme.com
•http://framework.zend.com/manual/en/zend.form.html
•http://www.phppatterns.com/docs/design/decorator_pattern

Source code of this workshop available at:
http://blog.nickbelhomme.com/wp-content/uploads/workshopzf1.8forms.zip
