This document summarizes the manufacturing capabilities of a company that produces electric wire rope hoists and crane components with lifting capacities ranging from 500 to 32,000 kg. The company manufactures double rail crane trolleys, end carriages, and hand pallet trucks. It has manufacturing facilities with CNC machines and produces powder coated and painted products. Maintenance and service are also provided.

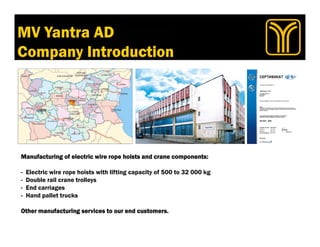

1. Manufacturing of electric wire rope hoists and crane components:
- Electric wire rope hoists with lifting capacity of 500 to 32 000 kg
- Double rail crane trolleys
- End carriages
- Hand pallet trucks
Other manufacturing services to our end customers.

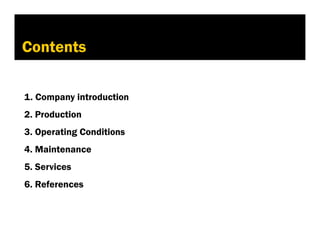

2. Сontents

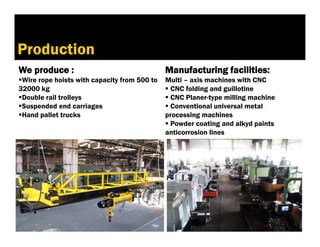

3. We produce :
Wire rope hoists with capacity from 500 to
32000 kg
Double rail trolleys
Suspended end carriages
Hand pallet trucks
Manufacturing facilities:
Multi – axis machines with CNC
 CNC folding and guillotine
 CNC Planer-type milling machine
 Conventional universal metal
processing machines
 Powder coating and alkyd paints
anticorrosion lines
1. Представяне на фирмата
Production

4. 2. Производство

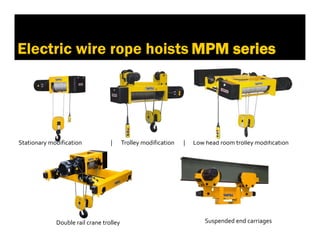

Electric wire rope hoists MPM series
Stationary modification | Trolley modification | Low head room trolley modification
Double rail crane trolley Suspended end carriages

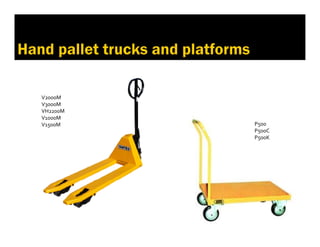

5. V2000M
V3000M
VH2200M
V1000M
V1500M P500
P500C
P500K
2. Производство

6. STAIONARY ELECTRIC WIRE ROPE HOIST REEVING 2/1
Load capacity 1000 – 16 000 kg
STAIONARY ELECTRIC WIRE ROPE HOIST REEVING 4/1
Load capacity 2000 – 32 000 kg
2. Производство

7. MONORAIL TROLLEY WIRE ROPE HOIST 2/1
Load capacity 1000 – 16 000 kg
MONORAIL TROLLEY WIRE ROPE HOIST 4/1
Load Capacity 2000 – 10 000 kg
2. Производство

8. LOW HEADROOM WIRE ROPE HOISTS REEVING 2/1
With single or double sided driven travel mechanism
Load capacity 1000 – 5000 kg
LOW HEADROOM WIRE ROPE HOISTS REEVING 4/1
Load capacity 2000 – 10 000 kg

9. DOBLE RAIL TROLLEYS TYPE – КК10-2х1
Load capacity 10 000 kg
Lifting height 6.3 – 25 m
DOBLE RAIL TROLLEYS TYPE – КК10-4х1
Load capacity 10 000 kg
Lifting height 6.3 – 18 m

10. DOUBLE RAIL TROLLEY TYPE – КК20
Load capacity 20 000 kg
Lifting height 6.3 – 18 m
DOUBLE RAIL TROLLEY TYPE– КК32
Load capacity 32 000 kg
Lifting height 6.3 – 18 m

11. DOUBLE RAIL TROLLEY with additional hoists – type КК32/5 and КК20/5
Load capacity:
32 / 5 t и 20 / 5 t
Lifting height 9 m
2. Производство

12. SUSPENDED END CARRIAGES °
°
Load capacity :
1/2/3,2/5 t
2. Производство

13. 3. Условия на експлоатация

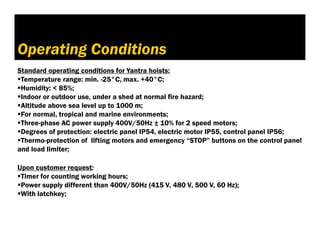

Operating Conditions
Standard operating conditions for Yantra hoists:
Temperature range: min. -25°C, max. +40°C;
Humidity: < 85%;
Indoor or outdoor use, under a shed at normal fire hazard;
Altitude above sea level up to 1000 m;
For normal, tropical and marine environments;
Three-phase AC power supply 400V/50Hz ± 10% for 2 speed motors;
Degrees of protection: electric panel IP54, electric motor IP55, control panel IP56;
Thermo-protection of lifting motors and emergency “STOP” buttons on the control panel
and load limiter;
Upon customer request:
Timer for counting working hours;
Power supply different than 400V/50Hz (415 V, 480 V, 500 V, 60 Hz);
With latchkey;

14. 4. Обслужване и поддръжка

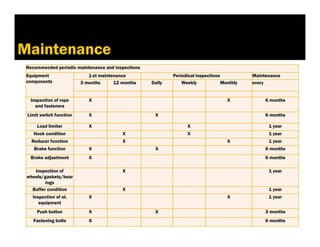

Maintenance
Recommended periodic maintenance and inspections
Equipment
components
1-st maintenance Periodical inspections Maintenance
3 months 12 months Daily Weekly Monthly every
Inspection of rope
and fasteners
X X 6 months
Limit switch function X X 6 months
Load limiter X X 1 year
Hook condition X X 1 year
Reducer function X X 1 year
Brake function X X 6 months
Brake adjustment X 6 months
Inspection of
wheels/gaskets/bear
ings
X 1 year
Buffer condition X 1 year
Inspection of el.
equipment
X X 1 year
Push button X X 3 months
Fastening bolts X 6 months

15. Services

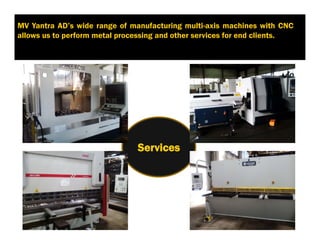

5. УслугиMV Yantra AD’s wide range of manufacturing multi-axis machines with CNC
allows us to perform metal processing and other services for end clients.

16. Services

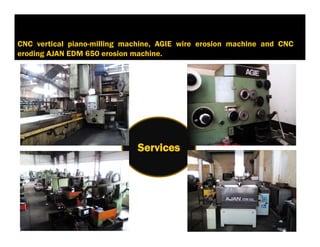

CNC vertical piano-milling machine, AGIE wire erosion machine and CNC
eroding AJAN EDM 650 erosion machine.
У5. слуги

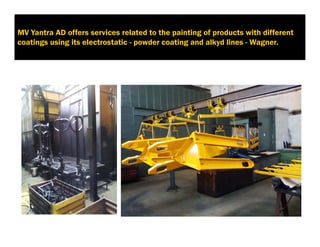

17. MV Yantra AD offers services related to the painting of products with different
coatings using its electrostatic - powder coating and alkyd lines - Wagner.
5. Услуги

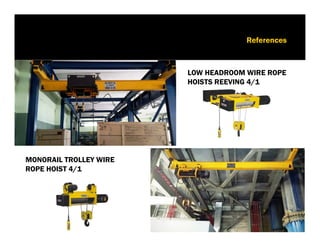

18. 6. Референции
Изпълнение в ТЕЦ „ Контур Глобал“
LOW HEADROOM WIRE ROPE
HOISTS REEVING 4/1
MONORAIL TROLLEY WIRE
ROPE HOIST 4/1
6. References

19. 6. Референции
Изпълнение в ТЕЦ „ Контур Глобал“
6. References

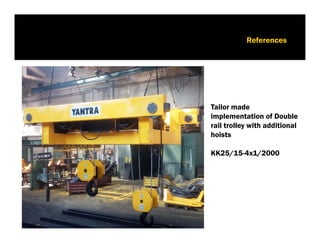

Tailor made
implementation of Double
rail trolley with additional
hoists
КК25/15-4х1/2000

20. Donika Koleva
Sales
+359 885 003 014
donika.koleva@nbi.bg
www.yantra.bg
Bulgaria
5300 Gabrovo
Neofit Rilski Str. 1
fax: +359 66 801 292
tel.: +359 66 801 306
yantra@yantra.bg
