1. WSO2 Container Strategy
Imesh Gunaratne, WSO2

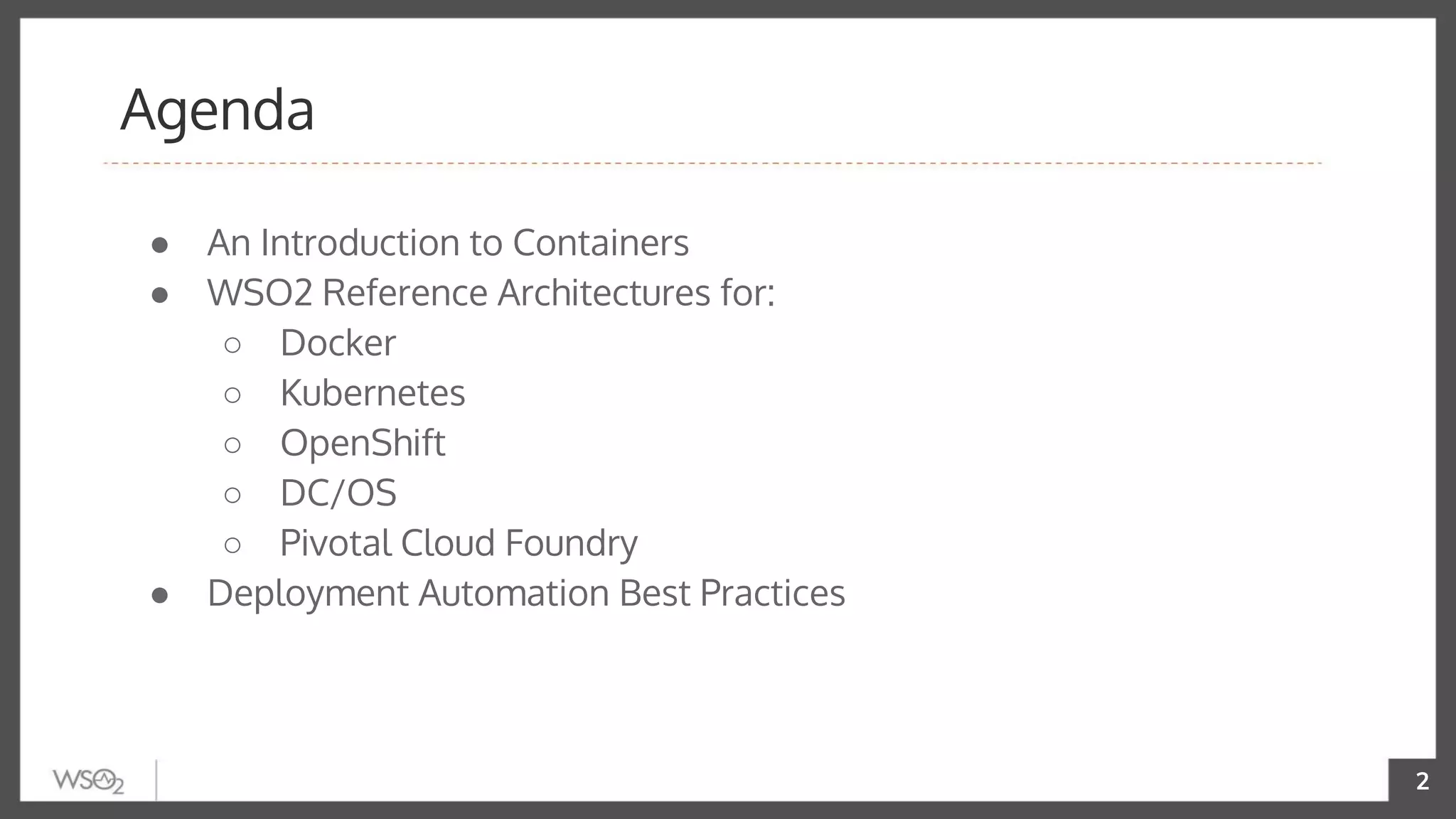

2. 2
● An Introduction to Containers
● WSO2 Reference Architectures for:
○ Docker
○ Kubernetes
○ OpenShift
○ DC/OS
○ Pivotal Cloud Foundry
● Deployment Automation Best Practices
Agenda

3. An Introduction to Containers

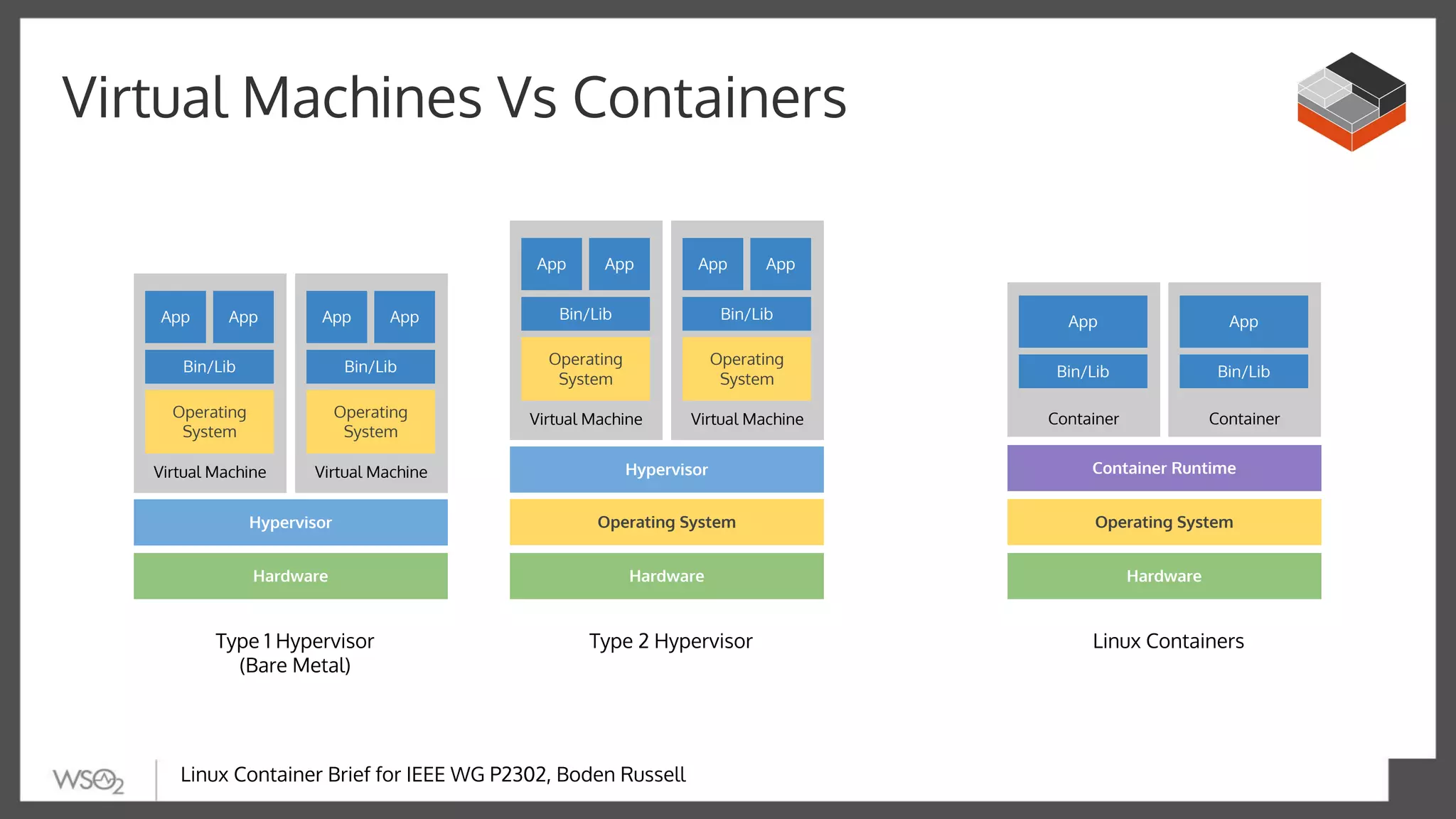

4. Linux Container Brief for IEEE WG P2302, Boden Russell
Hardware
Hypervisor
Virtual Machine
Operating
System
Bin/Lib
App App
Virtual Machine
Operating
System
Bin/Lib
App App
Hardware
Operating System
Hypervisor
Virtual Machine
Operating
System
Bin/Lib
App App
Virtual Machine
Operating
System
Bin/Lib
App App
Type 1 Hypervisor
(Bare Metal)
Type 2 Hypervisor
Hardware
Operating System
Linux Containers
Container
Bin/Lib
App
Container
Bin/Lib
App
Container Runtime
Virtual Machines Vs Containers

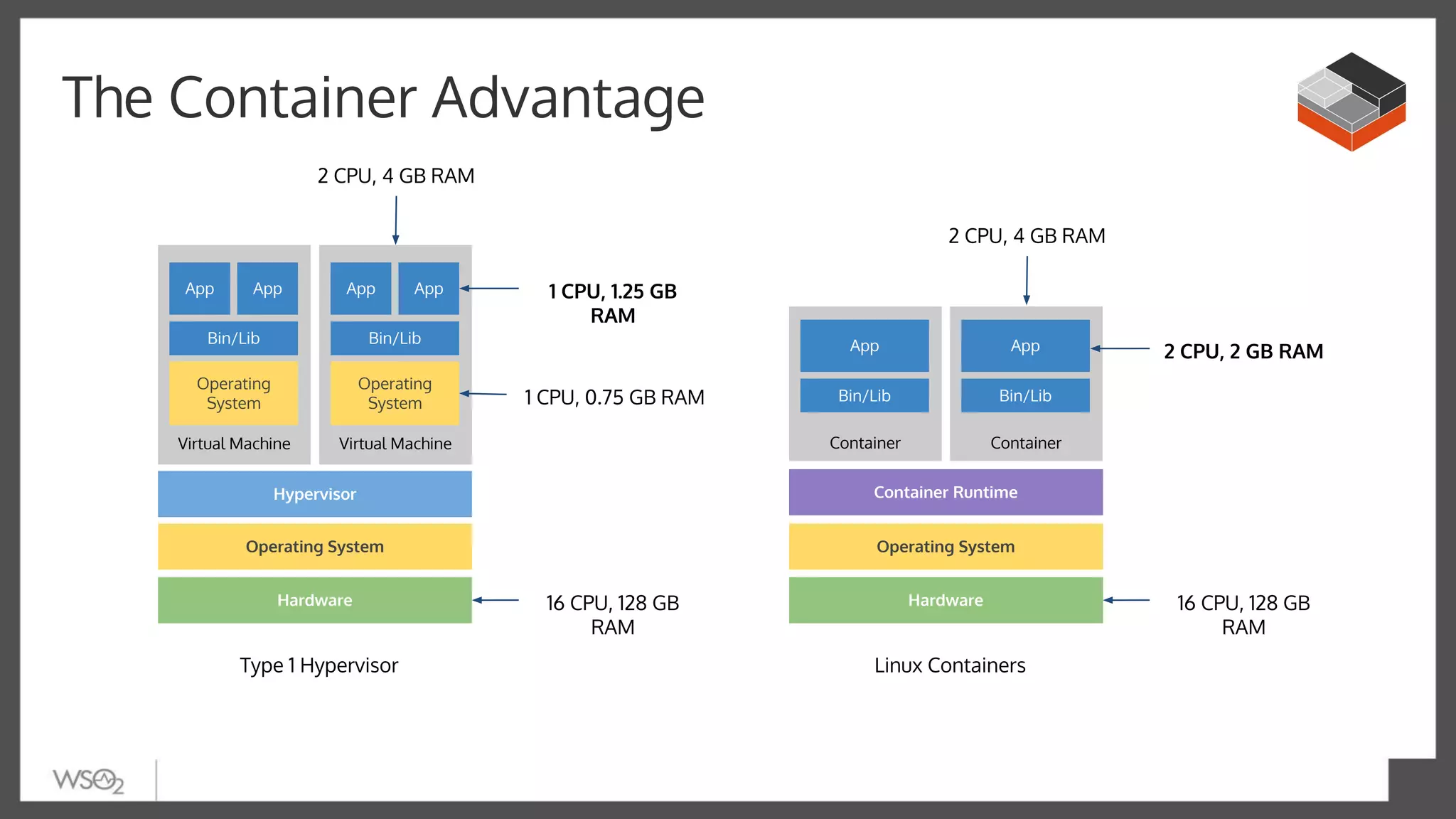

5. The Container Advantage
Hardware
Hypervisor
Virtual Machine
Operating
System
Bin/Lib
App App
Virtual Machine
Operating
System
Bin/Lib
App App
Type 1 Hypervisor
Hardware
Operating System
Linux Containers
Container
Bin/Lib
App
Container
Bin/Lib
App
16 CPU, 128 GB
RAM
2 CPU, 4 GB RAM
1 CPU, 1.25 GB
RAM
1 CPU, 0.75 GB RAM
16 CPU, 128 GB
RAM
2 CPU, 4 GB RAM
2 CPU, 2 GB RAM
Container Runtime
Operating System

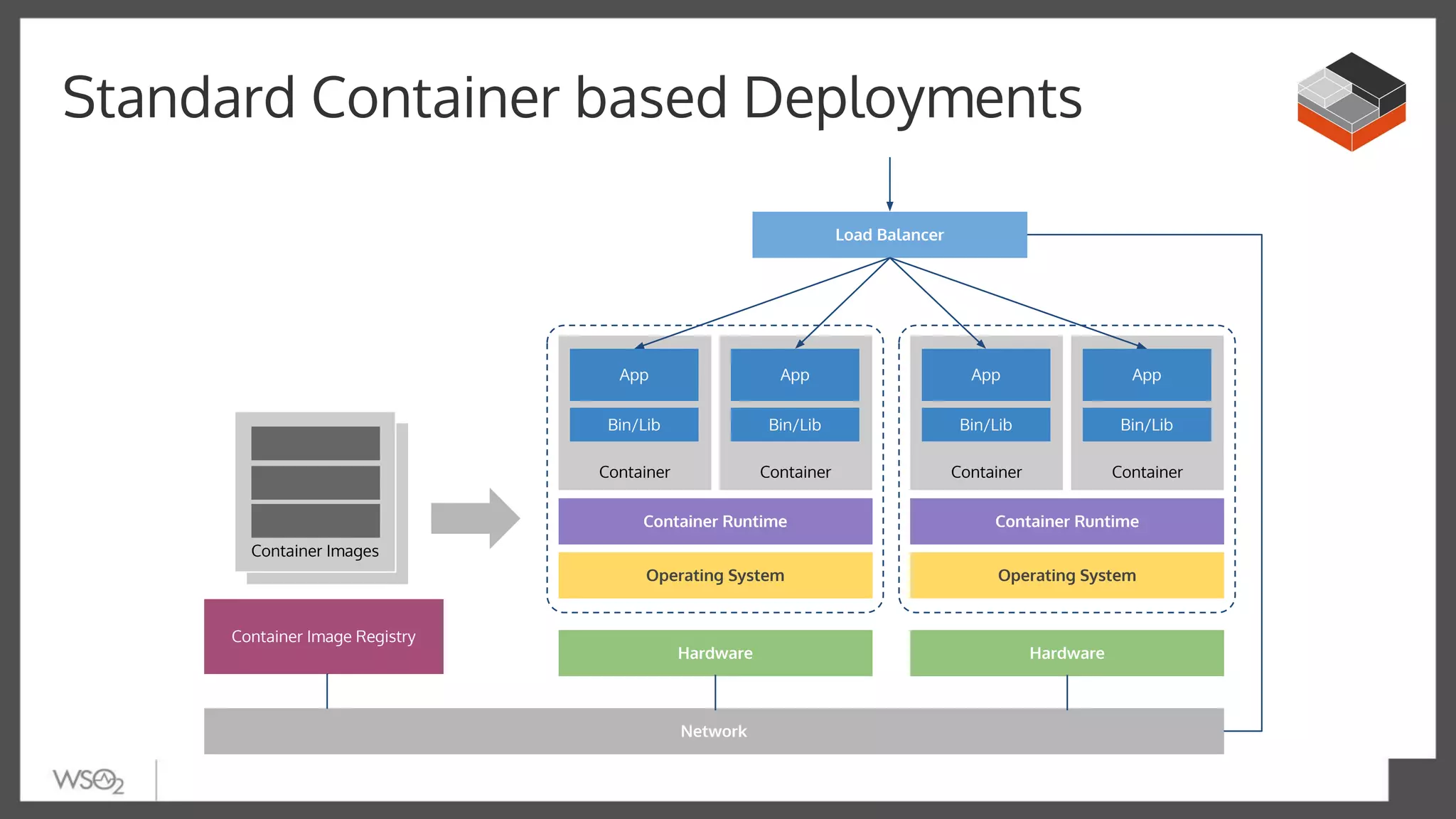

6. Container Image
Container Images
Hardware
Operating System
Container
Bin/Lib
App
Container
Bin/Lib
App
Container Runtime
Container Image Registry
Operating System
Container
Bin/Lib
App
Container
Bin/Lib
App
Container Runtime
Load Balancer
Hardware
Network
Standard Container based Deployments

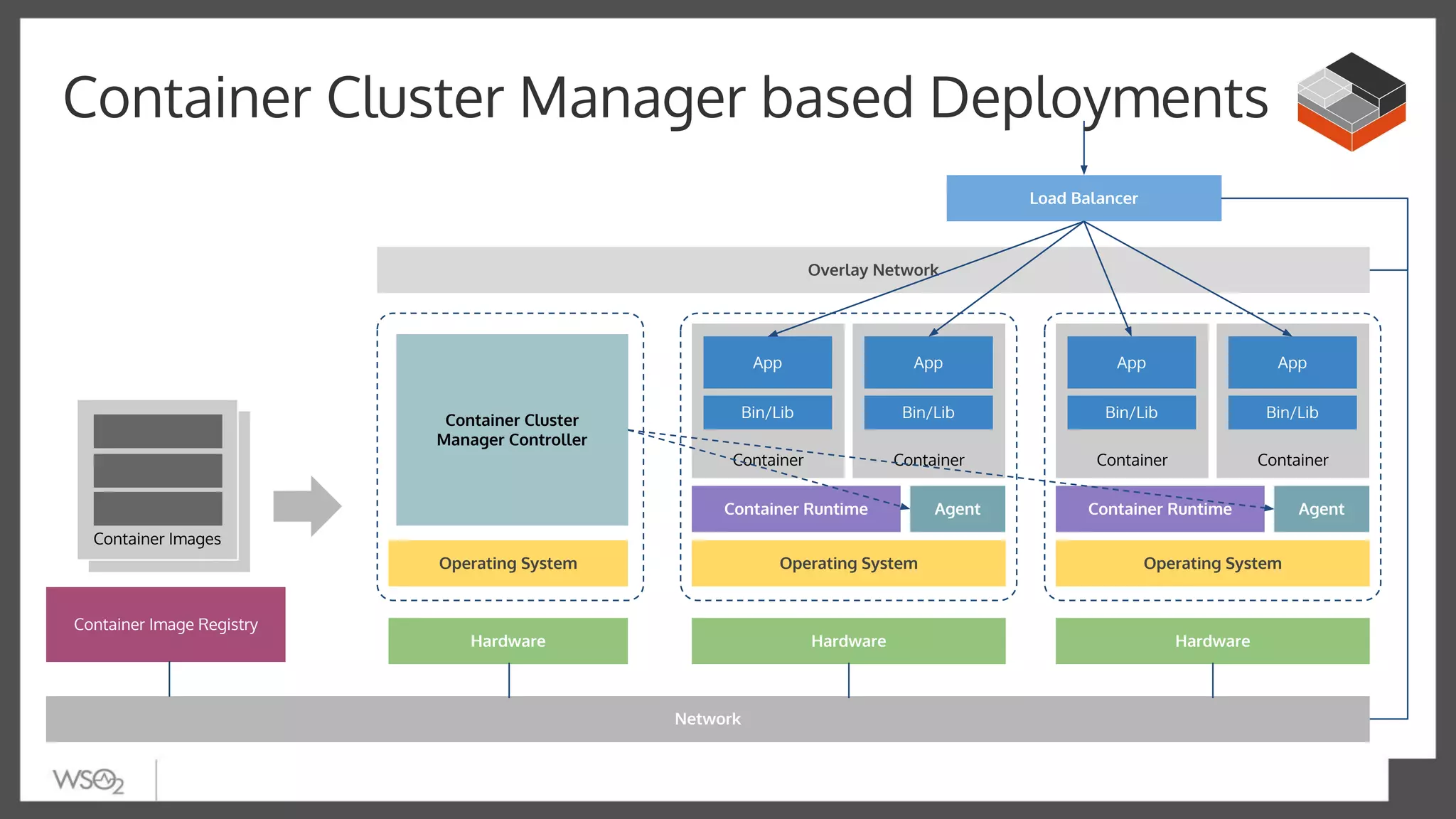

7. Overlay Network
Container Image
Container Images
Hardware
Operating System
Container
Bin/Lib
App
Container
Bin/Lib
App
Container Runtime
Container Image Registry
Operating System
Container
Bin/Lib
App
Container
Bin/Lib
App
Load Balancer
Hardware
Network
Hardware
Operating System
Container Cluster
Manager Controller
Agent Container Runtime Agent
Container Cluster Manager based Deployments

8. WSO2 Reference Architecture
for Docker

9. WSO2 Reference Architecture for Docker
C 1 C 2 C 3 C 4 C m
DB 1 DB 2 DB X
Persistent Volume
Container Registry
Container Host 1 Container Host 2 Container Host n
Load Balancer

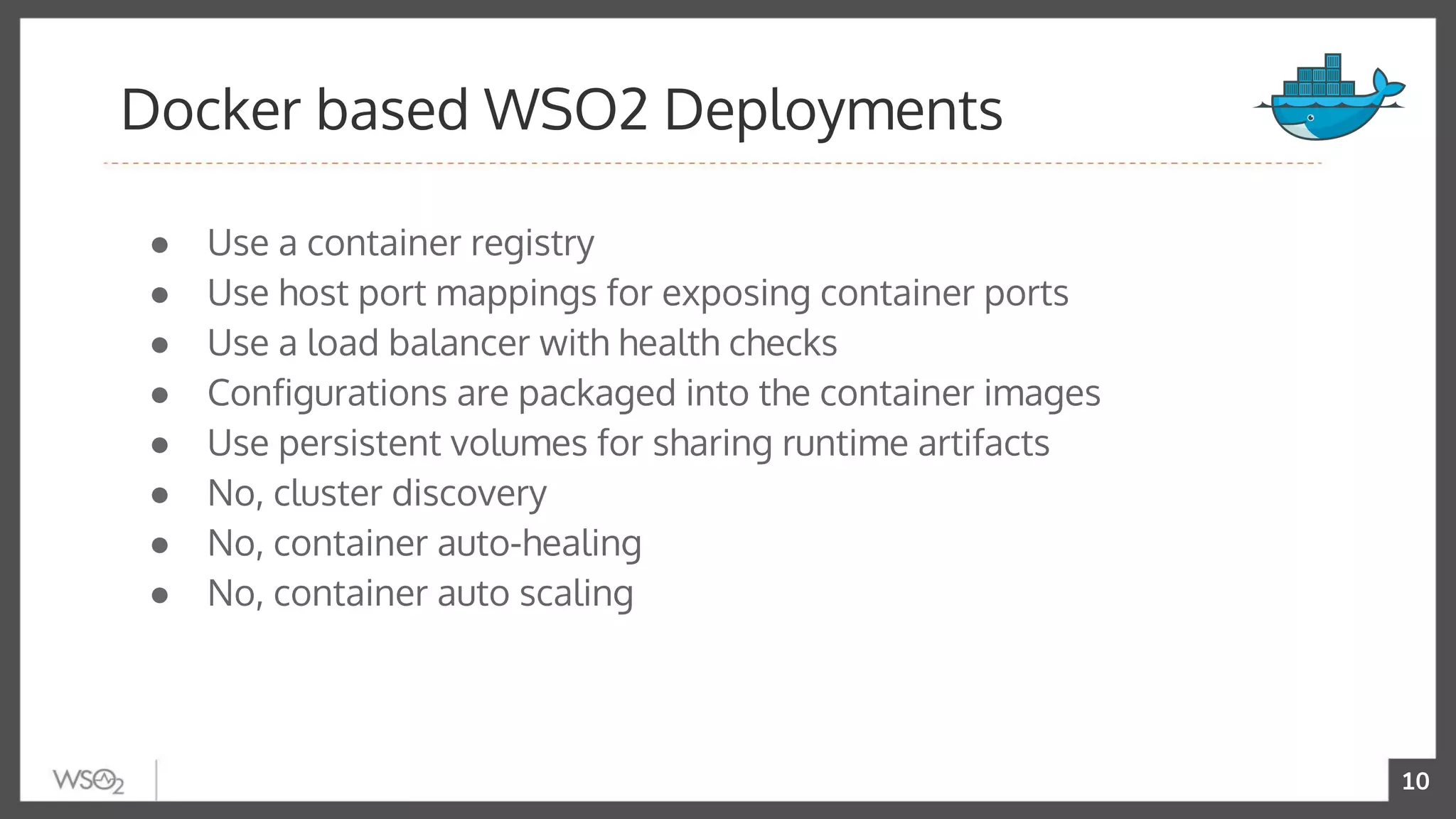

10. 10
● Use a container registry
● Use host port mappings for exposing container ports
● Use a load balancer with health checks
● Configurations are packaged into the container images
● Use persistent volumes for sharing runtime artifacts
● No, cluster discovery
● No, container auto-healing
● No, container auto scaling
Docker based WSO2 Deployments

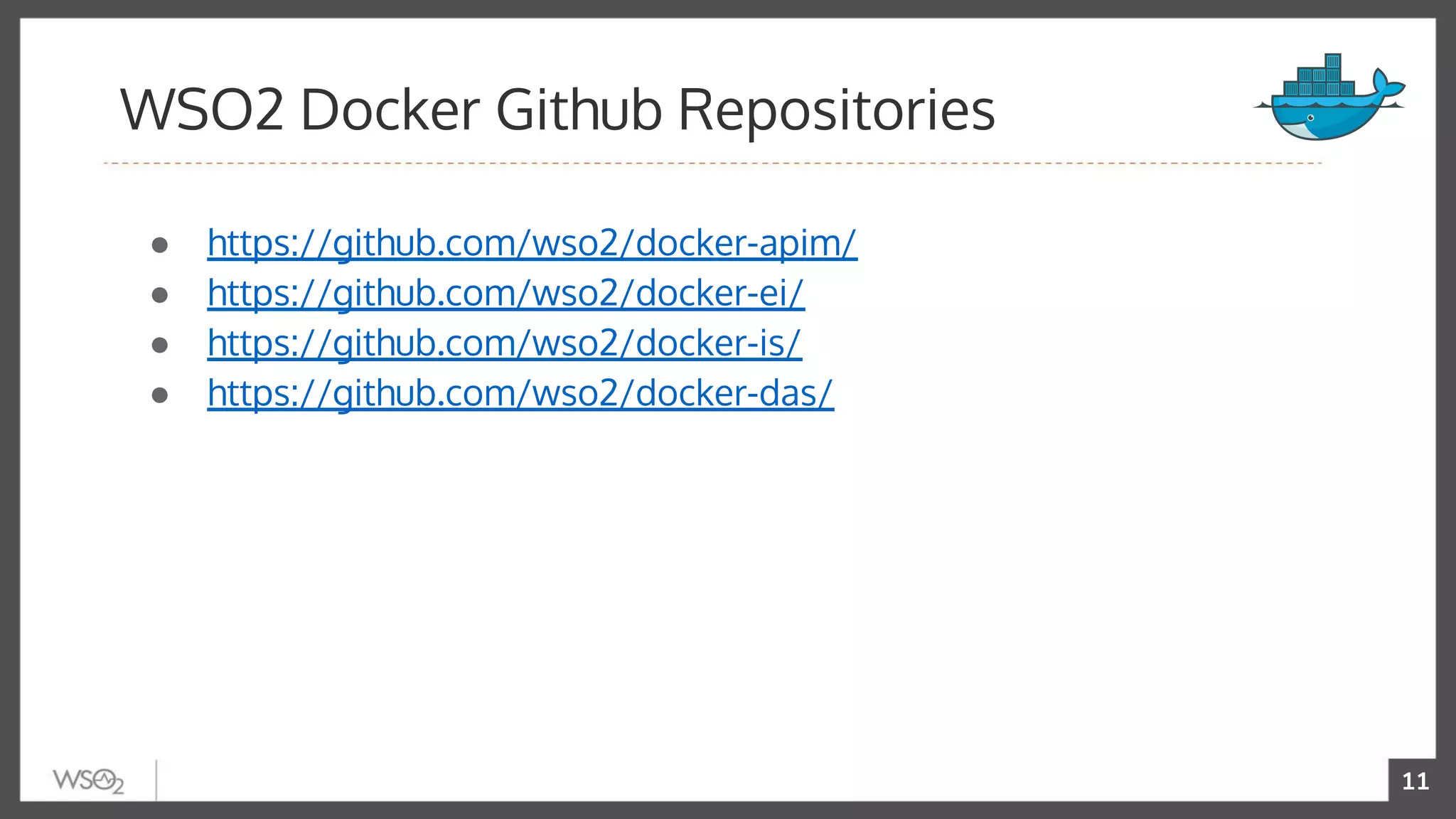

11. 11
● https://github.com/wso2/docker-apim/
● https://github.com/wso2/docker-ei/
● https://github.com/wso2/docker-is/
● https://github.com/wso2/docker-das/
WSO2 Docker Github Repositories

12. WSO2 Reference Architecture
for Kubernetes

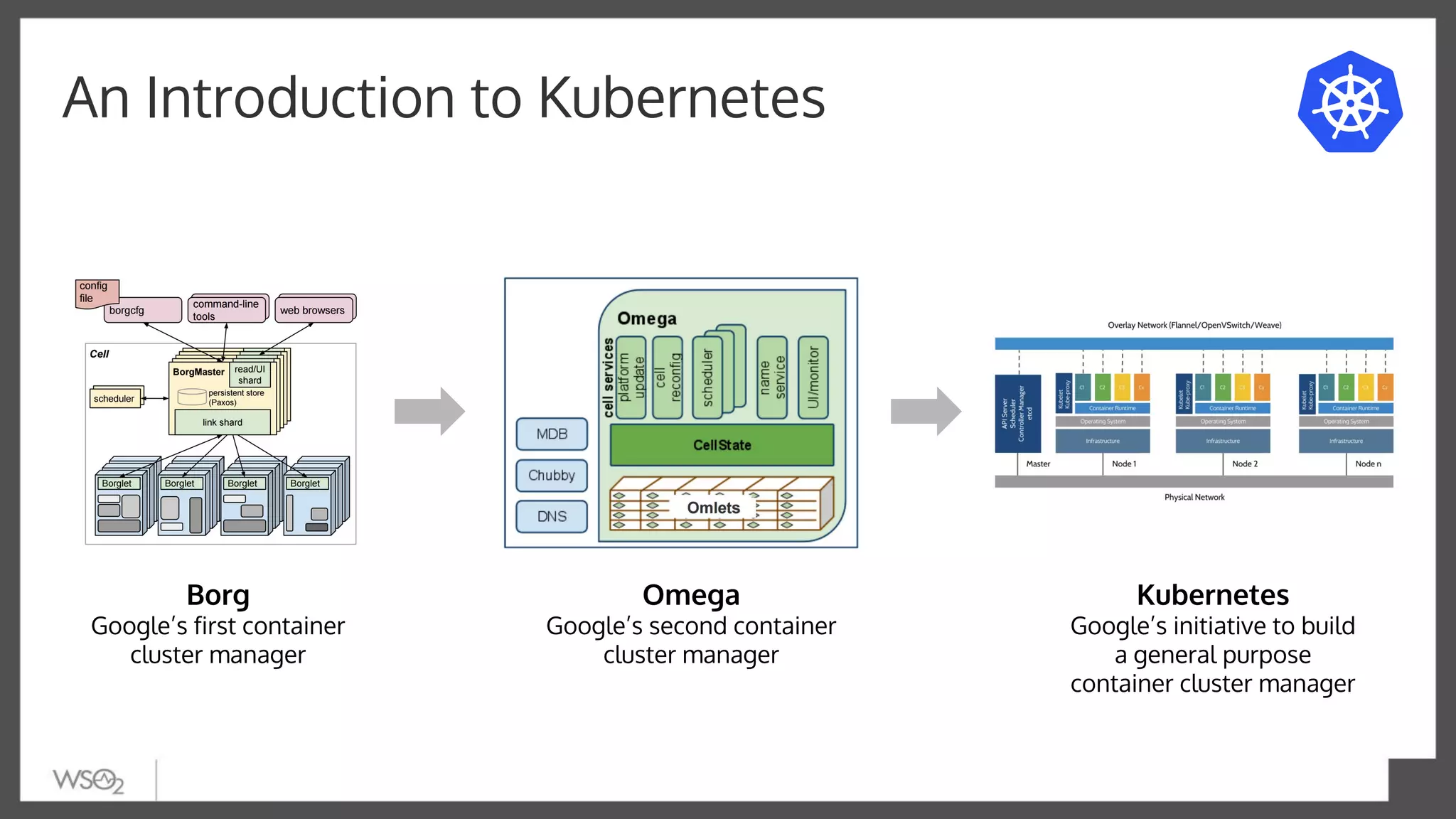

13. An Introduction to Kubernetes
Borg
Google’s first container
cluster manager
Omega
Google’s second container
cluster manager
Kubernetes
Google’s initiative to build
a general purpose
container cluster manager

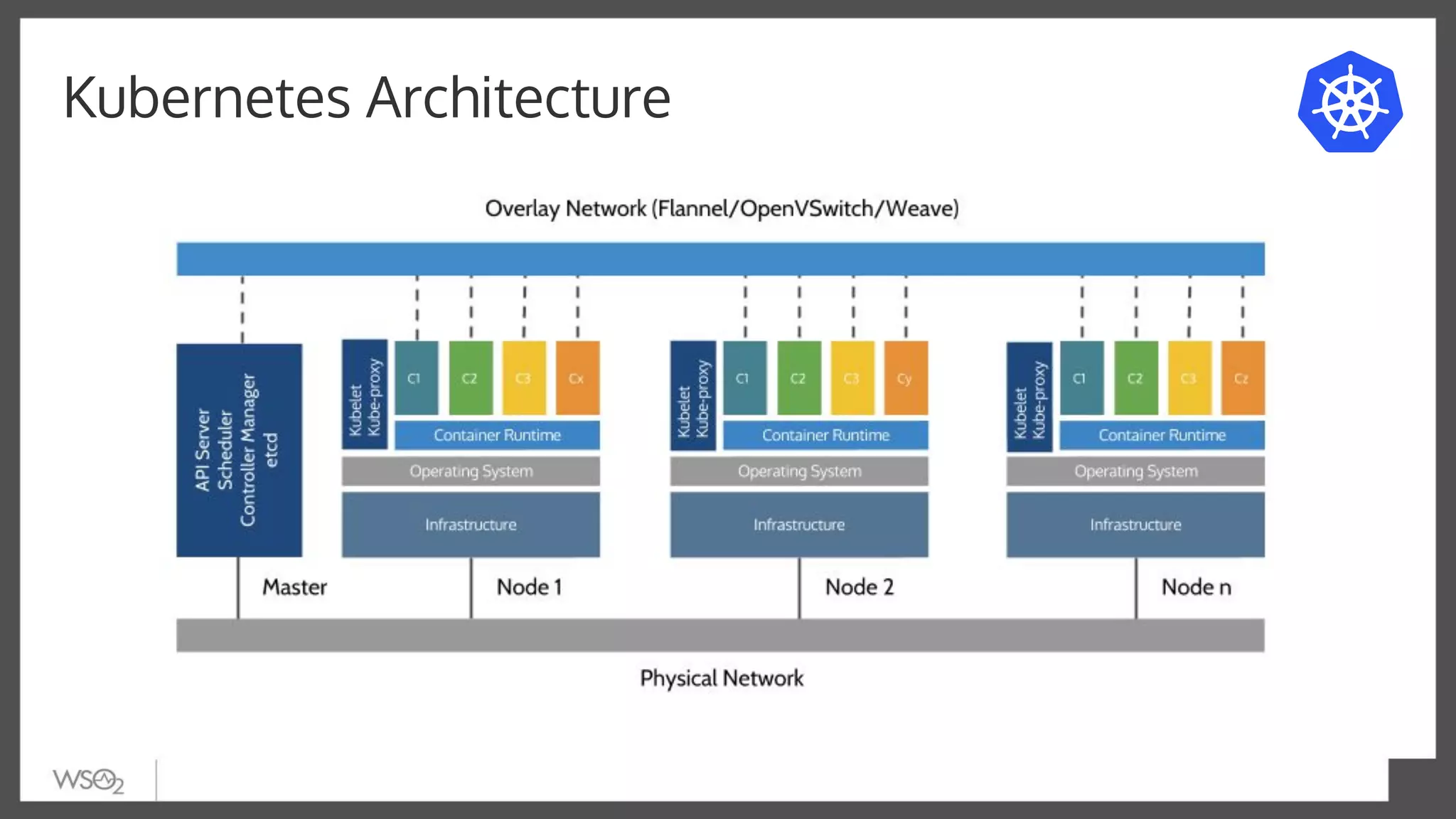

14. Kubernetes Architecture

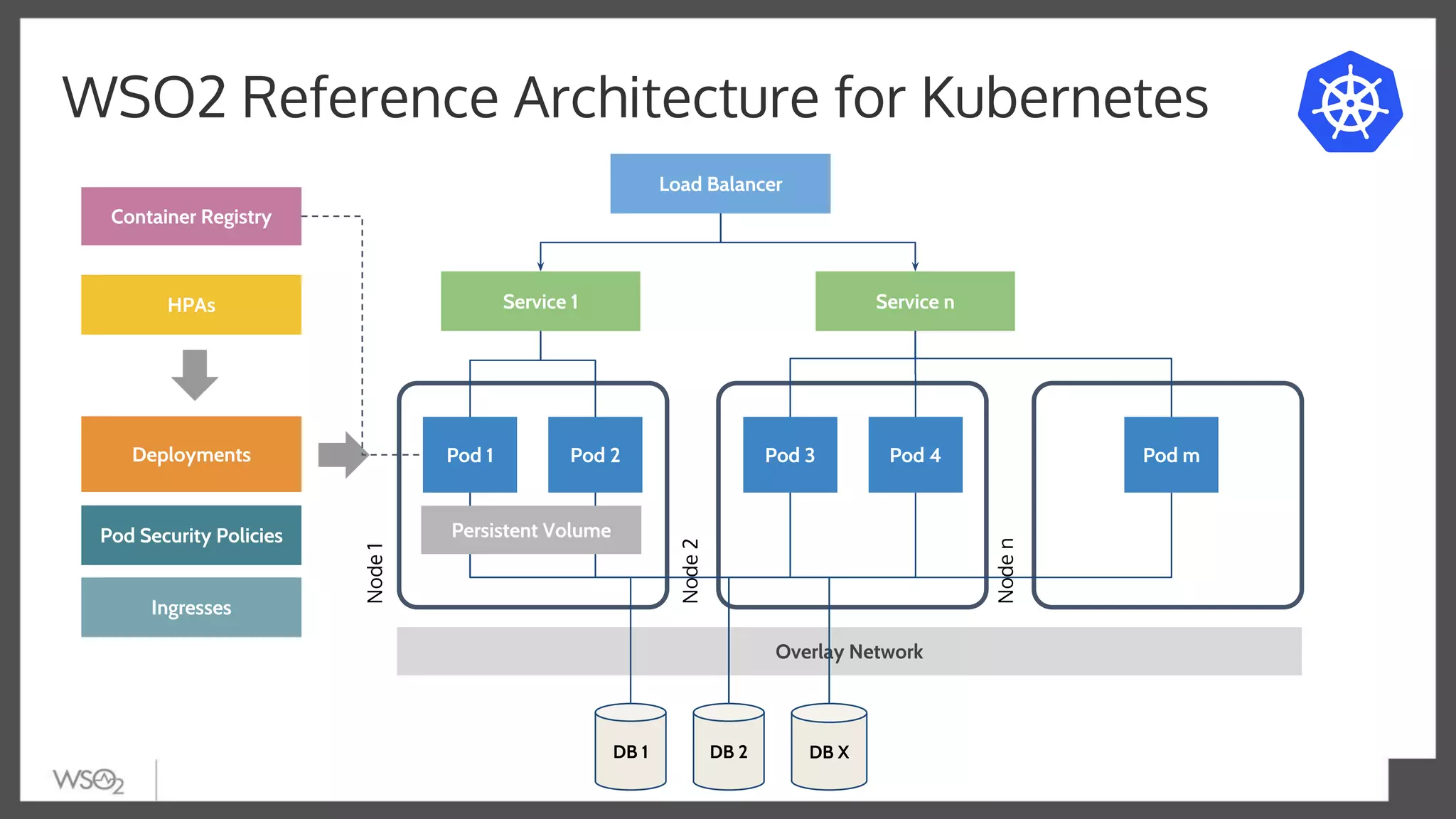

15. Overlay Network
WSO2 Reference Architecture for Kubernetes
Pod 1 Pod 2
Service 1
Pod 3 Pod 4 Pod m
Service n
Deployments
Load Balancer
DB 1 DB 2 DB X
Persistent Volume
HPAs
Pod Security Policies
Ingresses
Container Registry
Node1
Node2
Noden

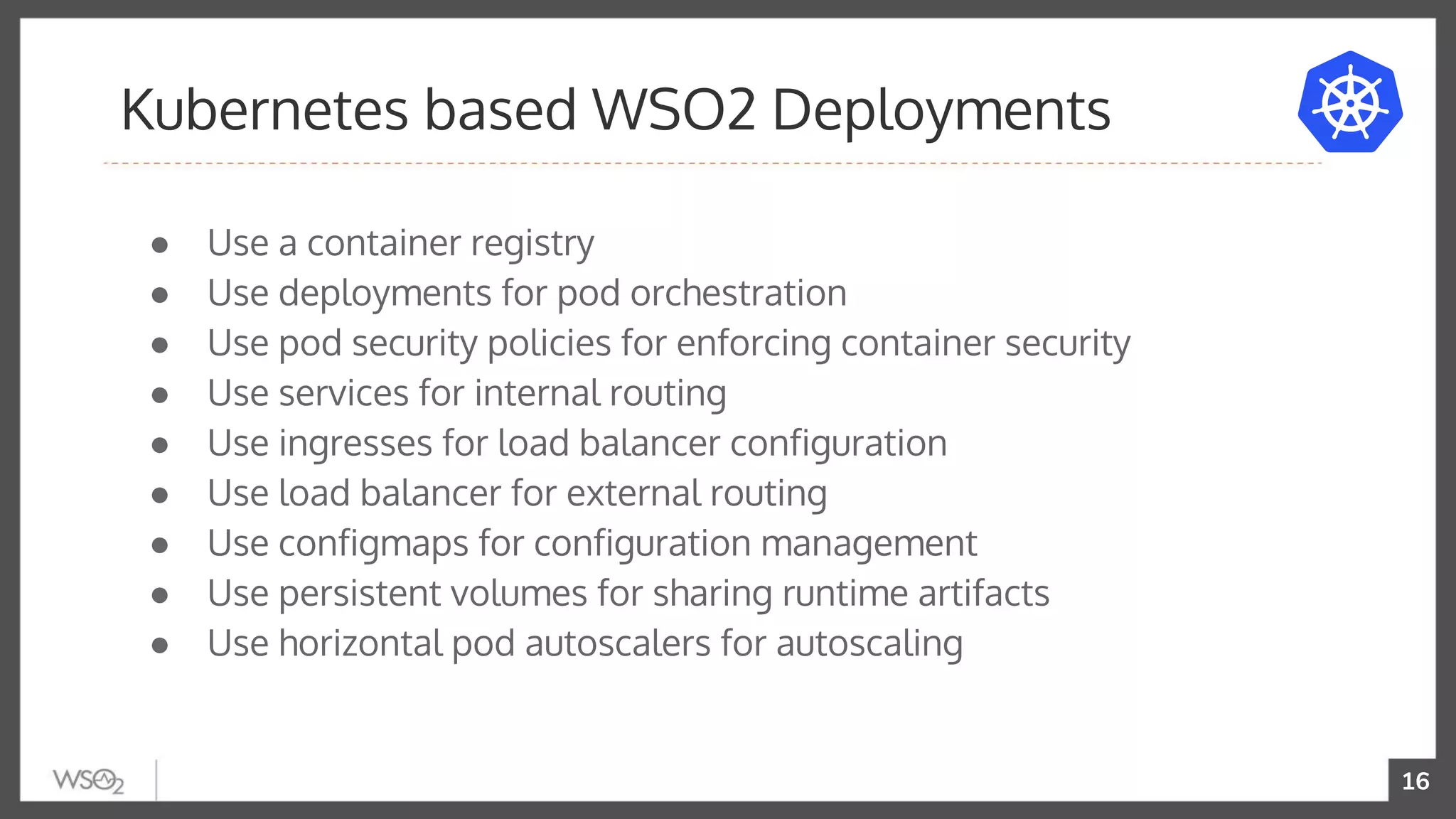

16. 16
● Use a container registry
● Use deployments for pod orchestration
● Use pod security policies for enforcing container security
● Use services for internal routing
● Use ingresses for load balancer configuration
● Use load balancer for external routing
● Use configmaps for configuration management
● Use persistent volumes for sharing runtime artifacts
● Use horizontal pod autoscalers for autoscaling
Kubernetes based WSO2 Deployments

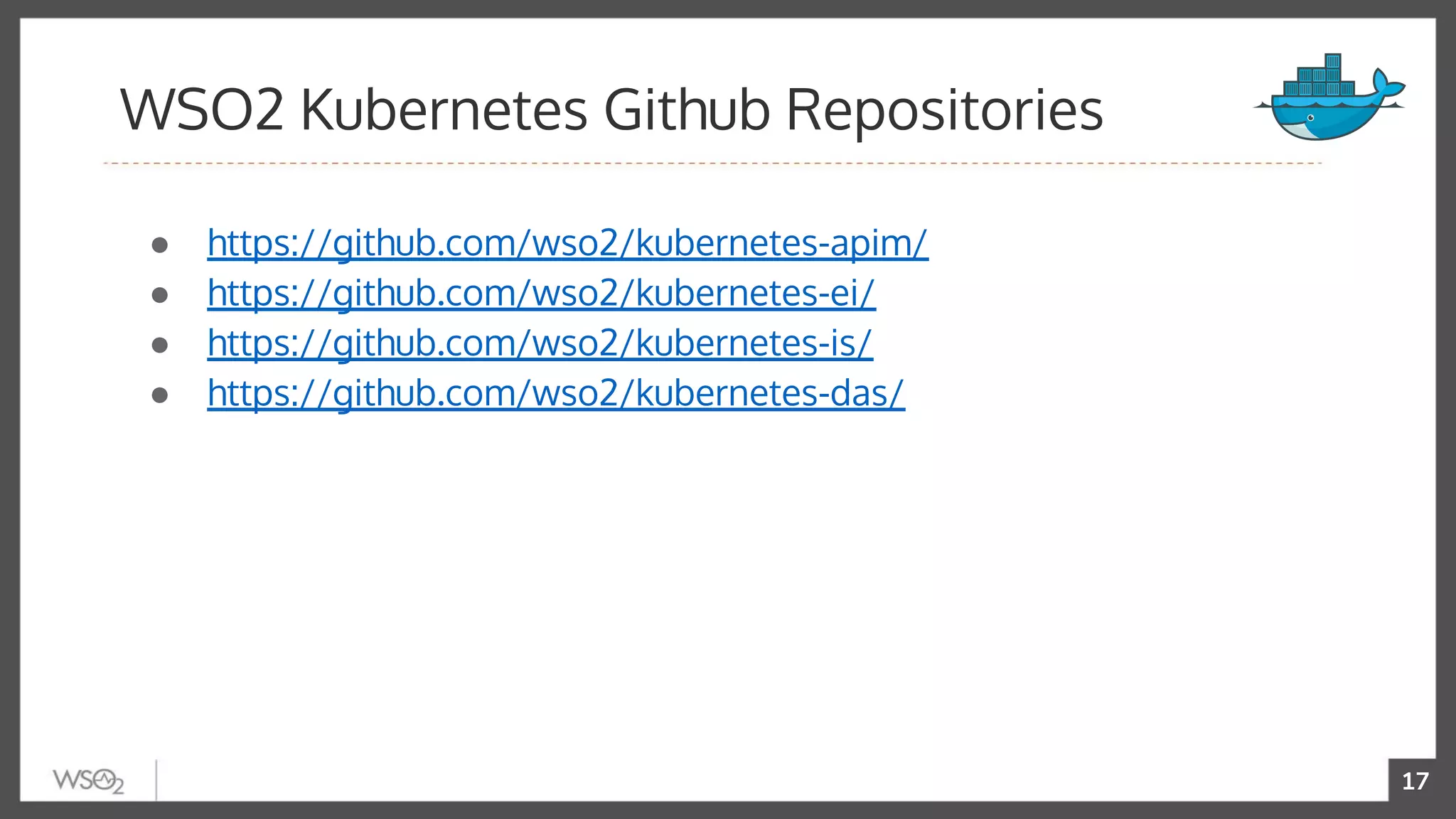

17. 17
● https://github.com/wso2/kubernetes-apim/
● https://github.com/wso2/kubernetes-ei/
● https://github.com/wso2/kubernetes-is/
● https://github.com/wso2/kubernetes-das/
WSO2 Kubernetes Github Repositories

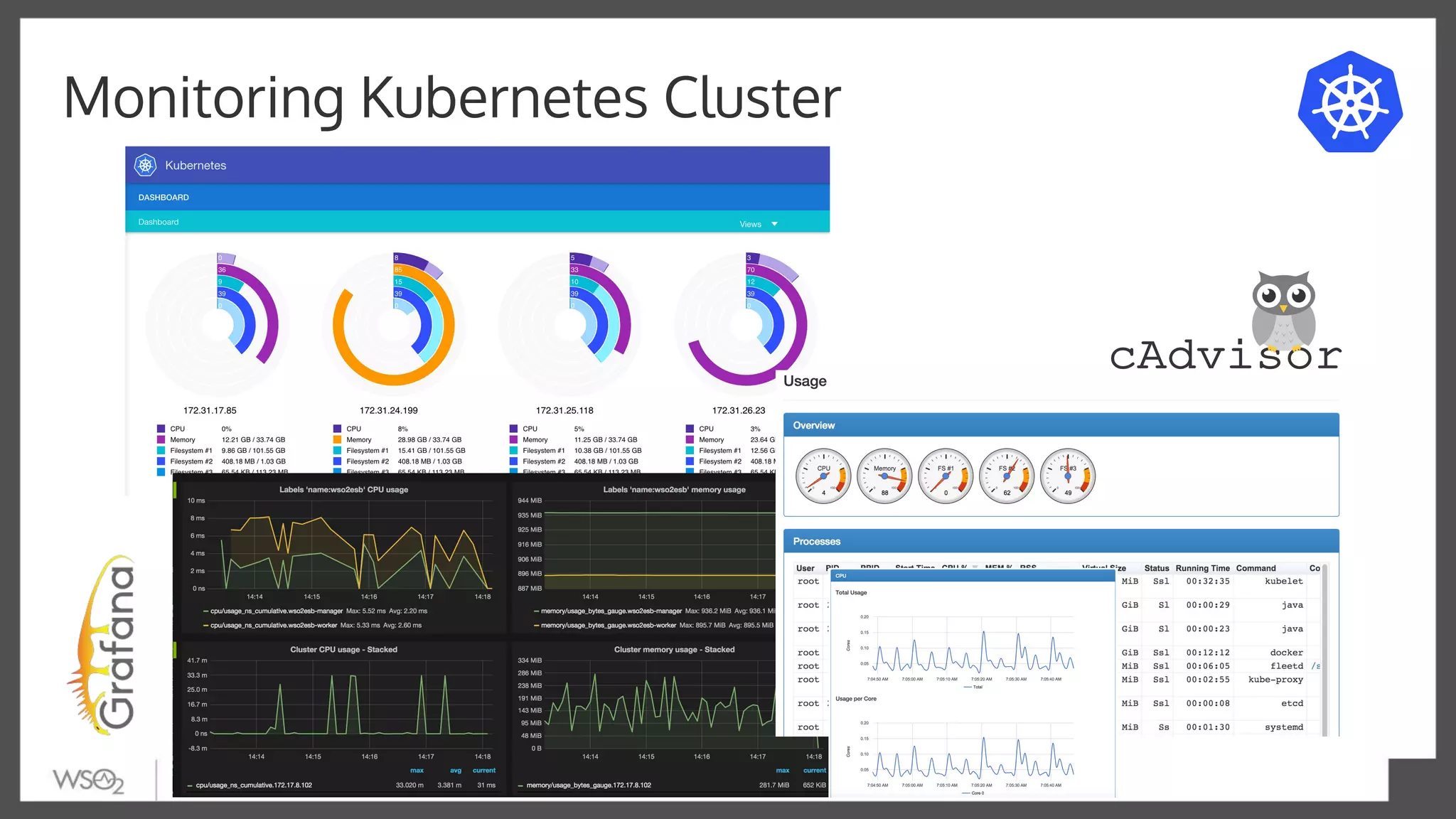

18. Monitoring Kubernetes Cluster

19. WSO2 Reference Architecture
for OpenShift

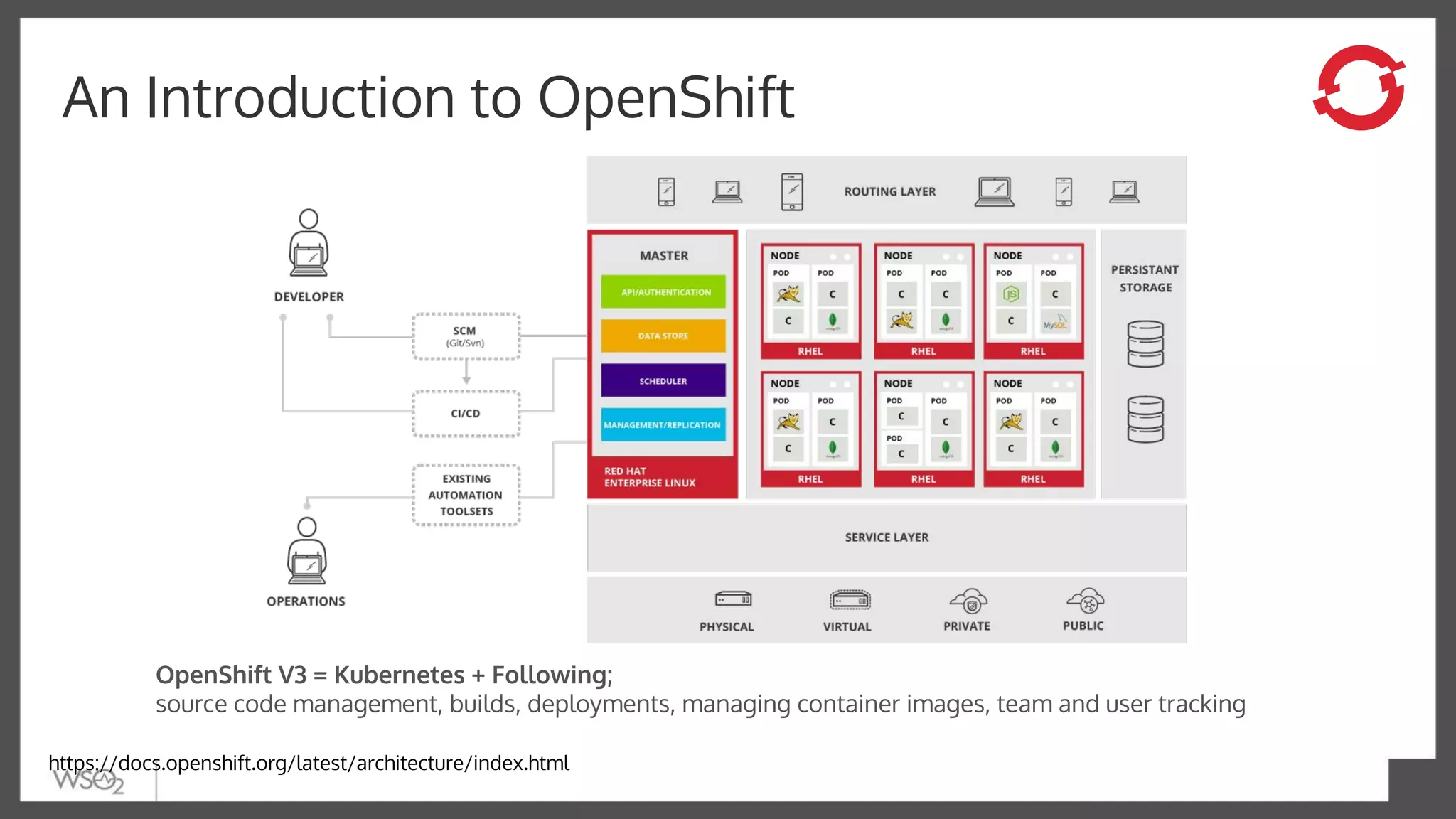

20. OpenShift V3 = Kubernetes + Following;
source code management, builds, deployments, managing container images, team and user tracking
https://docs.openshift.org/latest/architecture/index.html
An Introduction to OpenShift

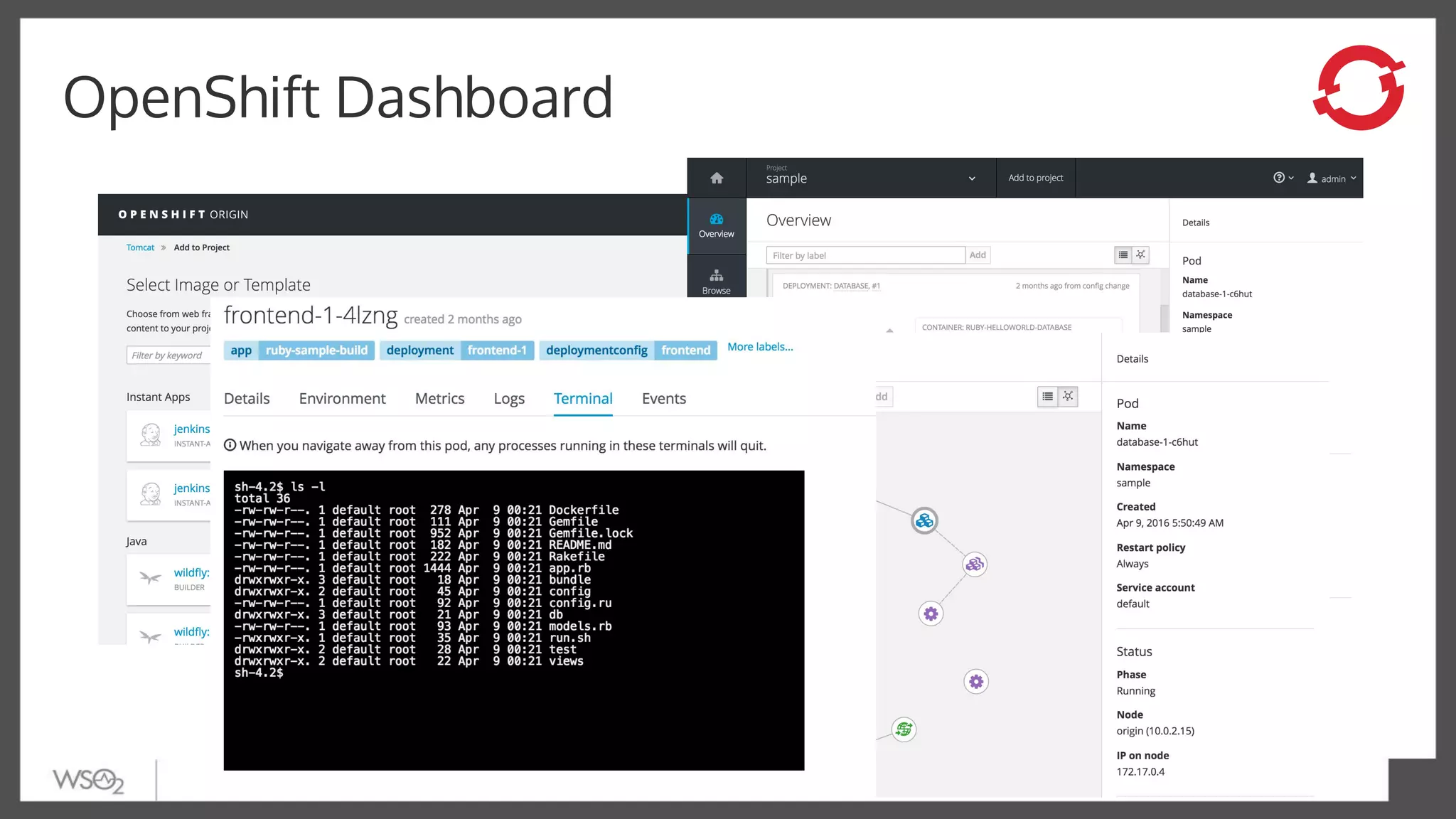

21. OpenShift Dashboard

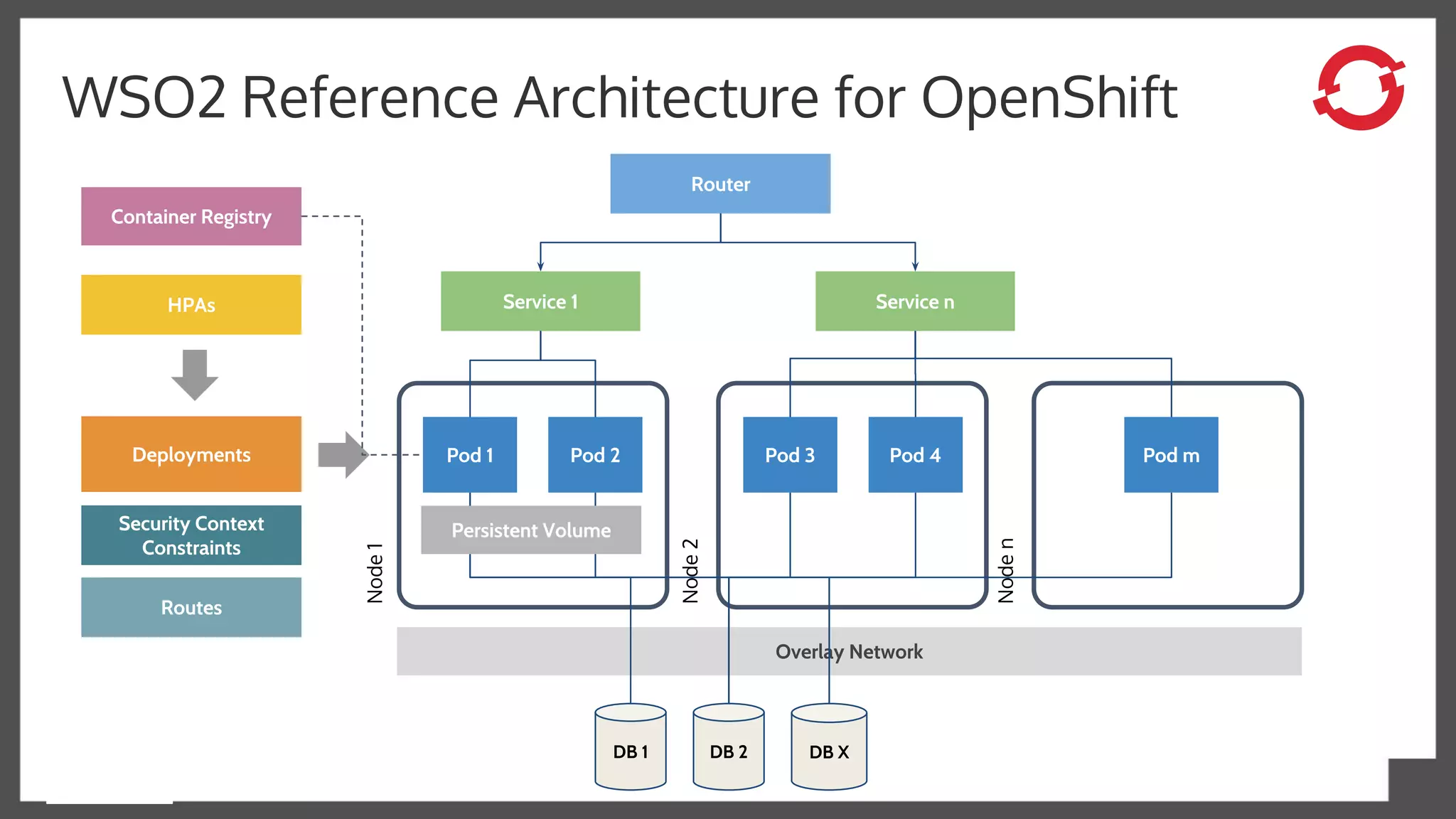

22. Overlay Network
WSO2 Reference Architecture for OpenShift
Pod 1 Pod 2
Service 1
Pod 3 Pod 4 Pod m
Service n
Deployments
Router
DB 1 DB 2 DB X
Persistent Volume
HPAs
Security Context
Constraints
Routes
Container Registry
Node1
Node2
Noden

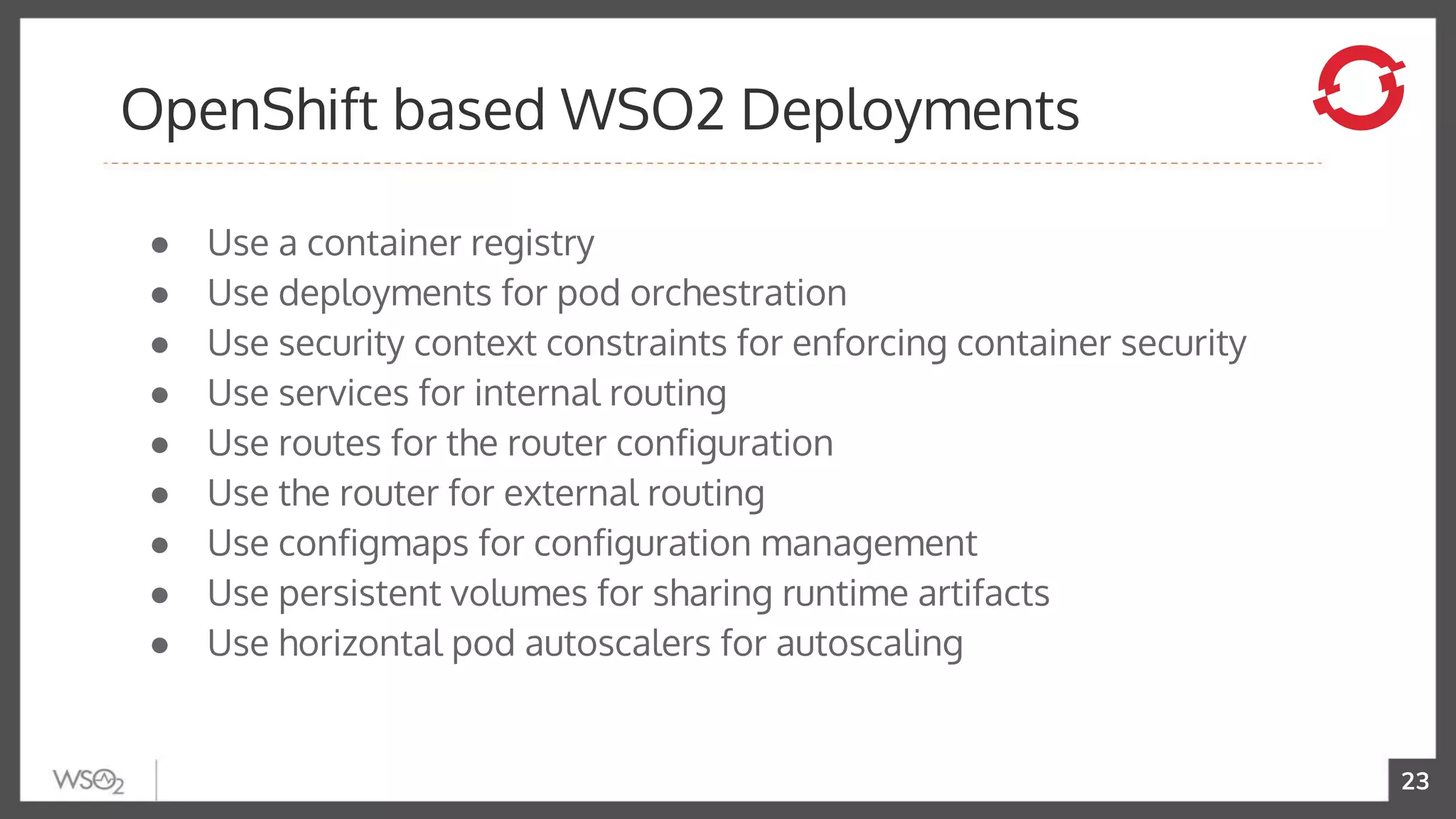

23. 23
● Use a container registry
● Use deployments for pod orchestration
● Use security context constraints for enforcing container security
● Use services for internal routing
● Use routes for the router configuration
● Use the router for external routing
● Use configmaps for configuration management
● Use persistent volumes for sharing runtime artifacts
● Use horizontal pod autoscalers for autoscaling
OpenShift based WSO2 Deployments

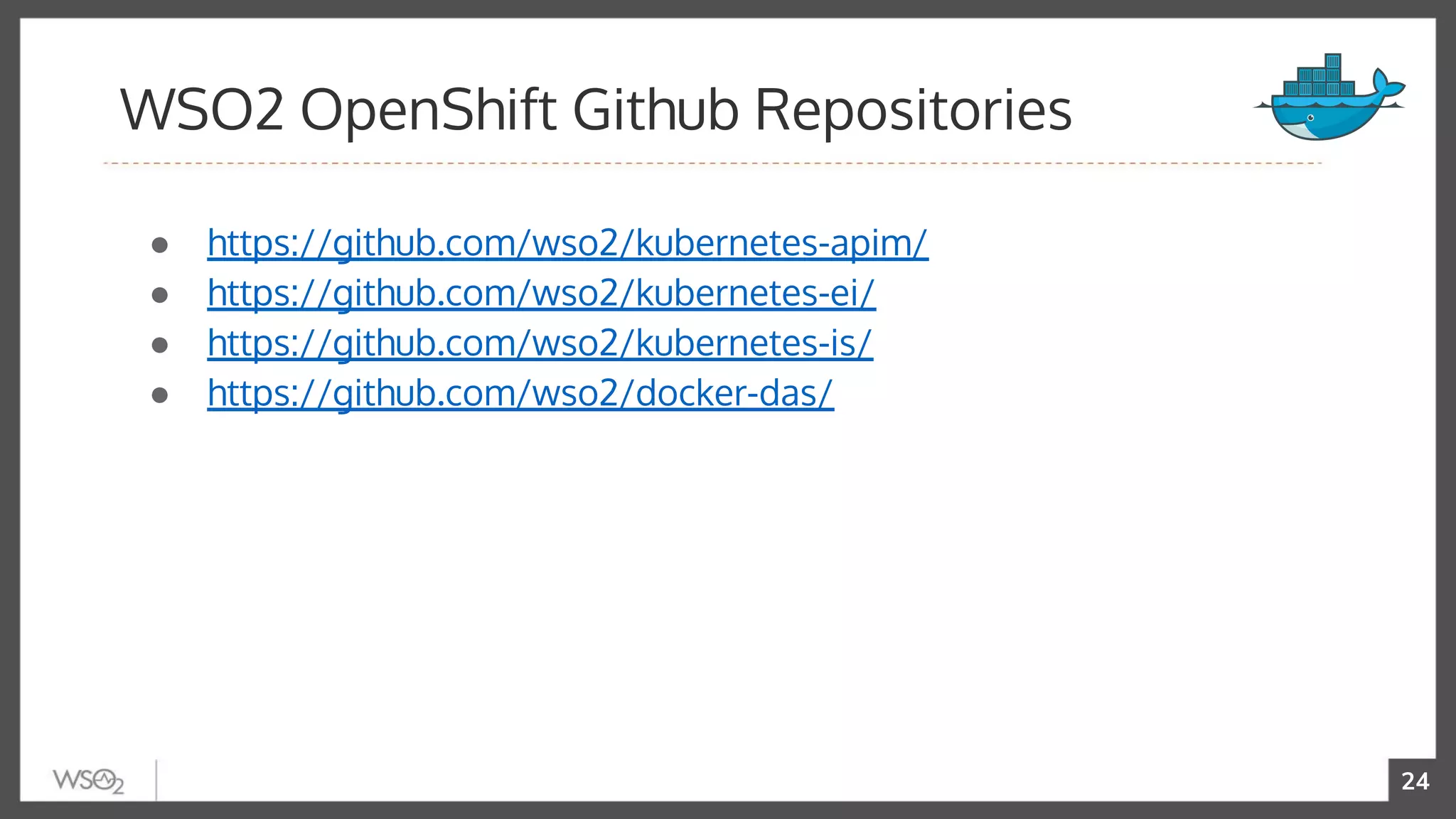

24. 24
● https://github.com/wso2/kubernetes-apim/
● https://github.com/wso2/kubernetes-ei/
● https://github.com/wso2/kubernetes-is/
● https://github.com/wso2/docker-das/
WSO2 OpenShift Github Repositories

25. WSO2 Reference Architecture
for DC/OS

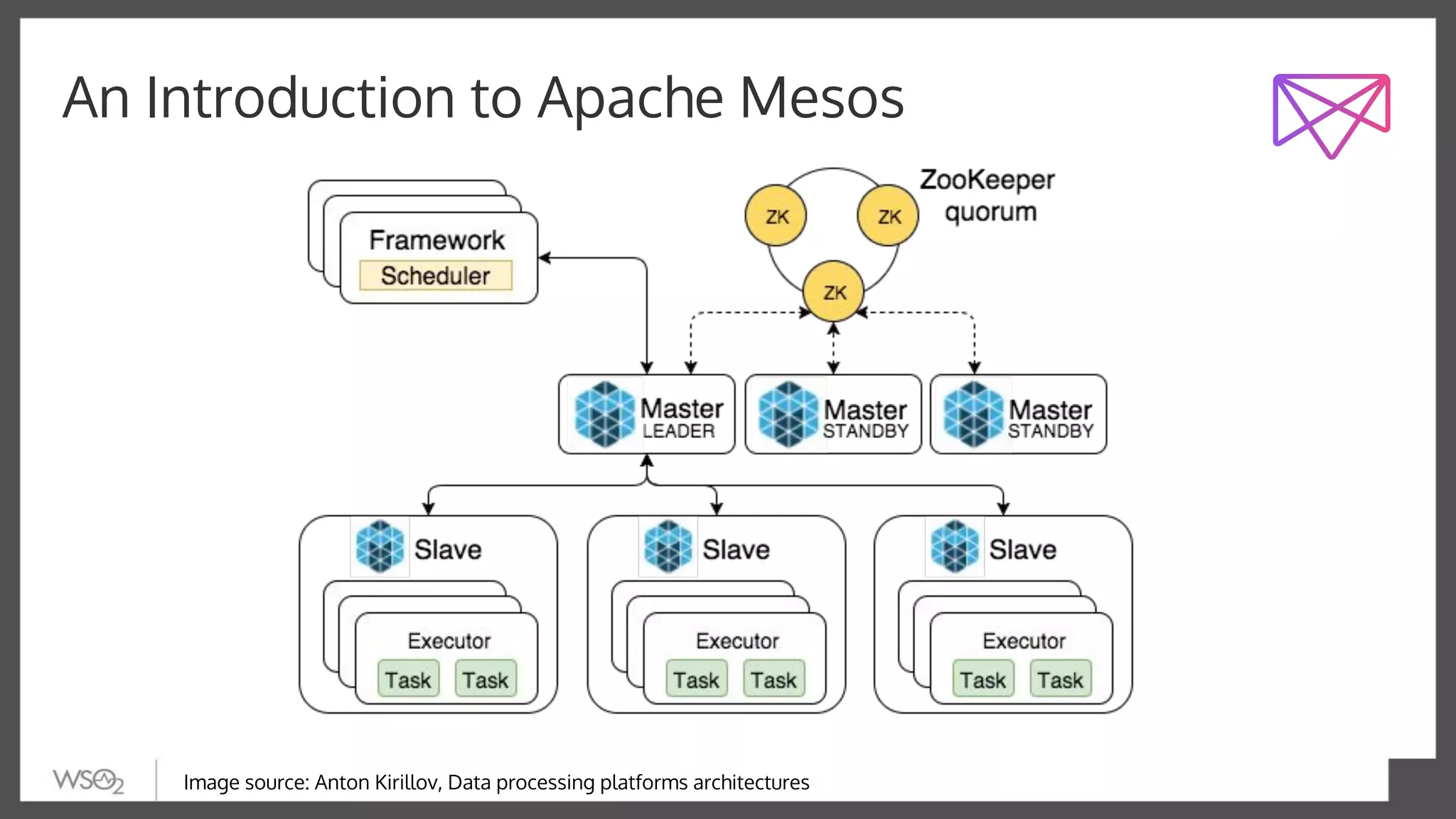

26. An Introduction to Apache Mesos
Image source: Anton Kirillov, Data processing platforms architectures

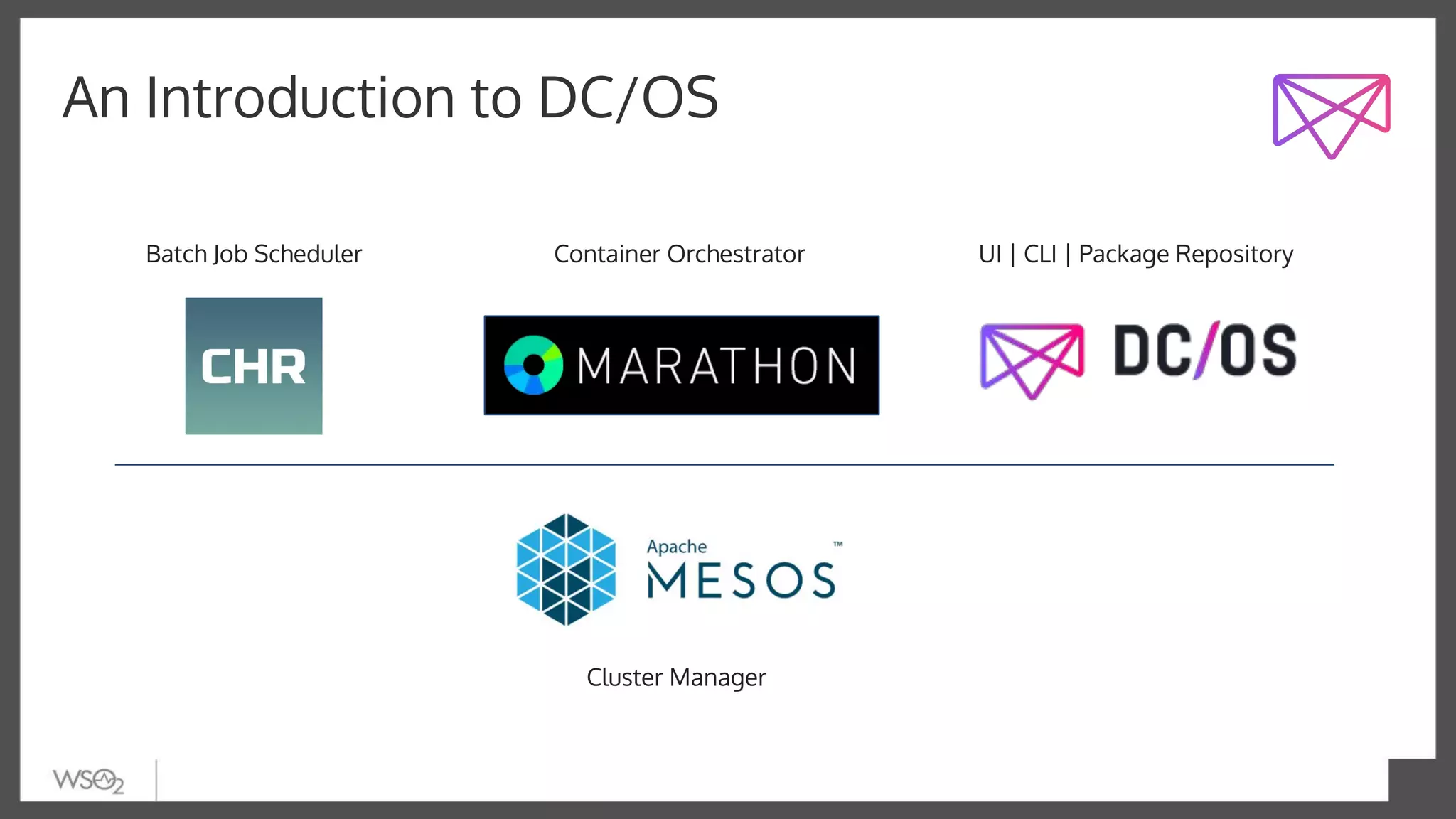

27. An Introduction to DC/OS
Cluster Manager
Container Orchestrator UI | CLI | Package RepositoryBatch Job Scheduler

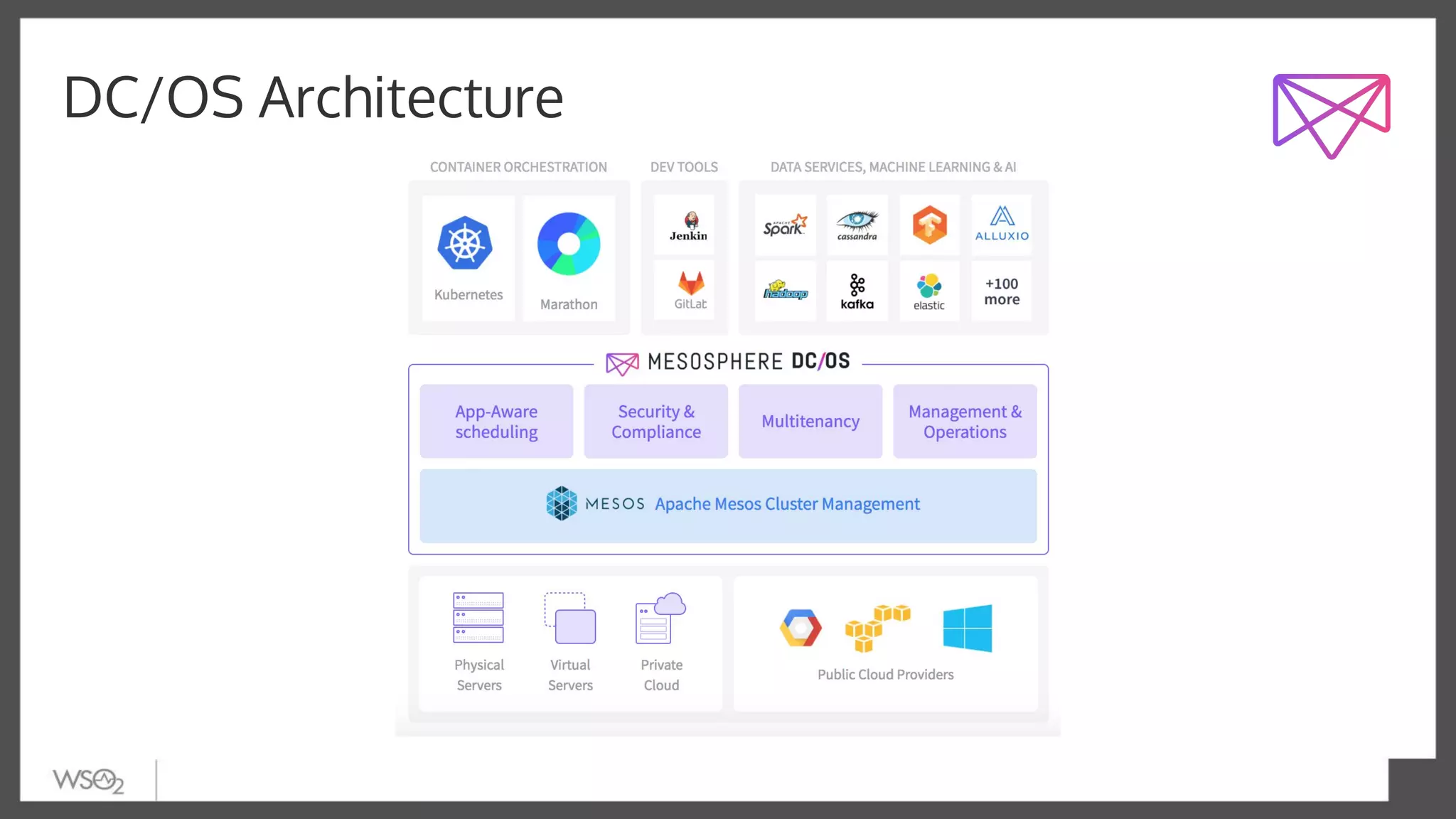

28. DC/OS Architecture

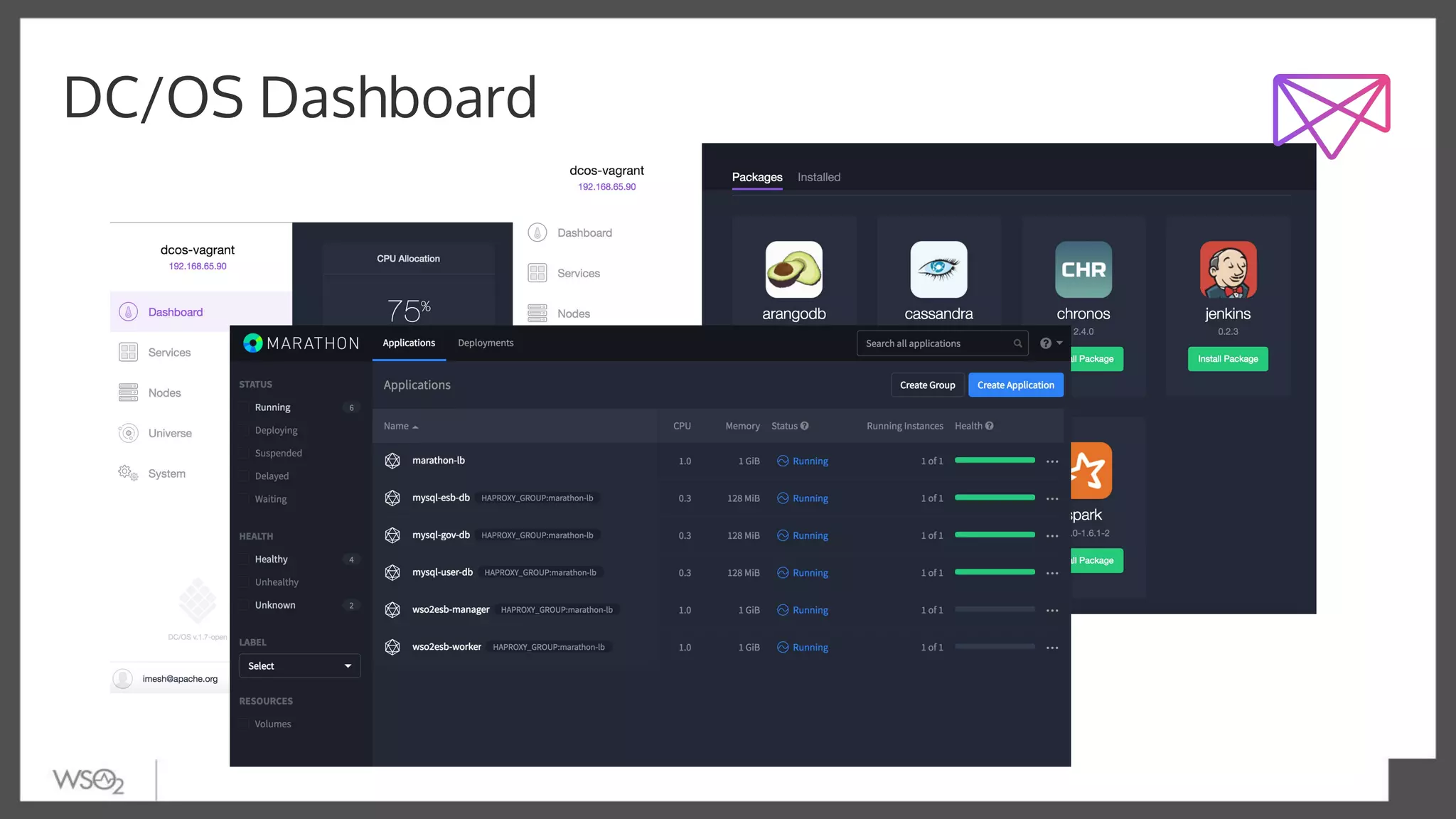

29. DC/OS Dashboard

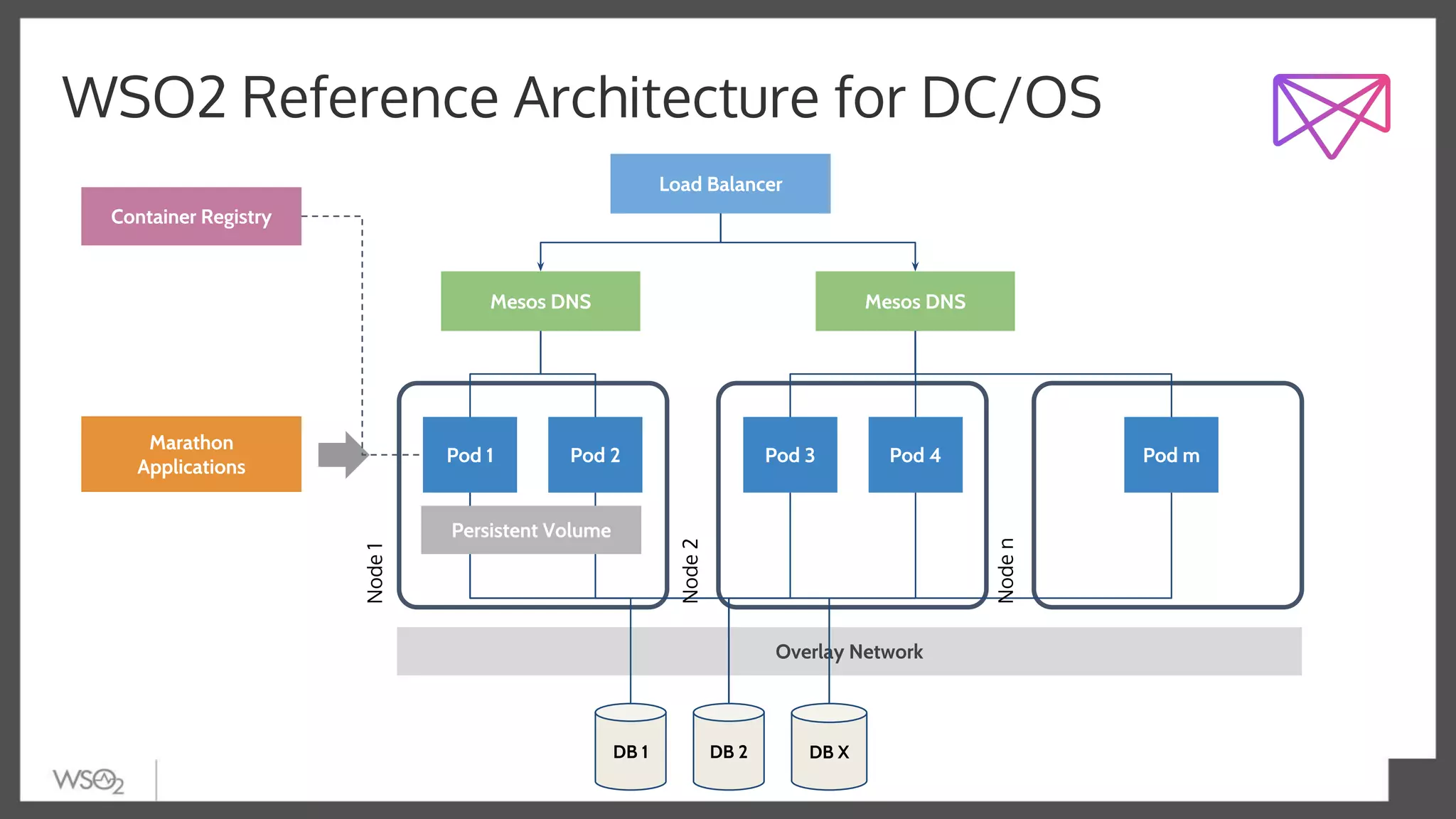

30. WSO2 Reference Architecture for DC/OS
Overlay Network
Pod 1 Pod 2
Mesos DNS
Pod 3 Pod 4 Pod m
Mesos DNS
Marathon
Applications
Load Balancer
DB 1 DB 2 DB X
Persistent Volume
Container Registry
Node1
Node2
Noden

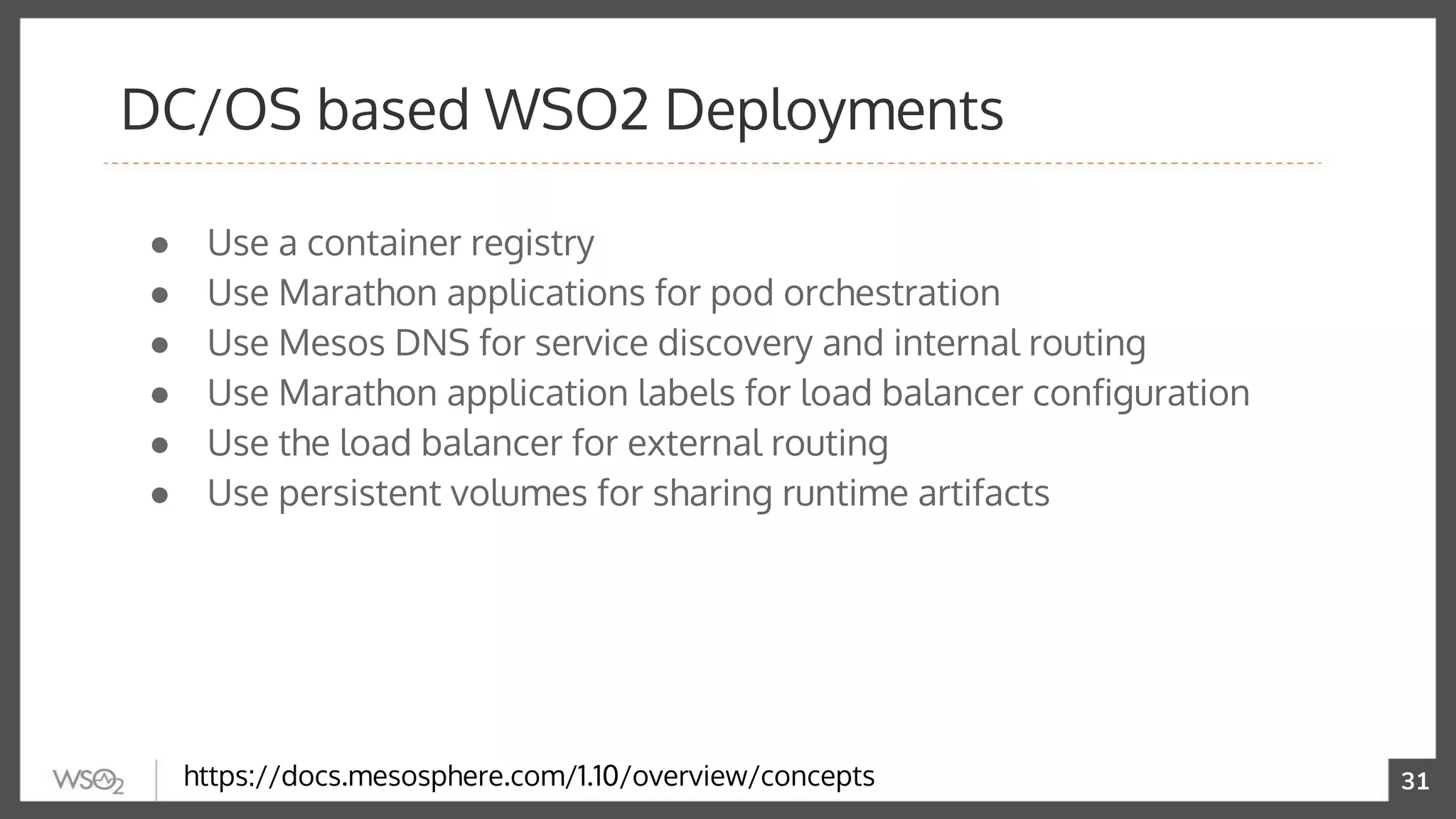

31. 31
● Use a container registry
● Use Marathon applications for pod orchestration
● Use Mesos DNS for service discovery and internal routing
● Use Marathon application labels for load balancer configuration
● Use the load balancer for external routing
● Use persistent volumes for sharing runtime artifacts
DC/OS based WSO2 Deployments
https://docs.mesosphere.com/1.10/overview/concepts

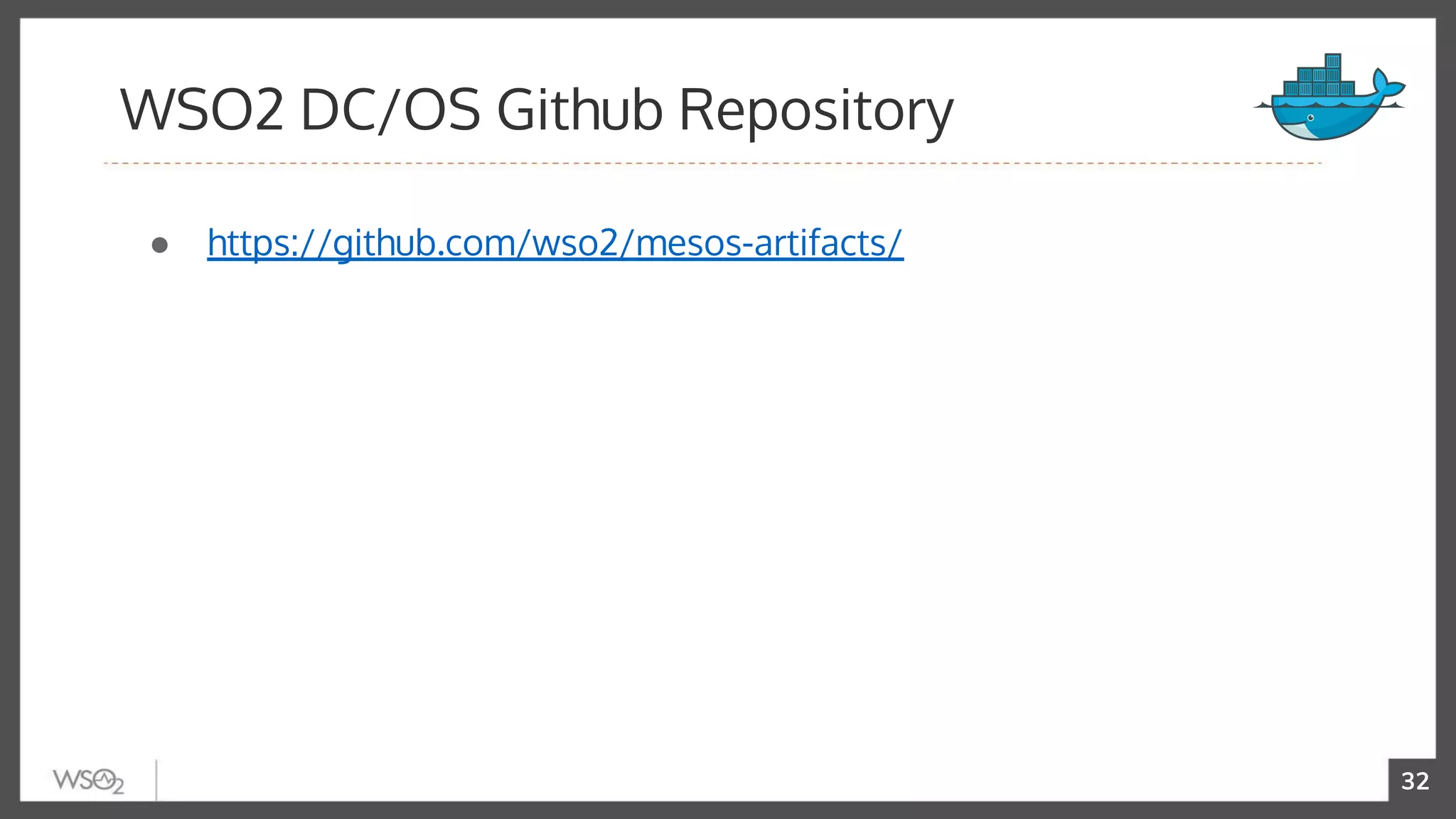

32. 32
● https://github.com/wso2/mesos-artifacts/
WSO2 DC/OS Github Repository

33. WSO2 Reference Architecture
for Pivotal Cloud Foundry

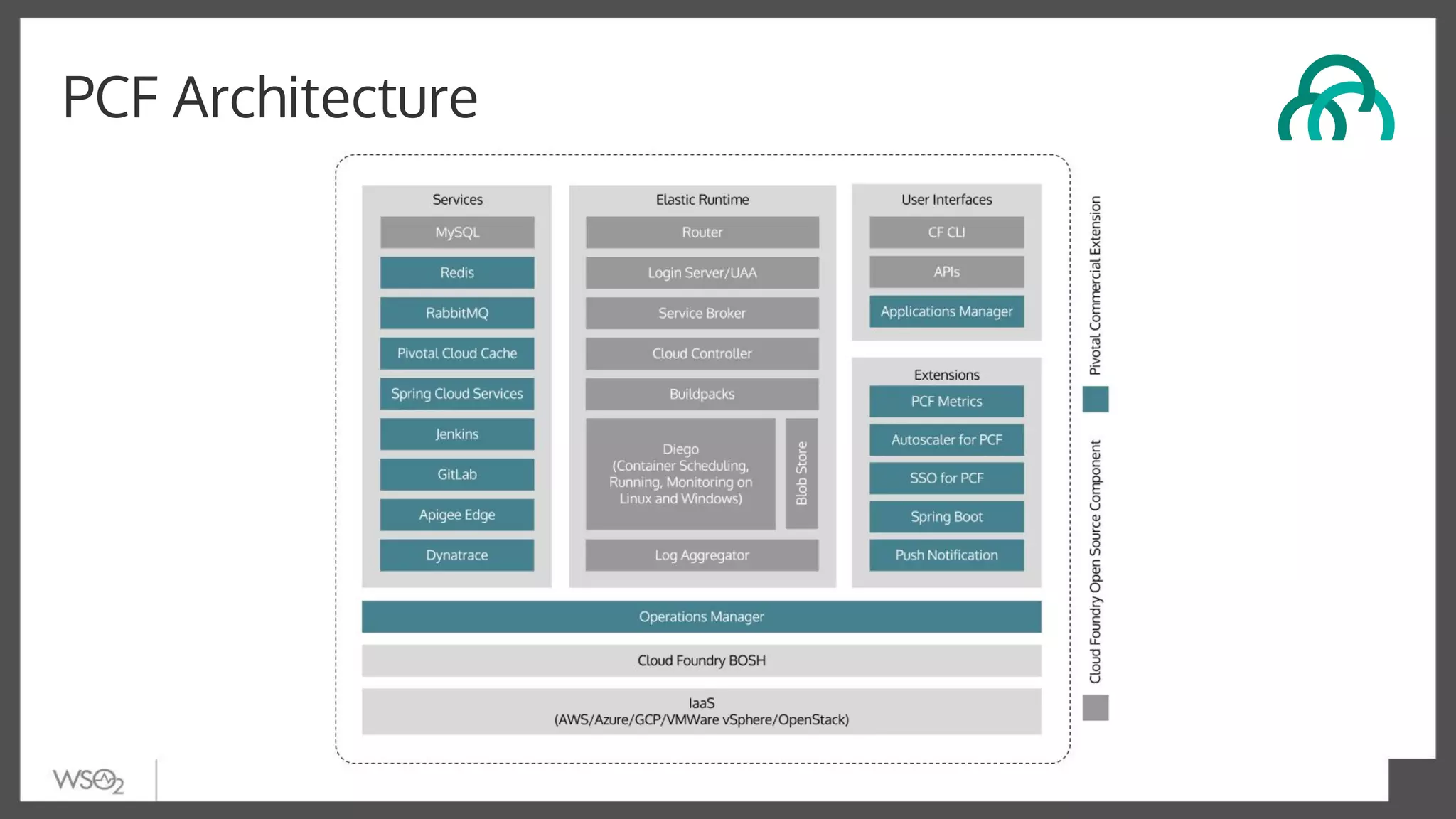

34. PCF Architecture

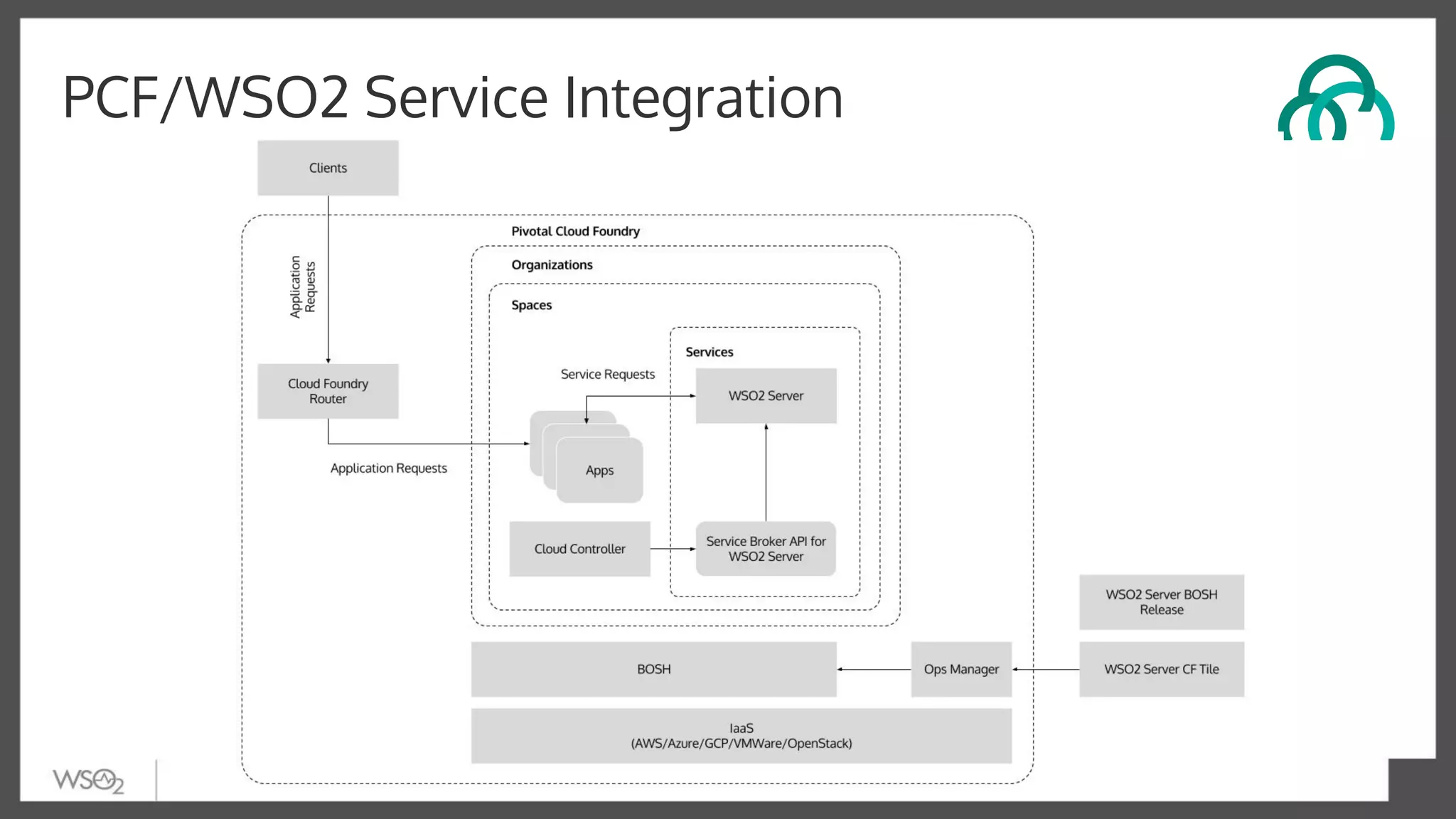

35. PCF/WSO2 Service Integration

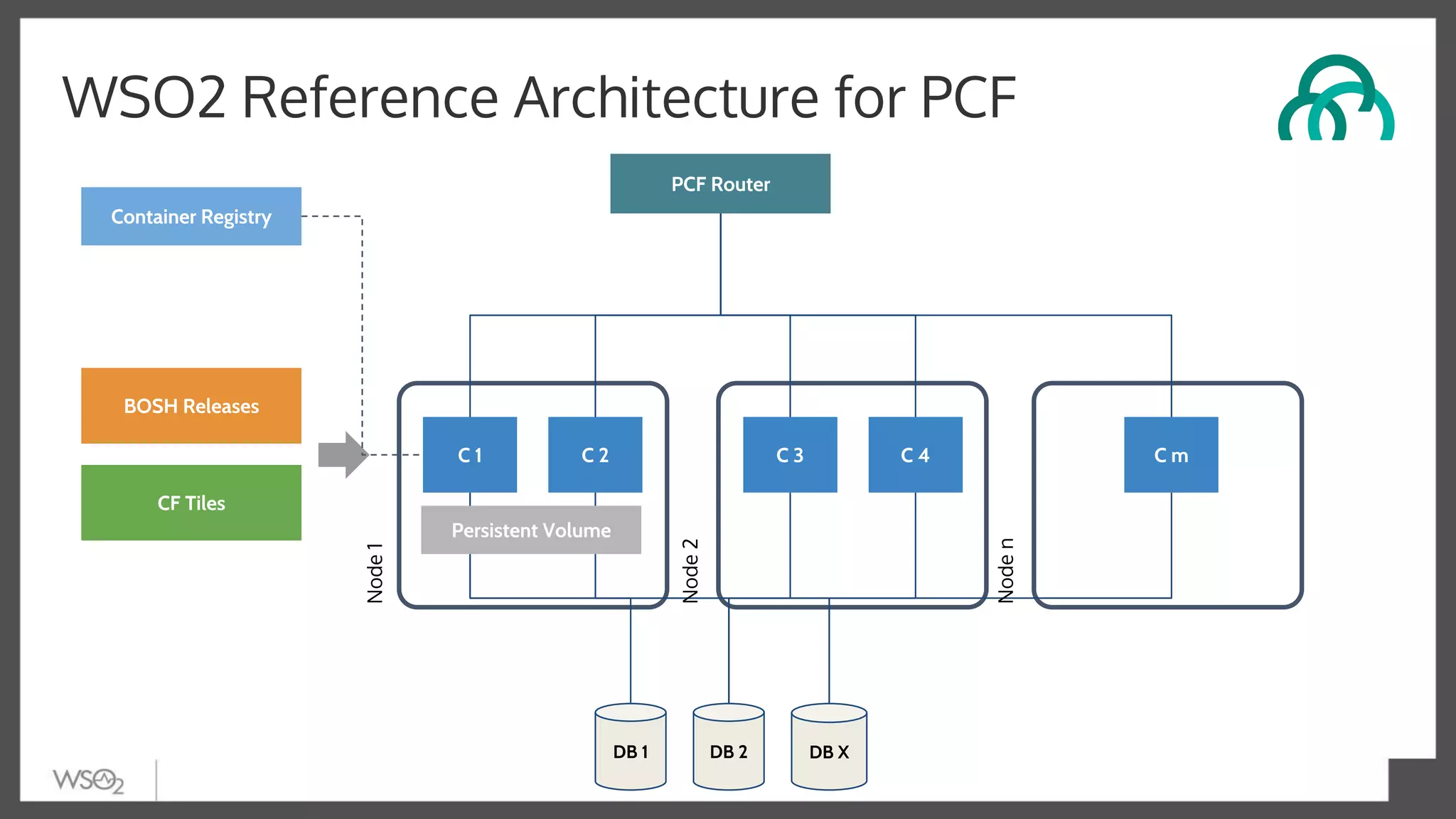

36. WSO2 Reference Architecture for PCF
C 1 C 2 C 3 C 4 C m
BOSH Releases
PCF Router
DB 1 DB 2 DB X
Persistent Volume
Container Registry
Node1
Node2
Noden
CF Tiles

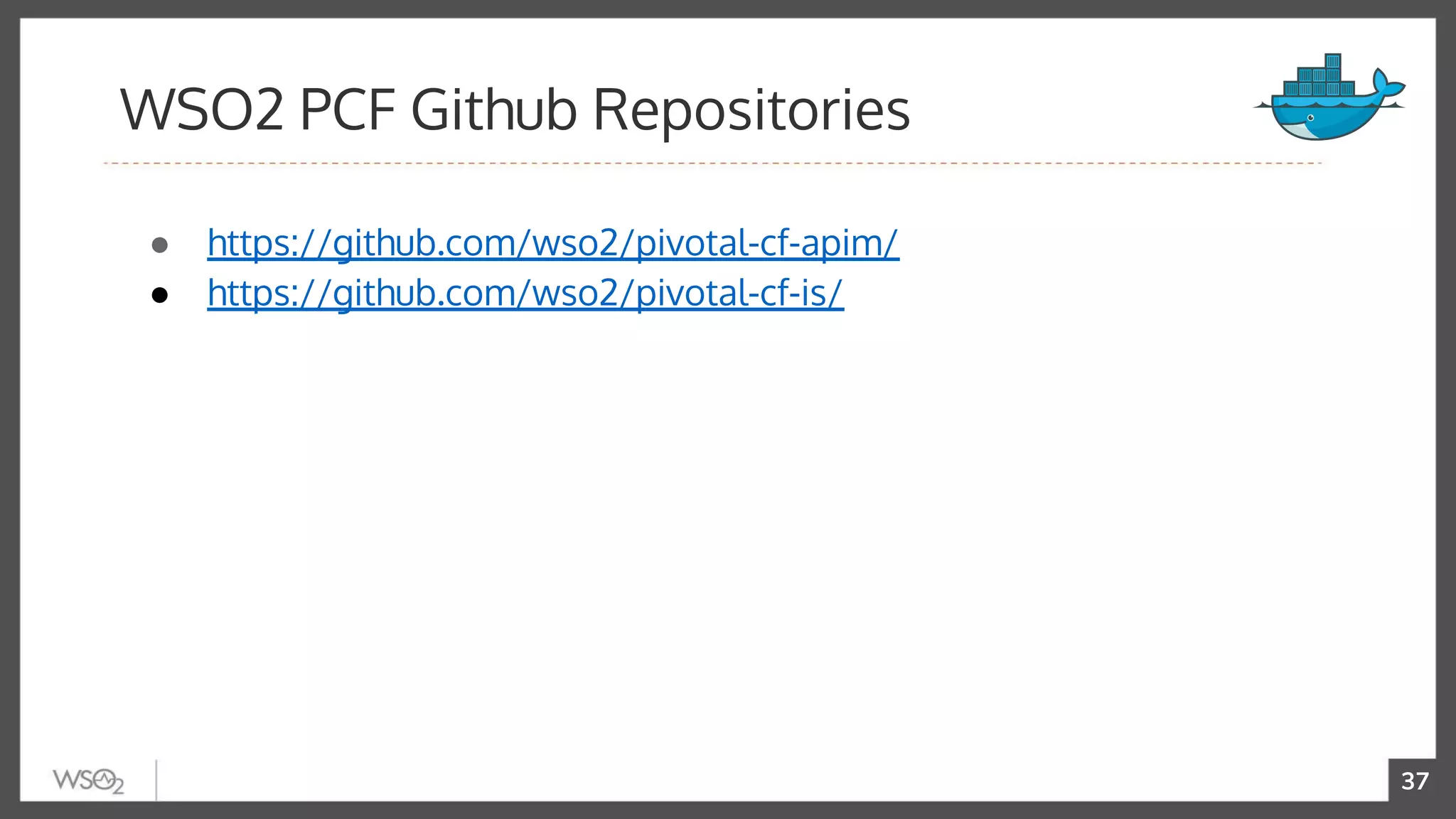

37. 37
● https://github.com/wso2/pivotal-cf-apim/
● https://github.com/wso2/pivotal-cf-is/
WSO2 PCF Github Repositories

38. Deployment Automation Best
Practices

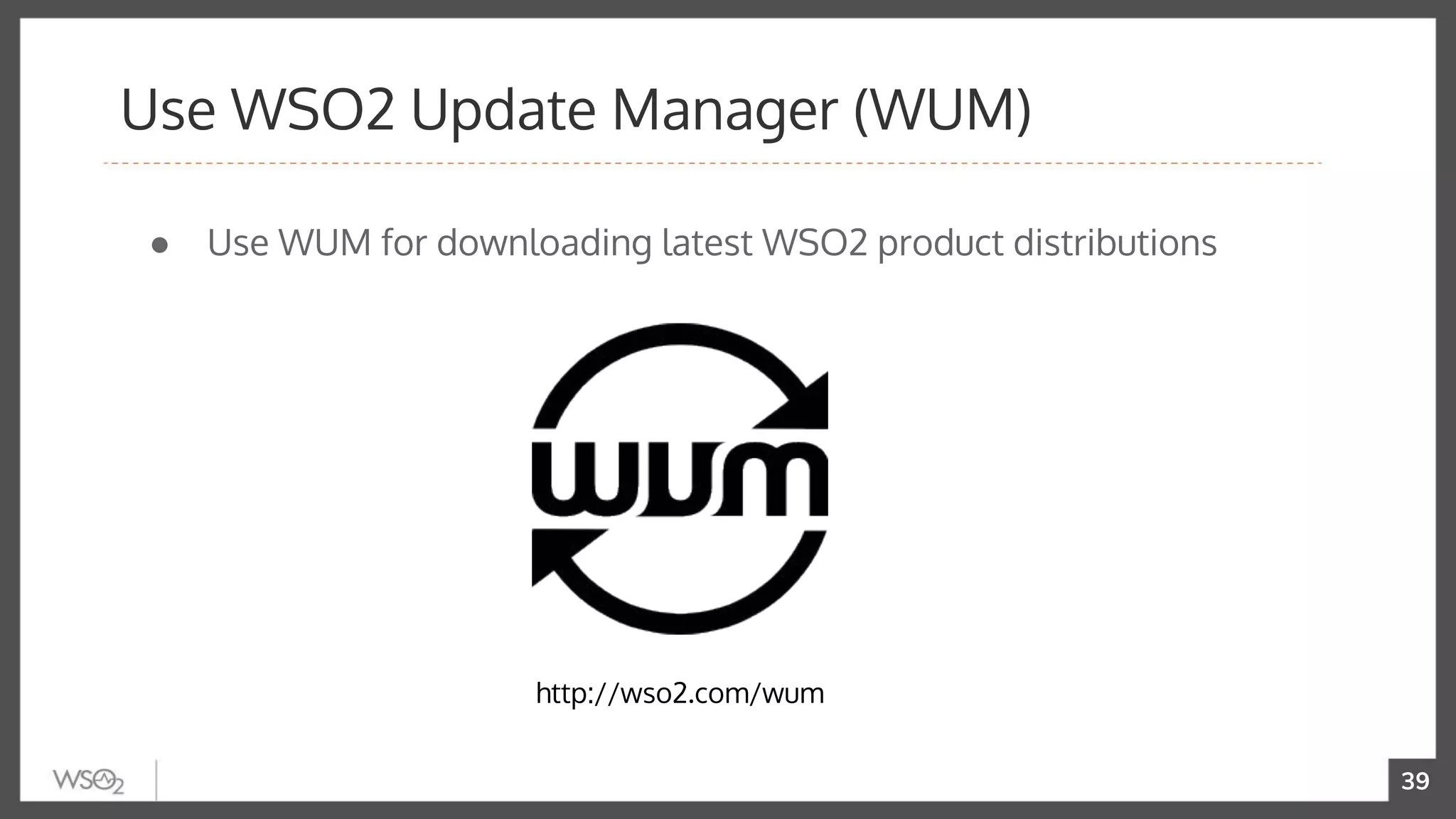

39. 39
● Use WUM for downloading latest WSO2 product distributions
Use WSO2 Update Manager (WUM)
http://wso2.com/wum

40. Version Control System
Deployment
Load Balancer(s)
Profiles
ProfilesWSO2 Server
Instances
WSO2 Product
Distributions
Deployable WSO2
Product Distributions
Infrastructure
Version Control System
Configuaration Files
Deployable
Artifacts
WSO2 Update
Manager (WUM)
Extensions
Updates
Updated WSO2
Product Distributions
Customizations
Deployment Process - Approach 1

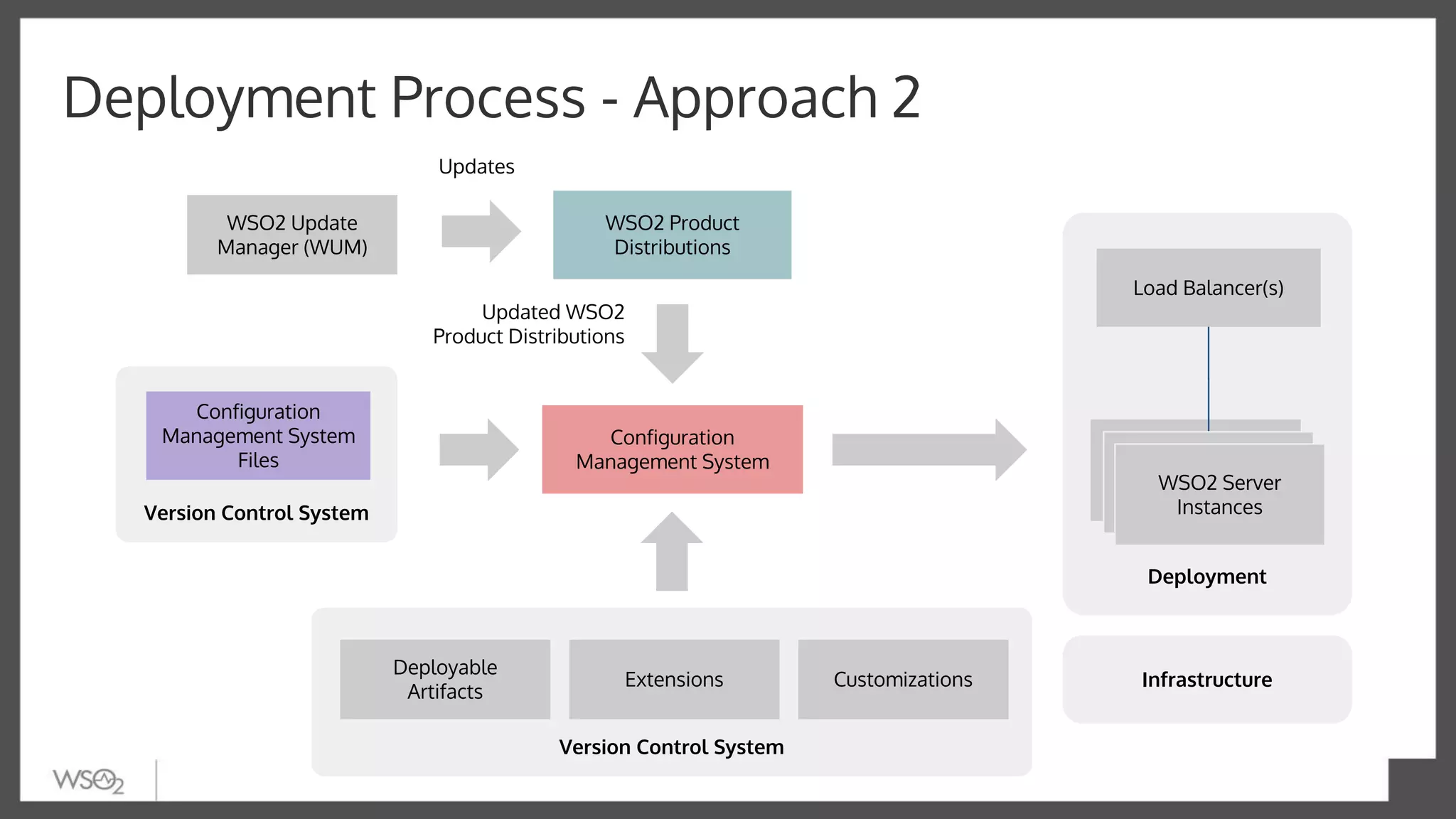

41. Deployment Process - Approach 2
Version Control System
Deployment
Load Balancer(s)
Profiles
ProfilesWSO2 Server
Instances
WSO2 Product
Distributions
Configuration
Management System
Infrastructure
Version Control System
Configuration
Management System
Files
Deployable
Artifacts
WSO2 Update
Manager (WUM)
Extensions
Updates
Updated WSO2
Product Distributions
Customizations
