WebSocket is a protocol that provides full-duplex communication channels over a single TCP connection. It was standardized in 2011 and allows for real-time data exchange between a client and server. The document discusses how WebSocket works, compares it to previous techniques like polling which had limitations, and outlines how to implement WebSocket in Java using JSR 356 and in Spring using the WebSocket API and STOMP protocol.

2. Building WebSocket Apps in
Java using JSR 356
Pankaj kSharma
rpspankaj2010@gmail.com

3. Resources
• Specification
• JSR: jcp.org/en/jsr/detail?id=356
• Mailing Lists, JIRA, Archive: java.net/projects/websocket-spec
• FINAL: Part of Java EE 7
• Reference Implementation
• Tyrus: java.net/projects/tyrus
• Integrated in GlassFish 4

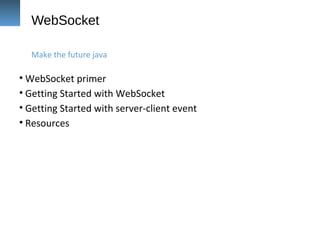

4. WebSocket
• WebSocket primer
• Getting Started with WebSocket
• Getting Started with server-client event
• Resources
Make the future java

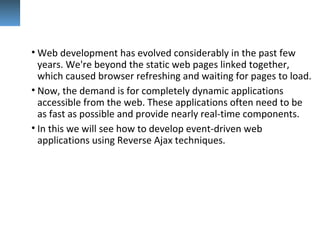

5. • Web development has evolved considerably in the past few
years. We're beyond the static web pages linked together,
which caused browser refreshing and waiting for pages to load.
• Now, the demand is for completely dynamic applications
accessible from the web. These applications often need to be
as fast as possible and provide nearly real-time components.
• In this we will see how to develop event-driven web
applications using Reverse Ajax techniques.

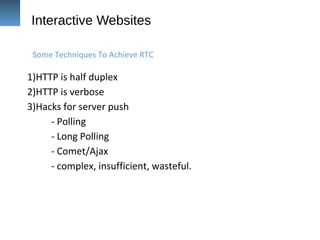

6. Interactive Websites
1)HTTP is half duplex
2)HTTP is verbose
3)Hacks for server push
- Polling
- Long Polling
- Comet/Ajax
- complex, insufficient, wasteful.
Some Techniques To Achieve RTC

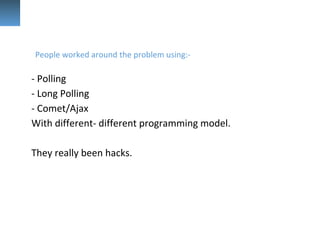

7. - Polling
- Long Polling
- Comet/Ajax
With different- different programming model.
They really been hacks.
People worked around the problem using:-

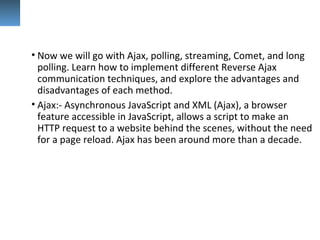

8. • Now we will go with Ajax, polling, streaming, Comet, and long
polling. Learn how to implement different Reverse Ajax
communication techniques, and explore the advantages and
disadvantages of each method.
• Ajax:- Asynchronous JavaScript and XML (Ajax), a browser
feature accessible in JavaScript, allows a script to make an
HTTP request to a website behind the scenes, without the need
for a page reload. Ajax has been around more than a decade.

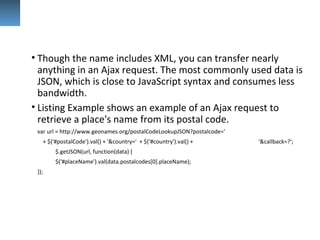

9. • Though the name includes XML, you can transfer nearly
anything in an Ajax request. The most commonly used data is
JSON, which is close to JavaScript syntax and consumes less
bandwidth.
• Listing Example shows an example of an Ajax request to
retrieve a place's name from its postal code.
var url = http://www.geonames.org/postalCodeLookupJSON?postalcode='
+ $('#postalCode').val() + '&country=' + $('#country').val() + '&callback=?';
$.getJSON(url, function(data) {
$('#placeName').val(data.postalcodes[0].placeName);
});

10. • The timeline in Figure 1 shows how some polling requests
issued by the client, but no information is returned. The client
must wait for the next polling to get the two events received by
the server.
• Figure 1. Reverse Ajax with HTTP polling

11. • To implement polling in JavaScript, you can use setInterval to
periodically issue Ajax requests, as shown in example 2:
• Example 2. JavaScript polling
setInterval(function() {
$.getJSON('events',
function(events) {
console.log(events);
}); }, 2000);

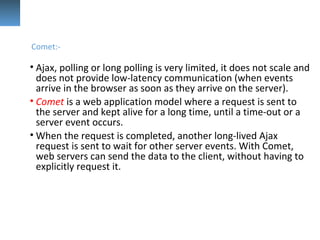

12. • Ajax, polling or long polling is very limited, it does not scale and
does not provide low-latency communication (when events
arrive in the browser as soon as they arrive on the server).
• Comet is a web application model where a request is sent to
the server and kept alive for a long time, until a time-out or a
server event occurs.
• When the request is completed, another long-lived Ajax
request is sent to wait for other server events. With Comet,
web servers can send the data to the client, without having to
explicitly request it.
Comet:-

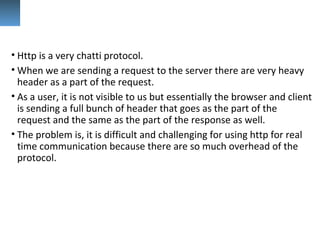

13. • Http is a very chatti protocol.
• When we are sending a request to the server there are very heavy
header as a part of the request.
• As a user, it is not visible to us but essentially the browser and client
is sending a full bunch of header that goes as the part of the
request and the same as the part of the response as well.
• The problem is, it is difficult and challenging for using http for real
time communication because there are so much overhead of the
protocol.

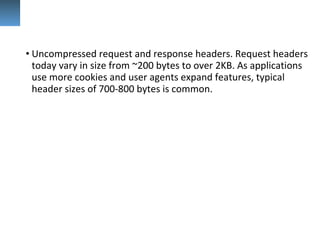

16. • Uncompressed request and response headers. Request headers
today vary in size from ~200 bytes to over 2KB. As applications
use more cookies and user agents expand features, typical
header sizes of 700-800 bytes is common.

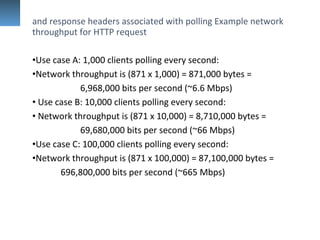

17. and response headers associated with polling Example network
throughput for HTTP request
•Use case A: 1,000 clients polling every second:
•Network throughput is (871 x 1,000) = 871,000 bytes =
6,968,000 bits per second (~6.6 Mbps)
• Use case B: 10,000 clients polling every second:
• Network throughput is (871 x 10,000) = 8,710,000 bytes =
69,680,000 bits per second (~66 Mbps)
•Use case C: 100,000 clients polling every second:
•Network throughput is (871 x 100,000) = 87,100,000 bytes =
696,800,000 bits per second (~665 Mbps)

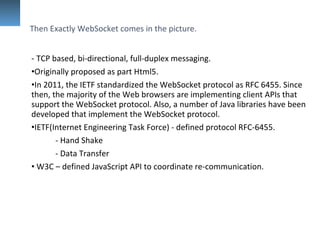

18. - TCP based, bi-directional, full-duplex messaging.
•Originally proposed as part Html5.
•In 2011, the IETF standardized the WebSocket protocol as RFC 6455. Since
then, the majority of the Web browsers are implementing client APIs that
support the WebSocket protocol. Also, a number of Java libraries have been
developed that implement the WebSocket protocol.
•IETF(Internet Engineering Task Force) - defined protocol RFC-6455.
- Hand Shake
- Data Transfer
• W3C – defined JavaScript API to coordinate re-communication.
Then Exactly WebSocket comes in the picture.

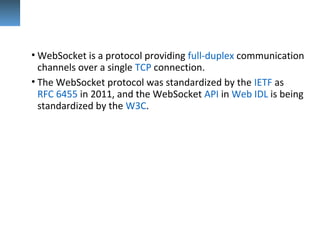

19. • WebSocket is a protocol providing full-duplex communication
channels over a single TCP connection.
• The WebSocket protocol was standardized by the IETF as
RFC 6455 in 2011, and the WebSocket API in Web IDL is being
standardized by the W3C.

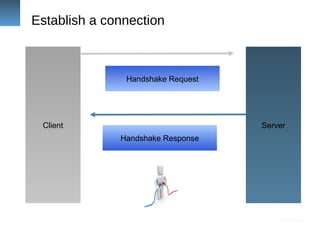

20. Establish a connection
Client
Handshake Request
Handshake Response
Server

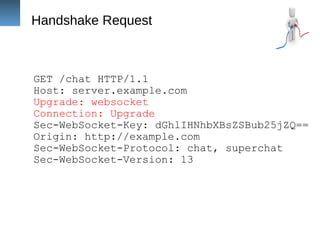

21. Handshake Request
GET /chat HTTP/1.1
Host: server.example.com
Upgrade: websocket
Connection: Upgrade
Sec-WebSocket-Key: dGhlIHNhbXBsZSBub25jZQ==
Origin: http://example.com
Sec-WebSocket-Protocol: chat, superchat
Sec-WebSocket-Version: 13

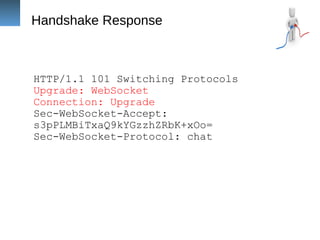

22. Handshake Response
HTTP/1.1 101 Switching Protocols
Upgrade: WebSocket
Connection: Upgrade
Sec-WebSocket-Accept:
s3pPLMBiTxaQ9kYGzzhZRbK+xOo=
Sec-WebSocket-Protocol: chat

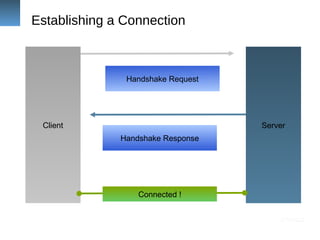

23. ServerClient
Handshake Request
Handshake Response
Connected !
Establishing a Connection

24. Peer
(server)
Peer
(client)
Connected !
open open
close
message error
message
message message
message
Disconnected
WebSocket Lifecycle

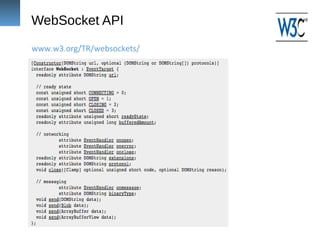

25. WebSocket API
www.w3.org/TR/websockets/

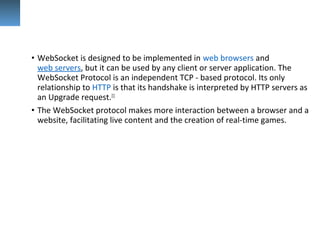

26. • WebSocket is designed to be implemented in web browsers and
web servers, but it can be used by any client or server application. The
WebSocket Protocol is an independent TCP - based protocol. Its only
relationship to HTTP is that its handshake is interpreted by HTTP servers as
an Upgrade request.[1]
• The WebSocket protocol makes more interaction between a browser and a
website, facilitating live content and the creation of real-time games.

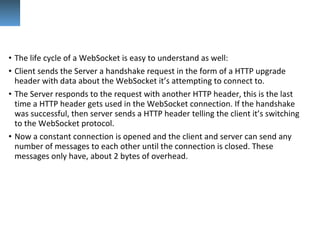

27. • The life cycle of a WebSocket is easy to understand as well:
• Client sends the Server a handshake request in the form of a HTTP upgrade
header with data about the WebSocket it’s attempting to connect to.
• The Server responds to the request with another HTTP header, this is the last
time a HTTP header gets used in the WebSocket connection. If the handshake
was successful, then server sends a HTTP header telling the client it’s switching
to the WebSocket protocol.
• Now a constant connection is opened and the client and server can send any
number of messages to each other until the connection is closed. These
messages only have, about 2 bytes of overhead.

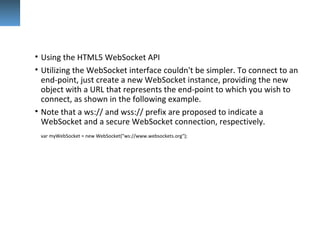

28. • Using the HTML5 WebSocket API
• Utilizing the WebSocket interface couldn't be simpler. To connect to an
end-point, just create a new WebSocket instance, providing the new
object with a URL that represents the end-point to which you wish to
connect, as shown in the following example.
• Note that a ws:// and wss:// prefix are proposed to indicate a
WebSocket and a secure WebSocket connection, respectively.
var myWebSocket = new WebSocket("ws://www.websockets.org");

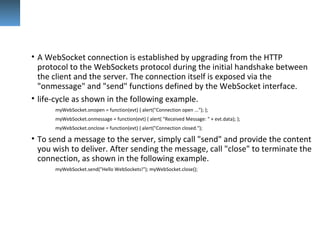

29. • A WebSocket connection is established by upgrading from the HTTP
protocol to the WebSockets protocol during the initial handshake between
the client and the server. The connection itself is exposed via the
"onmessage" and "send" functions defined by the WebSocket interface.
• life-cycle as shown in the following example.
myWebSocket.onopen = function(evt) { alert("Connection open ..."); };
myWebSocket.onmessage = function(evt) { alert( "Received Message: " + evt.data); };
myWebSocket.onclose = function(evt) { alert("Connection closed.");
• To send a message to the server, simply call "send" and provide the content
you wish to deliver. After sending the message, call "close" to terminate the
connection, as shown in the following example.
myWebSocket.send("Hello WebSockets!"); myWebSocket.close();

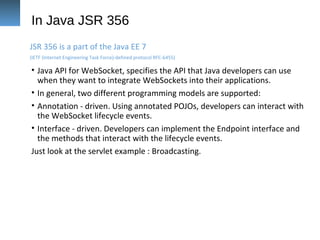

30. In Java JSR 356
• Java API for WebSocket, specifies the API that Java developers can use
when they want to integrate WebSockets into their applications.
• In general, two different programming models are supported:
• Annotation - driven. Using annotated POJOs, developers can interact with
the WebSocket lifecycle events.
• Interface - driven. Developers can implement the Endpoint interface and
the methods that interact with the lifecycle events.
Just look at the servlet example : Broadcasting.
JSR 356 is a part of the Java EE 7
(IETF (Internet Engineering Task Force)-defined protocol RFC-6455)

32. In Spring
Spring 4 has introduced the WebSocket API using which a
browser and web server can communicate over WebSocket
protocol.

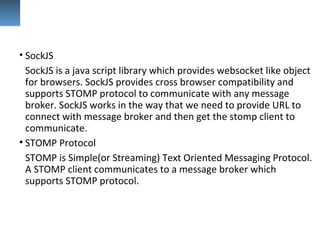

33. • SockJS
SockJS is a java script library which provides websocket like object
for browsers. SockJS provides cross browser compatibility and
supports STOMP protocol to communicate with any message
broker. SockJS works in the way that we need to provide URL to
connect with message broker and then get the stomp client to
communicate.
• STOMP Protocol
STOMP is Simple(or Streaming) Text Oriented Messaging Protocol.
A STOMP client communicates to a message broker which
supports STOMP protocol.

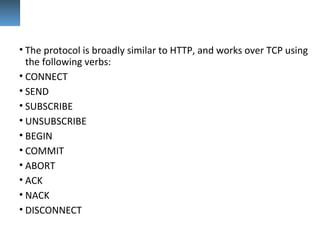

34. • The protocol is broadly similar to HTTP, and works over TCP using
the following verbs:
• CONNECT
• SEND
• SUBSCRIBE
• UNSUBSCRIBE
• BEGIN
• COMMIT
• ABORT
• ACK
• NACK
• DISCONNECT

35. Q & A

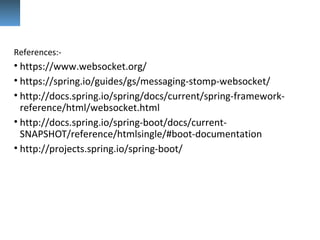

36. References:-
• https://www.websocket.org/
• https://spring.io/guides/gs/messaging-stomp-websocket/
• http://docs.spring.io/spring/docs/current/spring-framework-
reference/html/websocket.html
• http://docs.spring.io/spring-boot/docs/current-
SNAPSHOT/reference/htmlsingle/#boot-documentation
• http://projects.spring.io/spring-boot/
