The Constrained Application Protocol (CoAP) is a RESTful web transfer protocol for resource-constrained networks and nodes. CoAP uses a simple binary message format carried over UDP that supports asynchronous messaging with optional message confirmation and retransmission. CoAP supports features like GET, POST, PUT, DELETE methods, URIs, content formats and codes that are similar to HTTP but optimized for constrained nodes and networks.

1. The Constrained Application
Protocol (CoAP)
Khamdamboy Urunov, a Ph.D. student.,
hamdamboy.urunov@gmail.com

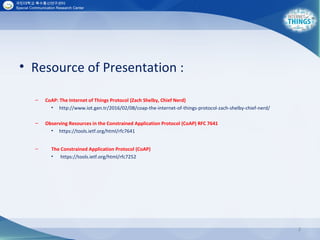

2. • Resource of Presentation :
– CoAP: The Internet of Things Protocol (Zach Shelby, Chief Nerd)
• http://www.iot.gen.tr/2016/02/08/coap-the-internet-of-things-protocol-zach-shelby-chief-nerd/
– Observing Resources in the Constrained Application Protocol (CoAP) RFC 7641
• https://tools.ietf.org/html/rfc7641
– The Constrained Application Protocol (CoAP)
• https://tools.ietf.org/html/rfc7252
2

3. Source Code of the CoAP
• Source code of the CoAP
– https://coap.codeplex.com/
• A CoAP framework in C#
The Constrained Application Protocol (CoAP) https://datatracker.ietf.org/doc/draft-ietf-core-coap/
is a RESTful web transfer protocol for resource-constrained networks and nodes.
CoAP.NET is an implementation in C# providing CoAP-based services to .NET applications.
Reviews and suggestions would be appreciated.
Example:
Client part:
// new a GET request
Request request = new Request(Method.GET);
request.URI = new Uri("coap://[::1]/hello-world");
request.Send();
// wait for one response
Response response = request.WaitForResponse();
3

4. Contents
• The Web of Things
• The Web & REST?
• Introduction
• Protocol overview
• The Observe Option
• Client-server requirements
• Server-side Requirements
• Web Linking
• Security Considerations
• Example
4

5. Internet of Things
5
Things
Services
The Web
Little Data
Big Data

6. Web Resource Identification
6

7. The Web service Paradigm
7
the Web Services Description
Language. It is commonly used
to spell out in detail the services
offered by a SOAP server.
While WSDL is flexible in service
binding options (for example,
services can be offered via
SMTP mail servers), it did not
originally support HTTP
operations other than GET and
POST.
Since REST services often use
other HTTP verbs, such as PUT
and DELETE, WSDL was a poor
choice for documenting REST
services.
the Web Application
Description Language.
WADL is lightweight,
easier to understand
and easier to write than
WSDL. In some respects,
it is not as flexible as
WSDL (no binding to
SMTP servers), but it is
sufficient for any REST
service and much less
verbose.

8. Introduction
8
 is a RESTful transfer protocol for constrained nodes and networks;
 messages work well for the small payloads;
CoAP (Constrained Application Protocol)
the term "payload" will be used for the actual content of a single CoAP message, i.e.
a single block being transferred, while the term "body" will be used for the entire resource representation
that is being transferred in a block-wise fashion.

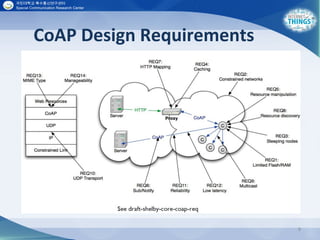

9. CoAP Design Requirements
9

10. The CoAP Architecture
10

11. CoAP Feature
11
• Embedded web transfer protocol (coap://)
• Asynchronous transaction model
• UDP binding with reliability and multicast support
• GET, POST, PUT, DELETE methods
• URI support
• Small, simple 4 byte header
• DTLS based PSK, RPK and Certificate security
• Subset of MIME types and HTTP response codes
• Built-in discovery
• Optional observation and block transfer

12. 12
 Sure, CoAP is
A very efficient RESTful protocol
Ideal for constrained devices and networks
Specialized for M2M applications
Easy to proxy to/from HTTP
 But hey, CoAP is not
A general replacement for HTTP
HTTP compression
Restricted to isolated “automation” networks
What CoAP is (and is not)

13. The Transaction Model
13
• Transport
- CoAP is defined for UDP
•Messaging
- Simple message exchange between end-points
- CON, NON, ACK, RST
•REST
- Request/response piggybacked on messages
- Method, Response Code and Options (URI, content-type)

14. Similar to HTTP a CoAP request is sent by a client using a Method Code to request an action on a URI identifiable
resource.
The server replies with a Response Code which may include a resource representation.
CoAP model is essentially client/server architecture enabling the client to request for service from server as needed
and the server responds.
The message layer interfaces with UDP layer which formats the data received into a datagram and sends it to the
lower layers of the OSI or the TCP/IP Model.
14
Application
Request / Response
Message
UDP
Simple message exchange between end-points
Confirmable (CON), Non-confirmable(NON),
Acknowledgement (ACK), Reset (RST)
CoAP Layering
The CoAP messaging model is based on the exchange of
messages over UDP between endpoints.

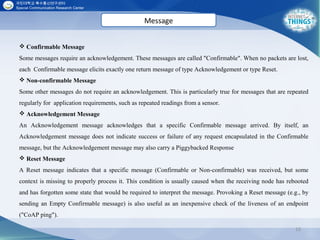

15. 15
 Confirmable Message
Some messages require an acknowledgement. These messages are called "Confirmable". When no packets are lost,
each Confirmable message elicits exactly one return message of type Acknowledgement or type Reset.
 Non-confirmable Message
Some other messages do not require an acknowledgement. This is particularly true for messages that are repeated
regularly for application requirements, such as repeated readings from a sensor.
 Acknowledgement Message
An Acknowledgement message acknowledges that a specific Confirmable message arrived. By itself, an
Acknowledgement message does not indicate success or failure of any request encapsulated in the Confirmable
message, but the Acknowledgement message may also carry a Piggybacked Response
 Reset Message
A Reset message indicates that a specific message (Confirmable or Non-confirmable) was received, but some
context is missing to properly process it. This condition is usually caused when the receiving node has rebooted
and has forgotten some state that would be required to interpret the message. Provoking a Reset message (e.g., by
sending an Empty Confirmable message) is also useful as an inexpensive check of the liveness of an endpoint
("CoAP ping").
Message

16. CoAP messages are encoded in a simple binary format.
The Message Header (4 bytes).
The variable-length token value 0 and 8 bytes long.
16
Ver - Version (1)  2 bit unsigned integer . Implementations of this field to 1 (01 binary).
T – Message Type  2- bit unsigned integer. (Confirmable, Non-Confirmable, Acknowledgement, Reset).
TKL- Token Length  4-bit unsigned integer. Indicates the length of the variable-length Token field (0-8 bytes).
Code – 8-bit unsighted integer. 3 bit class(most signification bits). 5 bits detail (least significant bits).
Request Method (1-10) or Response Code (40-255)
Message ID – 16-bit identifier for matching responses
Token – Optional response matching token
Message Format
Standards Track RFC 7252
June, 2014

17. Option Format
17
Option Delta - Difference between this option type and the previous.
4 bit unsigned integer. A value between 0 and 12 indicates the Optional Delta.
Length - Length of the option value
4 bit unsigned integer. A value between 0 and 12 indicates the length of the Optional Value, in bytes.
Value - The value of Length bytes immediately follows Length
CoAP defined a number of options that can be included in a message.

18. Base Specification Options
18
The Uri-Host Option specifies the Internet host of the resource being requested.
The Uri-Post Option specifies the transport-layer port number of the resource
The Uri-Path Option specifies one segment of the absolute path to the resource
The Uri-Query Option specifies one argument parameterizing the resource

19. Request Example
19
CoAP Client – Server communication

20. Dealing with Packet Loss
20

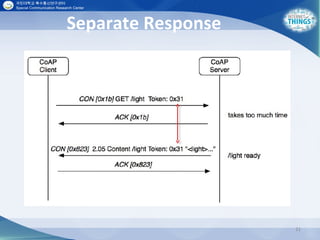

21. Separate Response
21

22. Example
22

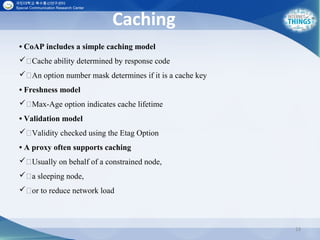

23. Caching
23
• CoAP includes a simple caching model
Cache ability determined by response code
An option number mask determines if it is a cache key
• Freshness model
Max-Age option indicates cache lifetime
• Validation model
Validity checked using the Etag Option
• A proxy often supports caching
Usually on behalf of a constrained node,
a sleeping node,
or to reduce network load

24. Proxying and caching
24

25. Observation
25
COAP Observation
PROBLEM:
 REST paradigm is often “PULL” type, that is,
data is obtained by issuing an explicit request
 Information/data in WSN is often periodic/
triggered (e.g., get me a temperature sample every
2 seconds or get me a warning if temperature goes
below 5°C)
SOLUTION:
 use Observation on COAP resources

26. Block transfer
26
COAP Block Transfer
 PROBLEM:
avoid segmentation in the lower layers
(IPv6)
 SOLUTION:
COAP Block Transfer Mode n brings up
fragmentation at the application layer

27. Getting Started with CoAP
27
• There are many open source implementations available
Java CoAP Library Californium
C CoAP Library Erbium
libCoAP C Library
jCoAP Java Library
OpenCoAP C Library
TinyOS and Contiki include CoAP support
• CoAP is already part of many commercial products/systems
 Sensinode NanoService
 RTX 4100 WiFi Module
• Firefox has a CoAP plugin called Copper
• Wireshark has CoAP dissector support
• Implement CoAP yourself, it is not that hard!

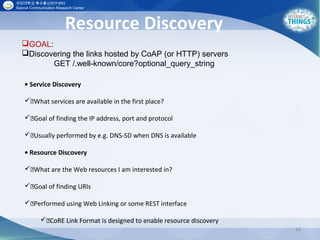

28. Resource Discovery
28
• Service Discovery
What services are available in the first place?
Goal of finding the IP address, port and protocol
Usually performed by e.g. DNS-SD when DNS is available
• Resource Discovery
What are the Web resources I am interested in?
Goal of finding URIs
Performed using Web Linking or some REST interface
CoRE Link Format is designed to enable resource discovery
GOAL:
Discovering the links hosted by CoAP (or HTTP) servers
GET /.well-known/core?optional_query_string

29. Resource Directory
29
• CoRE Link Format only defines
 The link format
 Peer-to-peer discovery
• A directory approach is also useful
 Supports sleeping nodes
 No multicast traffic, longer battery life
 Remote lookup, hierarchical and federated distribution
• The CoRE Link Format can be used to build Resource Directories
 Nodes POST (register) their link-format to an RD
 Nodes PUT (refresh) to the RD periodically
 Nodes may DELETE (remove) their RD entry
 Nodes may GET (lookup) the RD or resource of other nodes

30. Resource Directory
30

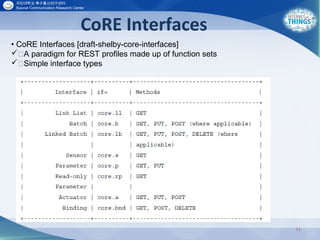

31. CoRE Interfaces
31
• CoRE Interfaces [draft-shelby-core-interfaces]
A paradigm for REST profiles made up of function sets
Simple interface types

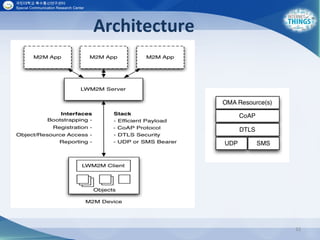

32. Architecture
32

33. • Thank you !
33
