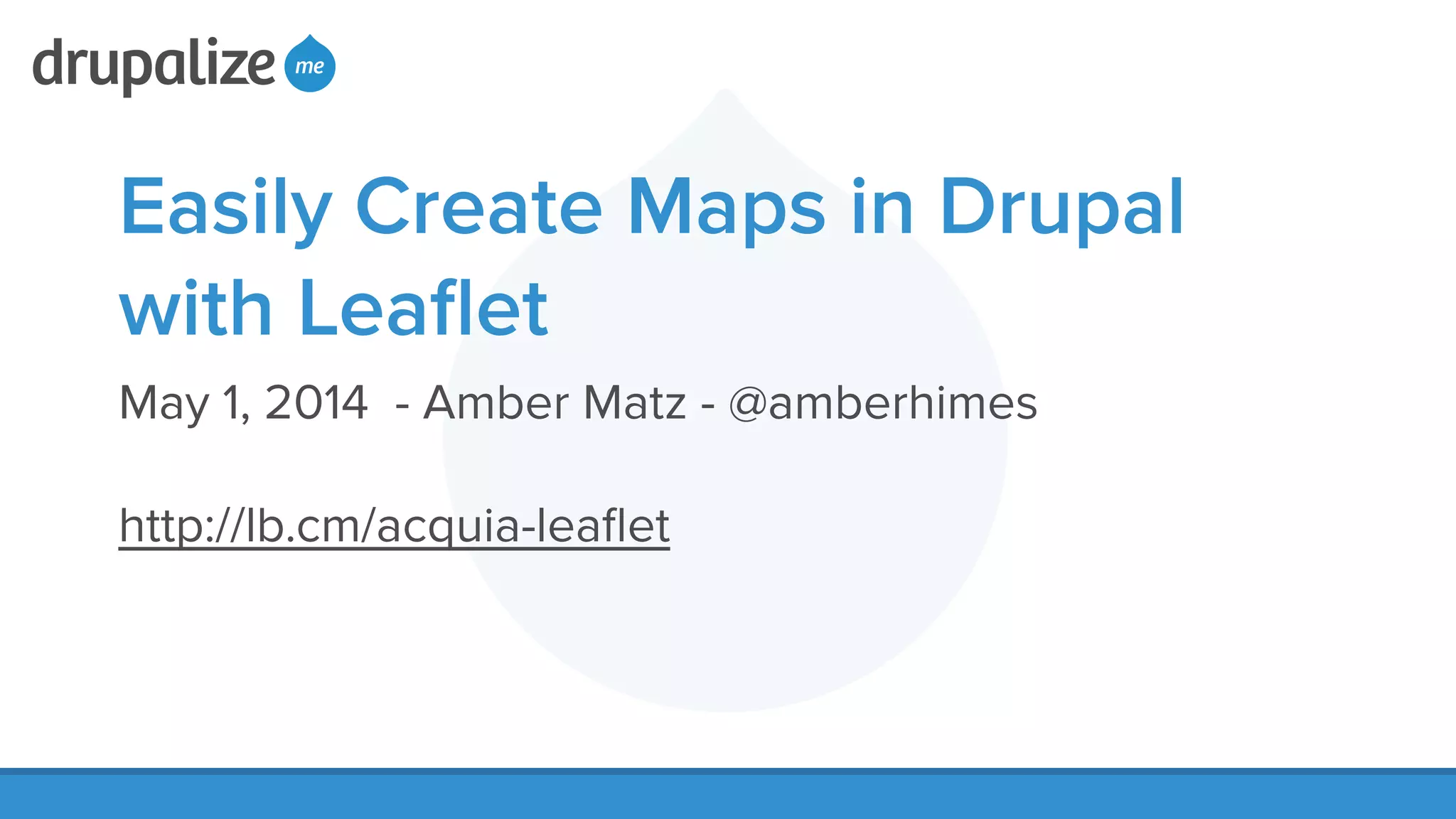

1. Easily Create Maps in Drupal
with Leaflet
May 1, 2014 - Amber Matz - @amberhimes
!
http://lb.cm/acquia-leaflet
!

2. Hi! I’m Amber.
Lullabot / Drupalize.Me
@amberhimes

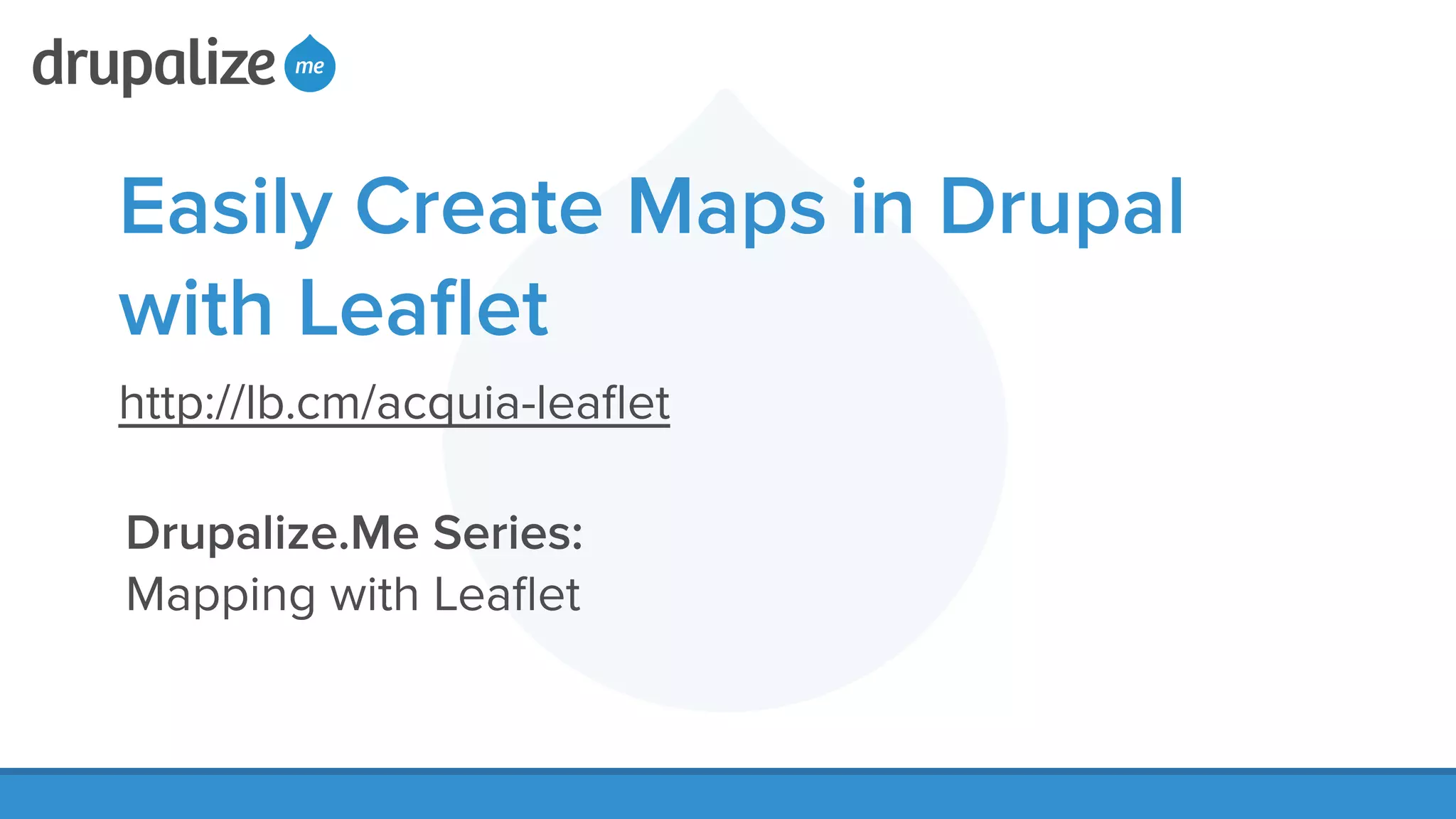

3. Easily Create Maps in Drupal
with Leaflet
http://lb.cm/acquia-leaflet
Drupalize.Me Series:
Mapping with Leaflet

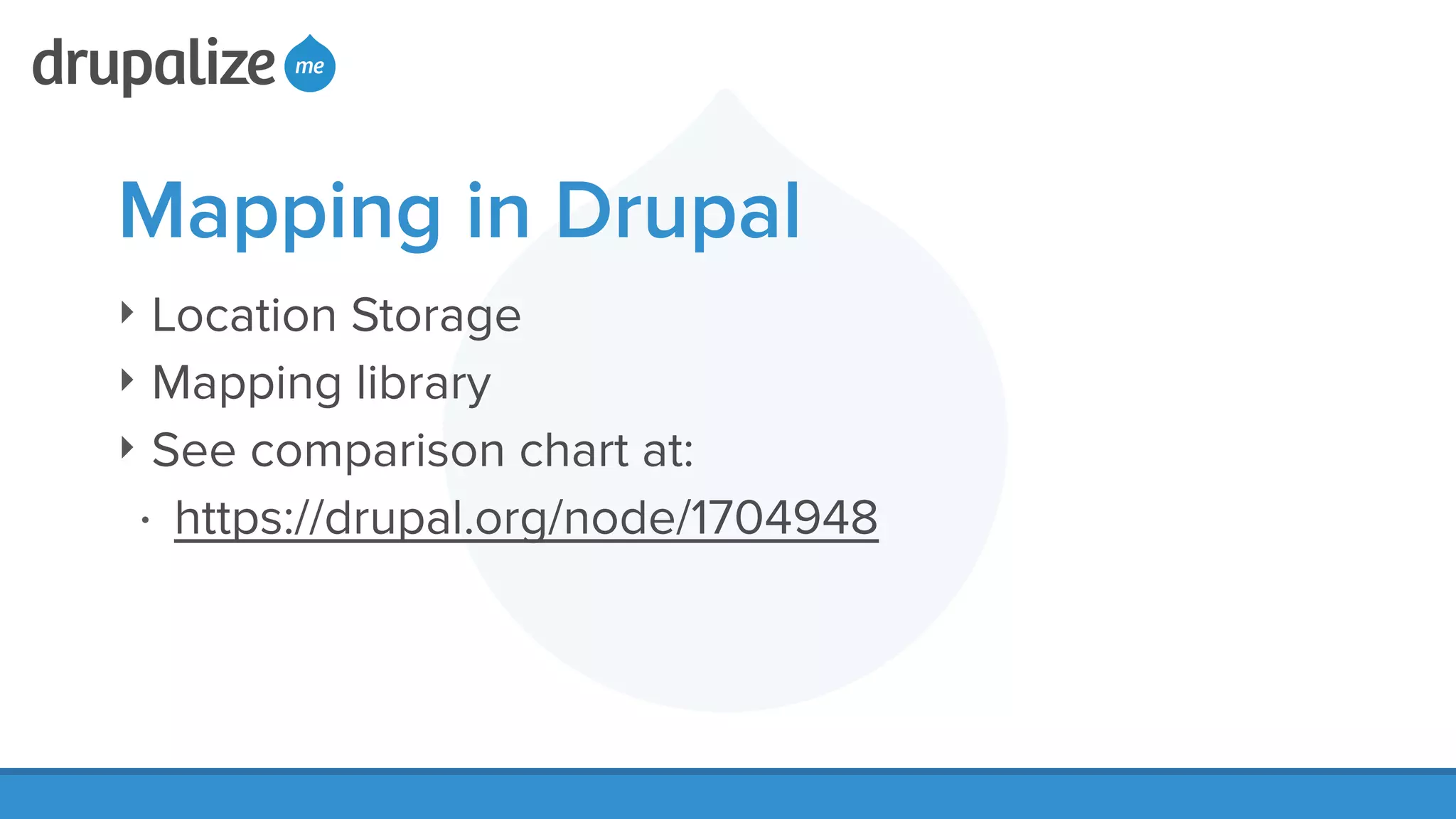

4. Mapping in Drupal
‣ Location Storage
‣ Mapping library
‣ See comparison chart at:
• https://drupal.org/node/1704948

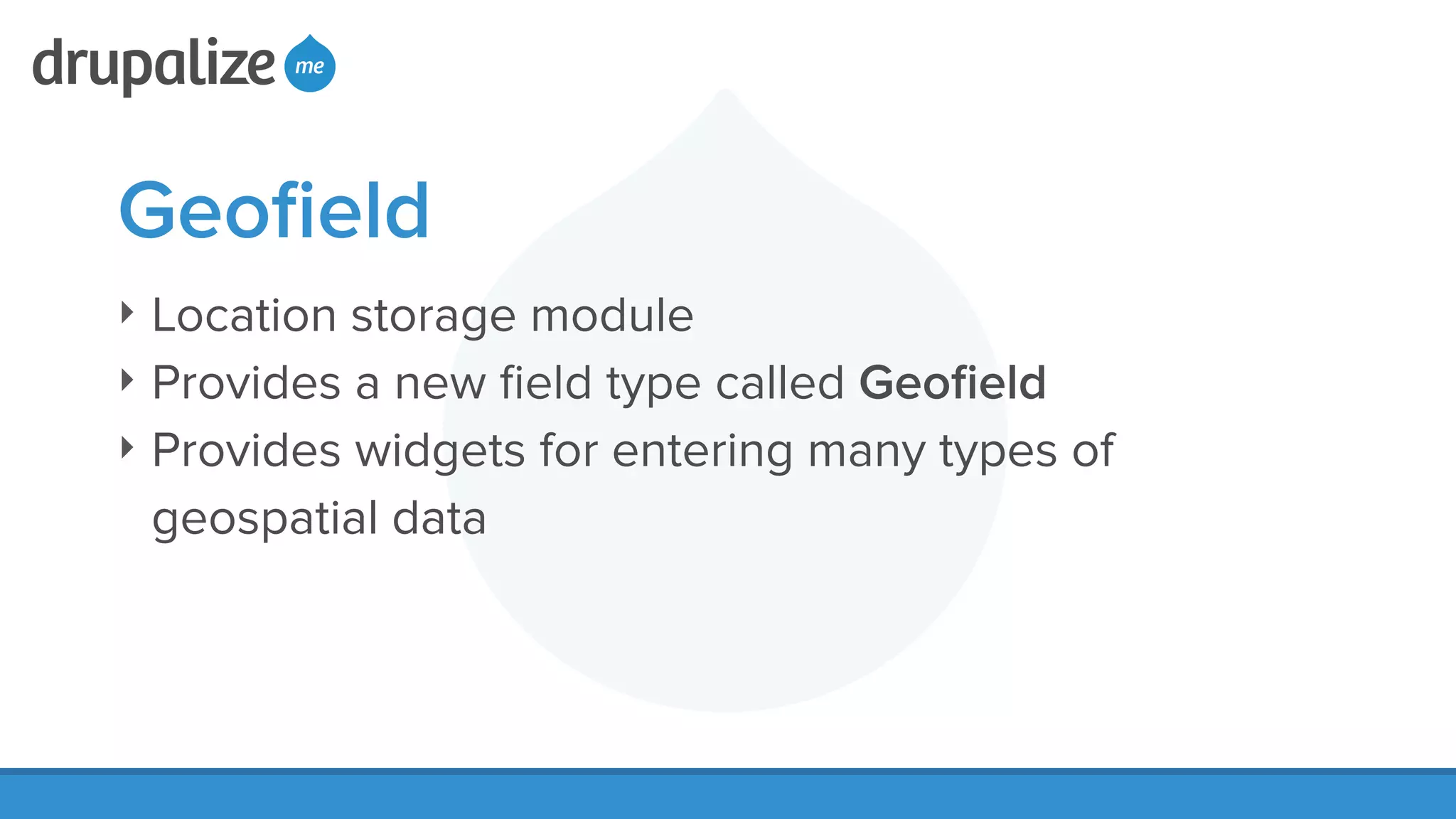

5. Geofield
‣ Location storage module
‣ Provides a new field type called Geofield
‣ Provides widgets for entering many types of
geospatial data

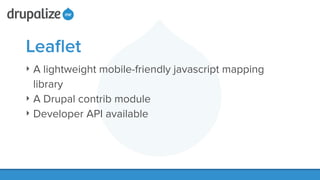

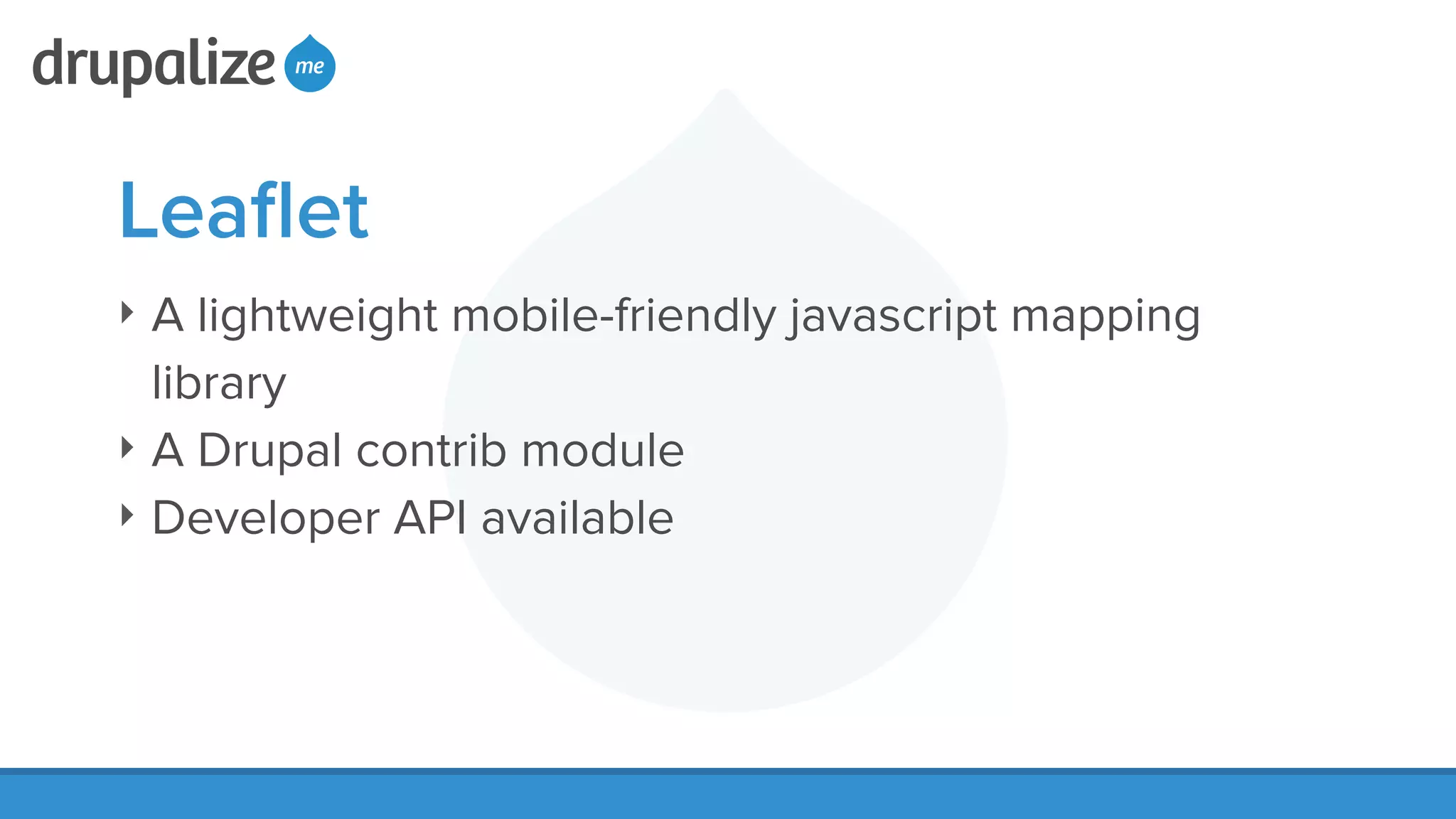

6. Leaflet
‣ A lightweight mobile-friendly javascript mapping
library
‣ A Drupal contrib module
‣ Developer API available

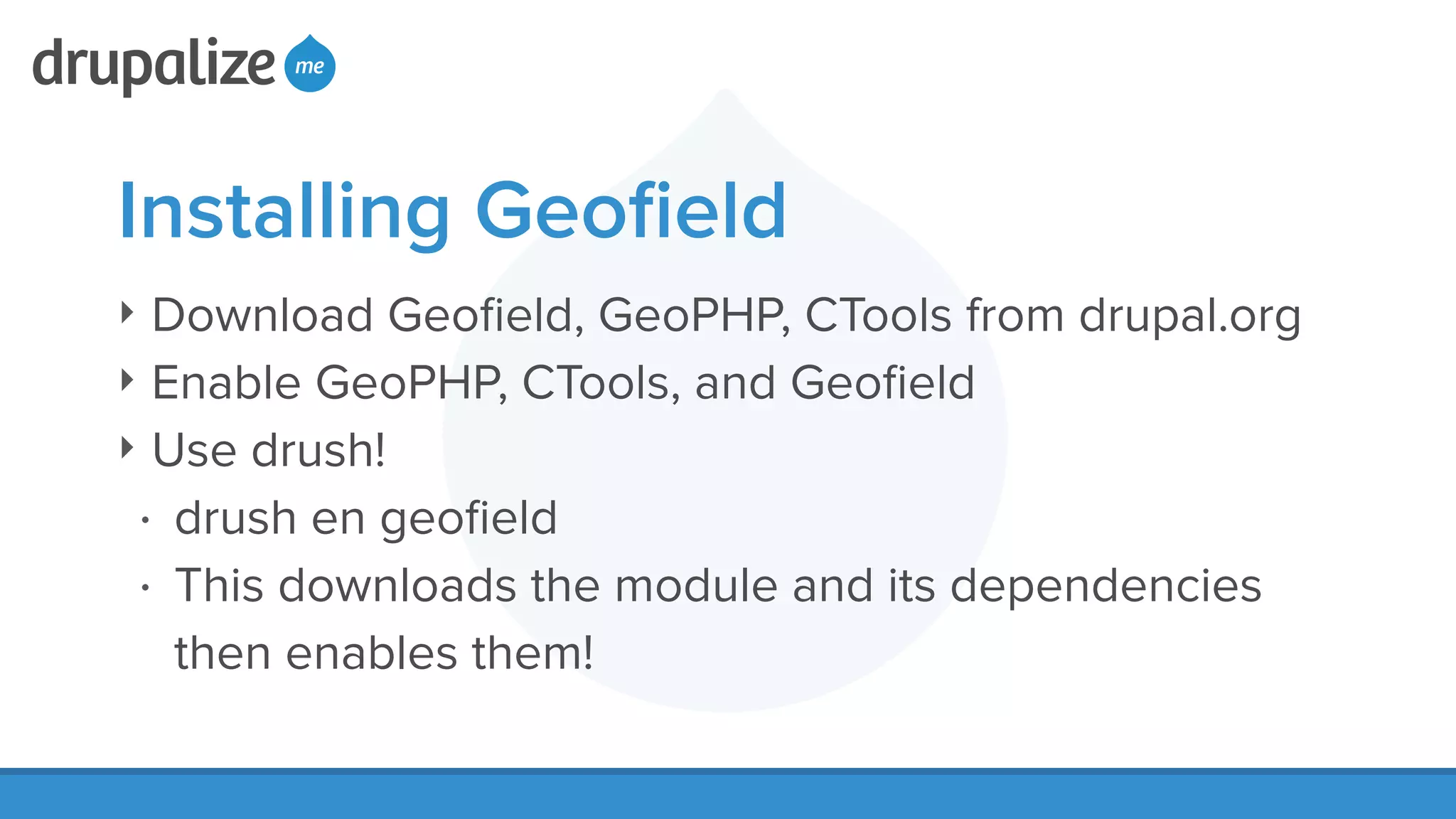

7. Installing Geofield
‣ Download Geofield, GeoPHP, CTools from drupal.org
‣ Enable GeoPHP, CTools, and Geofield
‣ Use drush!
• drush en geofield
• This downloads the module and its dependencies
then enables them!

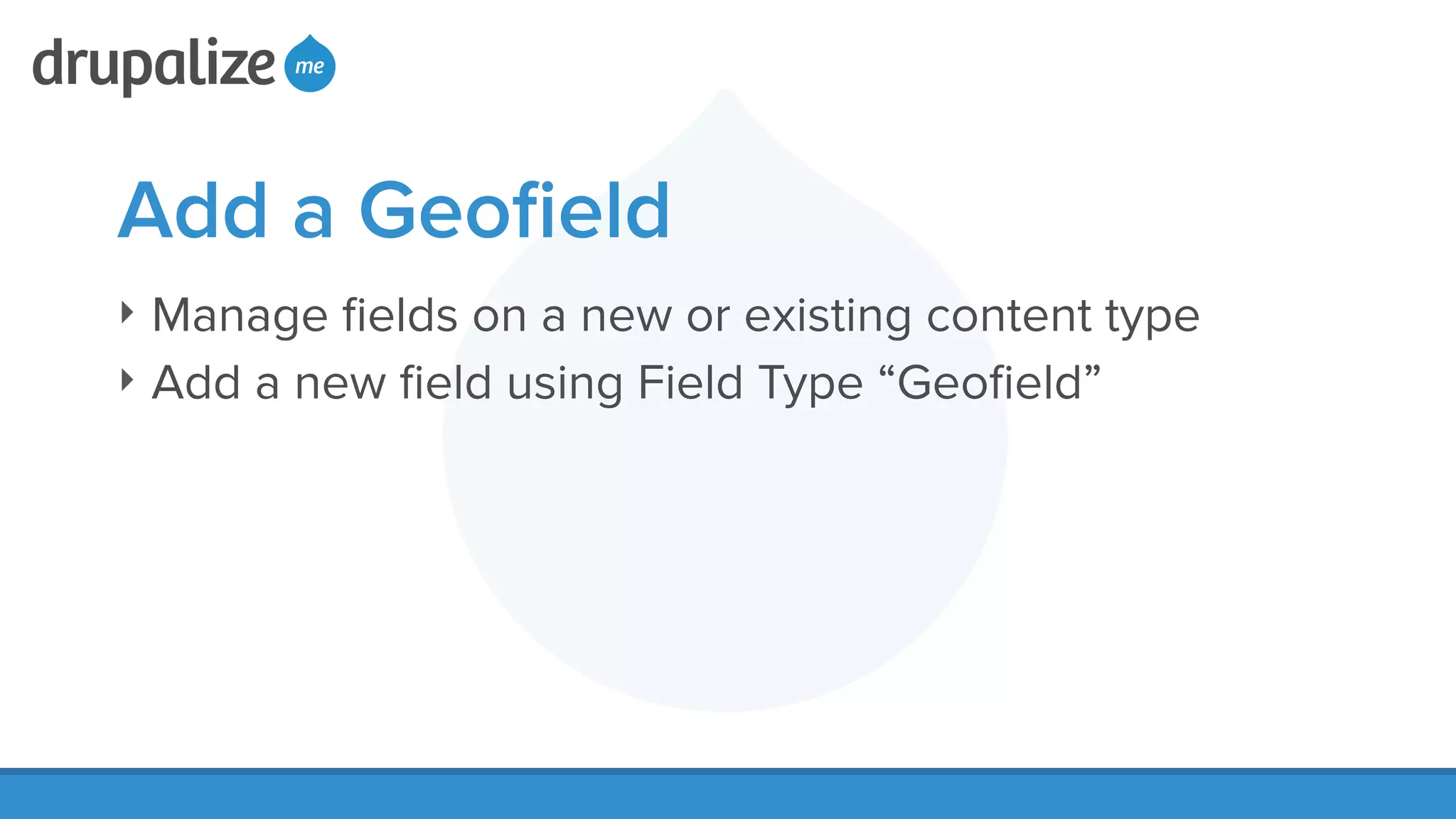

8. Add a Geofield
‣ Manage fields on a new or existing content type
‣ Add a new field using Field Type “Geofield”

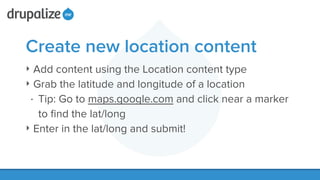

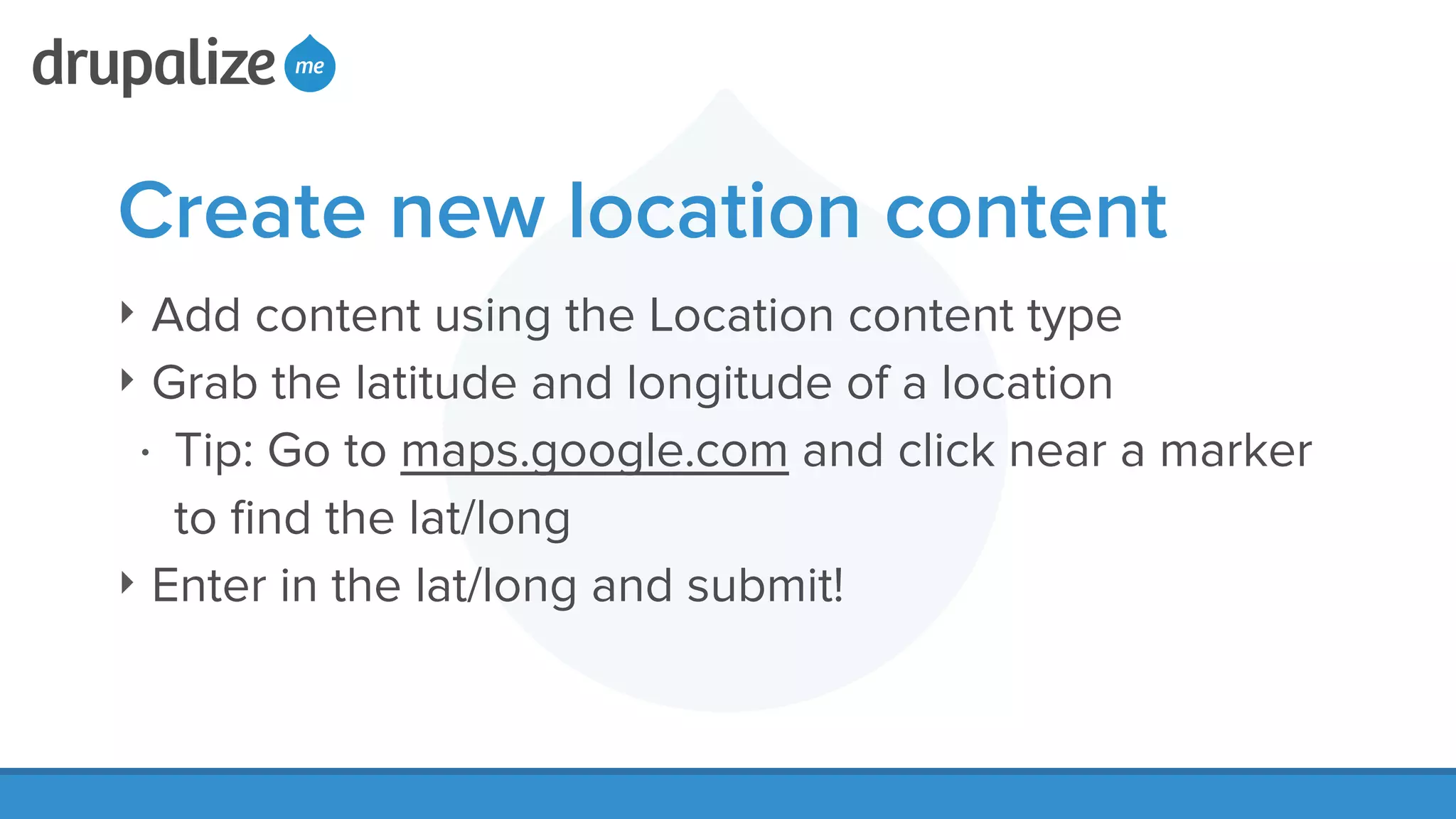

9. Create new location content
‣ Add content using the Location content type
‣ Grab the latitude and longitude of a location
• Tip: Go to maps.google.com and click near a marker
to find the lat/long
‣ Enter in the lat/long and submit!

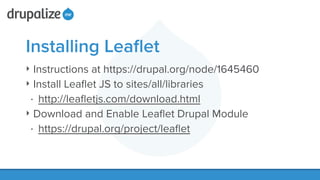

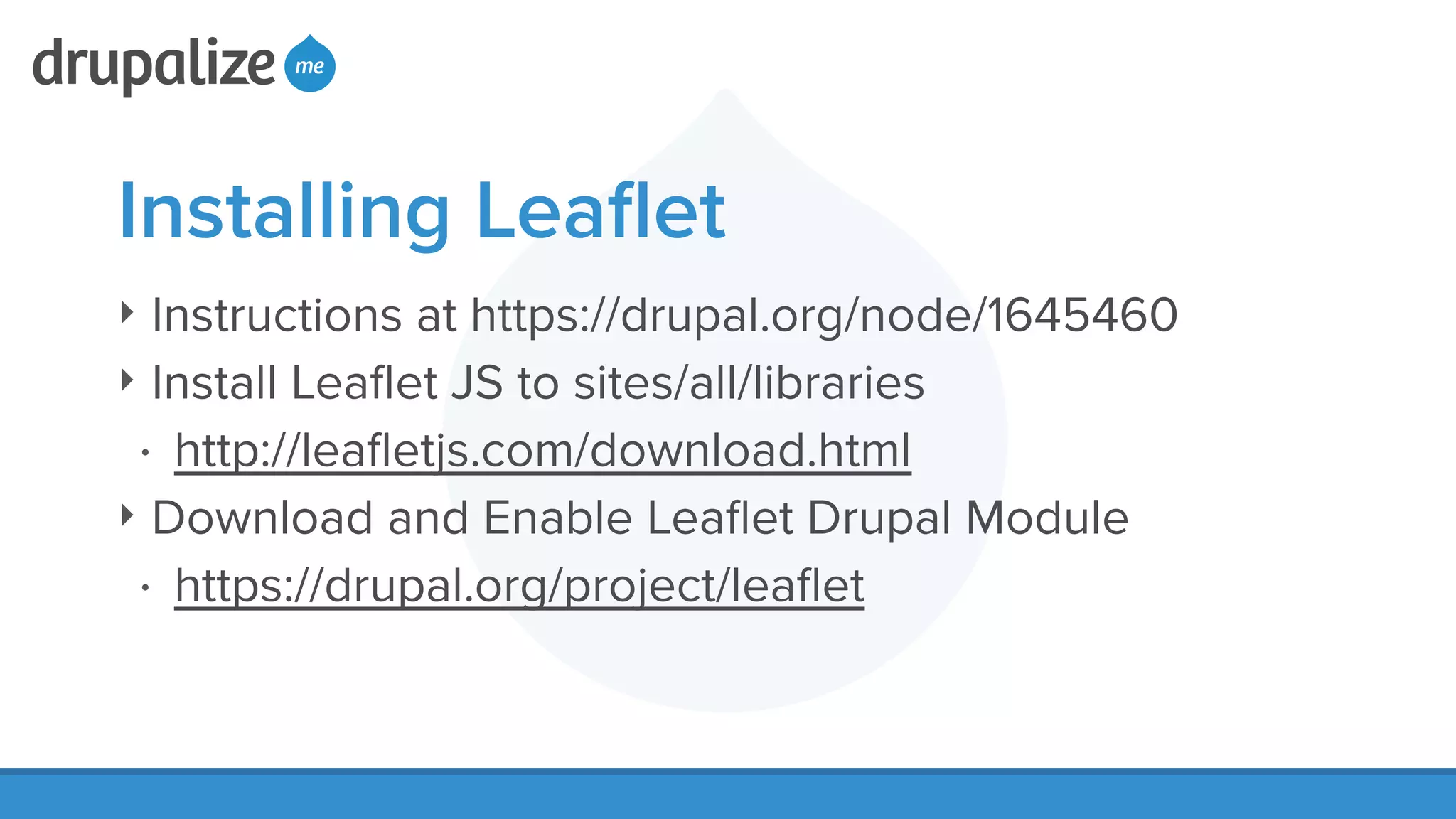

10. Installing Leaflet
‣ Instructions at https://drupal.org/node/1645460
‣ Install Leaflet JS to sites/all/libraries
• http://leafletjs.com/download.html
‣ Download and Enable Leaflet Drupal Module
• https://drupal.org/project/leaflet

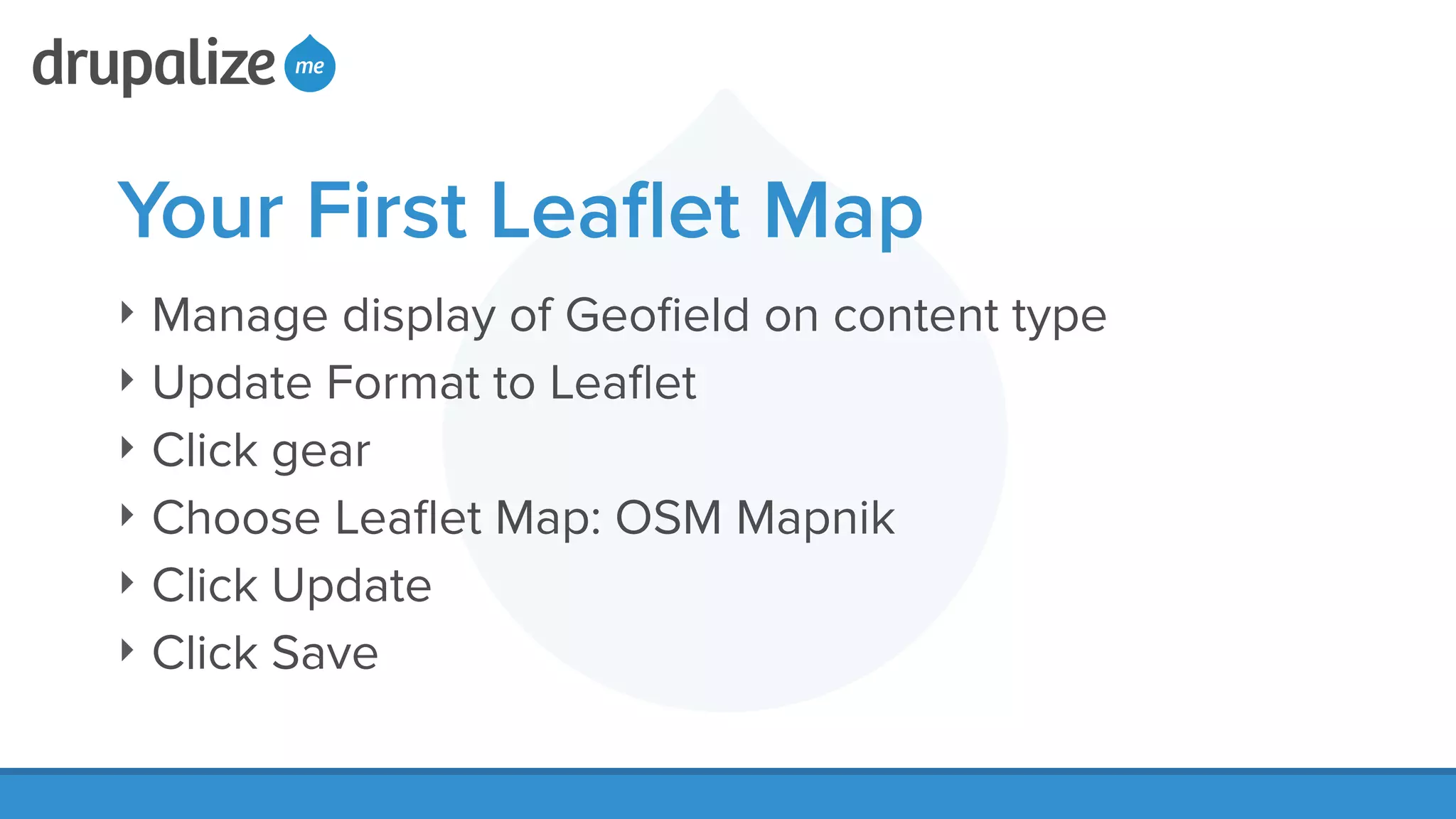

11. Your First Leaflet Map
‣ Manage display of Geofield on content type
‣ Update Format to Leaflet
‣ Click gear
‣ Choose Leaflet Map: OSM Mapnik
‣ Click Update
‣ Click Save

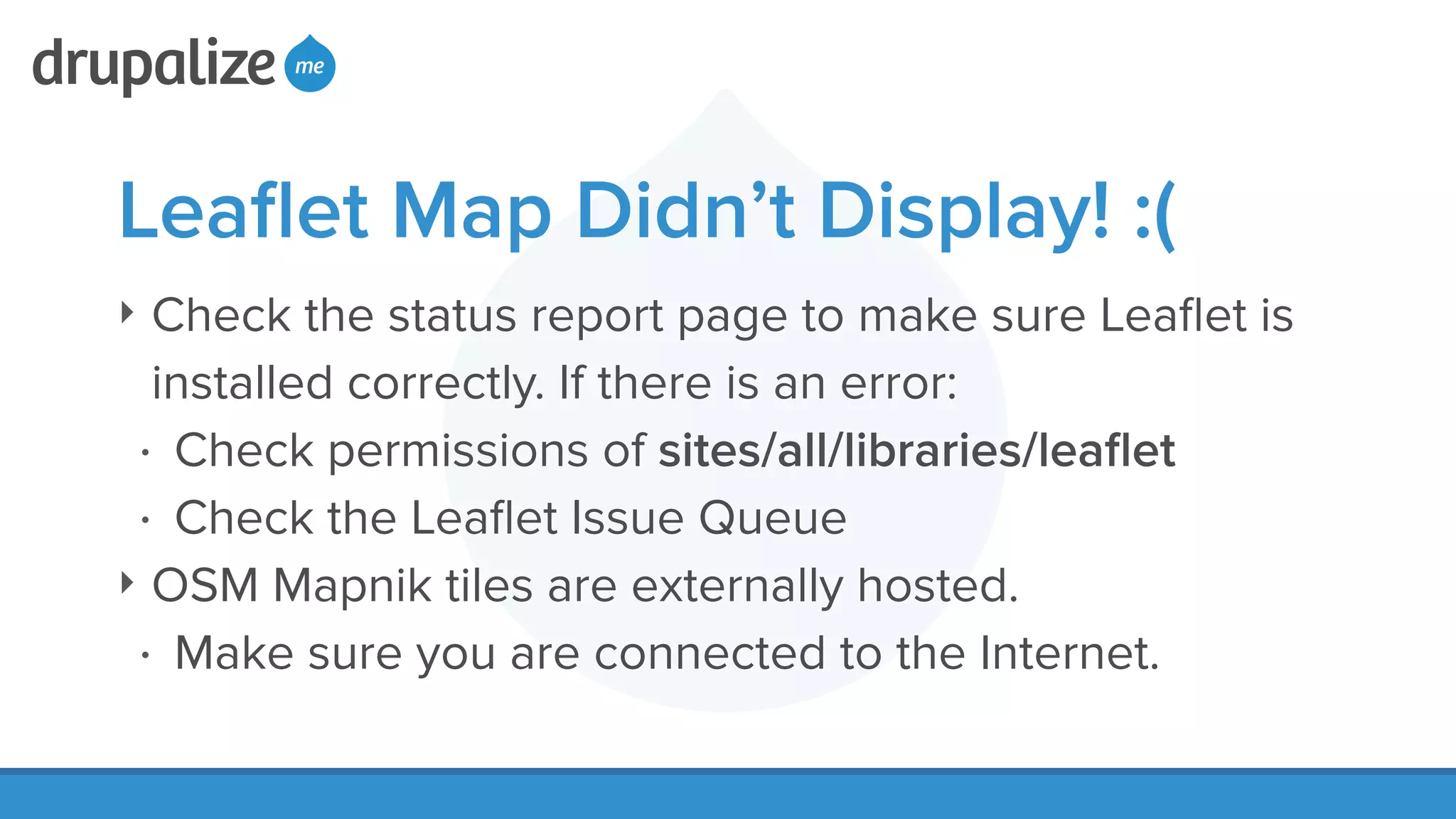

12. Leaflet Map Didn’t Display! :(
‣ Check the status report page to make sure Leaflet is
installed correctly. If there is an error:
• Check permissions of sites/all/libraries/leaflet
• Check the Leaflet Issue Queue
‣ OSM Mapnik tiles are externally hosted.
• Make sure you are connected to the Internet.

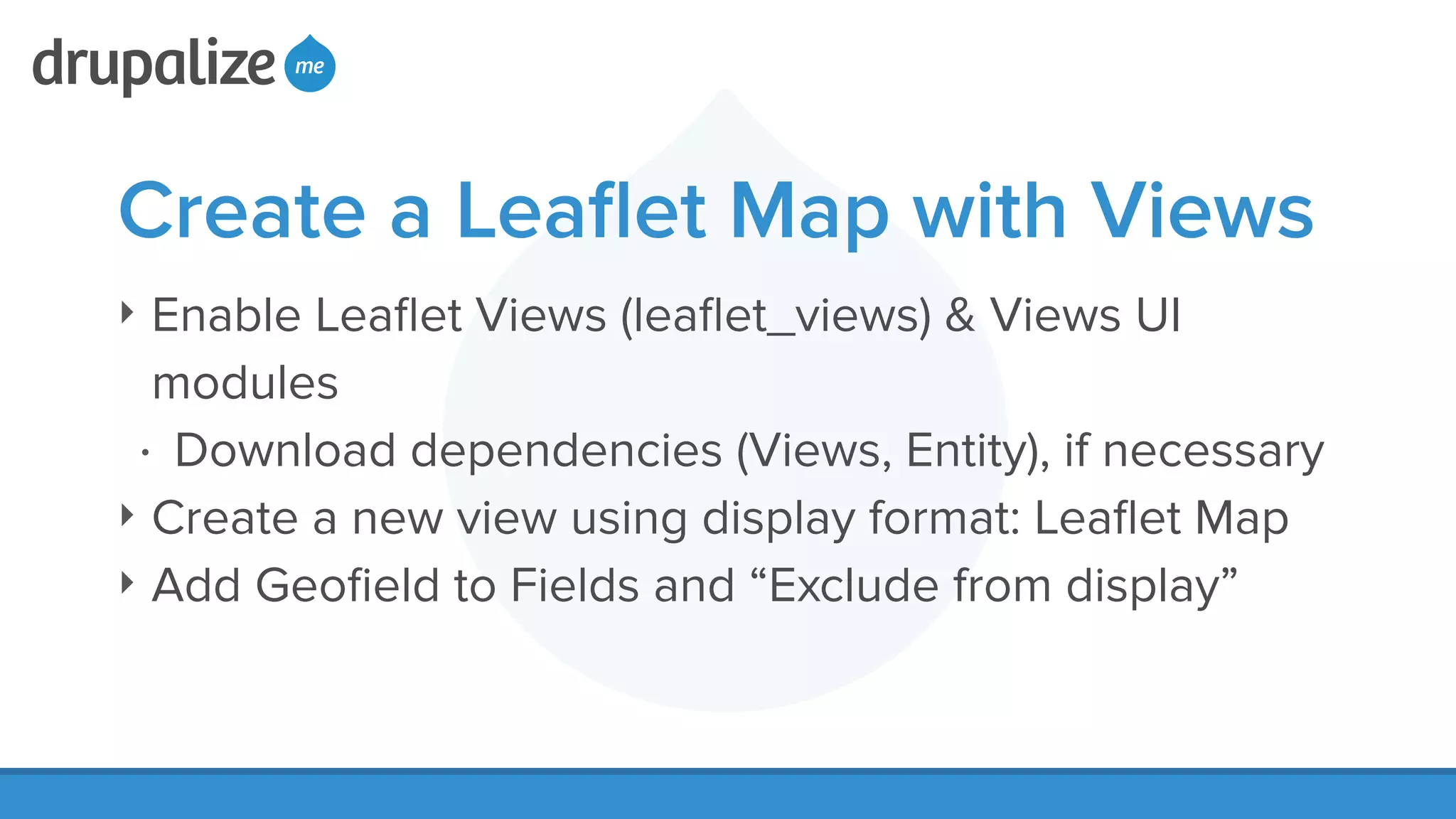

13. Create a Leaflet Map with Views
‣ Enable Leaflet Views (leaflet_views) & Views UI
modules
• Download dependencies (Views, Entity), if necessary
‣ Create a new view using display format: Leaflet Map
‣ Add Geofield to Fields and “Exclude from display”

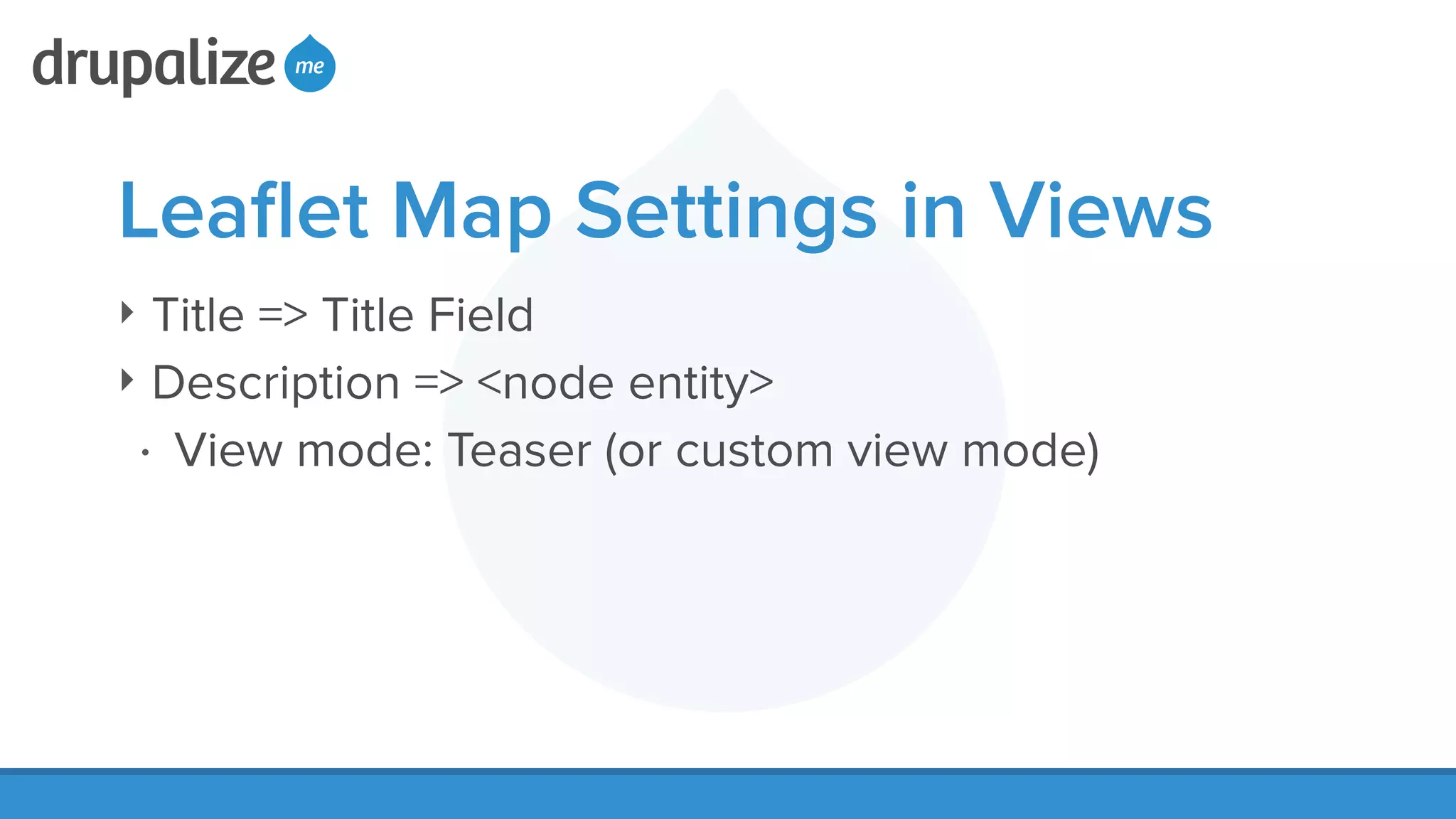

14. Leaflet Map Settings in Views
‣ Title => Title Field
‣ Description => <node entity>
• View mode: Teaser (or custom view mode)

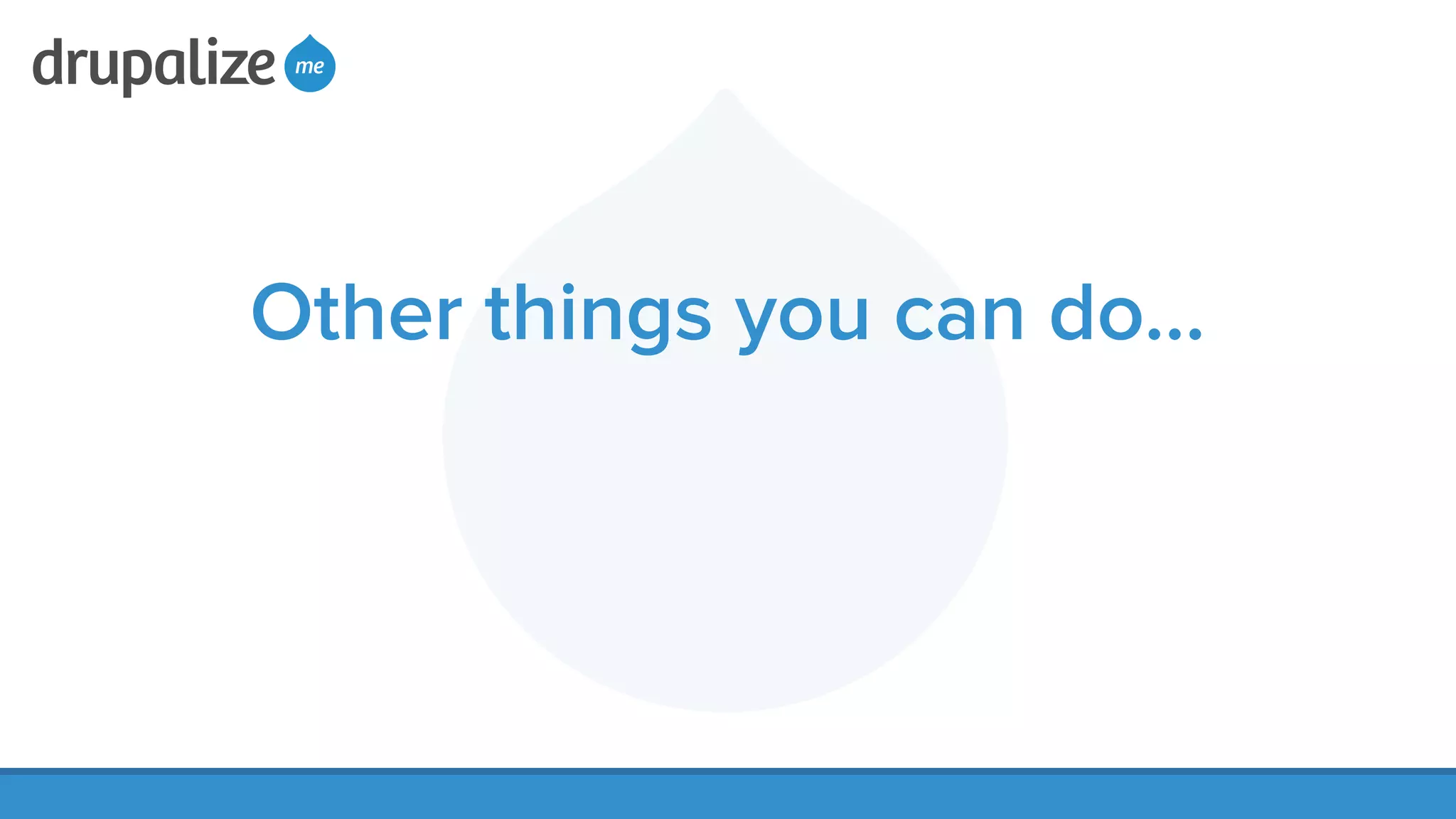

15. Other things you can do…

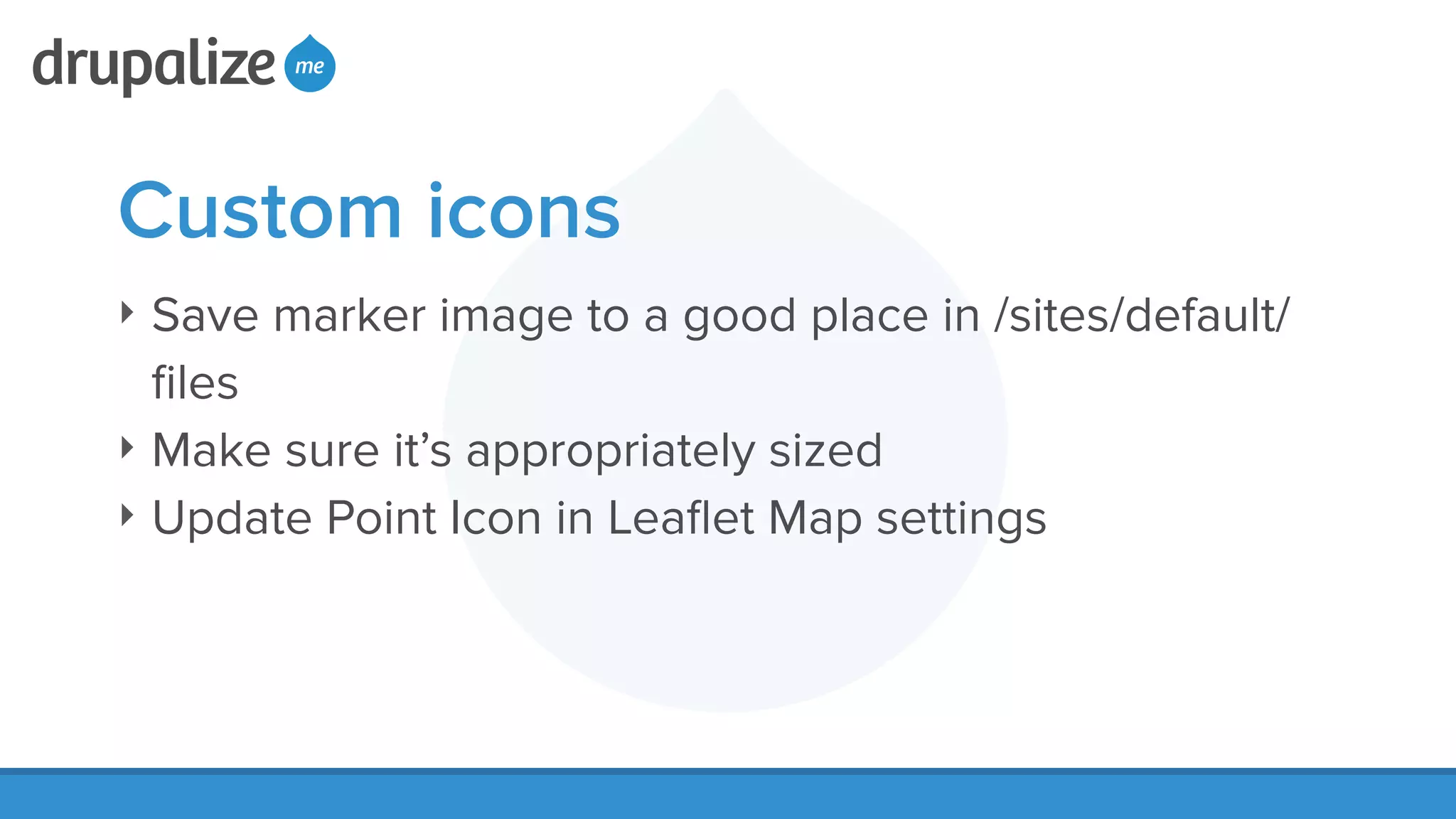

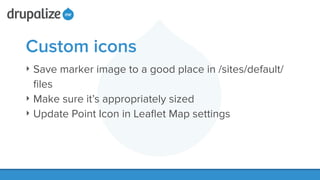

16. Custom icons
‣ Save marker image to a good place in /sites/default/
files
‣ Make sure it’s appropriately sized
‣ Update Point Icon in Leaflet Map settings

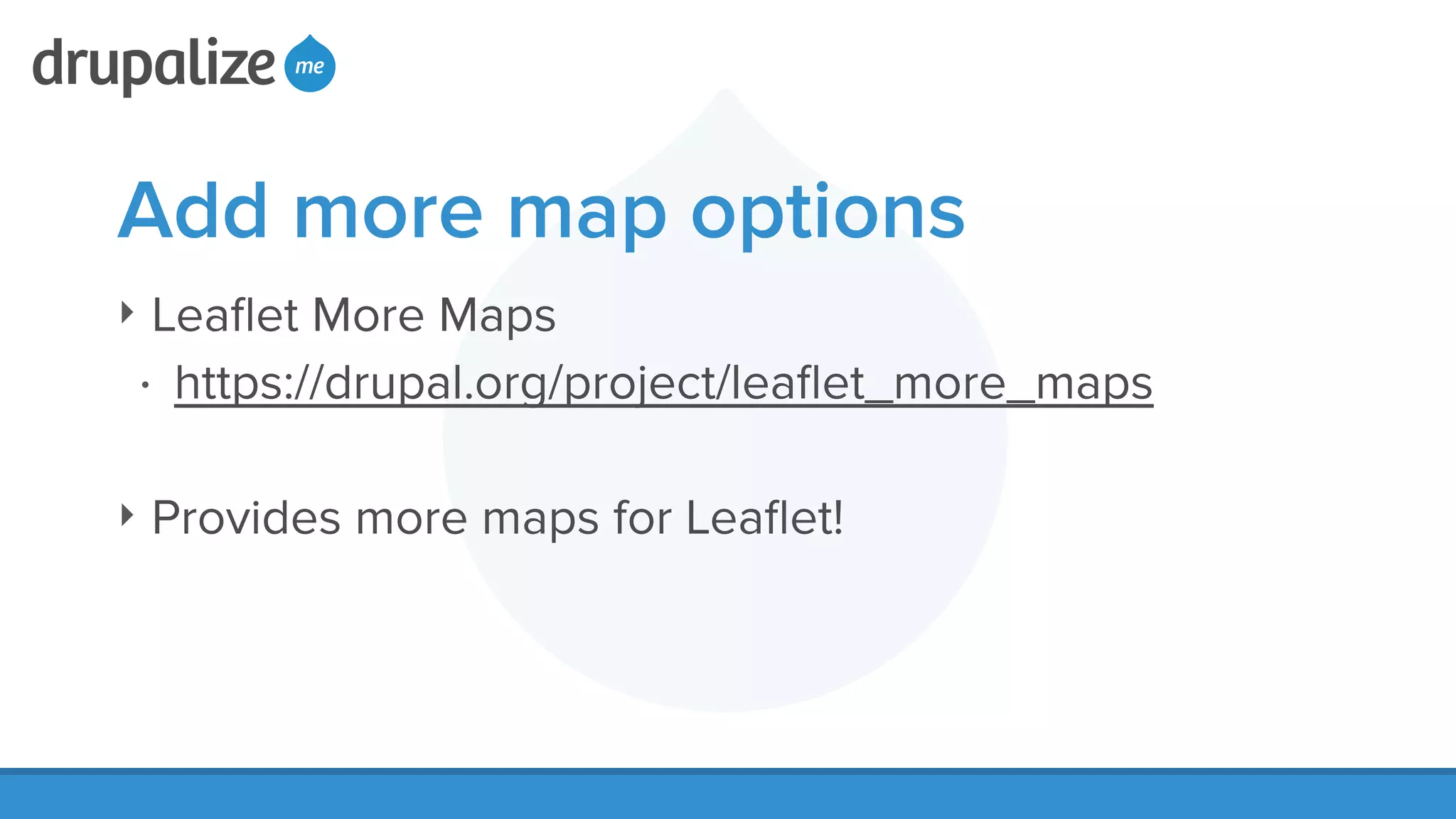

17. Add more map options
‣ Leaflet More Maps
• https://drupal.org/project/leaflet_more_maps
!
‣ Provides more maps for Leaflet!

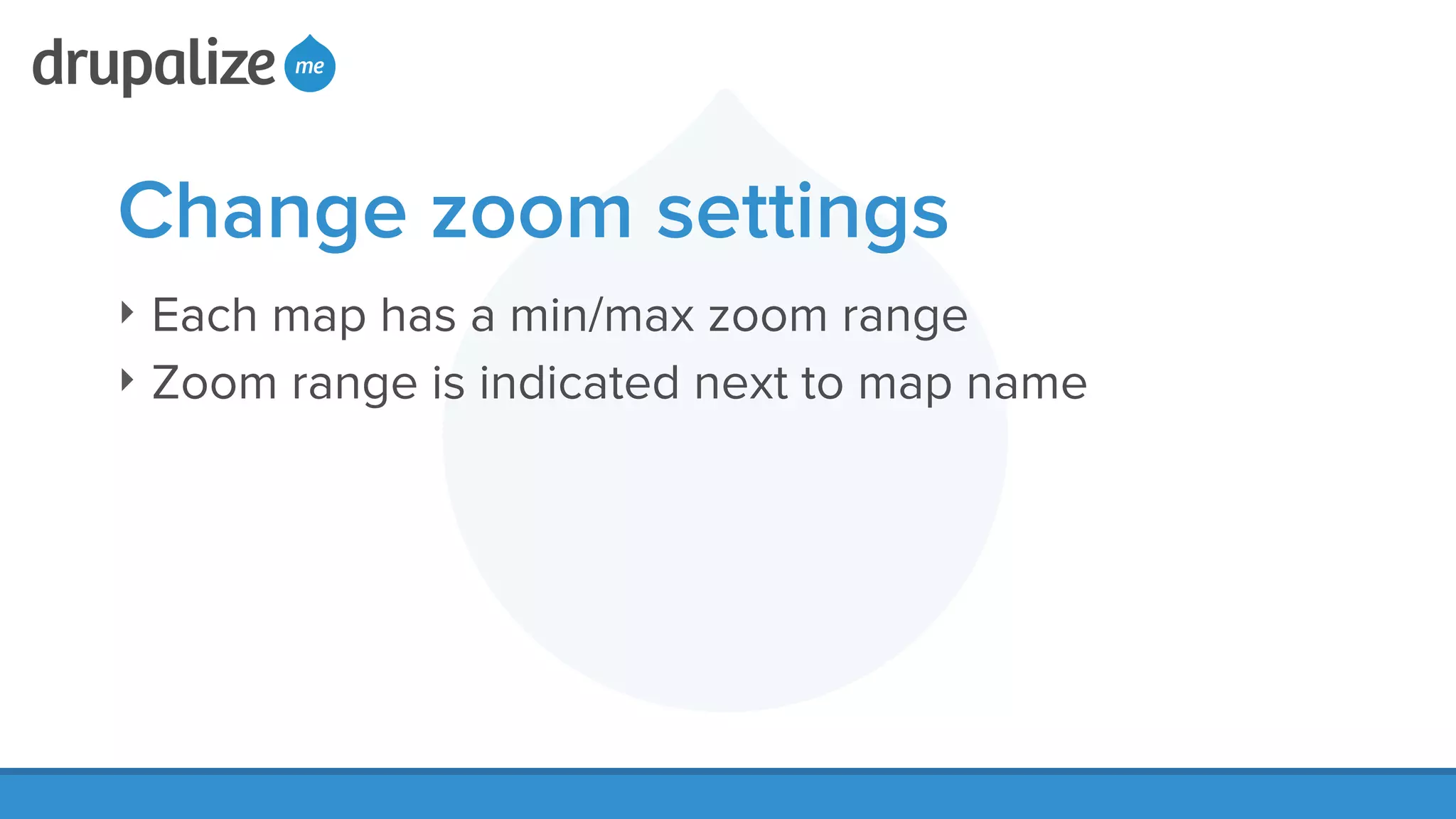

18. Change zoom settings
‣ Each map has a min/max zoom range
‣ Zoom range is indicated next to map name

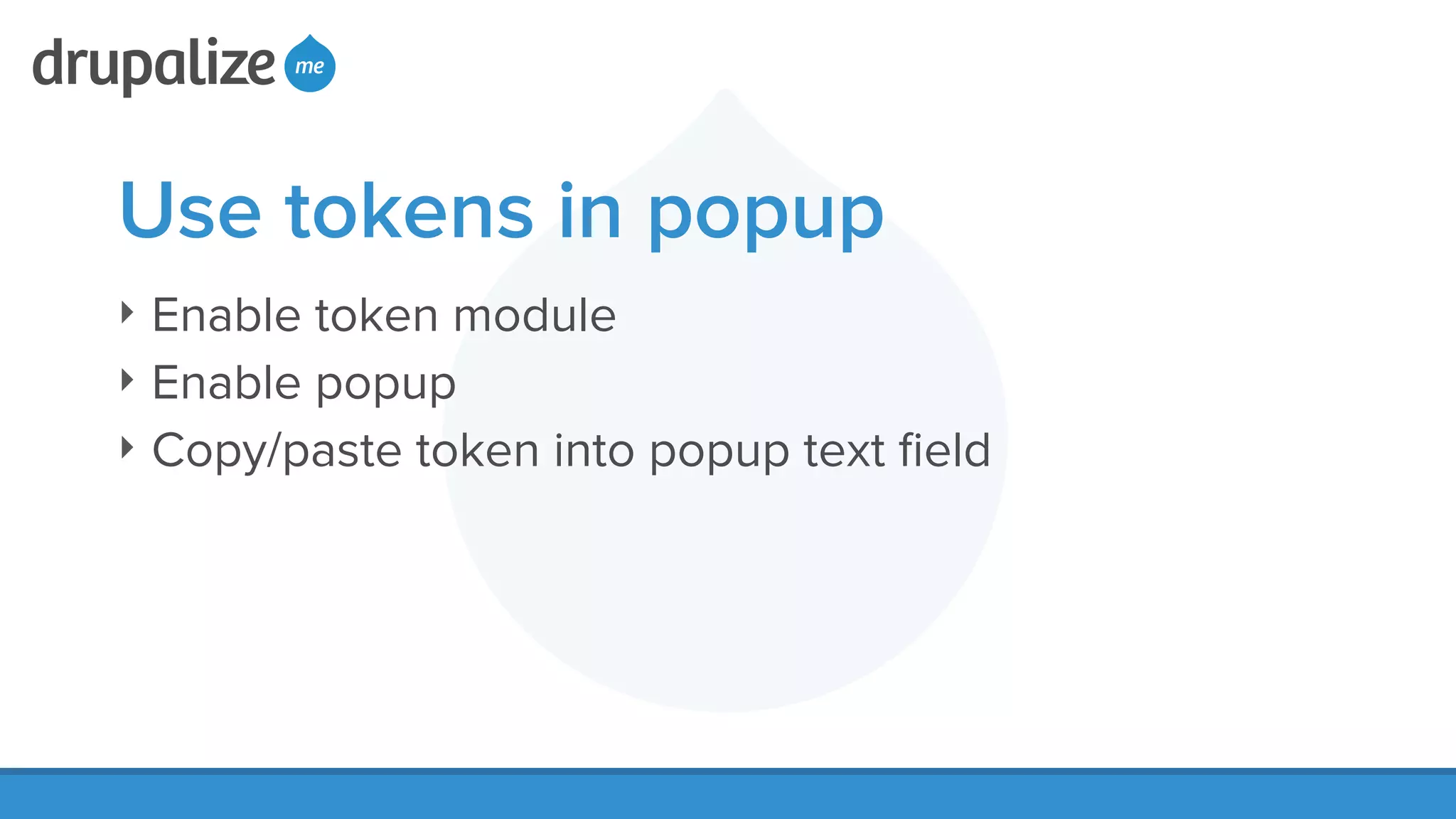

19. Use tokens in popup
‣ Enable token module
‣ Enable popup
‣ Copy/paste token into popup text field

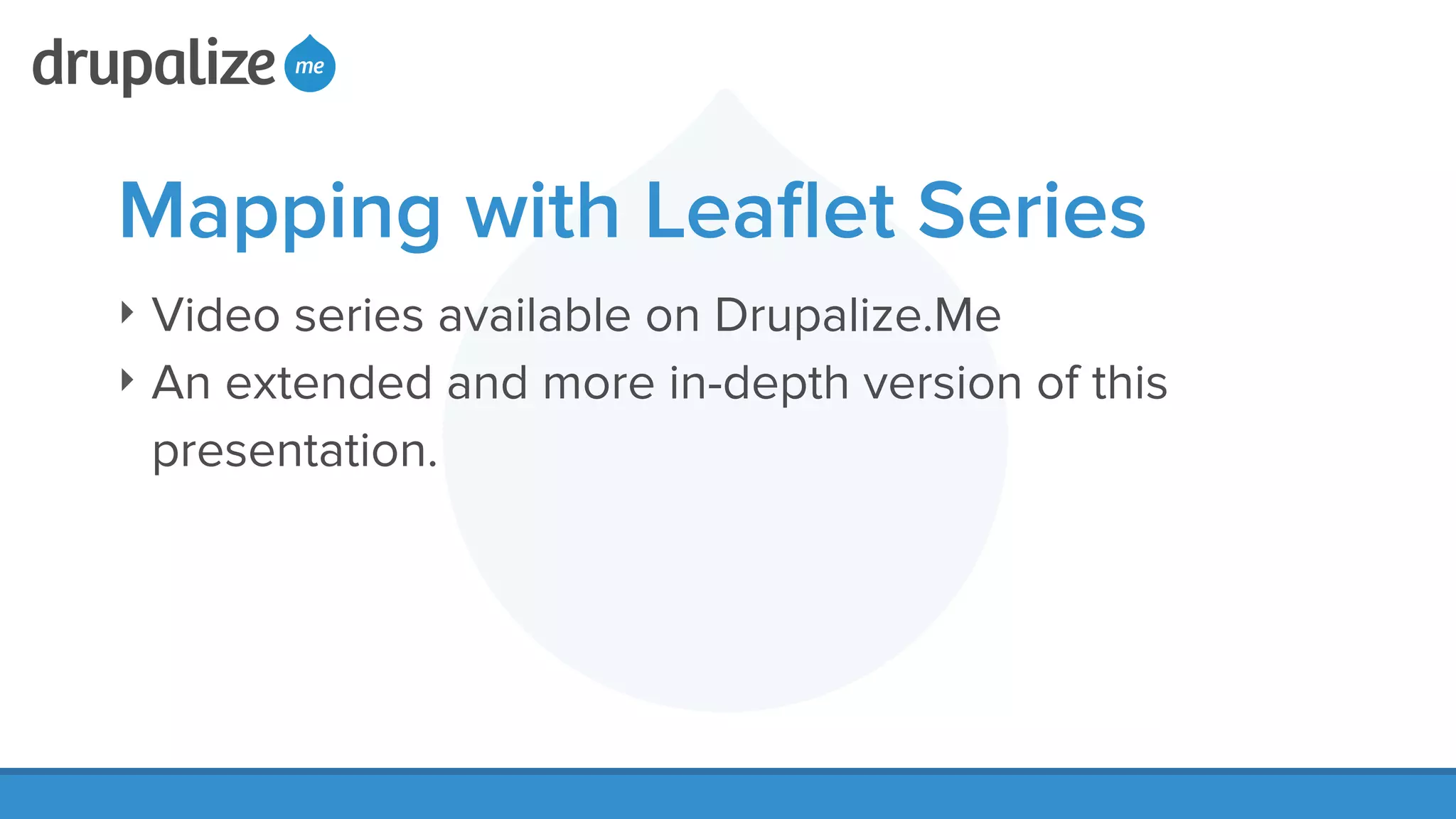

20. Mapping with Leaflet Series
‣ Video series available on Drupalize.Me
‣ An extended and more in-depth version of this
presentation.

21. Easily Create Maps in Drupal
with Leaflet
!
http://lb.cm/acquia-leaflet
!
