This document discusses the information gathering phase of a web application penetration test using Netsparker. It describes how Netsparker crawls a target site to map its structure and identify vulnerabilities. Key steps include configuring scan settings such as authentication, URL rewriting rules, and crawling parameters. The results of an initial "crawl and wait" scan are presented, showing how Netsparker reveals technical details, comments, inputs, and existing vulnerabilities to provide visibility into the target application before further testing.

1. Web Application Pentesting
Information Gathering

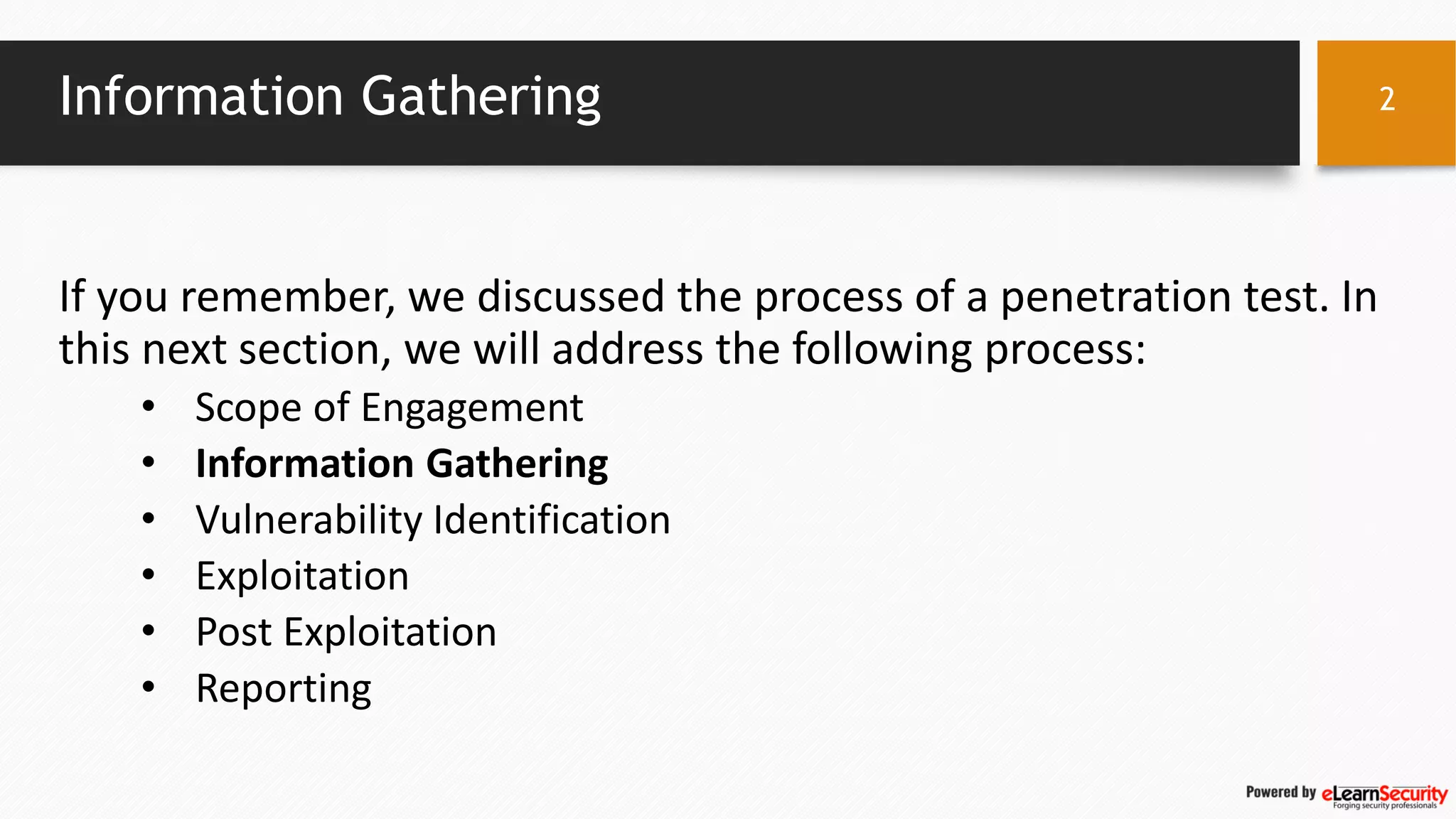

2. Information Gathering
If you remember, we discussed the process of a penetration test. In
this next section, we will address the following process:
• Scope of Engagement
• Information Gathering
• Vulnerability Identification
• Exploitation
• Post Exploitation
• Reporting
2

3. Information Gathering
Gathering information about the target is the initial phase of any
penetration test. You will quickly find that in general, this is the
most important part of the entire engagement.
At this stage, there is no redundant information; everything you
collect should be noted for future use. The wealth of information
you collect will become useful in both understanding application
logic and during the attack phase.
3

4. Information Gathering
What sorts of information are we going after?
• Infrastructure (Web server, CMS, Database…)
• Application Logic
• IPs, Domains and Subdomains
• Virtual hosts
4

5. Information Gathering
The infrastructure behind a web application is what supports it and
allows it to function.
This includes the web server that is directly involved in the
execution of any web application.
The two most common web servers used on the internet today are
Apache and Microsoft IIS.
5

6. Information Gathering
Discovering what kind of web server is behind your target
application will give you a hint about what OS the server is running
and what known vulnerabilities may exist. For example, discovering
an IIS (Internet Information Service) web server will tip us off that
the server is running an OS in the Windows Server OS family.
Uncovering both the web server type and version will give us
enough information to mount many different attacks against its
components (during later stages of the test).
6

7. Information Gathering
As a part of the information gathering phase, we are going to
introduce you to the Netsparker utility and how it functions in
completing the application web penetration testing portion of an
engagement.
During the next few sections we will highlight the unique and
important aspects of Netsparker and how it assists testers in
accomplishing testing scope goals in an efficient and in-depth
manner.
7

8. Netsparker Main Features Overview
Netsparker offers an intuitive interface that is easy to master and
allows testing to commence very quickly.
Moreover it has a scan policy optimizer to help the tester run
targeted scans that will generate more relevant results.
8

9. Netsparker Main Features Overview
Netsparker offers automation of the testing process with the use of
an exploit while scanning technology that will actually perform an
exploit to validate if the target is truly susceptible to the
vulnerability.
This feature helps to keep the tester on track by eliminating some of
the normal, after scan work, that requires the tester to research
exploits and manually test them after the initial scan.
Let’s get started with Netsparker, and get familiar with the main
screen and options.
9

10. Information Gathering
The next slide is a representation of the Netsparker Main Screen.
• The Netsparker Main screen offers visibility into the site being
scanned with a Site Map.
• Vulnerability information including the raw request and responses as
well as a browser view.
• A Scan tab that allows the tester to monitor what is being tested with
a summary of any findings.
• A dashboard to have a summary of the scan statistics and progress
• A section for summarizing issues with additional tabs for encoding
and analysis of logs. In addition, the main screen presents options of
how to group and show issues.
10

12. Main Screen Elements
Element # Name Contents
1 File Menu
Contains Standard file menu options for creating new scans, saving
existing results, reporting options, tools, and help options
2
Start New Scan / Start Incremental
Scan Menu Buttons
These buttons allow quick access to the type of scan the user would
like to run. In Incremental Scan, Netsparker will crawl your website
and ONLY attack newly identified pages (links) and pages that were
scanned before but changed since the last scan.
3 Import Links / Start Proxy Menu Bar
Allows the user to import links to scan from an external file, and also
activates the local proxy option for scans
4 Vulnerability Tab
During a Scan this tab displays the vulnerability information for any
vulnerabilities discovered
5 Browser View Shows the browser view for the current scan element
6 HTTP Request/Response Tab
Allows the operator to see the raw requests made to the target and
the response the target provides
12

13. Main Screen Elements
Element # Name Contents
7 Interactive Elements Toolbar
Allows the operator to interact with the scan with tools such as
gaining a shell, generating exploits, etc.
8 Site Map Provides the operator with a site map of the target as it is scanned
9 Vulnerability Tab Shows the Vulnerability information screen during a scan
10 Scan Tab
Shows the Scan process and summary info for items discovered during
a scan
11 Dashboard Window
Shows Scan elements such as scan phase, scan elapsed time, scan
speed, etc.
12 Issues Window Shows issues discovered during the scan on the target
13 Group Issues by Window
Provides the operator with options on how to display items in the
issues window
13

14. Main Screen Elements
Element # Name Contents
14 Issues Tab Shows issues discovered during the scan
15 Encoder Tab
Encoder tool, which supports URL, HTML, Base64, UTF7, MD5, SHA1,
SHA256, SHA512, SQL Server Character, Oracle Char and ROT13
encoding and decoding.
16 Logs Tab Allows you to see the logs associated with a scan
17 Update Status Bar This status bar represents that update status for Netsparker
18 Vulnerability Database Status Bar
This status bar indicates if there are any Vulnerability Database
updates available
19 Proxy Status Bar Indicates if a proxy is in use or not
20 News/Status Window
This area contains important News from Netsparker and will also show
the status of the scans and the vulnerabilities detected during scans
14

15. Information Gathering
Starting a scan:
We insert the target into the
Start a New Website or Web
Service scanning window.
We set our scan policy settings
by using the drop down or by
selecting the Wizard.
15

16. Information Gathering
Now we have to set the
Crawling parameters at the
bottom of the panel.
Set any additional options by
using the links on the left side of
the screen.
16

17. Information Gathering
The Scope Settings help to
define more refined scanning by
limiting scanning to specific URL
paths.
In addition, it allows the
operator to exclude specific
URLs with RegEx.
17

18. Information Gathering
Imported links allow you to
import specific URLs or HTTP
requests.
URLs (requests) can also be
manually entered or imported.
18

19. Information Gathering
Web application developers use URL rewriting to modify the
appearance of the web application's URLs, in order to be human
readable and search engine friendly, making them easy to
remember.
Another advantage of using URL rewriting technology is that all
symbols such as question marks and equal signs are not used in
URLs, thus making URLs easy to remember.
19

20. Information Gathering
An example of a URL rewrite is the following.
When you browse a movie collection library, the URL typically looks
something like: http://www.example.com/movie/fight-club/
When you request such a URL the web server uses a URL rewrite
engine to rewrite the URL to a format that the web application /
web framework can understand, such as
http://www.example.com/library.php?movie=fight-club.
20

21. Information Gathering
A common problem web vulnerability scanners have when scanning
web applications that use URL rewriting technology is that scanners
are unable to identify parameters in the URLs, and would assume
that they are directories rather than parameter names or values,
therefore such parameters are not scanned.
Netsparker offers the ability to manually configure URL Rewrite
Rules, but it also offer an heuristic URL Rewrite support that
automatically tries to determine if URL rewrite is used on the target
application.
21

22. Information Gathering
For a manual configuration
of URL Rewrite rules we can
click on Use Custom URL
Rewrite Rules as showed in
the screenshot.
22

23. Information Gathering
If you want to dig deeper in URL Rewriting rules and configurations,
please use the following resources:
• Automatic URL Rewrite rules configuration
• Configure URL Rewrite Rules
• Automating URL Rewrite Rules
23

24. Information Gathering
Enable the option Heuristic URL Rewrite Support so the scanner
still tries to automatically detect any additional URL Rewrites on the
target website and use them in conjunction with the ones you
configured.
24

25. Information Gathering
Authentication settings can be
manipulated to assist the scanner
with authentication on the target.
This is useful so the scanner can
automatically authenticate and
scan password protected area.
25

26. Information Gathering
The Interactive login option is extremely
useful when facing web application that
use CAPTCHA, two-factor authentication
or other similar mechanisms.
By enabling this option, Netsparker will
show an interactive browser window
during the authentication, so you can
perform any necessary operations to
allow the authentication.
26

27. Information Gathering
Basic, NTLM/Kerberos
Authentication options can be
used if the target prompts for
these types of credentials.
27

28. Information Gathering
Client Certificate settings allow the
operator to include authentication
certificates that might be required
for the target application.
Note the need to ensure that the
certs are not imported with strong
key protection as Netsparker will
not be able to use them correctly.
28

29. Information Gathering
In addition, if you are using a
Manual Crawl scan, the
certificate will need to be named
ClientCertificate.cer in order to
be used and must be stored in
Netsparker data repository.
29

30. Information Gathering
Once all of the settings are configured according
to the desired settings, we can proceed with
choosing the type of scan we want to run.
At the bottom of the Start a New Website or
Web Service Scan Screen is the Start Scan
button.
Pressing the Down Arrow ( ) will give the
operator additional options.
30

31. Information Gathering
Start Scan: is the default option. Netsparker
will first crawl the entire target web
application, find new links and then attack all
identified pages.
Crawl and Wait: this is similar to the previous
option, but Netsparker will pause after the
crawling phase. This is useful if you want to
review the resources/link identified before
actually start the attack phase.
31

32. Information Gathering
Manual Crawl (Proxy mode): This option is
useful if you want to scan only a part of the
target web application.
If you use this option, the scan will start, but
Netsparker will pause after requesting the
starting URL and will not crawl other links.
It's important to know that with the Manual
Crawl scan mode, Netsparker will not find and
crawl new links.
32

33. Information Gathering
The Scan Imported Links Only can be used if you
only want to test certain parts of the application.
You can either manually enter these URLS and
HTTP Request to test, or import them from a
proxy log file.
Similarly to the Manual Crawl option, Netsparker
will not automatically find new links.
33

34. Information Gathering
To demonstrate the information
gathering phase of web application
pentesting, let’s choose to run the
crawl and wait scan.
To select this type of scan, we
select the down arrow ( ) as in
the previous slide, and select
Crawl and Wait.
34

35. Information Gathering
As the scan starts we notice
elements of the screen begin to
change:
1. the site map begins to populate
with the site info
2. the dashboard section begins to
show the progress and statistics
of the scan
35

36. Information Gathering
3. The Scan Tab shows the tests
being conducted and the
summary of findings
4. The Issues sections begins
displaying the summary of
issues detected
36

37. Information Gathering
Once the Crawl and Wait scan
completes, we have a full picture
of the site in the site map down
to the level set to scan from the
initial settings.
We can see in the Dashboard
status window that the scan is
paused. The issues list contains
all the issues found.
37

38. Information Gathering
We can begin to explore the
information gathered by
selecting an item in the Site
Map window.
For example, if we select the
SVN Detected vulnerability, the
vulnerability tab displays.
38

39. Information Gathering
This view gives us vital
information about the issues
detected including the URL,
Certainty, Impact, Remedy, and
Classification details according
to different sources.
39

40. Information Gathering
Notice that on the top we can
access very useful features. The
browser view will render the
response obtained, while in the
HTTP Request / Response we
can inspect the communication
in detail.
This will be very useful to
understand how the application
responds.
40

41. Information Gathering
Other features can be found in the Vulnerability tab:
• Controlled scan: allows us to run an preconfigured attack against the
web application vulnerability.
• Retest: test the vulnerability once again. This can be useful to check
if the fix implemented successfully mitigate the vulnerability.
• Send to Request Builder: allows us to customize the request. This is a
very great tool for manual testing.
41

42. Information Gathering
Before inspecting each vulnerability in detail,
we have to get a better idea of the application.
The first thing we can do is navigating the Issue
tab at the bottom and inspect each item marked
as Information. Here we can gathering a very
good amount of information such as technologies in use (MySQL,
Apache, etc.), but also general information about the application
such as email addresses, directory listing, cookies and headers.
42

43. Information Gathering
Other very useful information that we have
already gathered in this initial phase are located
in the Knowledge Base panel on the left.
From here we can check scan and crawling
performances but also application information
such as MIME types used, comments found in
the pages crawled, file extensions used,
interesting headers, email addresses and much
more.
43

44. Information Gathering
To give you an idea of the information
that an application may reveal by
simply inspecting these items, let us
click on Comments and see what we
obtain.
44

45. Information Gathering
Comments can be a great resource of
information: to-do tasks, software
versions, implementation information
and much more.
In the screenshot, we can see some
very interesting entries!
Thanks to this Netsparker feature, we
have all the comments in one spot and
very well organized.
45

46. Information Gathering
Many web application attacks happen due poor validation of user-
controlled parameters.
Knowing which inputs the application uses is fundamental for our
future tests. We will use these inputs to validate the application
against vulnerabilities such as Cross Site Scripting, SQL Injections,
Command Injection and much more.
46

47. Information Gathering
Once Netsparker ends its crawling
process, it offers a very good overview
of all the pages and their input.
You need to navigate the Web Pages
With Inputs entry as shown in the
screenshot.
47

48. Information Gathering
Another interesting section is the Proofs
item. If in the initial configuration phase we
set Netsparker to run a full scan, here we
can see information obtained by exploiting
the vulnerabilities found in the application.
We will inspect them more in detail in the
next sections, but here we can start getting
an idea of the application vulnerabilities
and data that we can access!
48

49. Information Gathering
At the end of the Information Gathering phase, you should have a
very good understanding of how the application works, its
resources, technologies in use, injection points and so on.
After mapping the attack surface, it is time to plan your attack!
Since Netsparker has already identified some vulnerabilities, this
process will be much easier. In the next module we will navigate
through some of these vulnerabilities and we will see what features
Netsparker offers to test and exploit them.
49
