1. Vue JS @ MindDoc
The progressive road to online therapy
Darío Blanco Iturriaga (CTO Schoen Digital Labs)
April 26, 2018

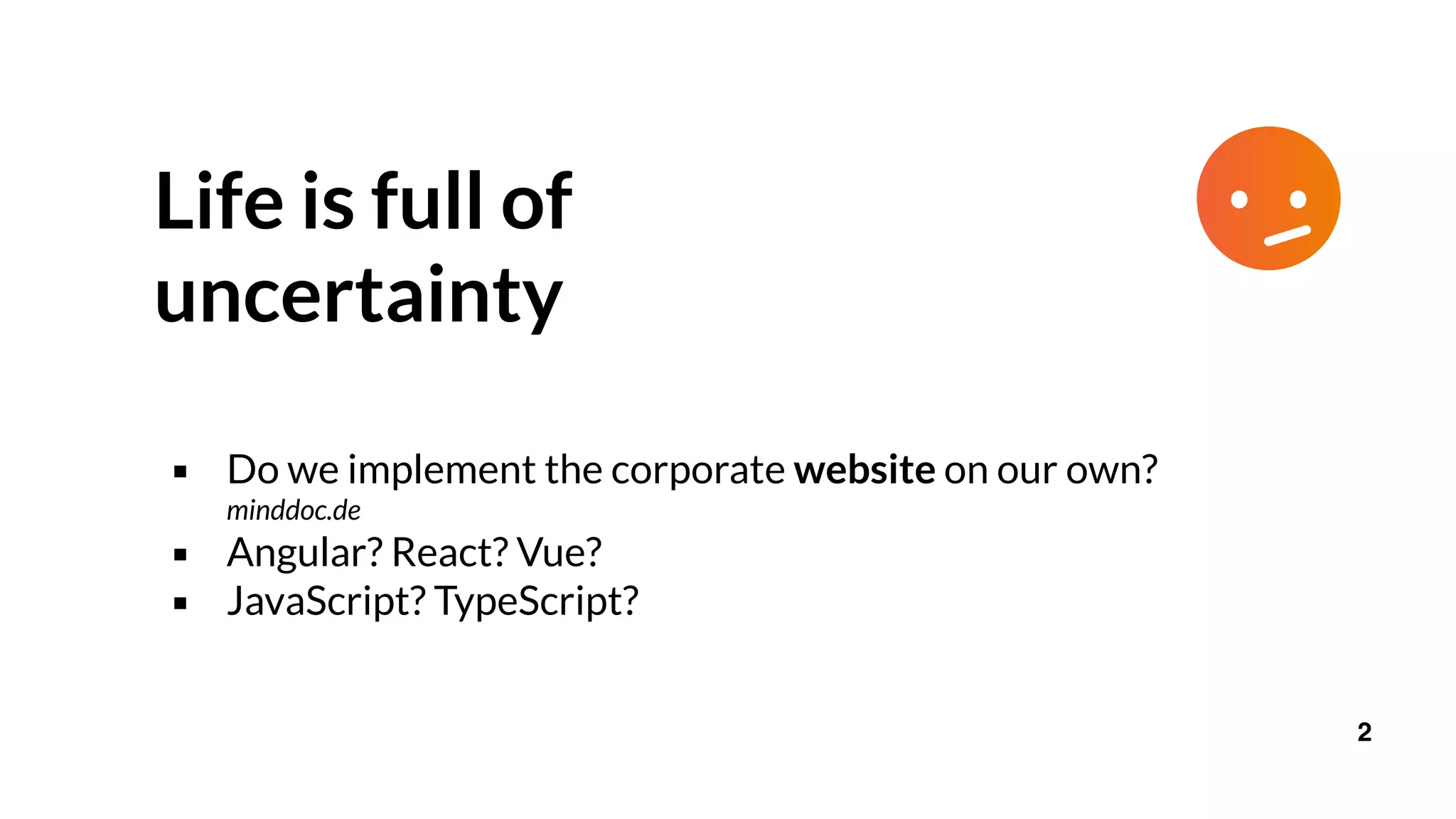

2. Life is full of
uncertainty
▪ Do we implement the corporate website on our own?
minddoc.de
▪ Angular? React? Vue?
▪ JavaScript? TypeScript?
2

3. “
“In his writings, a wise Italian
says that the better is the enemy of good” -
Voltaire
3

4. Progressive
Developing gradually or in stages
4

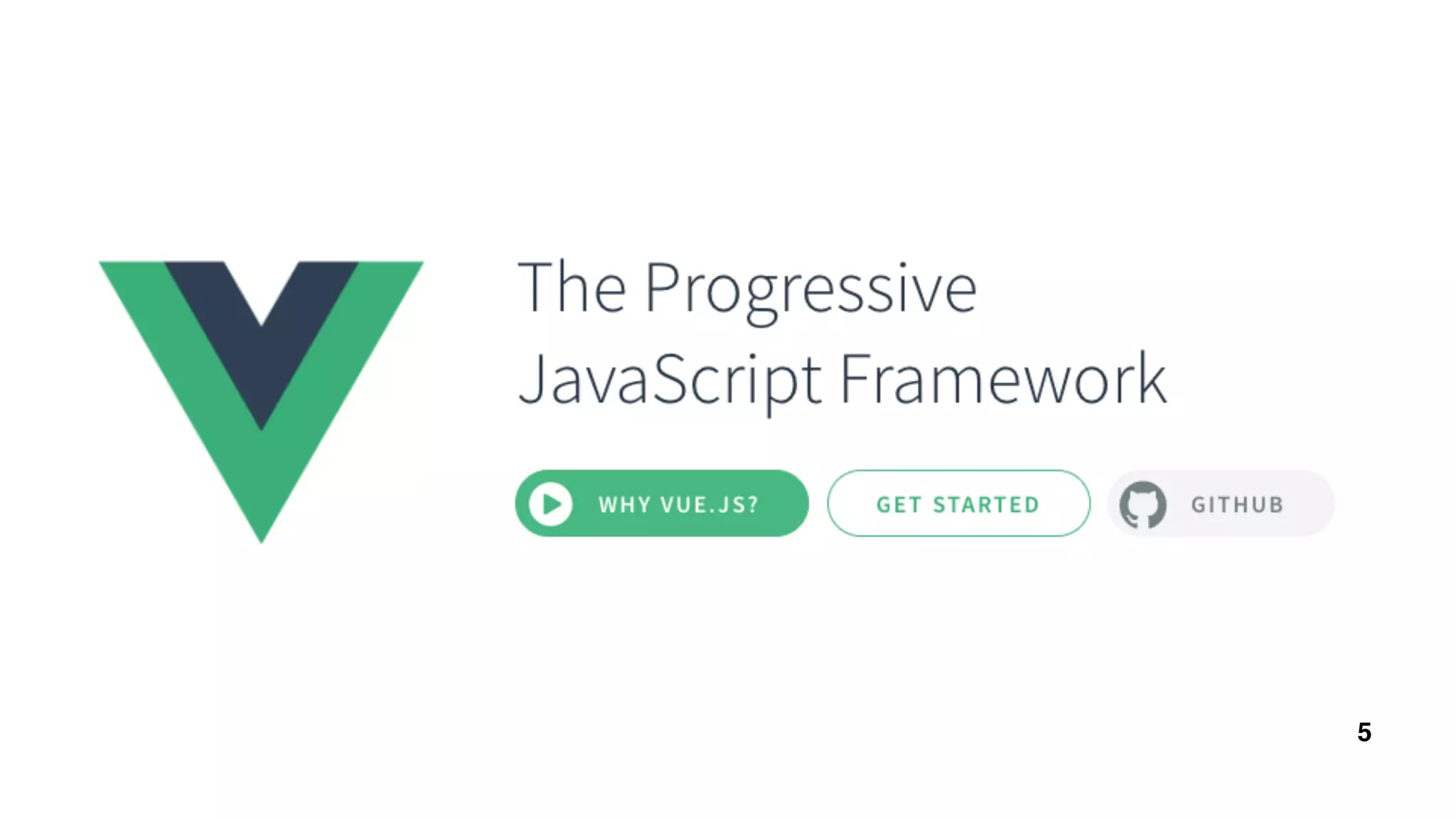

5. 5

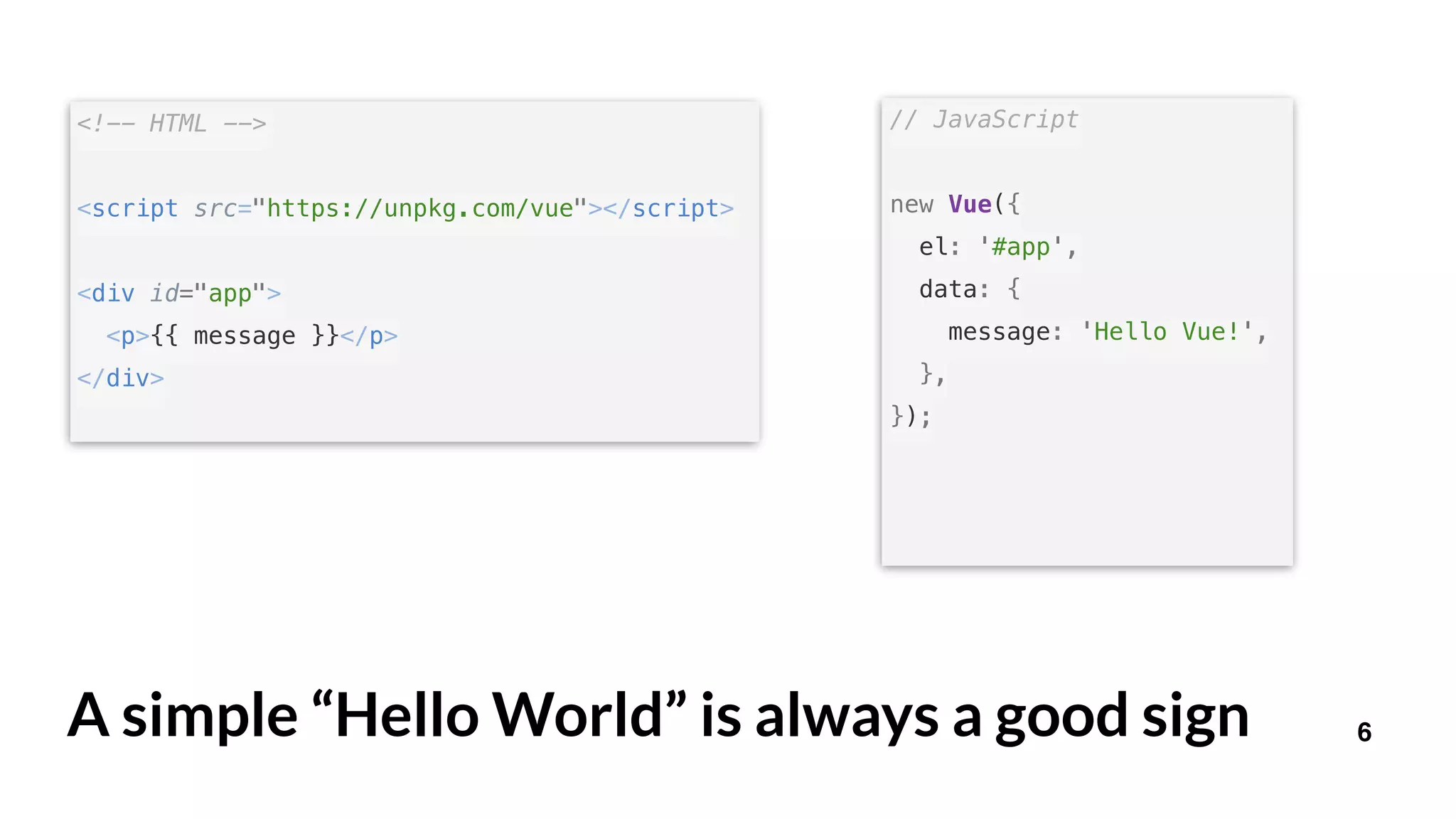

6. 6A simple “Hello World” is always a good sign
<!-- HTML -->
<script src="https://unpkg.com/vue"></script>
<div id="app">
<p>{{ message }}</p>
</div>
// JavaScript
new Vue({
el: '#app',
data: {
message: 'Hello Vue!',
},
});

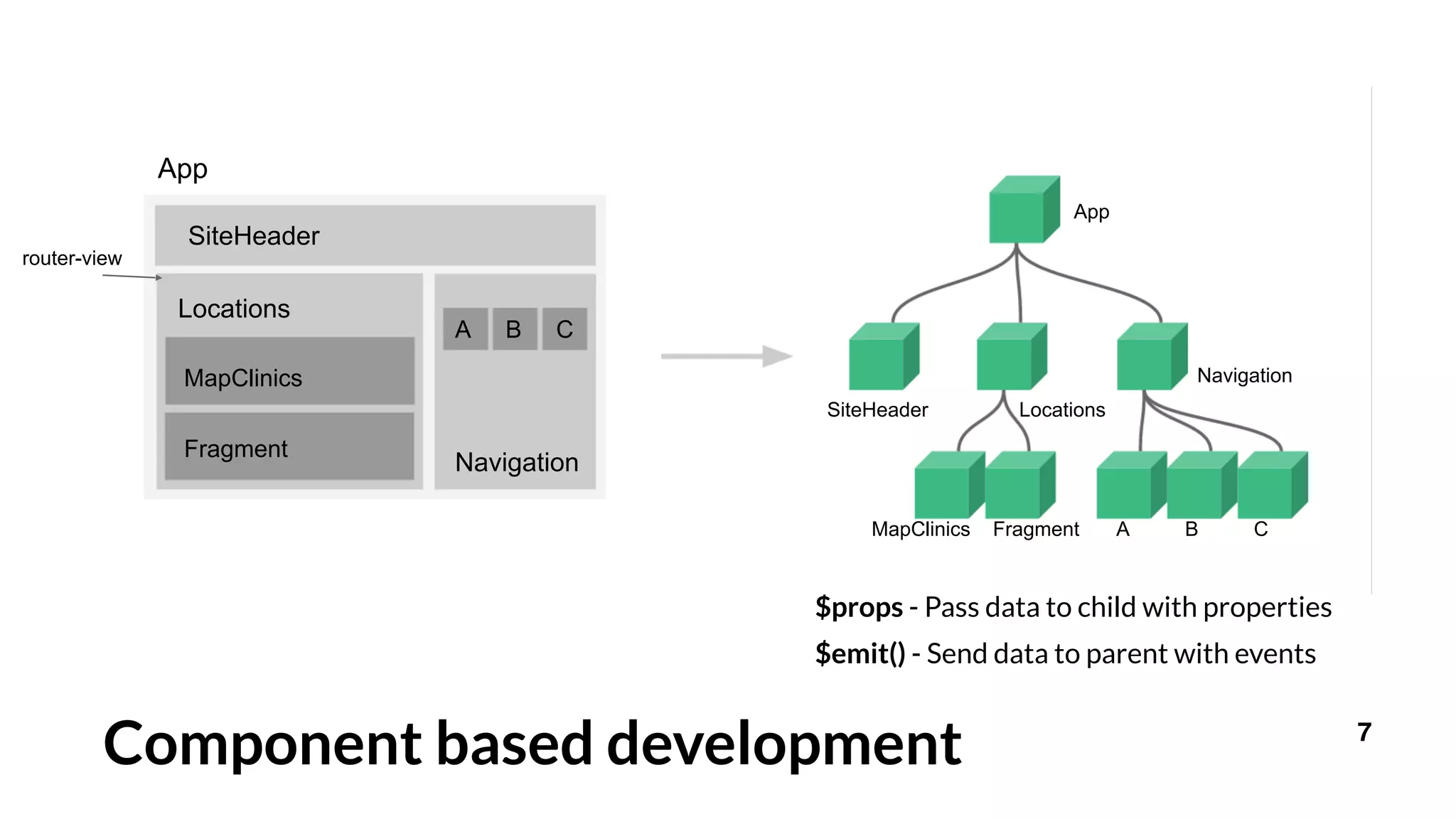

7. Component based development
$props - Pass data to child with properties
$emit() - Send data to parent with events
7
App
SiteHeader
Locations
router-view
Navigation
MapClinics
Fragment
A B C
SiteHeader Locations
Navigation
App
MapClinics Fragment A B C

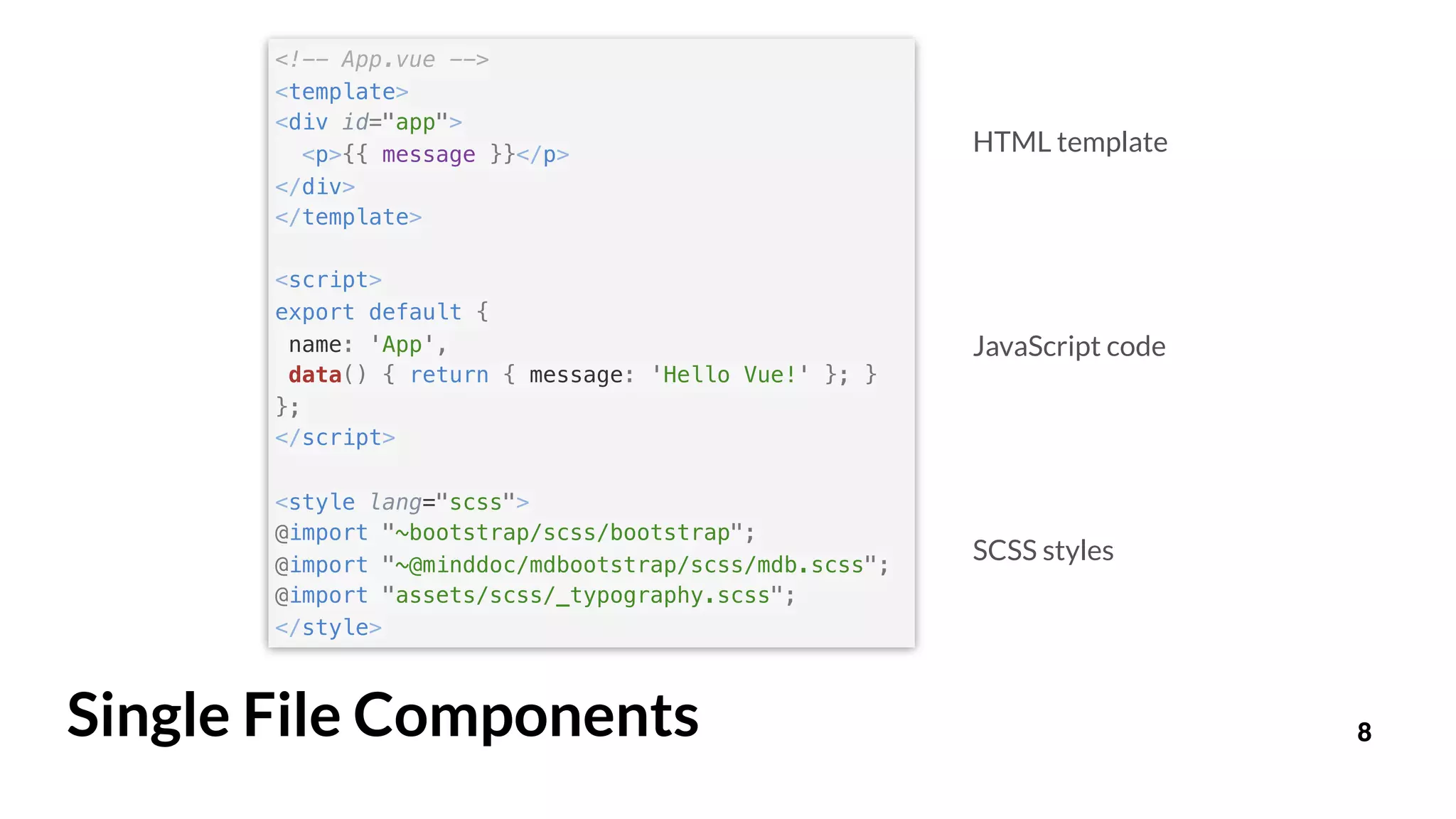

8. 8Single File Components
HTML template
JavaScript code
SCSS styles
<!-- App.vue -->
<template>
<div id="app">
<p>{{ message }}</p>
</div>
</template>
<script>
export default {
name: 'App',
data() { return { message: 'Hello Vue!' }; }
};
</script>
<style lang="scss">
@import "~bootstrap/scss/bootstrap";
@import "~@minddoc/mdbootstrap/scss/mdb.scss";
@import "assets/scss/_typography.scss";
</style>

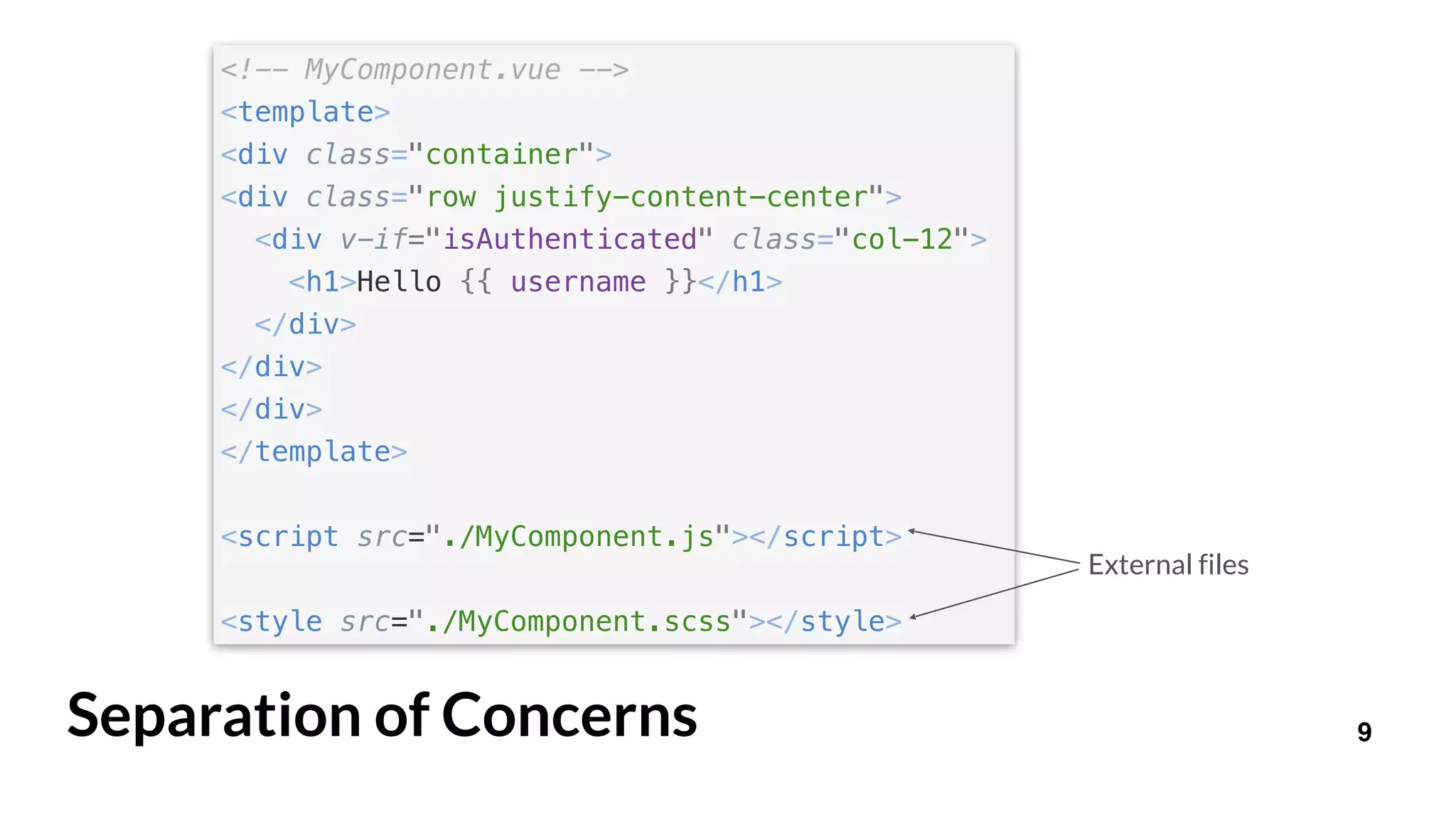

9. 9Separation of Concerns
<!-- MyComponent.vue -->
<template>
<div class="container">
<div class="row justify-content-center">
<div v-if="isAuthenticated" class="col-12">
<h1>Hello {{ username }}</h1>
</div>
</div>
</div>
</template>
<script src="./MyComponent.js"></script>
<style src="./MyComponent.scss"></style>
External files

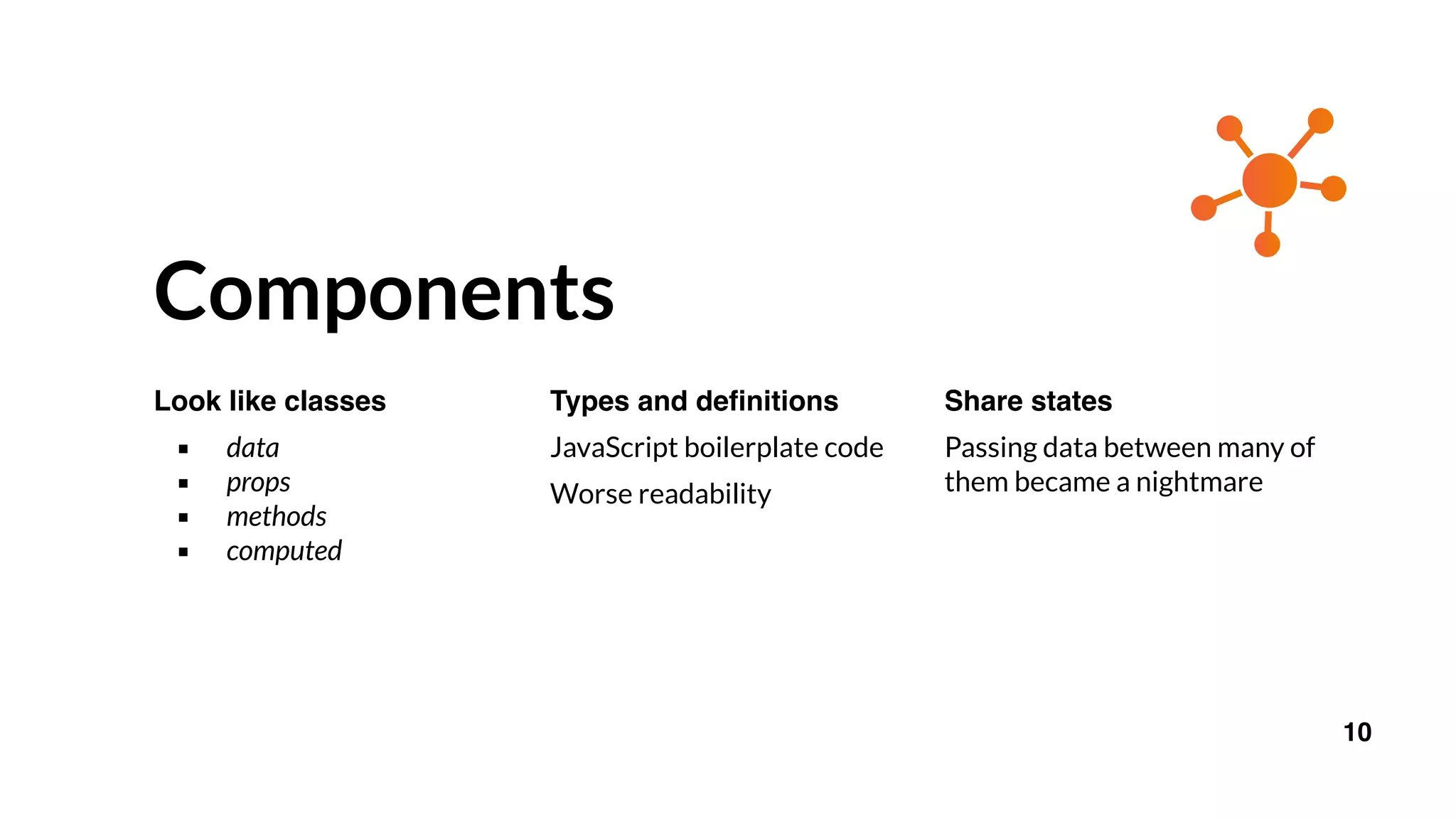

10. Components
Look like classes
▪ data
▪ props
▪ methods
▪ computed
Types and definitions
JavaScript boilerplate code
Worse readability
Share states
Passing data between many of
them became a nightmare
10

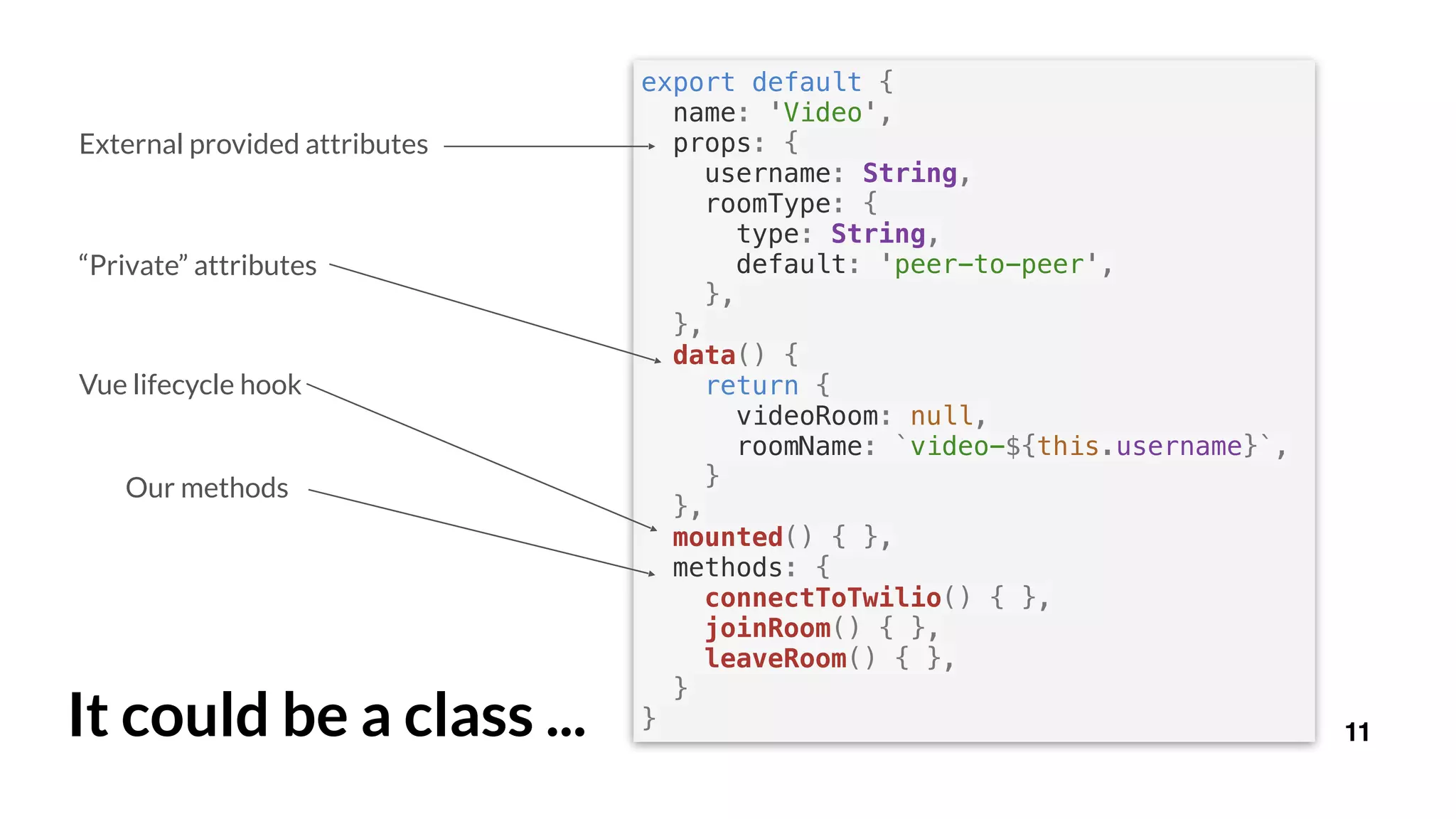

11. 11It could be a class ...
Our methods
Vue lifecycle hook
“Private” attributes
External provided attributes
export default {
name: 'Video',
props: {
username: String,
roomType: {
type: String,
default: 'peer-to-peer',
},
},
data() {
return {
videoRoom: null,
roomName: `video-${this.username}`,
}
},
mounted() { },
methods: {
connectToTwilio() { },
joinRoom() { },
leaveRoom() { },
}
}

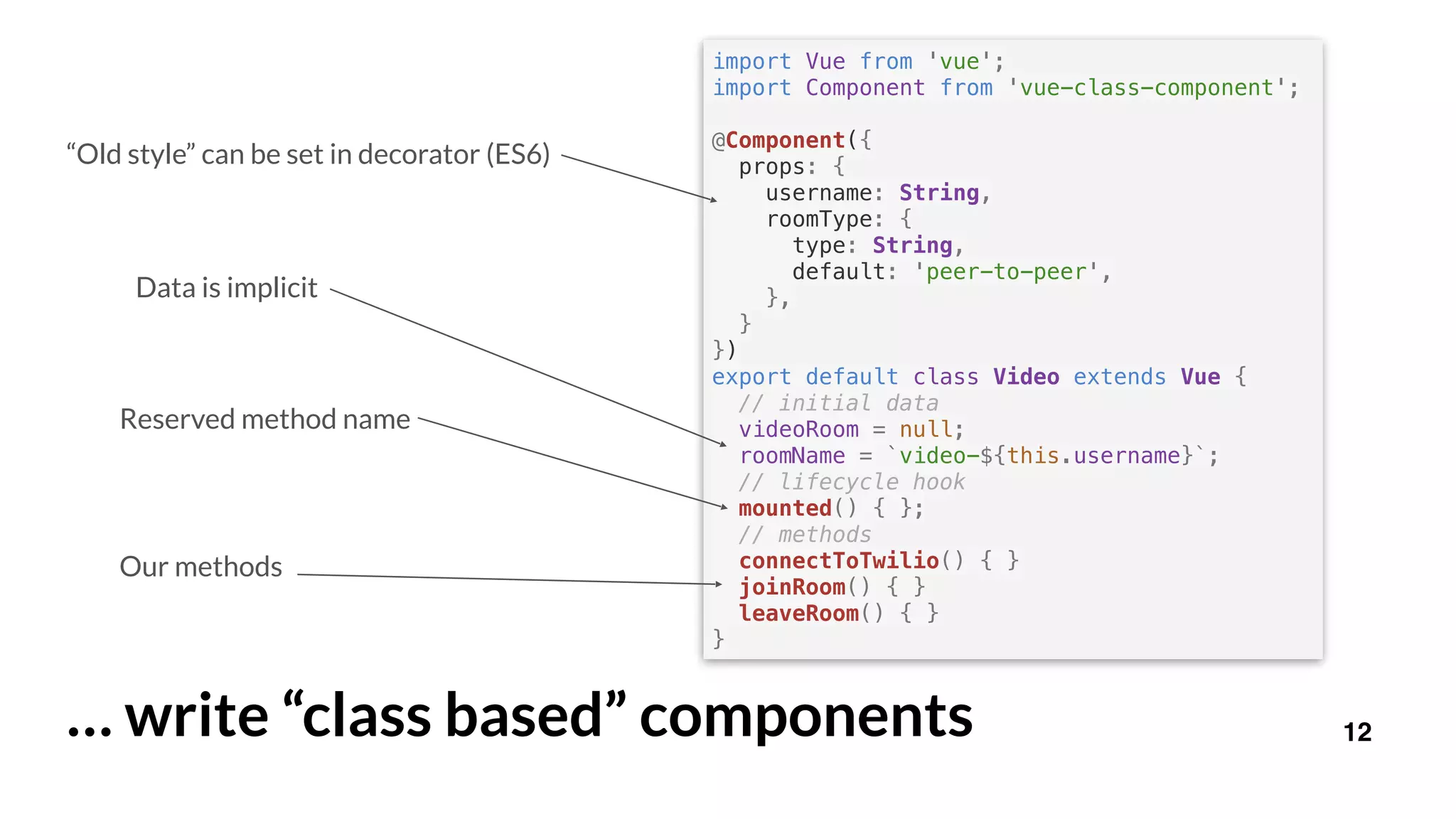

12. 12… write “class based” components
import Vue from 'vue';
import Component from 'vue-class-component';
@Component({
props: {
username: String,
roomType: {
type: String,
default: 'peer-to-peer',
},
}
})
export default class Video extends Vue {
// initial data
videoRoom = null;
roomName = `video-${this.username}`;
// lifecycle hook
mounted() { };
// methods
connectToTwilio() { }
joinRoom() { }
leaveRoom() { }
}
Reserved method name
Our methods
Data is implicit
“Old style” can be set in decorator (ES6)

13. 13

14. Types!
Full Vue support (since 2.5.0+)
Easy to set with vue-cli (3.0+)
Experimental decorators
14

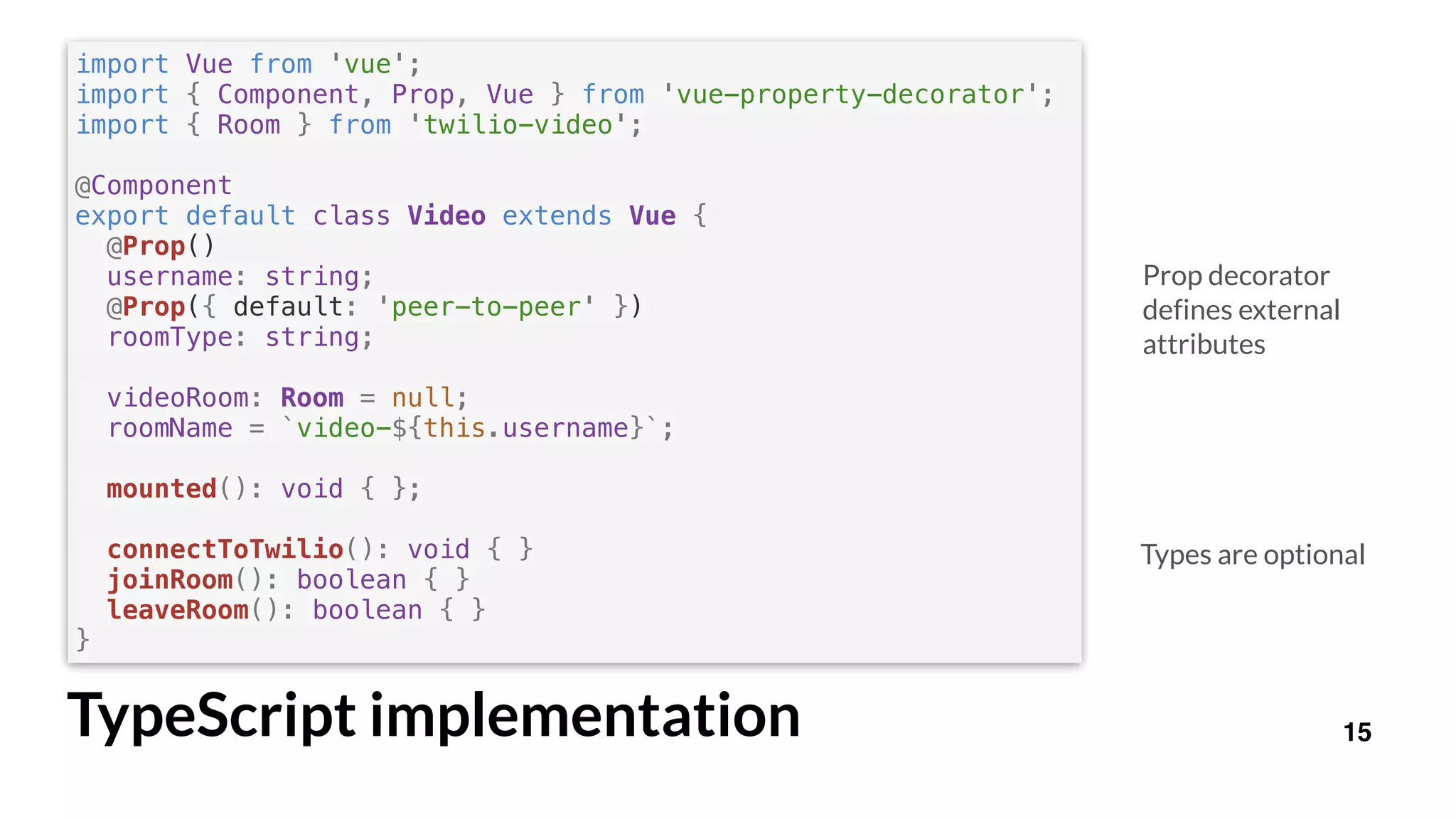

15. import Vue from 'vue';
import { Component, Prop, Vue } from 'vue-property-decorator';
import { Room } from 'twilio-video';
@Component
export default class Video extends Vue {
@Prop()
username: string;
@Prop({ default: 'peer-to-peer' })
roomType: string;
videoRoom: Room = null;
roomName = `video-${this.username}`;
mounted(): void { };
connectToTwilio(): void { }
joinRoom(): boolean { }
leaveRoom(): boolean { }
}
15TypeScript implementation
Prop decorator
defines external
attributes
Types are optional

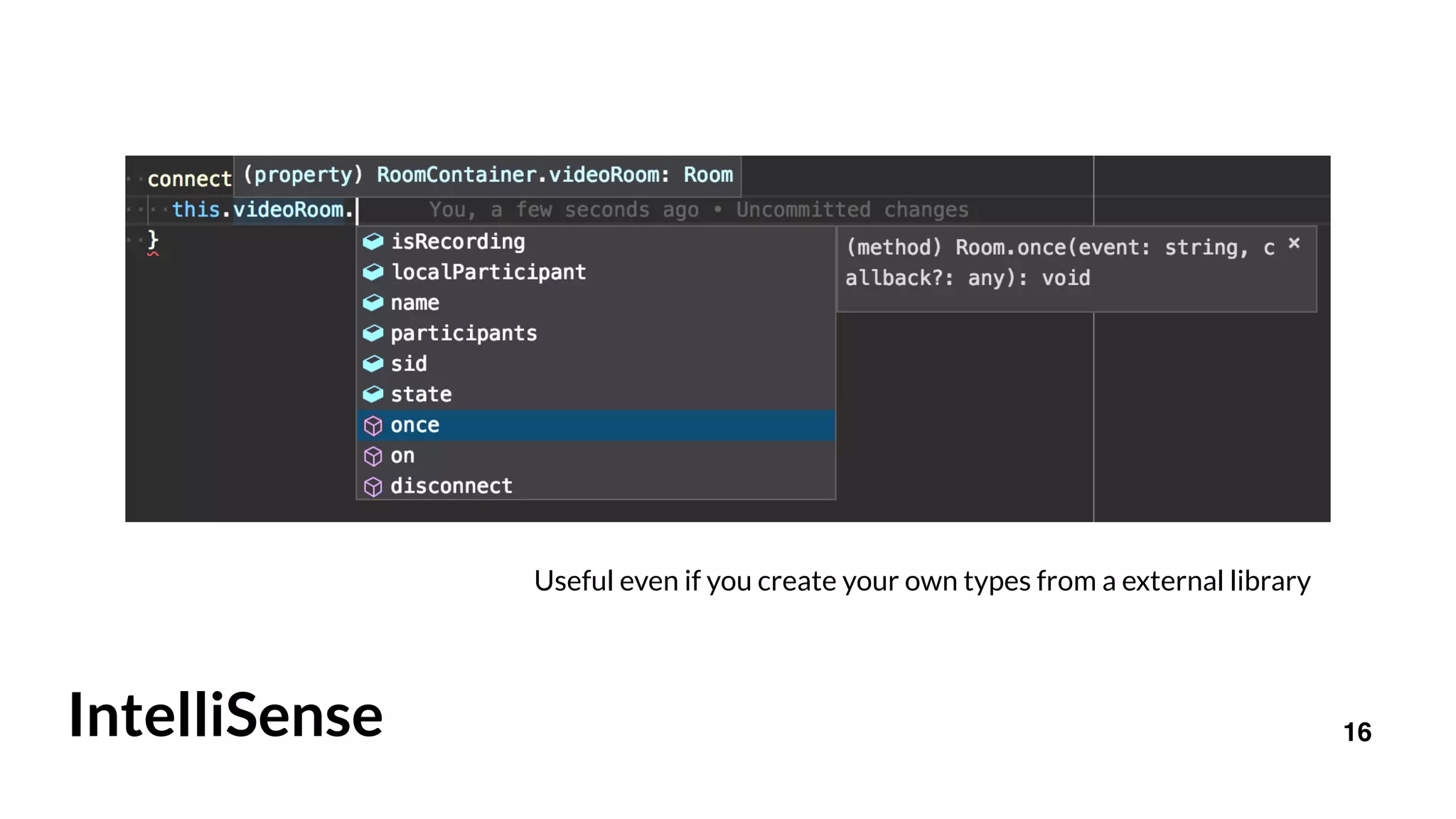

16. 16IntelliSense
Useful even if you create your own types from a external library

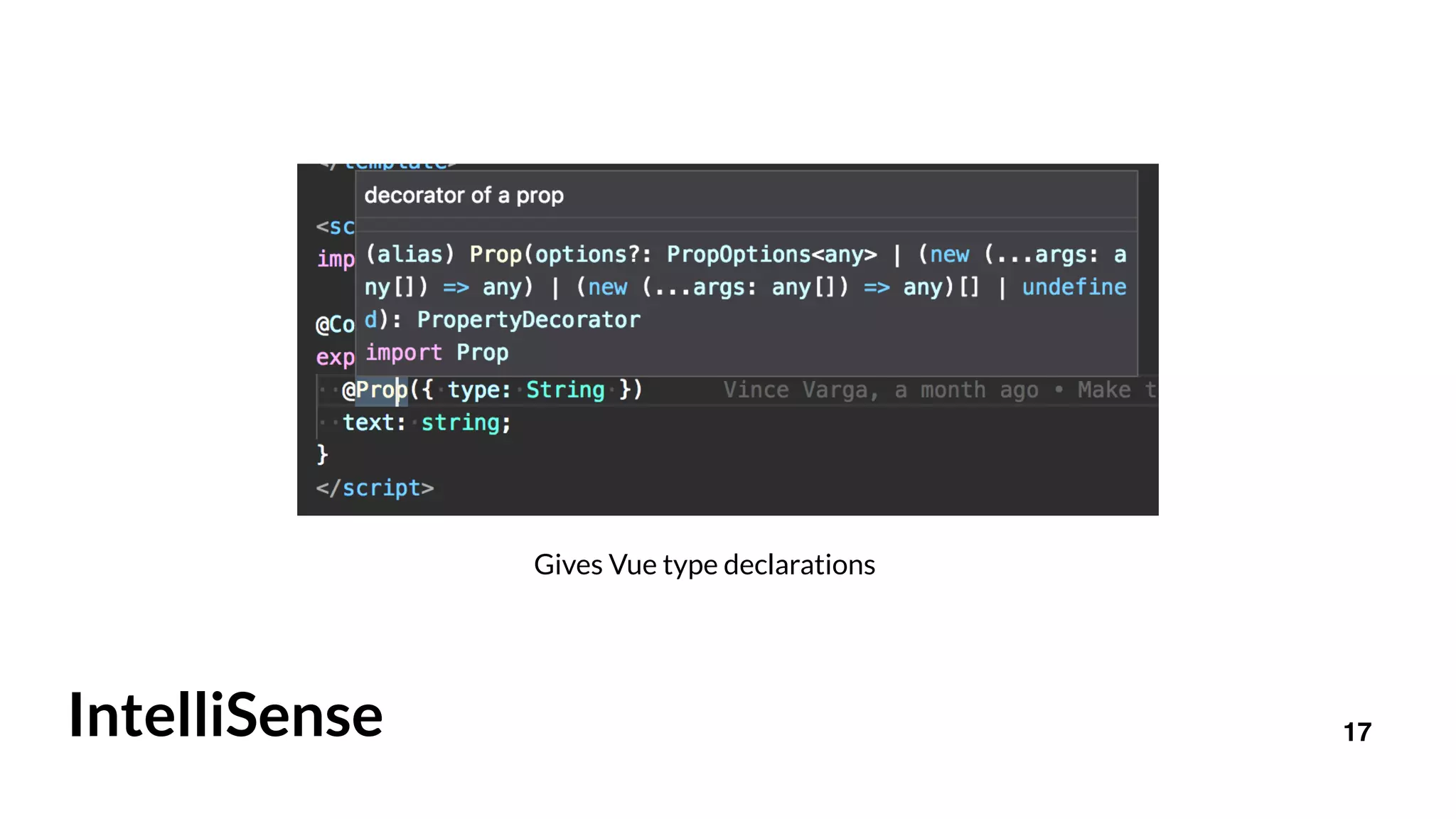

17. 17IntelliSense
Gives Vue type declarations

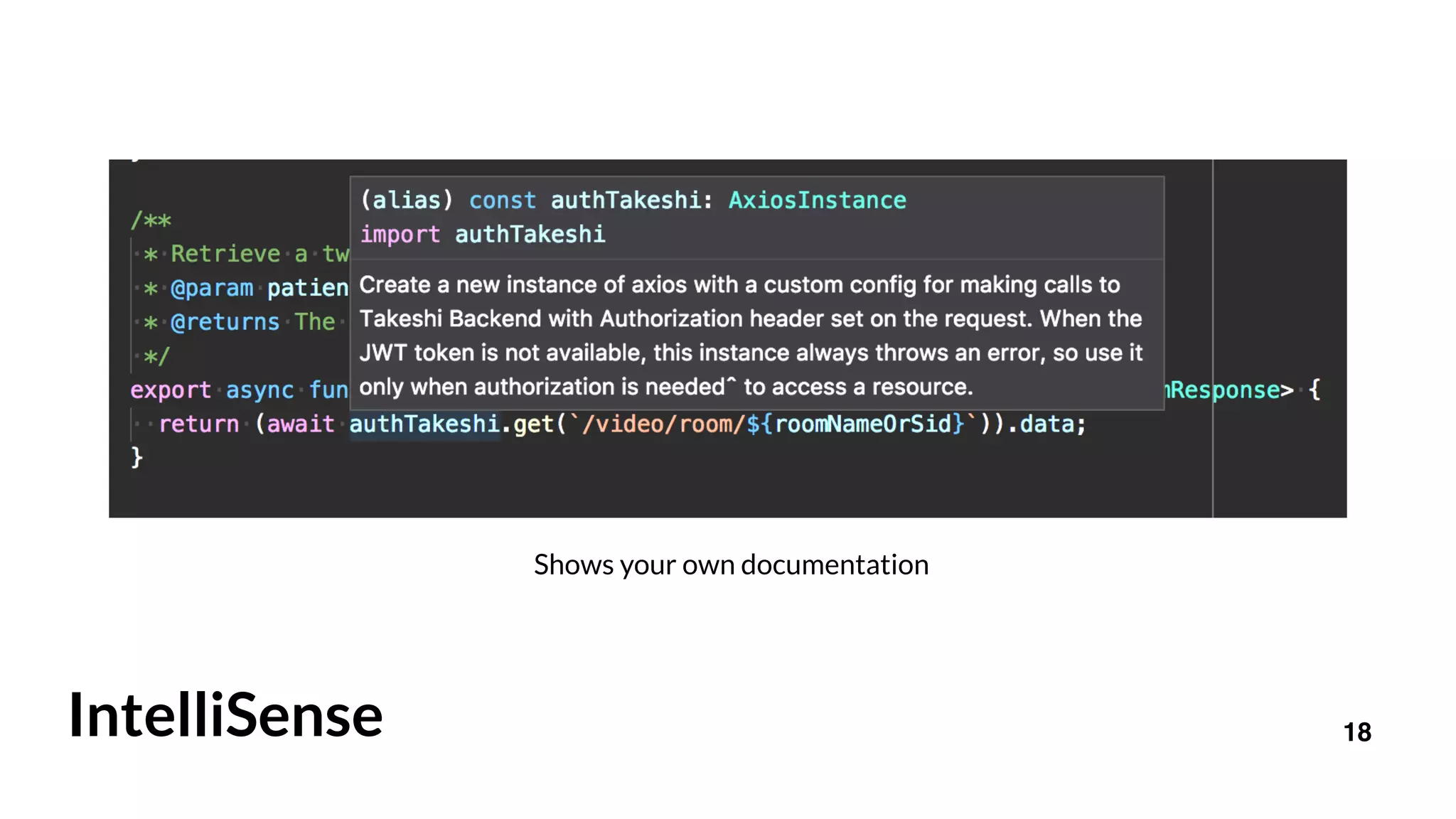

18. 18IntelliSense
Shows your own documentation

19. 19

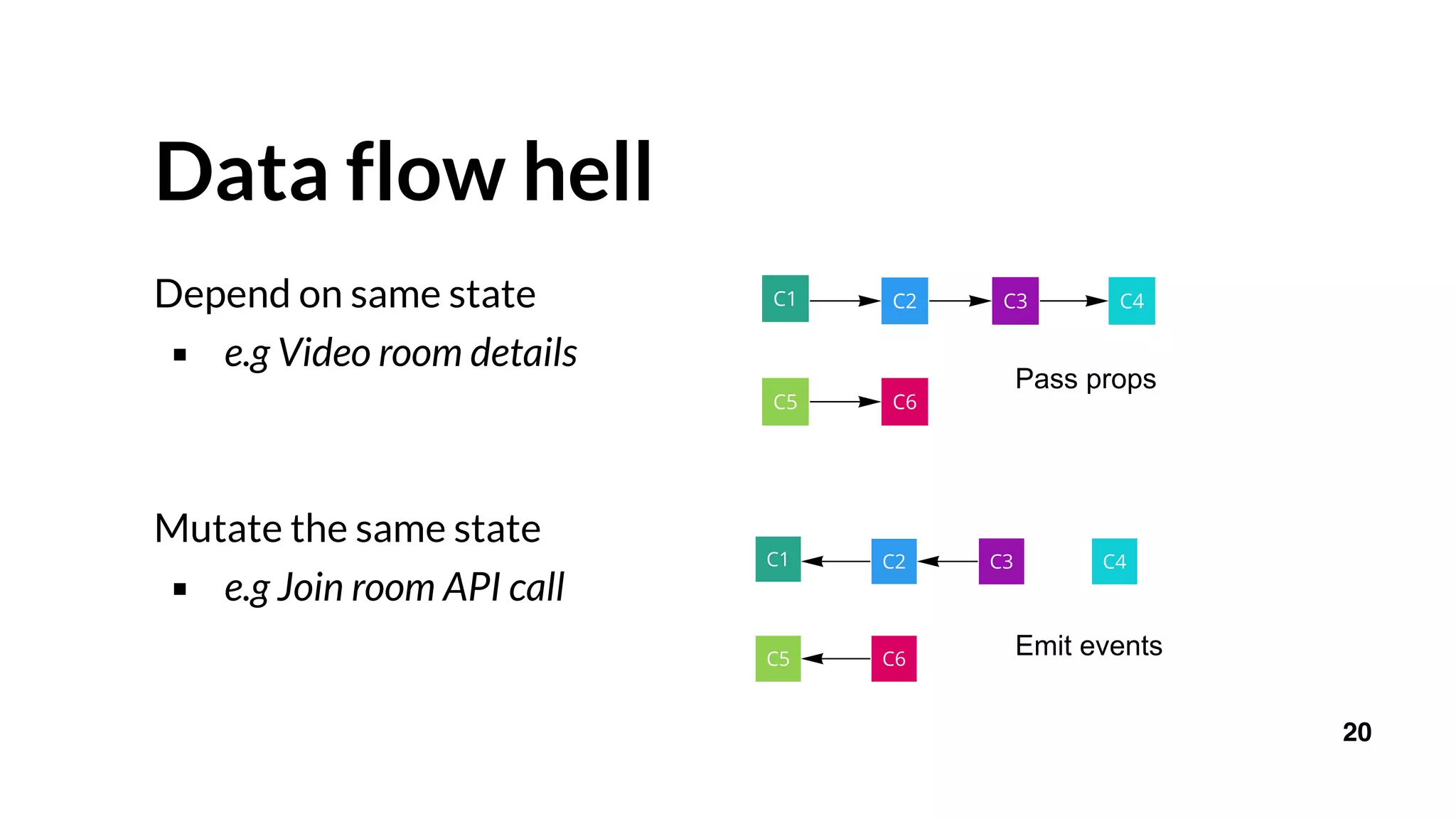

20. Data flow hell
Depend on same state
▪ e.g Video room details
Mutate the same state
▪ e.g Join room API call
20
Pass props
Emit events

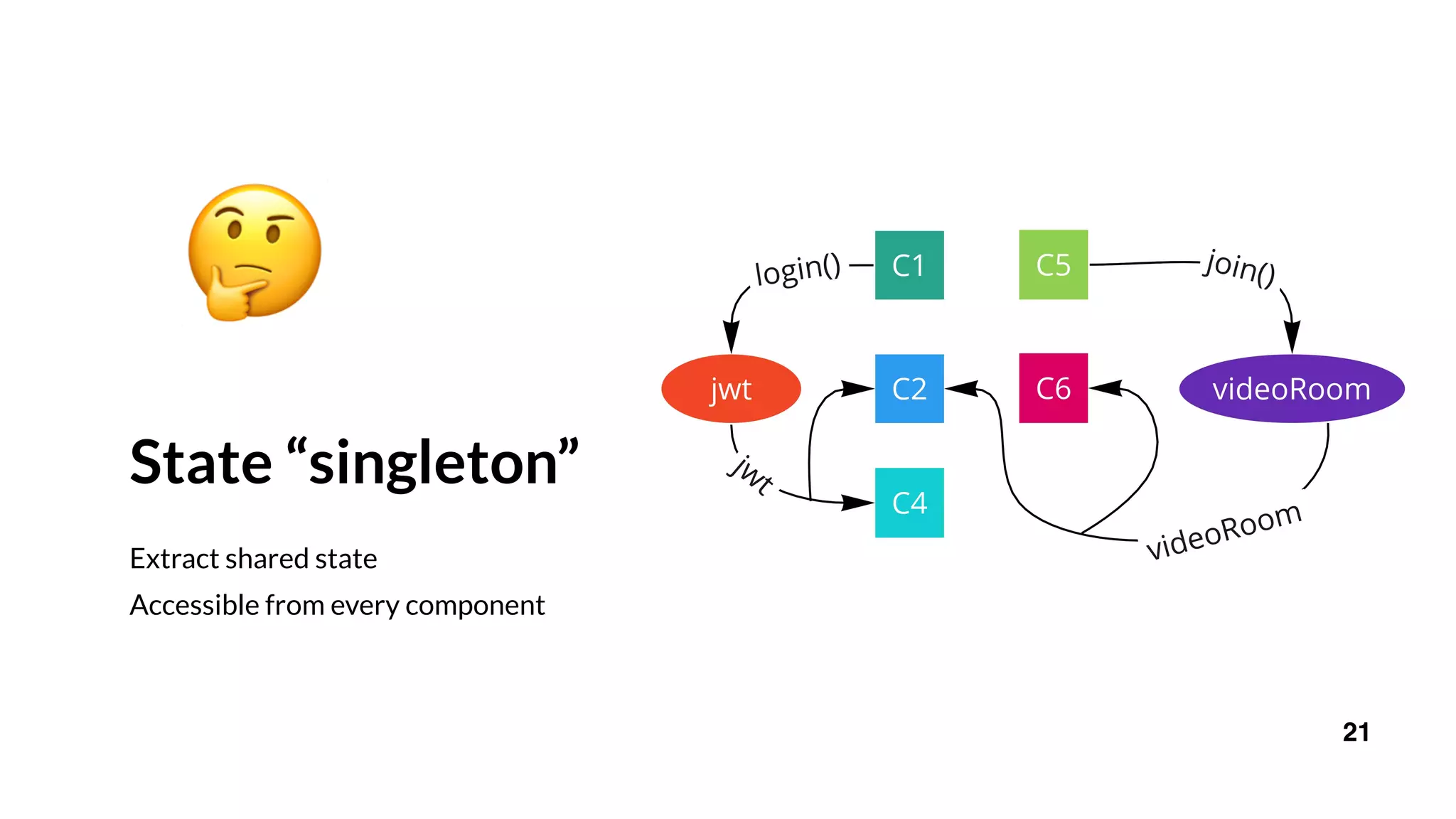

21. State “singleton”
Extract shared state
Accessible from every component
21
🤔

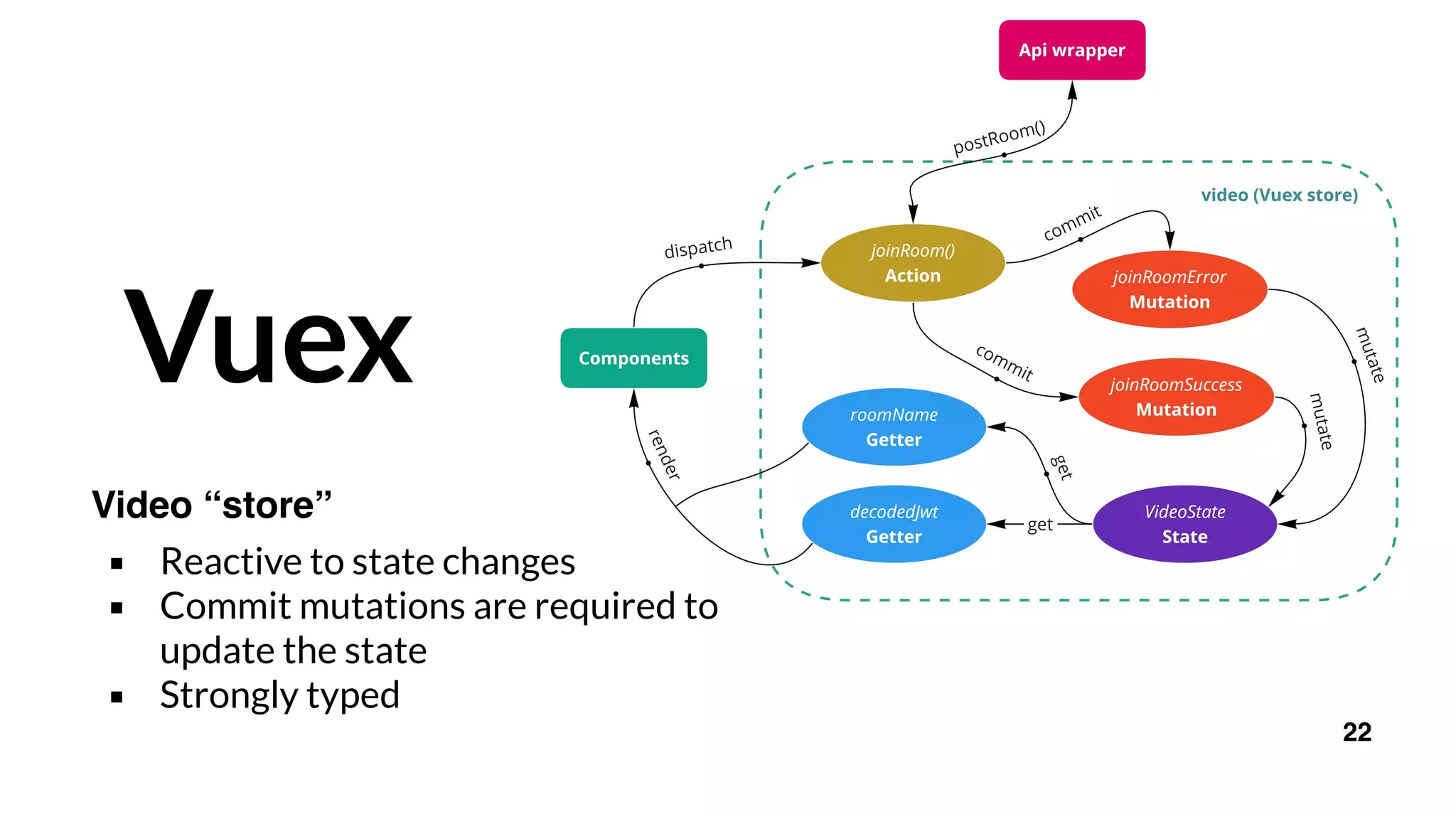

22. Vuex
Video “store”
▪ Reactive to state changes
▪ Commit mutations are required to
update the state
▪ Strongly typed
22

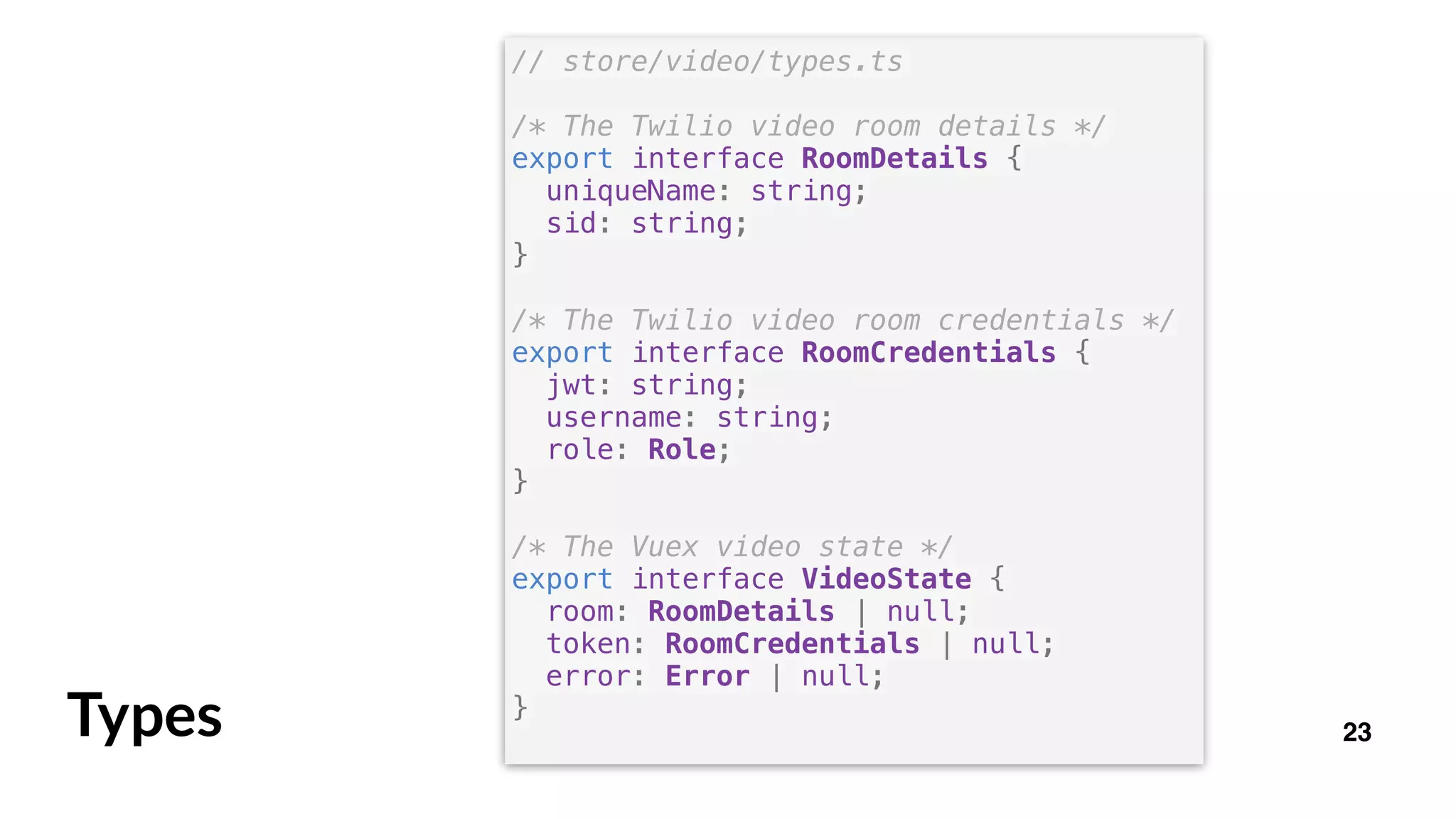

23. 23Types
// store/video/types.ts
/* The Twilio video room details */
export interface RoomDetails {
uniqueName: string;
sid: string;
}
/* The Twilio video room credentials */
export interface RoomCredentials {
jwt: string;
username: string;
role: Role;
}
/* The Vuex video state */
export interface VideoState {
room: RoomDetails | null;
token: RoomCredentials | null;
error: Error | null;
}

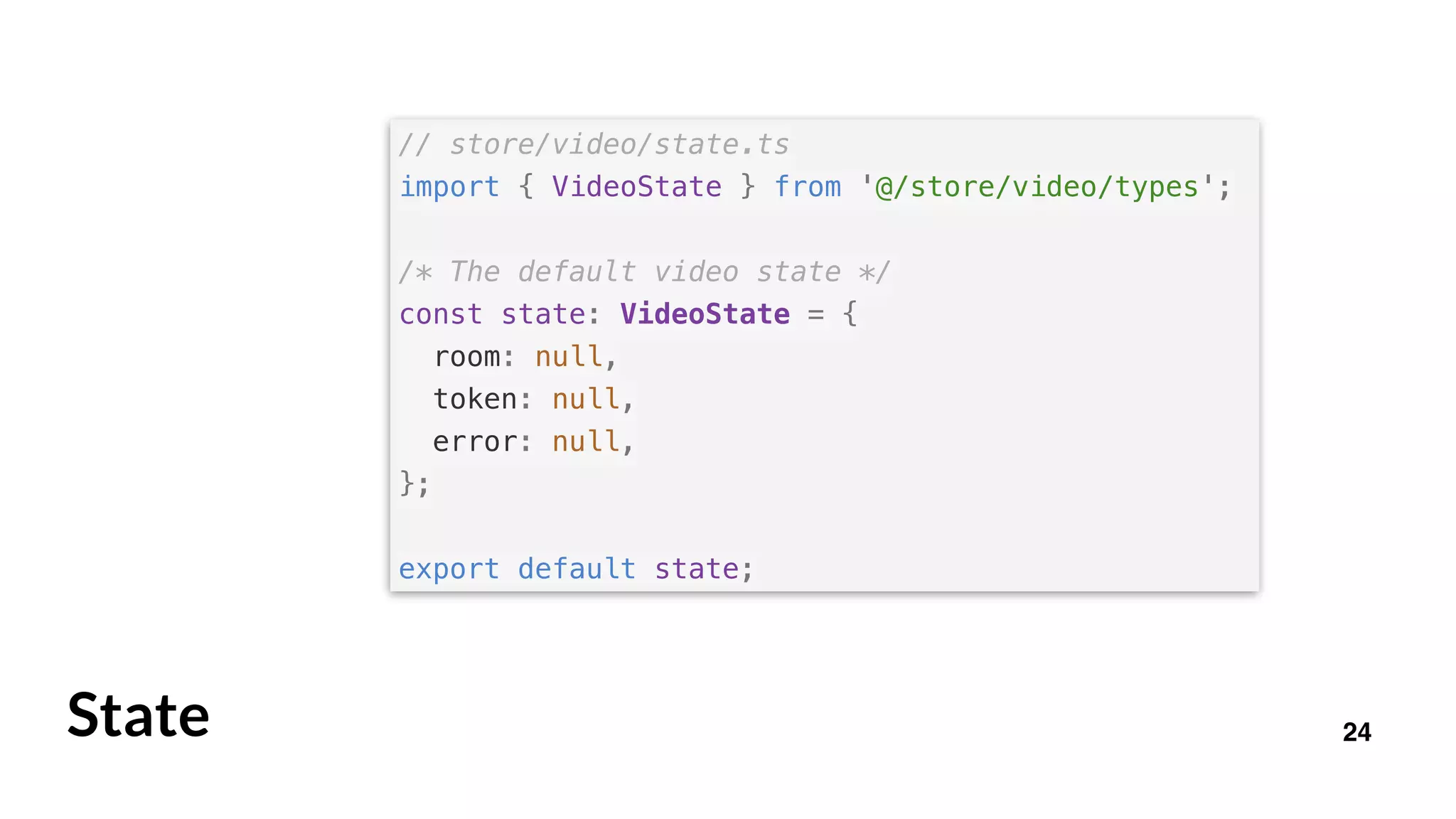

24. 24
// store/video/state.ts
import { VideoState } from '@/store/video/types';
/* The default video state */
const state: VideoState = {
room: null,
token: null,
error: null,
};
export default state;
State

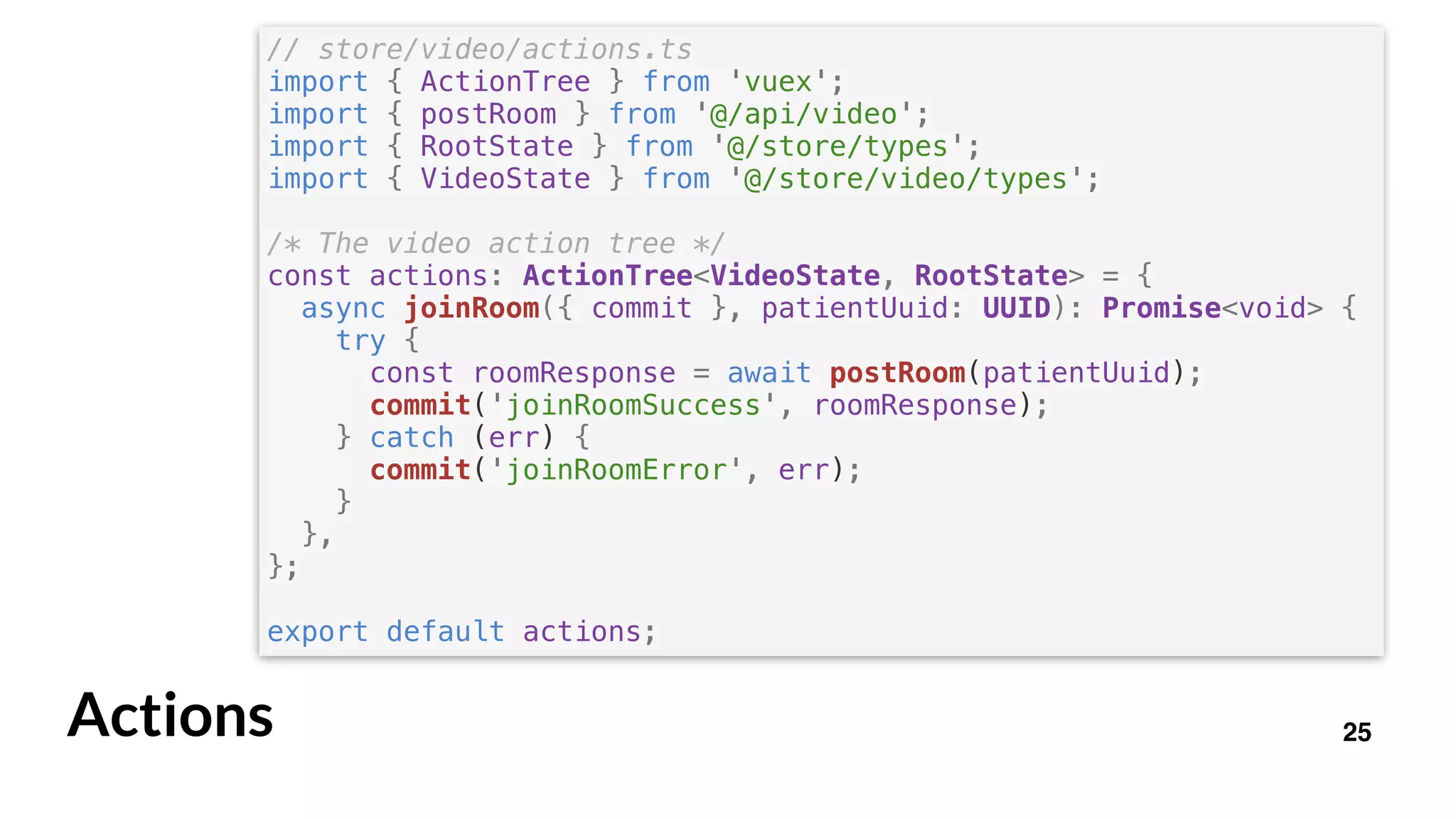

25. 25Actions
// store/video/actions.ts
import { ActionTree } from 'vuex';
import { postRoom } from '@/api/video';
import { RootState } from '@/store/types';
import { VideoState } from '@/store/video/types';
/* The video action tree */
const actions: ActionTree<VideoState, RootState> = {
async joinRoom({ commit }, patientUuid: UUID): Promise<void> {
try {
const roomResponse = await postRoom(patientUuid);
commit('joinRoomSuccess', roomResponse);
} catch (err) {
commit('joinRoomError', err);
}
},
};
export default actions;

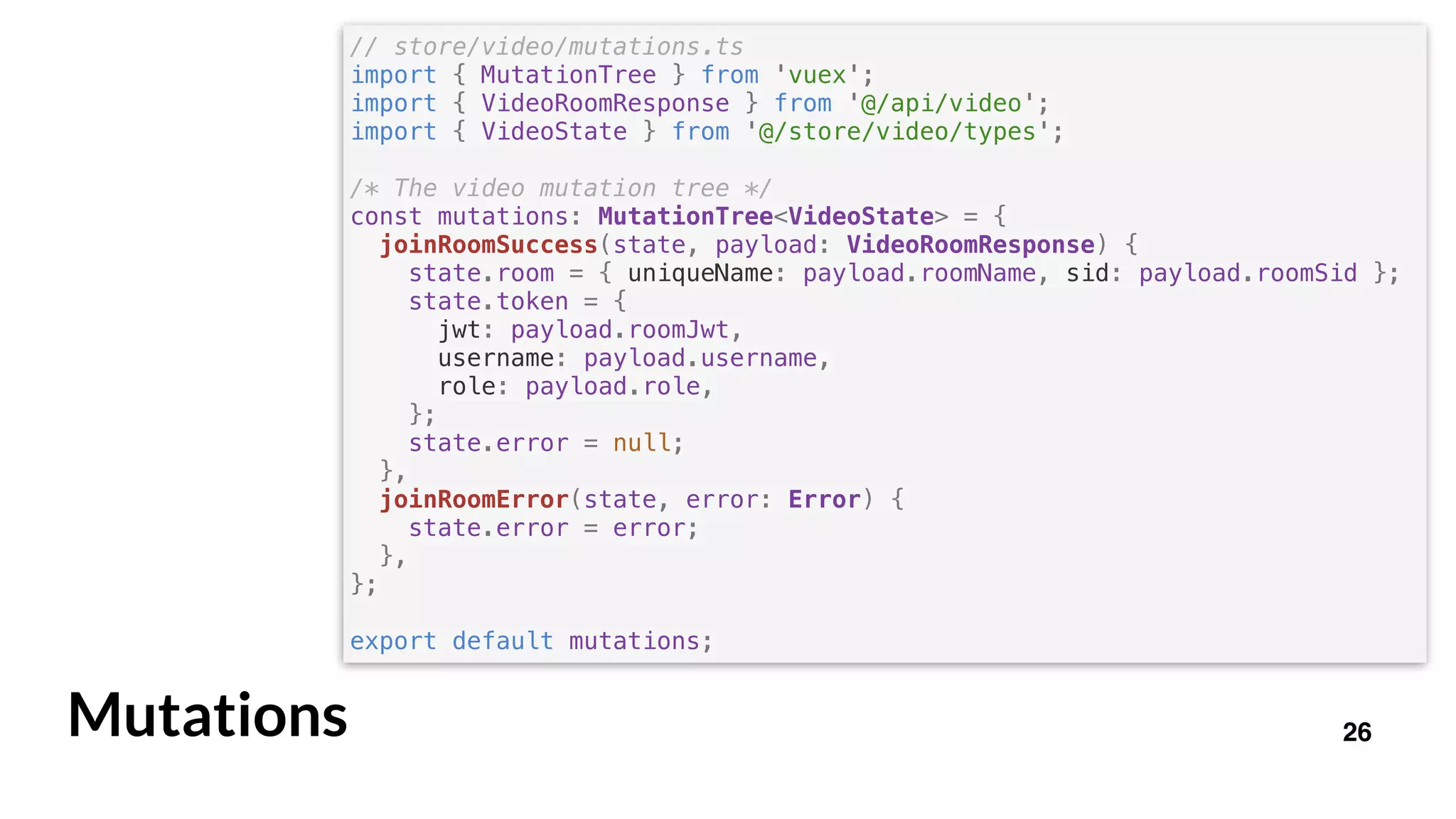

26. 26Mutations
// store/video/mutations.ts
import { MutationTree } from 'vuex';
import { VideoRoomResponse } from '@/api/video';
import { VideoState } from '@/store/video/types';
/* The video mutation tree */
const mutations: MutationTree<VideoState> = {
joinRoomSuccess(state, payload: VideoRoomResponse) {
state.room = { uniqueName: payload.roomName, sid: payload.roomSid };
state.token = {
jwt: payload.roomJwt,
username: payload.username,
role: payload.role,
};
state.error = null;
},
joinRoomError(state, error: Error) {
state.error = error;
},
};
export default mutations;

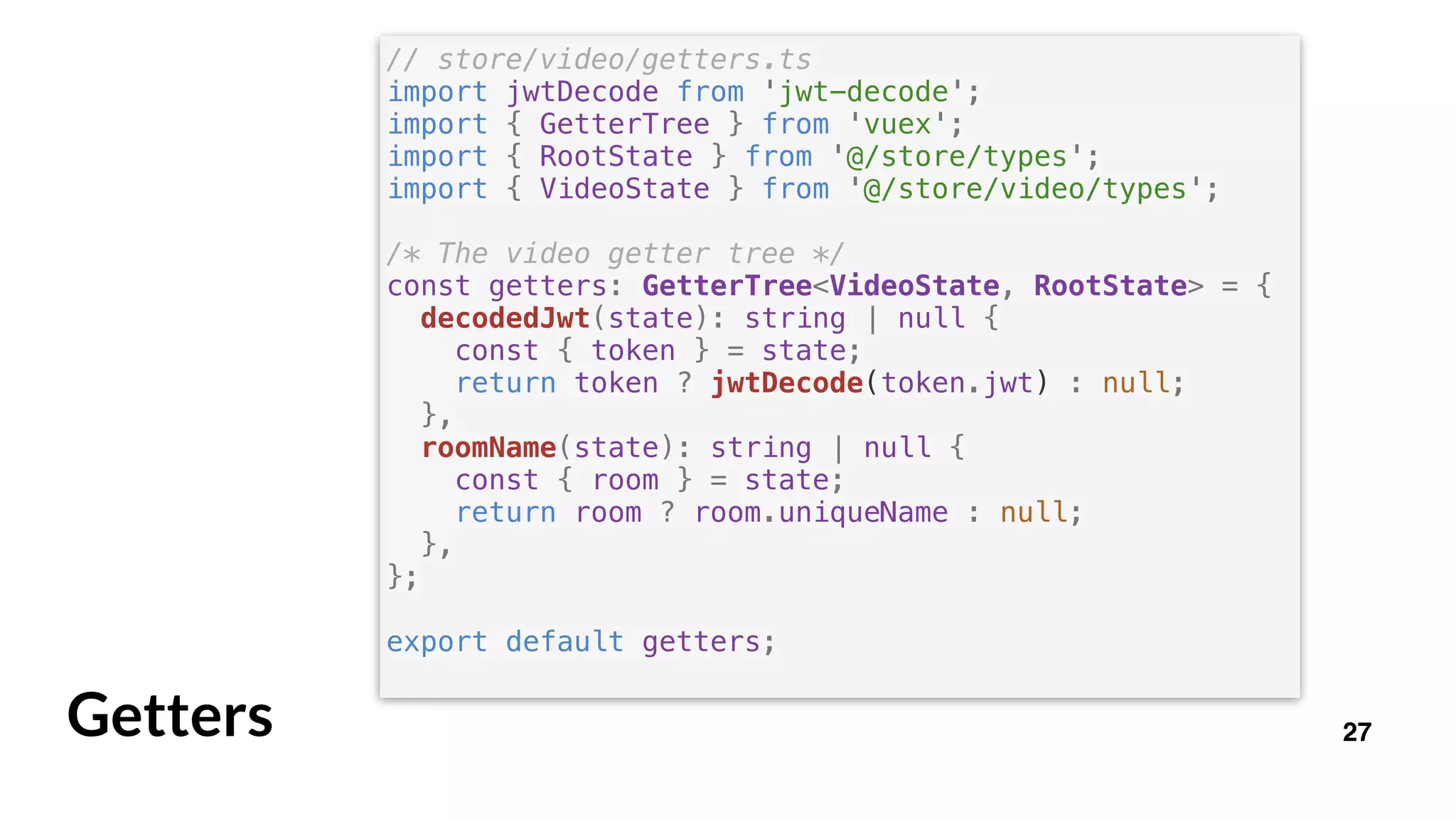

27. 27Getters
// store/video/getters.ts
import jwtDecode from 'jwt-decode';
import { GetterTree } from 'vuex';
import { RootState } from '@/store/types';
import { VideoState } from '@/store/video/types';
/* The video getter tree */
const getters: GetterTree<VideoState, RootState> = {
decodedJwt(state): string | null {
const { token } = state;
return token ? jwtDecode(token.jwt) : null;
},
roomName(state): string | null {
const { room } = state;
return room ? room.uniqueName : null;
},
};
export default getters;

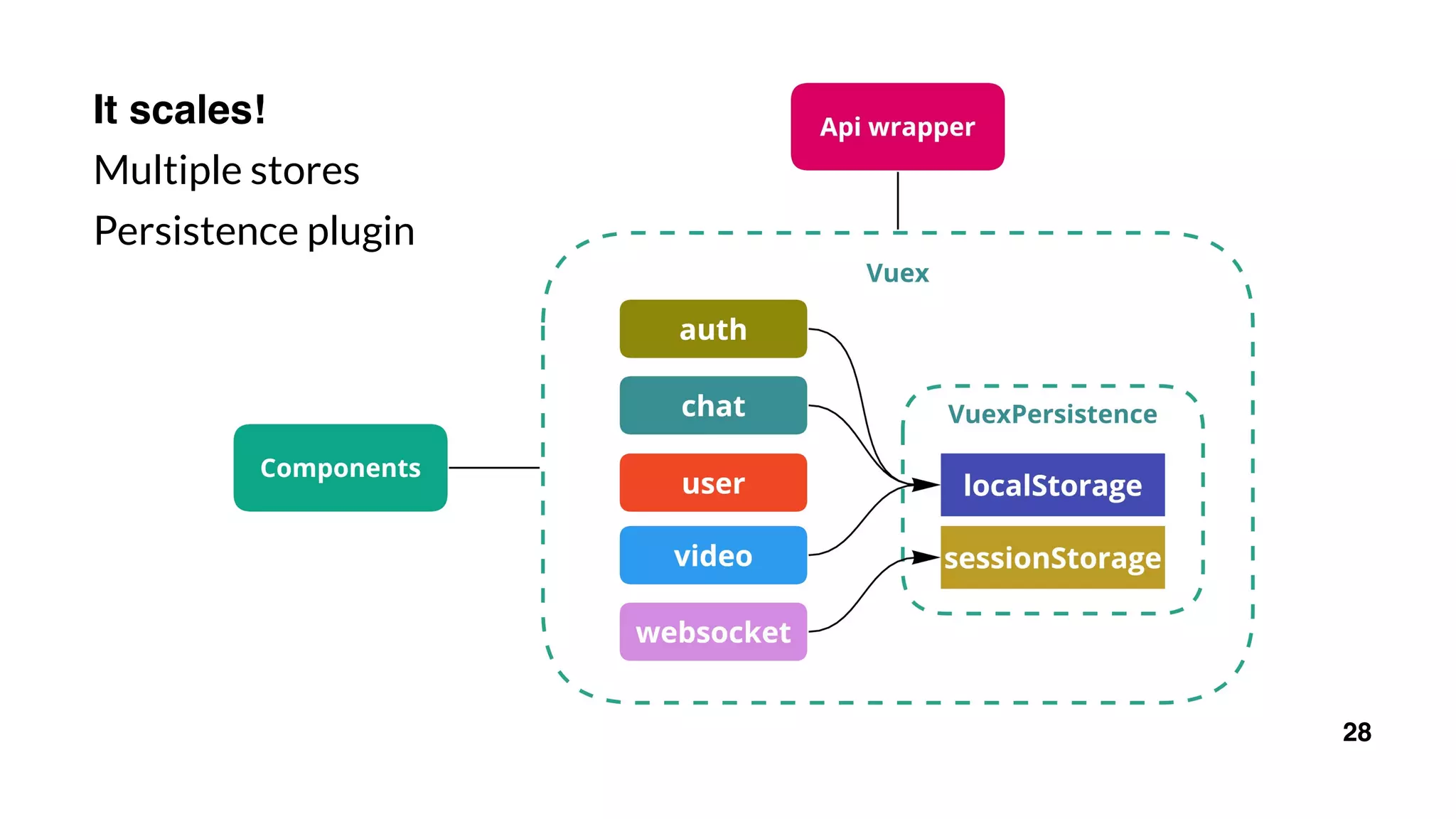

28. 28
It scales!
Multiple stores
Persistence plugin

29. Testing
29

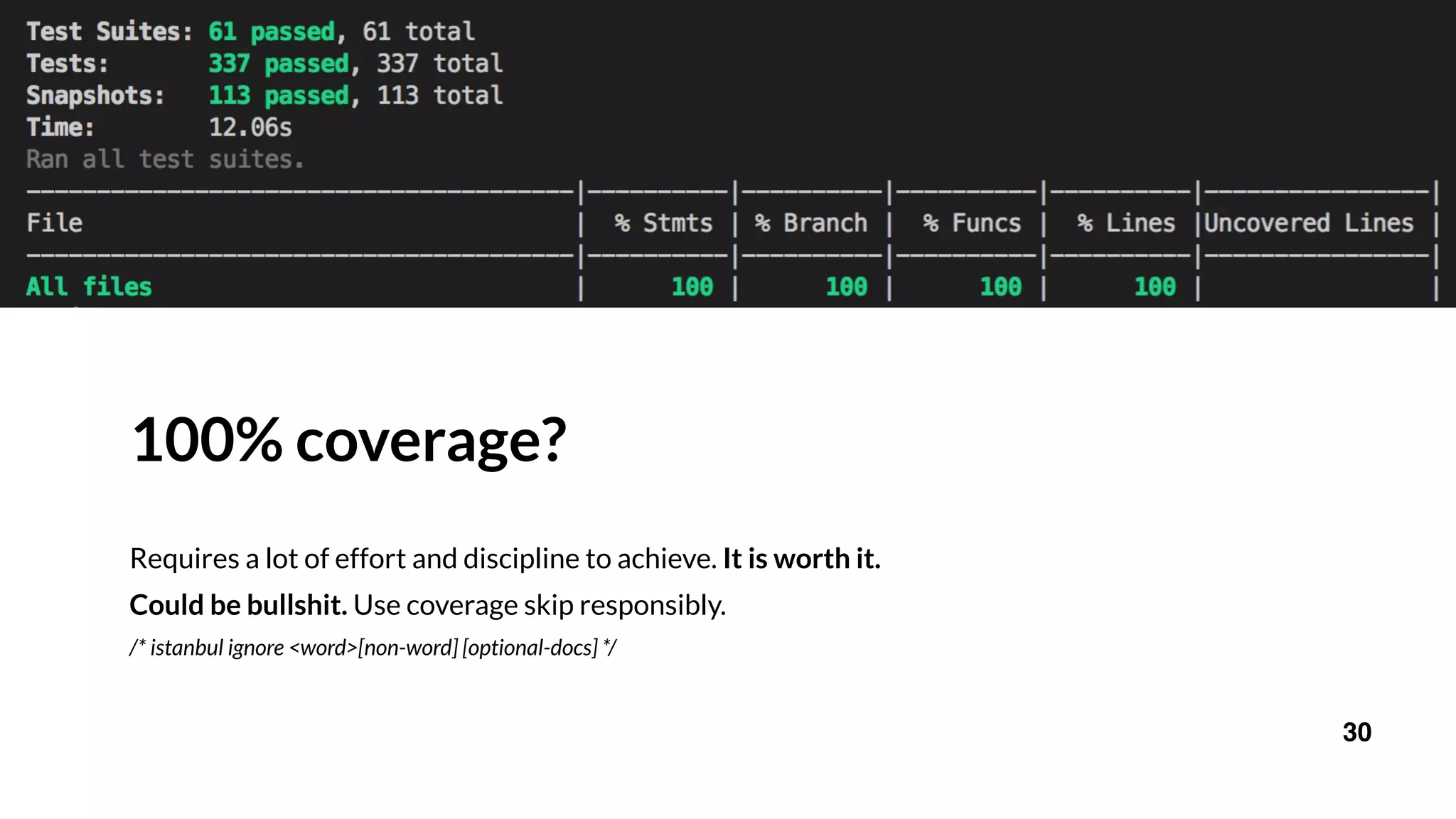

30. 100% coverage?
Requires a lot of effort and discipline to achieve. It is worth it.
Could be bullshit. Use coverage skip responsibly.
/* istanbul ignore <word>[non-word] [optional-docs] */
30

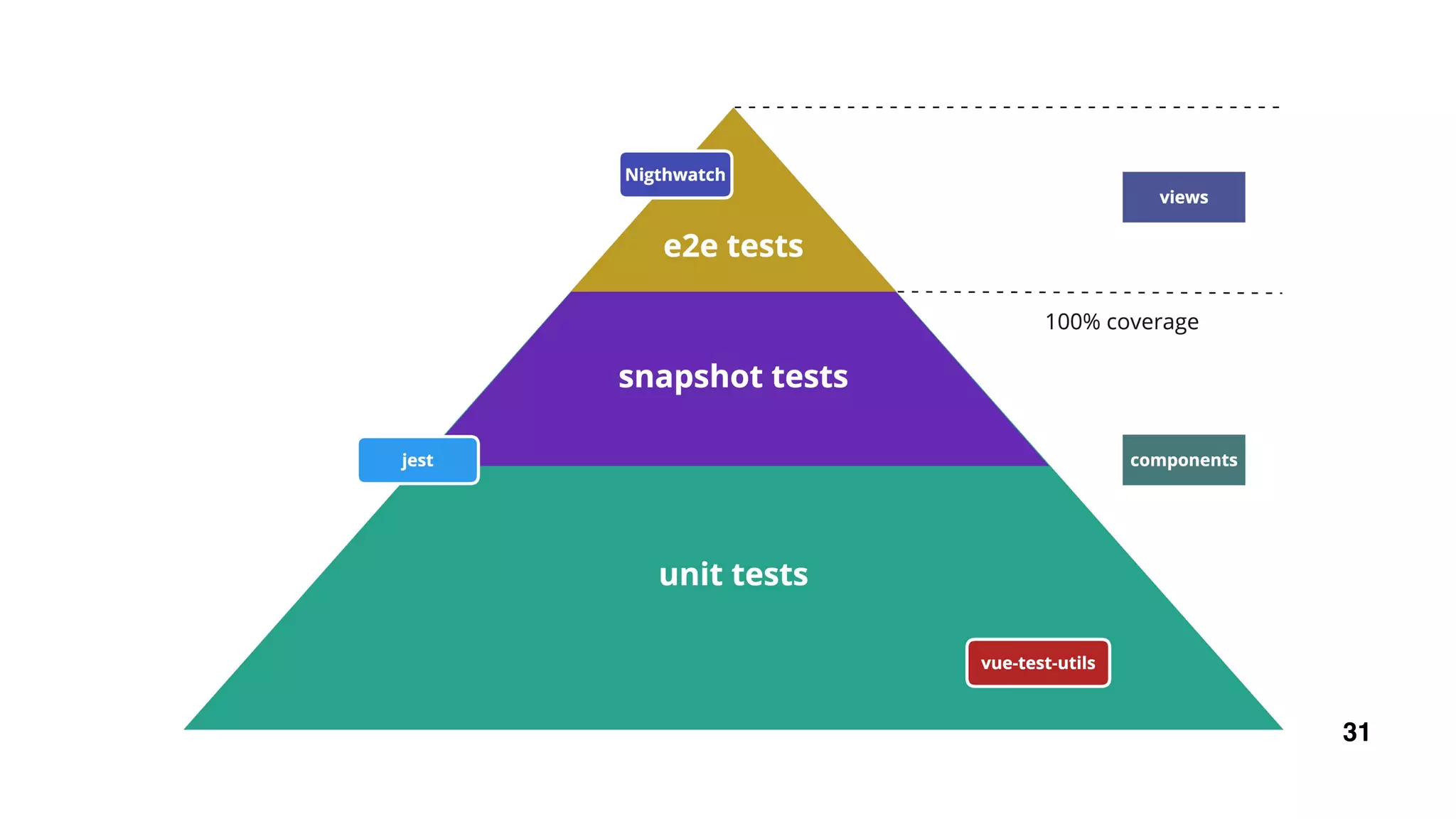

31. 31

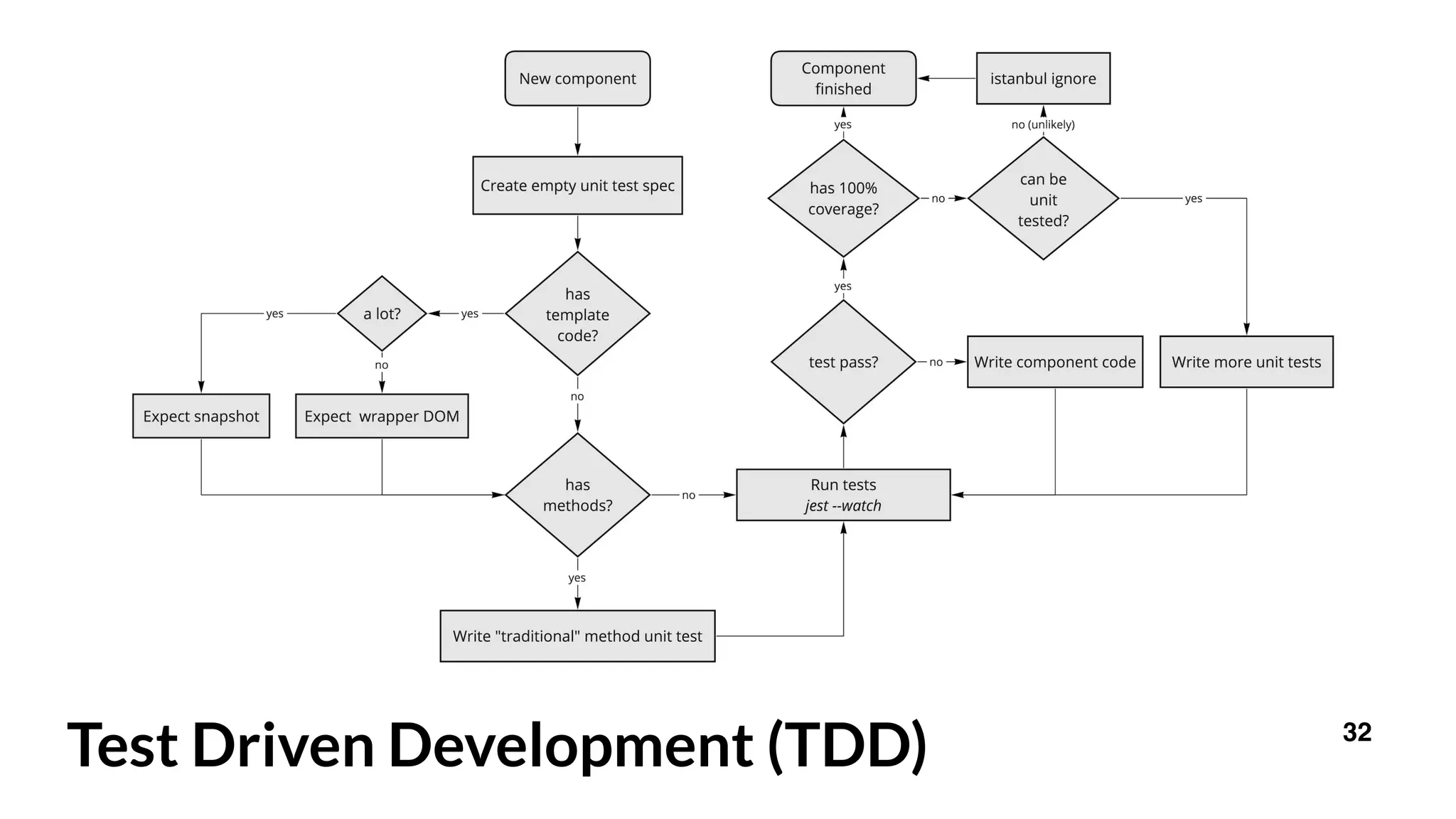

32. 32
Test Driven Development (TDD)

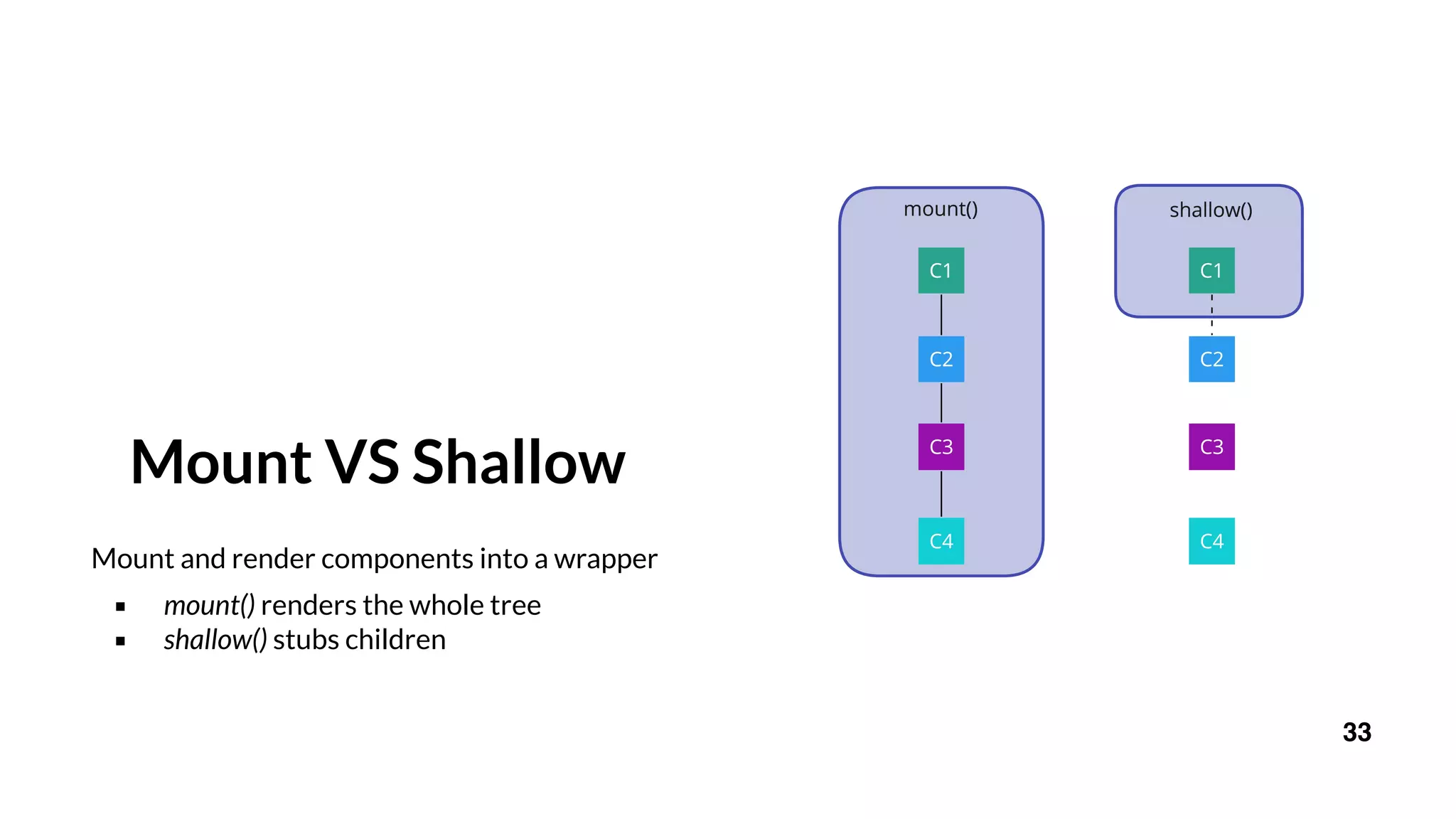

33. Mount VS Shallow
Mount and render components into a wrapper
▪ mount() renders the whole tree
▪ shallow() stubs children
33

34. Thanks!
Any questions?
You can find me at
▪ dblanco@minddoc.de
▪ Twitter: @darioblanco
34
Join our new TypeScript group!
▪ meetup.com/TypeScript-Munich/
