The VP-311DVI is a switcher that can switch between 3 DVI video inputs, 3 stereo audio inputs, and 3 S/PDIF digital audio inputs. It supports HDCP and has a maximum data rate of 1.65Gbps. It can be controlled through the front panel, IR remote, RS-232, Ethernet, or contact closure. When configured as a standby switcher, it will automatically switch to the next highest priority input if the current input signal is interrupted.

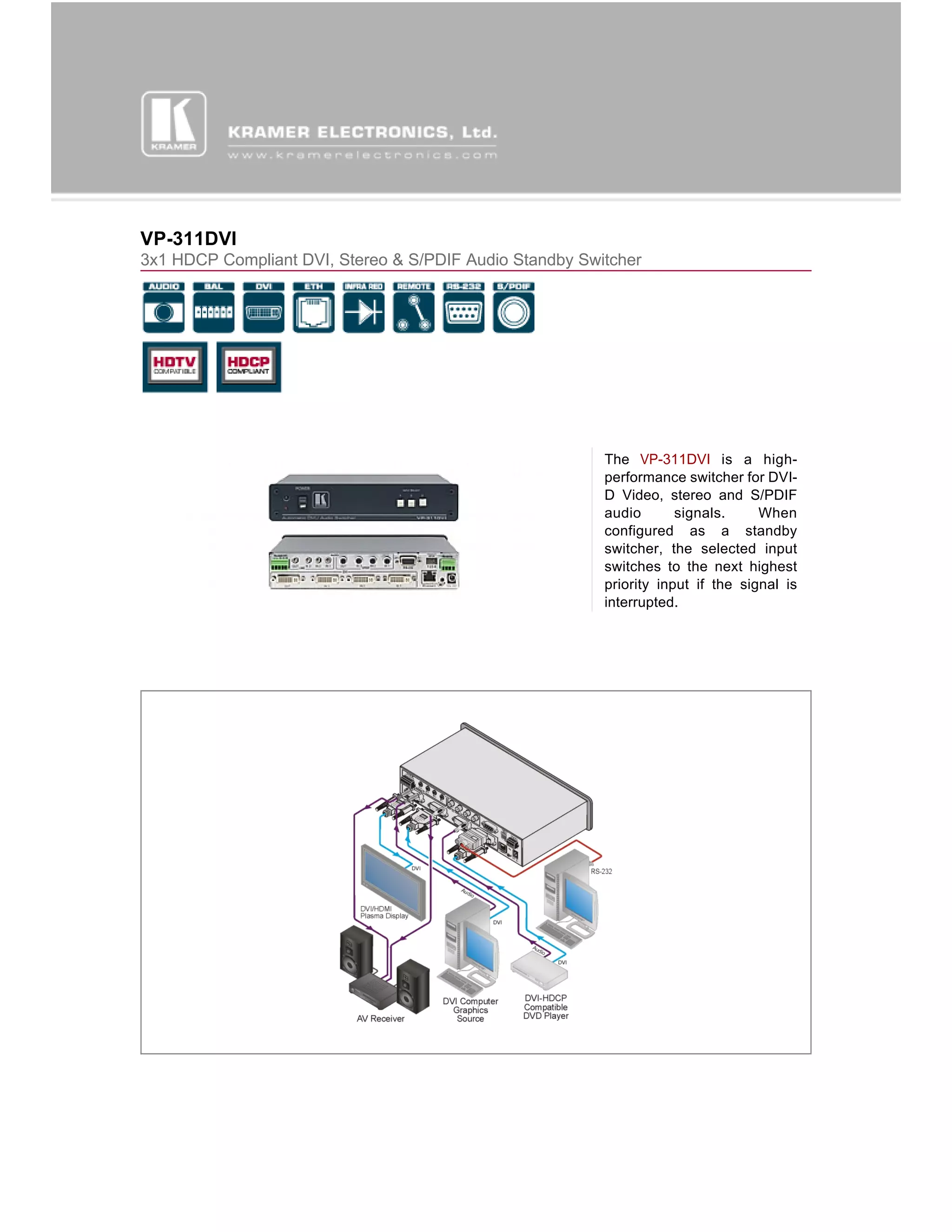

1. VP-311DVI
3x1 HDCP Compliant DVI, Stereo & S/PDIF Audio Standby Switcher
The VP-311DVI is a high-
performance switcher for DVI-
D Video, stereo and S/PDIF
audio signals. When
configured as a standby
switcher, the selected input
switches to the next highest
priority input if the signal is
interrupted.

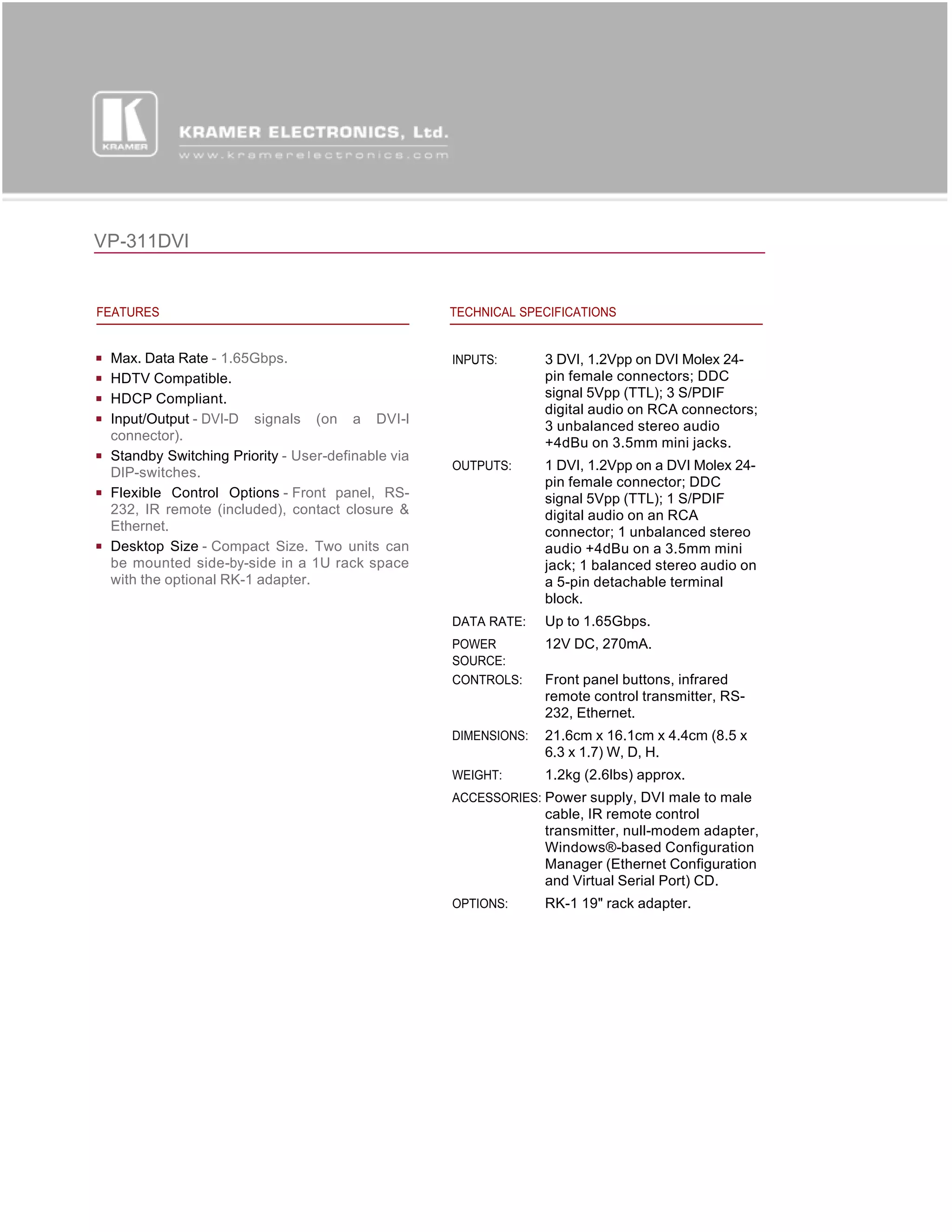

2. VP-311DVI
FEATURES TECHNICAL SPECIFICATIONS
Max. Data Rate - 1.65Gbps. INPUTS: 3 DVI, 1.2Vpp on DVI Molex 24-
HDTV Compatible. pin female connectors; DDC
HDCP Compliant. signal 5Vpp (TTL); 3 S/PDIF
digital audio on RCA connectors;
Input/Output - DVI-D signals (on a DVI-I 3 unbalanced stereo audio
connector).
+4dBu on 3.5mm mini jacks.
Standby Switching Priority - User-definable via
OUTPUTS: 1 DVI, 1.2Vpp on a DVI Molex 24-
DIP-switches.
pin female connector; DDC
Flexible Control Options - Front panel, RS- signal 5Vpp (TTL); 1 S/PDIF
232, IR remote (included), contact closure & digital audio on an RCA
Ethernet. connector; 1 unbalanced stereo
Desktop Size - Compact Size. Two units can audio +4dBu on a 3.5mm mini
be mounted side-by-side in a 1U rack space jack; 1 balanced stereo audio on
with the optional RK-1 adapter. a 5-pin detachable terminal
block.
DATA RATE: Up to 1.65Gbps.
POWER 12V DC, 270mA.
SOURCE:
CONTROLS: Front panel buttons, infrared
remote control transmitter, RS-
232, Ethernet.
DIMENSIONS: 21.6cm x 16.1cm x 4.4cm (8.5 x
6.3 x 1.7) W, D, H.
WEIGHT: 1.2kg (2.6lbs) approx.
ACCESSORIES: Power supply, DVI male to male
cable, IR remote control
transmitter, null-modem adapter,
Windows®-based Configuration
Manager (Ethernet Configuration
and Virtual Serial Port) CD.
OPTIONS: RK-1 19" rack adapter.
