Les panneaux vmz sine wave sont conçus pour une installation sur une structure métallique, offrant une flexibilité de design avec des effets de lumière et d'ombre. Adaptés à différents types de bâtiments, ils peuvent être utilisés pour des façades plates ou courbées, avec une installation rapide grâce à un chevauchement des panneaux. Les applications incluent des projets variés, allant de bureaux à des logements collectifs, à travers de nombreux pays.

1. + www.vmzinc.com
VMZ Sine wave
profile

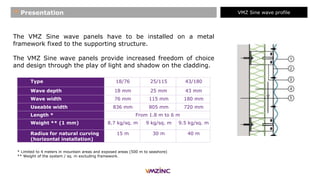

2. The VMZ Sine wave panels have to be installed on a metal
framework fixed to the supporting structure.
The VMZ Sine wave panels provide increased freedom of choice
and design through the play of light and shadow on the cladding.
VMZ Sine wave profile+ Presentation
Type 18/76 25/115 43/180
Wave depth 18 mm 25 mm 43 mm
Wave width 76 mm 115 mm 180 mm
Useable width 836 mm 805 mm 720 mm
Length * From 1.8 m to 6 m
Weight ** (1 mm) 8.7 kg/sq. m 9 kg/sq. m 9.5 kg/sq. m
Radius for natural curving
(horizontal installation)
15 m 30 m 40 m
* Limited to 4 meters in mountain areas and exposed areas (500 m to seashore)
** Weight of the system / sq. m excluding framework.

3. Rythmic wave aesthetic,
Vertical or horizontal
cladding with special joint,
Easy installation with
overlapping between two
panels for fast installation,
Range of components
offering a wide variety of
flashing details.
+ Key advantages VMZ Sine wave profile

4. • New construction or refurbishment projects.
• Flat facade or curved with large radius.
• All types of buildings, in particular office and public
buildings and collective housing.
+ Areas of application VMZ Sine wave profile

5. > John Ronan
Perforated VMZ Sine wave profile – ANTHRA-ZINC
+ Poetry foundation, Chicago (USA) VMZ Sine wave profile

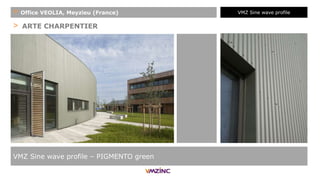

6. > ARTE CHARPENTIER
VMZ Sine wave profile – PIGMENTO green
+ Office VEOLIA, Meyzieu (France) VMZ Sine wave profile

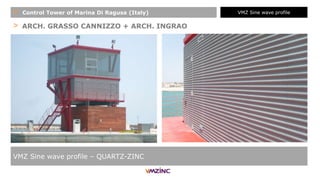

7. > ARCH. GRASSO CANNIZZO + ARCH. INGRAO
VMZ Sine wave profile – QUARTZ-ZINC
+ Control Tower of Marina Di Ragusa (Italy) VMZ Sine wave profile

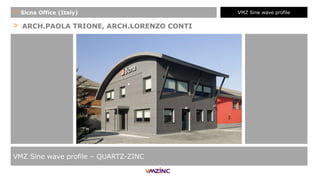

8. > ARCH.PAOLA TRIONE, ARCH.LORENZO CONTI
VMZ Sine wave profile – QUARTZ-ZINC
+ Sicna Office (Italy) VMZ Sine wave profile

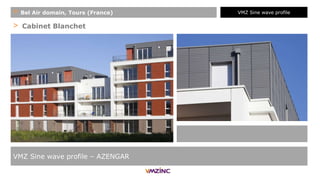

9. > Cabinet Blanchet
VMZ Sine wave profile – AZENGAR
+ Bel Air domain, Tours (France) VMZ Sine wave profile

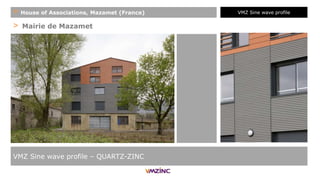

10. > Mairie de Mazamet
VMZ Sine wave profile – QUARTZ-ZINC
+ House of Associations, Mazamet (France) VMZ Sine wave profile

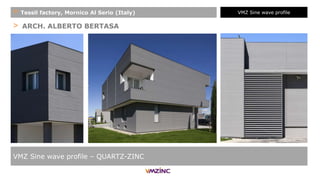

11. > ARCH. ALBERTO BERTASA
VMZ Sine wave profile – QUARTZ-ZINC
+ Tessil factory, Mornico Al Serio (Italy) VMZ Sine wave profile

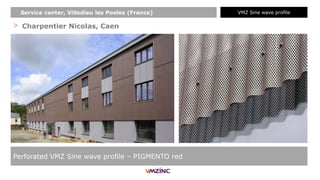

12. > Charpentier Nicolas, Caen
Perforated VMZ Sine wave profile – PIGMENTO red
+ Service center, Villedieu les Poeles (France) VMZ Sine wave profile

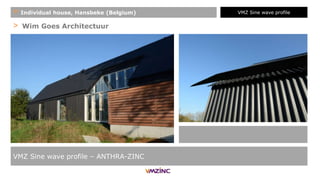

13. > Wim Goes Architectuur
VMZ Sine wave profile – ANTHRA-ZINC
+ Individual house, Hansbeke (Belgium) VMZ Sine wave profile

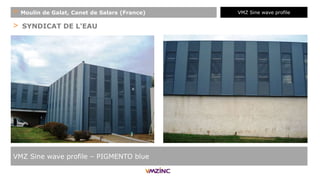

14. > SYNDICAT DE L'EAU
VMZ Sine wave profile – PIGMENTO blue
+ Moulin de Galat, Canet de Salars (France) VMZ Sine wave profile

15. > Bigeault Taieb
VMZ Sine wave profile – QUARTZ-ZINC
+ Early childhood center, Paray Vieille Poste (France) VMZ Sine wave profile

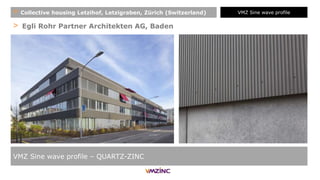

16. > Egli Rohr Partner Architekten AG, Baden
VMZ Sine wave profile – QUARTZ-ZINC
+ Collective housing Letzihof, Letzigraben, Zürich (Switzerland) VMZ Sine wave profile

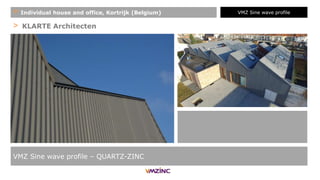

17. > KLARTE Architecten
VMZ Sine wave profile – QUARTZ-ZINC
+ Individual house and office, Kortrijk (Belgium) VMZ Sine wave profile

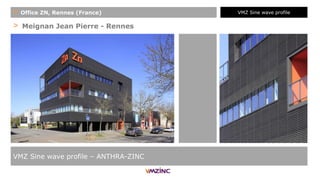

18. > Meignan Jean Pierre - Rennes
VMZ Sine wave profile – ANTHRA-ZINC
+ Office ZN, Rennes (France) VMZ Sine wave profile

19. > Sven Stucki, Bern
VMZ Sine wave profile – AZENGAR
+ Shop, Sutz-Lattingen (Switzerland) VMZ Sine wave profile

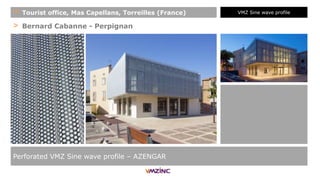

20. > Bernard Cabanne - Perpignan
Perforated VMZ Sine wave profile – AZENGAR
+ Tourist office, Mas Capellans, Torreilles (France) VMZ Sine wave profile

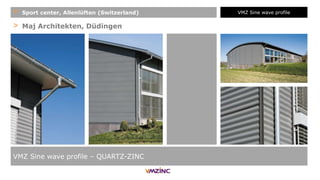

21. > Maj Architekten, Düdingen
VMZ Sine wave profile – QUARTZ-ZINC
+ Sport center, Allenlüften (Switzerland) VMZ Sine wave profile

22. > Athena
VMZ Sine wave profile – QUARTZ-ZINC
+ ICAM, Carquefou (France) VMZ Sine wave profile

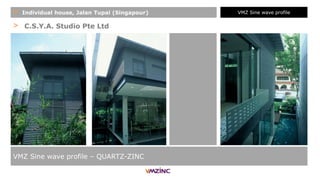

23. > C.S.Y.A. Studio Pte Ltd
VMZ Sine wave profile – QUARTZ-ZINC
+ Individual house, Jalan Tupai (Singapour) VMZ Sine wave profile

24. > ZOOM architecture
VMZ Sine wave profile – PIGMENTO green
+ Offices, Charleville-Mézières (France) VMZ Sine wave profile

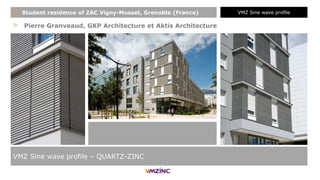

25. > Pierre Granveaud, GKP Architecture et Aktis Architecture
VMZ Sine wave profile – QUARTZ-ZINC
+ Student residence of ZAC Vigny-Musset, Grenoble (France) VMZ Sine wave profile

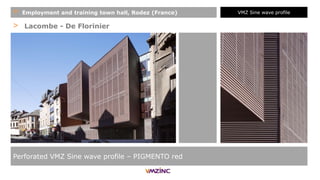

26. > Lacombe - De Florinier
Perforated VMZ Sine wave profile – PIGMENTO red
+ Employment and training town hall, Rodez (France) VMZ Sine wave profile

27. > Bureau d'Architecture Roland Mosimann
VMZ Sine wave profile – QUARTZ-ZINC
+ Individual house, Lausanne (Switzerland) VMZ Sine wave profile

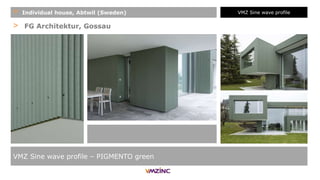

28. > FG Architektur, Gossau
VMZ Sine wave profile – PIGMENTO green
+ Individual house, Abtwil (Sweden) VMZ Sine wave profile

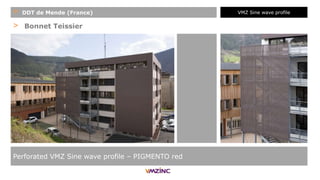

29. > Bonnet Teissier
Perforated VMZ Sine wave profile – PIGMENTO red
+ DDT de Mende (France) VMZ Sine wave profile

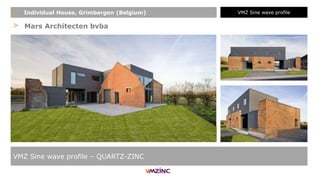

30. > Mars Architecten bvba
VMZ Sine wave profile – QUARTZ-ZINC
+ Individual House, Grimbergen (Belgium) VMZ Sine wave profile

31. > Cabinet DLR Group, Nathan CASTEEL
VMZ Sine wave profile, VMZ Cassettes – ANTHRA-ZINC
+ Adjustable Forms Inc., Lombard Illinois (USA) VMZ Sine wave profile

32. > Landskronagruppen AB, Peter BROBERG
VMZ Sine wave profile – QUARTZ-ZINC
+ Modular house, Helsingborg (Sweden) VMZ Sine wave profile

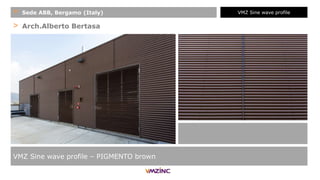

33. > Arch.Alberto Bertasa
VMZ Sine wave profile – PIGMENTO brown
+ Sede ABB, Bergamo (Italy) VMZ Sine wave profile

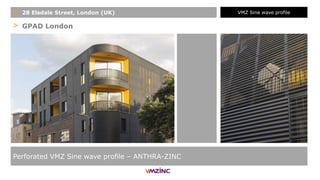

34. > GPAD London
Perforated VMZ Sine wave profile – ANTHRA-ZINC
+ 28 Elsdale Street, London (UK) VMZ Sine wave profile

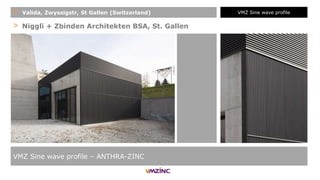

35. > Niggli + Zbinden Architekten BSA, St. Gallen
VMZ Sine wave profile – ANTHRA-ZINC
+ Valida, Zwyssigstr, St Gallen (Switzerland) VMZ Sine wave profile
