VMZINC Interlocking panels
The VMZ interlocking panel system is designed for both new construction and refurbishment projects, allowing for elegant cladding on various building types using a rainscreen approach. The panels can be installed both horizontally and vertically with concealed fastenings, providing flexibility in design. Notable projects using these panels are located across the USA, France, India, and other countries, showcasing their versatility in different architectural settings.
More Related Content
Similar to VMZINC Interlocking panels
VMZINC Interlocking panels
- 1.
- 2. The VMZ Interlockingpanel system is designed for any facade to be cladded with a rainscreen system, for both new and refurbishment projects. It involves installing interlocking panels on metal or wood framework fixed to the supporting structure (masonry or metal structure). The panels are simply connected by the use of an interlocking groove giving the elegant appearance of a recessed joint. VMZ Interlocking panels+ Presentation
- 3. Structured design oflong and flat panels made of 1 mm VMZINC, Horizontal or vertical installation, Interlocking attachment with concealed fastening, Range of components offering a wide variety of all flashing details, Certified by National European Organism. VMZ Interlocking panels+ Key advantages
- 4. • New constructionor refurbishment. • Vertical cladding and flat ceiling. • All types of buildings, in particular offices, public • buildings and collective housing. • Inside building (hall, entrance). VMZ Interlocking panels+ Areas of application
- 5. > Joseph WongDesign Associates VMZ Interlocking panels – QUARTZ-ZINC VMZ Interlocking panels+ SDCCD Mesa College, San Diego, California (USA)
- 6. > Shanmugam Associates VMZInterlocking panels – QUARTZ-ZINC Strat VMZ Interlocking panels+ Commercial building near Central Bus STop, Trichy (India)
- 7. > Flad Architects VMZInterlocking panels – QUARTZ-ZINC VMZ Interlocking panels+ UW Health at the American Center, Madison Wisconsin (USA)
- 8. > Kirkpatrick ArchitectureStudio VMZ Interlocking panels – QUARTZ-ZINC VMZ Interlocking panels+ Volunteer Fire Department, Belle Chasse Louisiana (USA)

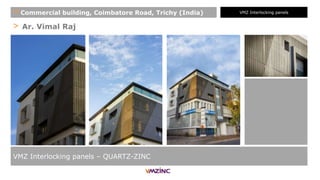

- 9. > Ar. VimalRaj VMZ Interlocking panels – QUARTZ-ZINC VMZ Interlocking panels+ Commercial building, Coimbatore Road, Trichy (India)
- 10. > Edwards &Daniels Architects VMZ Interlocking panels – QUARTZ-ZINC VMZ Interlocking panels+ Beverley Taylor Sorenson Art and Education Complex, Salt Lake City Utah (USA)
- 11. > BRW Architects VMZInterlocking panels – ANTHRA-ZINC VMZ Interlocking panels+ Houston Fire Station #84, Houston, Texas (USA)
- 12. > CR ETON CHARON RAMPILLON, Grenoble VMZ Interlocking panels – AZENGAR VMZ Interlocking panels+ Library, La Tour du Pin (France)
- 13. > OSCAR BATTAGLIOTTIARCHITETTO VMZ Interlocking panels – ANTHRA-ZINC, QUARTZ-ZINC VMZ Interlocking panels+ SEDE G&B, Villastellone (Italia)
- 14. VMZ Interlocking panels– QUARTZ-ZINC VMZ Interlocking panels+ Individual house, Sant Cugat (España)
- 15. > Verma Ravindrafrom Kothari Architects VMZ Interlocking panels – QUARTZ-ZINC VMZ Interlocking panels+ United Clinic, Allahabad (India)
- 16. > Ziegler CooperArchitects VMZ Interlocking panels – QUARTZ-ZINC VMZ Interlocking panels+ One Lake's Edge Luxury Apartments, The Woodlands Texas (USA)
- 17. > Deschamps Architecte,Paris VMZ Interlocking panels – QUARTZ-ZINC VMZ Interlocking panels+ Collective housing and health center, Reims (France)
- 18. > Treanor ArchitectsBNIM VMZ Interlocking panel – QUARTZ-ZINC, ANTHRA-ZINC, Natural zinc VMZ Interlocking panels+ Olathe Adult Detention Center, Olathe (USA)
- 19. > Dimond +Schmit Architects VMZ Interlocking panels – QUARTZ-ZINC VMZ Interlocking panels+ Kinnear Centre, Banff (Canada)
- 20. > Woods Bagotand NH Architecture VMZ Interlocking panel – ANTHRA-ZINC VMZ Interlocking panels+ Southbank star, Melbourne (Australia)
- 21. > Andrew Mirams VMZInterlocking panel – ANTHRA-ZINC VMZ Interlocking panels+ Carter Residence (New Zealand)
- 22. > Gallois Dudzik VMZInterlocking panels – QUARTZ-ZINC VMZ Interlocking panels+ Lebas high school, Roubaix (France)
- 23. > Work TM VMZInterlocking panel – PIGMENTO red VMZ Interlocking panels+ John Cooper School, The Woodlands Texas (USA)
- 24. > Muñoz +Albin Architecture and Planning, Inc., Ambrose, McEnany and House Architects, Lake Flato in San Antonio VMZ Interlocking panels – QUARTZ-ZINC VMZ Interlocking panels+ Cirrus Logic Building, Austin (USA)
- 25. > KLMT, Düsseldorf VMZInterlocking panels – QUARTZ-ZINC VMZ Interlocking panels+ School, Viersen (Germany)
- 26. > Brochet PueyoLajus VMZ Interlocking panels – QUARTZ-ZINC VMZ Interlocking panels+ Collective Housing Jules Verne Ginko, Bordeaux (France)
- 27.
