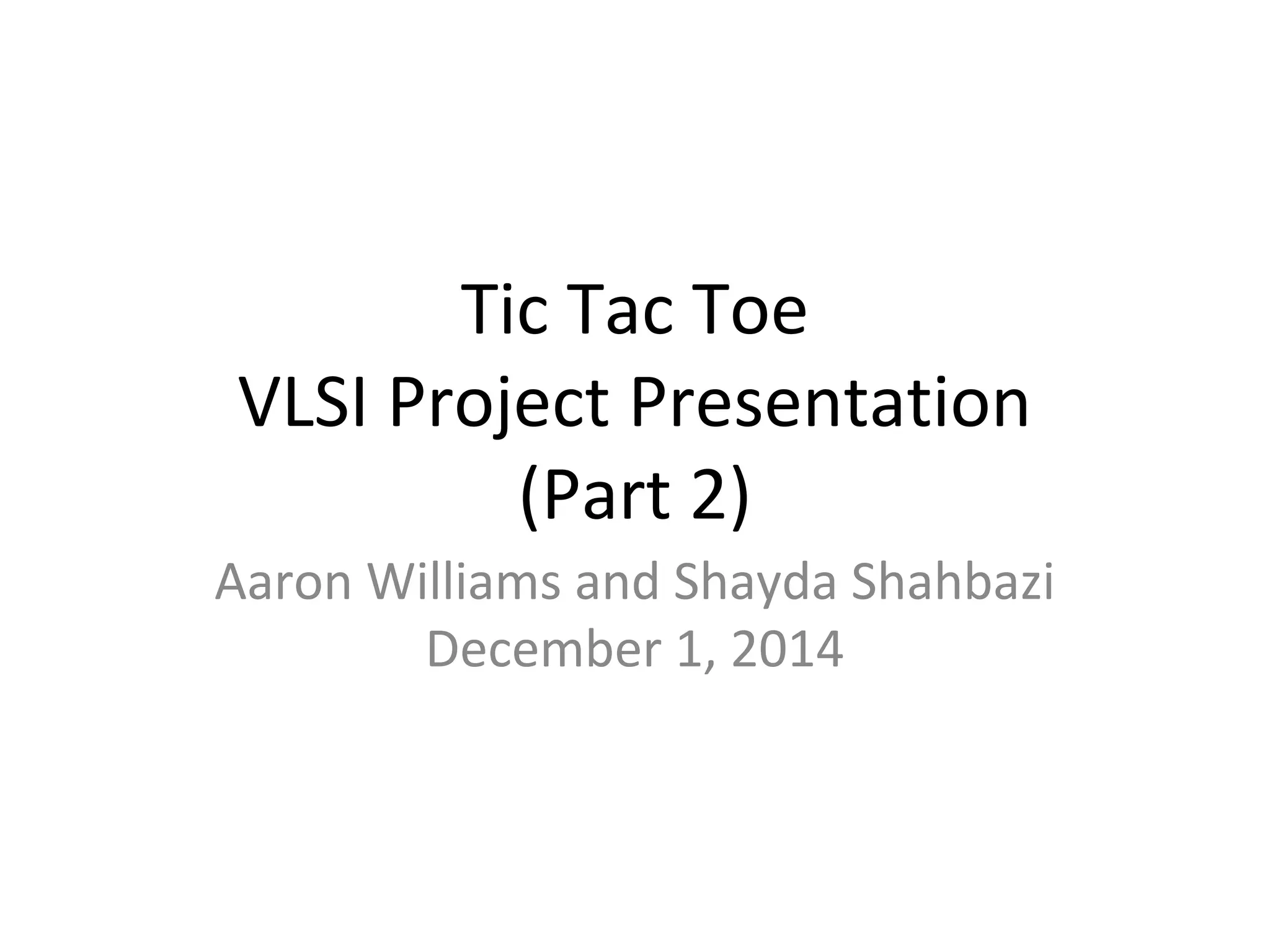

- 1. Tic Tac Toe VLSI Project Presentation (Part 2) Aaron Williams and Shayda Shahbazi December 1, 2014

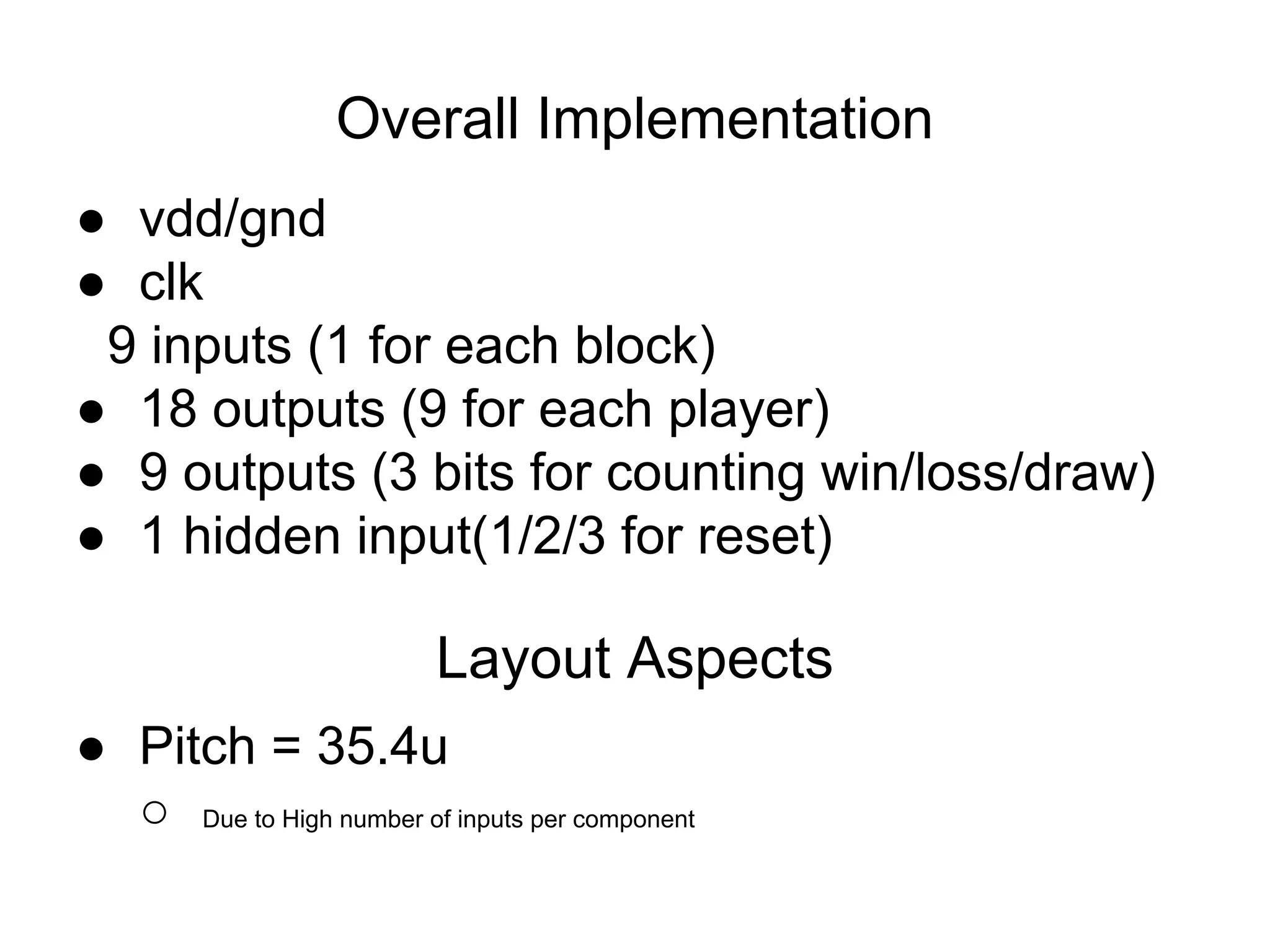

- 2. ● vdd/gnd ● clk 9 inputs (1 for each block) ● 18 outputs (9 for each player) ● 9 outputs (3 bits for counting win/loss/draw) ● 1 hidden input(1/2/3 for reset) Layout Aspects Overall Implementation ● Pitch = 35.4u ○ Due to High number of inputs per component
- 5. Transistor Count DFF: 6+4+8+8=26 transistors Memory: 26*18 + 8*18 + 6*9 + 12 = 678 Checker: 9*18 + 9*8 = 262 Comb: 9*6 = 54 Total Win:158*3 + 28 + 64*2 = 630 Turn: 164+10+16 = 190 Out of AI: 1814 Conditions: 6*9 +96+48=198 Filter: 10*9 + 18 = 108 Extra: 8*6 +4 +4+6+8+10+12+14+16 =122 Think: 4*10+4*8+6+18=96 Memory: 9*26 + 4 = 238 Memroy_Add:3*26 + 12+12+6+14+36=158 Win: 6*8 + 16 = 64 Counter:4*26 + 12 +14+ 34=164 Total AI: 198*2 +108*2+122+96+238+164=1232 3046 transistors total
- 10. Combination Win
- 11. Memory Main
- 12. Filter Component
- 13. Component Extra
- 14. Memory Add
- 16. Verilog Test Code -Tests applying a set of inputs to the circuit Future Tests: -Find a set of conditions that guarantee a Computer victory -Find a set of conditions that guarantee a Human victory -Find a set of conditions that guarantee a draw
- 17. Next Steps ● Complete testing ● Complete layout
