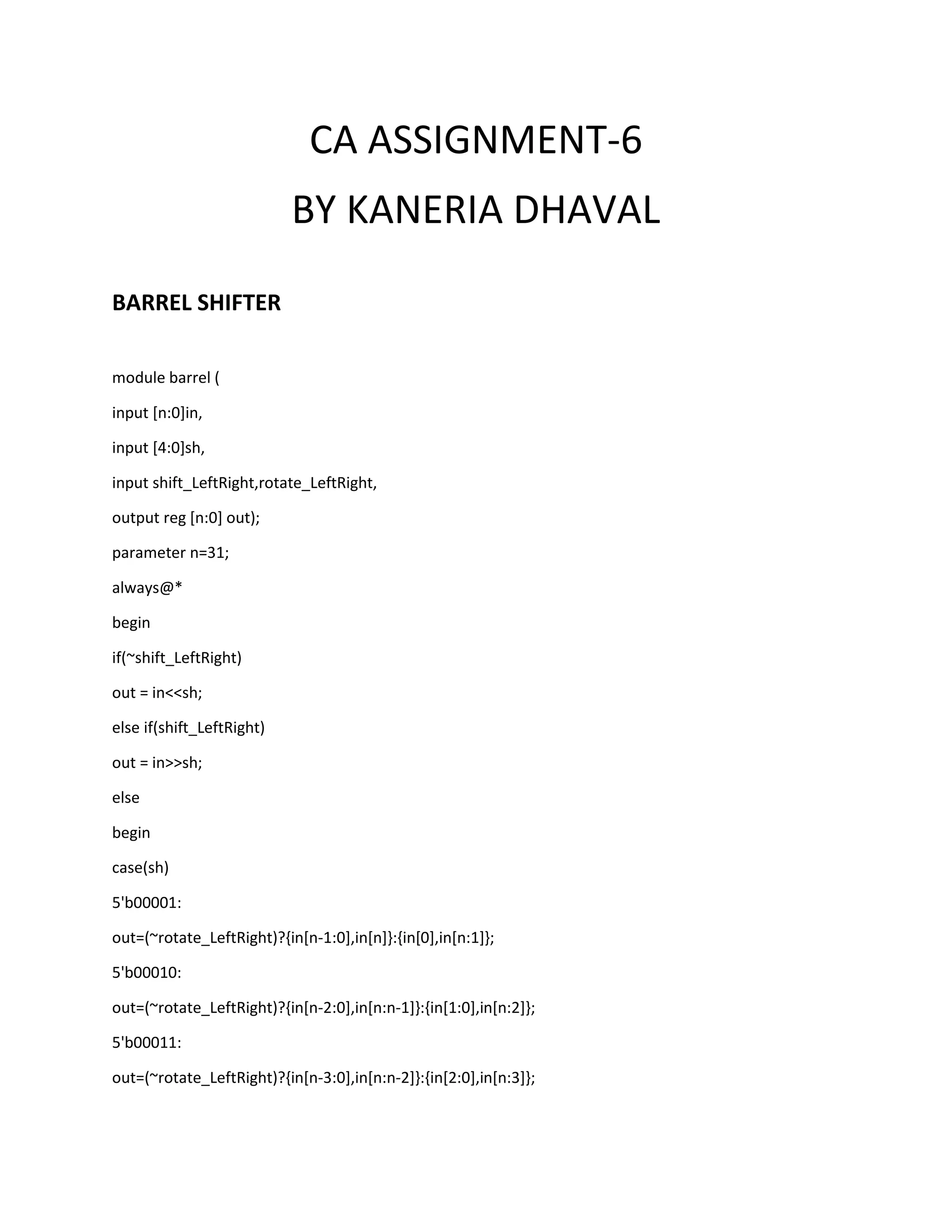

1. CA ASSIGNMENT-6
BY KANERIA DHAVAL
BARREL SHIFTER
module barrel (
input [n:0]in,
input [4:0]sh,
input shift_LeftRight,rotate_LeftRight,
output reg [n:0] out);
parameter n=31;
always@*
begin
if(~shift_LeftRight)
out = in<<sh;
else if(shift_LeftRight)
out = in>>sh;
else
begin
case(sh)
5'b00001:
out=(~rotate_LeftRight)?{in[n-1:0],in[n]}:{in[0],in[n:1]};
5'b00010:
out=(~rotate_LeftRight)?{in[n-2:0],in[n:n-1]}:{in[1:0],in[n:2]};
5'b00011:
out=(~rotate_LeftRight)?{in[n-3:0],in[n:n-2]}:{in[2:0],in[n:3]};

2. 5'b00100:
out=(~rotate_LeftRight)?{in[n-4:0],in[n:n-3]}:{in[3:0],in[n:4]};
5'b00101:
out=(~rotate_LeftRight)?{in[n-5:0],in[n:n-4]}:{in[4:0],in[n:5]};
5'b00110:
out=(~rotate_LeftRight)?{in[n-6:0],in[n:n-5]}:{in[5:0],in[n:6]};
5'b00111:
out=(~rotate_LeftRight)?{in[n-7:0],in[n:n-6]}:{in[6:0],in[n:7]};
5'b01000:
out=(~rotate_LeftRight)?{in[n-8:0],in[n:n-7]}:{in[7:0],in[n:8]};
5'b01001:
out=(~rotate_LeftRight)?{in[n-9:0],in[n:n-8]}:{in[8:0],in[n:9]};
5'b01010:
out=(~rotate_LeftRight)?{in[n-10:0],in[n:n-9]}:{in[9:0],in[n:10]};
5'b01011:
out=(~rotate_LeftRight)?{in[n-11:0],in[n:n-10]}:{in[10:0],in[n:11]};
5'b01100:
out=(~rotate_LeftRight)?{in[n-12:0],in[n:n-11]}:{in[11:0],in[n:12]};
5'b01101:
out=(~rotate_LeftRight)?{in[n-13:0],in[n:n-12]}:{in[12:0],in[n:13]};
5'b01110:
out=(~rotate_LeftRight)?{in[n-14:0],in[n:n-13]}:{in[13:0],in[n:14]};
5'b01111:
out=(~rotate_LeftRight)?{in[n-15:0],in[n:n-14]}:{in[14:0],in[n:15]};
5'b10000:
out=(~rotate_LeftRight)?{in[n-16:0],in[n:n-15]}:{in[15:0],in[n:16]};
5'b10001:
out=(~rotate_LeftRight)?{in[n-17:0],in[n:n-16]}:{in[16:0],in[n:17]};
5'b10010:

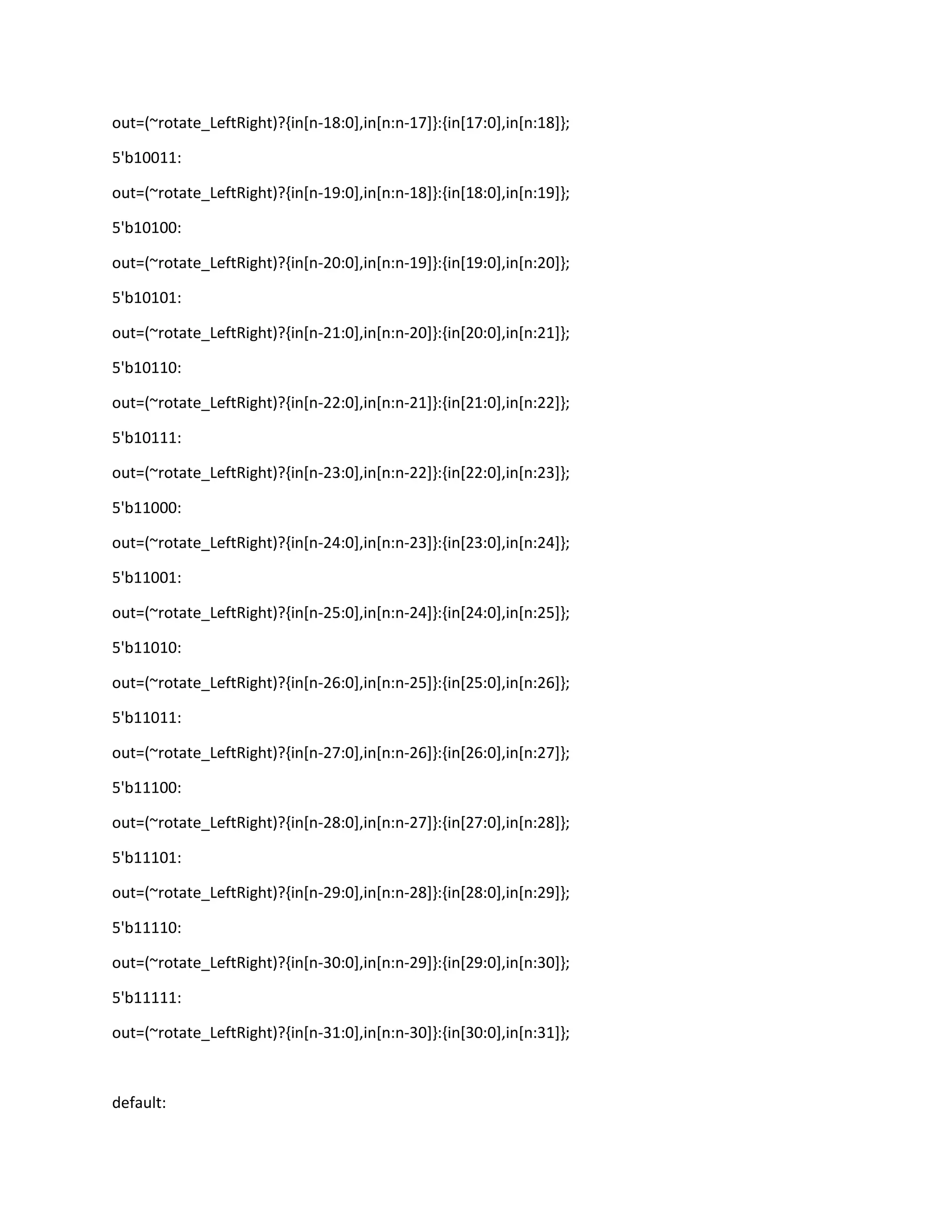

3. out=(~rotate_LeftRight)?{in[n-18:0],in[n:n-17]}:{in[17:0],in[n:18]};
5'b10011:
out=(~rotate_LeftRight)?{in[n-19:0],in[n:n-18]}:{in[18:0],in[n:19]};
5'b10100:
out=(~rotate_LeftRight)?{in[n-20:0],in[n:n-19]}:{in[19:0],in[n:20]};
5'b10101:
out=(~rotate_LeftRight)?{in[n-21:0],in[n:n-20]}:{in[20:0],in[n:21]};
5'b10110:
out=(~rotate_LeftRight)?{in[n-22:0],in[n:n-21]}:{in[21:0],in[n:22]};
5'b10111:
out=(~rotate_LeftRight)?{in[n-23:0],in[n:n-22]}:{in[22:0],in[n:23]};
5'b11000:
out=(~rotate_LeftRight)?{in[n-24:0],in[n:n-23]}:{in[23:0],in[n:24]};
5'b11001:
out=(~rotate_LeftRight)?{in[n-25:0],in[n:n-24]}:{in[24:0],in[n:25]};
5'b11010:
out=(~rotate_LeftRight)?{in[n-26:0],in[n:n-25]}:{in[25:0],in[n:26]};
5'b11011:
out=(~rotate_LeftRight)?{in[n-27:0],in[n:n-26]}:{in[26:0],in[n:27]};
5'b11100:
out=(~rotate_LeftRight)?{in[n-28:0],in[n:n-27]}:{in[27:0],in[n:28]};
5'b11101:
out=(~rotate_LeftRight)?{in[n-29:0],in[n:n-28]}:{in[28:0],in[n:29]};
5'b11110:
out=(~rotate_LeftRight)?{in[n-30:0],in[n:n-29]}:{in[29:0],in[n:30]};
5'b11111:
out=(~rotate_LeftRight)?{in[n-31:0],in[n:n-30]}:{in[30:0],in[n:31]};
default:

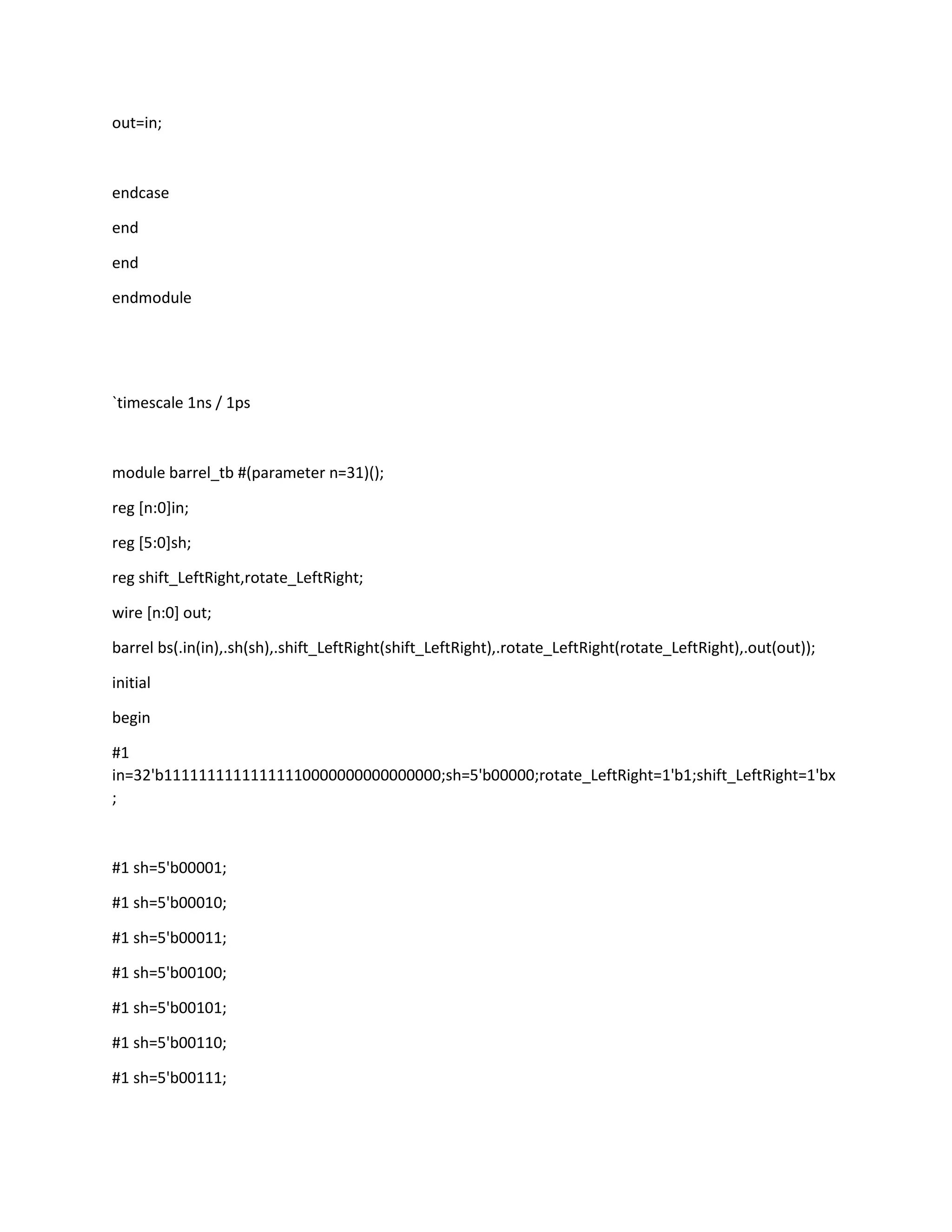

4. out=in;
endcase
end
end
endmodule
`timescale 1ns / 1ps
module barrel_tb #(parameter n=31)();
reg [n:0]in;
reg [5:0]sh;
reg shift_LeftRight,rotate_LeftRight;
wire [n:0] out;
barrel bs(.in(in),.sh(sh),.shift_LeftRight(shift_LeftRight),.rotate_LeftRight(rotate_LeftRight),.out(out));
initial
begin
#1
in=32'b11111111111111110000000000000000;sh=5'b00000;rotate_LeftRight=1'b1;shift_LeftRight=1'bx
;
#1 sh=5'b00001;
#1 sh=5'b00010;
#1 sh=5'b00011;
#1 sh=5'b00100;
#1 sh=5'b00101;
#1 sh=5'b00110;
#1 sh=5'b00111;

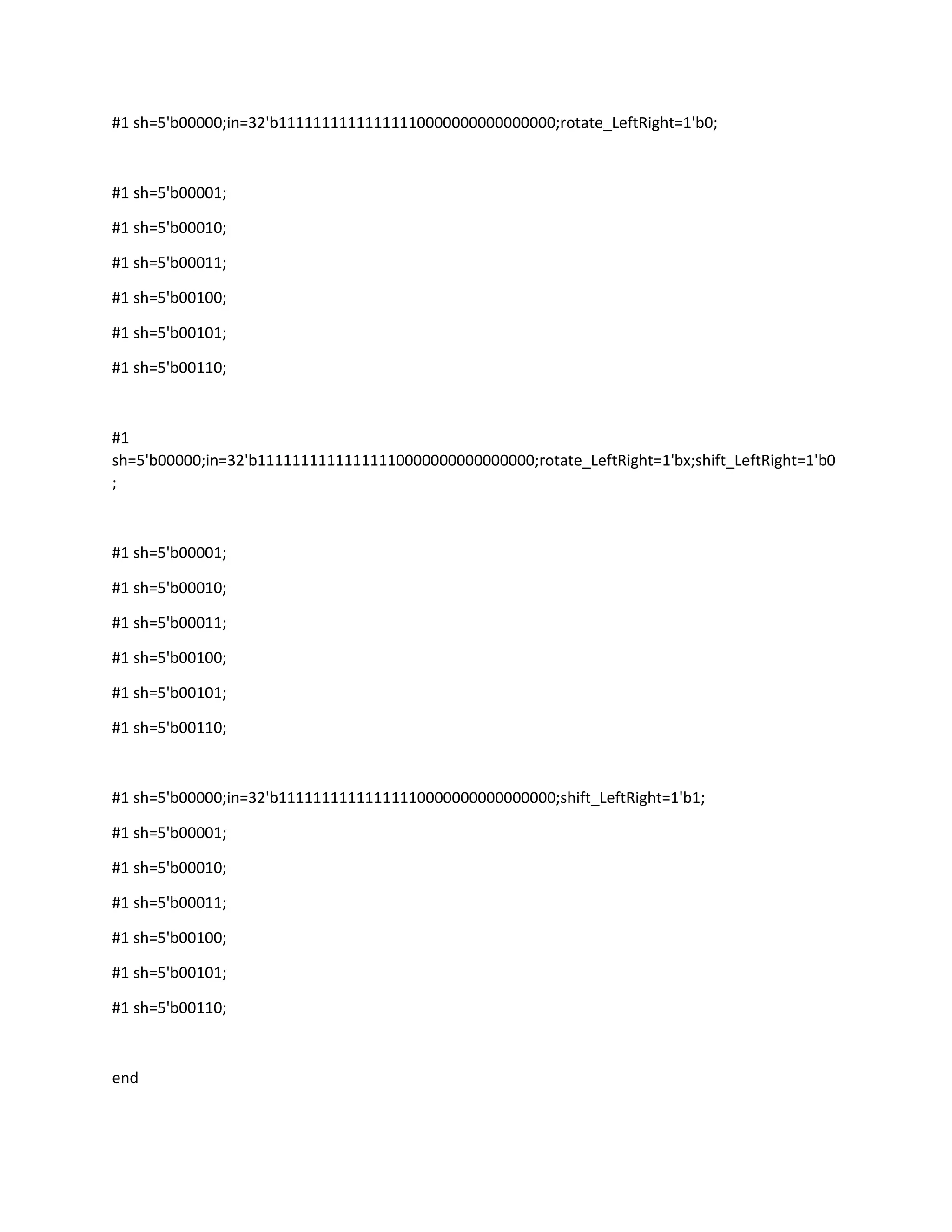

5. #1 sh=5'b00000;in=32'b11111111111111110000000000000000;rotate_LeftRight=1'b0;
#1 sh=5'b00001;
#1 sh=5'b00010;
#1 sh=5'b00011;
#1 sh=5'b00100;
#1 sh=5'b00101;
#1 sh=5'b00110;
#1
sh=5'b00000;in=32'b11111111111111110000000000000000;rotate_LeftRight=1'bx;shift_LeftRight=1'b0
;
#1 sh=5'b00001;
#1 sh=5'b00010;
#1 sh=5'b00011;
#1 sh=5'b00100;
#1 sh=5'b00101;
#1 sh=5'b00110;
#1 sh=5'b00000;in=32'b11111111111111110000000000000000;shift_LeftRight=1'b1;
#1 sh=5'b00001;
#1 sh=5'b00010;
#1 sh=5'b00011;
#1 sh=5'b00100;
#1 sh=5'b00101;
#1 sh=5'b00110;
end

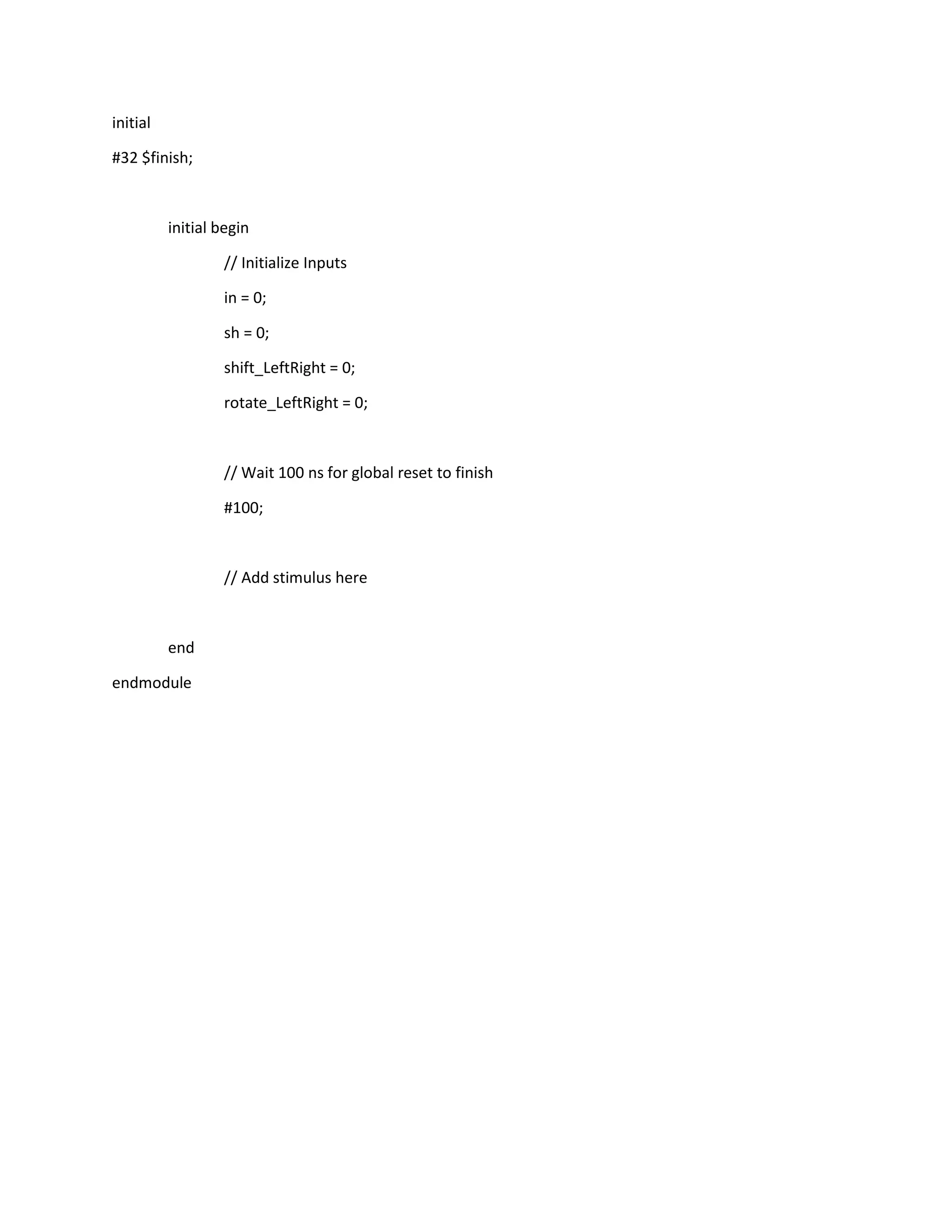

6. initial
#32 $finish;
initial begin
// Initialize Inputs
in = 0;
sh = 0;
shift_LeftRight = 0;
rotate_LeftRight = 0;
// Wait 100 ns for global reset to finish
#100;
// Add stimulus here
end
endmodule

7. 8 BIT BOOTH MULTIPLIER
module multiplier(prod, busy, mc, mp, clk, start);
output [15:0] prod;
output busy;
input [7:0] mc, mp;
input clk, start;
reg [7:0] A, Q, M;
reg Q_1;
reg [7:0] count;
wire [7:0] sum, difference;

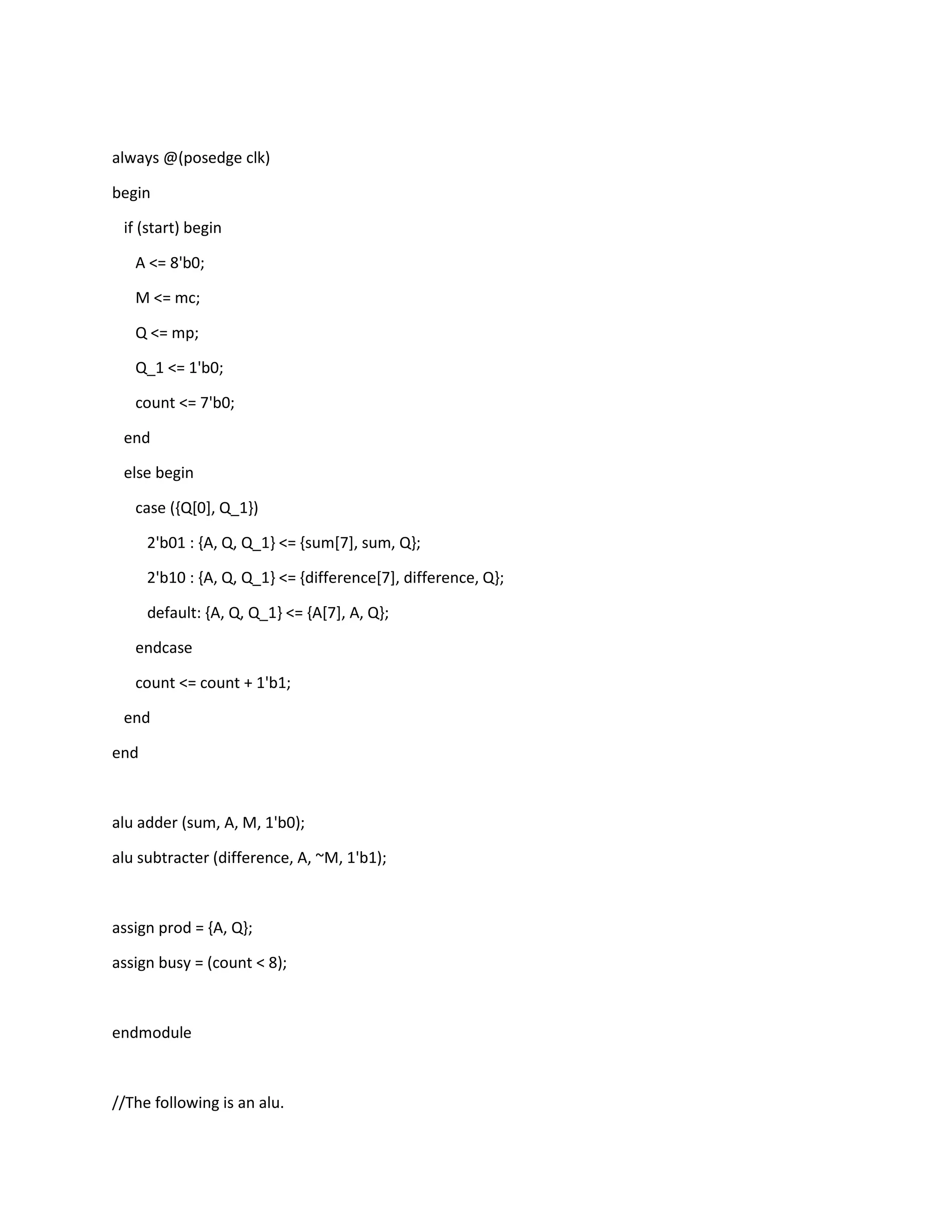

8. always @(posedge clk)
begin
if (start) begin
A <= 8'b0;
M <= mc;
Q <= mp;
Q_1 <= 1'b0;
count <= 7'b0;
end
else begin
case ({Q[0], Q_1})
2'b01 : {A, Q, Q_1} <= {sum[7], sum, Q};
2'b10 : {A, Q, Q_1} <= {difference[7], difference, Q};
default: {A, Q, Q_1} <= {A[7], A, Q};
endcase
count <= count + 1'b1;
end
end
alu adder (sum, A, M, 1'b0);
alu subtracter (difference, A, ~M, 1'b1);
assign prod = {A, Q};
assign busy = (count < 8);
endmodule
//The following is an alu.

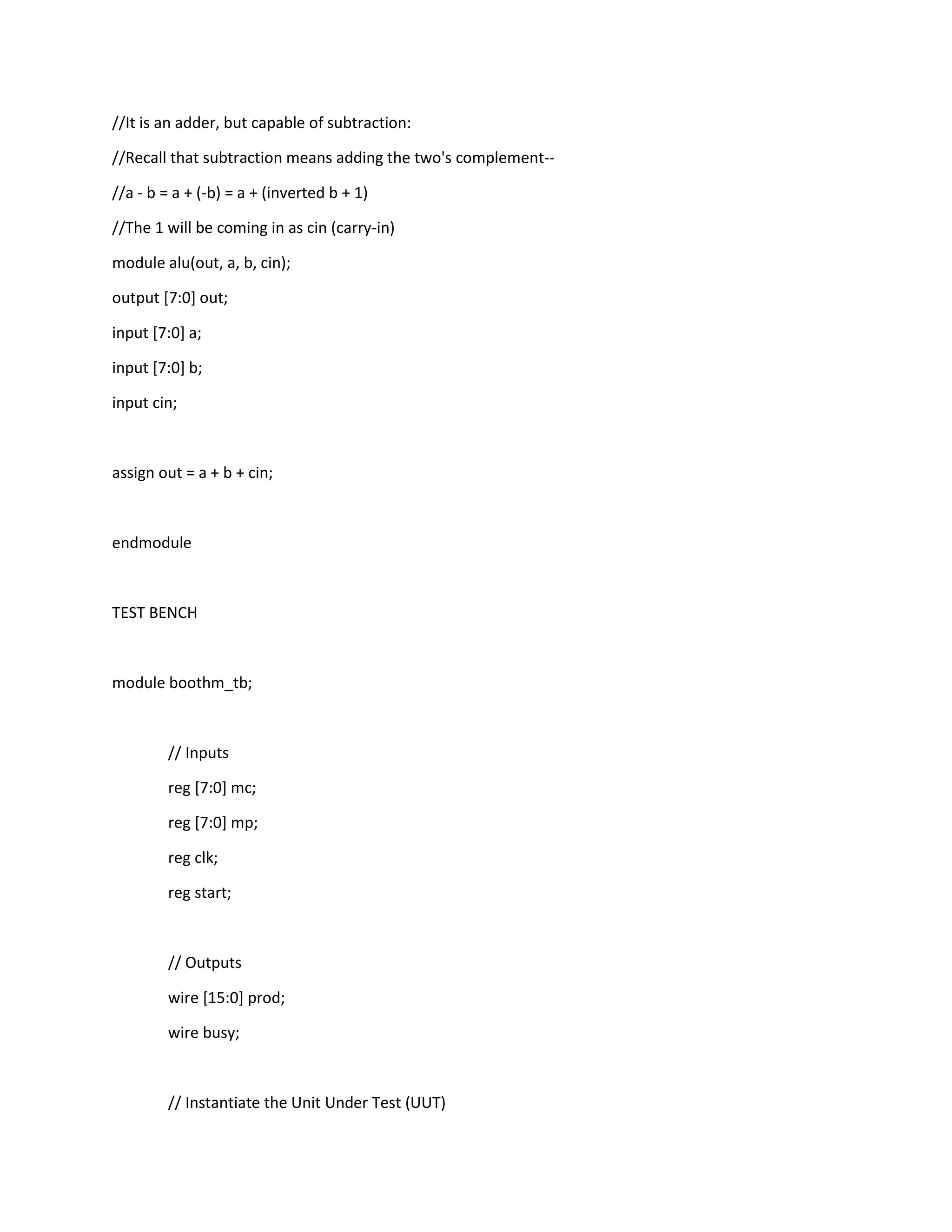

9. //It is an adder, but capable of subtraction:
//Recall that subtraction means adding the two's complement-//a - b = a + (-b) = a + (inverted b + 1)
//The 1 will be coming in as cin (carry-in)
module alu(out, a, b, cin);
output [7:0] out;
input [7:0] a;
input [7:0] b;
input cin;
assign out = a + b + cin;
endmodule
TEST BENCH
module boothm_tb;
// Inputs
reg [7:0] mc;
reg [7:0] mp;
reg clk;
reg start;
// Outputs
wire [15:0] prod;
wire busy;
// Instantiate the Unit Under Test (UUT)

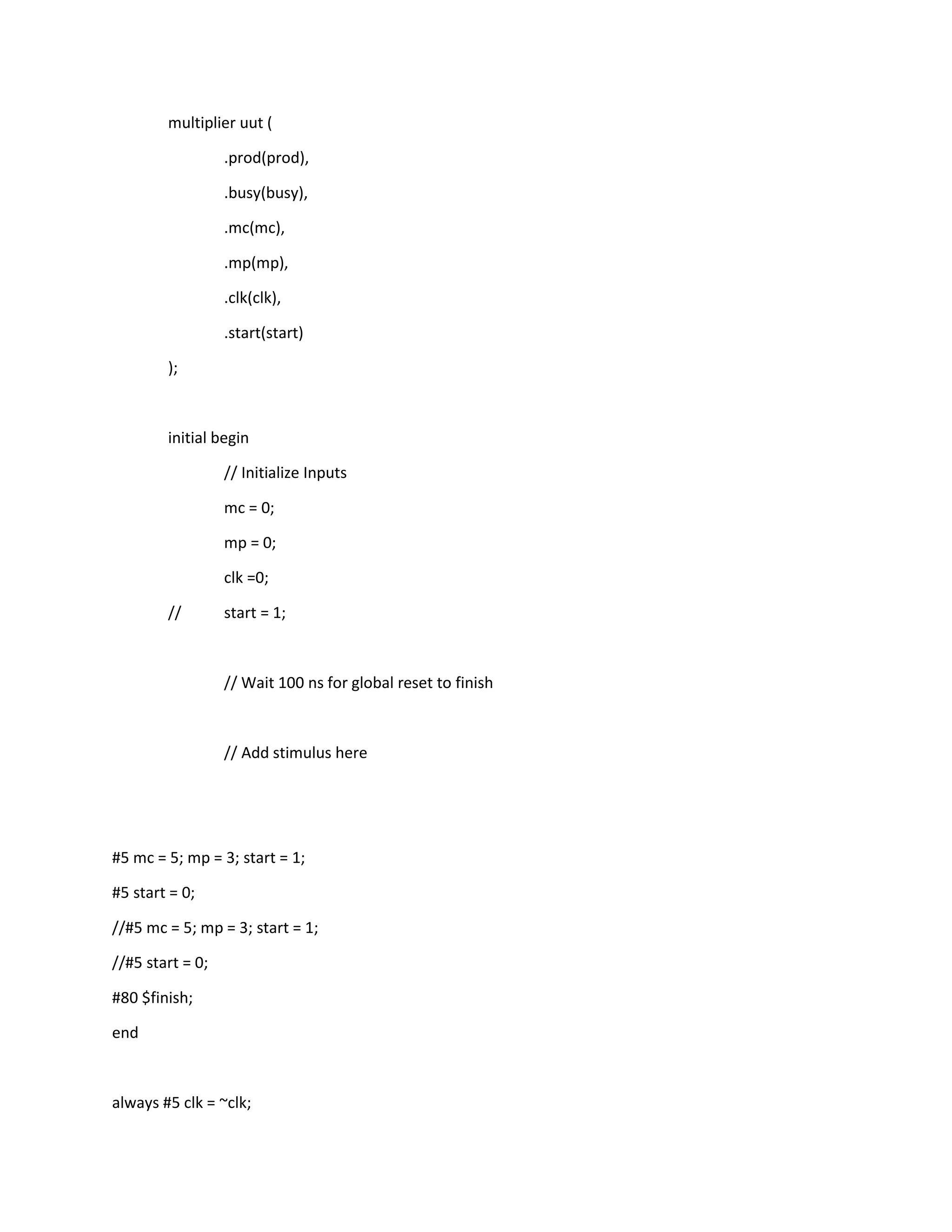

10. multiplier uut (
.prod(prod),
.busy(busy),
.mc(mc),
.mp(mp),
.clk(clk),
.start(start)
);
initial begin
// Initialize Inputs
mc = 0;
mp = 0;
clk =0;
//
start = 1;
// Wait 100 ns for global reset to finish
// Add stimulus here
#5 mc = 5; mp = 3; start = 1;
#5 start = 0;
//#5 mc = 5; mp = 3; start = 1;
//#5 start = 0;
#80 $finish;
end
always #5 clk = ~clk;

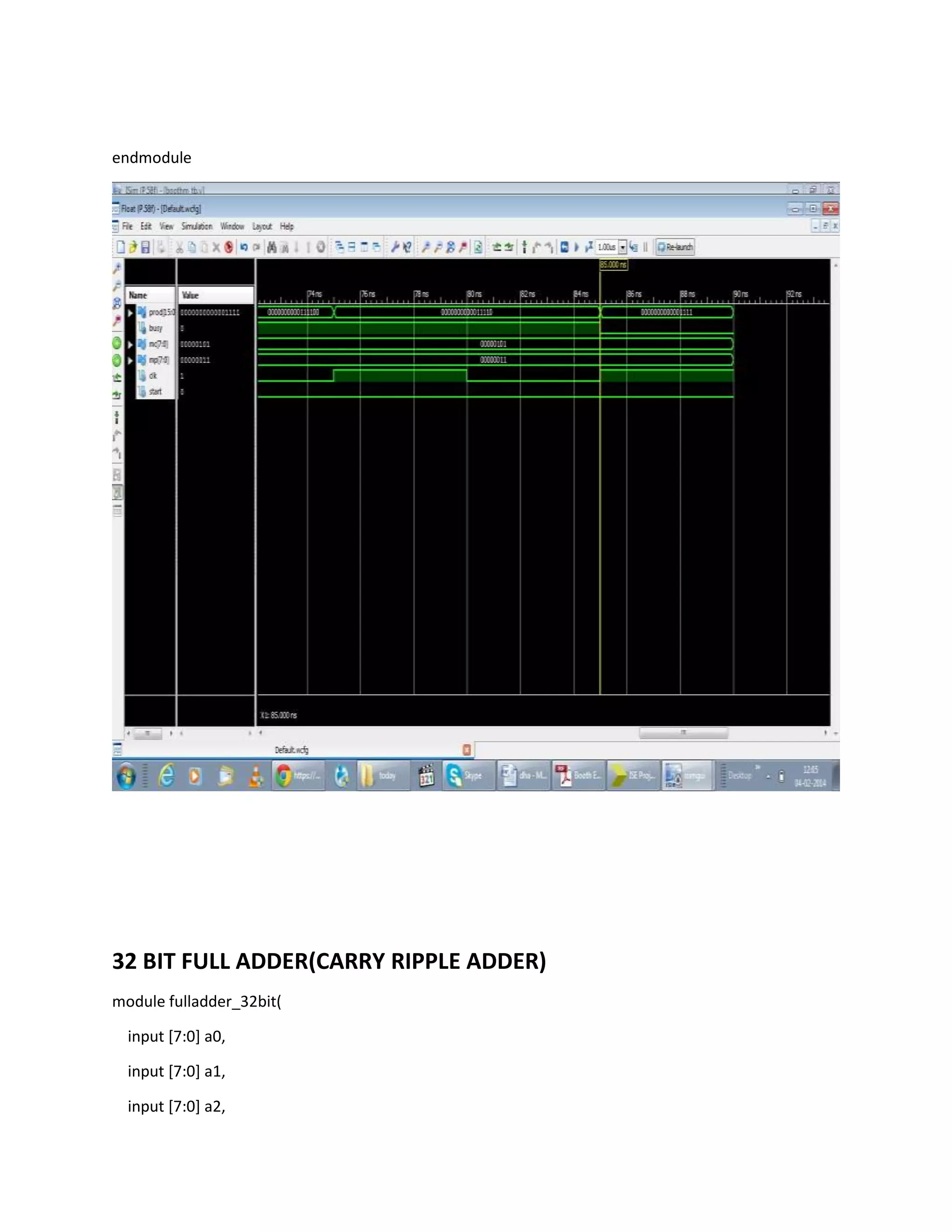

11. endmodule
32 BIT FULL ADDER(CARRY RIPPLE ADDER)
module fulladder_32bit(
input [7:0] a0,
input [7:0] a1,
input [7:0] a2,

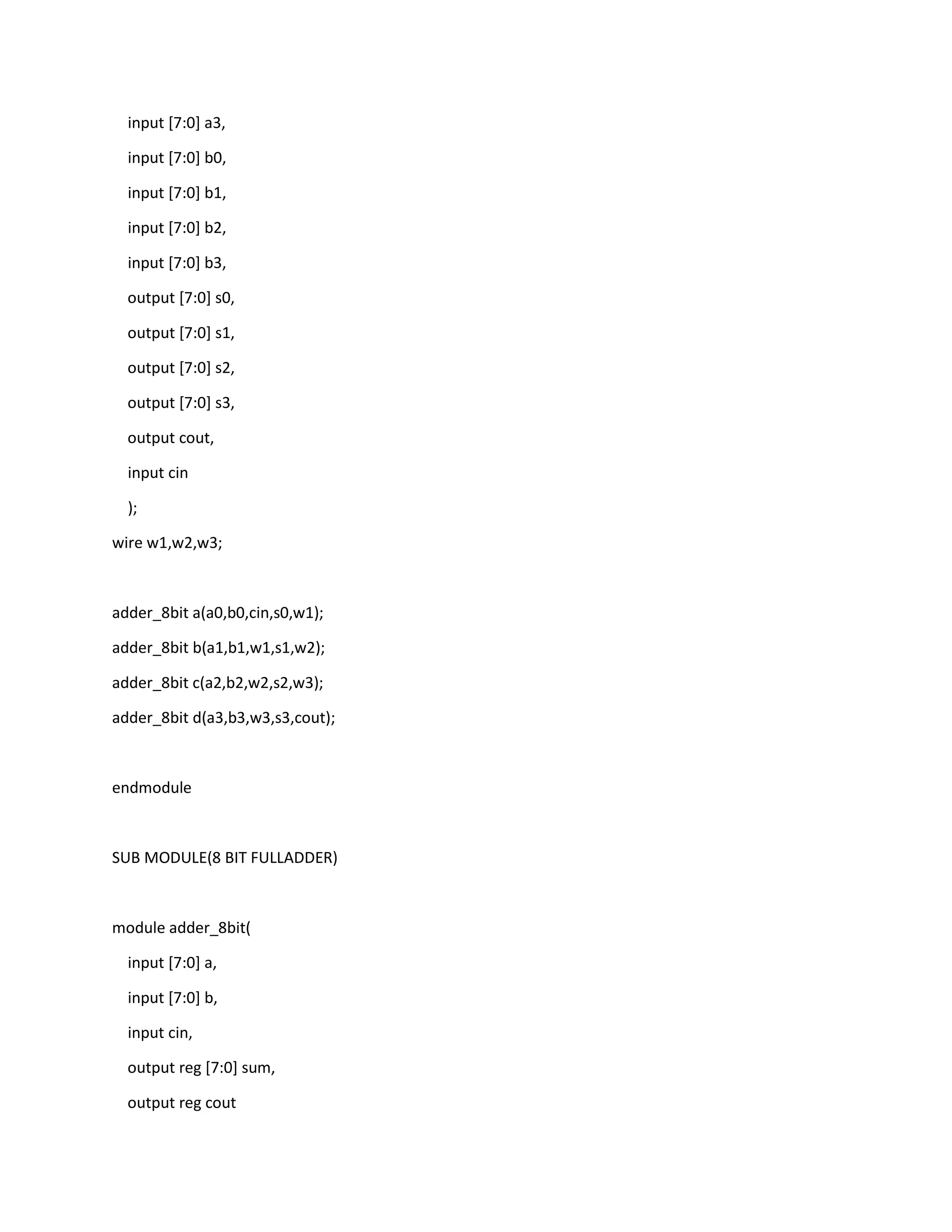

12. input [7:0] a3,
input [7:0] b0,
input [7:0] b1,
input [7:0] b2,
input [7:0] b3,
output [7:0] s0,
output [7:0] s1,
output [7:0] s2,
output [7:0] s3,
output cout,
input cin
);
wire w1,w2,w3;
adder_8bit a(a0,b0,cin,s0,w1);
adder_8bit b(a1,b1,w1,s1,w2);
adder_8bit c(a2,b2,w2,s2,w3);
adder_8bit d(a3,b3,w3,s3,cout);
endmodule
SUB MODULE(8 BIT FULLADDER)
module adder_8bit(
input [7:0] a,
input [7:0] b,
input cin,
output reg [7:0] sum,
output reg cout

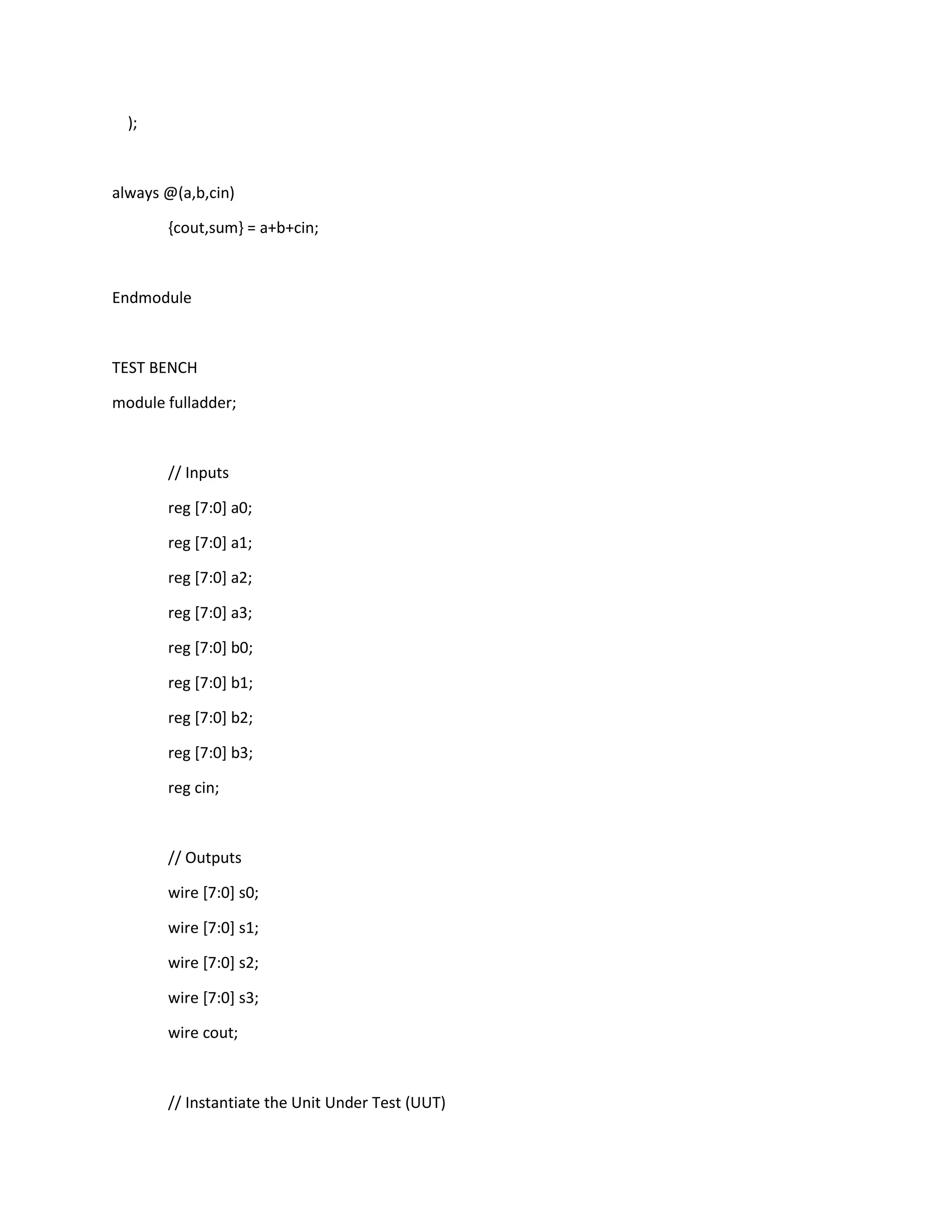

13. );
always @(a,b,cin)
{cout,sum} = a+b+cin;
Endmodule
TEST BENCH
module fulladder;
// Inputs
reg [7:0] a0;
reg [7:0] a1;
reg [7:0] a2;
reg [7:0] a3;
reg [7:0] b0;
reg [7:0] b1;
reg [7:0] b2;
reg [7:0] b3;
reg cin;
// Outputs
wire [7:0] s0;
wire [7:0] s1;
wire [7:0] s2;
wire [7:0] s3;
wire cout;
// Instantiate the Unit Under Test (UUT)

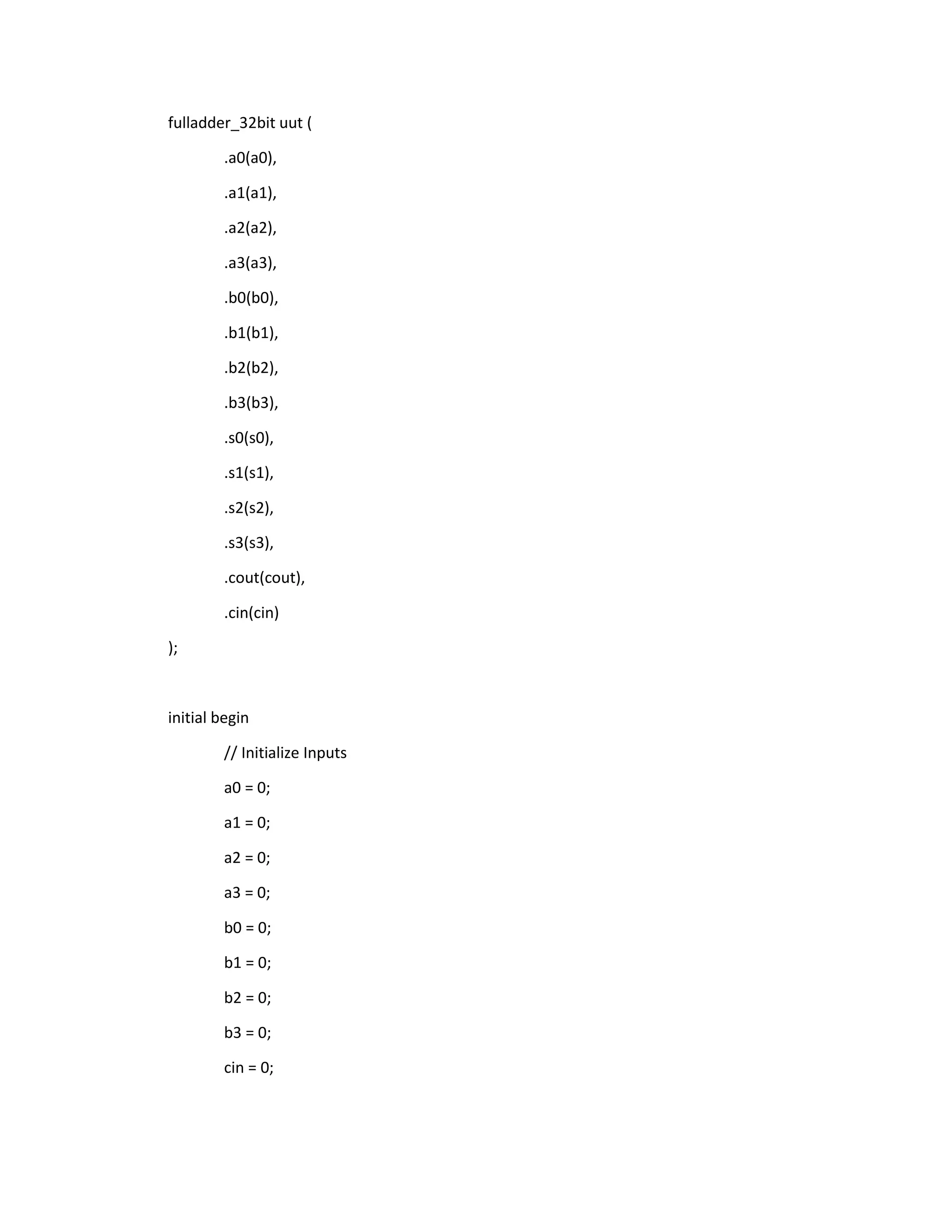

14. fulladder_32bit uut (
.a0(a0),
.a1(a1),
.a2(a2),
.a3(a3),
.b0(b0),
.b1(b1),
.b2(b2),
.b3(b3),
.s0(s0),
.s1(s1),
.s2(s2),
.s3(s3),
.cout(cout),
.cin(cin)
);
initial begin
// Initialize Inputs
a0 = 0;
a1 = 0;
a2 = 0;
a3 = 0;
b0 = 0;
b1 = 0;
b2 = 0;
b3 = 0;
cin = 0;

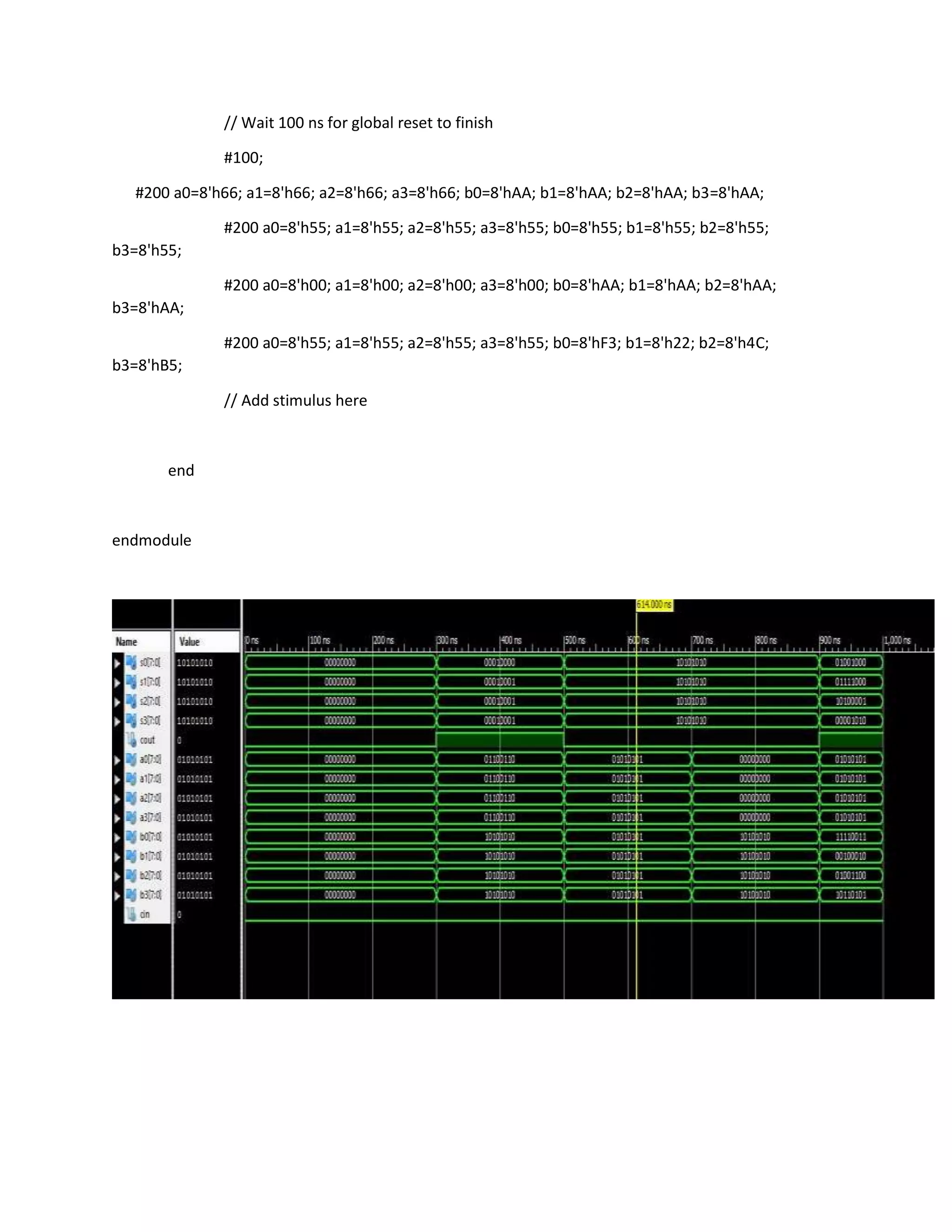

15. // Wait 100 ns for global reset to finish
#100;
#200 a0=8'h66; a1=8'h66; a2=8'h66; a3=8'h66; b0=8'hAA; b1=8'hAA; b2=8'hAA; b3=8'hAA;
#200 a0=8'h55; a1=8'h55; a2=8'h55; a3=8'h55; b0=8'h55; b1=8'h55; b2=8'h55;
b3=8'h55;
#200 a0=8'h00; a1=8'h00; a2=8'h00; a3=8'h00; b0=8'hAA; b1=8'hAA; b2=8'hAA;
b3=8'hAA;
#200 a0=8'h55; a1=8'h55; a2=8'h55; a3=8'h55; b0=8'hF3; b1=8'h22; b2=8'h4C;
b3=8'hB5;
// Add stimulus here
end
endmodule

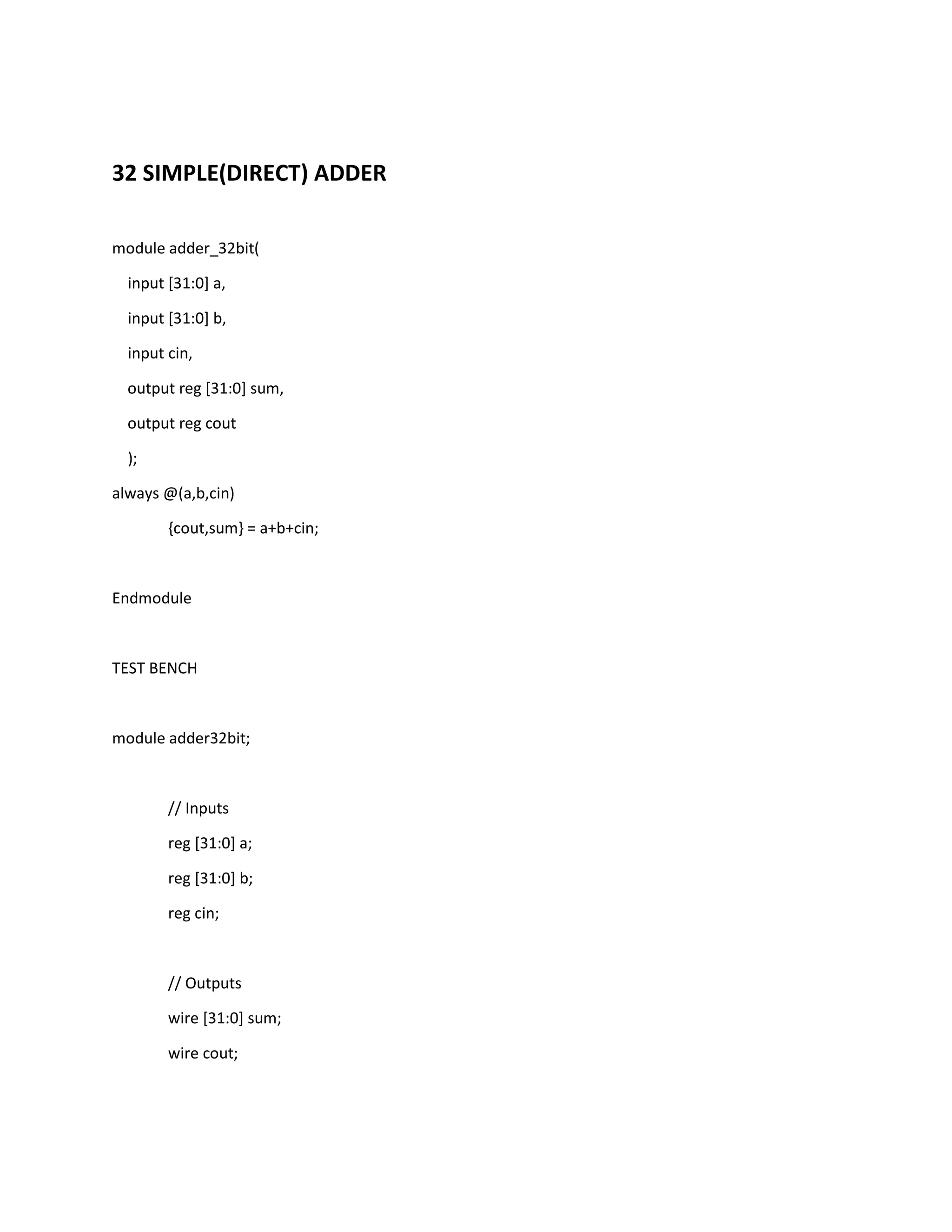

16. 32 SIMPLE(DIRECT) ADDER
module adder_32bit(
input [31:0] a,
input [31:0] b,
input cin,
output reg [31:0] sum,
output reg cout
);
always @(a,b,cin)
{cout,sum} = a+b+cin;
Endmodule
TEST BENCH
module adder32bit;
// Inputs
reg [31:0] a;
reg [31:0] b;
reg cin;
// Outputs
wire [31:0] sum;
wire cout;

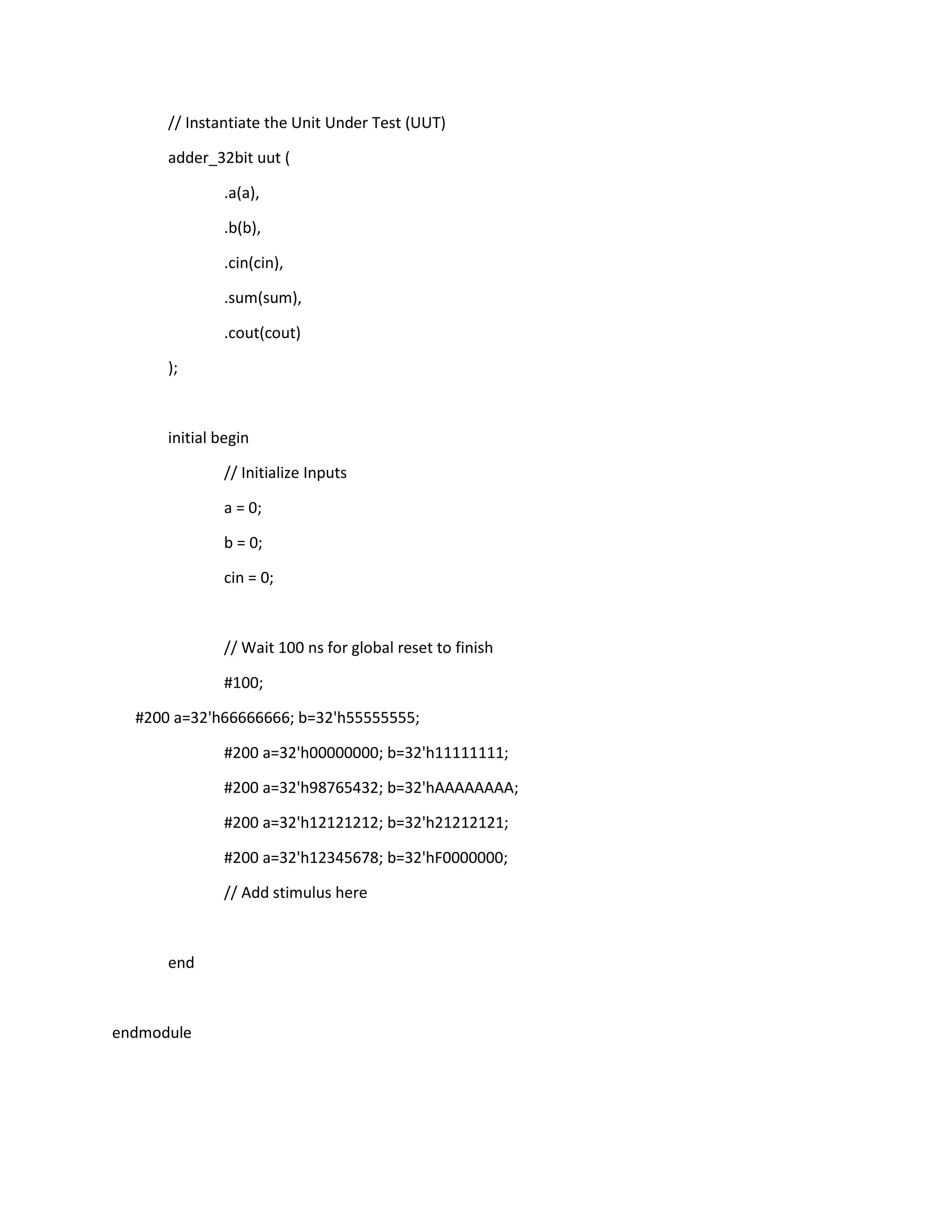

17. // Instantiate the Unit Under Test (UUT)
adder_32bit uut (
.a(a),
.b(b),
.cin(cin),
.sum(sum),
.cout(cout)
);
initial begin
// Initialize Inputs
a = 0;
b = 0;
cin = 0;
// Wait 100 ns for global reset to finish
#100;
#200 a=32'h66666666; b=32'h55555555;
#200 a=32'h00000000; b=32'h11111111;
#200 a=32'h98765432; b=32'hAAAAAAAA;
#200 a=32'h12121212; b=32'h21212121;
#200 a=32'h12345678; b=32'hF0000000;
// Add stimulus here
end
endmodule

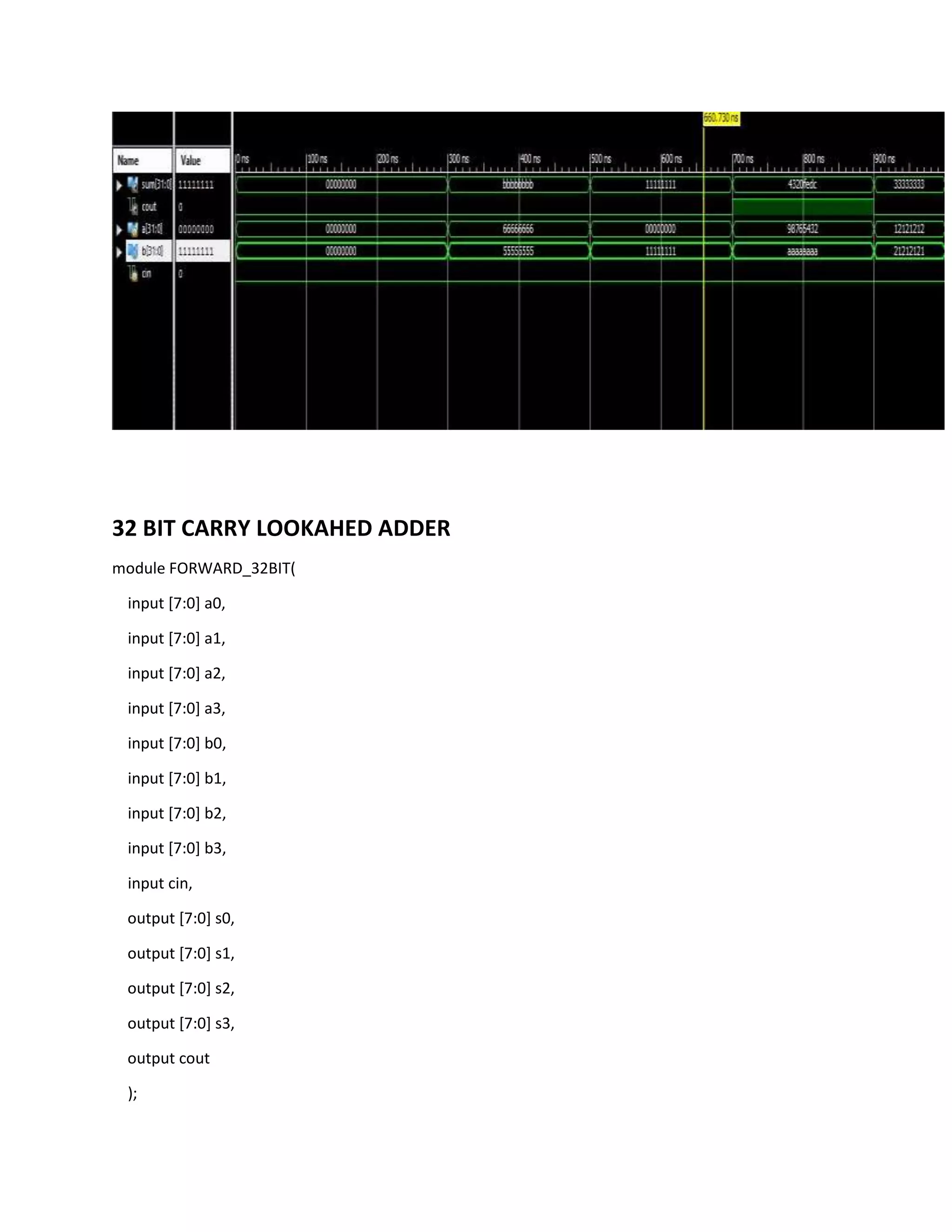

18. 32 BIT CARRY LOOKAHED ADDER
module FORWARD_32BIT(
input [7:0] a0,
input [7:0] a1,
input [7:0] a2,
input [7:0] a3,
input [7:0] b0,
input [7:0] b1,
input [7:0] b2,
input [7:0] b3,
input cin,
output [7:0] s0,
output [7:0] s1,
output [7:0] s2,
output [7:0] s3,
output cout
);

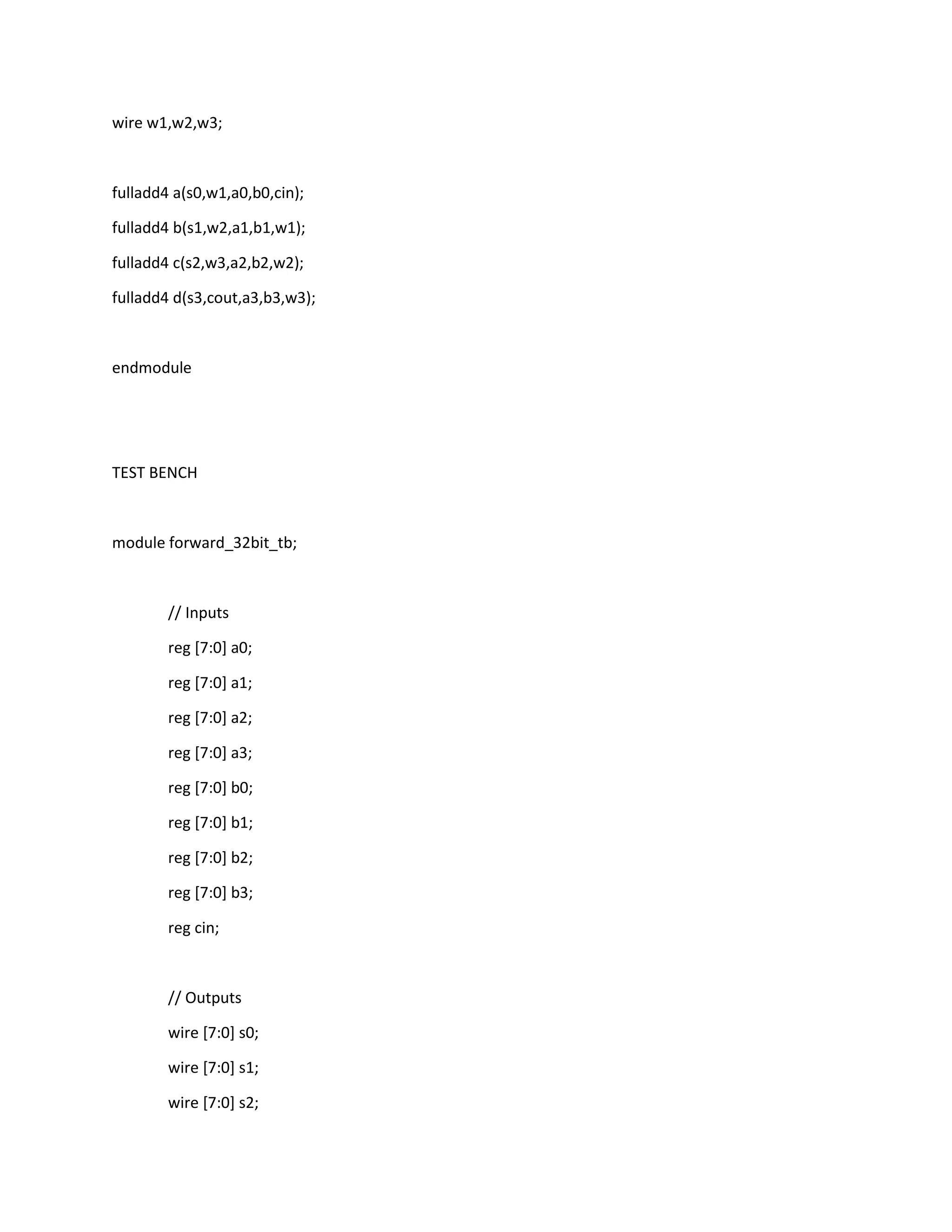

19. wire w1,w2,w3;
fulladd4 a(s0,w1,a0,b0,cin);
fulladd4 b(s1,w2,a1,b1,w1);
fulladd4 c(s2,w3,a2,b2,w2);
fulladd4 d(s3,cout,a3,b3,w3);
endmodule
TEST BENCH
module forward_32bit_tb;
// Inputs
reg [7:0] a0;
reg [7:0] a1;
reg [7:0] a2;
reg [7:0] a3;
reg [7:0] b0;
reg [7:0] b1;
reg [7:0] b2;
reg [7:0] b3;
reg cin;
// Outputs
wire [7:0] s0;
wire [7:0] s1;
wire [7:0] s2;

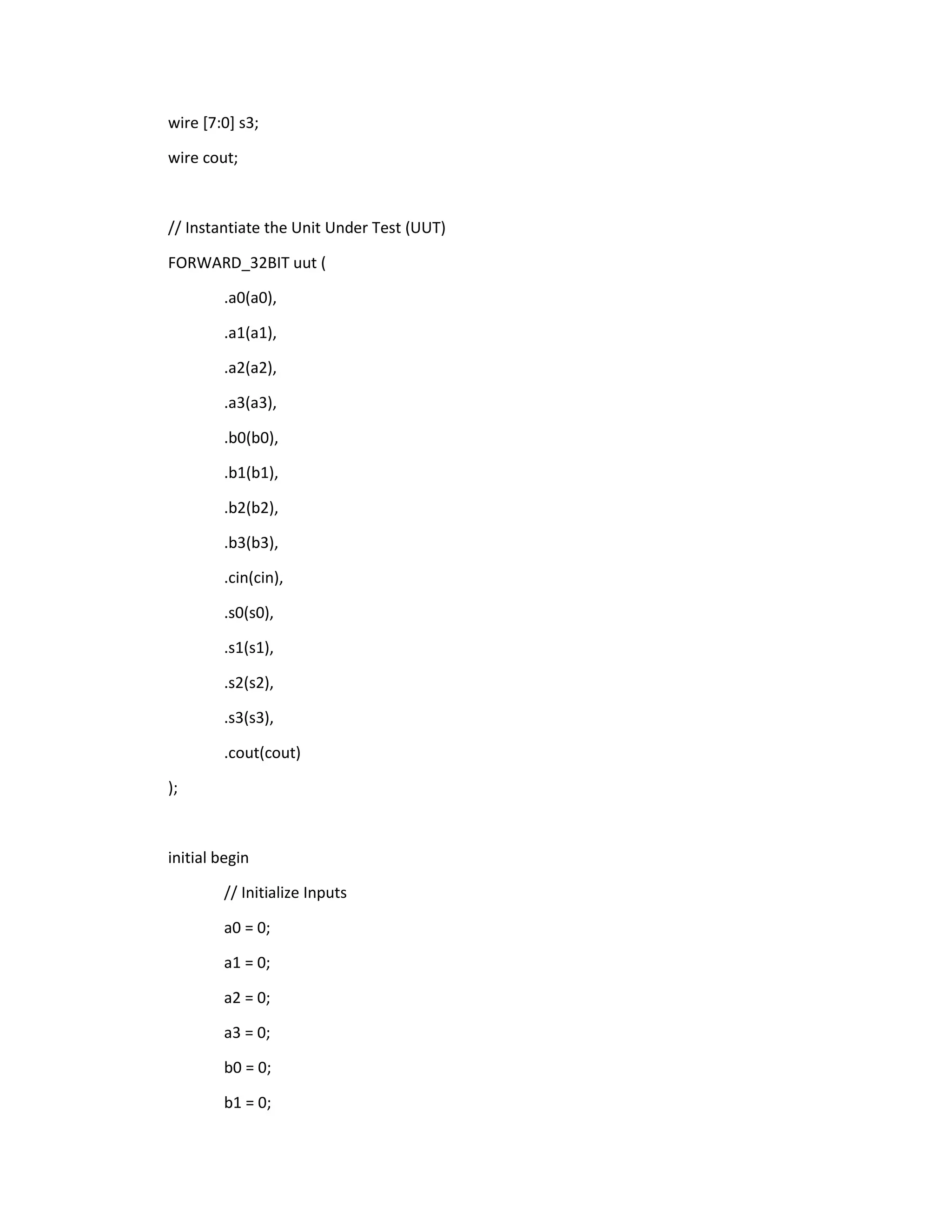

20. wire [7:0] s3;
wire cout;
// Instantiate the Unit Under Test (UUT)
FORWARD_32BIT uut (
.a0(a0),
.a1(a1),
.a2(a2),
.a3(a3),
.b0(b0),
.b1(b1),
.b2(b2),
.b3(b3),
.cin(cin),
.s0(s0),
.s1(s1),
.s2(s2),
.s3(s3),
.cout(cout)
);
initial begin
// Initialize Inputs
a0 = 0;
a1 = 0;
a2 = 0;
a3 = 0;
b0 = 0;
b1 = 0;

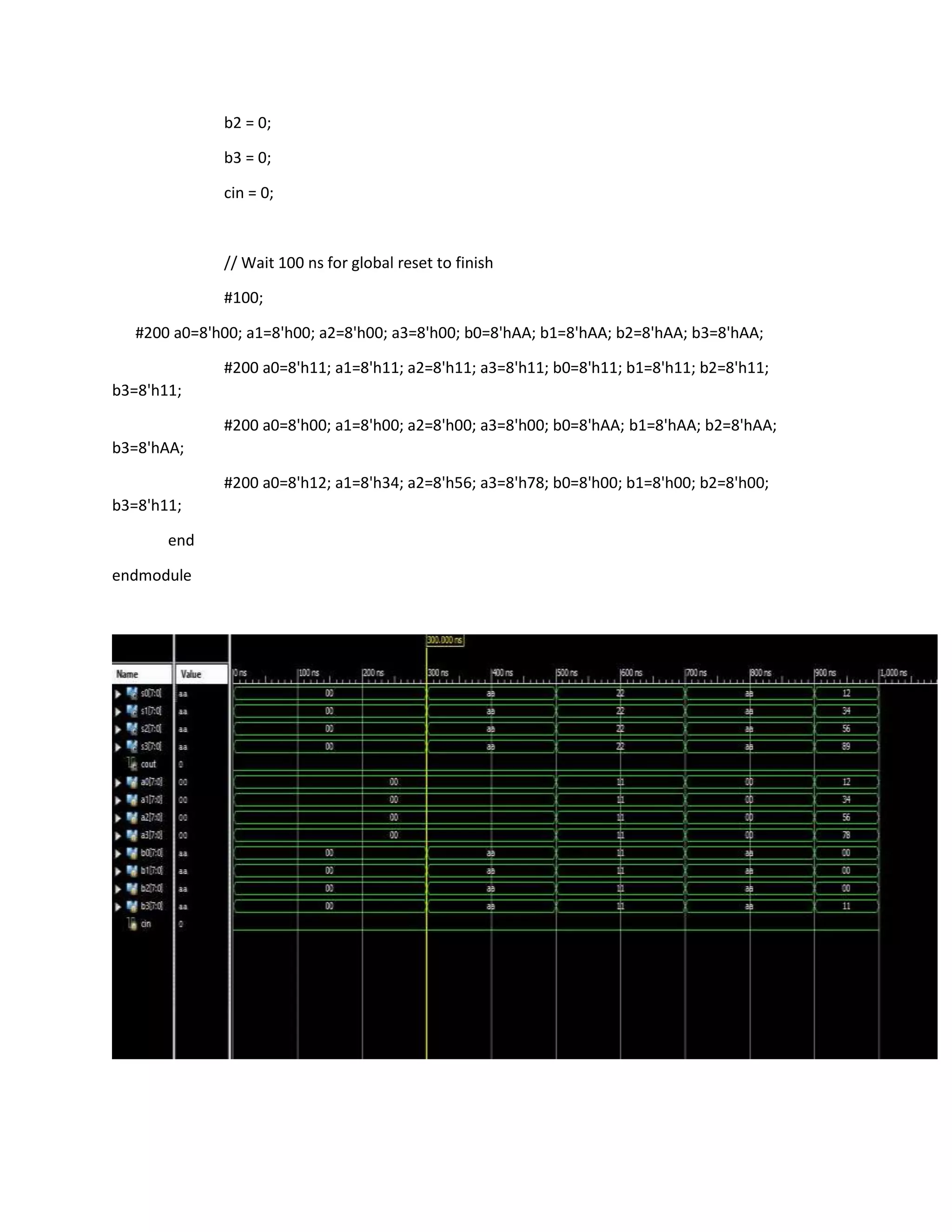

21. b2 = 0;
b3 = 0;
cin = 0;
// Wait 100 ns for global reset to finish
#100;
#200 a0=8'h00; a1=8'h00; a2=8'h00; a3=8'h00; b0=8'hAA; b1=8'hAA; b2=8'hAA; b3=8'hAA;
#200 a0=8'h11; a1=8'h11; a2=8'h11; a3=8'h11; b0=8'h11; b1=8'h11; b2=8'h11;
b3=8'h11;
#200 a0=8'h00; a1=8'h00; a2=8'h00; a3=8'h00; b0=8'hAA; b1=8'hAA; b2=8'hAA;
b3=8'hAA;
#200 a0=8'h12; a1=8'h34; a2=8'h56; a3=8'h78; b0=8'h00; b1=8'h00; b2=8'h00;
b3=8'h11;
end
endmodule

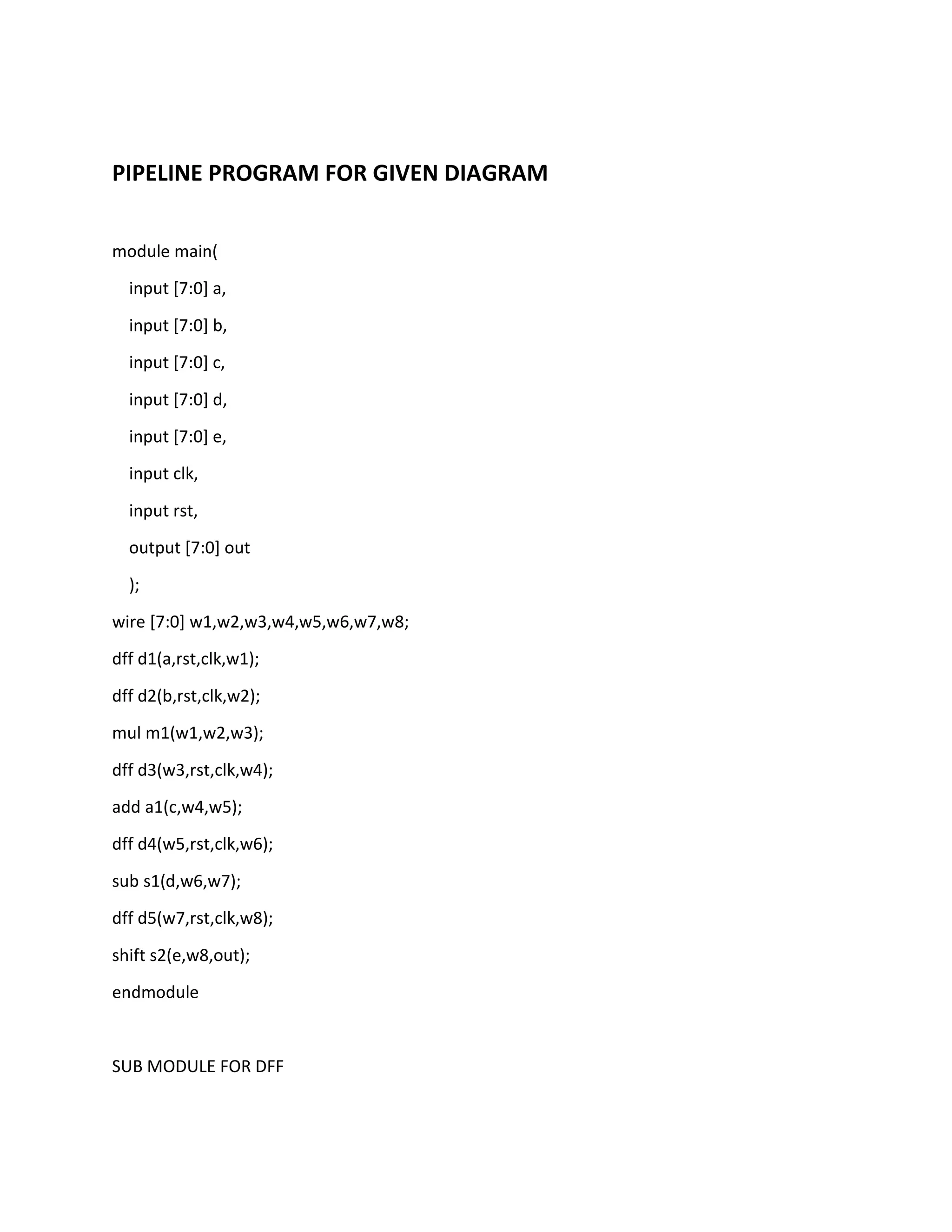

22. PIPELINE PROGRAM FOR GIVEN DIAGRAM
module main(
input [7:0] a,
input [7:0] b,
input [7:0] c,
input [7:0] d,
input [7:0] e,
input clk,
input rst,
output [7:0] out
);
wire [7:0] w1,w2,w3,w4,w5,w6,w7,w8;
dff d1(a,rst,clk,w1);
dff d2(b,rst,clk,w2);
mul m1(w1,w2,w3);
dff d3(w3,rst,clk,w4);
add a1(c,w4,w5);
dff d4(w5,rst,clk,w6);
sub s1(d,w6,w7);
dff d5(w7,rst,clk,w8);
shift s2(e,w8,out);
endmodule
SUB MODULE FOR DFF

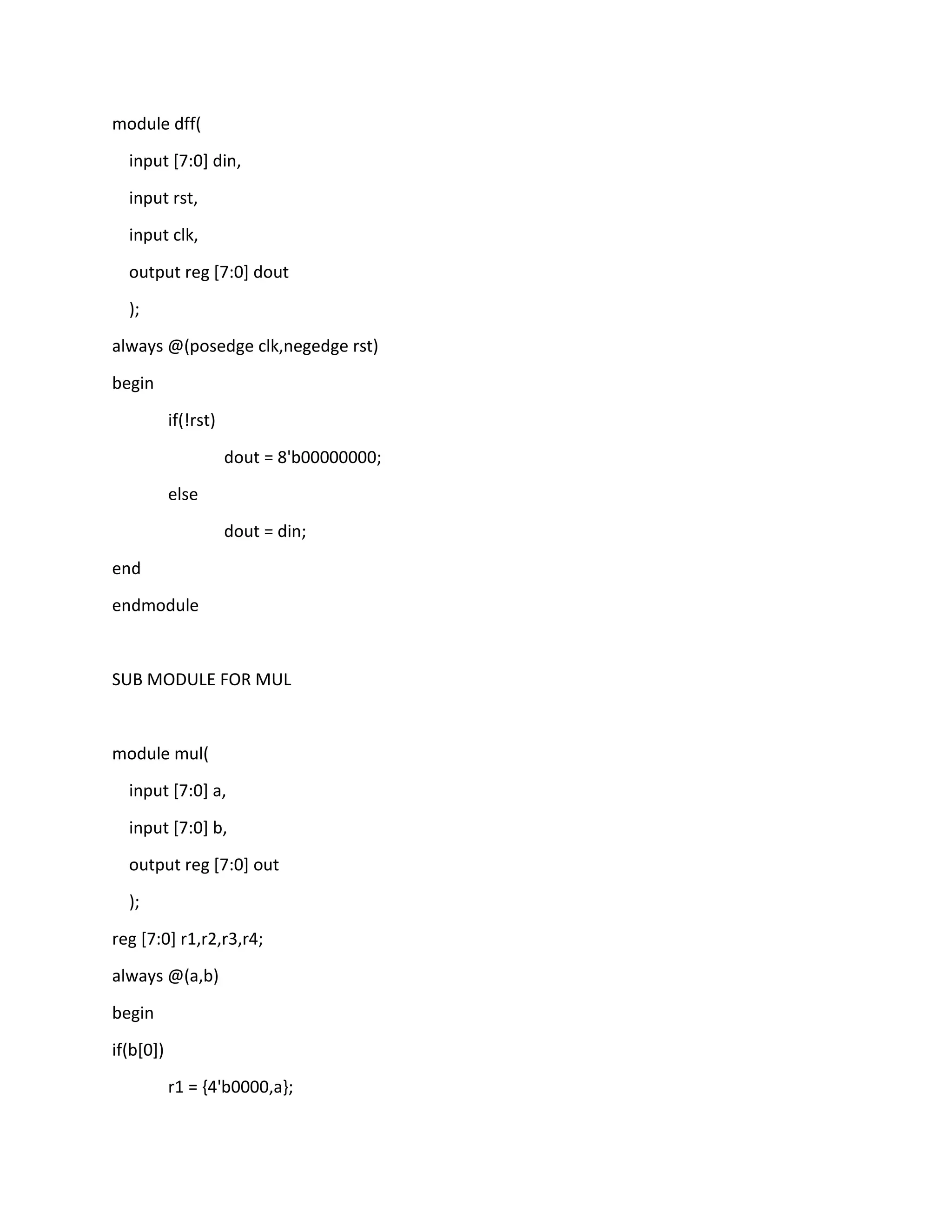

23. module dff(
input [7:0] din,
input rst,
input clk,
output reg [7:0] dout
);
always @(posedge clk,negedge rst)
begin
if(!rst)
dout = 8'b00000000;
else
dout = din;
end
endmodule
SUB MODULE FOR MUL
module mul(
input [7:0] a,
input [7:0] b,
output reg [7:0] out
);
reg [7:0] r1,r2,r3,r4;
always @(a,b)
begin
if(b[0])
r1 = {4'b0000,a};

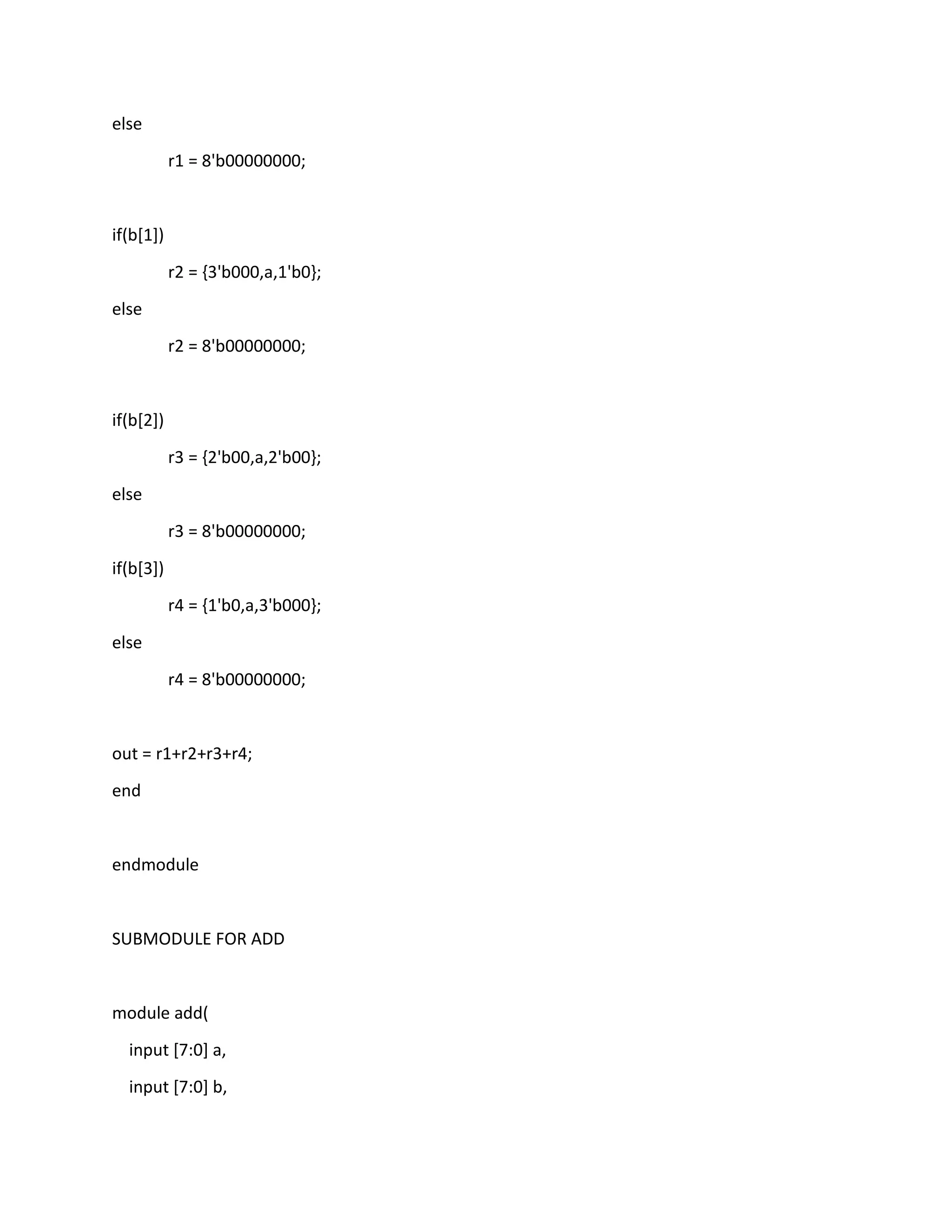

24. else
r1 = 8'b00000000;
if(b[1])
r2 = {3'b000,a,1'b0};
else
r2 = 8'b00000000;
if(b[2])
r3 = {2'b00,a,2'b00};
else
r3 = 8'b00000000;
if(b[3])
r4 = {1'b0,a,3'b000};
else
r4 = 8'b00000000;
out = r1+r2+r3+r4;
end
endmodule
SUBMODULE FOR ADD
module add(
input [7:0] a,
input [7:0] b,

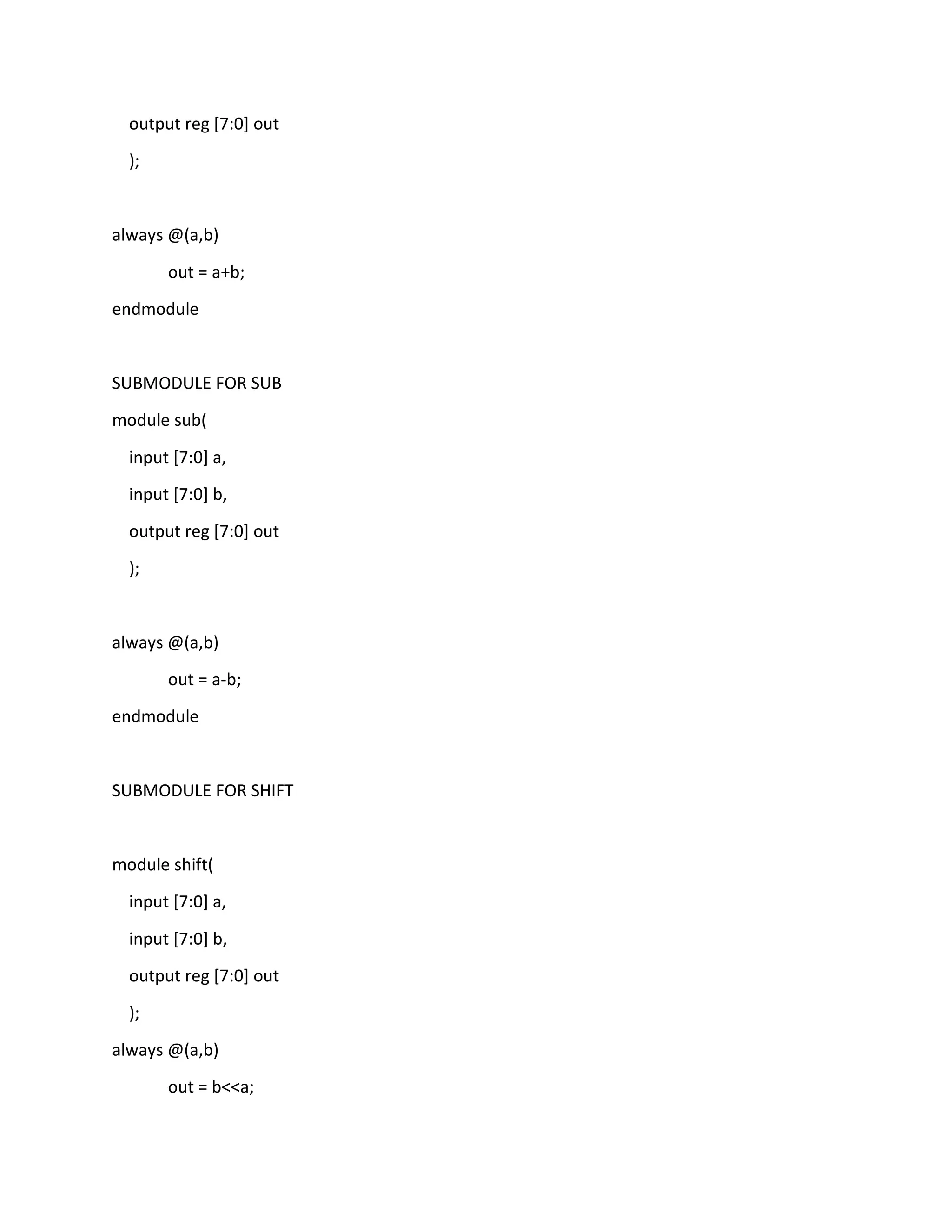

25. output reg [7:0] out
);
always @(a,b)
out = a+b;
endmodule
SUBMODULE FOR SUB
module sub(
input [7:0] a,
input [7:0] b,
output reg [7:0] out
);
always @(a,b)
out = a-b;
endmodule
SUBMODULE FOR SHIFT
module shift(
input [7:0] a,
input [7:0] b,
output reg [7:0] out
);
always @(a,b)
out = b<<a;

26. endmodule

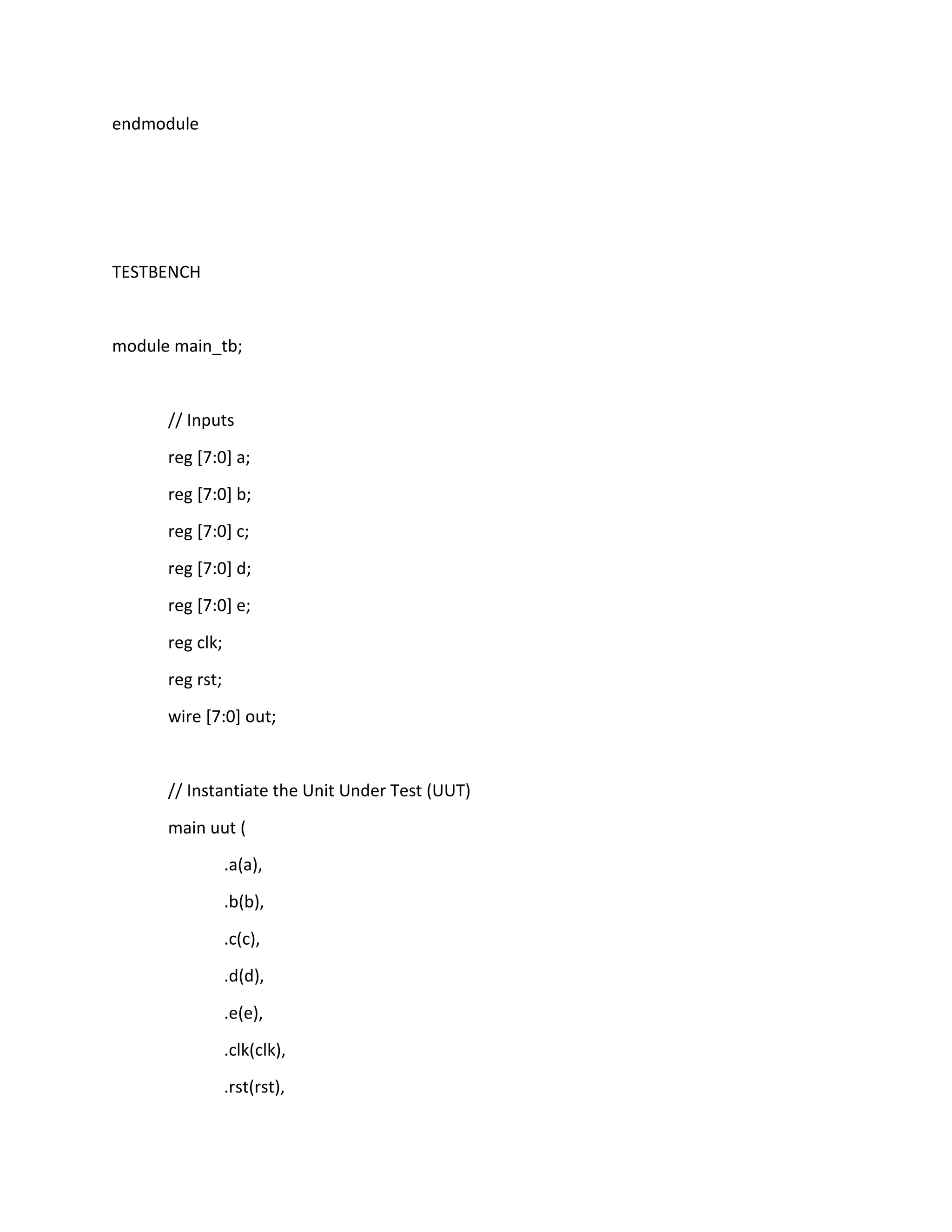

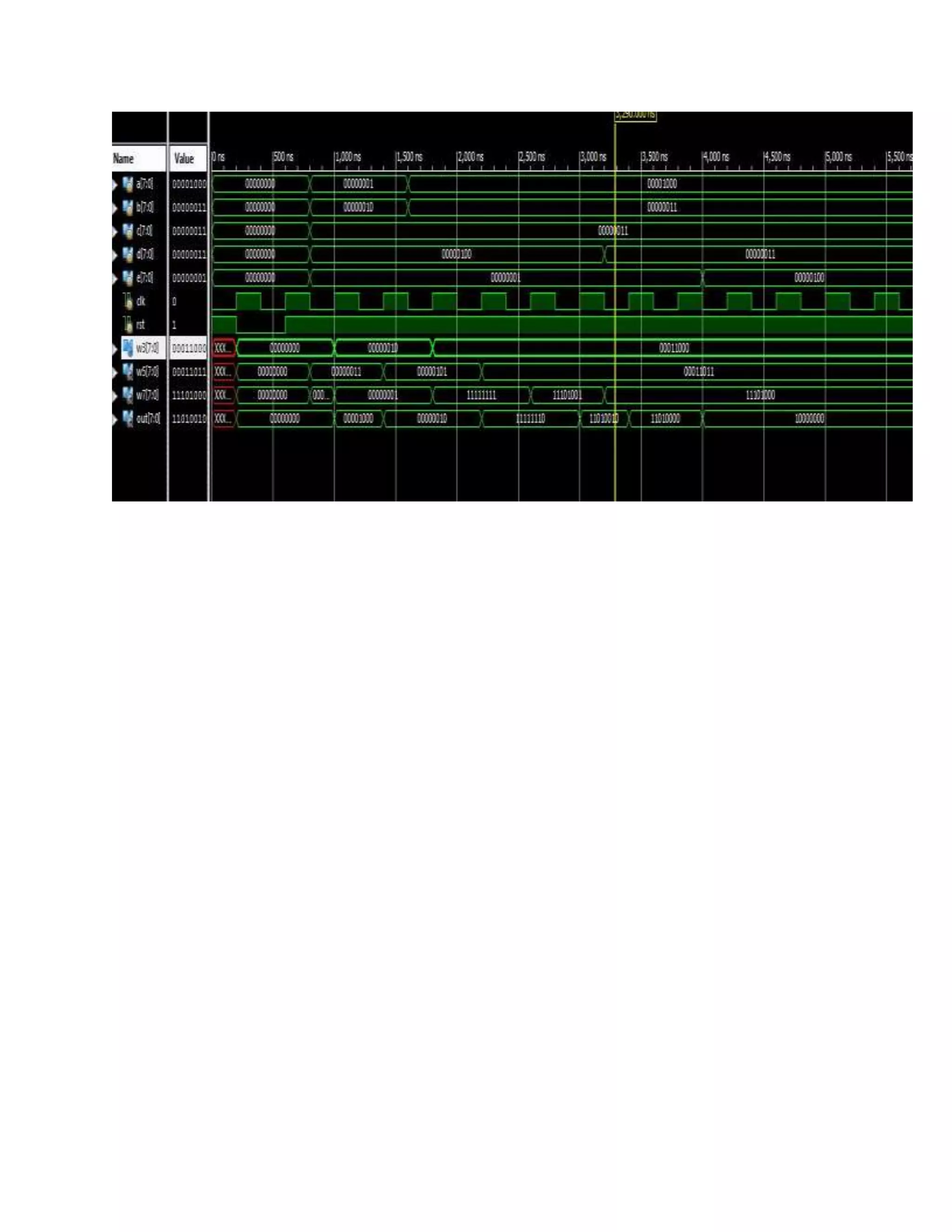

TESTBENCH
module main_tb;
// Inputs
reg [7:0] a;
reg [7:0] b;
reg [7:0] c;
reg [7:0] d;
reg [7:0] e;
reg clk;
reg rst;
wire [7:0] out;
// Instantiate the Unit Under Test (UUT)
main uut (
.a(a),
.b(b),
.c(c),
.d(d),
.e(e),
.clk(clk),
.rst(rst),

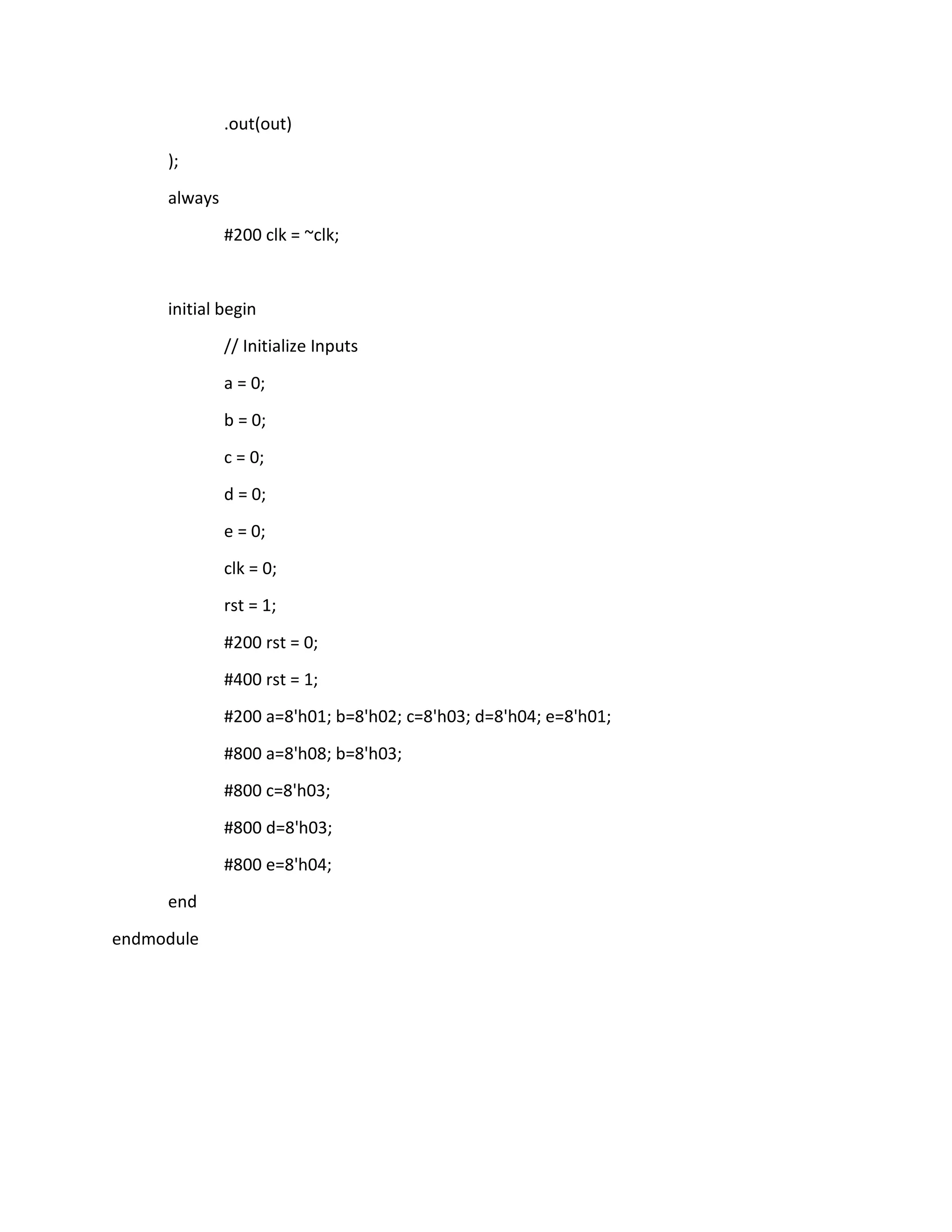

27. .out(out)
);
always
#200 clk = ~clk;
initial begin
// Initialize Inputs
a = 0;
b = 0;
c = 0;
d = 0;
e = 0;
clk = 0;
rst = 1;
#200 rst = 0;
#400 rst = 1;
#200 a=8'h01; b=8'h02; c=8'h03; d=8'h04; e=8'h01;
#800 a=8'h08; b=8'h03;
#800 c=8'h03;
#800 d=8'h03;
#800 e=8'h04;
end
endmodule
